Side Tipper Semi-Trailer
Side tipper semi-trailer is designed for efficient transportation and quick unloading of bulk materials such as sand, gravel, coal, ore, aggregates, soil and construction waste. Compared with traditional rear dump trailers, the side tipping structure allows materials to be unloaded from the side, making it suitable for construction sites, mining areas, road projects and material yards with limited unloading space. The trailer adopts a reinforced cargo box, high-strength steel chassis, heavy-duty hydraulic lifting system and reliable axle suspension system. Cargo box volume, payload capacity, axle quantity, side wall height, hydraulic system, tire model, color and other configurations can be customized according to customer transport requirements and local road conditions.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Side Tipper Semi-Trailer / Side Dump Semi-Trailer |
| Overall Dimension | Approx. 9,500-13,500 mm L x 2,500-2,550 mm W x 3,000-3,800 mm H |
| Cargo Box Volume | Approx. 25-60 m3, customized according to cargo type |
| Loading Capacity | Approx. 30-100 tons, customizable |
| Axle Quantity | 2 axles / 3 axles / 4 axles / multi-axle design |
| Axle Capacity | 13T / 16T axle, optional FUWA, BPW or Chinese brand |
| Tipping Direction | Left side / Right side / Both sides optional |
| Tipping Angle | Approx. 45-50 degrees, optional up to 55 degrees |
| Hydraulic System | Full set hydraulic lifting system |
| Hydraulic Cylinder | Single-cylinder or multi-cylinder side tipping system, optional HYVA or equivalent brand |
| Cargo Box Material | Q345 / Q550 / T700 high-strength steel, optional wear-resistant steel |
| Floor Thickness | Approx. 5-8 mm, heavy-duty version customizable |
| Side Wall Thickness | Approx. 4-8 mm, customizable |
| Side Wall Height | Approx. 900-2,200 mm, customized according to volume requirement |
| Main Beam Material | High-strength steel such as Q345 / Q550 / T700 |
| Main Beam Height | Approx. 450-550 mm |
| Suspension | Mechanical leaf spring suspension or air suspension |
| Tire Model | 11R22.5 / 12R22.5 / 315/80R22.5 / 12.00R20 |
| Tire Quantity | 8 / 12 / 16 tires, depending on axle quantity |
| King Pin | 2 inch or 3.5 inch |
| Landing Gear | 28T heavy-duty landing gear |
| Brake System | Dual-line pneumatic brake system, optional ABS |
| Electrical System | 24V lighting system |
| Color | Red, white, blue, green, yellow or customized |
| Surface Treatment | Sand blasting, anti-rust primer and top coat painting |
| Customization | Dimension, volume, payload, axle brand, hydraulic system, suspension, tires, color and accessories |

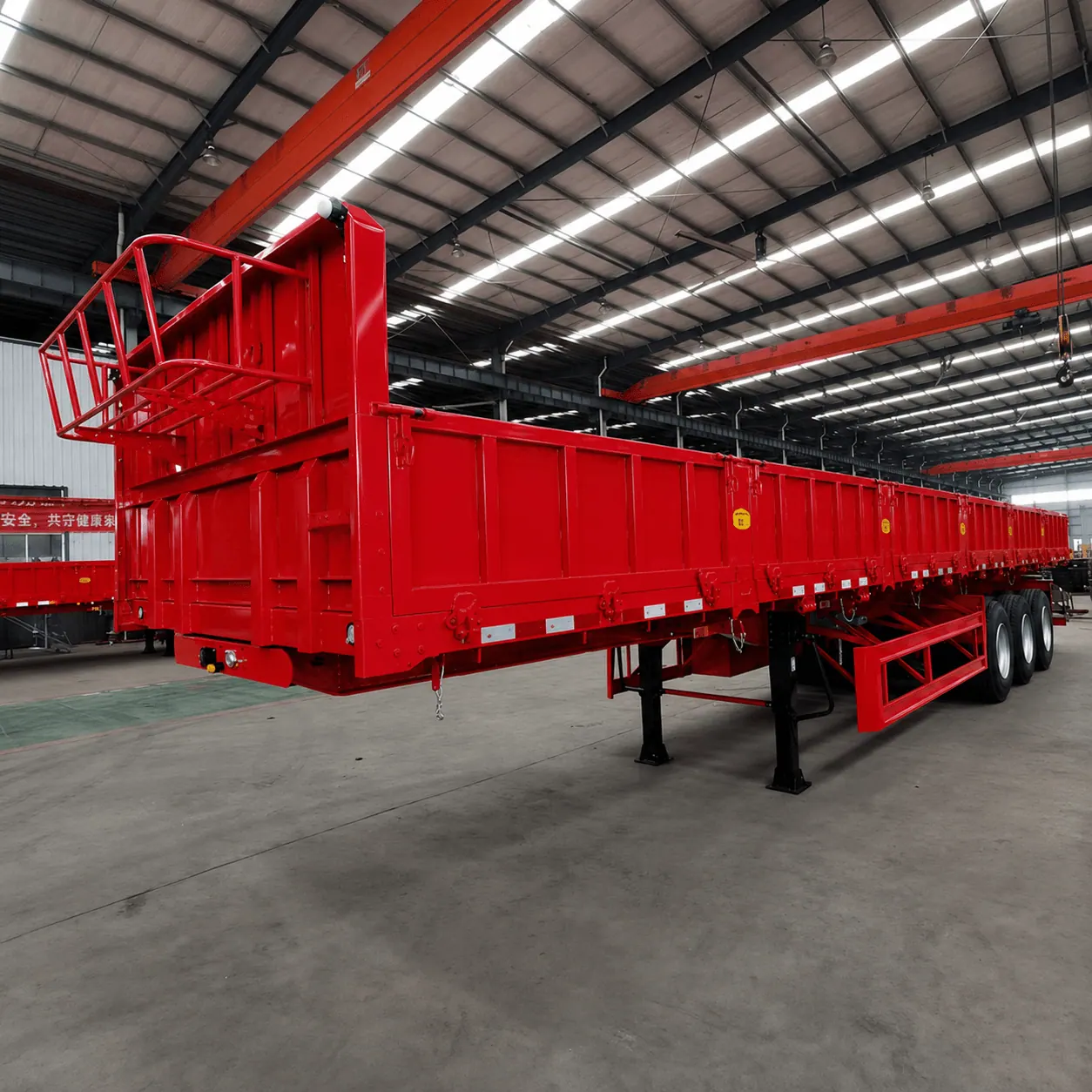

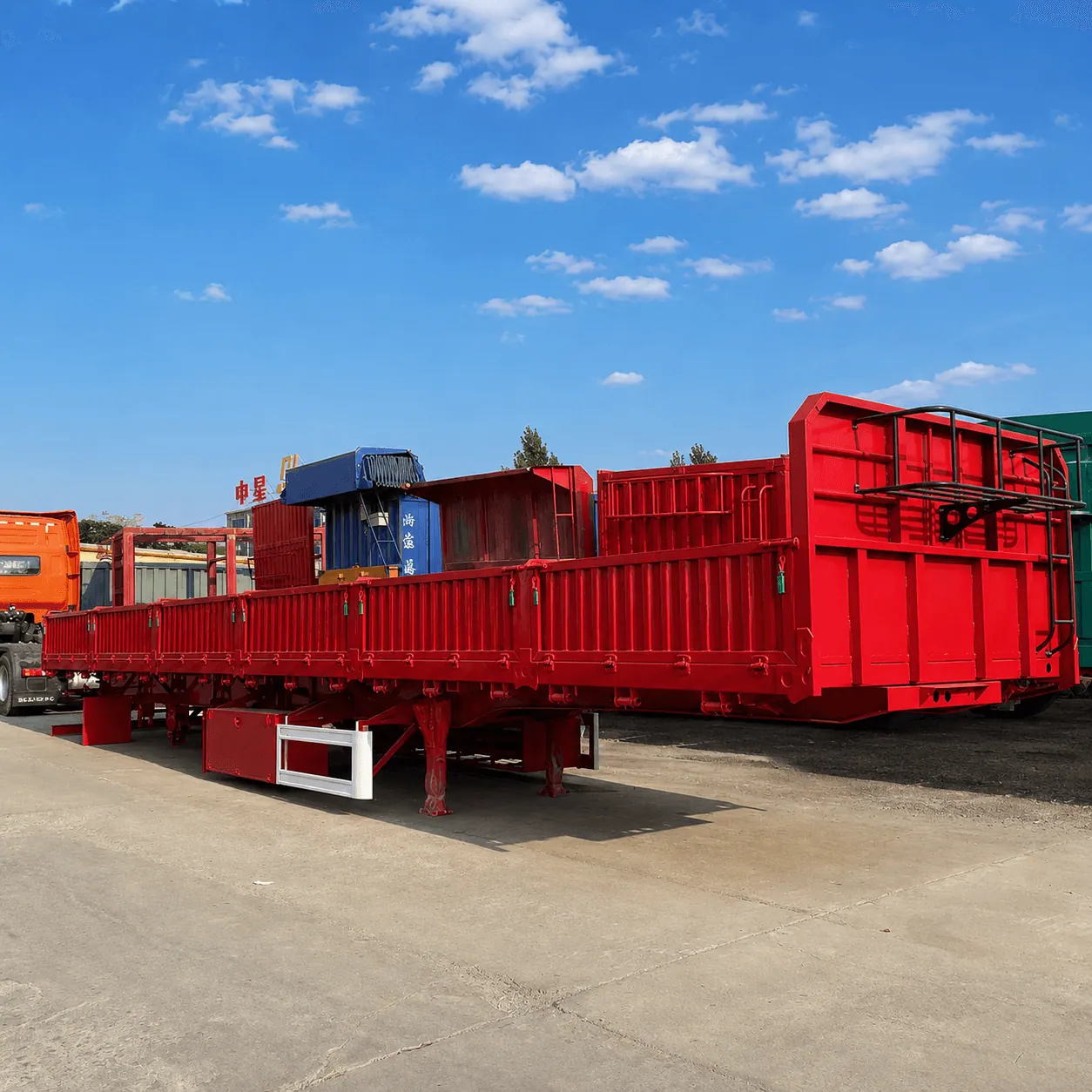

Product Details
Typical Applications
- Mining material transportation
- sand, gravel and aggregate transport
- coal and ore transport
- road construction projects
- earthwork and soil transport
- construction waste transfer
- cement plant and quarry transport
- material yard unloading
- large-scale infrastructure projects
- bulk cargo transportation requiring fast side unloading.
Available Configurations
- 2/3/4 axle or multi-axle design
- 30T, 40T, 50T, 60T, 80T, 100T payload design
- left side tipping, right side tipping or double-side tipping
- HYVA hydraulic cylinder or Chinese hydraulic system
- mechanical suspension or air suspension
- FUWA / BPW / Chinese brand axle
- 11R22.5, 12R22.5, 315/80R22.5 tires
- reinforced cargo box
- thickened floor plate
- wear-resistant steel plate
- ABS braking system
- JOST landing gear and king pin
- spare tire carrier
- tool box
- tarpaulin system
- customized paint color and logo.
Buyer Support
- Hydraulic side tipping design improves unloading efficiency
- suitable for sand, gravel, coal, ore, soil and other bulk materials
- reinforced cargo box and chassis for heavy-duty working conditions
- high-strength steel structure improves loading capacity and anti-deformation performance
- side unloading is suitable for narrow sites and material yards
- multiple hydraulic cylinder options for stable lifting performance
- customizable volume and payload for different markets
- durable painting process provides better anti-rust protection
- factory direct supply with customized production support.

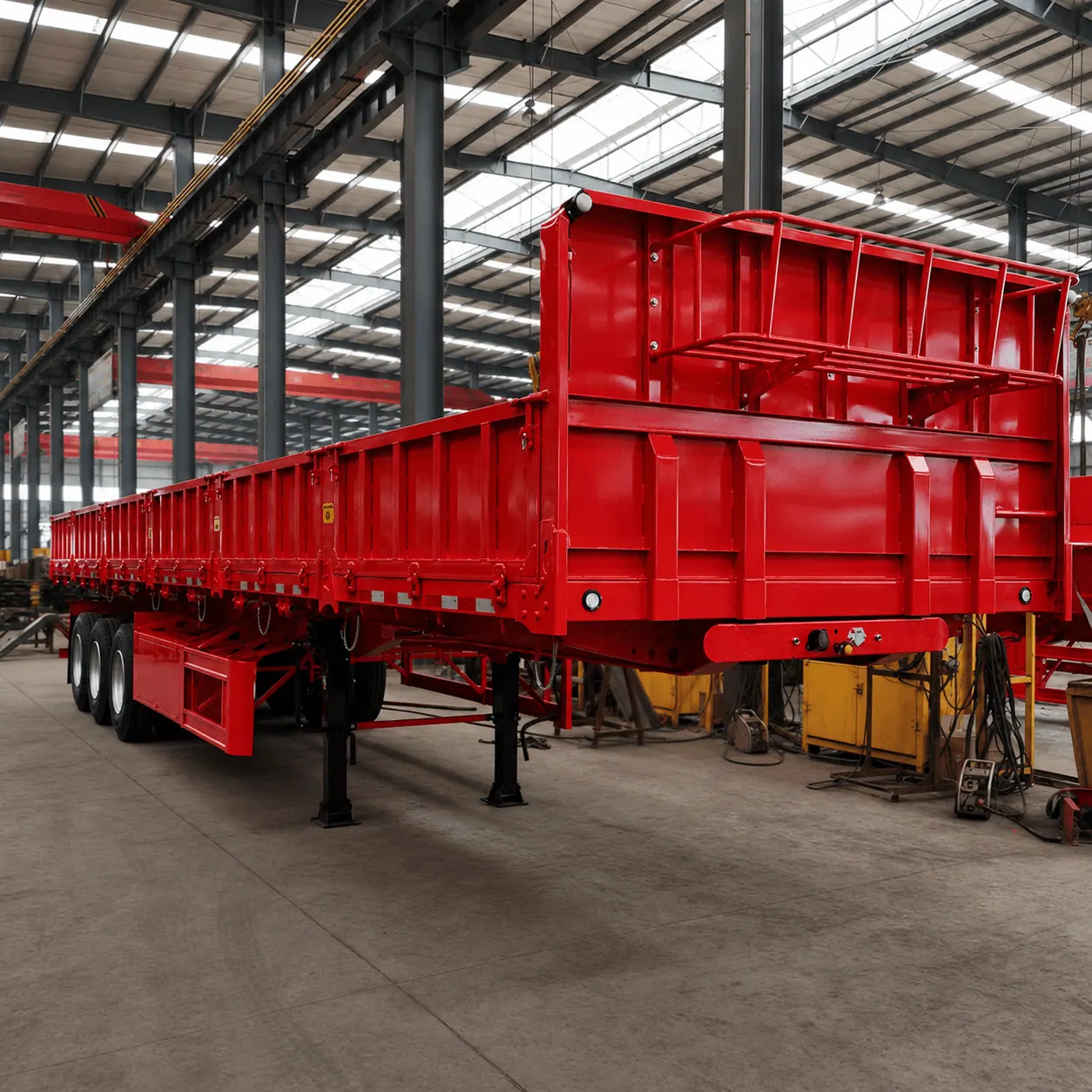

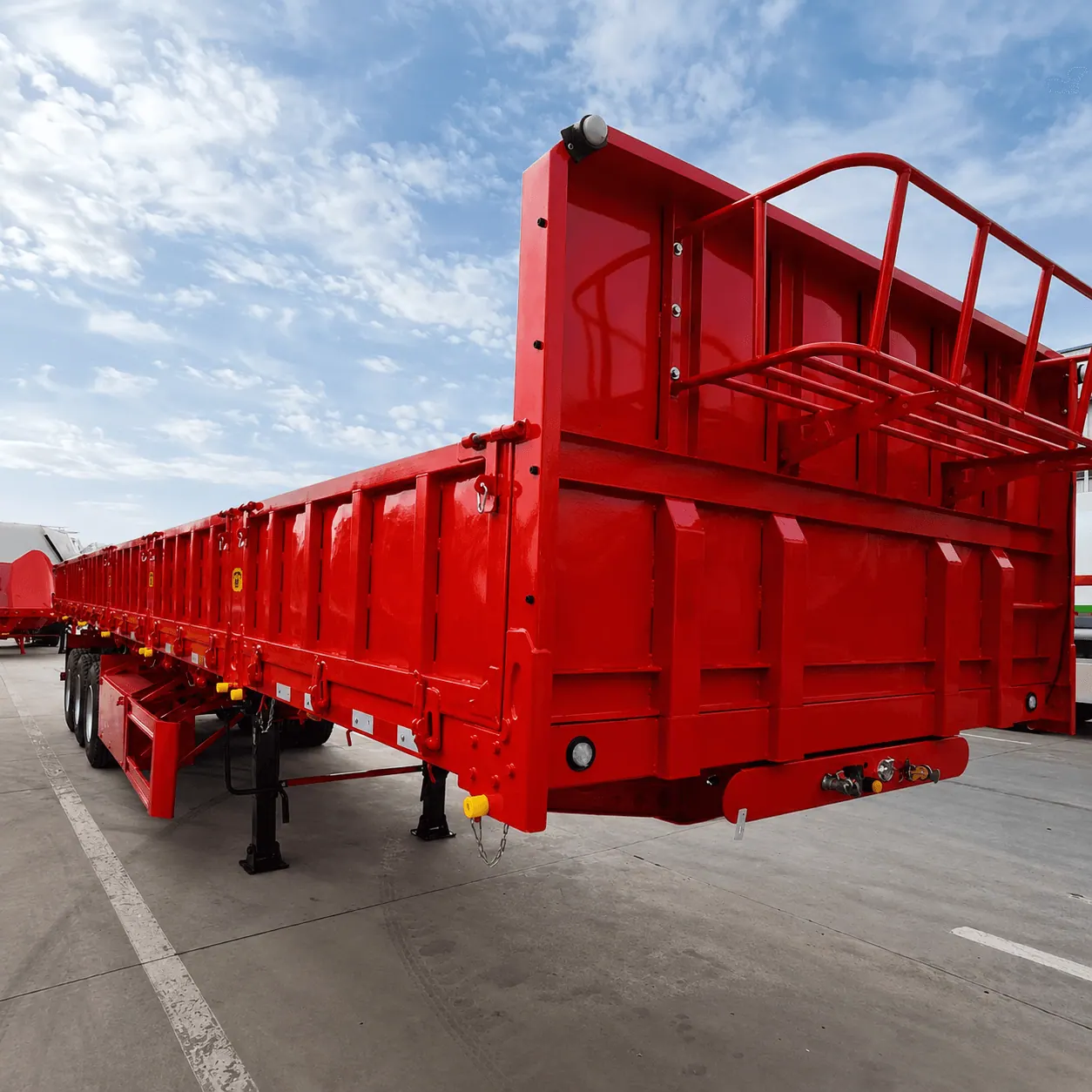

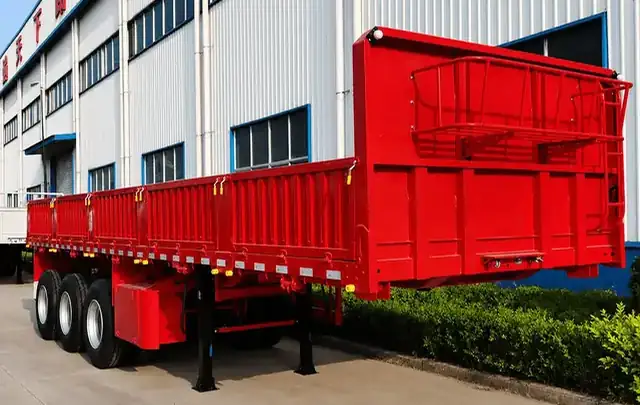

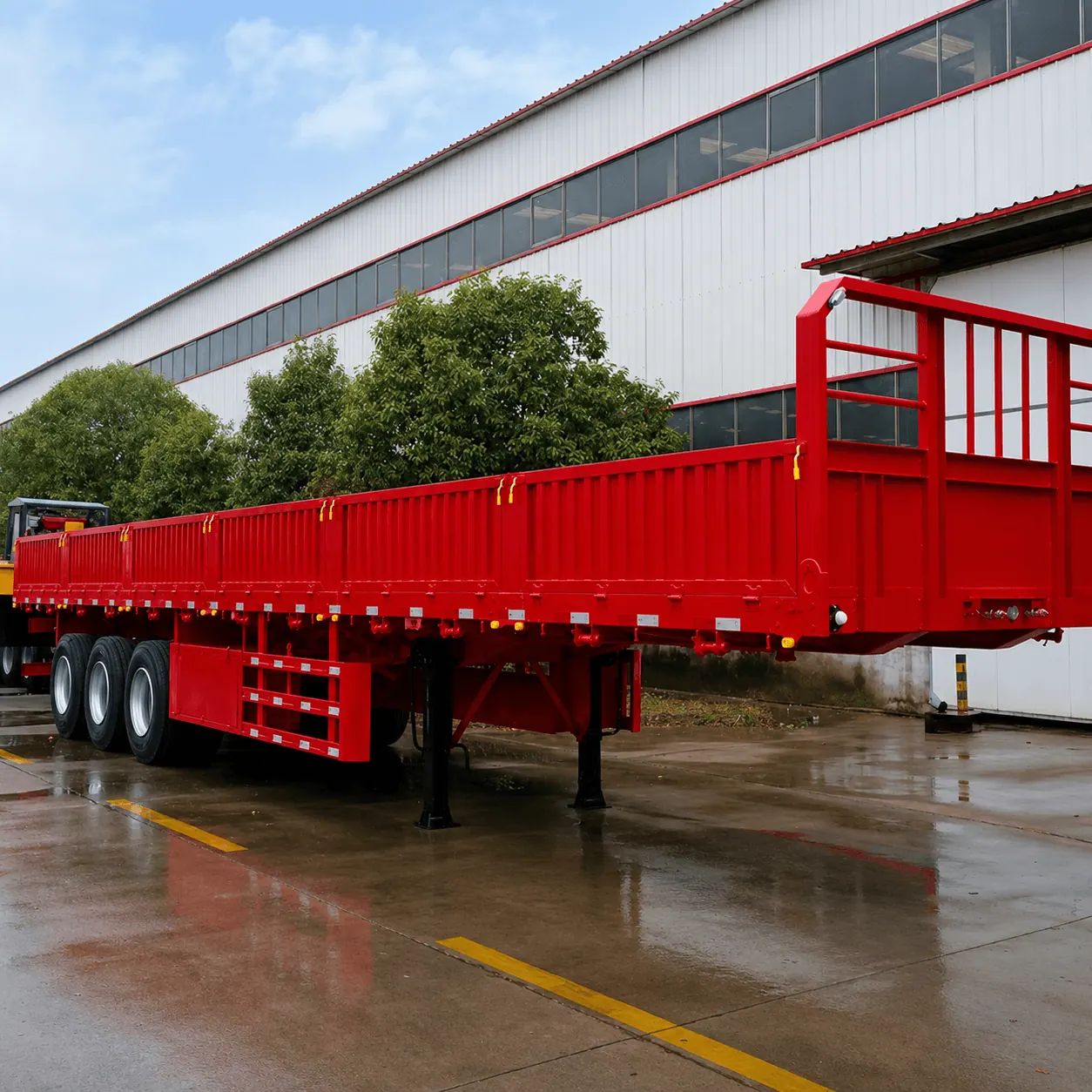

Product Display
