Semi Trailers
Car Carrier Semi-Trailer
Car carrier semi-trailer is designed for transporting passenger cars, SUVs, pickup trucks, commercial vehicles and new or used vehicles. It is widely used by automobile manufacturers, vehicle dealers, logistics companies, ports, vehicle storage yards and export transportation businesses.,The trailer adopts a double-deck loading structure, high-strength steel frame, hydraulic lifting platform and reliable vehicle fixing system to improve loading capacity and transport safety. Vehicle loading quantity, trailer length, axle quantity, lifting system, platform structure, tire model, color and other configurations can be customized according to customer requirements and local transport regulations.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Car Carrier Semi-Trailer / Vehicle Transport Semi-Trailer |
| Overall Dimension | Approx. 15,000-25,000 mm L x 2,500-2,550 mm W x 3,800-4,200 mm H |
| Loading Capacity | Approx. 6-12 vehicles, depending on vehicle size and trailer design |
| Payload | Approx. 20-50 tons, customizable |
| Deck Structure | Single-deck or double-deck design |
| Axle Quantity | 2 axles / 3 axles / 4 axles |
| Axle Capacity | 10T / 13T / 16T axle, optional FUWA, BPW or Chinese brand |
| Lifting System | Hydraulic lifting platform or mechanical lifting structure |
| Platform Material | Steel plate, punched plate or mesh platform |
| Main Frame Material | High-strength steel such as Q345 / Q550 |
| Main Beam Height | Approx. 300-500 mm, depending on design |
| Ramp Type | Rear loading ramp / hydraulic ramp / adjustable ramp |
| Vehicle Fixing | Tire straps, wheel stoppers, locking hooks and tie-down points |
| Suspension | Mechanical leaf spring suspension or air suspension |
| Tire Model | 245/70R17.5 / 11R22.5 / 12R22.5 |
| Tire Quantity | 8 / 12 / 16 tires, depending on axle quantity |
| King Pin | 2 inch or 3.5 inch |
| Landing Gear | 28T heavy-duty landing gear |
| Brake System | Dual-line pneumatic brake system, optional ABS |
| Electrical System | 24V lighting system, LED lights optional |
| Color | Black, gray, red, blue, white or customized |
| Surface Treatment | Sand blasting, anti-rust primer and top coat painting |
| Customization | Vehicle capacity, length, axle quantity, lifting system, platform structure, tires, color and accessories |
Product Details
Typical Applications
- New vehicle transportation
- Used car transportation
- Automobile dealer delivery
- Car rental fleet transfer
- Port vehicle logistics
- Export vehicle transportation
- Vehicle storage yard transfer
- Long-distance car transport
- SUV and pickup truck transportation
- Automobile manufacturer distribution
Available Configurations
- 2/3/4 axle design
- 6-car, 8-car, 10-car or 12-car loading design
- Single-deck or double-deck structure
- Hydraulic lifting platform
- Adjustable upper deck
- Rear loading ramp
- Mechanical suspension or air suspension
- FUWA / BPW / Chinese brand axle
- ABS braking system
- LED lighting system
- Tire straps and wheel stoppers
- Tool box
- Spare tire carrier
- Side guard
- Customized paint color and logo
Buyer Support
- Double-deck structure improves vehicle loading efficiency
- Suitable for passenger cars, SUVs, pickups and commercial vehicles
- Hydraulic lifting platform makes loading and unloading more convenient
- High-strength steel frame improves structural stability
- Multiple vehicle fixing points help protect vehicles during transport
- Adjustable platform design adapts to different vehicle sizes
- Multiple axle and suspension options for different road conditions
- Durable painting process provides better anti-rust protection
- Factory direct supply with customized production support

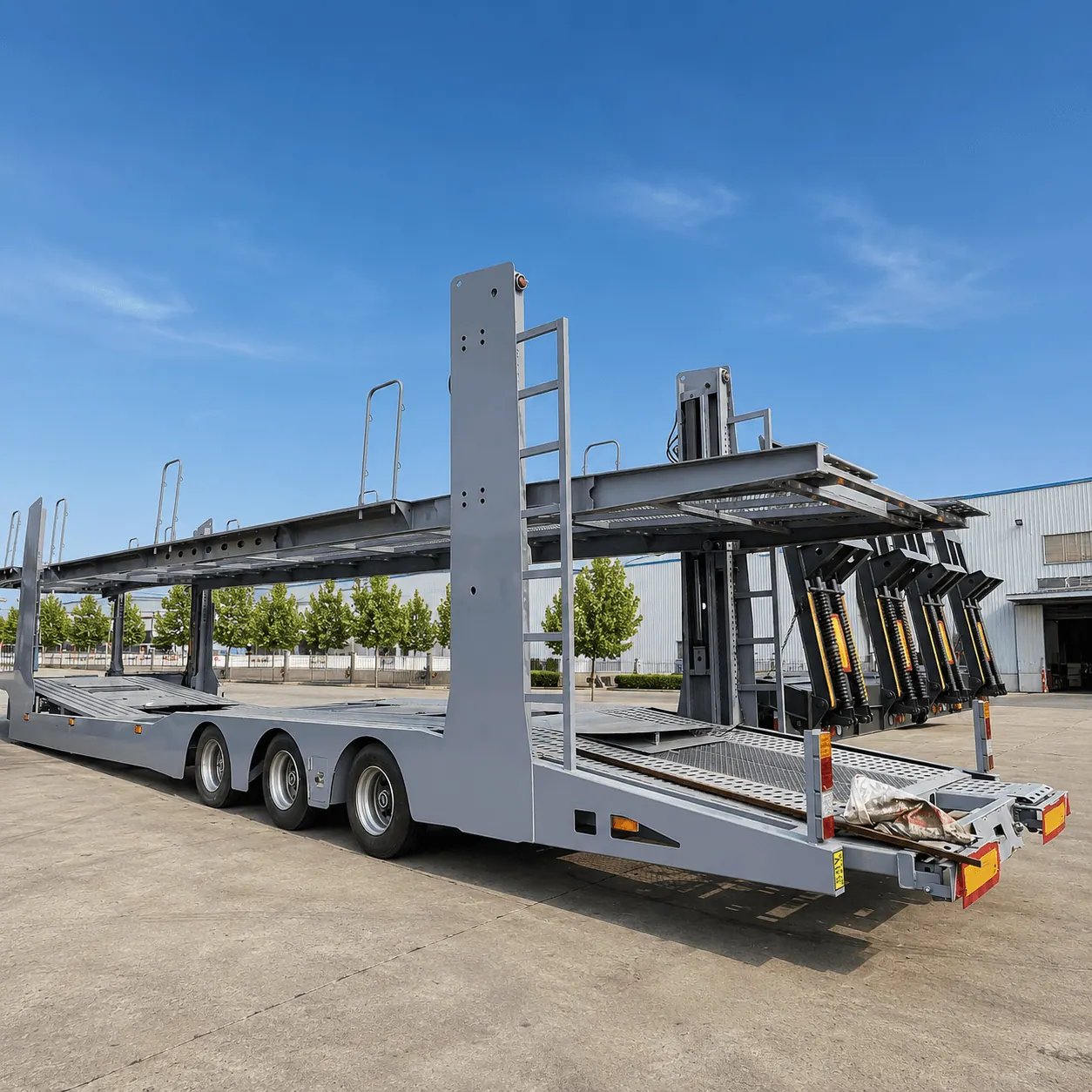

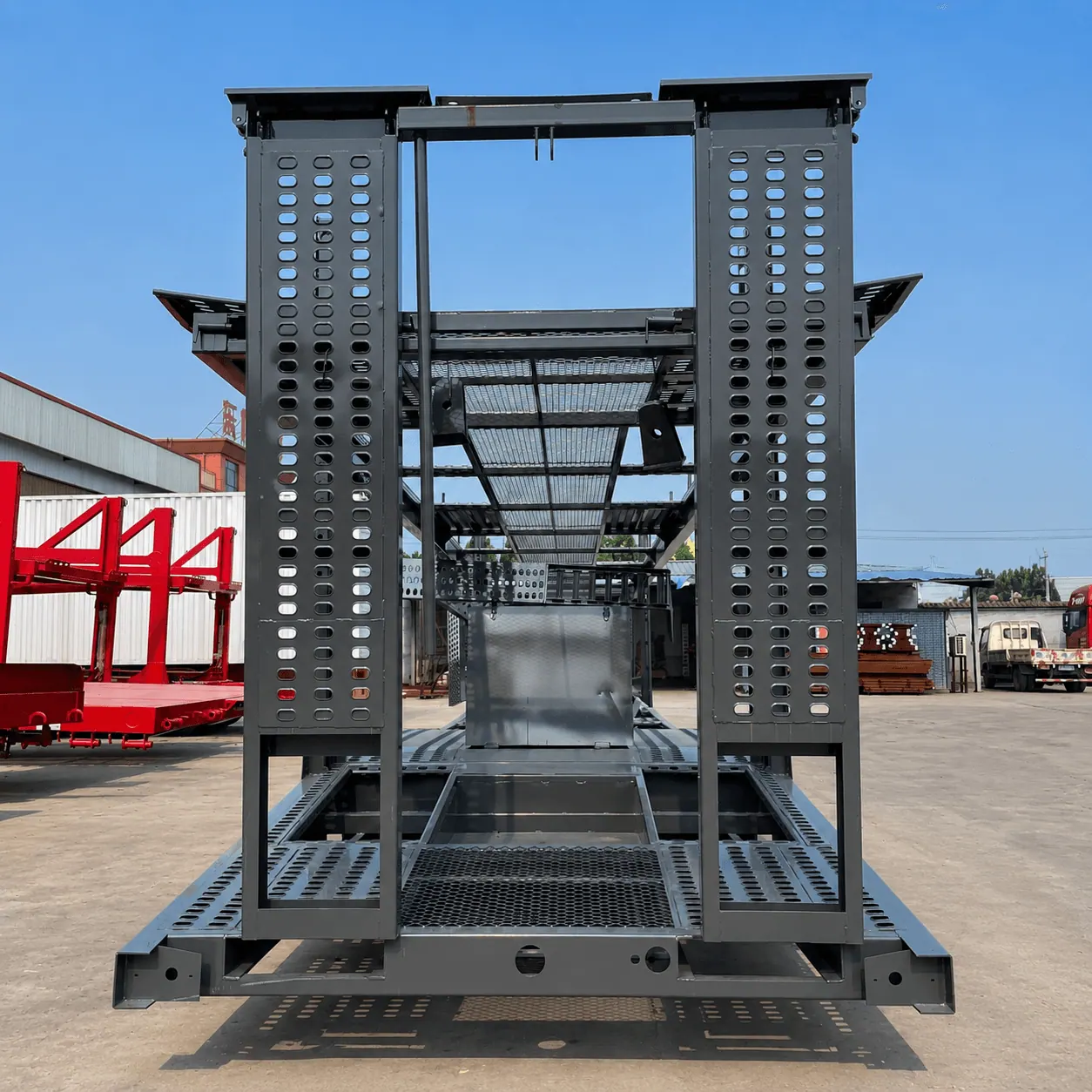

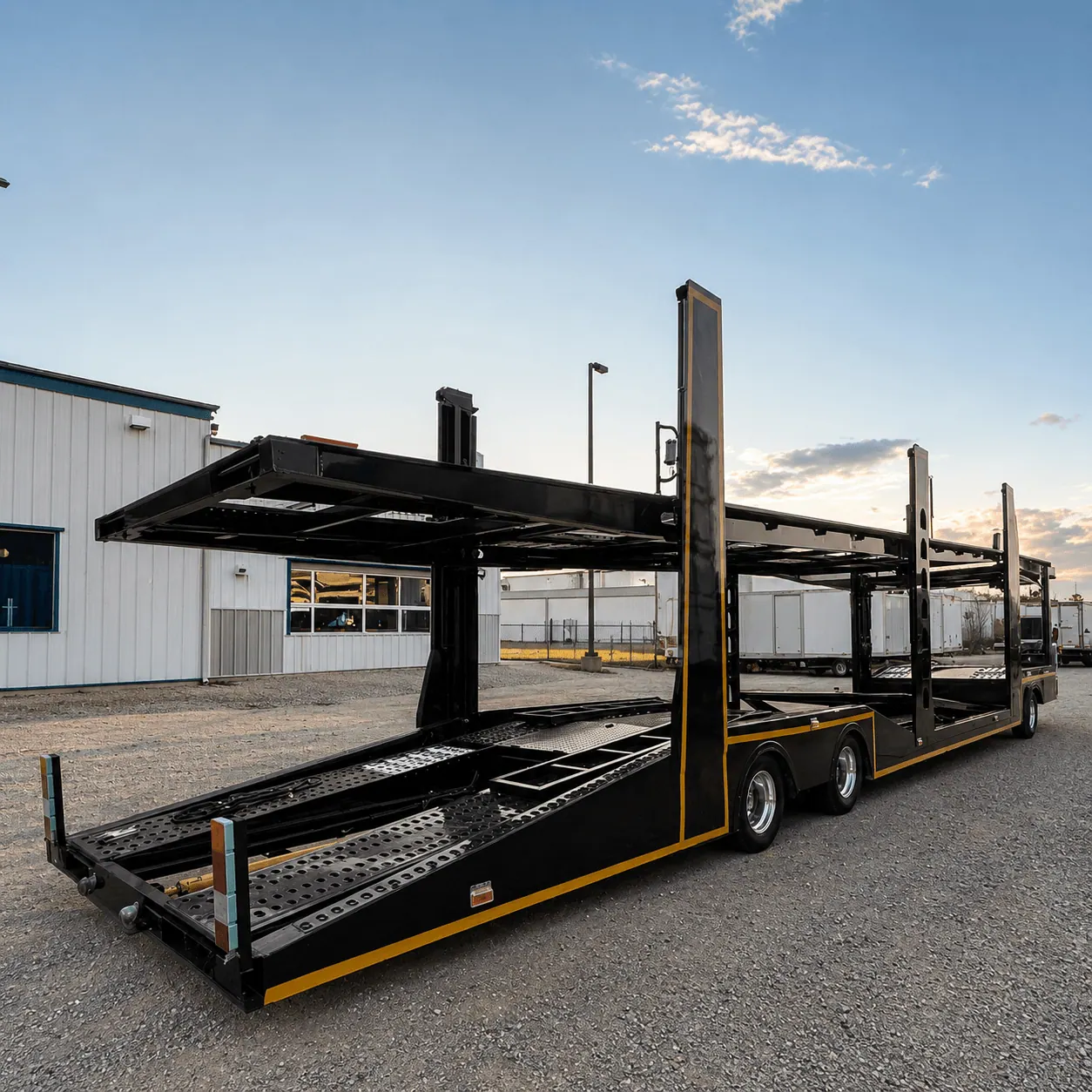

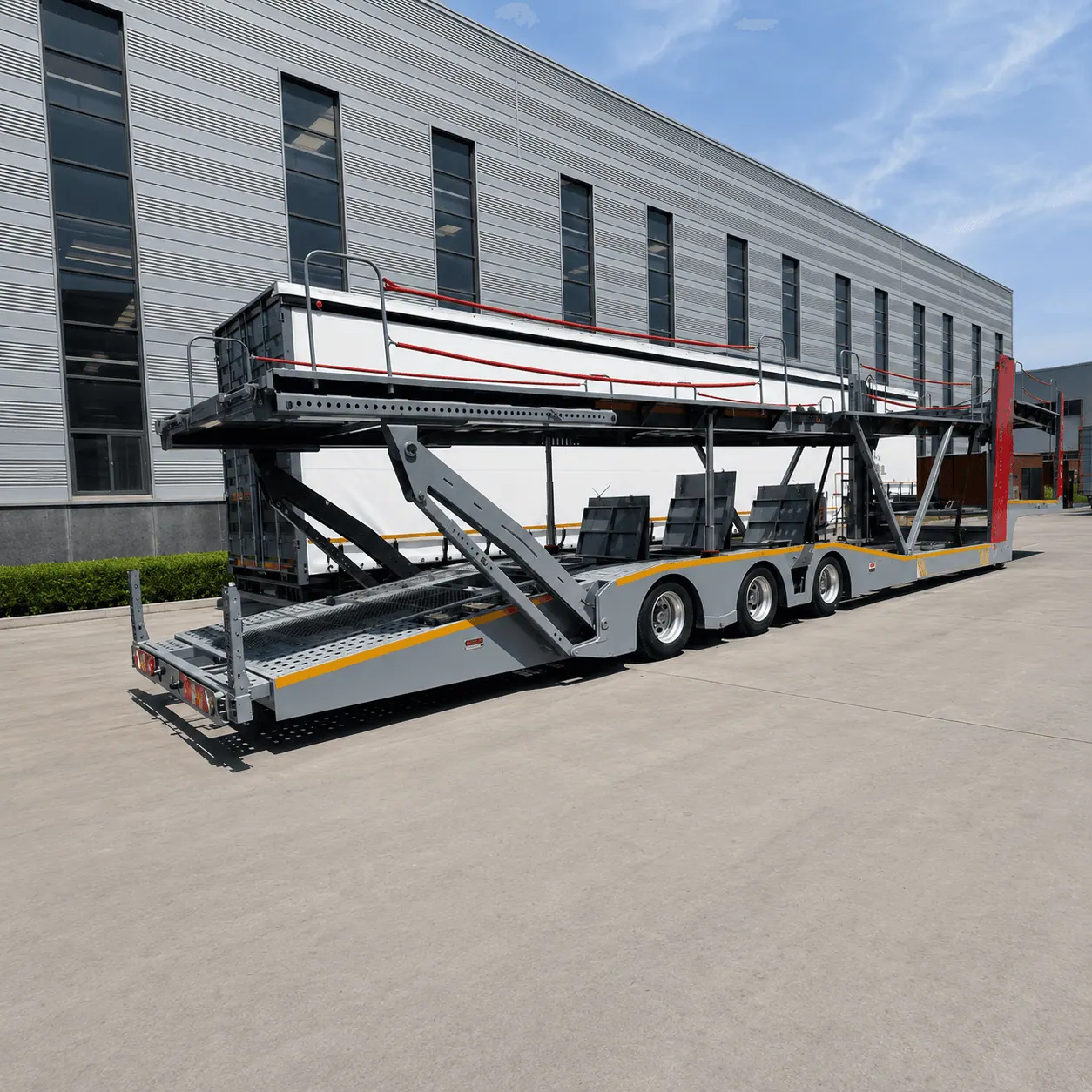

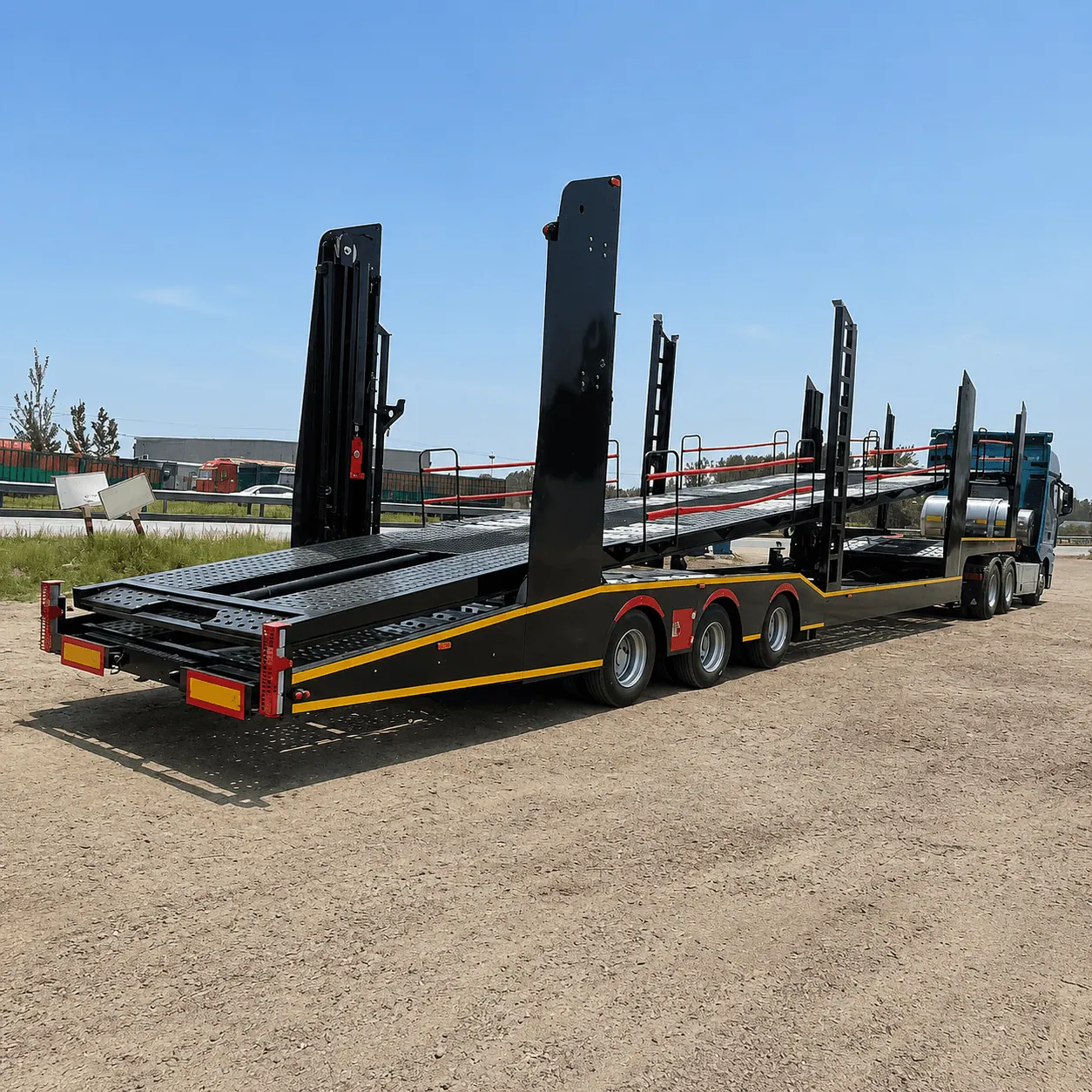

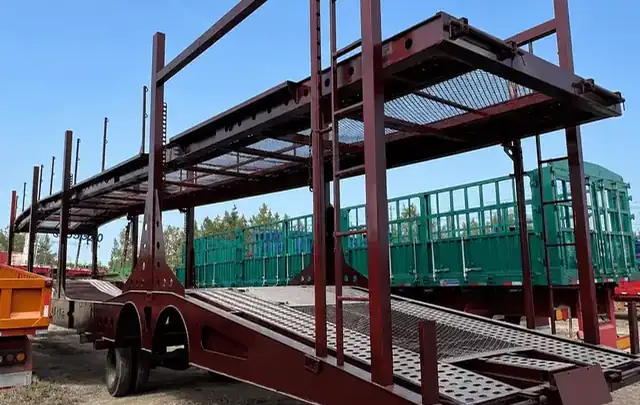

Product Display
