Semi Trailers
Concrete Mixer Semi-Trailer
Concrete mixer semi-trailer is designed for transporting and continuously mixing ready-mix concrete during transit. It is widely used in concrete batching plants, construction sites, road projects, bridge projects, infrastructure projects and commercial concrete delivery operations. The trailer adopts a high-strength chassis, wear-resistant mixing drum, reliable hydraulic transmission system and optimized spiral blade design to ensure stable mixing, uniform concrete quality and efficient discharge. Drum capacity, axle quantity, power drive type, hydraulic system, water tank, tire model, color and other configurations can be customized according to customer requirements and local working conditions.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Concrete Mixer Semi-Trailer / Cement Mixer Semi-Trailer |
| Overall Dimension | Approx. 8,500-12,500 mm L x 2,500-2,550 mm W x 3,600-4,000 mm H |
| Drum Capacity | Approx. 10-18 m3, customizable |
| Recommended Capacity | 12 m3 / 14 m3 / 15 m3 / 16 m3 |
| Axle Quantity | 2 axles / 3 axles / 4 axles |
| Axle Capacity | 13T / 16T axle, optional FUWA, BPW or Chinese brand |
| Drive Type | PTO drive or independent diesel engine drive |
| Hydraulic System | Hydraulic pump, hydraulic motor and reducer system |
| Hydraulic Pump | Optional imported or Chinese brand hydraulic pump |
| Reducer | Optional imported or Chinese brand reducer |
| Mixing Drum Material | High-strength wear-resistant steel |
| Drum Body Thickness | Approx. 4-6 mm, customizable |
| Drum Head Thickness | Approx. 6-8 mm, customizable |
| Mixing Blade | Wear-resistant spiral blade design |
| Residual Rate | Low residual rate design, usually below 0.5% depending on configuration |
| Water Supply System | Air pressure water supply or optional water pump system |
| Water Tank Capacity | Approx. 400-600 L, customizable |
| Discharge Chute | Adjustable discharge chute |
| Suspension | Mechanical leaf spring suspension or air suspension |
| Tire Model | 12R22.5 / 315/80R22.5 / 385/65R22.5 |
| Tire Quantity | 8 / 12 / 16 tires, depending on axle quantity |
| King Pin | 2 inch or 3.5 inch |
| Landing Gear | 28T heavy-duty landing gear |
| Brake System | Dual-line pneumatic brake system, optional ABS |
| Electrical System | 24V lighting system |
| Color | White, green, blue, red or customized |
| Surface Treatment | Sand blasting, anti-rust primer and top coat painting |
| Customization | Drum capacity, axle quantity, drive type, hydraulic system, water tank, tires, color and accessories |
Product Details
Typical Applications
- Ready-mix concrete transportation
- concrete batching plant delivery
- road construction projects
- bridge and tunnel construction
- building construction sites
- infrastructure projects
- commercial concrete supply
- urban and suburban concrete distribution
- large-scale engineering projects requiring continuous concrete mixing and stable discharge.
Available Configurations
- 2/3/4 axle design
- 10m3, 12m3, 14m3, 15m3, 16m3, 18m3 drum capacity
- PTO drive or independent diesel engine drive
- imported or Chinese hydraulic pump
- imported or Chinese reducer and motor
- FUWA / BPW / Chinese brand axle
- mechanical suspension or air suspension
- 12R22.5, 315/80R22.5, 385/65R22.5 tires
- enlarged water tank
- air pressure water supply or water pump system
- adjustable discharge chute
- ladder and working platform
- ABS braking system
- spare tire carrier
- customized paint color and logo.
Buyer Support
- Large-capacity mixing drum improves concrete transport efficiency
- optimized spiral blade design ensures uniform mixing and smooth discharge
- wear-resistant drum material provides longer service life
- reliable hydraulic system supports stable drum rotation
- optional PTO or independent diesel engine drive for different working conditions
- low center of gravity chassis improves driving stability
- adjustable discharge chute makes unloading more convenient
- multiple axle and suspension options adapt to different road conditions
- factory direct supply with customized production support.

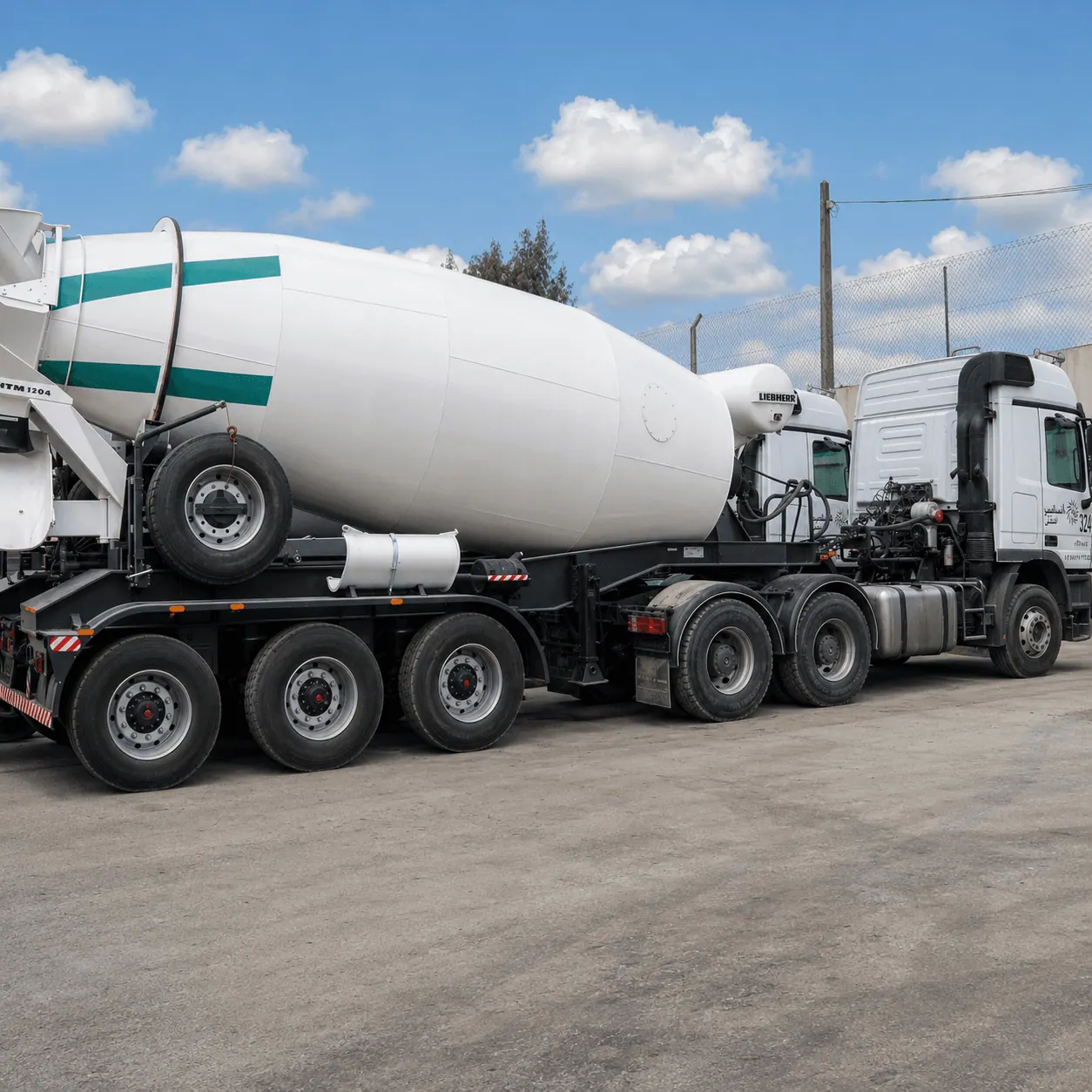

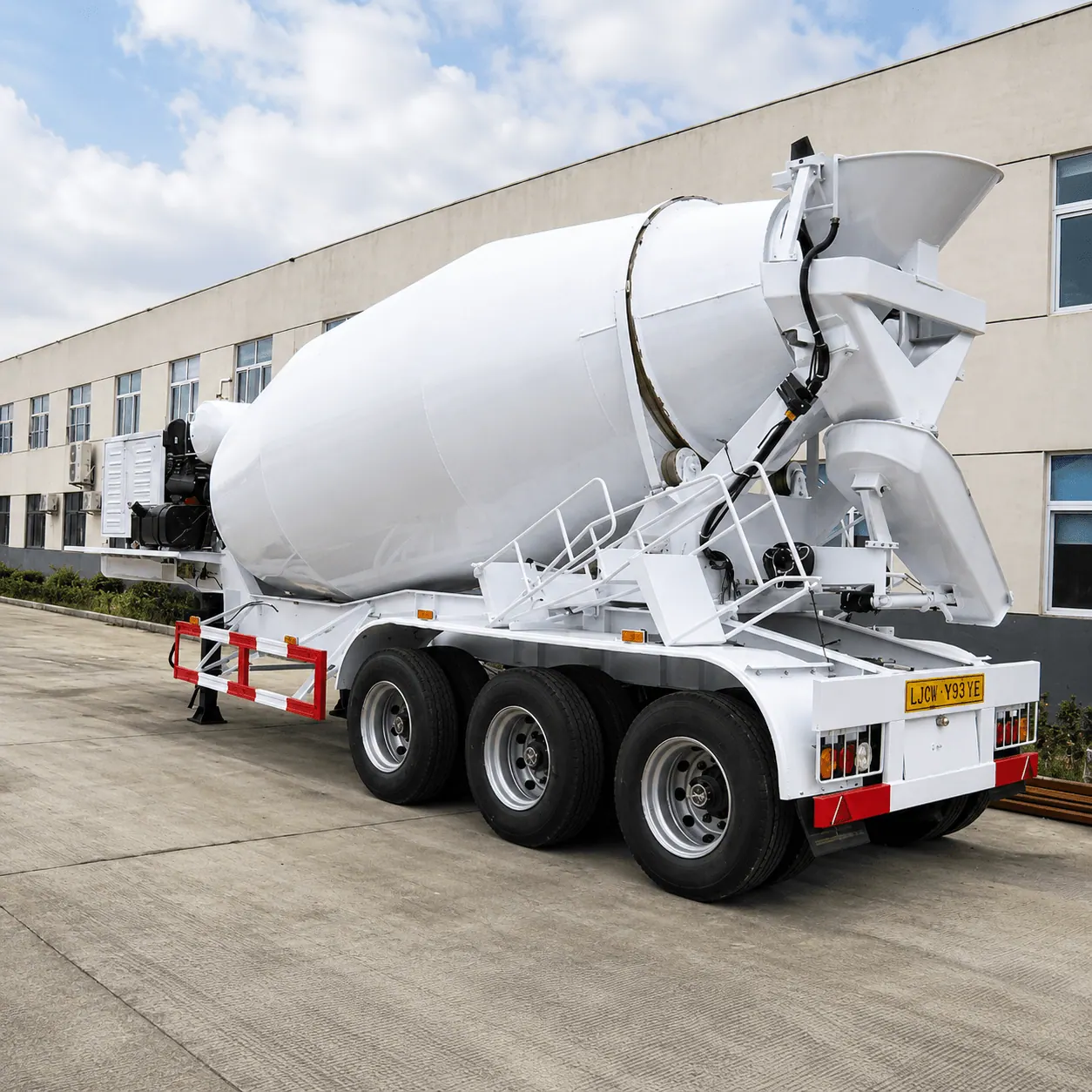

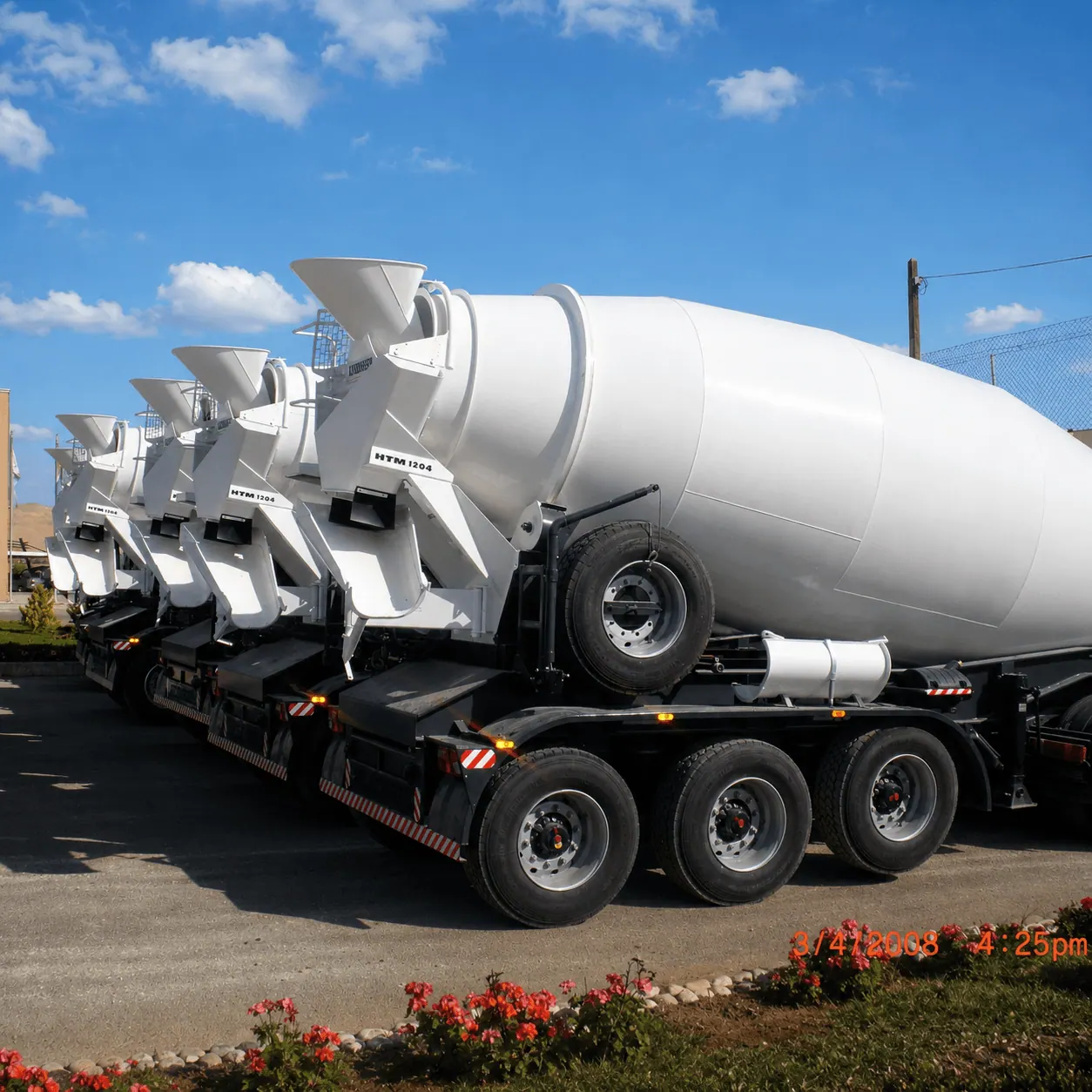

Product Display
