Semi Trailers
Flatbed Semi-Trailer
Flatbed semi-trailer is designed for transporting containers, steel, timber, machinery, construction materials, palletized cargo and other general freight. With an open platform structure, it provides flexible loading and unloading from the side, rear or top, making it suitable for long-distance logistics, port transport, construction projects and industrial cargo delivery.,The trailer adopts a high-strength steel main beam, reinforced platform structure and reliable axle suspension system to ensure stable load-bearing performance. Platform length, payload capacity, axle quantity, container locks, suspension type, tire model, color and other specifications can be customized according to customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Flatbed Semi-Trailer / Platform Semi-Trailer |
| Overall Dimension | Approx. 12,000-13,950 mm L x 2,480-2,550 mm W x 1,400-1,700 mm H |
| Loading Capacity | Approx. 30-60 tons, customizable |
| Axle Quantity | 2 axles / 3 axles / 4 axles |
| Axle Capacity | 13T / 16T axle, optional FUWA, BPW or Chinese brand |
| Platform Length | 20ft / 40ft / 45ft or customized |
| Floor Plate | 3-5 mm checker plate or flat steel plate |
| Container Locks | 4 / 8 / 12 sets, optional |
| Main Beam Material | High-strength steel such as Q345 / Q550 / T700 |
| Main Beam Height | Approx. 450-550 mm |
| Cross Member | Reinforced steel cross member |
| Front Wall | Optional front board or headboard |
| Suspension | Mechanical leaf spring suspension or air suspension |
| Tire Model | 11R22.5 / 12R22.5 / 315/80R22.5 / 12.00R20 |
| Tire Quantity | 8 / 12 / 16 tires, depending on axle quantity |
| King Pin | 2 inch or 3.5 inch |
| Landing Gear | 28T heavy-duty landing gear |
| Brake System | Dual-line pneumatic brake system, optional ABS |
| Electrical System | 24V lighting system |
| Color | Blue, red, black, yellow, white or customized |
| Surface Treatment | Sand blasting, anti-rust primer and top coat painting |
| Customization | Length, payload, axle quantity, container locks, suspension, tires, color and accessories |
Product Details
Typical Applications
- 20ft and 40ft container transportation
- Steel coil, steel pipe and steel structure transport
- Timber and building material transport
- Palletized cargo transportation
- Machinery and equipment delivery
- Port and logistics yard transport
- Long-distance freight transportation
- Industrial cargo transport
- Construction project material delivery
- General cargo logistics
Available Configurations
- 2/3/4 axle design
- 30T, 40T, 50T, 60T payload design
- 20ft, 40ft or 45ft platform length
- Container twist locks
- Front wall or no front wall
- Mechanical suspension or air suspension
- FUWA / BPW / Chinese brand axle
- 11R22.5, 12R22.5, 315/80R22.5 tires
- ABS braking system
- JOST landing gear and king pin
- Spare tire carrier
- Tool box
- Rope hooks
- Side guard
- Reinforced platform
- Customized paint color and logo
Buyer Support
- Open flat platform provides flexible loading and unloading
- Suitable for containers, steel, timber, machinery and general cargo
- High-strength steel main beam improves loading capacity and anti-deformation performance
- Reinforced platform structure supports heavy-duty transport
- Optional container locks make it suitable for 20ft and 40ft container transport
- Multiple axle and suspension options adapt to different road conditions
- Simple structure makes maintenance easier
- Durable painting process provides better anti-rust protection
- Factory direct supply with customized production support

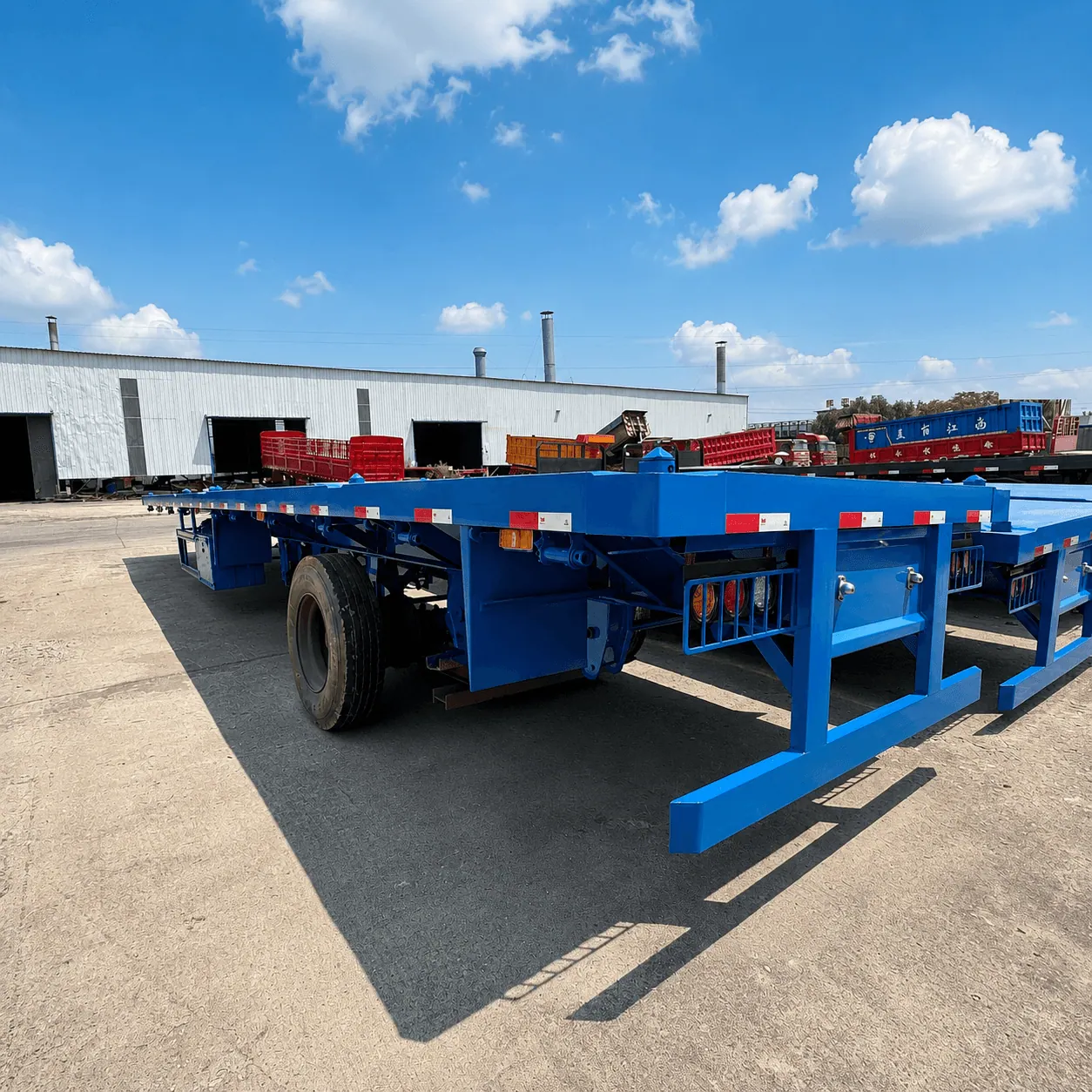

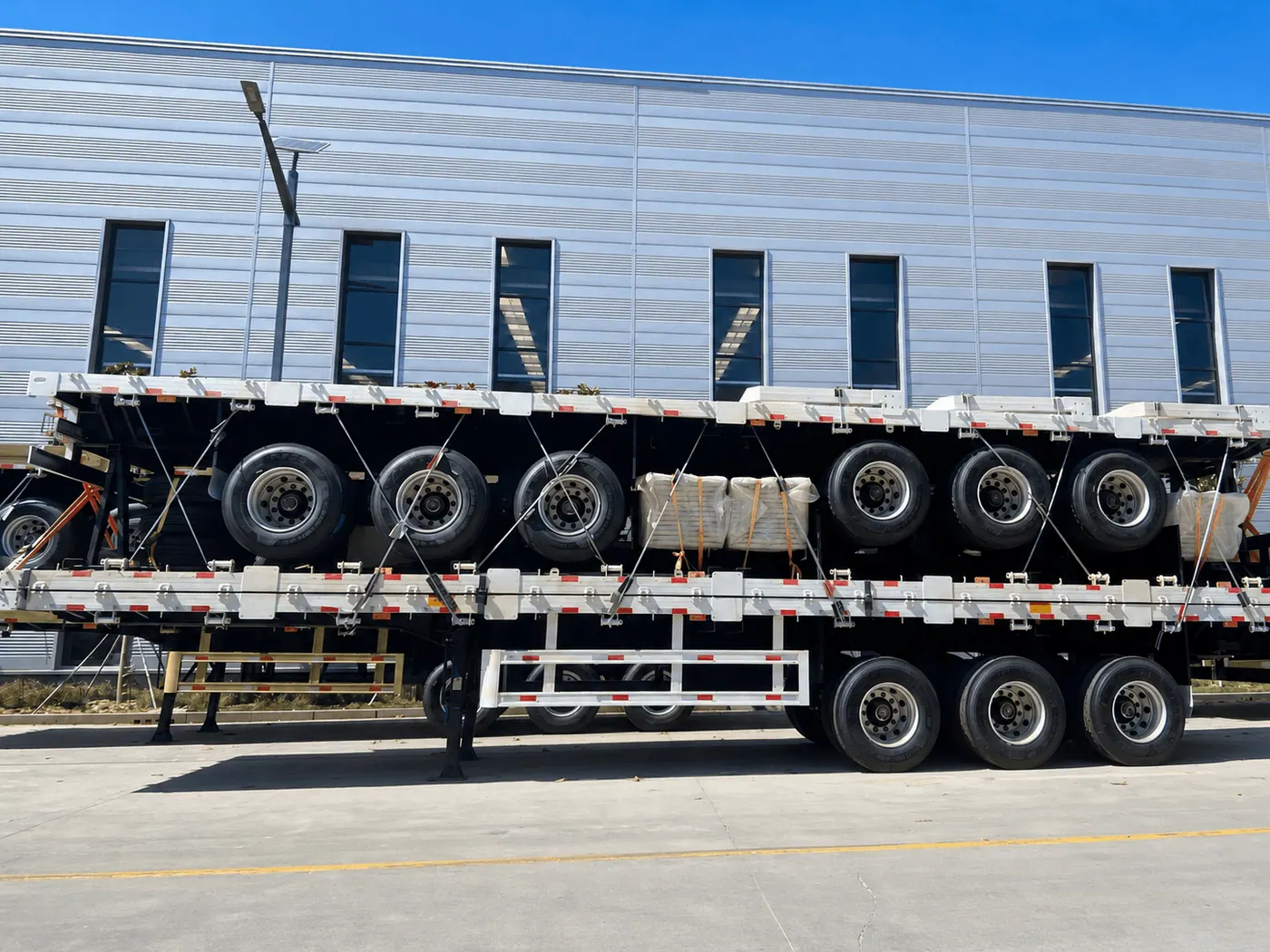

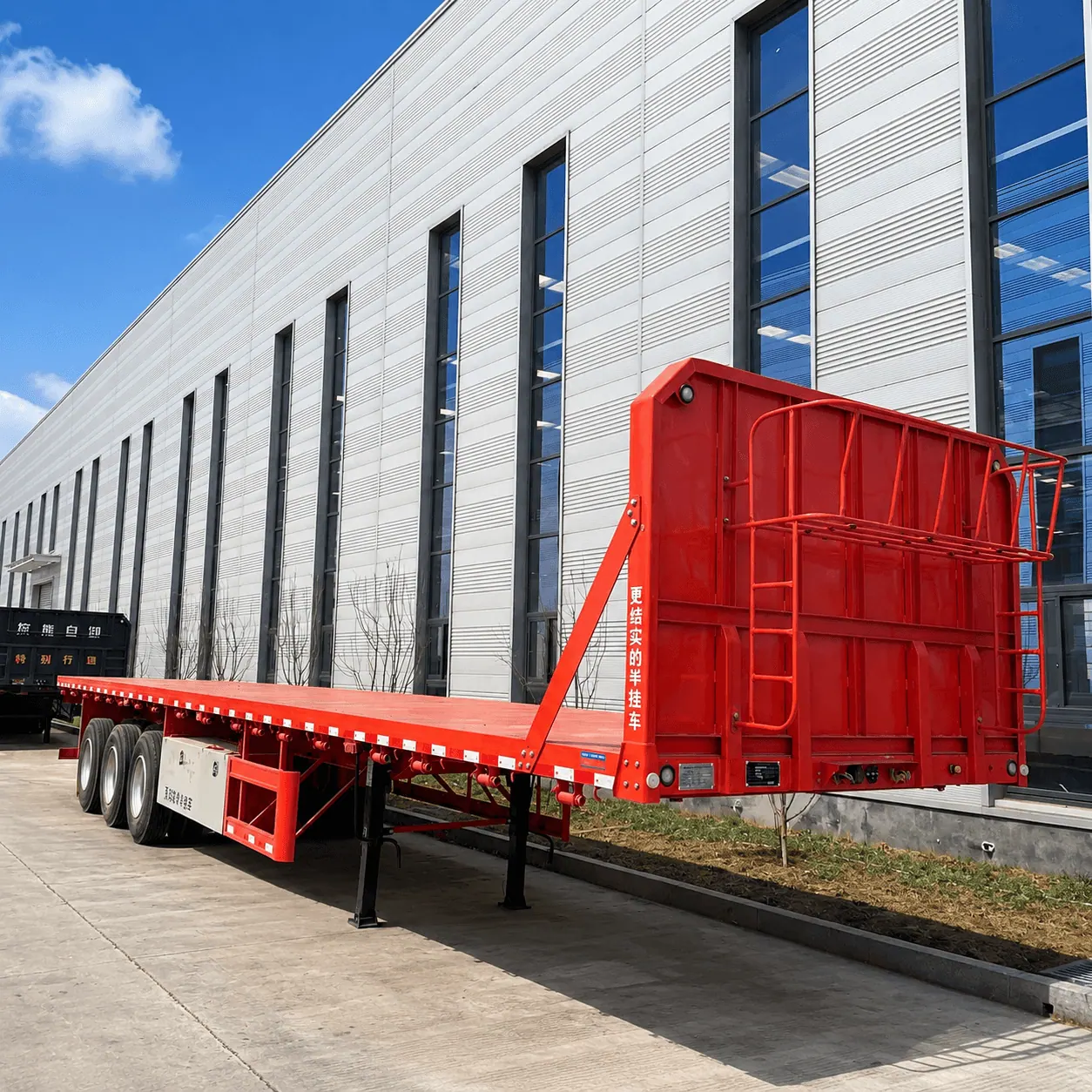

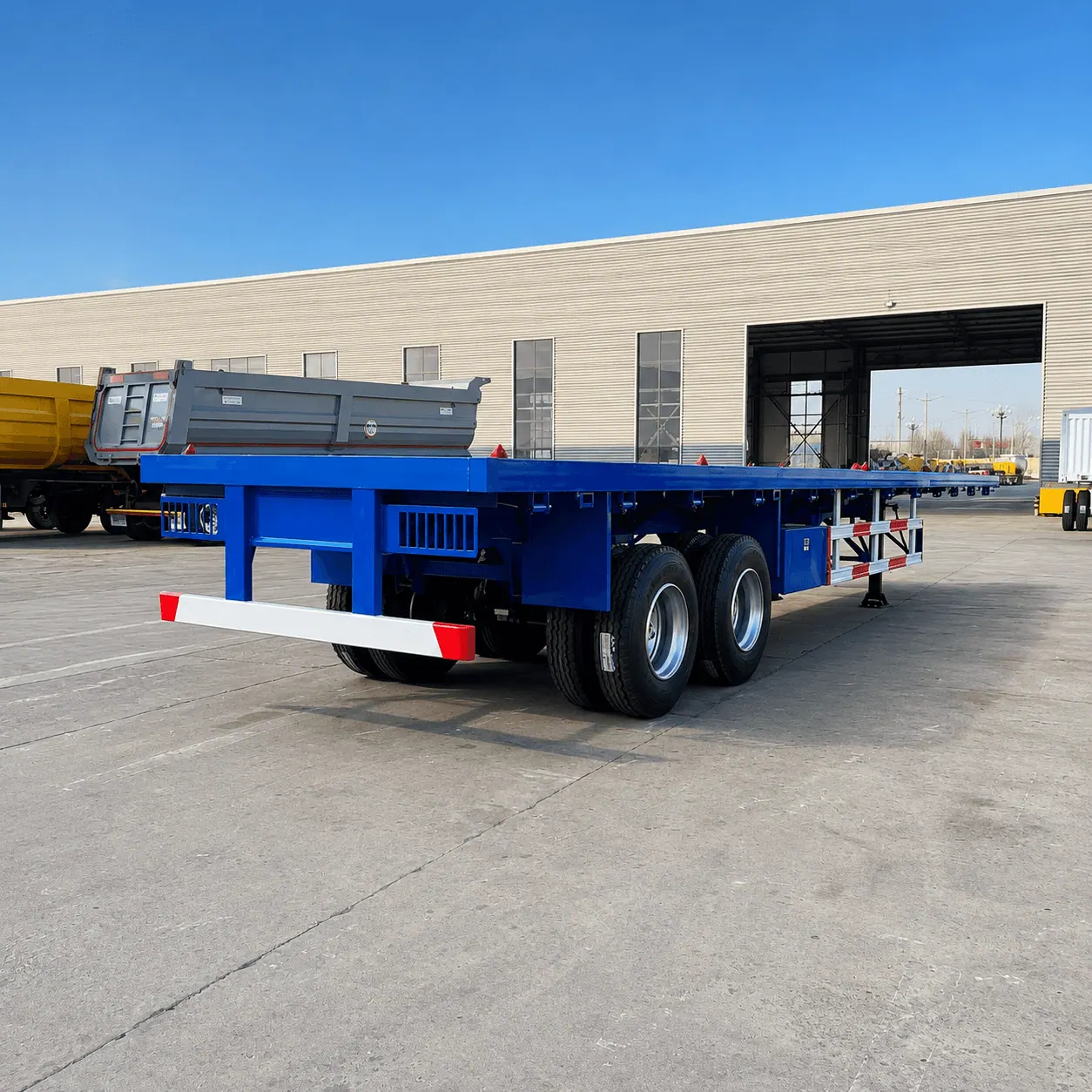

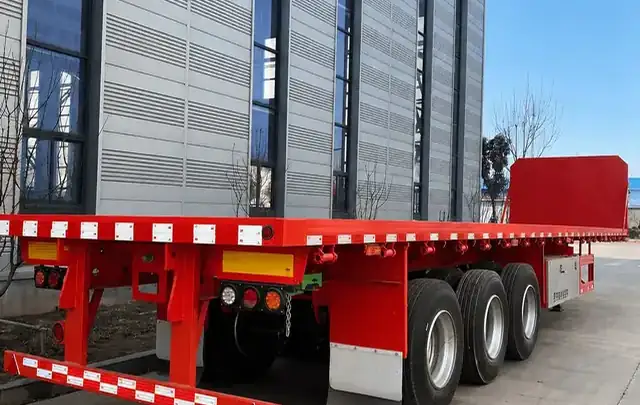

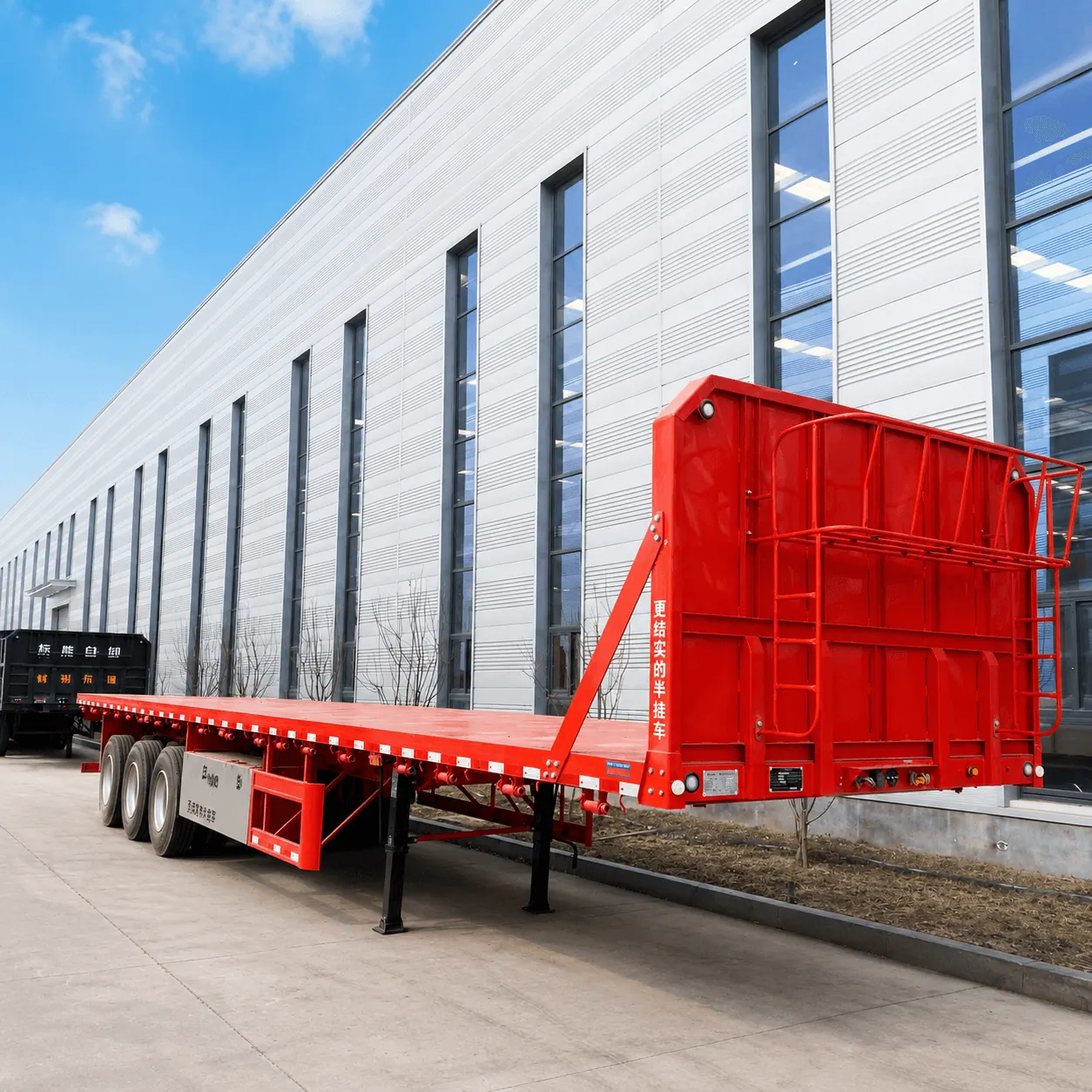

Product Display
