Rear Dump Semi-Trailer
Rear dump semi-trailer is designed for heavy-duty bulk material transportation and rear unloading, suitable for carrying sand, gravel, coal, ore, soil, aggregates, construction waste and other loose materials. It is widely used in mining areas, construction sites, road projects, quarries, cement plants and infrastructure projects. The trailer adopts a reinforced cargo box, high-strength steel chassis and heavy-duty hydraulic lifting system to ensure stable lifting and efficient unloading. U-shape or rectangular cargo box, payload capacity, volume, axle quantity, hydraulic cylinder, suspension, tire model, color and other specifications can be customized according to customer requirements and working conditions.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Rear Dump Semi-Trailer / End Dump Trailer / Tipper Semi-Trailer |
| Overall Dimension | Approx. 8,500-12,000 mm L x 2,500-2,600 mm W x 3,100-4,000 mm H |
| Cargo Box Volume | Approx. 25-80 m3, customizable |
| Loading Capacity | Approx. 30-100 tons, customizable |
| Axle Quantity | 2 axles / 3 axles / 4 axles / multi-axle design |
| Axle Capacity | 13T / 16T axle, optional FUWA, BPW or Chinese brand |
| Tipping Direction | Rear tipping |
| Tipping Angle | Approx. 45掳-50掳, customized according to design |
| Cargo Box Shape | U-shape box or rectangular box |
| Hydraulic System | Full set hydraulic lifting system |
| Hydraulic Cylinder | Front-mounted telescopic cylinder, optional HYVA or equivalent brand |
| Cargo Box Material | Q345 / Q550 / T700 high-strength steel, optional wear-resistant steel |
| Floor Thickness | Approx. 5-10 mm, heavy-duty version customizable |
| Side Wall Thickness | Approx. 4-8 mm, customizable |
| Main Beam Material | High-strength steel such as Q345 / Q550 / T700 |
| Main Beam Height | Approx. 450-550 mm |
| Suspension | Mechanical leaf spring suspension or air suspension |
| Tire Model | 11R22.5 / 12R22.5 / 315/80R22.5 / 12.00R20 |
| Tire Quantity | 8 / 12 / 16 tires, depending on axle quantity |
| King Pin | 2 inch or 3.5 inch |
| Landing Gear | 28T heavy-duty landing gear |
| Brake System | Dual-line pneumatic brake system, optional ABS |
| Electrical System | 24V lighting system |
| Color | Yellow, blue, red, white, green or customized |
| Surface Treatment | Sand blasting, anti-rust primer and top coat painting |
| Customization | Dimension, volume, payload, box shape, axle brand, hydraulic system, suspension, tires, color and accessories |

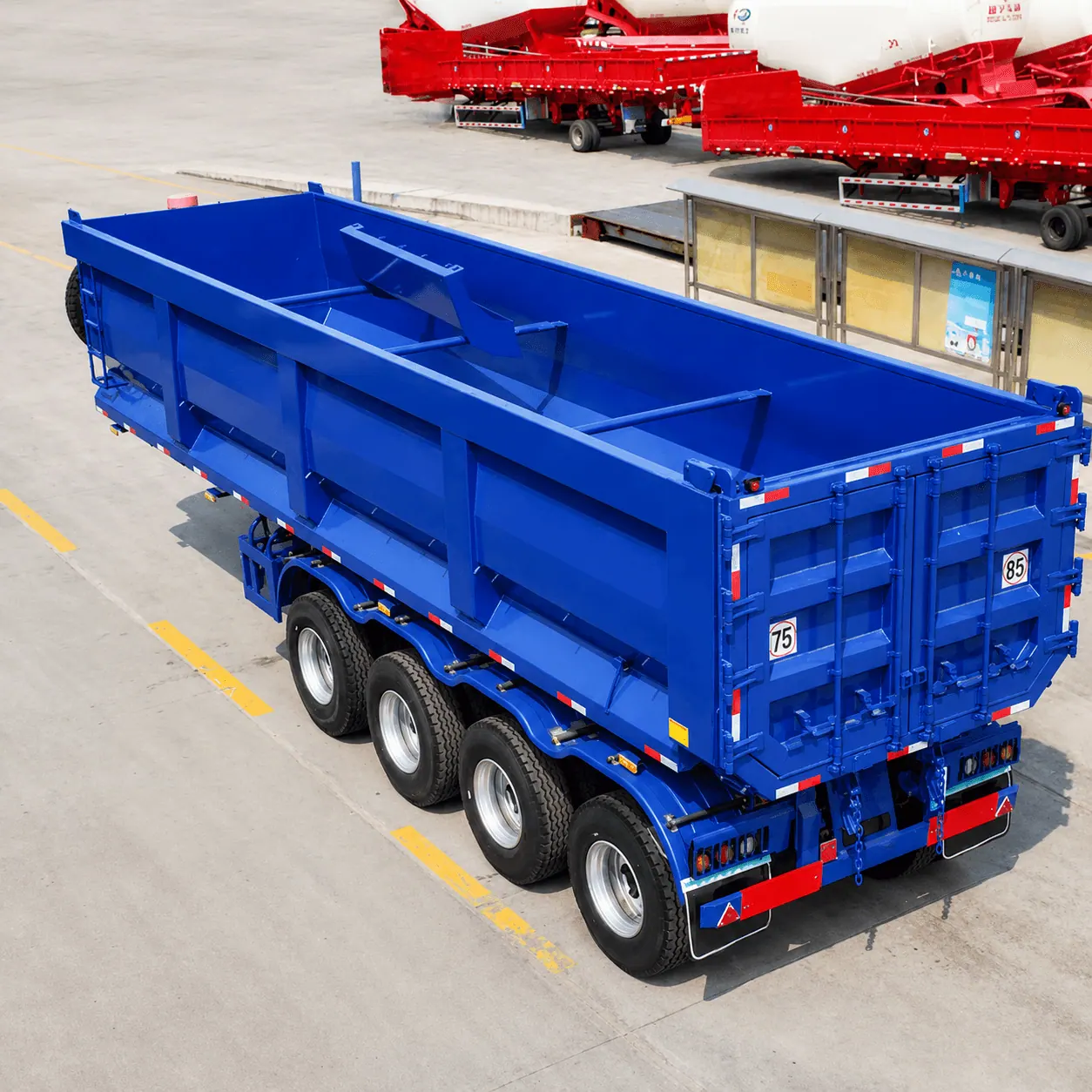

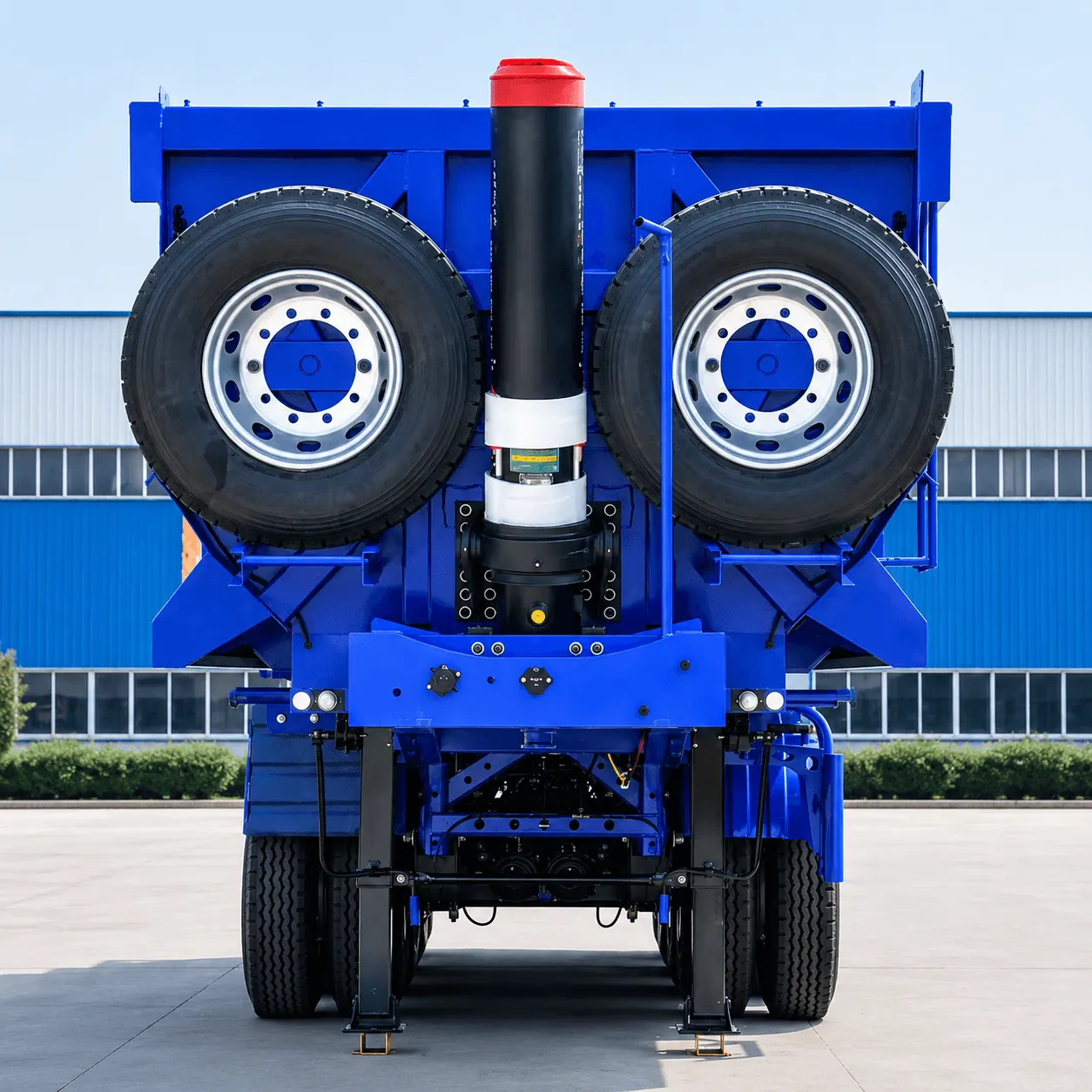

Product Details
Typical Applications
- Mining material transportation
- sand, gravel and aggregate transport
- coal and ore transport
- quarry material transfer
- road construction projects
- earthwork and soil transport
- construction waste transfer
- cement plant material transportation
- infrastructure project logistics
- heavy-duty bulk cargo transportation requiring rear unloading.
Available Configurations
- 2/3/4 axle or multi-axle design
- 30T, 40T, 50T, 60T, 80T, 100T payload design
- U-shape cargo box or rectangular cargo box
- HYVA hydraulic cylinder or Chinese hydraulic system
- mechanical suspension or air suspension
- FUWA / BPW / Chinese brand axle
- 11R22.5, 12R22.5, 315/80R22.5 tires
- reinforced cargo box
- thickened floor plate
- wear-resistant steel plate
- ABS braking system
- JOST landing gear and king pin
- spare tire carrier
- tool box
- tarpaulin system
- customized paint color and logo.
Buyer Support
- Rear hydraulic tipping design provides fast and efficient unloading
- suitable for sand, gravel, coal, ore, soil and other bulk materials
- reinforced cargo box improves durability under heavy-duty working conditions
- U-shape box design helps reduce material residue during unloading
- high-strength steel chassis improves loading capacity and anti-deformation performance
- heavy-duty hydraulic cylinder ensures stable lifting performance
- customizable volume and payload for different markets
- durable painting process provides better anti-rust protection
- factory direct supply with customized production support.

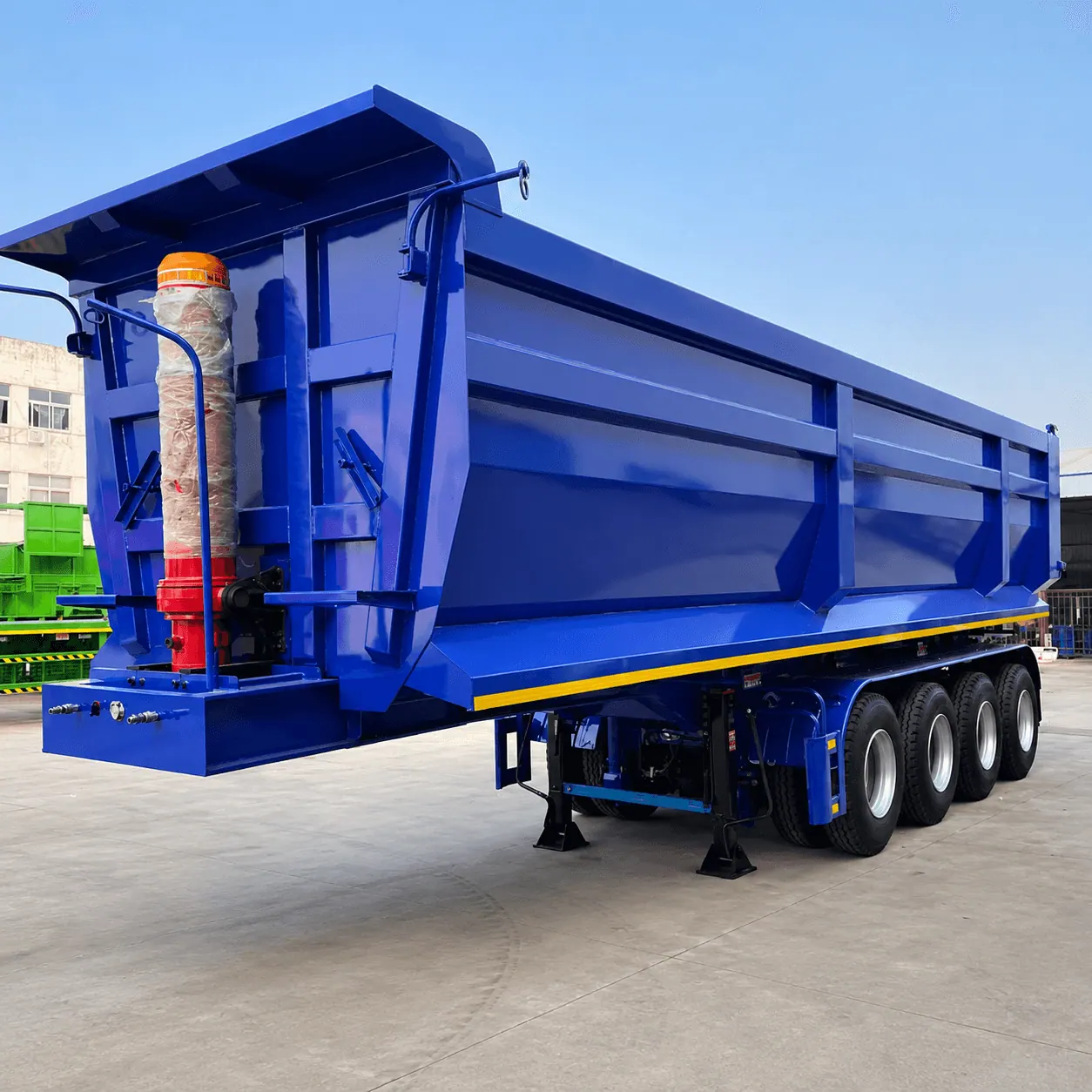

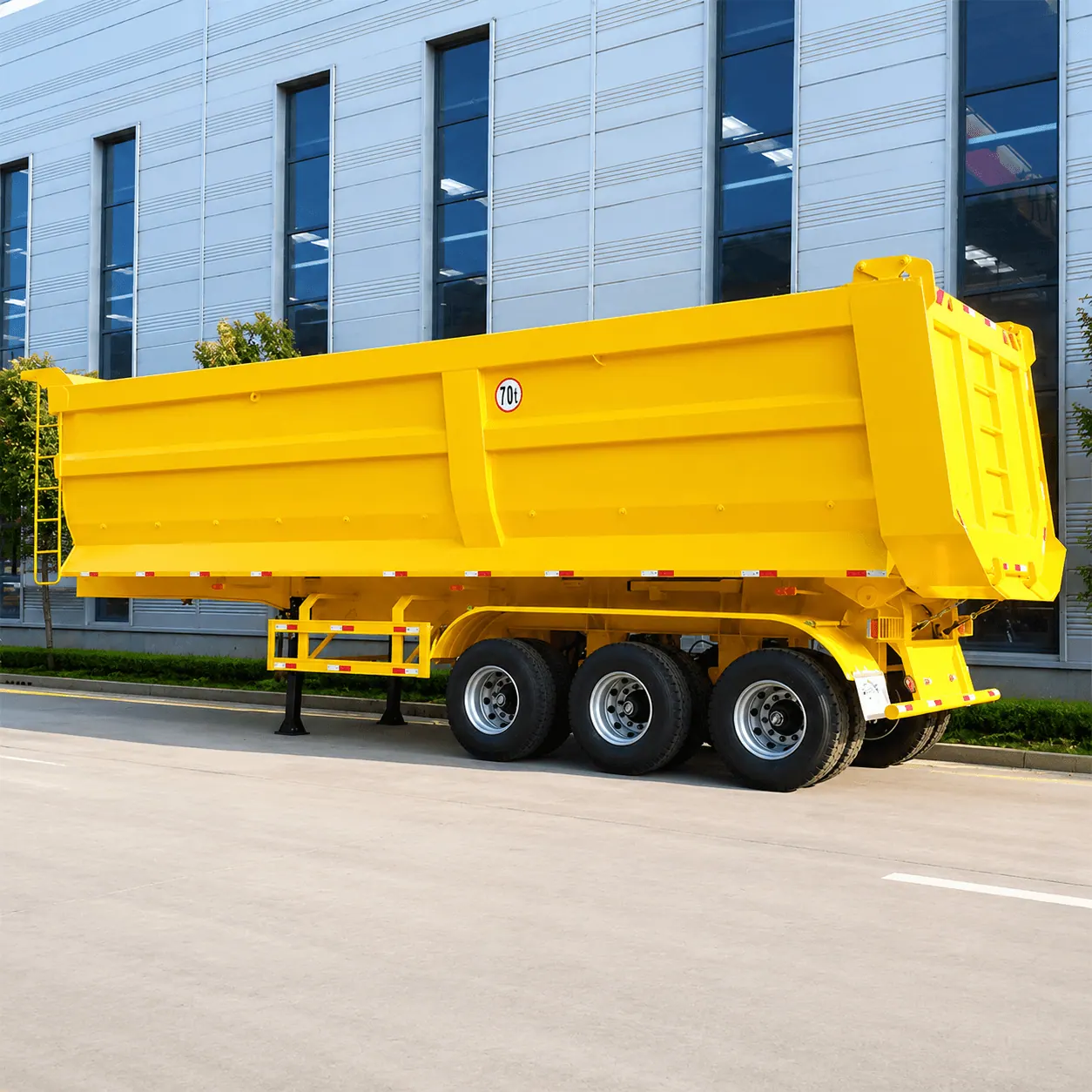

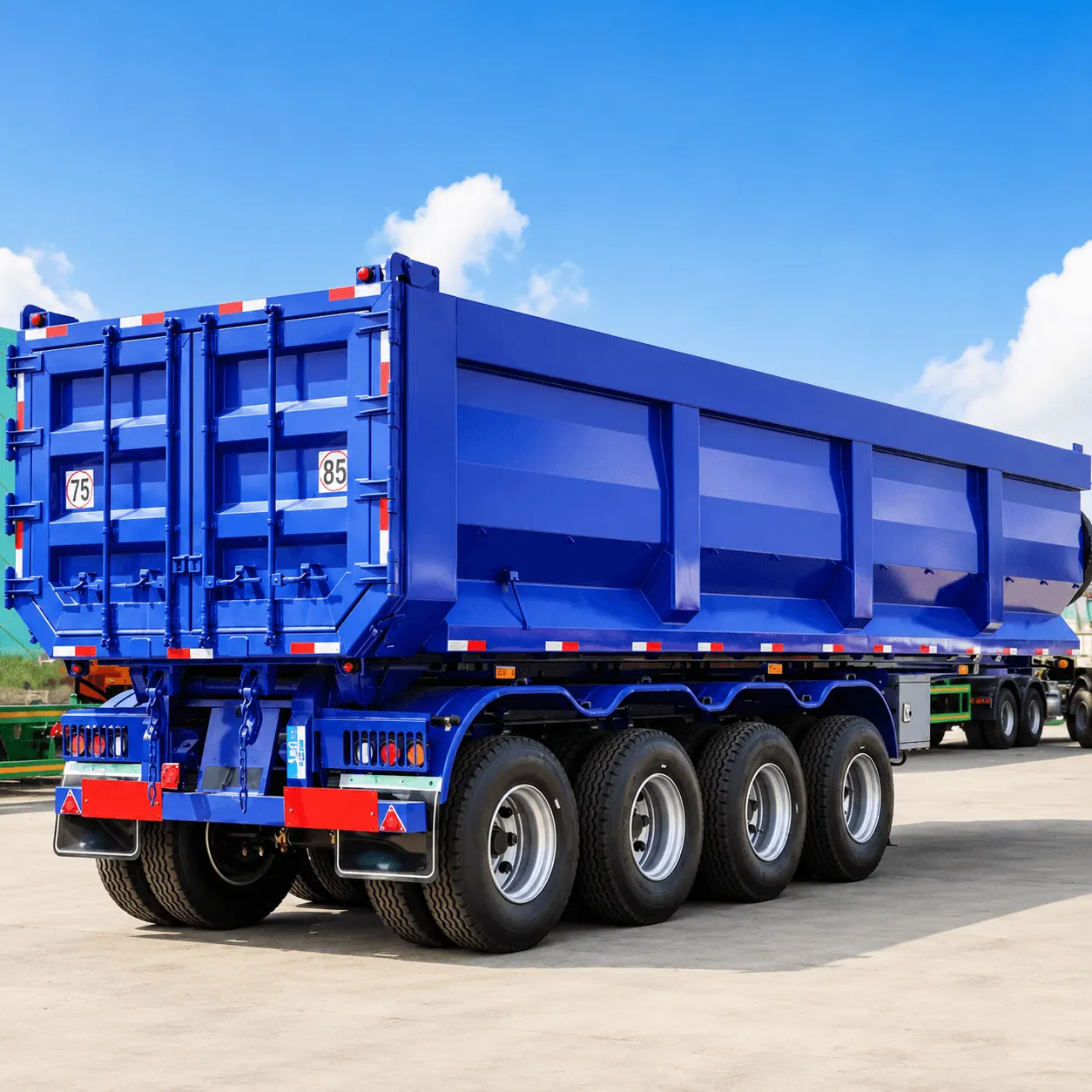

Product Display
