Semi Trailers

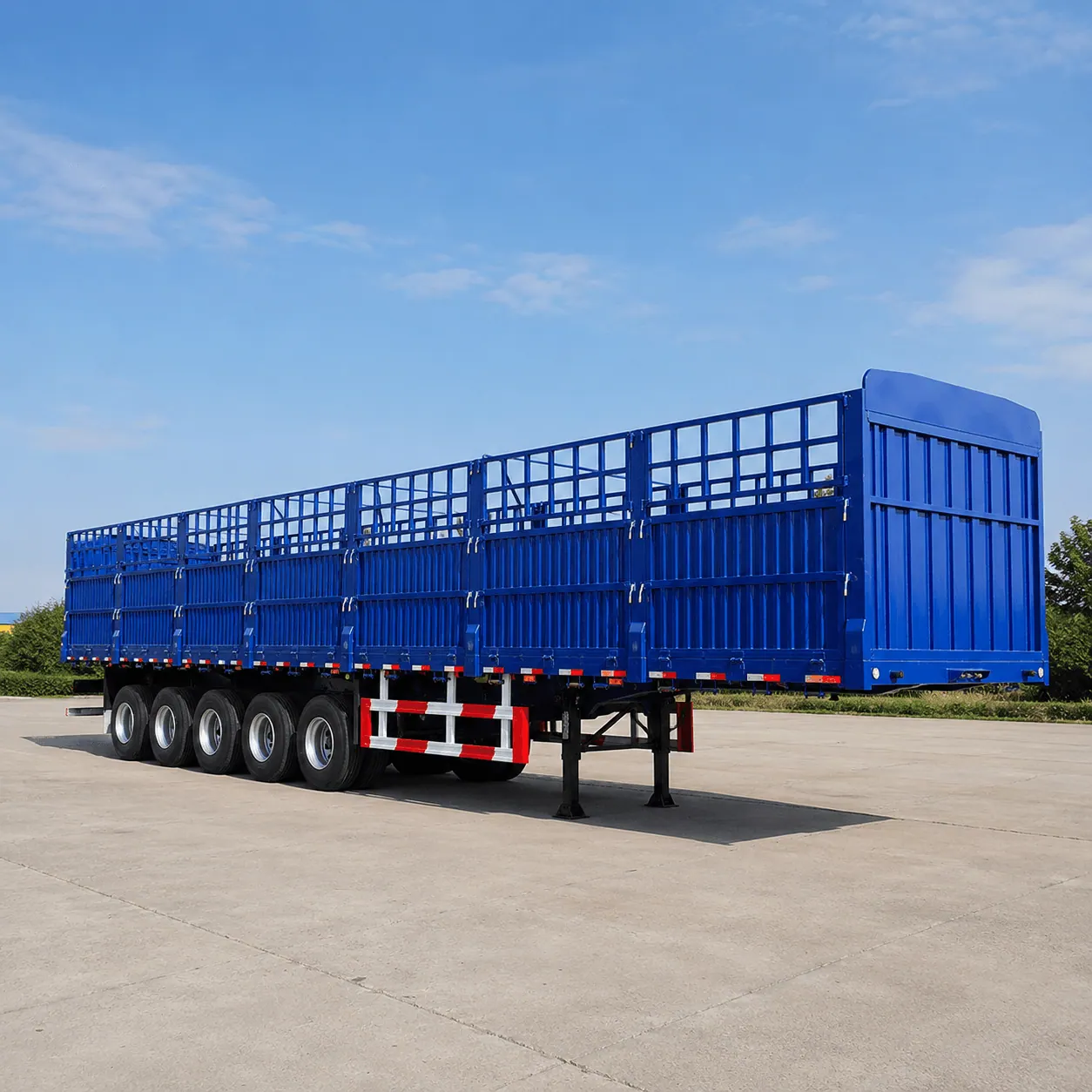

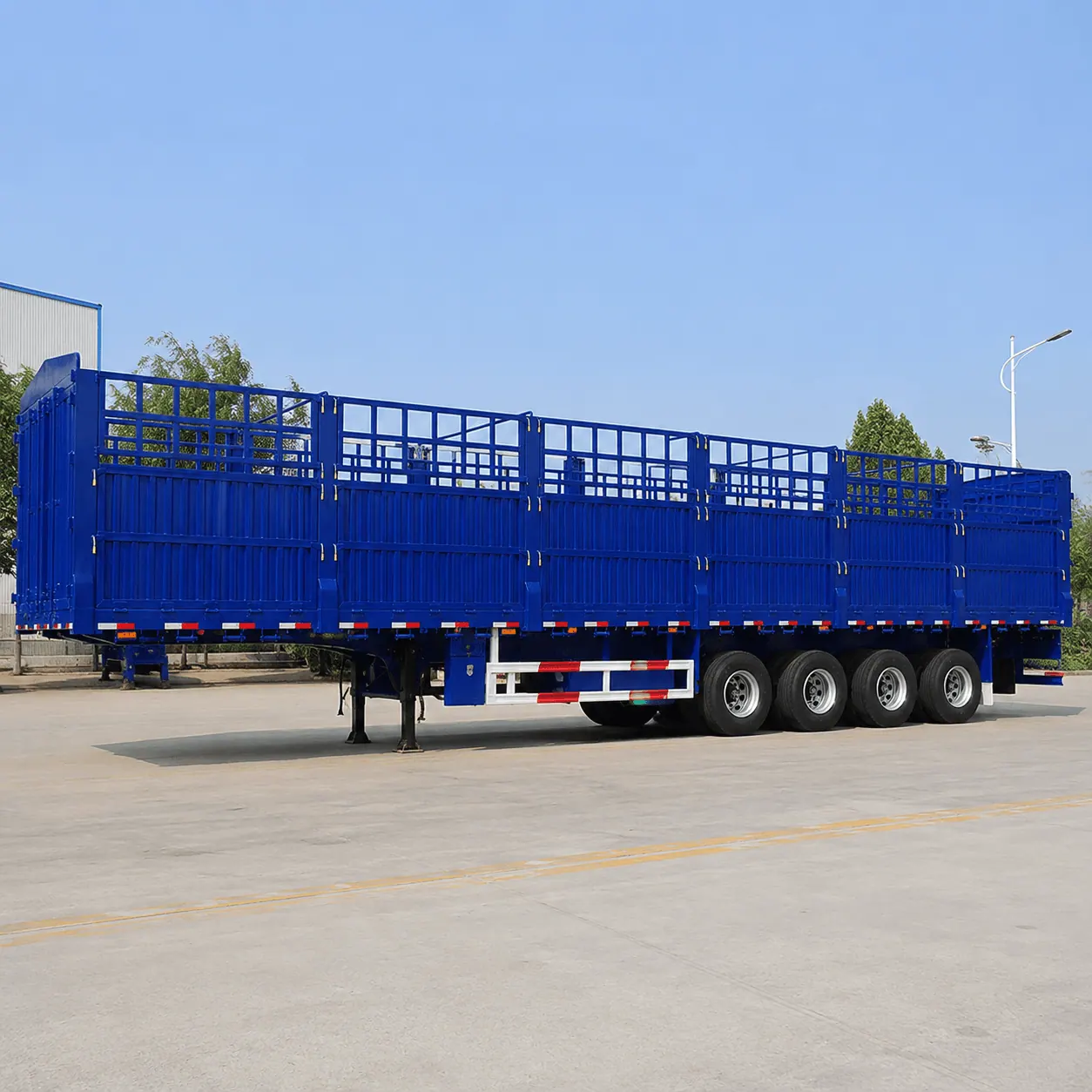

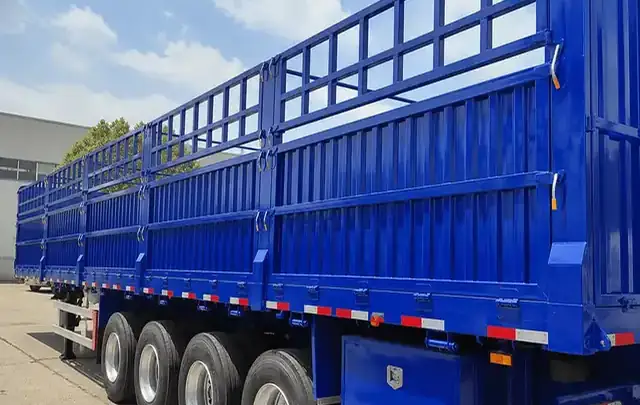

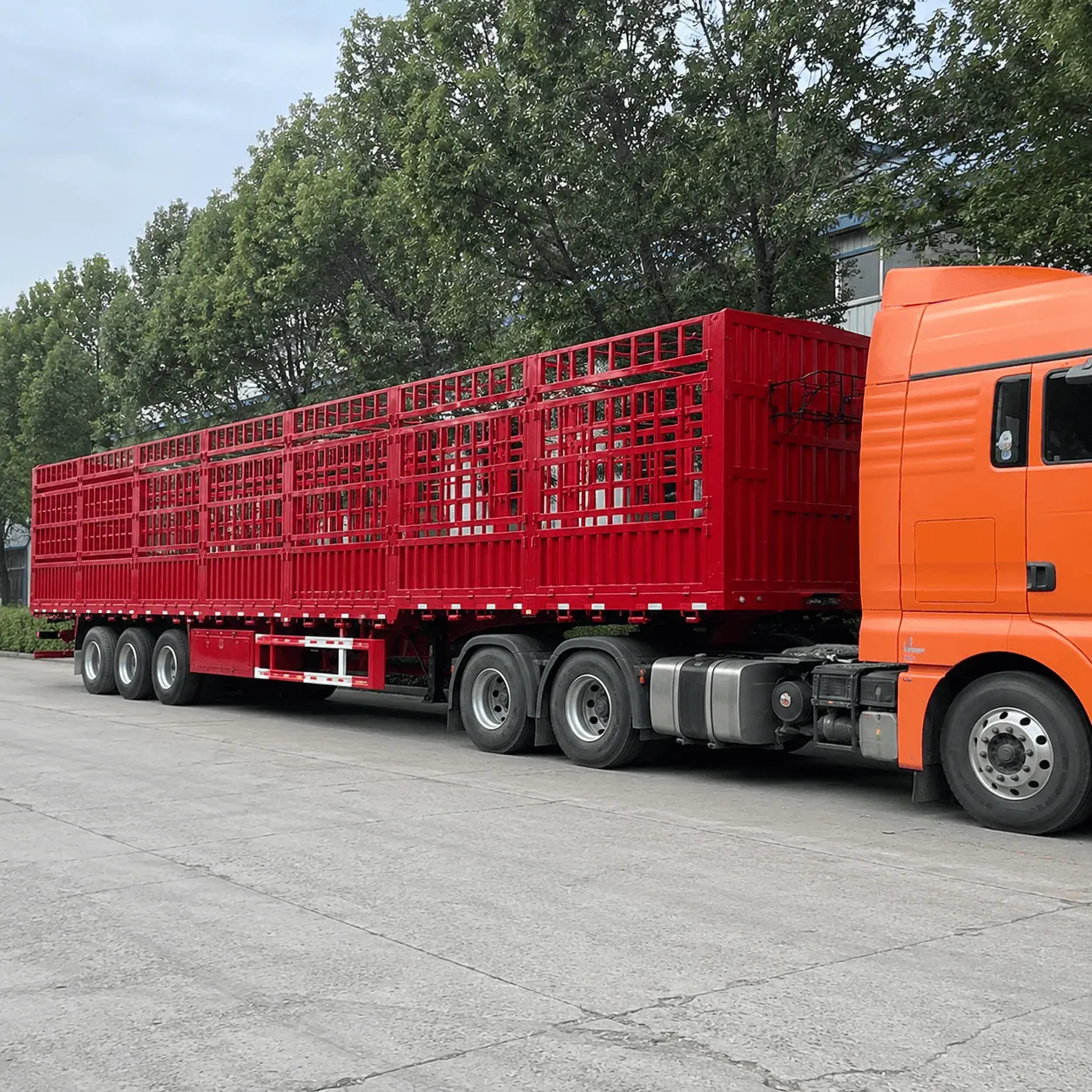

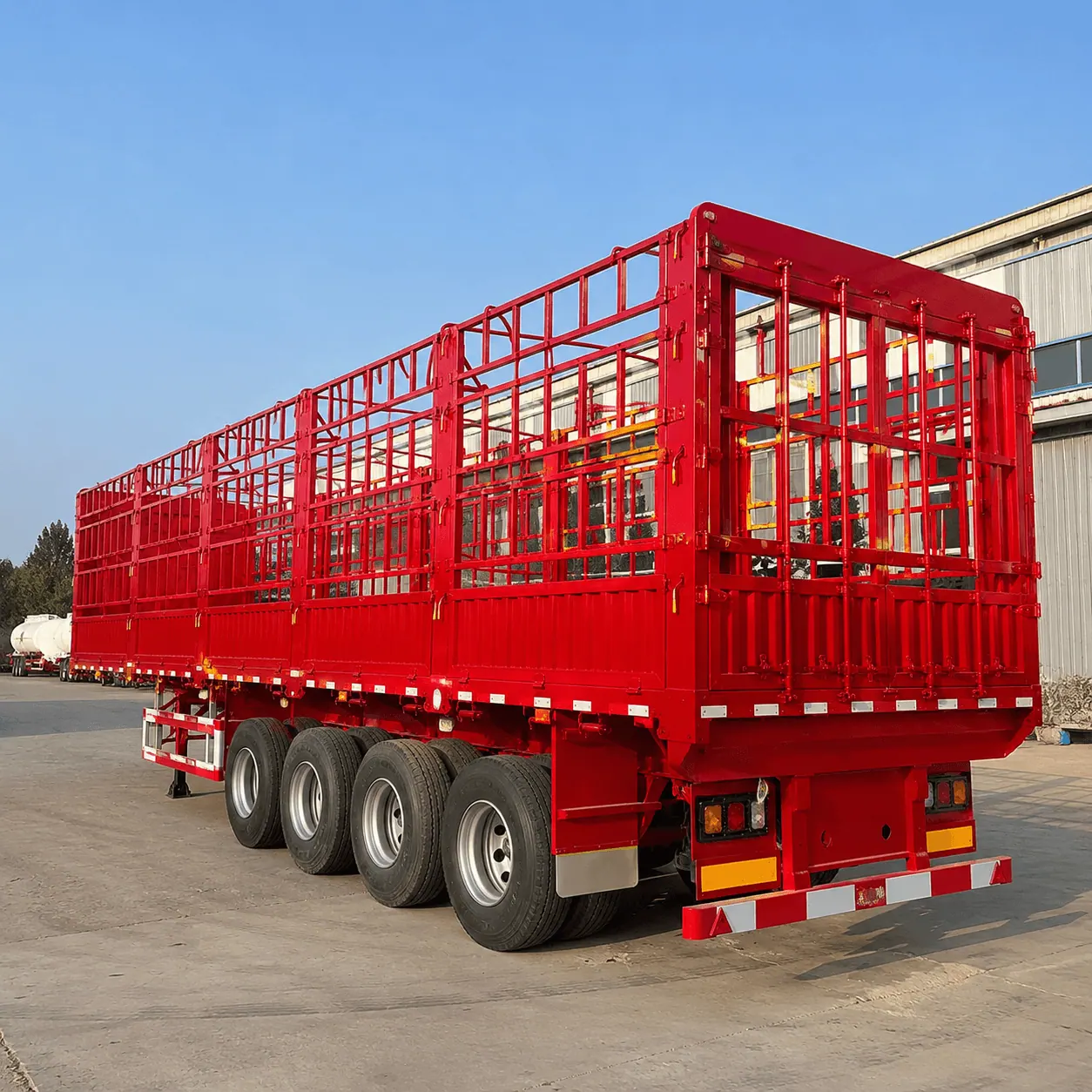

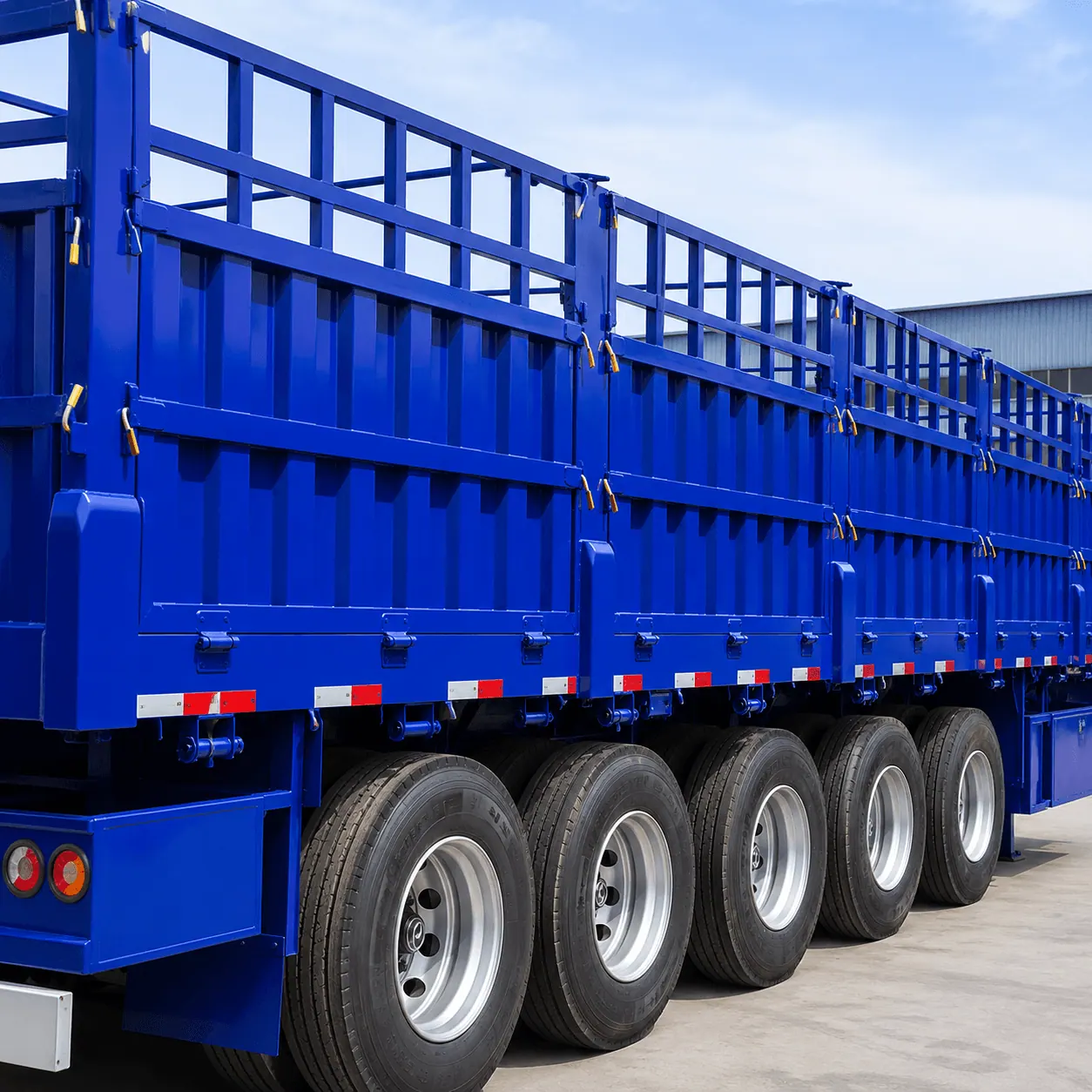

Fence Semi-Trailer
Fence semi-trailer is designed for medium and heavy-duty cargo transportation, suitable for carrying agricultural products, bagged goods, livestock feed, light bulk cargo, construction materials, daily goods and general freight. The high fence structure provides better cargo protection and ventilation, making it suitable for long-distance logistics and mixed cargo transportation.,The trailer adopts a high-strength steel frame, reinforced side fence structure, heavy-duty suspension and reliable axle system to ensure stable loading performance. Fence height, trailer length, payload capacity, axle quantity, side wall structure, suspension type, tire model, color and other specifications can be customized according to customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
| Item | Specification Range |
|---|---|
| Product Type | Fence Semi-Trailer / Stake Cargo Semi-Trailer |
| Overall Dimension | Approx. 12,000-13,950 mm L x 2,500-2,550 mm W x 2,500-4,000 mm H |
| Loading Capacity | Approx. 30-80 tons, customizable |
| Axle Quantity | 2 axles / 3 axles / 4 axles |
| Axle Capacity | 13T / 16T axle, optional FUWA, BPW or Chinese brand |
| Fence Height | Approx. 1,500-2,400 mm, customizable |
| Side Wall Height | Approx. 600-1,200 mm, customizable |
| Fence Structure | Fixed, detachable or foldable fence structure |
| Main Beam Material | High-strength steel such as Q345 / Q550 / T700 |
| Main Beam Height | Approx. 450-550 mm |
| Floor Plate | 3-5 mm checker plate or flat steel plate |
| Suspension | Mechanical leaf spring suspension or air suspension |
| Tire Model | 11R22.5 / 12R22.5 / 315/80R22.5 / 12.00R20 |
| Tire Quantity | 8 / 12 / 16 tires, depending on axle quantity |
| King Pin | 2 inch or 3.5 inch |
| Landing Gear | 28T heavy-duty landing gear |
| Brake System | Dual-line pneumatic brake system, optional ABS |
| Electrical System | 24V lighting system |
| Tool Box | Optional steel or aluminum tool box |
| Color | Red, blue, green, white, yellow or customized |
| Surface Treatment | Sand blasting, anti-rust primer and top coat painting |
| Customization | Dimension, payload, fence height, side wall height, axle brand, suspension, tires, color and accessories |
Typical Applications
- Agricultural product transportation
- Bagged grain, fertilizer and feed transport
- Light bulk cargo transport
- Livestock-related material transport
- Construction material transport
- Daily goods and general cargo logistics
- Long-distance freight transportation
- Regional distribution
- Warehouse-to-market transportation
- Mixed cargo transportation requiring ventilation and side protection
Available Configurations
- 2/3/4 axle design
- 30T, 40T, 50T, 60T, 80T payload design
- Different fence height options
- Fixed, detachable or foldable fence structure
- Mechanical suspension or air suspension
- FUWA / BPW / Chinese brand axle
- 11R22.5, 12R22.5, 315/80R22.5 tires
- ABS braking system
- JOST landing gear and king pin
- Reinforced floor plate
- Side protection
- Rope hooks
- Tool box
- Spare tire carrier
- Tarpaulin system
- Customized paint color and logo
Buyer Support
- High fence structure provides better cargo protection
- Suitable for agricultural products, bagged goods, feed, light bulk cargo and general freight
- Open fence design improves ventilation during transport
- Reinforced side structure improves durability and loading safety
- High-strength steel main beam improves bearing capacity and anti-deformation performance
- Detachable or foldable fence options make loading and unloading more flexible
- Multiple axle and suspension options adapt to different road conditions
- Durable painting process provides better anti-rust protection
- Factory direct supply with customized production support
