Dump Trucks
Shacman X5000 8×4 Dump Truck 430 / 460 / 500 / 520 / 550HP Available

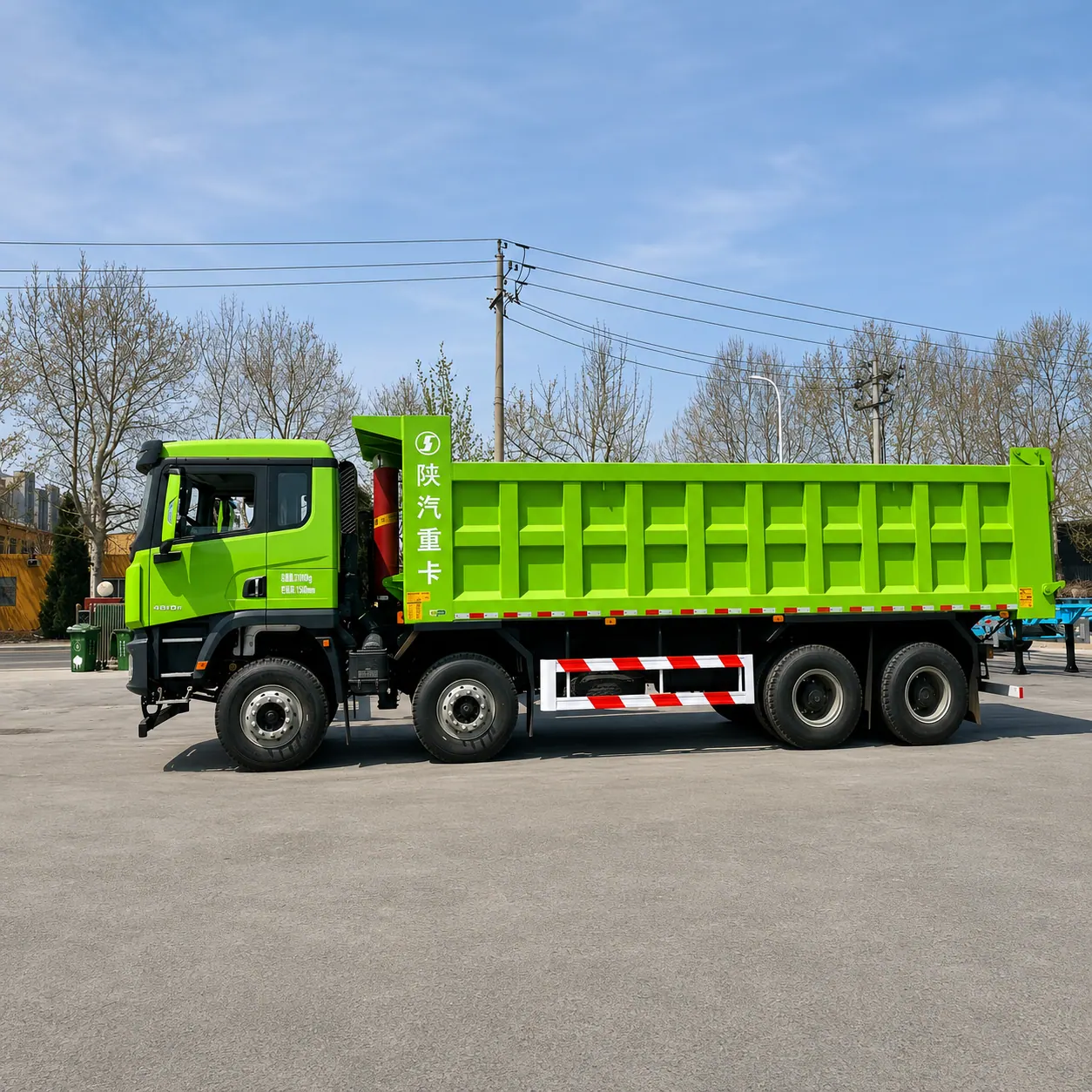

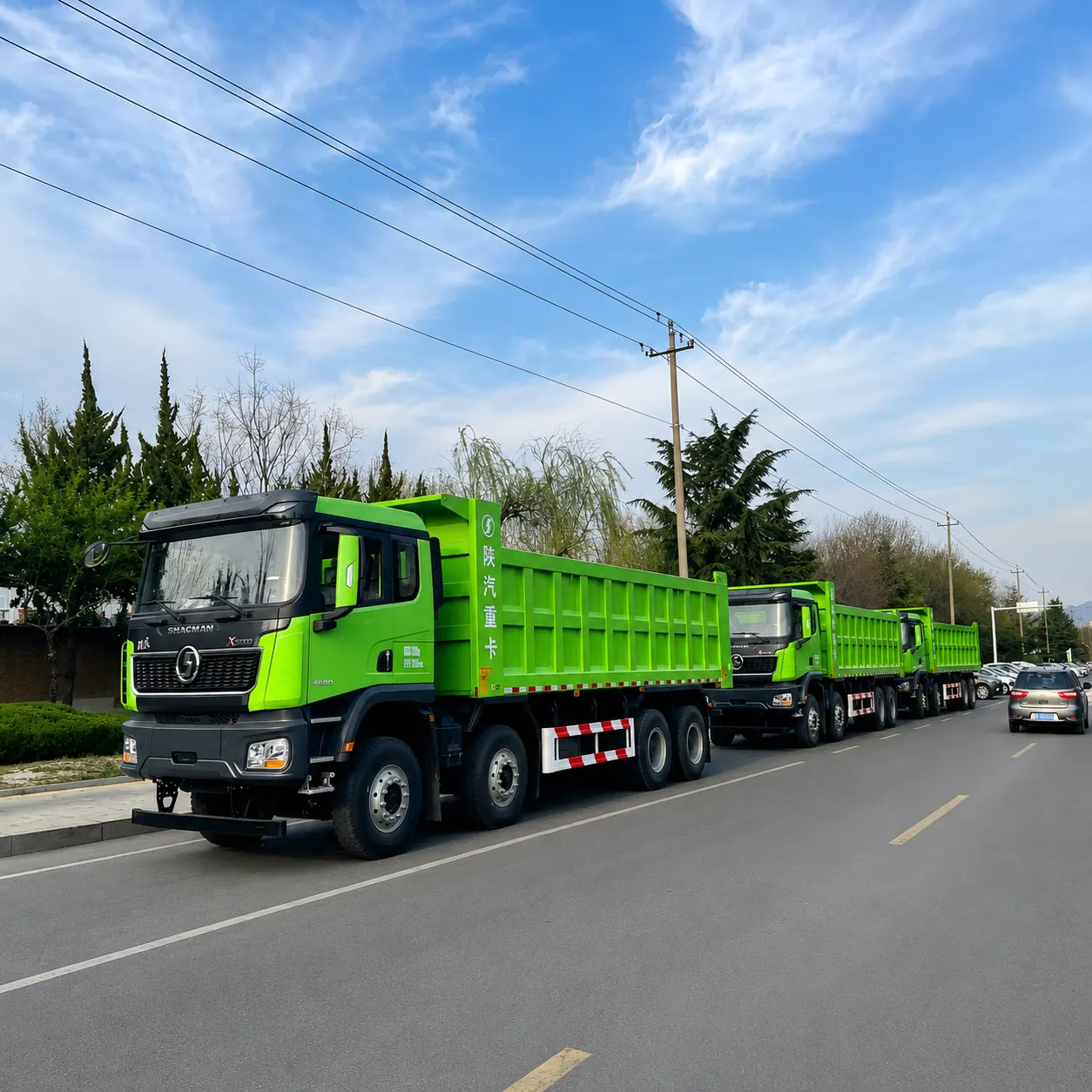

Shacman X5000 8×4 Dump Truck 430HP 460HP 500HP 520HP 550HP Heavy Duty Tipper Truck Shacman X5000 8×4 dump truck is a high-end heavy-duty tipper truck designed for large-volume bulk material transportation and rear tipping unloading. It is suitable for construction projects, mining areas, quarry operations, earthwork projects, road construction and large infrastructure transportation. Compared with F3000, H3000 and M3000 series, the X5000 series provides a more modern cab, stronger power options, improved driving comfort and better heavy-duty performance. The 8×4 chassis offers a longer cargo body, larger loading volume and better stability for heavy-load working conditions. This model can be equipped with Weichai or Cummins engine, FAST transmission, Hande / MAN technology axles, reinforced dump body and reliable hydraulic lifting system. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized according to stock condition and customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | SHACMAN |
| Model Series | X5000 |
| Drive Type | 8×4 |
| Engine Power | 430HP / 460HP / 500HP / 520HP / 550HP available, 560HP optional according to stock |
| Engine Brand | Weichai / Cummins optional according to stock |
| Engine Model | WP12 / WP13 / Cummins M13 / X12 series optional |
| Emission Standard | Euro II / Euro V / Euro VI optional, Euro III / Euro IV according to stock |
| Transmission | FAST 12-speed manual transmission, AMT optional according to stock |

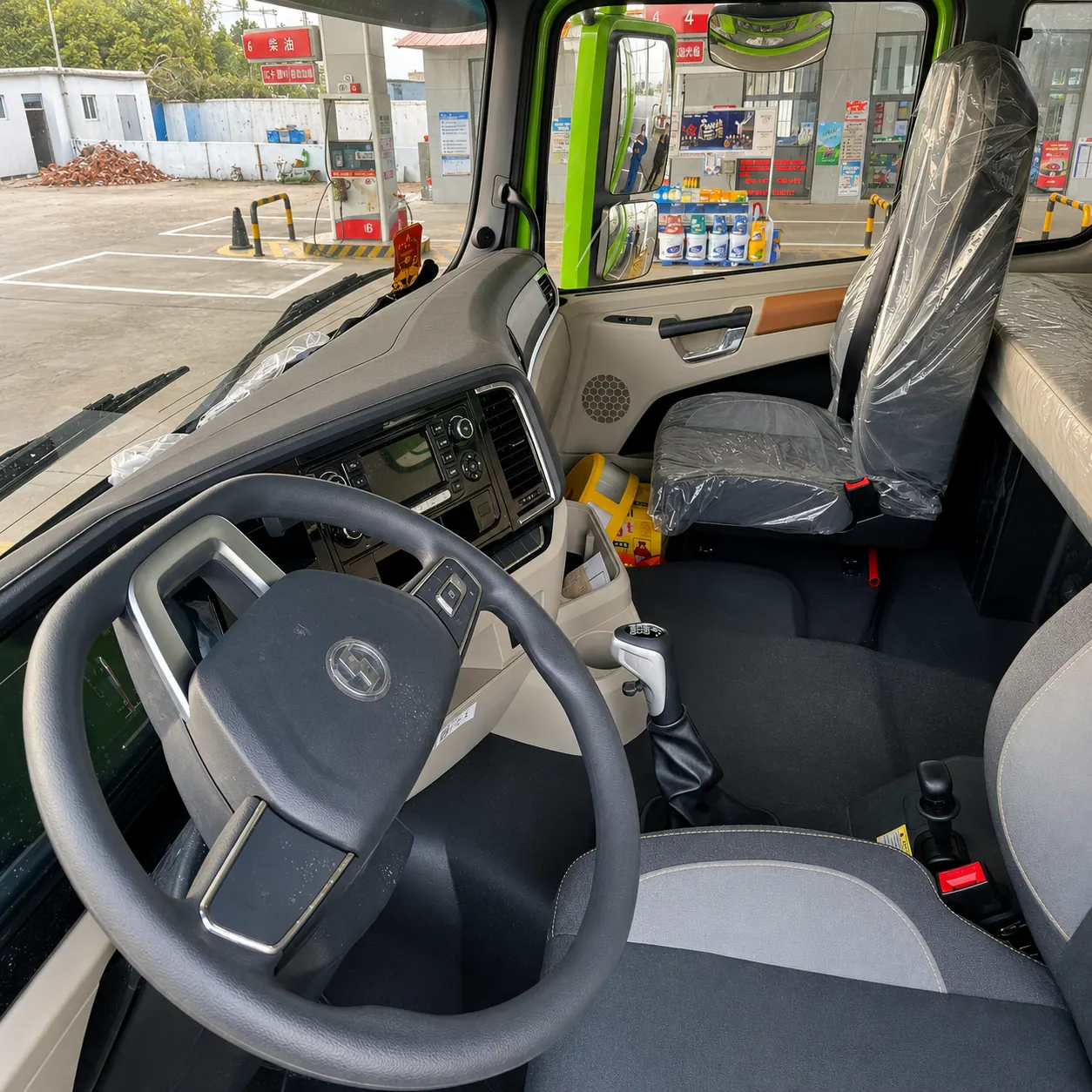

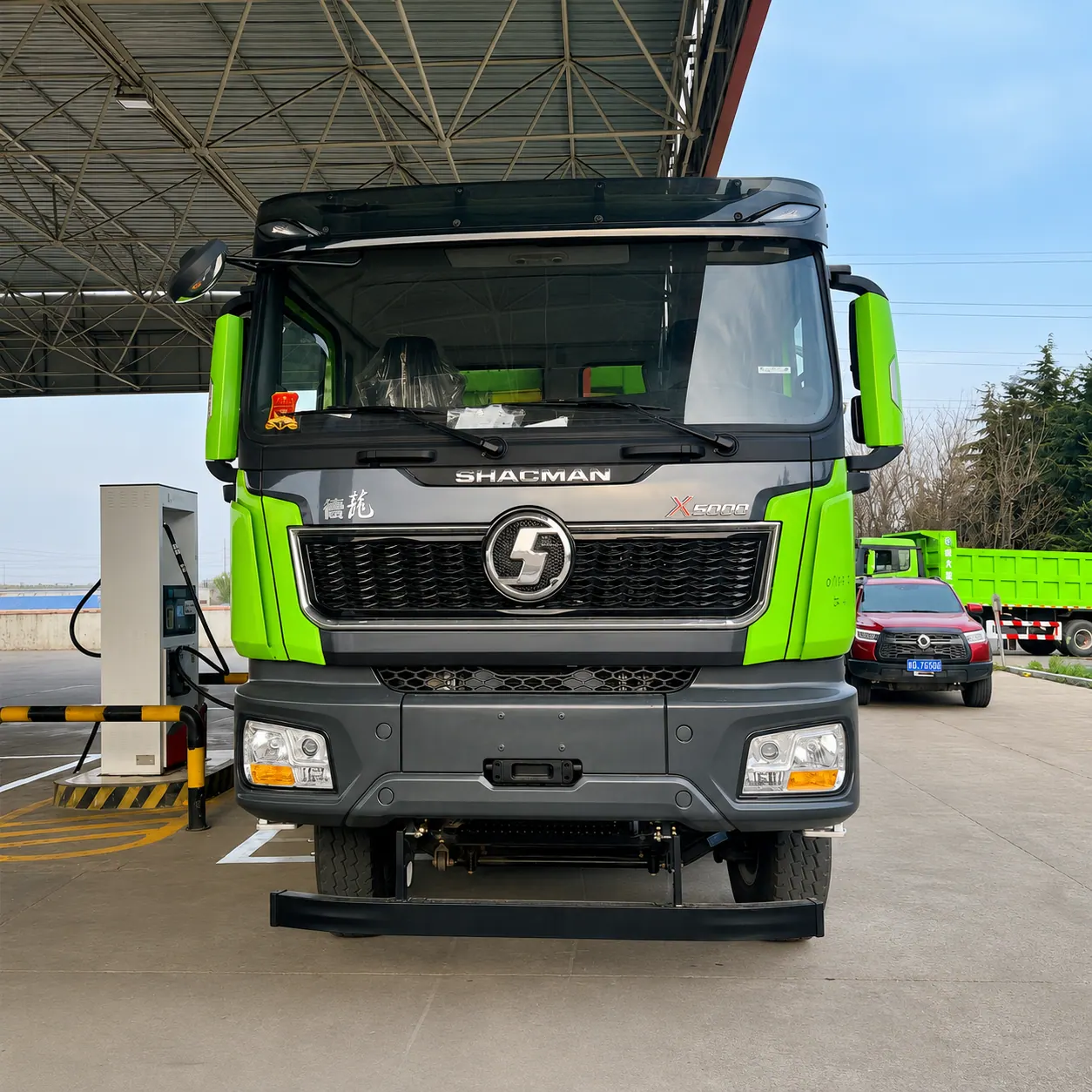

| Cab | X5000 cab, standard roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 9,400-11,800 mm L × 2,490-2,550 mm W × 3,300-3,850 mm H |
| Wheelbase | Approx. 1,800 + 2,975-4,600 + 1,400 mm |

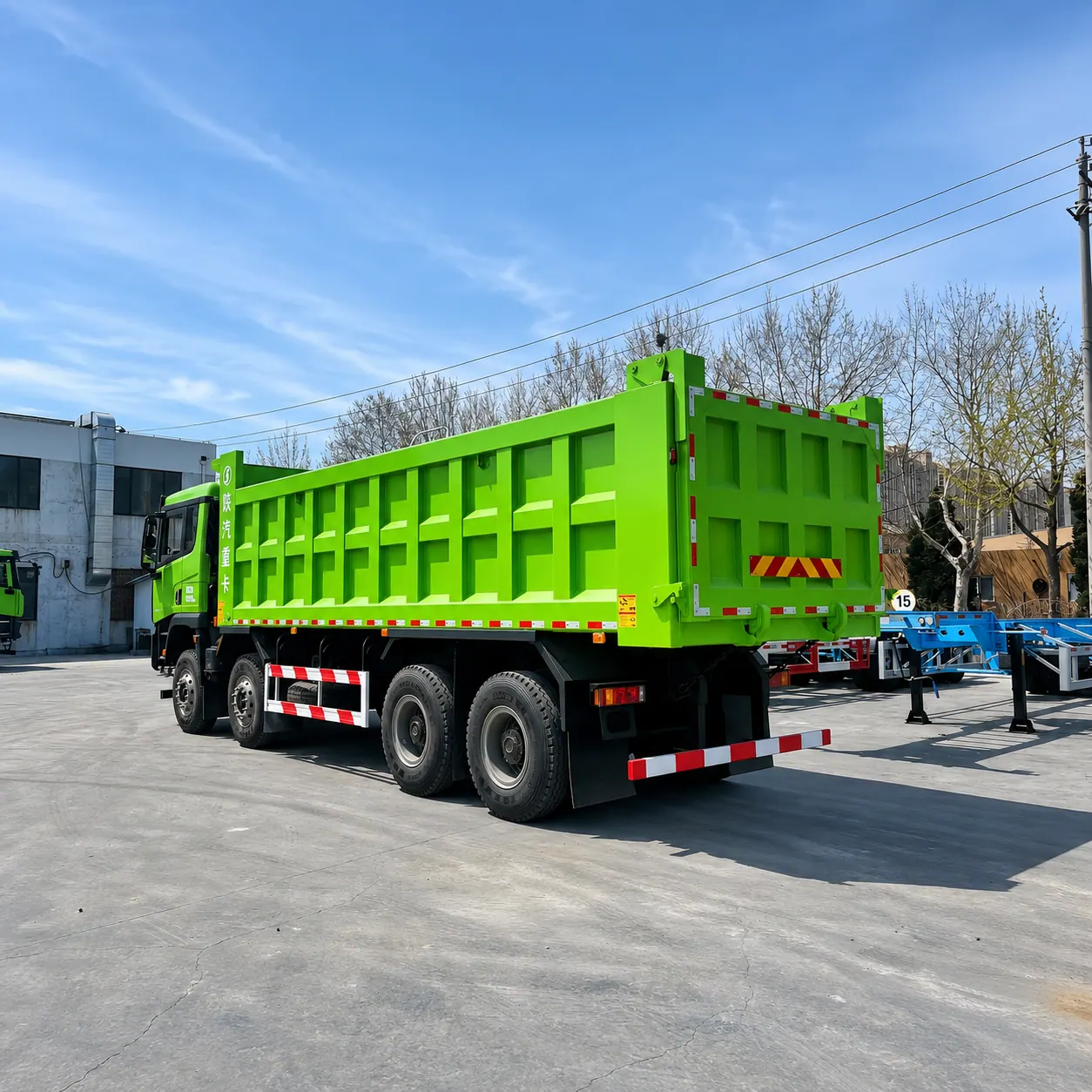

| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 7,000-8,500 mm L × 2,300-2,500 mm W × 1,200-2,000 mm H |
| Cargo Box Volume | Approx. 24-40 m³, depending on box size |
| Loading Capacity | Approx. 30-55 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 2 front steering axles + 2 rear drive axles |
| Front Axle | 7.5T / 9.5T heavy-duty front axle optional |
| Rear Axle | 13T / 16T Hande or MAN technology double rear drive axles optional |
| Frame | Reinforced heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 13R22.5 / 315/80R22.5 optional |
| Tire Quantity | 12 tires + 1 spare tire |
| Fuel Tank | Approx. 300-700 L, steel or aluminum fuel tank optional |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Typical Applications
- Large construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- demolition waste transportation
- large-volume short and medium-distance bulk cargo transport.
Available Configurations
- 430HP, 460HP, 500HP, 520HP or 550HP engine
- 560HP according to stock
- Weichai or Cummins engine
- Euro II / Euro V / Euro VI emission standard
- left-hand drive or right-hand drive
- standard roof cab or high roof cab
- sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 12.00R20, 12R22.5, 13R22.5 or 315/80R22.5 tires
- reinforced rear axle
- air conditioner
- air suspension seat
- ABS
- steel or aluminum fuel tank
- spare tire
- customized paint color, logo and export markings.
Buyer Support
- Shacman X5000 8×4 dump truck is a high-end heavy-duty model with modern cab design and strong market recognition
- 8×4 drive type provides larger cargo volume and stronger loading capacity than 6×4 models
- Weichai / Cummins engine options provide strong power for construction, mining and quarry transportation
- FAST transmission and Hande axle power chain offers mature performance and convenient maintenance
- 430 / 460 / 500 / 520 / 550HP engine options meet different heavy-load working conditions
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- reliable hydraulic rear tipping system improves unloading efficiency
- heavy-duty axles and multi-leaf spring suspension are suitable for rough construction and mining roads
- multiple emission standards and driving-side options are available for different export markets
- used, refurbished and customized trucks can be supplied with flexible configuration and competitive cost performance.
