SHACMAN X3000 Truck Mounted Crane 340 / 380 / 400 / 430 / 460 / 480HP 8 / 10 / 12 / 14 / 16 / 20 / 25T Available
SHACMAN X3000 Truck Mounted Crane is a heavy-duty lifting and transportation vehicle designed for construction, mining, engineering projects, machinery handling, industrial equipment installation, utility work and heavy material transportation. The vehicle combines a SHACMAN X3000 heavy-duty chassis with a hydraulic truck-mounted crane, reinforced mounting subframe, hydraulic outriggers and cargo body, allowing lifting, loading, transportation and unloading operations to be completed by one vehicle. SHACMAN X3000 crane trucks are available with 6×4 and 8×4 chassis configurations. Engine options include approximately 340HP, 380HP, 400HP, 430HP, 460HP and 480HP, while crane capacities of approximately 8T, 10T, 12T, 14T, 16T, 20T and 25T can be selected according to chassis capacity, cargo payload and lifting requirements. Straight-boom cranes provide longer working radius and higher lifting height for general construction and heavy-equipment handling. Knuckle-boom cranes can also be selected for projects requiring compact installation and flexible lifting in restricted working areas. Crane brand, rated lifting capacity, boom sections, lifting height, working radius, outriggers, cargo-body dimensions and control system can be customized according to project requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Truck Mounted Crane / Crane Truck / Lorry Mounted Crane / Cargo Truck with Crane |
| Brand | SHACMAN |
| Chassis Series | SHACMAN X3000 |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 340HP / 380HP / 400HP / 430HP / 460HP / 480HP available according to chassis and stock |
| Engine Brand | Weichai / Cummins |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro IV / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | FAST / ZF or equivalent |
| Transmission Type | Manual / AMT available according to chassis |
| Transmission Gears | 10-speed / 12-speed / 16-speed available |
| PTO | Heavy-duty PTO for hydraulic crane system |
| Cab Series | SHACMAN X3000 |
| Cab Type | Extended / high-roof heavy-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Single / double sleeper available |
| Driver Seat | Adjustable air-suspension driver seat available |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,500–12,000 mm depending on chassis, crane and cargo body |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,200–4,000 mm |
| Wheelbase | Multiple wheelbase configurations available for 6×4 / 8×4 chassis |
| Gross Vehicle Weight | Approx. 25–41 tons depending on chassis |
| Curb Weight | Approx. 13–24 tons depending on crane and cargo body |
| Rated Payload | According to chassis, crane weight, cargo body and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | SHACMAN / HANDE heavy-duty steering axle |
| Rear Axle | SHACMAN / HANDE heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available |
| Frame | Reinforced high-strength heavy-duty chassis frame |
| Crane Subframe | Heavy-duty reinforced crane mounting subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Heavy-duty multi-leaf spring / balance suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 400–700 L depending on chassis |
| Fuel Tank Material | Aluminum / steel available |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Crane Type | Straight Boom Crane / Knuckle Boom Crane optional |
| Crane Installation Position | Behind cab standard / rear-mounted optional |
| Crane Brand | XCMG / SANY / other compatible Chinese crane brands |
| Rated Crane Capacity | 8T / 10T / 12T / 14T / 16T / 20T / 25T available |
| Medium Crane Capacity | Approx. 8–10 tons |
| Heavy Crane Capacity | Approx. 12–16 tons |
| Extra Heavy Crane Capacity | Approx. 20–25 tons |
| Boom Sections | 4 / 5 / 6 / 7 sections depending on crane model |
| Boom Structure | Hydraulic telescopic straight boom / articulated folding boom |
| Boom Material | High-strength structural steel |
| Maximum Lifting Height | Approx. 14–28 m depending on crane model |
| Maximum Working Radius | Approx. 12–24 m depending on crane model |
| Maximum Lifting Moment | According to crane model and rated lifting capacity |
| Boom Extension | Hydraulic telescopic |
| Boom Elevation | Hydraulic |
| Crane Slewing | Hydraulic rotation |
| Slewing Angle | 360° continuous / limited rotation depending on crane model |
| Slewing Bearing | Heavy-duty slewing bearing |
| Main Hook | Heavy-duty lifting hook |
| Hook Block | Single / multi-sheave according to crane model |
| Steel Wire Rope | High-strength lifting wire rope |
| Main Winch | Hydraulic winch |
| Auxiliary Winch | Optional |
| Winch Brake | Automatic hydraulic / mechanical braking system |
| Hydraulic Pump | PTO-driven heavy-duty hydraulic pump |
| Hydraulic Working Pressure | Approx. 20–35 MPa depending on crane |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Optional |
| Hydraulic Control Valve | Multi-way proportional hydraulic valve |
| Hydraulic Cylinders | Heavy-duty double-acting hydraulic cylinders |
| Crane Control System | Manual hydraulic / electro-hydraulic proportional control |
| Ground Control | Available |
| High-Seat Control | Optional |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Emergency Manual Control | Available / optional |
| Overload Protection | Available / optional |
| Moment Limiter | Optional |
| Load Indicator | Optional |
| Boom Angle Indicator | Optional |
| Working Radius Indicator | Optional |
| Load Moment Indicator | Optional |
| Outrigger Type | Hydraulic H-type / telescopic outriggers |
| Front Outriggers | Available |
| Rear Outriggers | Optional / recommended for heavy crane configurations |
| Outrigger Extension | Manual / hydraulic optional |
| Outrigger Span | According to crane capacity and model |
| Vertical Outrigger Cylinder | Hydraulic |
| Outrigger Foot Pads | Heavy-duty steel pads |
| Stabilizer Interlock | Optional |
| Cargo Body Type | Dropside cargo body / flatbed cargo body |
| Cargo Body Length | Approx. 5,000–8,500 mm depending on chassis and crane |
| Cargo Body Width | Approx. 2,350–2,500 mm |
| Cargo Body Height | Approx. 500–800 mm for dropside configuration |
| Cargo Body Material | Carbon steel / high-strength steel |
| Cargo Floor | Checkered steel plate / flat steel plate / wood-steel combination optional |
| Floor Thickness | Approx. 4–10 mm or customized |
| Side Wall Thickness | Approx. 2–5 mm or customized |
| Side Panels | Fixed / foldable / removable optional |
| Rear Tailgate | Foldable / removable |
| Cargo Body Reinforcement | Reinforced longitudinal and transverse beams |
| Flatbed Configuration | Optional |
| Dropside Configuration | Available |
| Stake Body Configuration | Optional |
| Rear-Mounted Crane Configuration | Optional |
| Hydraulic Rear Outriggers | Optional |
| Auxiliary Hydraulic Winch | Optional |
| Additional Hook | Optional |
| Working Basket | Optional for compatible crane applications |
| Lifting Slings | Optional |
| Shackles | Optional |
| Spreader Beam | Optional |
| Crane Working Lights | Optional |
| Boom Working Light | Optional |
| Reversing Camera | Optional |
| Crane Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Lights | Optional |
| Audible Warning Alarm | Optional |
| Toolbox | Available |
| Outrigger Pad Storage | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, yellow, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, crane brand, crane capacity, boom sections, lifting height, working radius, outriggers, cargo body size, hydraulic system, control system, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Construction-material lifting and transportation
- steel transportation
- prefabricated component lifting
- heavy machinery loading and unloading
- generator transportation
- transformer installation
- electrical equipment handling
- utility construction
- power-line projects
- telecommunications projects
- pipeline construction
- road construction
- bridge construction
- building-material delivery
- industrial equipment installation
- factory equipment relocation
- warehouse cargo handling
- port and terminal operations
- mining-site material handling
- oilfield equipment transportation
- agricultural machinery transportation
- municipal engineering
- heavy equipment transportation
- emergency lifting operations.
Available Configurations
- 340HP, 380HP, 400HP, 430HP, 460HP or 480HP diesel engine
- SHACMAN X3000 6×4 or 8×4 heavy-duty chassis
- Weichai or Cummins diesel engine
- left-hand drive or right-hand drive
- Euro III / Euro IV / Euro V / Euro VI configuration according to chassis
- FAST, ZF or equivalent transmission
- manual or AMT gearbox
- 8T, 10T, 12T, 14T, 16T, 20T or 25T truck-mounted crane
- XCMG, SANY or other compatible crane brands
- straight-boom or knuckle-boom crane
- 4-section, 5-section, 6-section or 7-section boom
- approximately 14–28m maximum lifting height
- approximately 12–24m maximum working radius
- 360° rotation according to crane model
- hydraulic H-type outriggers
- rear hydraulic outriggers
- ground control
- high-seat control
- electro-hydraulic proportional control
- wireless remote control
- overload protection
- moment limiter
- load indicator
- load-moment indicator
- approximately 5.0–8.5m cargo body
- dropside cargo body
- flatbed cargo body
- removable side panels
- reinforced steel floor
- rear-mounted crane configuration
- auxiliary hydraulic winch
- working basket
- lifting slings
- shackles
- spreader beam
- crane camera
- reversing camera
- 360° monitoring system
- LED working lights
- toolbox
- customized crane capacity, cargo body dimensions, hydraulic system, paint color, company logo and export markings.
Buyer Support
- SHACMAN X3000 Truck Mounted Crane combines a heavy-duty SHACMAN X3000 chassis with professional hydraulic lifting equipment and a reinforced cargo body, allowing lifting, loading, transportation and unloading to be completed by one vehicle. The integrated configuration is suitable for construction, mining, industrial installation and heavy-equipment transportation projects requiring both lifting capability and cargo capacity. Crane capacities from approximately 8T to 25T provide solutions for medium-, heavy- and extra-heavy lifting applications. 8T and 10T cranes are suitable for construction materials and general machinery
- 12T, 14T and 16T configurations provide greater lifting capability for industrial equipment
- 20T and 25T cranes are available for heavier machinery and demanding engineering applications. 6×4 and 8×4 chassis configurations provide strong load capacity and operating stability. 6×4 versions balance maneuverability, chassis capacity and cargo space, while 8×4 configurations provide greater axle capacity and a longer platform for large cranes, heavy cargo and engineering equipment. Straight-boom cranes provide greater lifting height and long working radius for machinery handling, construction and equipment installation. Knuckle-boom cranes provide a compact folded structure and flexible lifting geometry for operations around buildings, industrial equipment and restricted working areas. Hydraulic H-type outriggers provide a stable operating base. Heavy 12–25T crane configurations can be equipped with additional rear hydraulic outriggers to increase the support area and improve stability when lifting heavy loads at extended working radii. Ground control, high-seat control and optional wireless remote control provide flexible crane operation. Overload protection, moment limiters, load-moment indicators, boom-angle indicators and monitoring cameras can be configured to improve operating control and safety. The reinforced cargo body allows the same vehicle to transport machinery, steel, generators, transformers, construction materials and other cargo after loading. Cargo-body length, floor thickness, side-wall height and structural reinforcement can be customized according to the transported material. Left-hand-drive and right-hand-drive configurations are available for different export markets. Engine power, drive configuration, crane brand, lifting capacity, boom sections, working radius, lifting height, outriggers, cargo-body dimensions, hydraulic controls, cameras, paint color and other specifications can be customized according to project requirements.

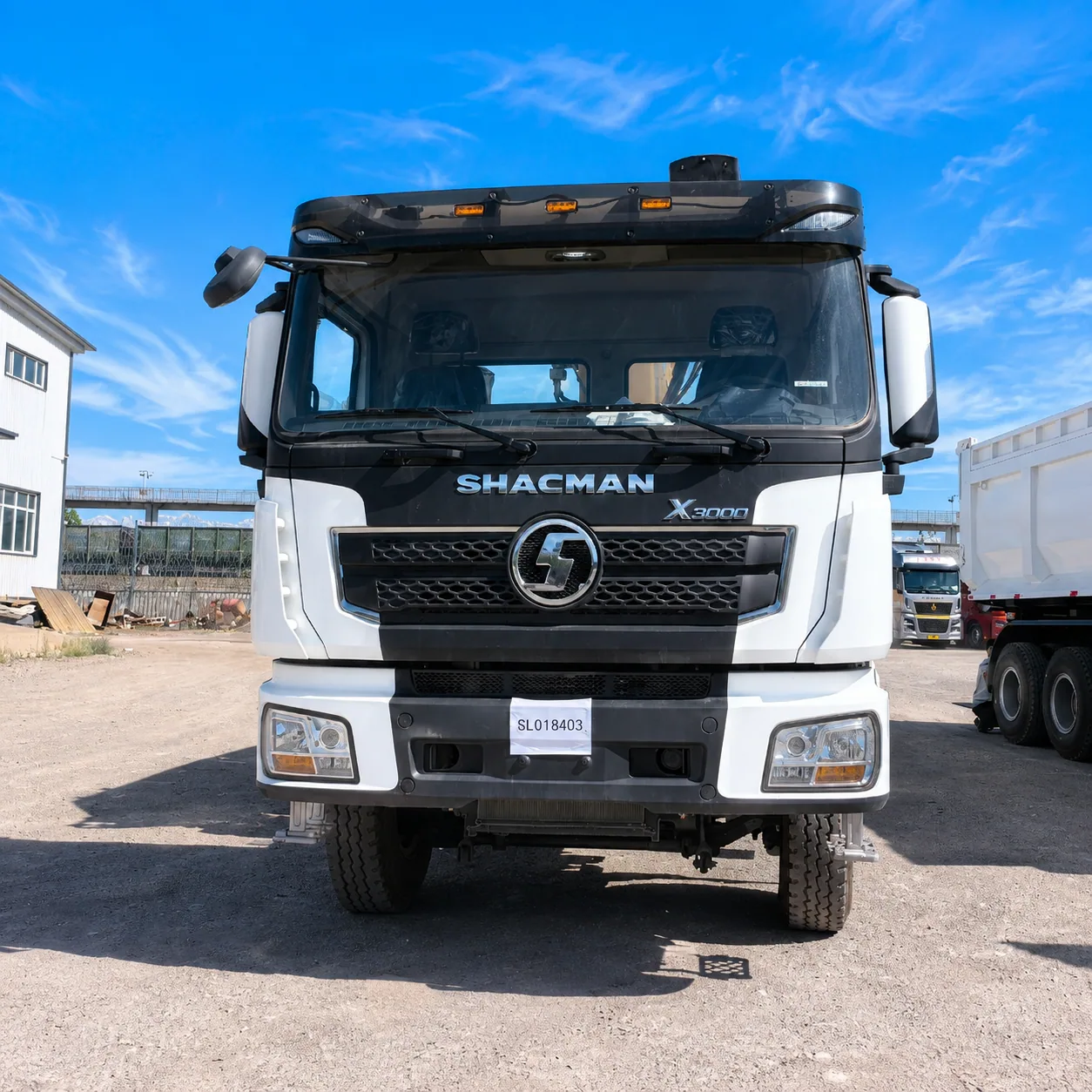

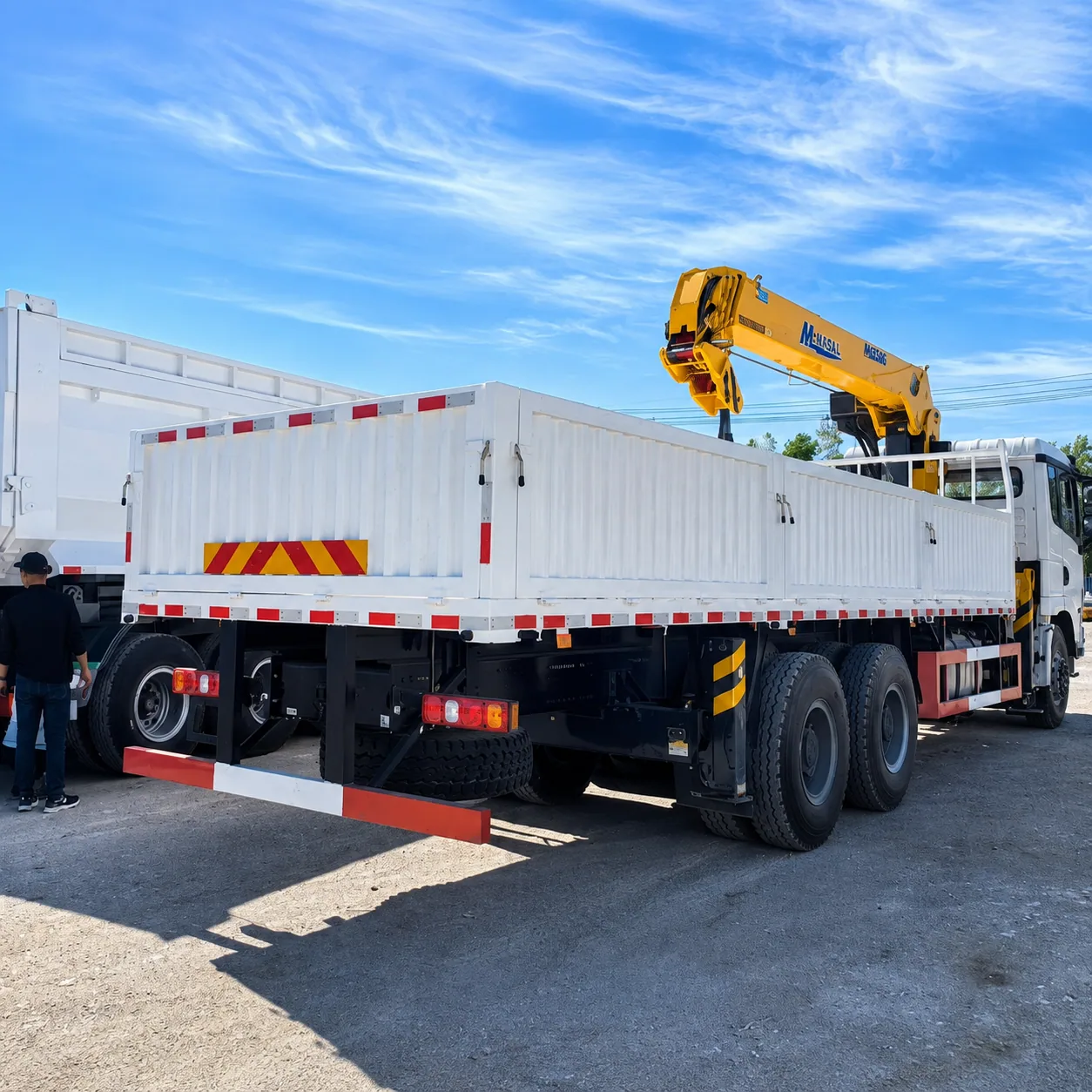

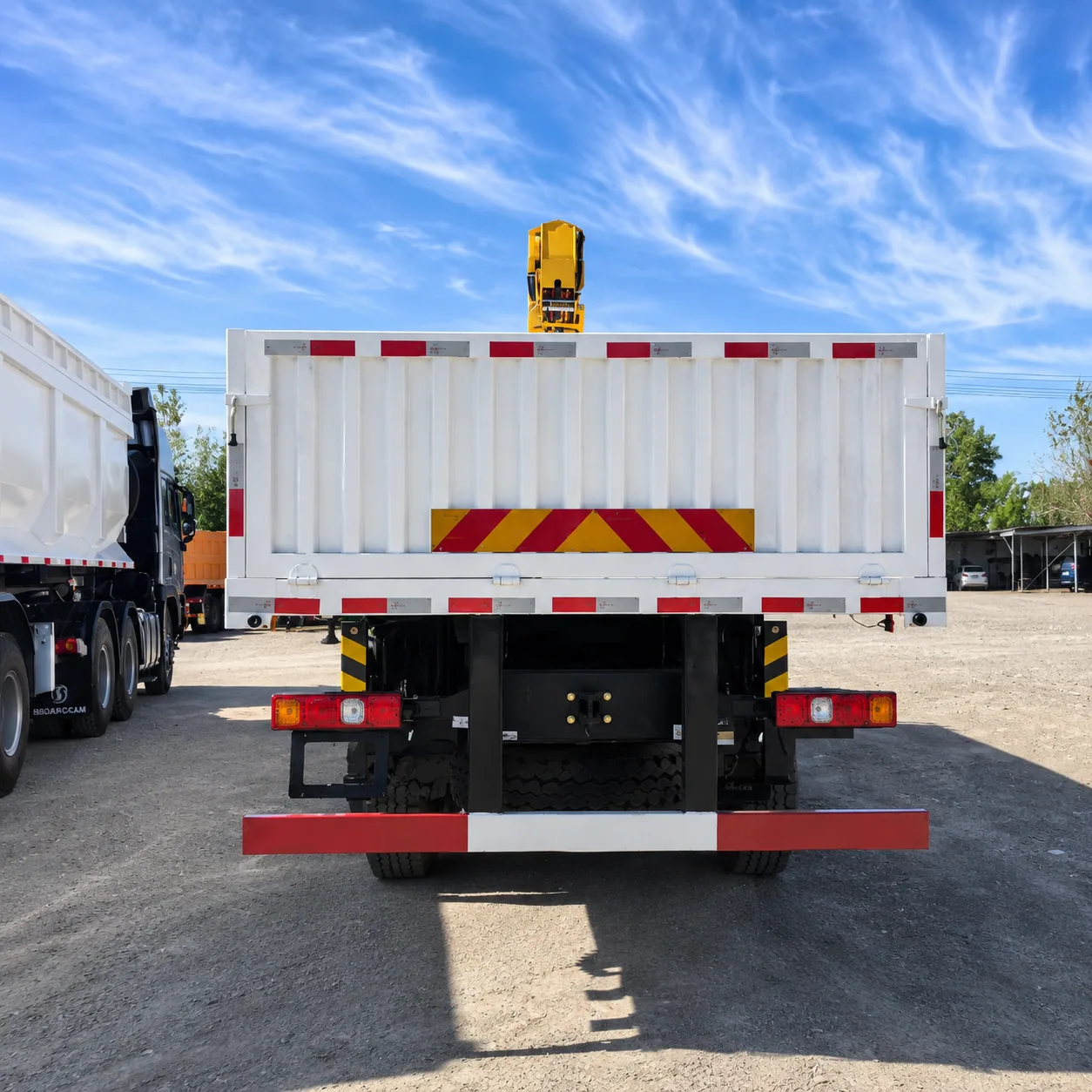

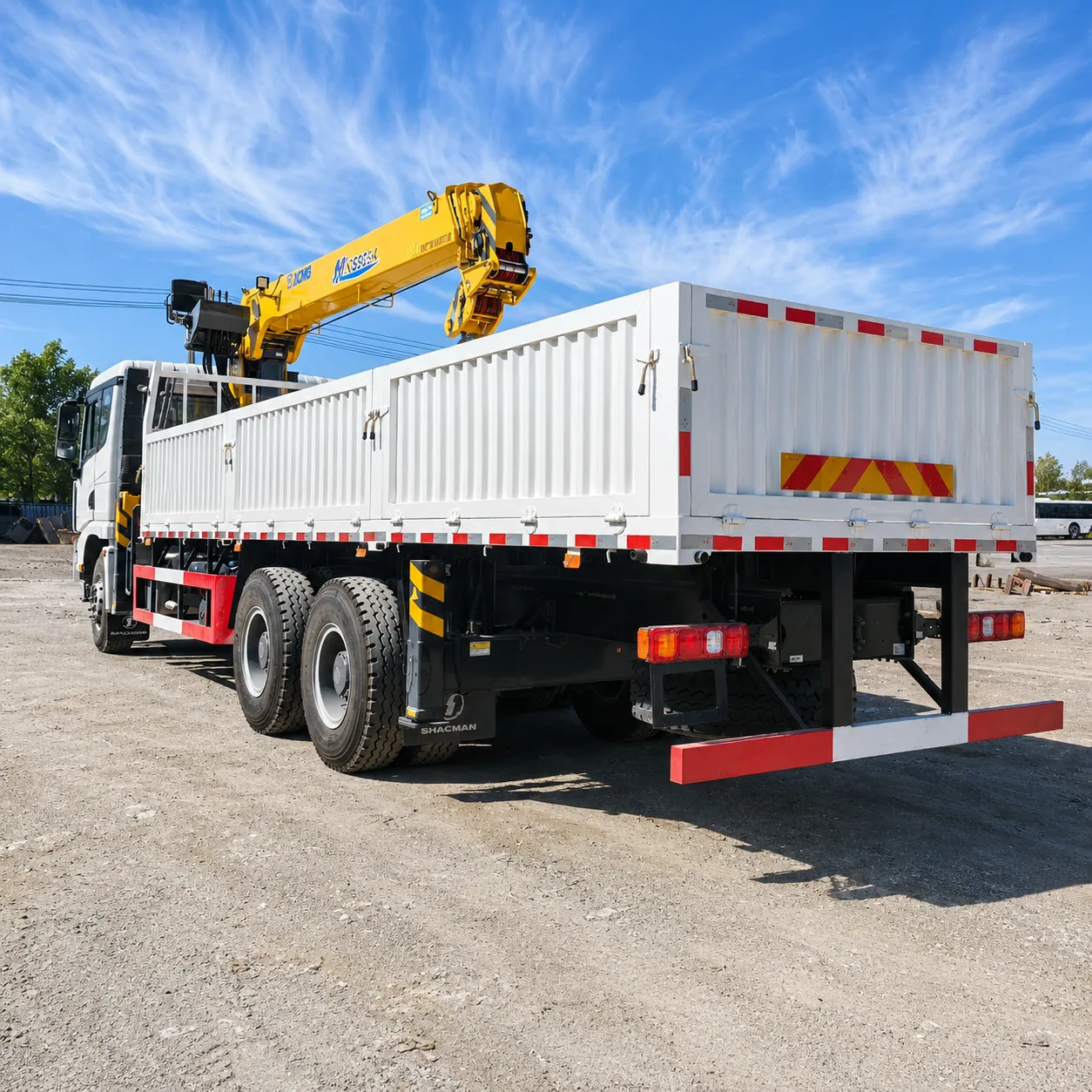

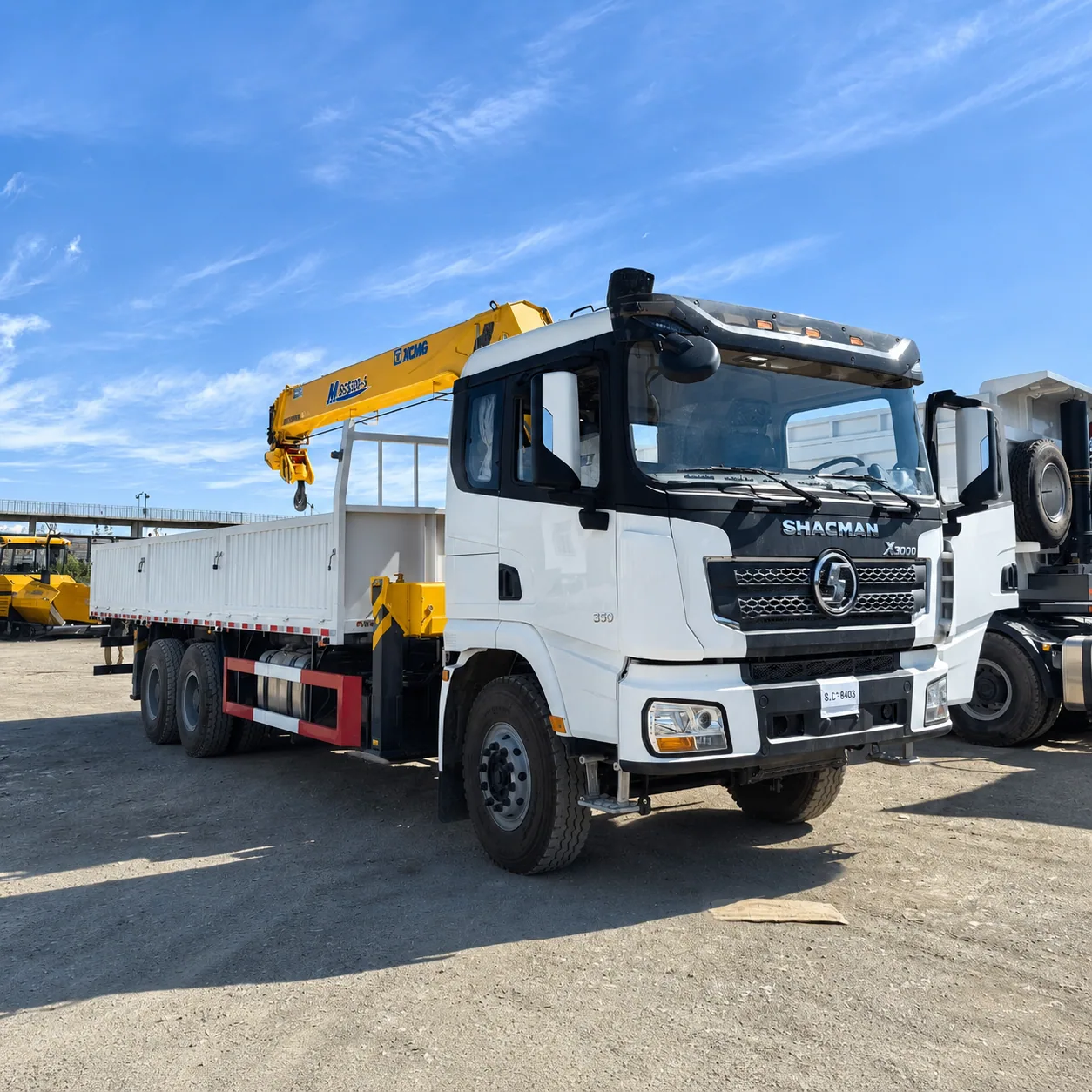

Product Display
