SHACMAN X3000 Concrete Mixer Truck 300 / 340 / 380 / 400 / 420HP 8 / 10 / 12 / 14 / 16CBM Available
SHACMAN X3000 Concrete Mixer Truck is a heavy-duty special-purpose construction vehicle designed for ready-mixed concrete transportation between batching plants and construction sites. It combines the SHACMAN X3000 heavy-duty chassis with a high-strength wear-resistant mixing drum, hydraulic drive system, hydraulic pump, hydraulic motor, reducer, feeding hopper, discharge chute, water-cleaning system and reinforced mixer subframe. The X3000 concrete mixer platform is available in 6×4 and 8×4 configurations. Official SHACMAN configurations support Weichai and Cummins diesel engines with approximately 300–420PS power, 10–12L displacement and up to approximately 2,100N·m torque. FAST 10-speed or 12-speed manual transmissions, MAN technology heavy-duty axles and reinforced frames provide a durable powertrain and chassis structure for loaded concrete transportation. Different mixer superstructures can be configured according to chassis and project requirements, including approximately 8CBM, 10CBM, 12CBM, 14CBM and 16CBM mixing capacities. The 6×4 X3000 platform is suitable for mixer bodies up to approximately 10CBM, while 8×4 chassis configurations are suitable for larger-capacity applications. High-strength wear-resistant drum shells and spiral mixing blades provide continuous concrete agitation during transportation, while the hydraulic system provides smooth drum rotation for loading, mixing and discharge operations.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Concrete Mixer Truck / Cement Mixer Truck / Transit Mixer Truck |
| Brand | SHACMAN |
| Model Series | X3000 |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 300HP / 340HP / 380HP / 400HP / 420HP available |
| Engine Brand | Weichai / Cummins |
| Engine Displacement | Approx. 10–12 L |
| Maximum Torque | Approx. 1,200–2,100 N·m |
| Engine Type | Inline six-cylinder, turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to export configuration |
| Transmission Brand | FAST |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed manual transmission |
| Clutch | φ430 mm heavy-duty clutch |
| PTO | Heavy-duty power take-off for mixer hydraulic system |
| Steering Gear | ZF8098 or equivalent |
| Cab Series | SHACMAN X3000 |
| Cab Type | X3000 standard / extended heavy-duty cab |
| Seating Capacity | 2 persons commonly available |
| Sleeper | Single sleeper available |
| Driver Seat | Hydraulic / air-suspension adjustable driver seat |
| Cab Suspension | Four-point hydraulic / mechanical suspension according to configuration |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Automatic / manual air conditioner available |
| Electric Windows | Available |
| Overall Length | Approx. 8,500–11,500 mm depending on chassis and mixer body |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,700–4,000 mm |
| 6×4 Wheelbase | Approx. 3,775 + 1,400 mm |
| 8×4 Wheelbase | Approx. 1,800 + 2,975 + 1,400 mm |
| Chassis Weight Rating | Different GVW / GCW configurations available according to 6×4 or 8×4 chassis |
| Maximum Combined Weight | Up to approx. 35 tons for representative 6×4 platform / 50 tons for representative 8×4 platform |
| Maximum Driving Speed | Approx. 80–100 km/h according to configuration |
| Frame | Reinforced 850×300 mm heavy-duty frame |
| Frame Structure | 850×300 (8+7) mm / reinforced multi-layer configuration available |
| Front Axle | MAN technology heavy-duty steering axle |
| Front Axle Capacity | Approx. 9.5 tons on representative heavy-duty configurations |
| Rear Axle | MAN technology heavy-duty drive axle |
| Rear Axle Capacity | Approx. 16 tons per drive axle |
| Rear Axle Type | Single-reduction / double-reduction heavy-duty drive axle |
| Rear Axle Ratio | Approx. 4.769–5.92 available |
| Differential Lock | Available |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 315/80R22.5 / 12.00R20 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 chassis; spare tire available |
| Fuel Tank | Approx. 400–700 L |
| Fuel Tank Material | Aluminum / steel |
| Brake System | Dual-circuit compressed-air brake system |
| Brake Components | WABCO components available according to configuration |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Mixer Body Type | Rotating concrete mixing drum |
| Effective Mixer Capacity | Approx. 8CBM / 10CBM / 12CBM / 14CBM / 16CBM available according to chassis and superstructure |
| Common 6×4 Mixer Capacity | Up to approx. 10CBM |
| Larger Mixer Configuration | Available with 8×4 chassis according to project requirements |
| Mixer Drum Material | High-strength wear-resistant steel |
| Drum Shell | Reinforced wear-resistant steel drum body |
| Drum Structure | Reinforced drum with internal double-helical mixing blades |
| Drum Rotation | Forward / reverse rotation |
| Drum Rotation Speed | Approx. 0–16 rpm depending on hydraulic configuration |
| Mixing Blade Type | Double-helical / spiral mixing blades |
| Mixing Blade Material | High-strength wear-resistant steel |
| Wear-Resistant Lining | Feeding hopper and discharge chute wear-resistant lining available |
| Hydraulic Drive Type | Hydrostatic hydraulic drive system |
| Hydraulic Circuit | Compact open hydraulic circuit |
| Hydraulic Pump | Rexroth / EATON / PMP or equivalent optional |
| Hydraulic Motor | Rexroth / EATON / PMP or equivalent optional |
| Reducer | Bonfiglioli / ZF / PMP or equivalent mixer reducer optional |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Available |
| Hydraulic Temperature Control | Temperature-monitoring / protection system available |
| Feeding System | Rear feeding hopper |
| Feeding Hopper | Reinforced large-capacity feeding hopper |
| Feeding Hopper Material | High-strength steel with wear-resistant lining |
| Feeding Speed | Approx. ≥3 m³/min depending on mixer configuration |
| Discharge System | Rear discharge chute |
| Discharge Speed | Approx. 2–3 m³/min depending on concrete condition and mixer system |
| Main Discharge Chute | Adjustable and rotatable discharge chute |
| Extension Chute | One or more extension chutes optional |
| Concrete Residual Rate | Low-residual drum and blade design |
| Water Tank Capacity | Approx. 300–500 L |
| Water Tank Material | Steel / aluminum optional |
| Water Supply System | Pressurized / gravity water supply system |
| Drum Cleaning System | Integrated water flushing system |
| Feeding Hopper Cleaning | Available |
| Discharge Chute Cleaning | Available |
| Hand-Washing Outlet | Optional |
| Rear Operating Control | Mechanical / electro-hydraulic control |
| Operating Position | Left and right rear operating controls available |
| Drum Speed Control | Adjustable |
| Drum Direction Control | Mixing / neutral / discharge |
| Cab Drum Control | Optional |
| Support Roller | Heavy-duty maintenance-friendly support rollers |
| Drum Support Structure | Reinforced front and rear mixer drum supports |
| Mixer Subframe | Reinforced high-strength steel subframe |
| Rear Ladder | Available |
| Rear Fender | Available |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Working Lights | Optional |
| Warning Lamp | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, green, yellow or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, transmission, drive type, mixer capacity, drum material, hydraulic pump, hydraulic motor, reducer, water system, axle ratio, tires, steering side, paint color, company logo and export markings |
Product Details
Typical Applications
- Ready-mixed concrete transportation
- commercial concrete batching plants
- residential building construction
- commercial building construction
- industrial plant construction
- urban road construction
- highway construction
- bridge construction
- tunnel construction
- railway construction
- airport construction
- port construction
- municipal infrastructure
- hydropower projects
- dam construction
- industrial park development
- foundation construction
- mining infrastructure
- precast concrete projects
- large-scale infrastructure projects
- urban development projects
- construction contractor fleet operations.
Available Configurations
- 300HP, 340HP, 380HP, 400HP or 420HP diesel engine
- Weichai or Cummins 10–12L diesel engine
- 6×4 or 8×4 drive configuration
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V emission configuration
- FAST 10-speed or 12-speed manual transmission
- MAN 9.5-ton front axle
- MAN 16-ton rear drive axle
- single-reduction or double-reduction drive axle
- different rear axle ratios
- 315/80R22.5, 12.00R20 or equivalent tires
- 400–700L aluminum or steel fuel tank
- 8CBM, 10CBM, 12CBM, 14CBM or 16CBM mixer body according to chassis and upper-body configuration
- high-strength wear-resistant mixer drum
- reinforced double-helical mixing blades
- wear-resistant feeding-hopper and discharge-chute lining
- Rexroth, EATON, PMP or equivalent hydraulic pump
- Rexroth, EATON, PMP or equivalent hydraulic motor
- Bonfiglioli, ZF, PMP or equivalent reducer
- hydraulic oil cooling and temperature-control system
- approximately 300–500L water tank
- pressurized water system
- reinforced feeding hopper
- adjustable discharge chute
- extension discharge chute
- mechanical or electro-hydraulic rear controls
- cab-mounted mixer control
- reversing camera
- rear working camera
- 360° monitoring system
- working lights
- warning lamps
- ABS
- air conditioner
- hydraulic / air-suspension driver seat
- spare tire
- toolbox
- fire extinguisher
- customized mixer capacity, hydraulic system, paint color, company logo and export markings.
Buyer Support
- SHACMAN X3000 Concrete Mixer Truck combines the premium X3000 heavy-duty chassis with a professional concrete mixing and transportation system for commercial batching plants, construction contractors and large infrastructure projects
- 300HP, 340HP, 380HP, 400HP and 420HP power configurations provide strong torque and reliable performance for fully loaded concrete transportation
- Weichai and Cummins 10–12L engines provide up to approximately 2,100N·m torque, while FAST 10-speed and 12-speed manual transmissions provide reliable torque transfer for demanding construction operations. 6×4 and 8×4 chassis configurations provide flexibility for different mixer volumes, axle-load requirements and operating conditions
- the 6×4 platform supports mixer capacities up to approximately 10CBM, while the 8×4 platform provides a heavier-duty foundation for larger mixer superstructures
- high-strength wear-resistant drum shells and spiral mixing blades provide continuous concrete agitation and improved service life. MAN technology 9.5-ton front axles and 16-ton heavy-duty rear axles, reinforced 850×300mm frames and multi-leaf spring suspension provide strong chassis support for frequent loaded operation. Representative X3000 6×4 and 8×4 mixer platforms also provide 400–700L fuel tanks and 315/80R22.5 tires for heavy-duty operation. The compact hydraulic circuit, wear-resistant feeding and discharge components, hydraulic temperature-control system and heavy-duty mixer support structure provide reliable performance during continuous concrete transportation
- approximately 300–500L water-system options support cleaning of the mixer drum, feeding hopper and discharge chute after unloading
- left-hand-drive and right-hand-drive configurations support different export markets
- engine, transmission, drive configuration, mixer capacity, hydraulic components, reducer, water system, axle ratio, tires, paint color and other configurations can be customized according to project requirements.

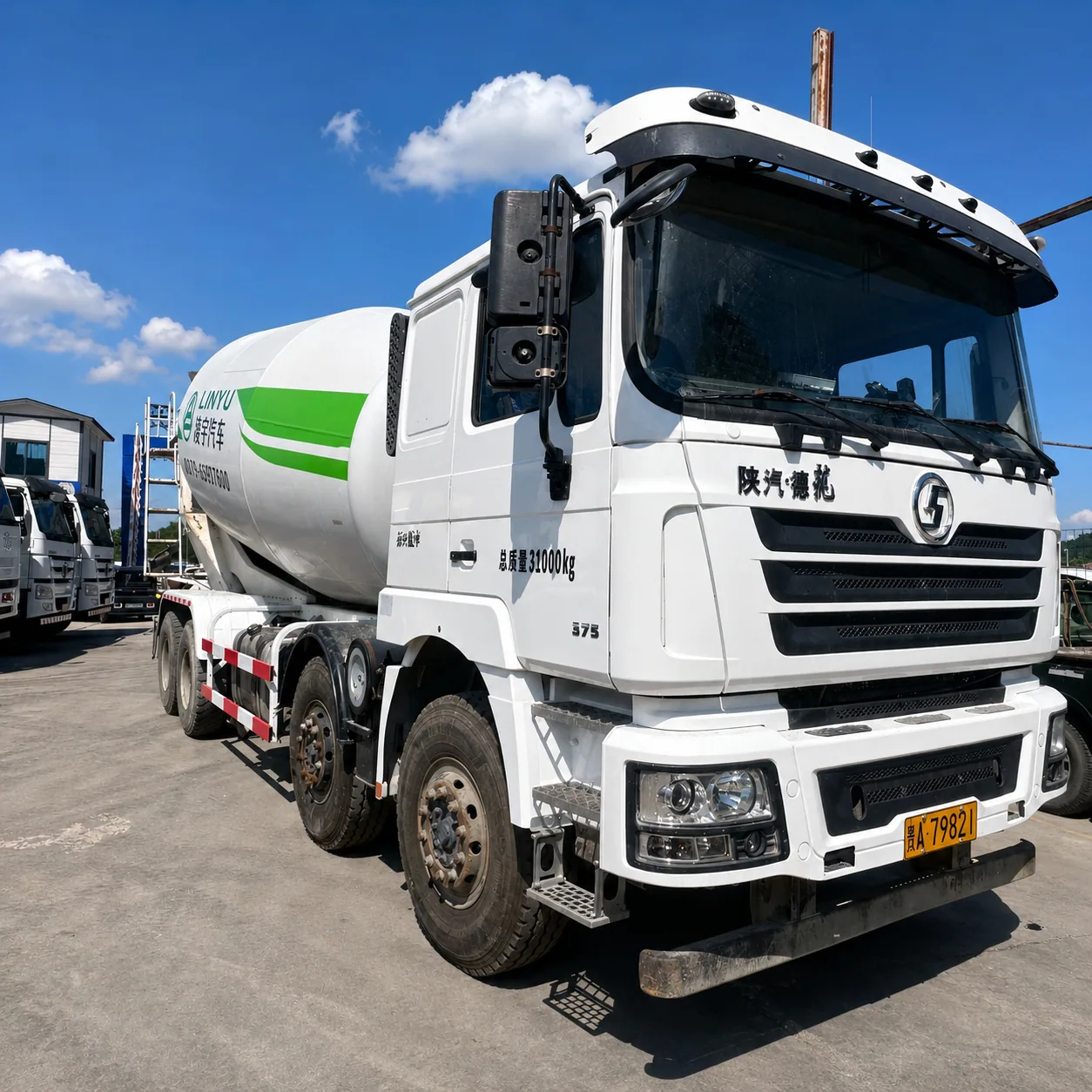

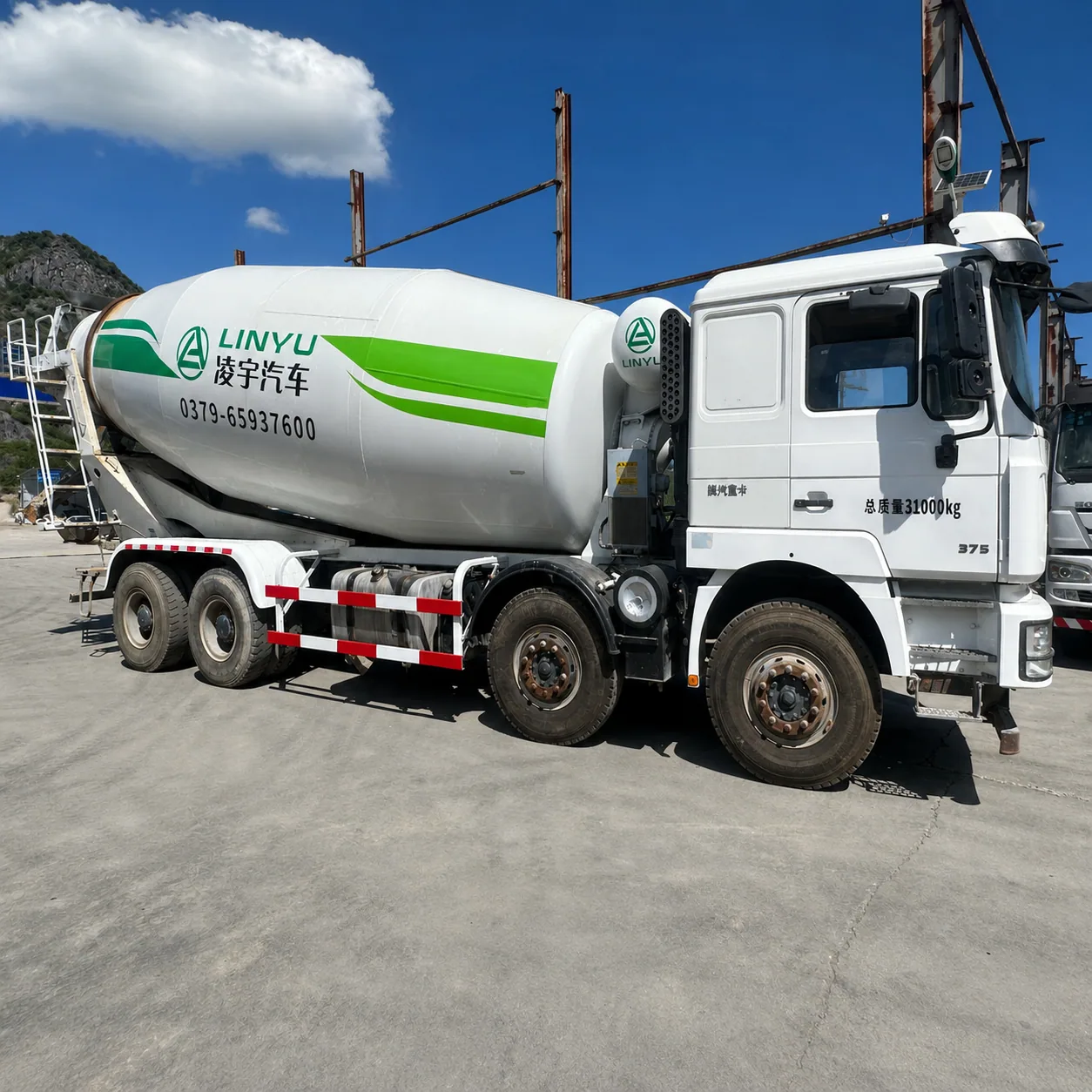

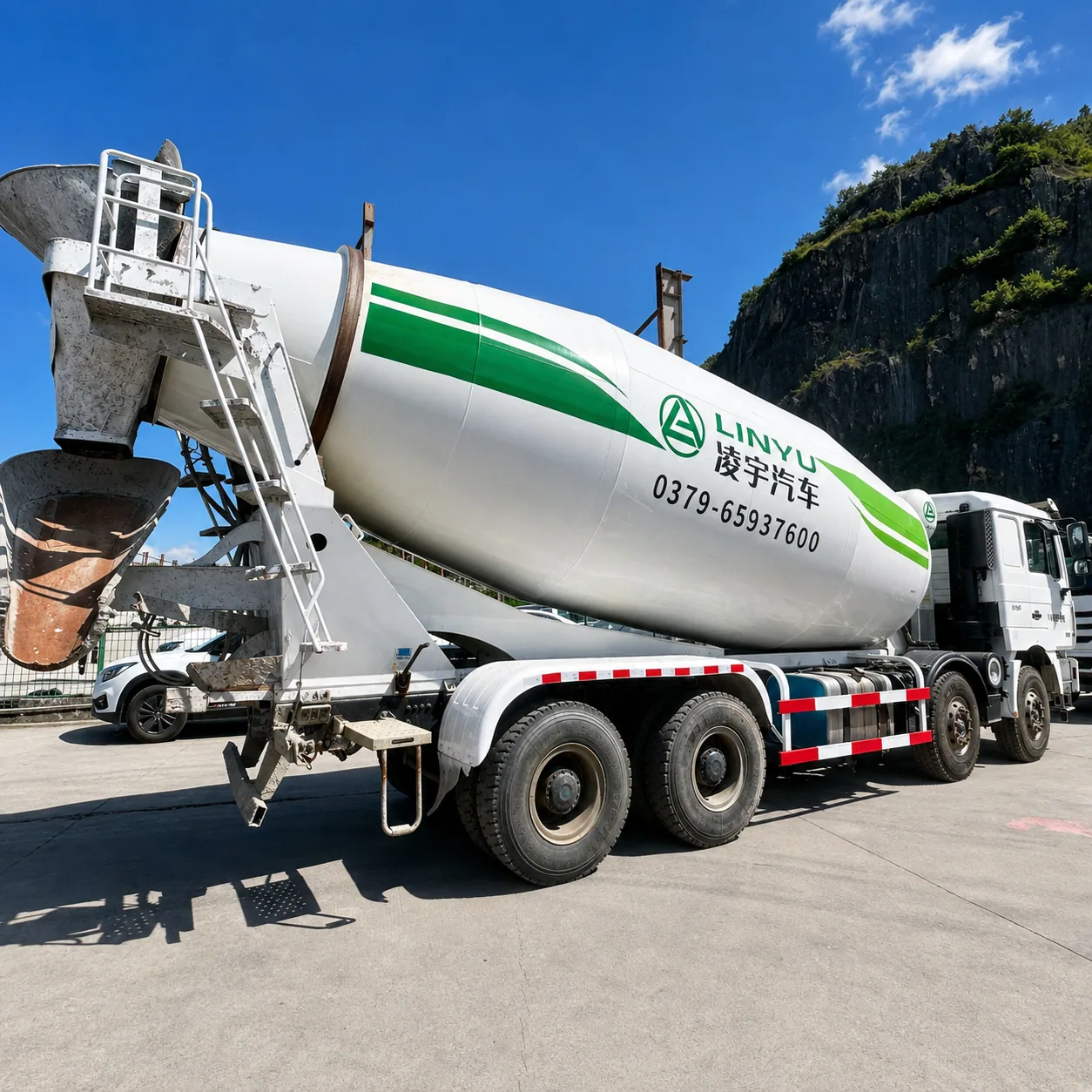

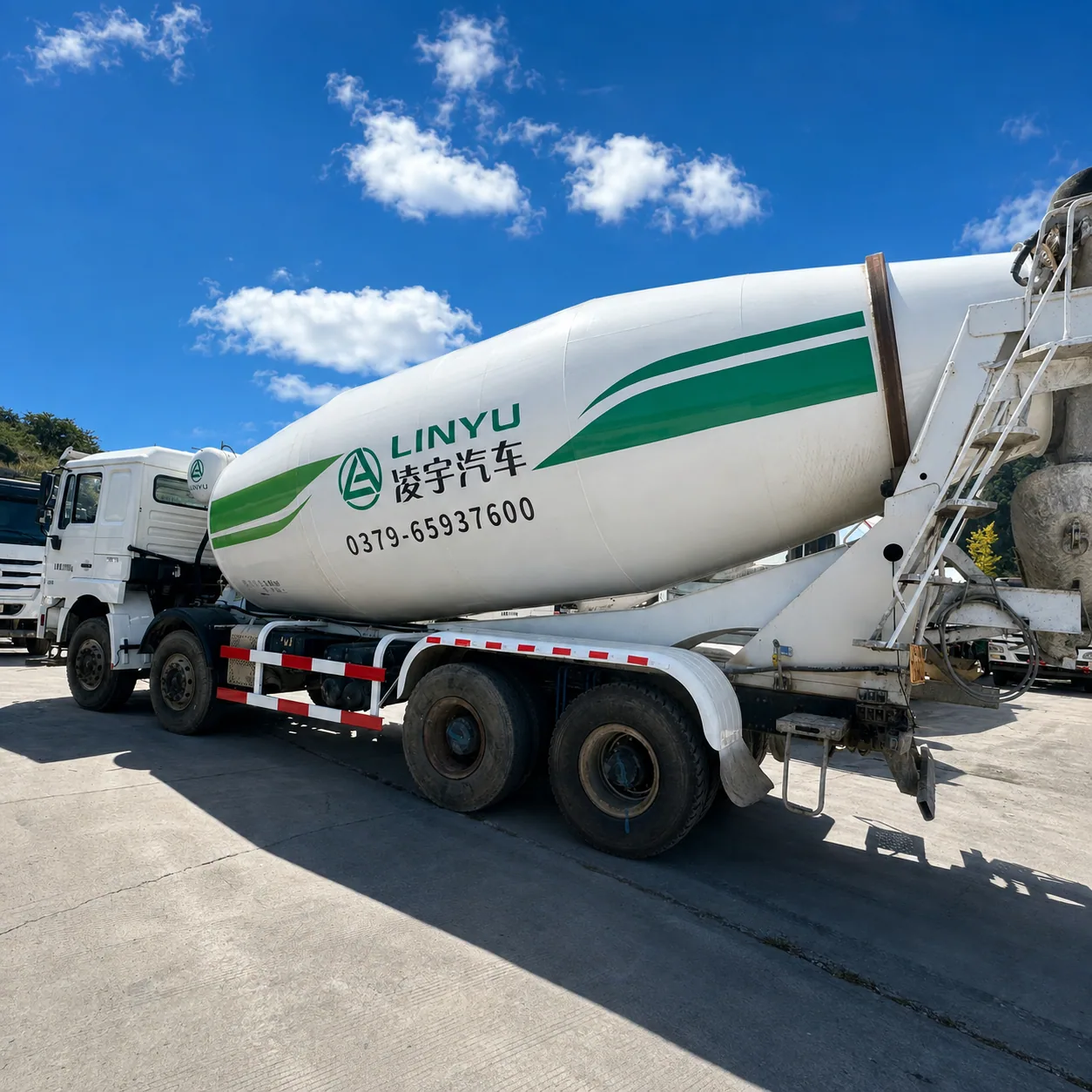

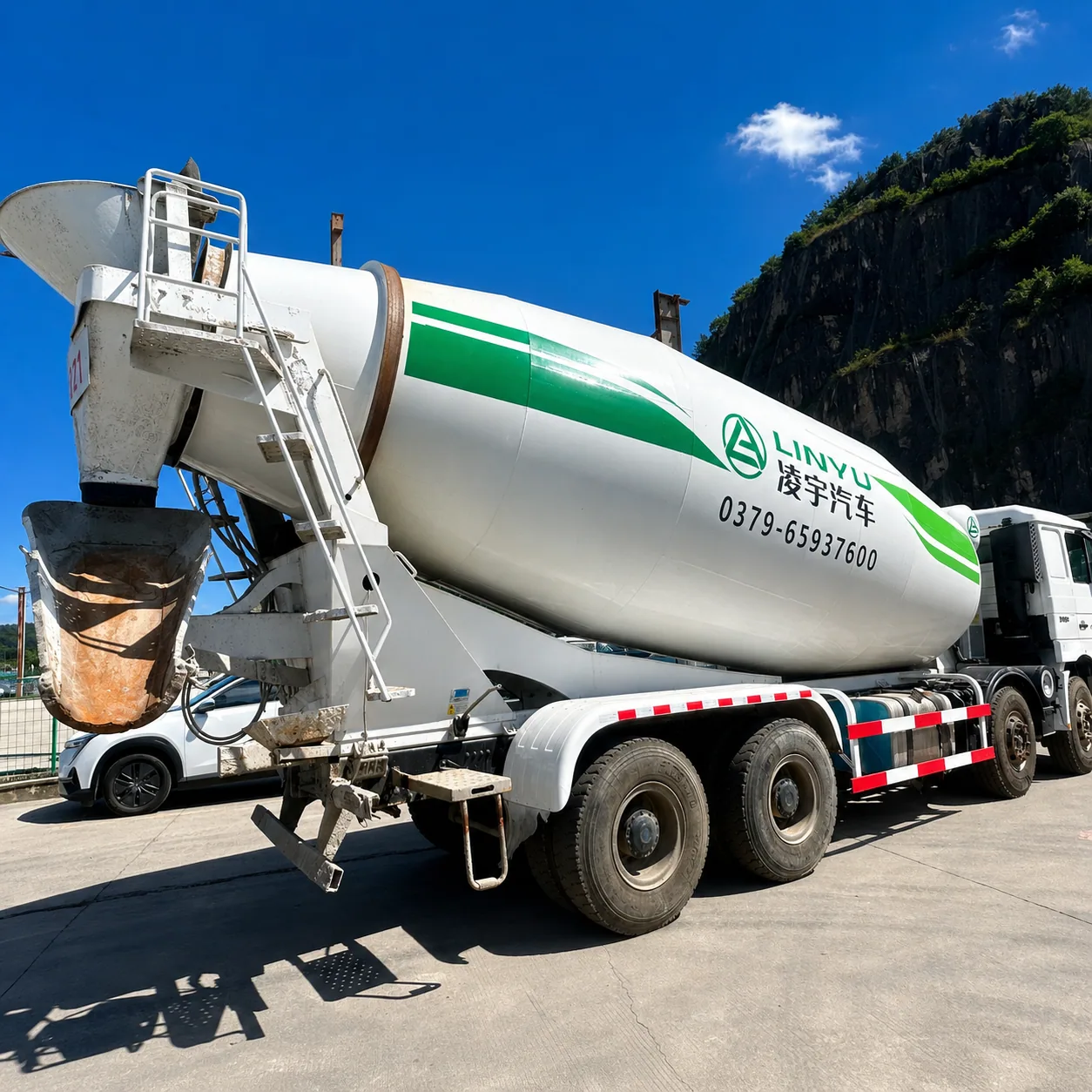

Product Display
