Dump Trucks
Shacman X3000 6×4 Dump Truck 380 / 400 / 430 / 460HP Available
Shacman X3000 6×4 dump truck is a heavy-duty tipper truck designed for construction, mining, quarry, road construction and bulk material transportation. It is widely used for transporting sand, gravel, soil, coal, ore, construction waste and other loose materials under heavy-load working conditions. This model can be supplied with mature engine, gearbox and heavy-duty axle configurations according to stock condition and customer requirements. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized for different export markets and working conditions.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | SHACMAN |
| Model Series | X3000 |
| Drive Type | 6×4 |
| Engine Power | 380HP / 400HP / 430HP / 460HP available, 340HP / 550HP optional according to stock |
| Engine Brand | Weichai / Cummins optional |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V optional |
| Transmission | FAST 10-speed / 12-speed manual transmission |
| Cab | X3000 cab, standard cab or sleeper cab optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 8,400-8,900 mm L ? 2,500-2,550 mm W ? 3,400-3,700 mm H |
| Wheelbase | Approx. 3,775-4,575 mm + 1,400 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 5,600-6,500 mm L ? 2,300-2,500 mm W ? 1,200-1,800 mm H |
| Cargo Box Volume | Approx. 18-28 m3, depending on box size |
| Loading Capacity | Approx. 20-40 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 2 rear drive axles |
| Front Axle | MAN 9.5T front axle optional |
| Rear Axle | MAN 13T / 16T heavy-duty drive axle optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 optional |
| Tire Quantity | 10 tires + 1 spare tire |
| Fuel Tank | Approx. 400-700 L, steel or aluminum fuel tank optional |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- demolition waste transportation
- short and medium-distance bulk cargo transport
Available Configurations
- left-hand drive or right-hand drive
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 12.00R20, 12R22.5 or 315/80R22.5 tires
- reinforced rear axle
- air conditioner
- customized paint color, logo and export markings
- 380HP, 400HP, 430HP or 460HP engine
- 340HP / 550HP according to stock
- Weichai or Cummins engine
- Euro II / Euro III / Euro IV / Euro V emission standard
- standard cab or sleeper cab
- air suspension seat
- ABS
Buyer Support
- Shacman X3000 modern heavy-duty chassis with strong market recognition
- Weichai / Cummins engine options provide strong power for heavy-load transport
- FAST gearbox offers reliable transmission performance and convenient maintenance
- 6×4 drive type provides strong traction and stable operation
- reinforced dump body improves durability for sand, gravel, soil, coal and ore
- reliable hydraulic rear tipping system improves unloading efficiency
- comfortable X3000 cab is suitable for long working hours
- multiple emission standards and driving-side options for different export markets
- used or refurbished trucks available with flexible customization and competitive cost performance

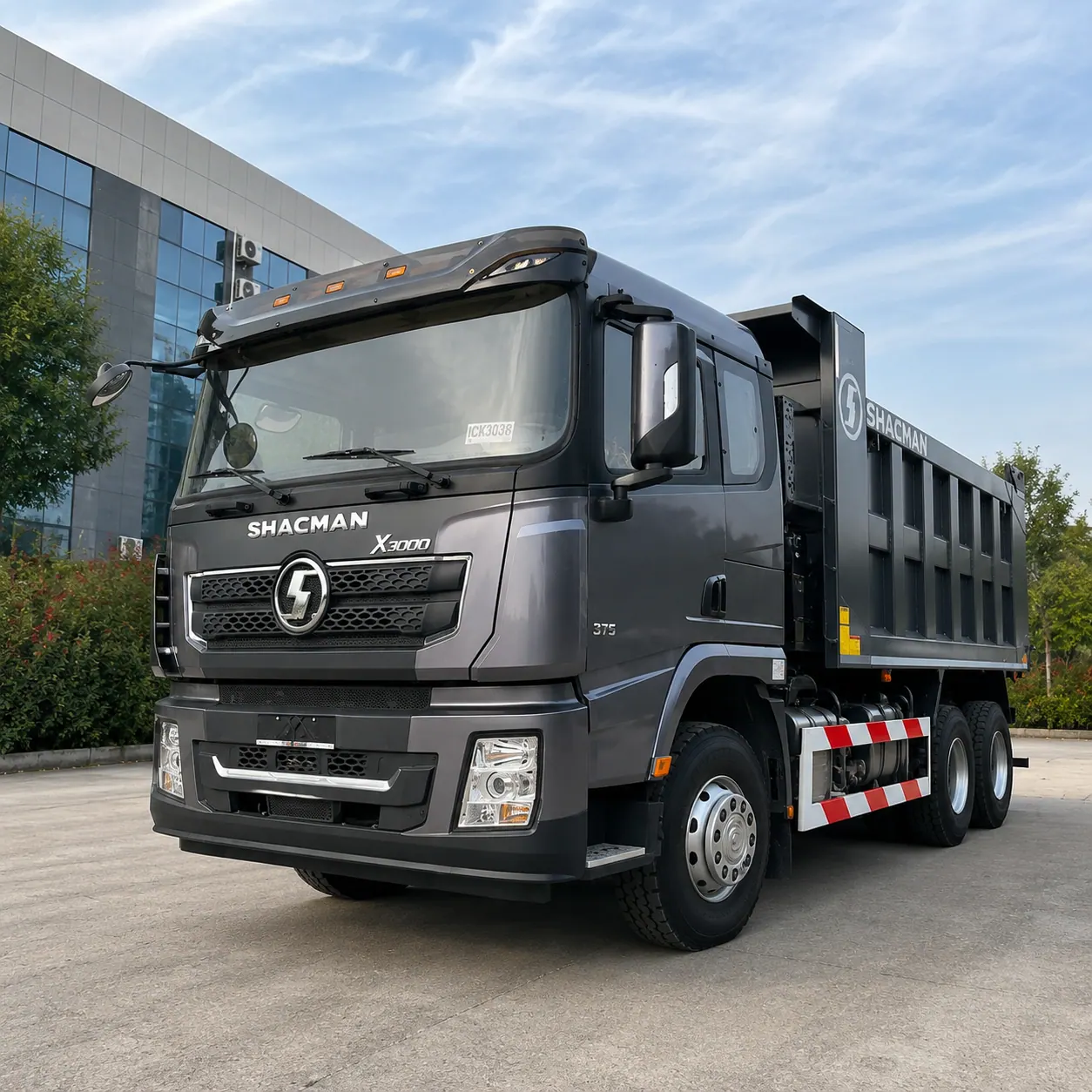

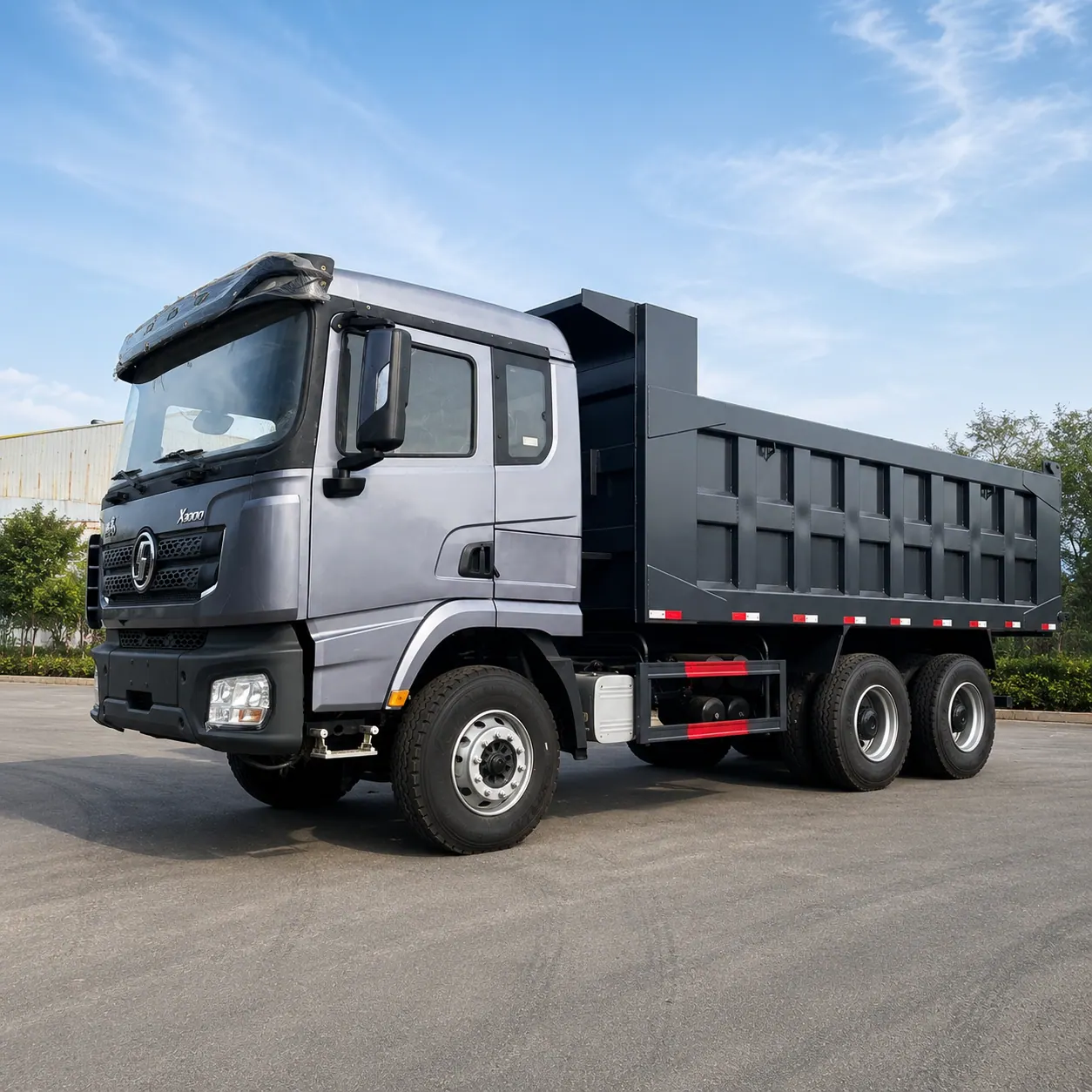

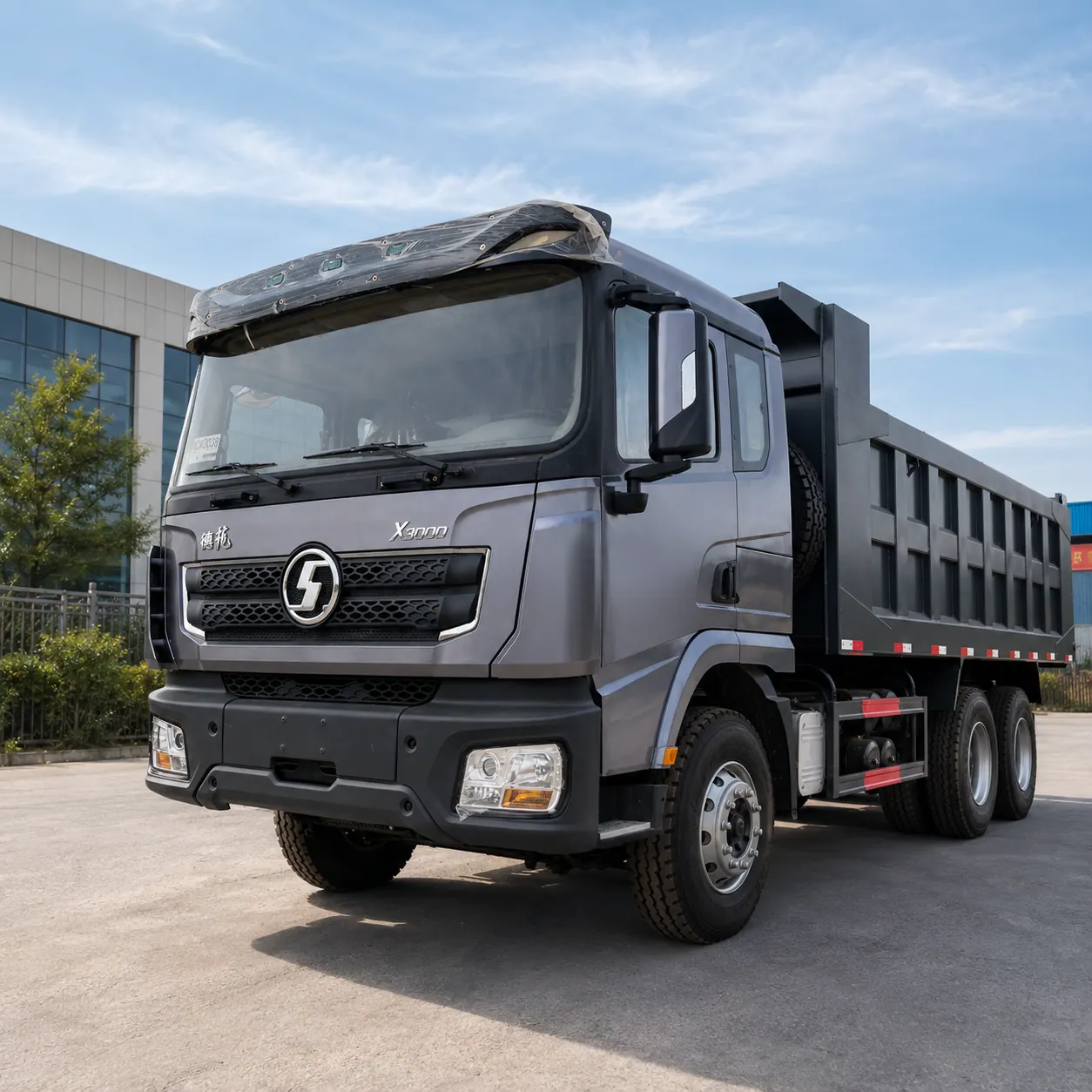

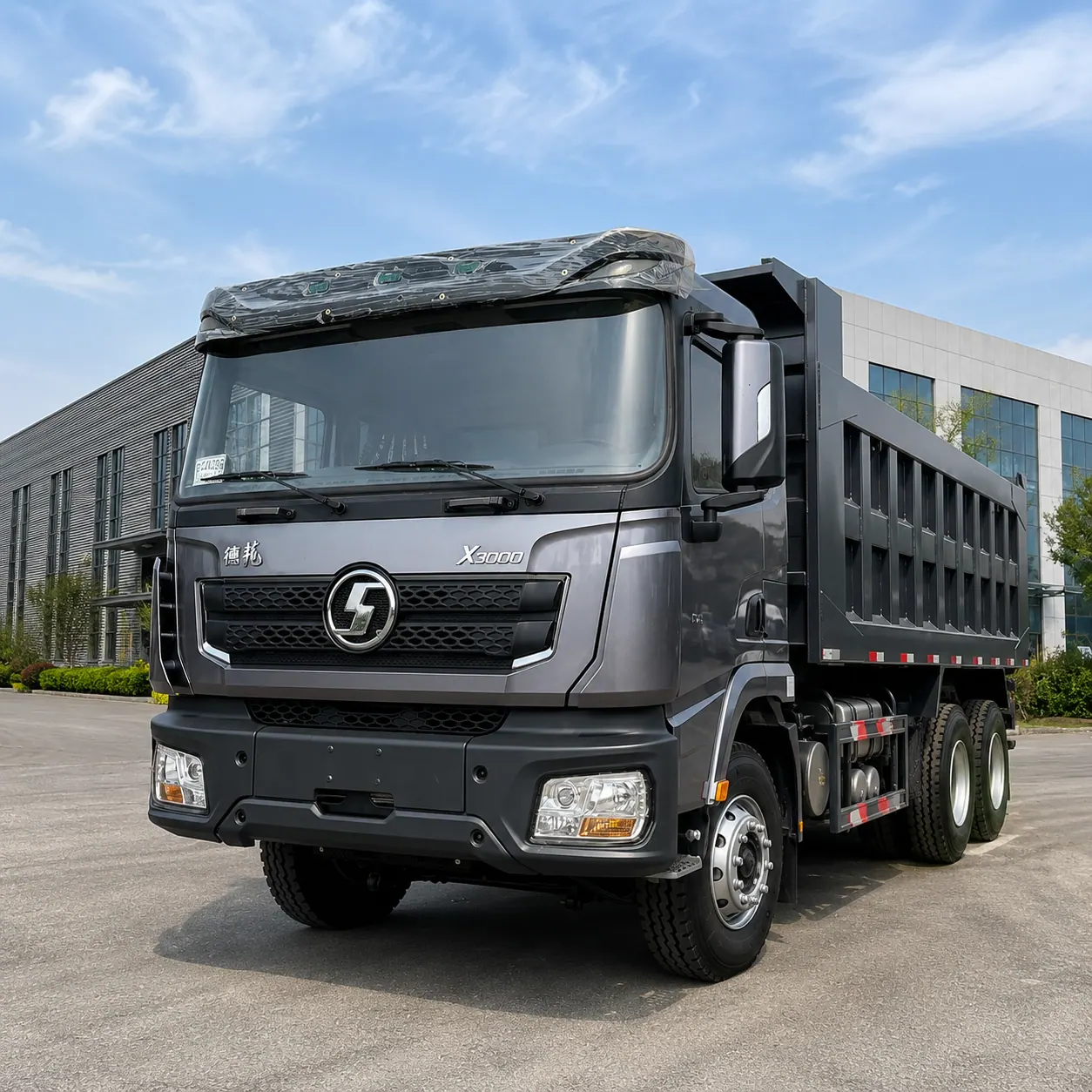

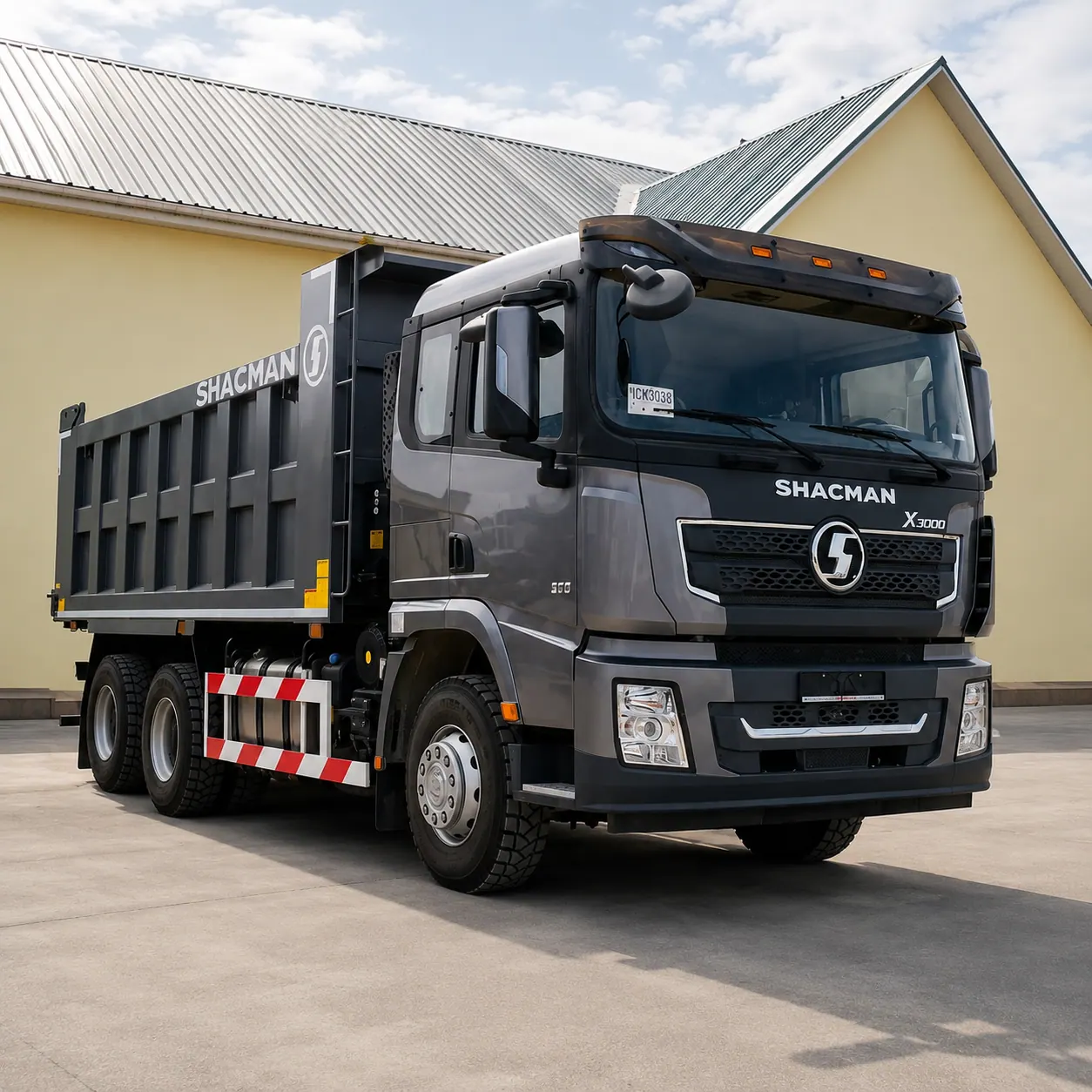

Product Display
