Special Trucks
SHACMAN Wrecker Truck 180 / 240 / 280 / 340HP 5 / 8 / 10 / 12T Available
SHACMAN Wrecker Truck is a specialized road-rescue and vehicle-recovery truck designed for towing, loading, transporting and recovering passenger vehicles, SUVs, vans, pickups, light trucks, medium trucks and other commercial vehicles. The vehicle combines a durable SHACMAN commercial chassis with a hydraulic sliding flatbed, telescopic wheel-lift underlift, hydraulic winch, reinforced recovery subframe and hydraulic control system, allowing damaged, disabled or accident vehicles to be safely loaded and transported. Different SHACMAN chassis platforms can be configured for light- and medium-duty recovery applications. L3000-based configurations provide good maneuverability for urban roadside rescue and commercial-vehicle recovery, while F3000-based 4×2 chassis provide greater axle capacity and stronger chassis construction for heavier recovery applications. SHACMAN's L3000 4×2 platform supports up to 285PS, while F3000 4×2 platforms are available with heavy-duty Weichai or Cummins powertrains and MAN-technology axles. Common recovery configurations include approximately 180HP, 240HP, 280HP and 340HP engines with 5T, 8T, 10T and 12T recovery platforms. The hydraulic flatbed can slide backward and tilt toward the road surface to provide a low loading angle, while the hydraulic winch pulls disabled vehicles onto the platform. The rear telescopic underlift can lift the front or rear axle of another vehicle for wheel-lift towing, allowing flatbed transport and towing functions to be combined in one vehicle.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Wrecker Truck / Tow Truck / Flatbed Recovery Truck / Road Rescue Truck |
| Brand | SHACMAN |
| Chassis Brand | SHACMAN |
| Common Chassis Series | L3000 / F3000 or equivalent SHACMAN chassis |
| Drive Type | 4×2 commonly available |
| Engine Power | 180HP / 240HP / 280HP / 340HP available according to chassis and stock |
| Engine Brand | Weichai / Cummins |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 6–12 L depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to model year and export market |
| Transmission Brand | FAST |
| Transmission Type | Manual transmission |
| Transmission Gears | 8-speed / 9-speed / 10-speed / 12-speed manual transmission according to chassis |
| Clutch | Heavy-duty dry single-plate clutch |
| PTO | Power take-off for hydraulic recovery system |
| Cab Series | SHACMAN L3000 / F3000 |
| Cab Type | Standard / extended cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium-duty configurations |
| Driver Seat | Adjustable / air-suspension driver seat optional |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,000–10,000 mm depending on chassis and recovery body |
| Overall Width | Approx. 2,300–2,550 mm |
| Overall Height | Approx. 2,700–3,400 mm |
| Wheelbase | Approx. 3,800–5,000 mm depending on chassis |
| Gross Vehicle Weight | Approx. 12–25 tons depending on chassis and recovery equipment |
| Curb Weight | Approx. 6–13 tons depending on recovery body |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | SHACMAN / MAN technology steering axle |
| Front Axle Capacity | Approx. 5–9.5 tons depending on chassis |
| Rear Axle | SHACMAN / MAN technology drive axle |
| Rear Axle Capacity | Approx. 8–16 tons depending on chassis |
| Rear Axle Type | Single-reduction / hub-reduction drive axle available |
| Frame | Reinforced high-strength steel chassis frame |
| Recovery Subframe | Reinforced wrecker special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring suspension |
| Tire Model | 9.00R20 / 10.00R20 / 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | 6 tires + spare tire |
| Fuel Tank | Approx. 200–400 L according to chassis |
| Fuel Tank Material | Steel / aluminum optional |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Recovery Structure | Hydraulic sliding flatbed + telescopic wheel-lift underlift |
| Recovery Capacity | Approx. 5T / 8T / 10T / 12T available |
| Flatbed Type | Hydraulic sliding and tilting flatbed |
| Flatbed Loading Capacity | Approx. 5–12 tons depending on recovery system |
| Flatbed Length | Approx. 5,800–7,500 mm |
| Flatbed Width | Approx. 2,300–2,500 mm |
| Flatbed Material | High-strength steel |
| Flatbed Surface | Anti-skid checkered steel plate |
| Flatbed Thickness | Approx. 4–6 mm or customized |
| Flatbed Extension | Optional |
| Loading Angle | Low-angle hydraulic loading design |
| Flatbed Sliding | Hydraulic |
| Flatbed Tilting | Hydraulic |
| Underlift Type | Hydraulic telescopic wheel-lift |
| Underlift Capacity | Approx. 3–8 tons depending on recovery system |
| Underlift Effective Length | Approx. 1,800–3,000 mm |
| Underlift Extension | Hydraulic telescopic extension |
| Underlift Lifting | Hydraulic |
| Underlift Tilt | Hydraulic adjustment |
| Wheel Fork | Adjustable heavy-duty wheel forks |
| Tow Fork | Multiple tow-fork sizes optional |
| Tow Bar | Optional |
| Hydraulic Winch | Available |
| Winch Quantity | Single / dual hydraulic winch optional |
| Winch Capacity | Approx. 5–10 tons depending on recovery system |
| Wire Rope Length | Approx. 20–40 m |
| Wire Rope Type | Heavy-duty steel wire rope |
| Winch Control | Hydraulic control |
| Winch Free-Spool | Optional |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Working Pressure | Approx. 16–25 MPa depending on recovery system |
| Hydraulic Cylinder | Heavy-duty double-acting hydraulic cylinders |
| Hydraulic Control Valve | Multi-way hydraulic control valve |
| Hydraulic Oil Tank | Available |
| Vehicle Loading | Hydraulic winch pulling |
| Vehicle Unloading | Hydraulic flatbed sliding and tilting |
| One-to-One Recovery | Available |
| One-to-Two Recovery | Available / optional |
| Wheel Dolly | Optional |
| Auxiliary Tow Wheels | Optional |
| Wheel Straps | Available / optional |
| Safety Chains | Available |
| Tow Forks | Available |
| Recovery Shackles | Optional |
| Snatch Block | Optional |
| Pulley System | Optional |
| Emergency Manual Pump | Optional |
| Operation Control | Manual hydraulic / electro-hydraulic control |
| External Control | Available |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Emergency Manual Control | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Light Bar | Optional |
| Rear Warning Lights | Optional |
| Search Light | Optional |
| Working Lights | Optional |
| Traffic Cones | Optional |
| Toolbox | Available |
| Fire Extinguisher | Available / optional |
| Spare Tire | Available |
| Color | Yellow, blue, red, white, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, flatbed dimensions, recovery capacity, underlift capacity, winch capacity, hydraulic system, towing accessories, steering side, tires, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Urban roadside rescue
- highway vehicle recovery
- passenger-car towing
- SUV recovery
- pickup-truck recovery
- van recovery
- light commercial vehicle towing
- light-truck recovery
- medium-truck recovery
- accident vehicle transportation
- disabled vehicle recovery
- municipal road rescue
- traffic-police support
- insurance roadside assistance
- towing-company operations
- automobile repair-shop recovery
- dealership vehicle transportation
- logistics-fleet roadside support
- construction-fleet rescue
- parking enforcement
- vehicle relocation
- emergency road service.
Available Configurations
- 180HP, 240HP, 280HP or 340HP diesel engine
- SHACMAN L3000, F3000 or equivalent chassis
- Weichai or Cummins diesel engine
- 4×2 drive configuration
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V emission configuration according to chassis
- FAST 8-speed, 9-speed, 10-speed or 12-speed manual transmission
- approximately 5T, 8T, 10T or 12T recovery configuration
- approximately 5.8–7.5m hydraulic sliding flatbed
- high-strength anti-skid steel platform
- hydraulic telescopic underlift
- approximately 3–8T underlift capacity
- adjustable wheel forks
- multiple heavy-duty tow forks
- single or dual hydraulic winch
- approximately 5–10T winch capacity
- heavy-duty steel wire rope
- safety chains
- wheel straps
- auxiliary wheel dolly
- recovery shackles
- snatch blocks
- hydraulic flatbed extension
- electro-hydraulic control
- wireless remote control
- emergency manual hydraulic pump
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning light bar
- search light
- working lights
- traffic cones
- air conditioner
- ABS
- toolbox
- fire extinguisher
- spare tire
- customized recovery capacity, flatbed dimensions, towing equipment, paint color, company logo and export markings.
Buyer Support
- SHACMAN Wrecker Truck combines a durable SHACMAN commercial chassis with a professional hydraulic flatbed and underlift recovery system for roadside rescue, towing and vehicle transportation
- L3000 and F3000 chassis options provide different load levels for urban recovery, light commercial vehicles and medium-duty truck rescue. The L3000 4×2 platform offers up to 285PS, while heavier F3000 4×2 chassis can use Weichai or Cummins engines, FAST transmissions and MAN-technology heavy-duty axles. 180HP, 240HP, 280HP and 340HP engine options provide flexibility for different recovery capacities and road conditions
- approximately 5T, 8T, 10T and 12T recovery configurations cover passenger vehicles, SUVs, vans, pickups, light trucks and medium commercial vehicles. The hydraulic sliding flatbed allows disabled or accident-damaged vehicles to be loaded using a hydraulic winch, while the tilting platform provides a low loading angle for vehicles with damaged wheels or limited mobility
- the rear hydraulic underlift allows another vehicle to be lifted by its wheels or axle for towing. Approximately 5.8–7.5m flatbed options provide flexibility for different vehicle lengths
- reinforced high-strength steel platforms and dedicated recovery subframes provide stable support during loading and transportation
- adjustable wheel forks and multiple towing attachments improve compatibility with different vehicle chassis and axle structures. Single or dual hydraulic winches, wheel dollies, tow forks, wheel straps, safety chains, recovery shackles and snatch blocks can be configured for different roadside-rescue operations
- electro-hydraulic controls and optional wireless remote operation simplify loading, towing and unloading. Left-hand-drive and right-hand-drive versions are available for different export markets
- chassis series, engine, flatbed dimensions, recovery capacity, underlift, winch system, hydraulic controls, towing accessories, cameras, warning equipment, paint color and other configurations can be customized according to towing-company, roadside-assistance and fleet requirements.

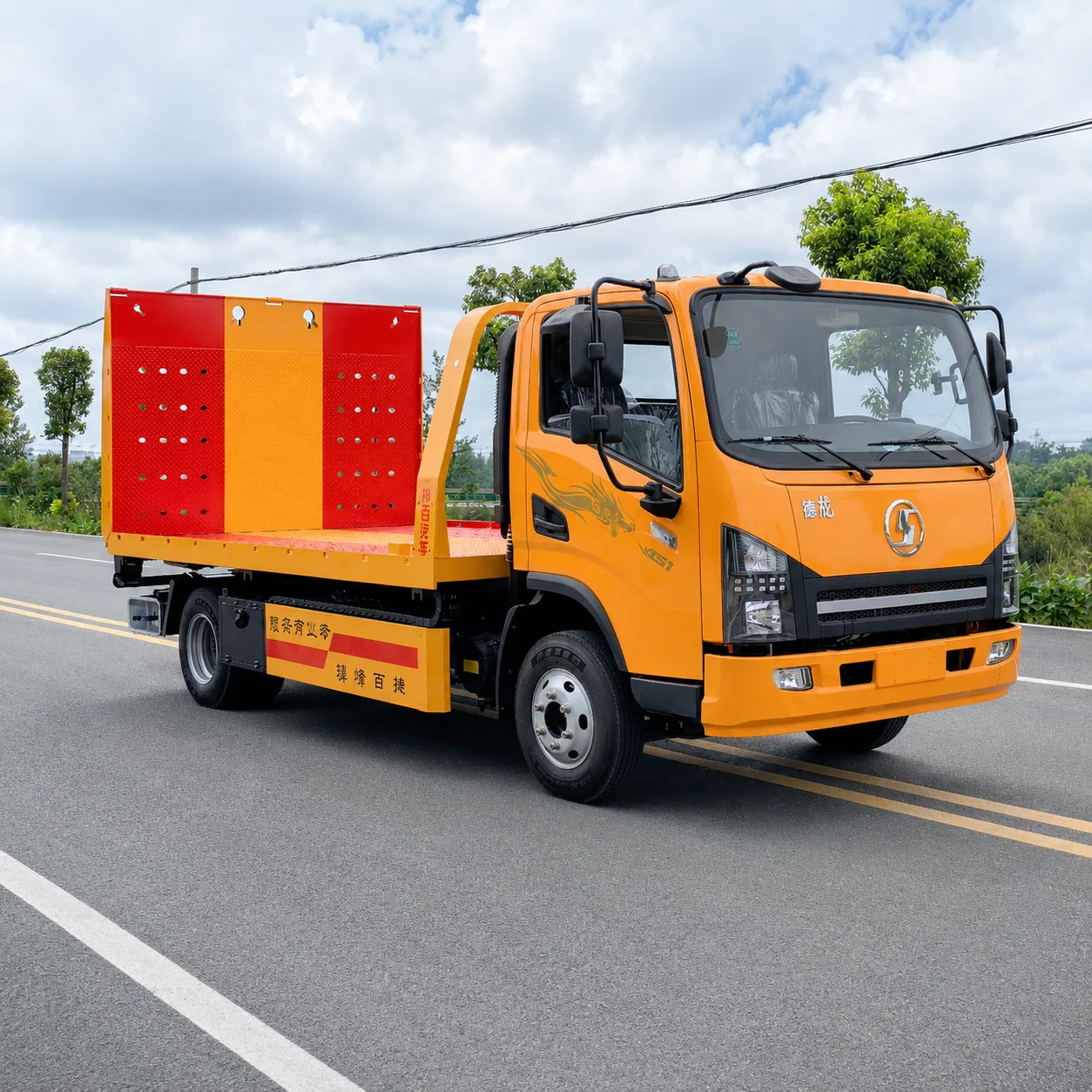

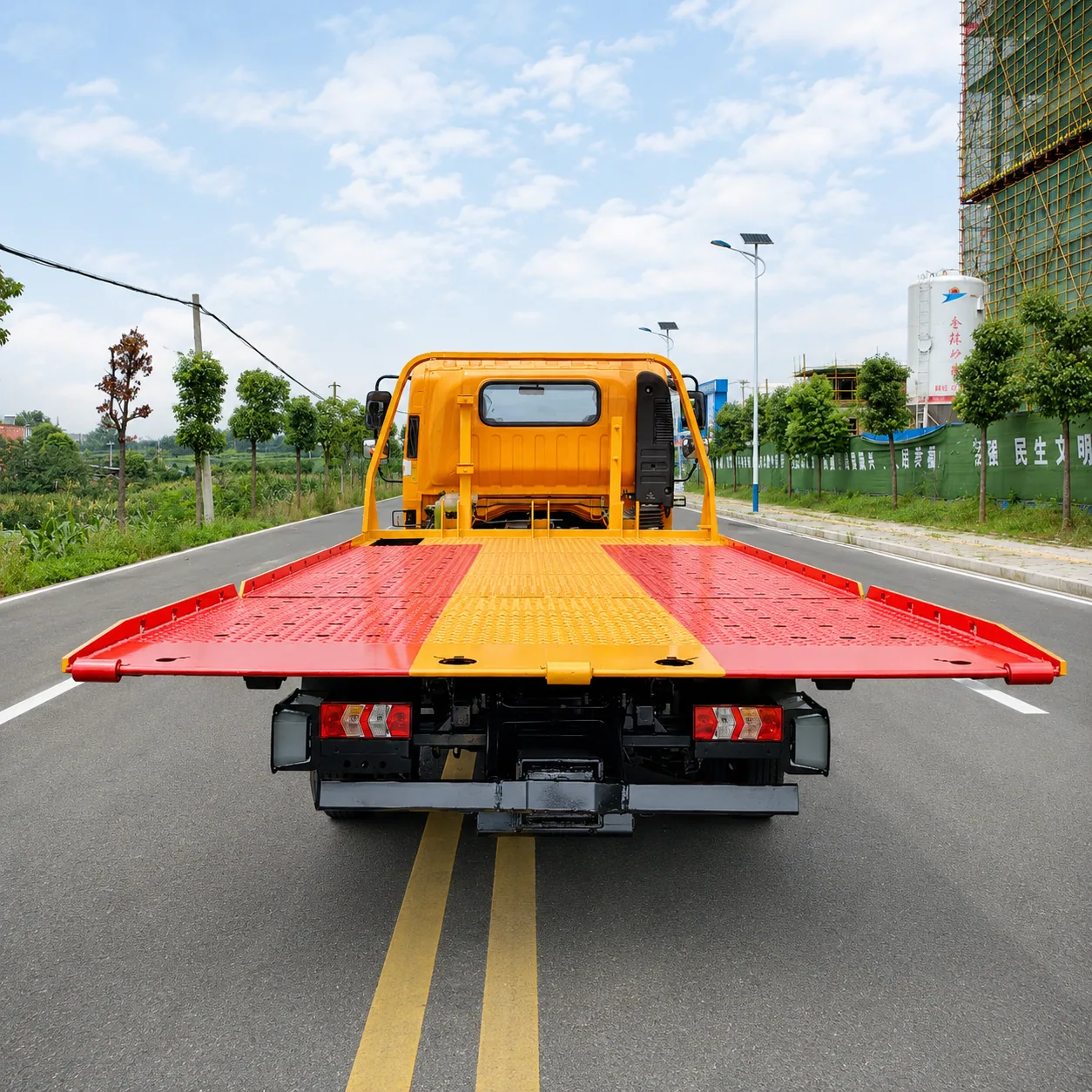

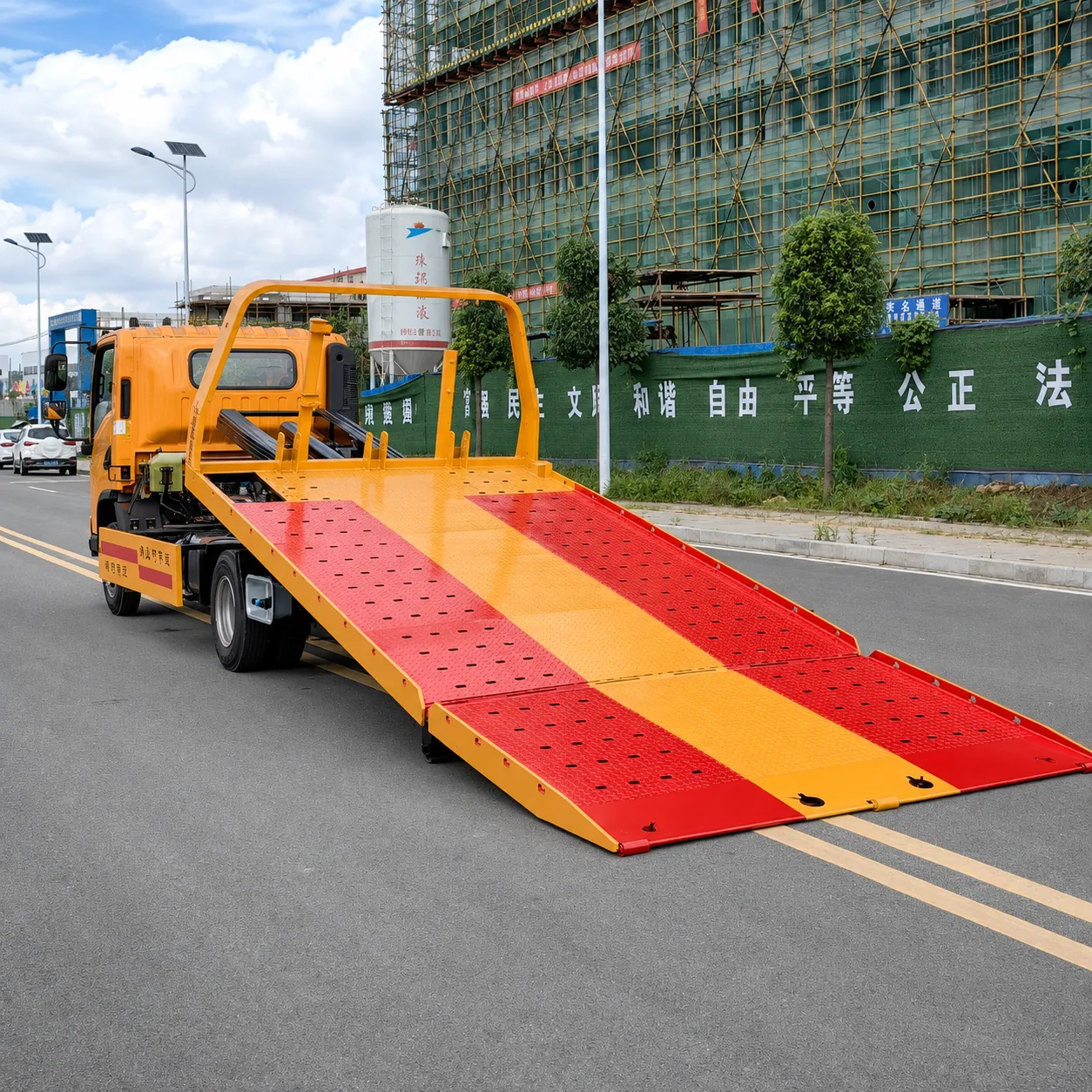

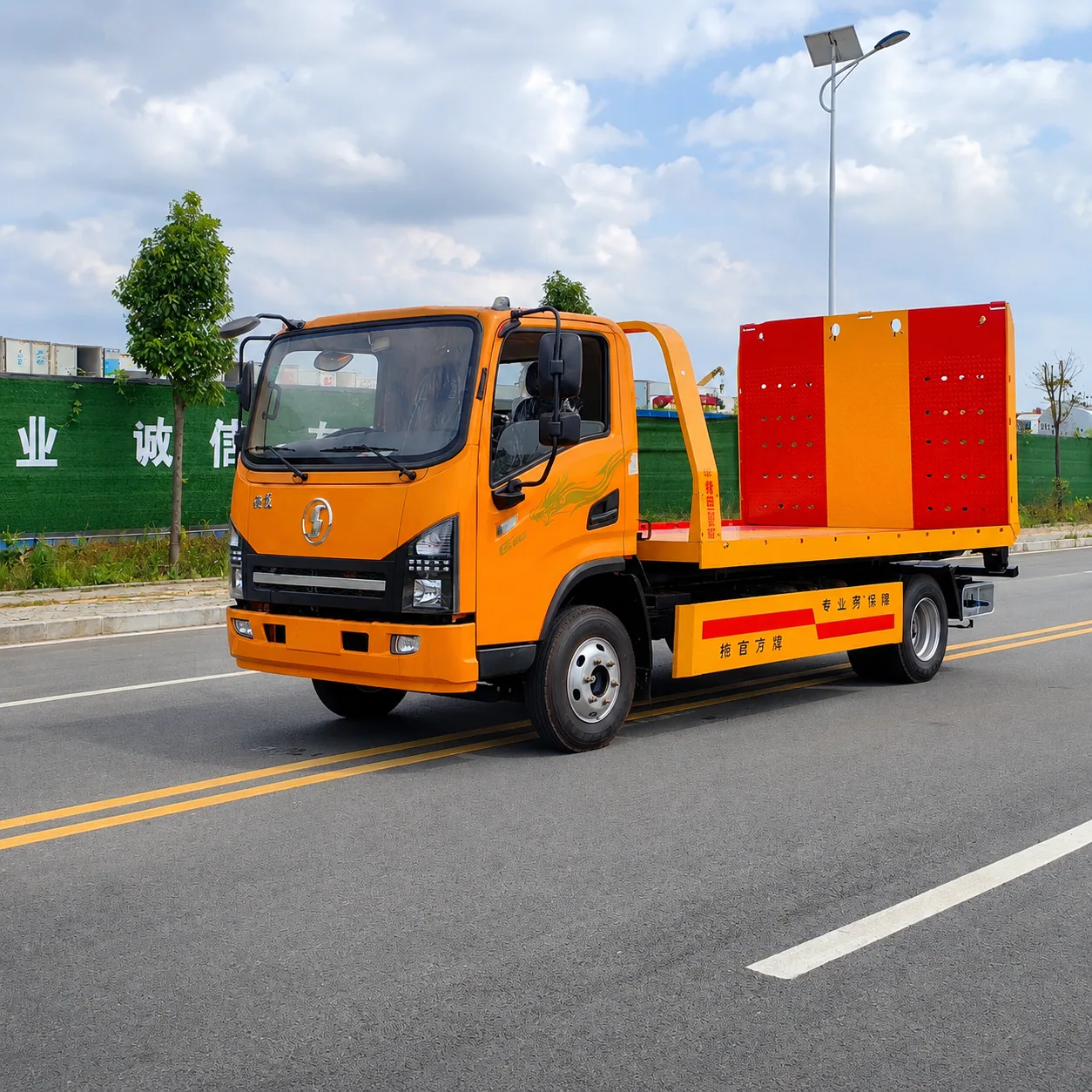

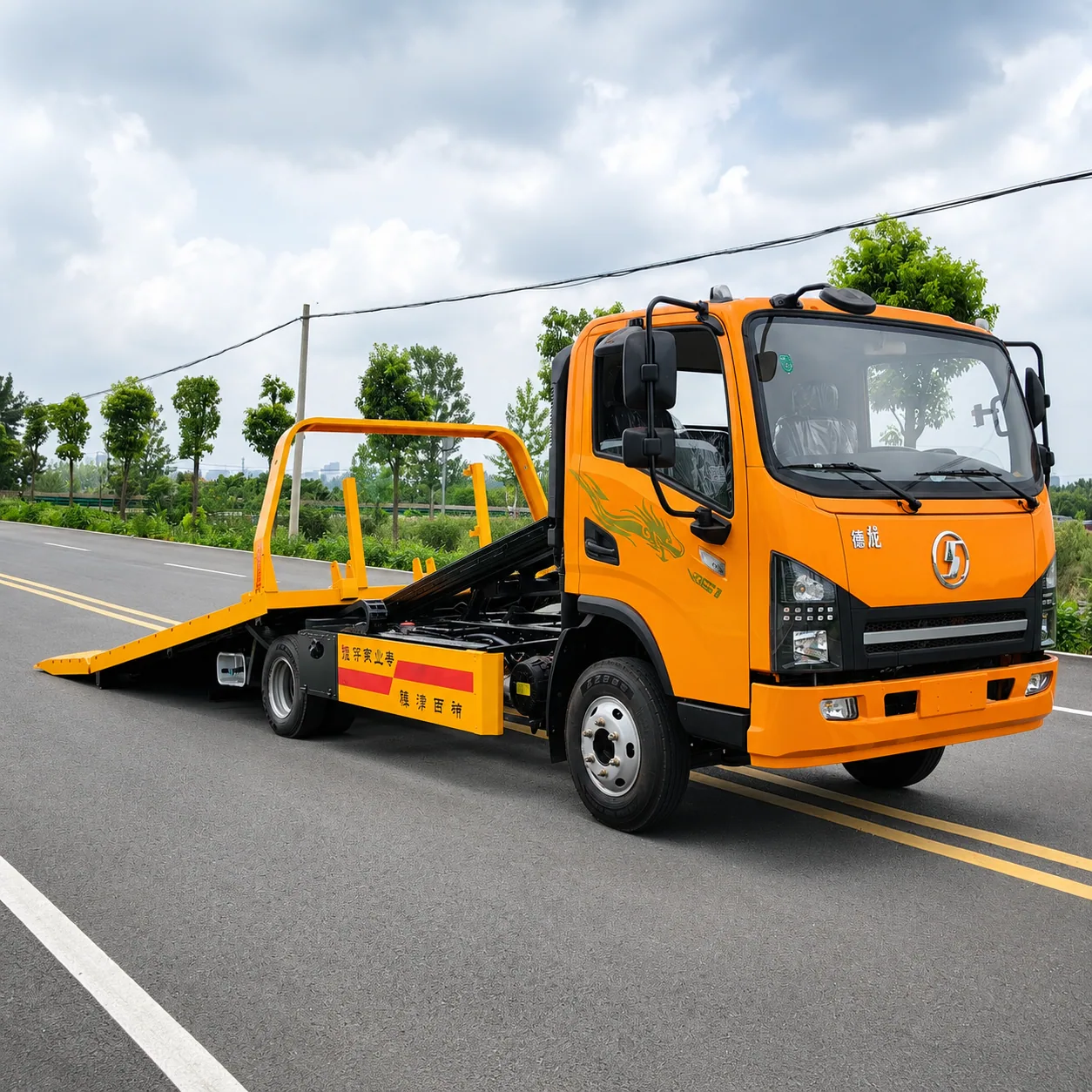

Product Display
