SHACMAN K3000 4×2 Dropside Cargo Truck 110 / 130 / 150 / 160HP Available
SHACMAN K3000 4×2 dropside cargo truck is a light-duty commercial vehicle designed for urban distribution, regional logistics, agricultural products, building materials, wholesale goods and general cargo transportation. Its compact cab-over design provides good maneuverability for city streets, markets and warehouses, while the open dropside body allows convenient loading and unloading from the rear and both sides. The K3000 series is available with several Weichai diesel engine configurations. Common market versions include 110HP, 130HP, 150HP and 160HP models. Representative 130HP and 150HP dropside versions use a 4.18m cargo body, while 160HP extended-cab versions are also available. For export applications, the K3000 platform is also available in higher-GVW configurations. A representative 160HP export K3000 uses a 2.97L Weichai engine, FAST 6-speed manual transmission, 3,800mm wheelbase, 7-ton rear axle and 200L aluminum fuel tank. 陕汽重卡
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dropside Cargo Truck / Sidewall Cargo Truck / Light Duty Cargo Truck |
| Brand | SHACMAN |
| Model Series | K3000 / Delong K3000 |
| Drive Type | 4×2 |
| Engine Power | 110HP / 130HP / 150HP / 160HP available according to model year and stock Kacheren |
| Engine Brand | Weichai |
| Engine Model | WP2.3 / WP2.5 / WP3N series optional |
| Engine Type | Four-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 2.3–3.0 L |
| Maximum Torque | Approx. 350–480 N·m, depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to export market, model year and configuration 陕汽重卡 |
| Transmission Brand | FAST |
| Transmission Type | 5-speed / 6-speed manual transmission; automatic / AMT configurations available according to stock 360车产品 |
| Common Transmission | FAST C6J45TB / C6J50T or equivalent |
| Cab Type | Single-row / extended half-row cab optional |
| Cab Width | Approx. 1,900–2,300 mm, depending on configuration |
| Seating Capacity | 2–3 persons |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Length | Approx. 5,500–7,000 mm |
| Overall Width | Approx. 2,100–2,300 mm |
| Overall Height | Approx. 2,400–3,350 mm |
| Wheelbase | Approx. 2,800–3,800 mm; 3,300mm and 3,800mm versions commonly available 运输人网 |
| Cargo Body Type | Open dropside / flatbed with side panels |
| Cargo Body Length | Approx. 3,600–4,850 mm |
| Common Cargo Body Length | 3.85m / 4.18m / 4.2m; longer export bodies optional Kacheren |
| Cargo Body Width | Approx. 2,050–2,300 mm |
| Cargo Body Height | Approx. 400–600 mm or customized |
| Cargo Body Material | High-strength steel |
| Side Panel Type | Foldable / removable dropside panels optional |
| Cargo Floor | Reinforced steel / steel-wood combination optional |
| Curb Weight | Approx. 2,500–3,500 kg, depending on chassis and body |
| Gross Vehicle Weight | Approx. 4.5–12 tons, depending on domestic or export chassis configuration; export K3000 versions are available up to 12-ton GVW 腾讯新闻 |
| Rated Payload | Approx. 1.5–7 tons, depending on chassis, body and local certification |
| Front Axle | Approx. 2–2.4T Hande / SHACMAN steering axle |
| Rear Axle | Approx. 3.5–7T Hande drive axle depending on chassis |
| Rear Axle Type | Single-reduction drive axle |
| Rear Axle Ratio | Approx. 4.33 / 4.875 / other ratios according to operating conditions |
| Frame | Reinforced high-strength steel chassis |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring suspension |
| Tire Model | 6.50R16 / 7.00R16 / 7.50R16 / 8.25R16 / 245/70R19.5 optional |
| Tire Quantity | 6 tires + spare tire |
| Fuel Tank | Approx. 100–200 L |
| Fuel Tank Material | Plastic / steel / aluminum optional |
| Electrical System | 24V |
| Brake System | Hydraulic or dual-circuit compressed-air brake system according to chassis |
| Safety System | ABS available; additional systems according to model |
| Maximum Speed | Approx. 95–110 km/h |
| Air Conditioner | Available / optional according to stock |
| Driver Seat | Standard / hydraulic-suspension seat optional |
| Power Steering | Available |
| Cargo Body Customization | Length, width, floor thickness, side-panel height and structure can be customized |
| Color | White, red, blue, green, silver or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, transmission, wheelbase, cab, cargo body, axle ratio, tires, fuel tank, driving side, color, logo and accessories |
Product Details
Typical Applications
- Urban goods distribution
- regional logistics
- agricultural product transportation
- fruit and vegetable transportation
- building material delivery
- hardware transportation
- machinery and equipment delivery
- wholesale market logistics
- supermarket distribution
- beverage and packaged food transportation
- furniture transportation
- farm supply delivery
- factory logistics
- construction supply transportation
- palletized cargo transportation
- general commercial cargo transportation.
Available Configurations
- 110HP, 130HP, 150HP or 160HP Weichai diesel engine
- WP2.3, WP2.5 or WP3N engine
- Euro III / Euro V / Euro VI emission standard
- left-hand drive or right-hand drive
- single-row or extended half-row cab
- FAST 5-speed or 6-speed manual transmission
- automatic / AMT configuration according to stock
- approximately 2,800mm, 3,300mm or 3,800mm wheelbase
- 3.6m, 3.85m, 4.18m, 4.2m or longer dropside cargo body
- foldable or removable side panels
- reinforced steel cargo floor
- higher side panels
- removable center posts
- tarpaulin frame
- cargo cover
- 6.50R16, 7.00R16, 7.50R16, 8.25R16 or equivalent tires
- larger rear axle for higher-GVW export versions
- 100–200L fuel tank
- air conditioner
- hydraulic-suspension driver seat
- ABS
- toolbox
- spare tire
- customized cargo-body dimensions, paint color, company logo and export markings. 陕汽重卡
Buyer Support
- SHACMAN K3000 4×2 dropside cargo truck combines compact dimensions, practical load capacity and economical operating costs for daily commercial transportation
- 110–160HP engine options meet different urban, regional and loaded transportation requirements
- Weichai engines and FAST transmissions provide a mature and easy-to-maintain powertrain
- the 4×2 cab-over chassis provides good maneuverability and efficient cargo-space utilization
- open dropside construction allows convenient loading and unloading from three sides
- 3.6–4.8m cargo-body options provide flexibility for different cargo volumes
- reinforced Hande axle and leaf-spring suspension support frequent loaded operation
- 4.5-ton domestic light-duty versions and higher-GVW export configurations allow the platform to cover a wider range of transport requirements
- single-row and extended-cab options suit both urban distribution and regional operation
- multiple engine, body, axle, driving-side and export configurations can be customized. SHACMAN’s K3000 export platform is positioned as a light-duty truck suitable for deliveries in tighter spaces and smaller streets. 陕汽 Jamaica

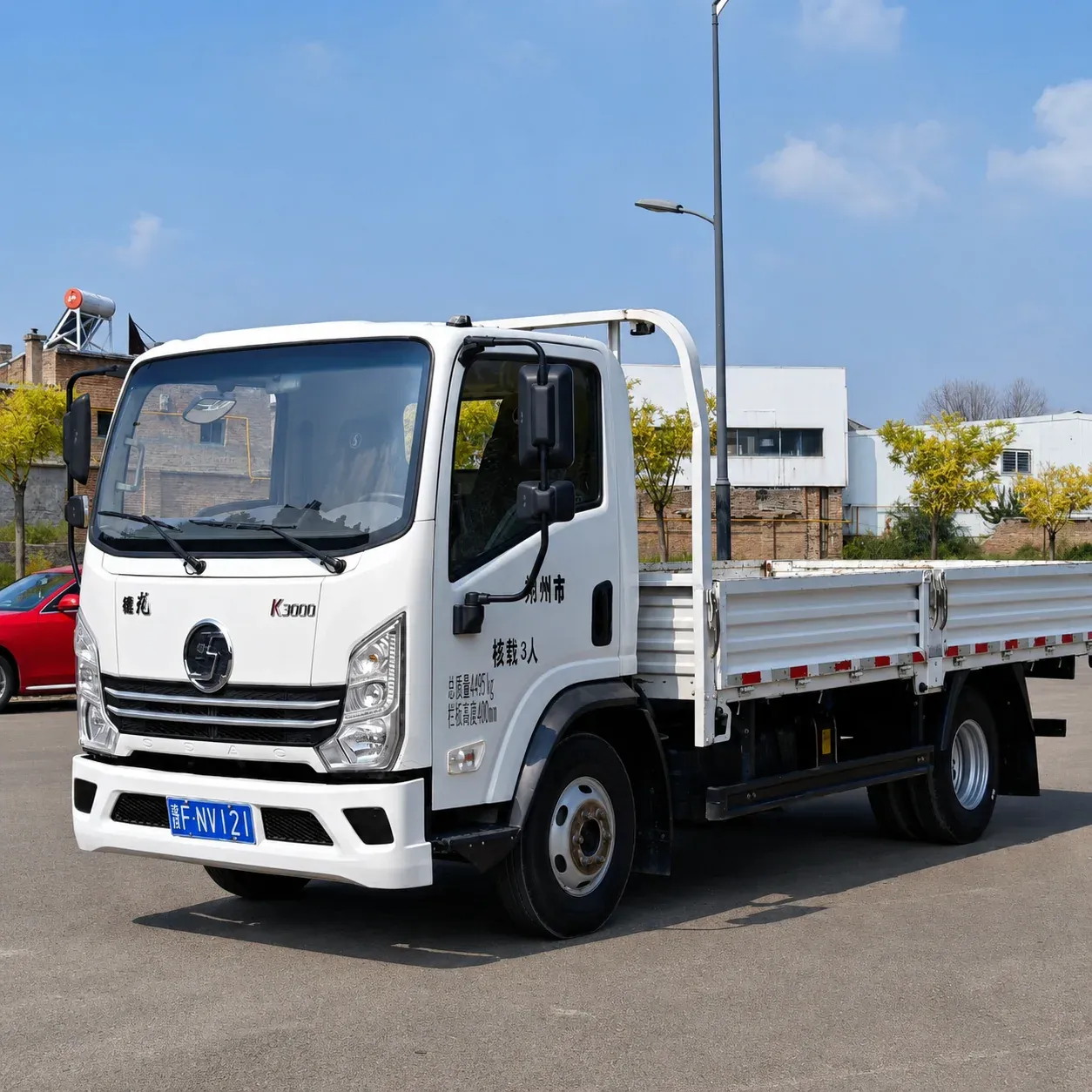

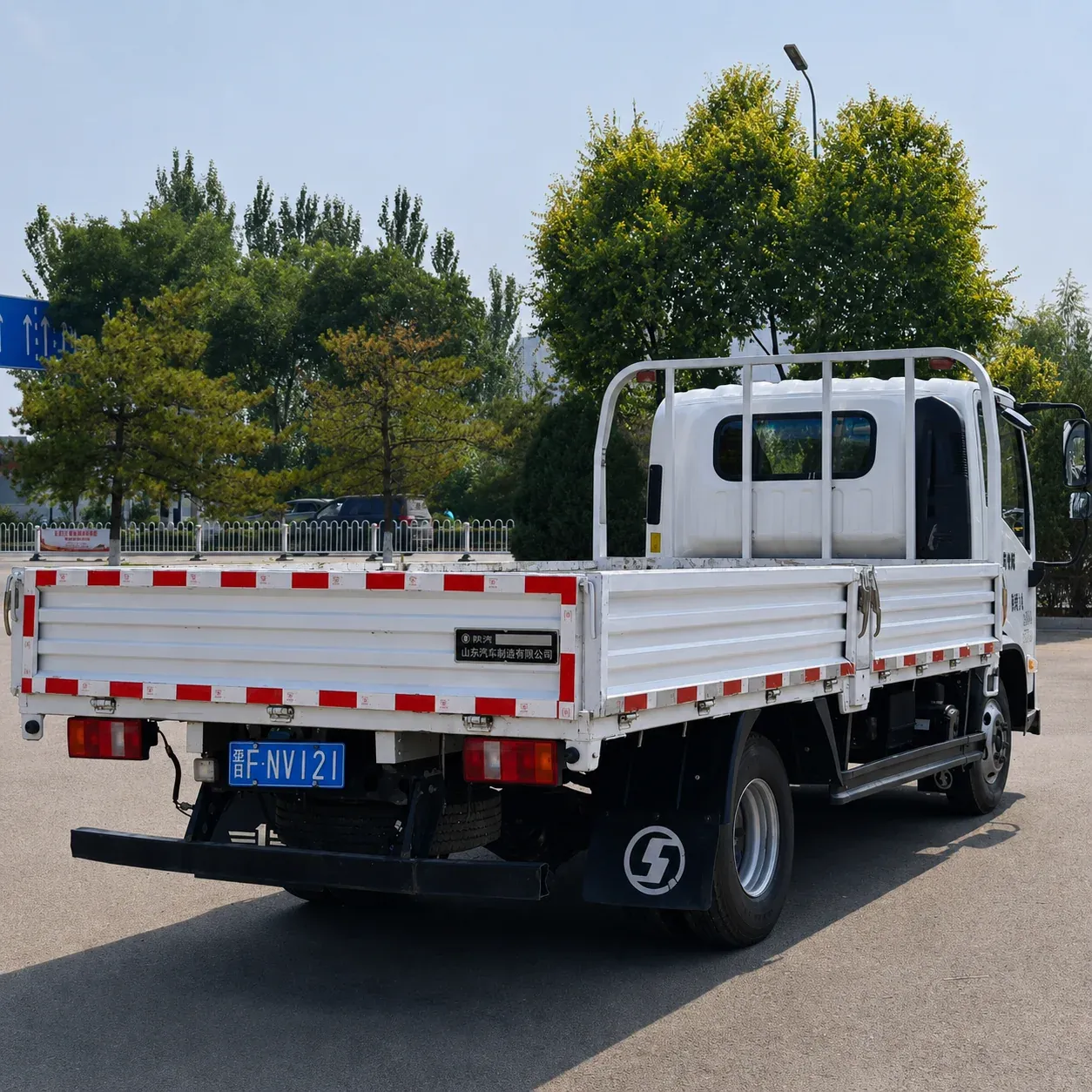

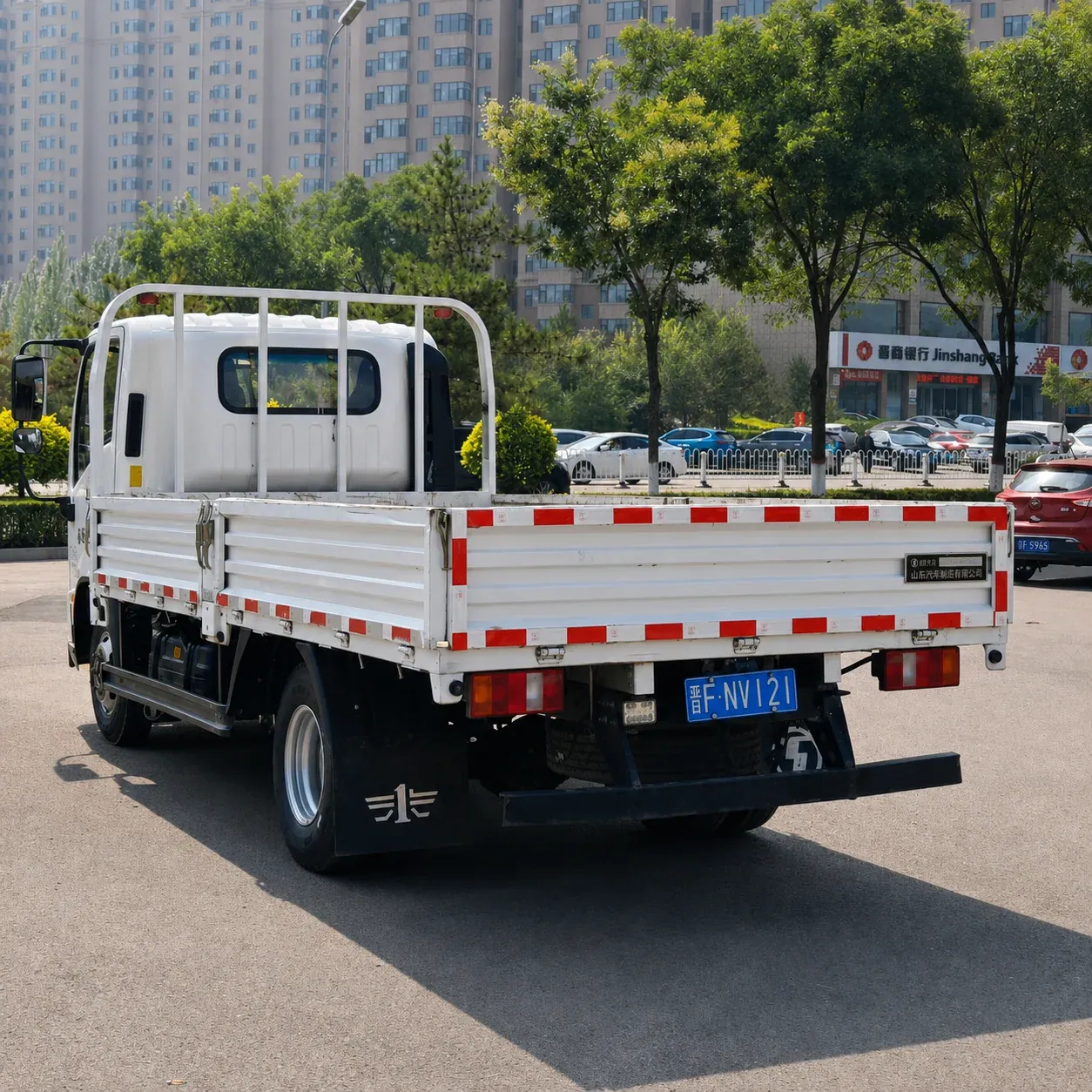

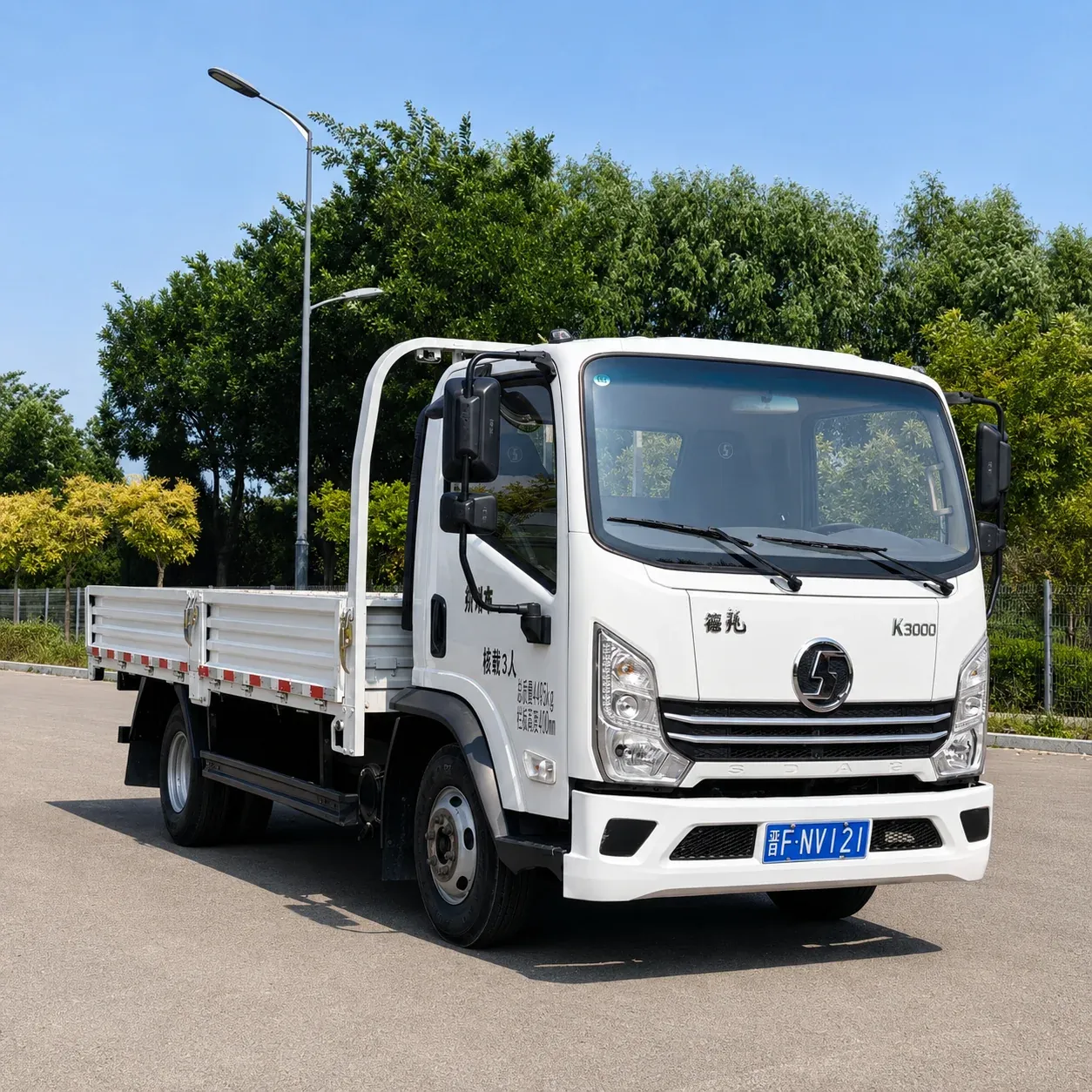

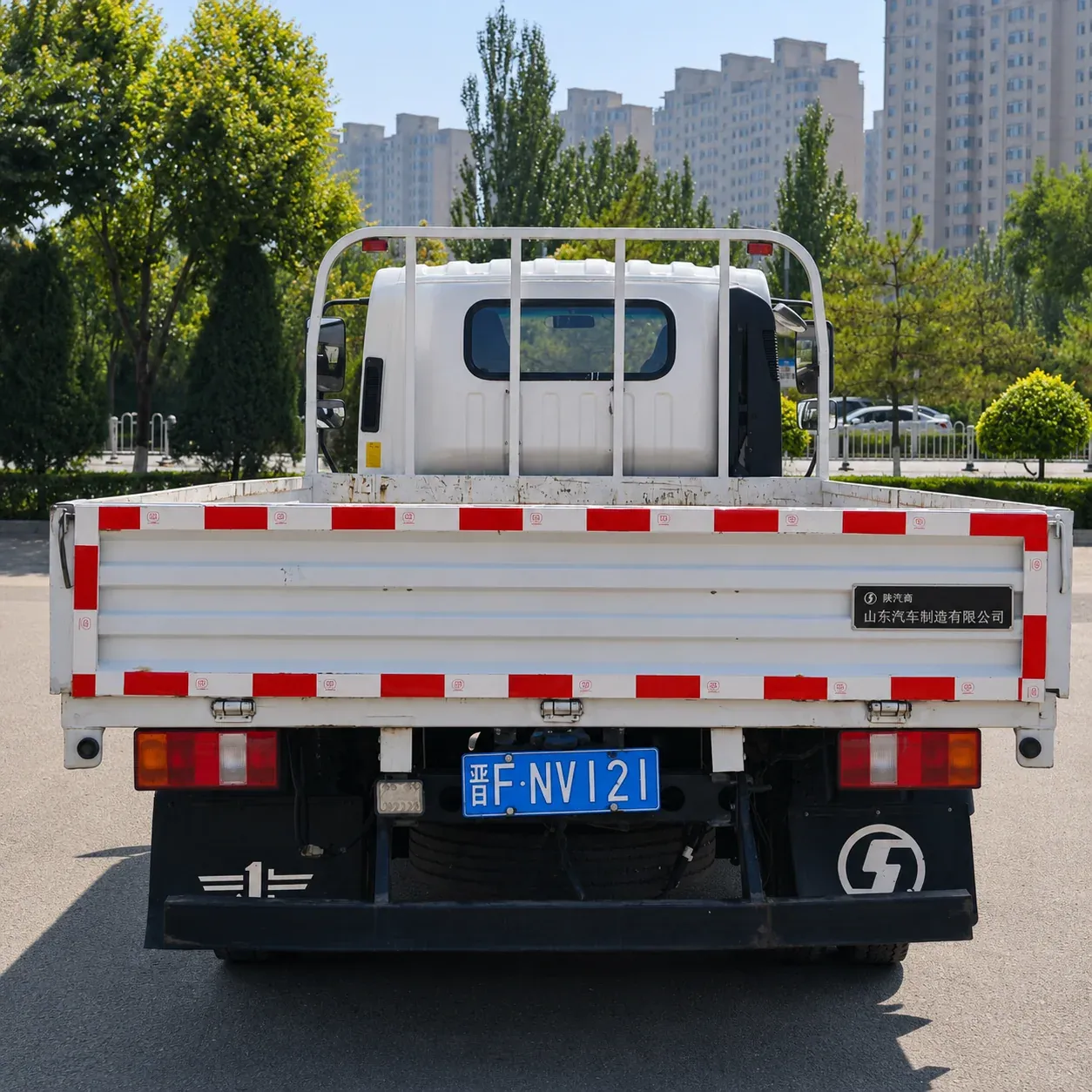

Product Display
