SHACMAN Garbage Compactor Truck 180 / 240 / 270 / 340 / 380HP 8 / 10 / 12 / 16 / 20CBM Available
SHACMAN Garbage Compactor Truck is a specialized municipal sanitation vehicle designed for the collection, compression and transportation of household waste, commercial refuse and municipal solid waste. The vehicle combines a durable SHACMAN commercial chassis with a sealed garbage body, rear loading hopper, hydraulic sliding plate, scraper compression mechanism, ejector plate, bin lifting system, sewage collection tank and electro-hydraulic control system. Different SHACMAN chassis platforms can be configured for medium- and heavy-duty sanitation applications. L3000-based 4×2 configurations provide good maneuverability for urban streets, residential communities and municipal collection routes, while F3000-based 6×4 configurations provide higher load capacity for larger garbage bodies and high-volume waste-transfer applications. SHACMAN's L3000 platform supports municipal sanitation applications and approximately 180–285PS engine configurations, while the F3000 platform is designed for heavier engineering and high-load operation. Garbage-body capacities of approximately 8CBM, 10CBM, 12CBM, 16CBM and 20CBM can be configured according to chassis size and waste-collection requirements. The rear-loading hydraulic compression system transfers loose waste from the loading hopper into the sealed body and compresses it to increase effective loading capacity. Hydraulic ejector unloading allows compacted waste to be discharged directly at transfer stations, landfills or waste-treatment facilities without tipping the entire garbage body.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Garbage Compactor Truck / Compression Garbage Truck / Rear Loader Garbage Truck / Refuse Collection Truck |
| Brand | SHACMAN |
| Chassis Brand | SHACMAN |
| Common Chassis Series | L3000 / F3000 or equivalent SHACMAN chassis |
| Drive Type | 4×2 / 6×4 available |
| Engine Power | Approx. 180HP / 240HP / 270HP / 340HP / 380HP available according to chassis and stock |
| Engine Brand | Weichai / Cummins |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 6–12 L depending on chassis and engine configuration |
| Maximum Torque | Approx. 650–1,800 N·m depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to model year and export market |
| Transmission Brand | FAST |
| Transmission Type | Manual transmission |
| Transmission Gears | 8-speed / 9-speed / 10-speed / 12-speed manual transmission according to chassis |
| Clutch | Heavy-duty dry single-plate clutch |
| PTO | Power take-off for hydraulic garbage compactor system |
| Cab Series | SHACMAN L3000 / F3000 |
| Cab Type | Standard / extended cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected heavy-duty chassis |
| Driver Seat | Adjustable / hydraulic or air-suspension driver seat optional |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,000–10,500 mm depending on chassis and garbage-body capacity |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 2,900–3,600 mm |
| Wheelbase | Multiple wheelbase configurations available according to 4×2 / 6×4 chassis |
| Gross Vehicle Weight | Approx. 16–35 tons depending on chassis and upper-body configuration |
| Curb Weight | Approx. 8–16 tons depending on chassis and garbage body |
| Rated Payload | According to chassis, garbage-body capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | SHACMAN / MAN technology steering axle |
| Rear Axle | SHACMAN / MAN technology heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction drive axle available |
| Differential Lock | Available on heavy-duty configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Subframe | Reinforced garbage-compactor special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 10.00R20 / 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 chassis; spare tire available |
| Fuel Tank | Approx. 200–400 L according to chassis |
| Fuel Tank Material | Steel / aluminum optional |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Garbage Body Type | Sealed rear-loading compression garbage body |
| Garbage Body Capacity | 8CBM / 10CBM / 12CBM / 16CBM / 20CBM available |
| Medium-Duty Body Capacity | Approx. 8–12 CBM |
| Heavy-Duty Body Capacity | Approx. 16–20 CBM |
| Garbage Body Material | Q235 carbon steel / high-strength steel / corrosion-resistant steel optional |
| Body Side Thickness | Approx. 4–5 mm or customized |
| Body Floor Thickness | Approx. 4–6 mm or customized |
| Rear Hopper Volume | Approx. 1.5–2.5 CBM depending on body configuration |
| Loading Type | Rear loading |
| Compression Type | Hydraulic bidirectional compression |
| Compression Ratio | Approx. 3:1–4:1 depending on compactor system |
| Hydraulic Working Pressure | Approx. 16–20 MPa depending on hydraulic system |
| Compression Mechanism | Hydraulic sliding plate + scraper mechanism |
| Sliding Plate | Heavy-duty hydraulic sliding plate |
| Scraper | Hydraulic garbage scraper |
| Compression Plate | High-strength hydraulic compression plate |
| Ejector Plate | Hydraulic waste ejector plate |
| Filling Cycle Time | Approx. 25–40 seconds |
| Discharge Cycle Time | Approx. 30–60 seconds depending on configuration |
| Waste Discharge Type | Hydraulic push-out discharge |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Cylinder | Heavy-duty double-acting hydraulic cylinders |
| Hydraulic Control Valve | Multi-way hydraulic control valve |
| Hydraulic Oil Tank | Available |
| Control System | Electro-hydraulic automatic / semi-automatic / manual control |
| PLC Control | Optional |
| One-Key Compression Cycle | Optional |
| Automatic Compression | Available / optional |
| Manual Control | Available |
| Cab-Mounted Control | Optional |
| Rear Control Panel | Available |
| Wireless Remote Control | Optional |
| Emergency Stop | Available |
| Emergency Manual Control | Available |
| Bin Lifting Mechanism | Hydraulic rear bin lifting system optional |
| 120L Waste Bin | Compatible according to lifting mechanism |
| 140L Waste Bin | Compatible according to lifting mechanism |
| 240L Waste Bin | Compatible according to lifting mechanism |
| 660L Waste Bin | Compatible according to lifting mechanism |
| 1100L Waste Bin | Compatible according to lifting mechanism |
| Single Bin Lifter | Optional |
| Dual Bin Lifter | Optional |
| Bucket Loading Device | Optional |
| Ground Hopper | Optional |
| Swing-Arm Loading Device | Optional |
| Rear Loading Hopper | Reinforced sealed loading hopper |
| Hopper Lifting | Hydraulic lifting |
| Rear Tailgate | Hydraulic opening and locking |
| Tailgate Locking | Hydraulic locking mechanism |
| Tailgate Sealing | Heavy-duty rubber sealing strip |
| Sewage Tank | Available |
| Sewage Tank Capacity | Approx. 200–500 L depending on body configuration |
| Sewage Drain | Drain valve / sewage discharge outlet |
| Leakage Prevention | Sealed garbage body + tailgate sealing + sewage collection system |
| Anti-Corrosion Treatment | Industrial primer + topcoat / anti-corrosion coating |
| Rear Working Lights | Optional |
| LED Warning Lights | Optional |
| Rear Warning Board | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Spare Tire | Available |
| Color | White, green, blue, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, drive type, garbage-body capacity, body material, steel thickness, compression system, bin lifter, loading mechanism, sewage tank, hydraulic system, control system, steering side, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal household waste collection
- urban sanitation
- residential-community waste collection
- rural household waste collection
- commercial-area waste collection
- shopping-center waste collection
- wholesale-market sanitation
- restaurant and food-market waste collection
- factory waste collection
- industrial park sanitation
- school and campus waste collection
- hospital non-hazardous waste collection
- airport sanitation
- railway-station waste collection
- bus-station sanitation
- port and terminal waste collection
- logistics-park sanitation
- public-area cleaning
- municipal waste transfer
- daily solid-waste collection and transportation.
Available Configurations
- 180HP, 240HP, 270HP, 340HP or 380HP diesel engine
- SHACMAN L3000, F3000 or equivalent chassis
- Weichai or Cummins diesel engine
- 4×2 or 6×4 drive configuration
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V emission configuration according to model year and export market
- FAST 8-speed, 9-speed, 10-speed or 12-speed manual transmission
- 8CBM, 10CBM, 12CBM, 16CBM or 20CBM sealed garbage compactor body
- Q235 carbon-steel or high-strength steel body
- customized body-side and floor thickness
- hydraulic sliding-plate and scraper compression system
- approximately 3:1–4:1 compression ratio
- hydraulic ejector plate
- automatic compression cycle
- electro-hydraulic control system
- PLC automatic control
- manual emergency control
- wireless remote control
- cab-mounted control
- rear operation panel
- 120L, 140L, 240L, 660L or 1100L waste-bin lifting device
- single or dual bin lifter
- ground hopper
- bucket loading device
- swing-arm loading mechanism
- reinforced rear hopper
- hydraulic tailgate
- sewage collection tank
- leakage-resistant sealing system
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning equipment
- air conditioner
- ABS
- spare tire
- toolbox
- fire extinguisher
- customized body capacity, compression system, loading mechanism, paint color, company logo and export markings.
Buyer Support
- SHACMAN Garbage Compactor Truck combines a durable SHACMAN commercial chassis with a professional hydraulic waste-compression system for municipal and commercial solid-waste collection
- L3000 medium-duty and F3000 heavy-duty chassis platforms provide different load levels for urban sanitation, municipal collection and larger waste-transfer operations. SHACMAN identifies L3000 as a platform covering municipal sanitation and F3000 as a heavy-load engineering platform. 180HP, 240HP, 270HP, 340HP and 380HP power configurations provide multiple solutions for different garbage-body sizes and operating conditions
- Weichai and Cummins engine options together with FAST manual transmissions provide a mature and service-friendly powertrain
- 4×2 configurations provide good maneuverability for city streets and residential collection routes, while 6×4 chassis provide greater load capacity for larger garbage bodies and high-volume waste transportation. 8CBM, 10CBM, 12CBM, 16CBM and 20CBM garbage-body configurations cover medium- and heavy-duty municipal sanitation requirements
- the hydraulic sliding-plate and scraper system compresses loose waste inside the sealed body to increase effective loading capacity and reduce transportation frequency. Hydraulic ejector-plate unloading allows compacted garbage to be pushed directly from the body without lifting the entire container
- automatic, semi-automatic and manual control modes provide flexible operation for different sanitation projects
- optional PLC control and wireless remote operation further simplify waste-loading cycles. Rear hydraulic bin lifting systems can be configured for common 120L, 140L, 240L, 660L and 1100L municipal waste bins
- single-bin, dual-bin, bucket and ground-hopper loading systems are available for different collection methods. The sealed garbage body, hydraulic rear tailgate and sewage collection tank help reduce wastewater leakage and secondary pollution during transportation
- reinforced steel body construction and special-purpose subframes provide durability for repeated loading and compression cycles. Left-hand-drive and right-hand-drive versions are available for different export markets
- chassis series, engine, garbage-body capacity, compression system, body steel thickness, bin lifter, loading hopper, hydraulic system, sewage tank, control system, cameras, warning equipment, paint color and other configurations can be customized.

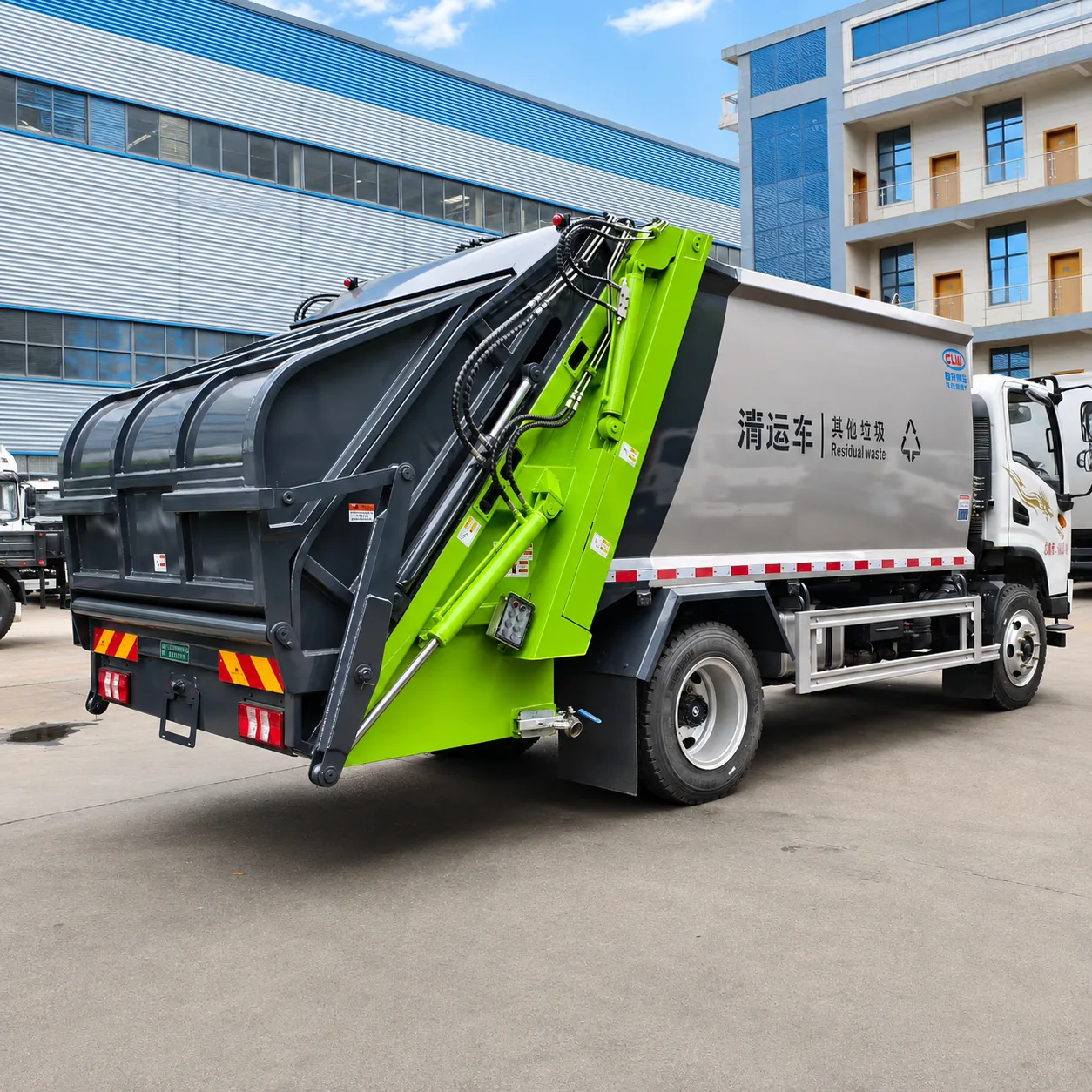

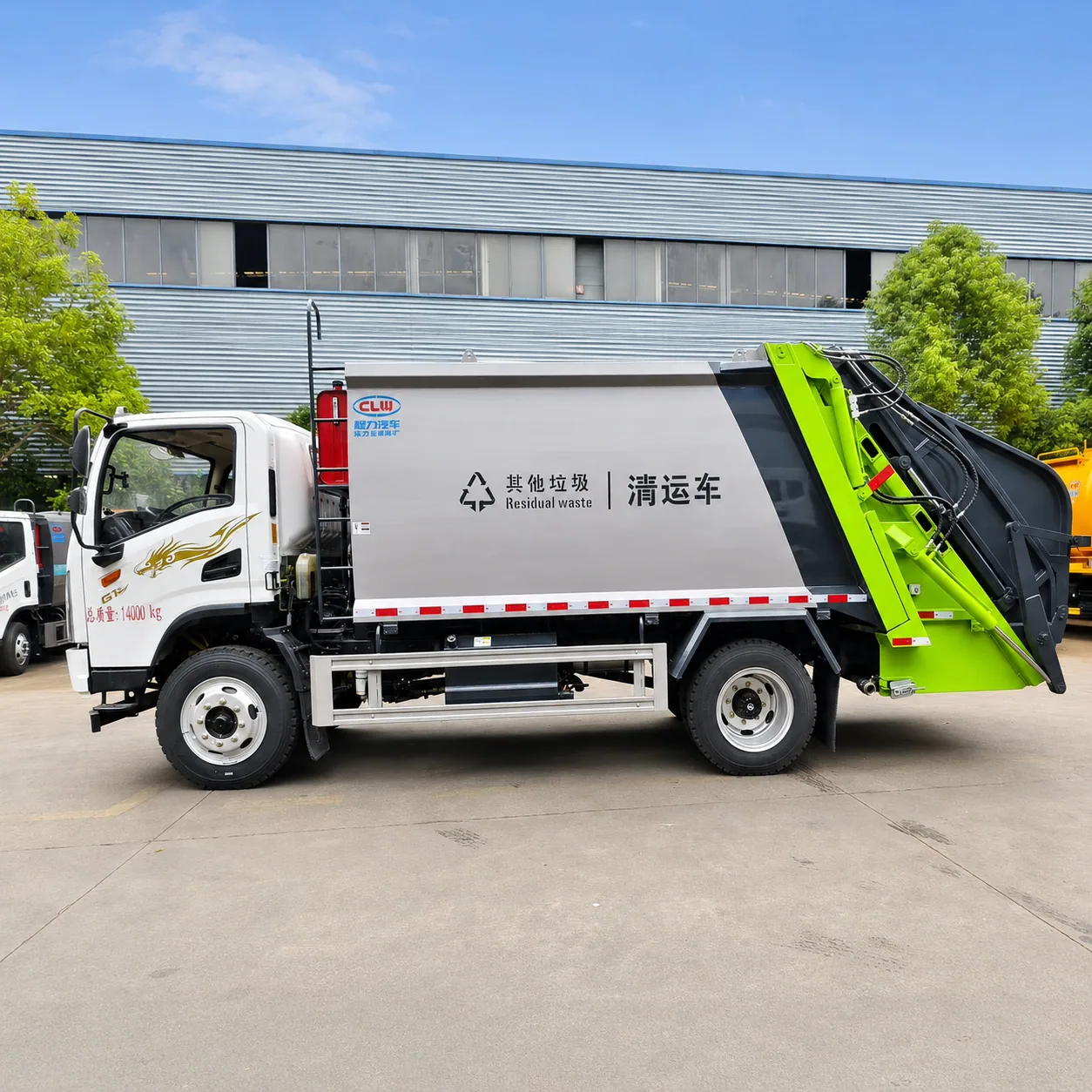

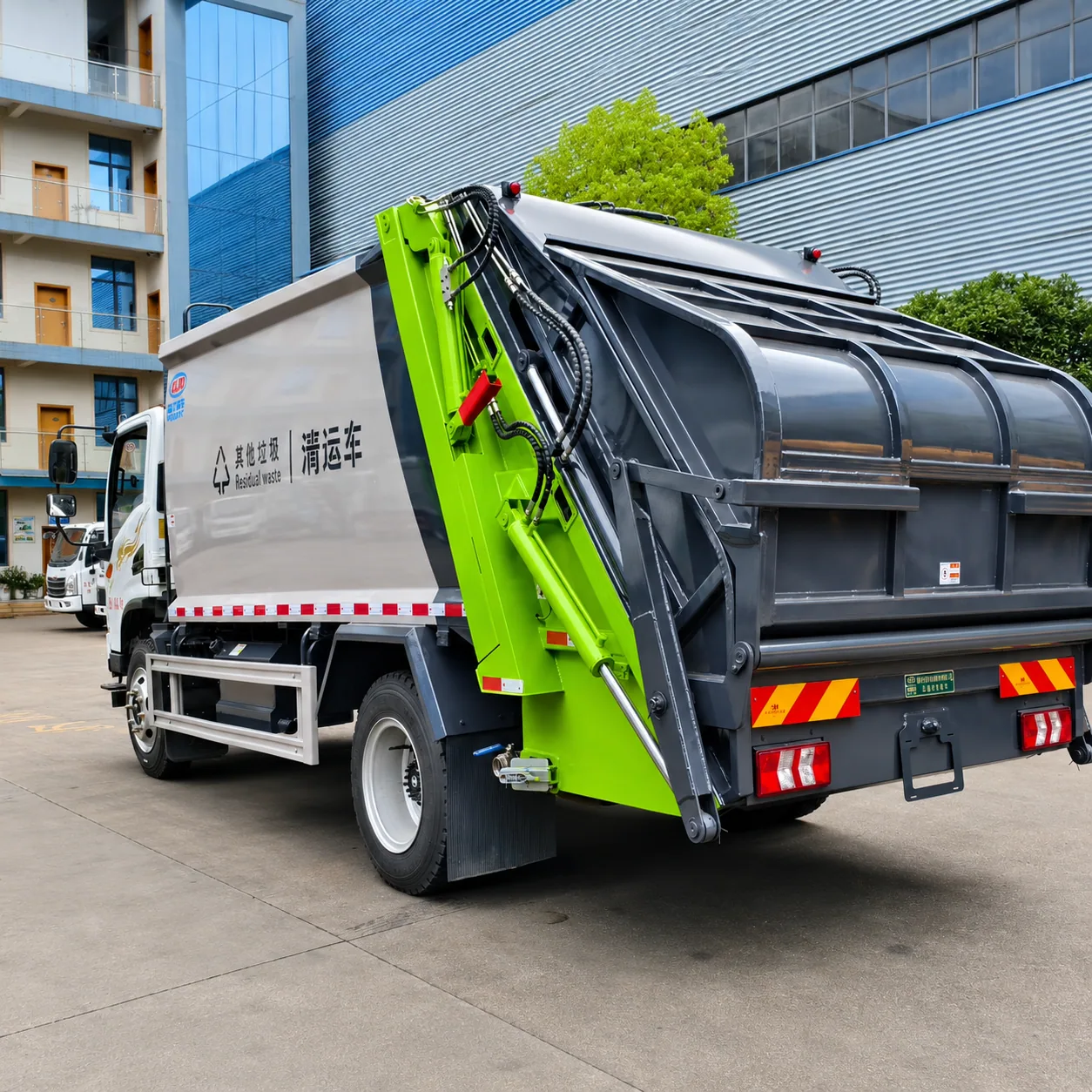

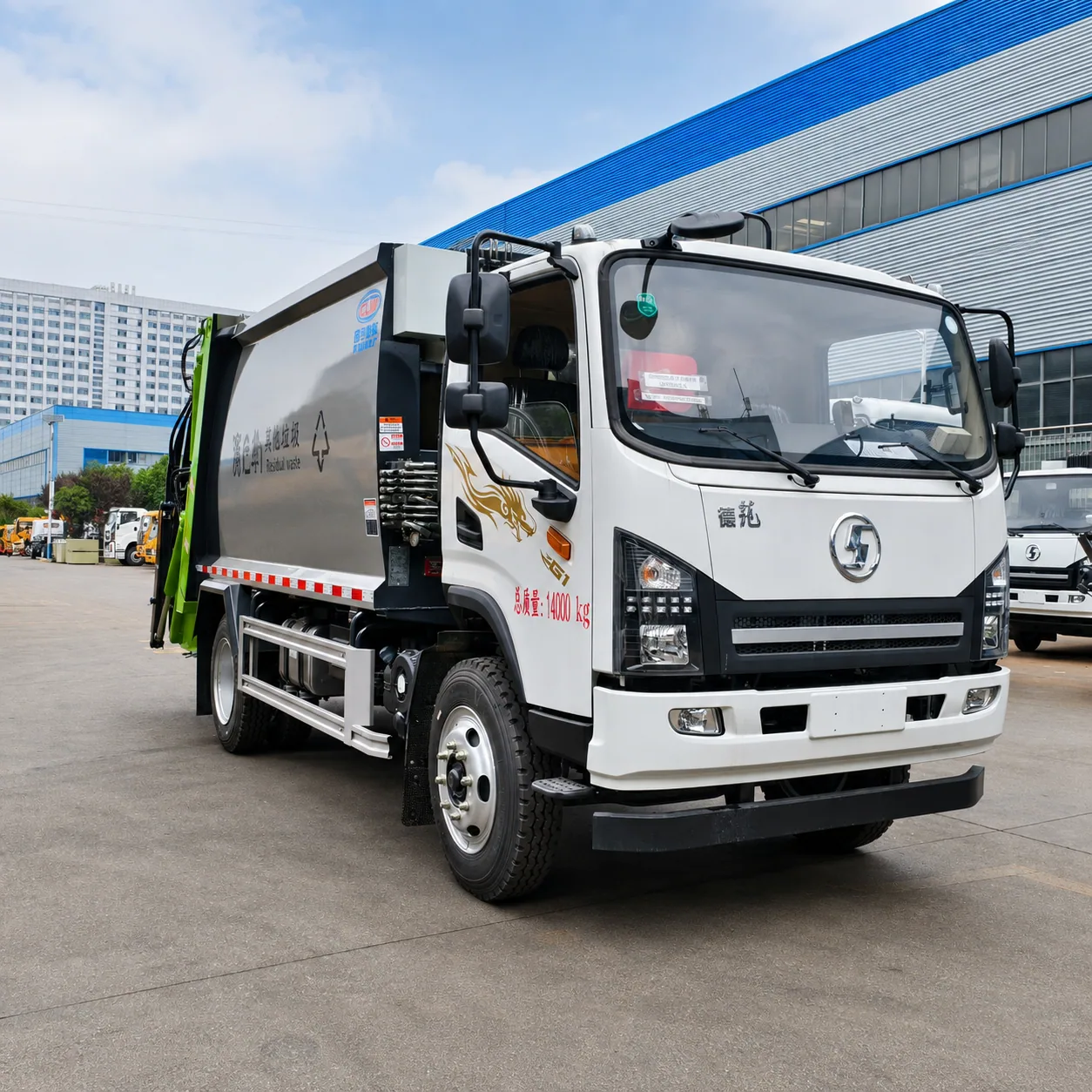

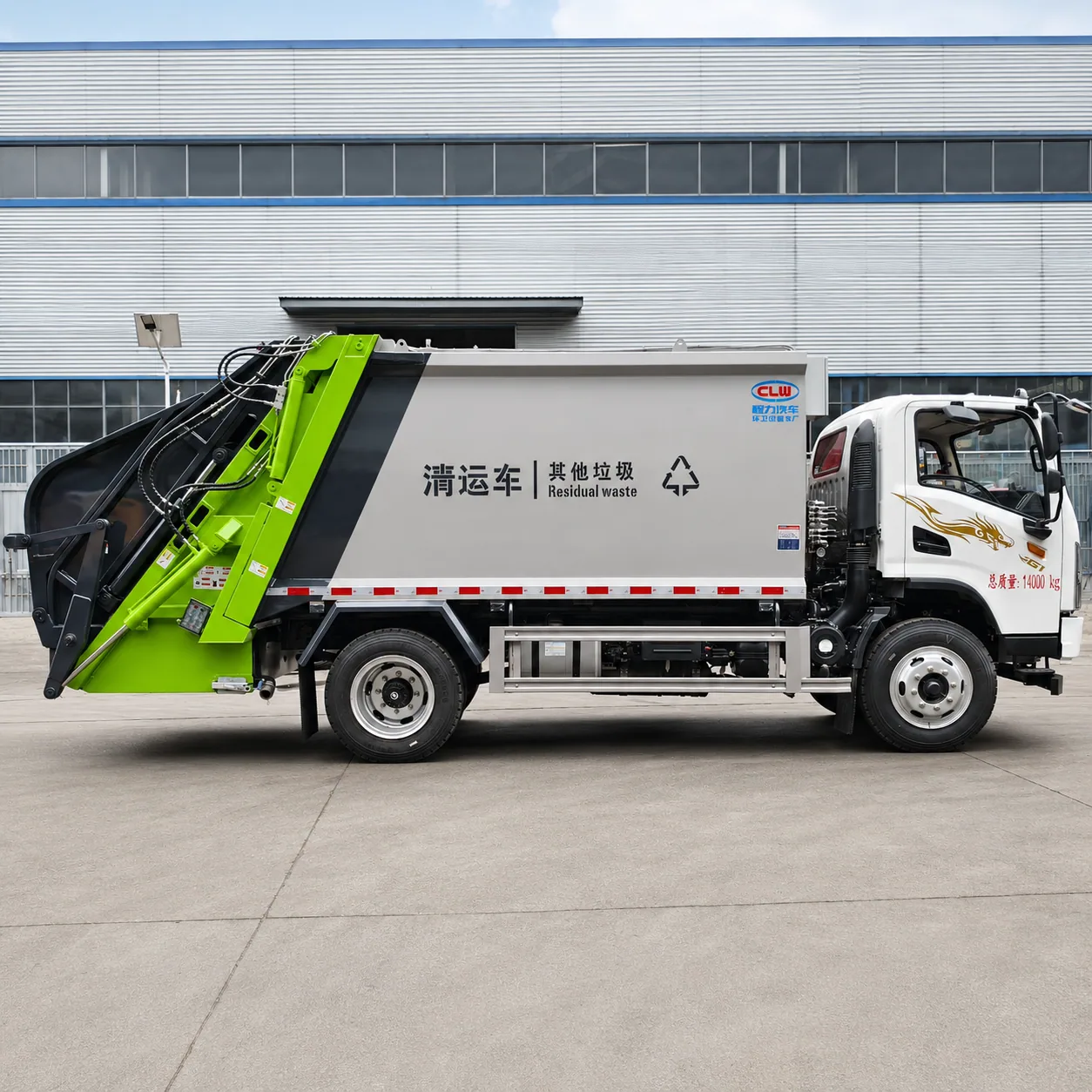

Product Display
