SHACMAN F3000 Truck Mounted Crane 300 / 340 / 375 / 380 / 400 / 420HP 8 / 10 / 12 / 14 / 16 / 20T Available
SHACMAN F3000 Truck Mounted Crane is a heavy-duty lifting and transportation vehicle designed for construction, mining, engineering projects, machinery handling, utility installation and industrial equipment transportation. The vehicle combines a durable SHACMAN F3000 heavy-duty chassis with a hydraulic truck-mounted crane, reinforced crane subframe, hydraulic outriggers and cargo body, allowing lifting, loading, transportation and unloading operations to be completed by one vehicle. SHACMAN F3000 crane trucks are available with 6×4 and 8×4 chassis configurations. Engine options include approximately 300HP, 340HP, 375HP, 380HP, 400HP and 420HP, while crane capacities of approximately 8T, 10T, 12T, 14T, 16T and 20T can be selected according to chassis capacity, cargo payload and lifting requirements. Straight-boom cranes are suitable for projects requiring greater lifting height and longer working radius, while knuckle-boom cranes can be selected for applications requiring compact installation and flexible lifting in restricted working areas. Crane brand, rated capacity, boom sections, lifting height, working radius, outriggers, cargo-body dimensions and control system can be customized according to project requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Truck Mounted Crane / Crane Truck / Lorry Mounted Crane / Cargo Truck with Crane |
| Brand | SHACMAN |
| Chassis Series | SHACMAN F3000 |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 300HP / 340HP / 375HP / 380HP / 400HP / 420HP available according to chassis and stock |
| Engine Brand | Weichai / Cummins |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to chassis and export market |
| Transmission Brand | FAST |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed available |
| PTO | Heavy-duty PTO for hydraulic crane system |
| Cab Series | SHACMAN F3000 |
| Cab Type | Standard / extended heavy-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Available |
| Driver Seat | Adjustable / air-suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,500–12,000 mm depending on chassis, crane and cargo body |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,200–4,000 mm |
| Wheelbase | Multiple wheelbase configurations available for 6×4 / 8×4 chassis |
| Gross Vehicle Weight | Approx. 25–41 tons depending on chassis |
| Curb Weight | Approx. 13–22 tons depending on crane and cargo body |
| Rated Payload | According to chassis, crane weight, cargo body and local certification |
| Maximum Driving Speed | Approx. 80–95 km/h |
| Front Axle | SHACMAN / HANDE heavy-duty steering axle |
| Rear Axle | SHACMAN / HANDE heavy-duty drive axle |
| Rear Axle Type | Hub-reduction / single-reduction available |
| Differential Lock | Available |
| Frame | Reinforced high-strength heavy-duty chassis frame |
| Crane Subframe | Heavy-duty reinforced crane mounting subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Heavy-duty multi-leaf spring / balance suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 300–500 L |
| Fuel Tank Material | Steel / aluminum optional |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Crane Type | Straight Boom Crane / Knuckle Boom Crane optional |
| Crane Installation Position | Behind cab standard / rear-mounted optional |
| Crane Brand | XCMG / SANY / other compatible Chinese crane brands |
| Rated Crane Capacity | 8T / 10T / 12T / 14T / 16T / 20T available |
| Medium Crane Capacity | Approx. 8–10 tons |
| Heavy Crane Capacity | Approx. 12–16 tons |
| Extra Heavy Crane Capacity | Approx. 20 tons |
| Boom Sections | 4 / 5 / 6 sections depending on crane model |
| Boom Structure | Hydraulic telescopic straight boom / articulated folding boom |
| Boom Material | High-strength structural steel |
| Maximum Lifting Height | Approx. 14–25 m depending on crane model |
| Maximum Working Radius | Approx. 12–22 m depending on crane model |
| Maximum Lifting Moment | According to crane model and rated capacity |
| Boom Extension | Hydraulic telescopic |
| Boom Elevation | Hydraulic |
| Crane Slewing | Hydraulic rotation |
| Slewing Angle | 360° continuous / limited rotation depending on crane model |
| Slewing Bearing | Heavy-duty slewing bearing |
| Main Hook | Heavy-duty lifting hook |
| Hook Block | Single / multi-sheave according to crane |
| Steel Wire Rope | High-strength lifting wire rope |
| Main Winch | Hydraulic winch |
| Winch Brake | Automatic hydraulic / mechanical brake |
| Auxiliary Winch | Optional |
| Hydraulic Pump | PTO-driven heavy-duty hydraulic pump |
| Hydraulic Working Pressure | Approx. 20–32 MPa depending on crane |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Optional |
| Hydraulic Control Valve | Multi-way proportional hydraulic valve |
| Hydraulic Cylinders | Heavy-duty double-acting hydraulic cylinders |
| Crane Control System | Manual hydraulic / electro-hydraulic proportional control |
| Ground Control | Available |
| High-Seat Control | Optional |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Emergency Manual Control | Available / optional |
| Overload Protection | Available / optional |
| Moment Limiter | Optional |
| Load Indicator | Optional |
| Boom Angle Indicator | Optional |
| Working Radius Indicator | Optional |
| Outrigger Type | Hydraulic H-type / telescopic outriggers |
| Front Outriggers | Available |
| Rear Outriggers | Optional / recommended for 12–20T cranes |
| Outrigger Extension | Manual / hydraulic optional |
| Outrigger Span | According to crane model |
| Vertical Outrigger Cylinder | Hydraulic |
| Outrigger Foot Pads | Heavy-duty steel pads |
| Stabilizer Interlock | Optional |
| Cargo Body Type | Dropside cargo body / flatbed cargo body |
| Cargo Body Length | Approx. 5,000–8,500 mm depending on chassis and crane |
| Cargo Body Width | Approx. 2,350–2,500 mm |
| Cargo Body Height | Approx. 500–800 mm for dropside configuration |
| Cargo Body Material | Carbon steel / high-strength steel |
| Cargo Floor | Checkered steel plate / flat steel plate / wood-steel combination optional |
| Floor Thickness | Approx. 4–8 mm or customized |
| Side Wall Thickness | Approx. 2–4 mm or customized |
| Side Panels | Fixed / foldable / removable optional |
| Rear Tailgate | Foldable / removable |
| Cargo Body Reinforcement | Reinforced longitudinal and transverse beams |
| Flatbed Configuration | Optional |
| Dropside Configuration | Available |
| Stake Body Configuration | Optional |
| Rear-Mounted Crane Configuration | Optional |
| Hydraulic Rear Outriggers | Optional |
| Additional Hook | Optional |
| Working Basket | Optional for compatible crane applications |
| Lifting Slings | Optional |
| Shackles | Optional |
| Spreader Beam | Optional |
| Crane Working Lights | Optional |
| Boom Working Light | Optional |
| Reversing Camera | Optional |
| Crane Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Lights | Optional |
| Audible Warning Alarm | Optional |
| Toolbox | Available |
| Outrigger Pad Storage | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, yellow, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, crane brand, crane capacity, boom sections, lifting height, working radius, outriggers, cargo body size, hydraulic system, control system, steering side, cameras, paint color, company logo and export markings |

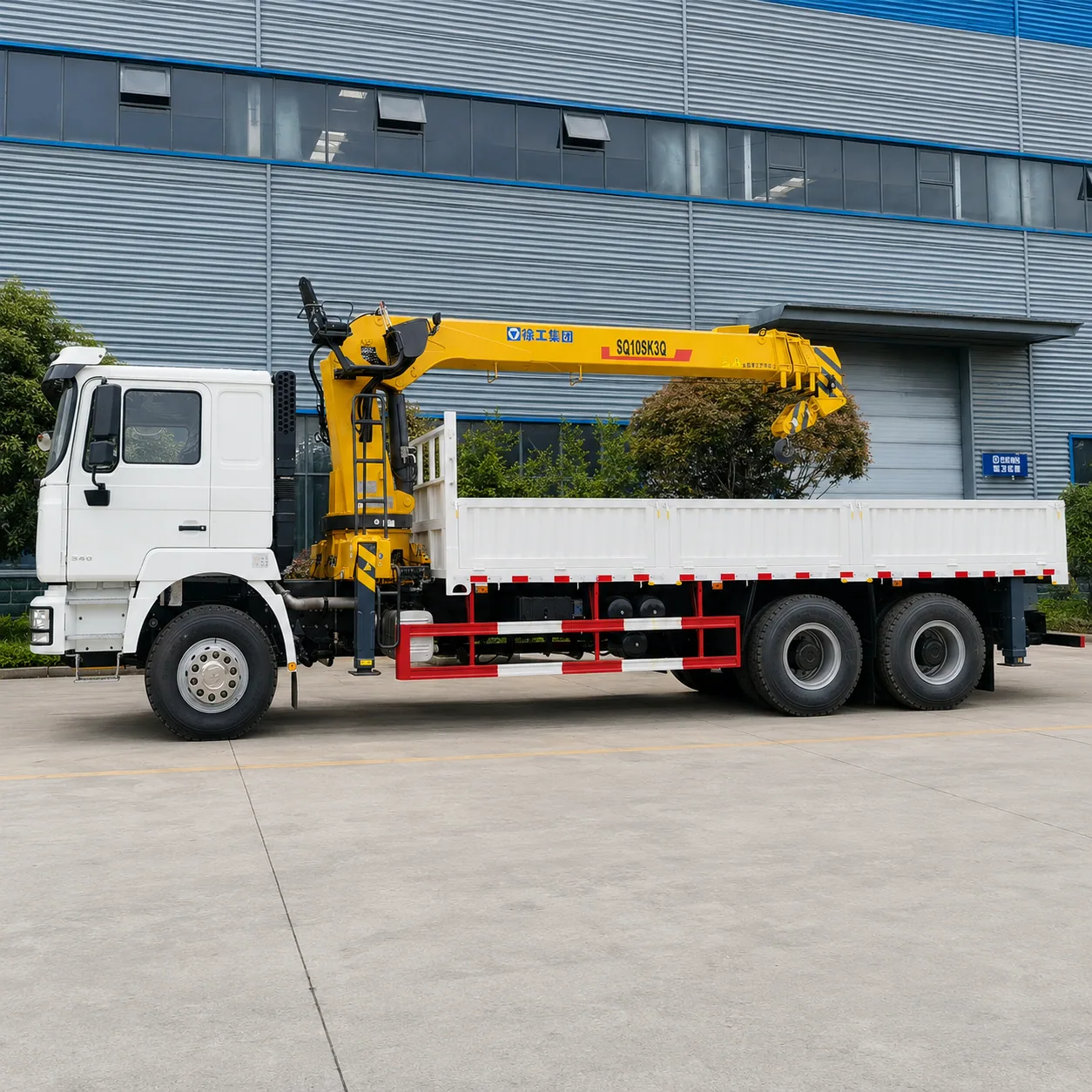

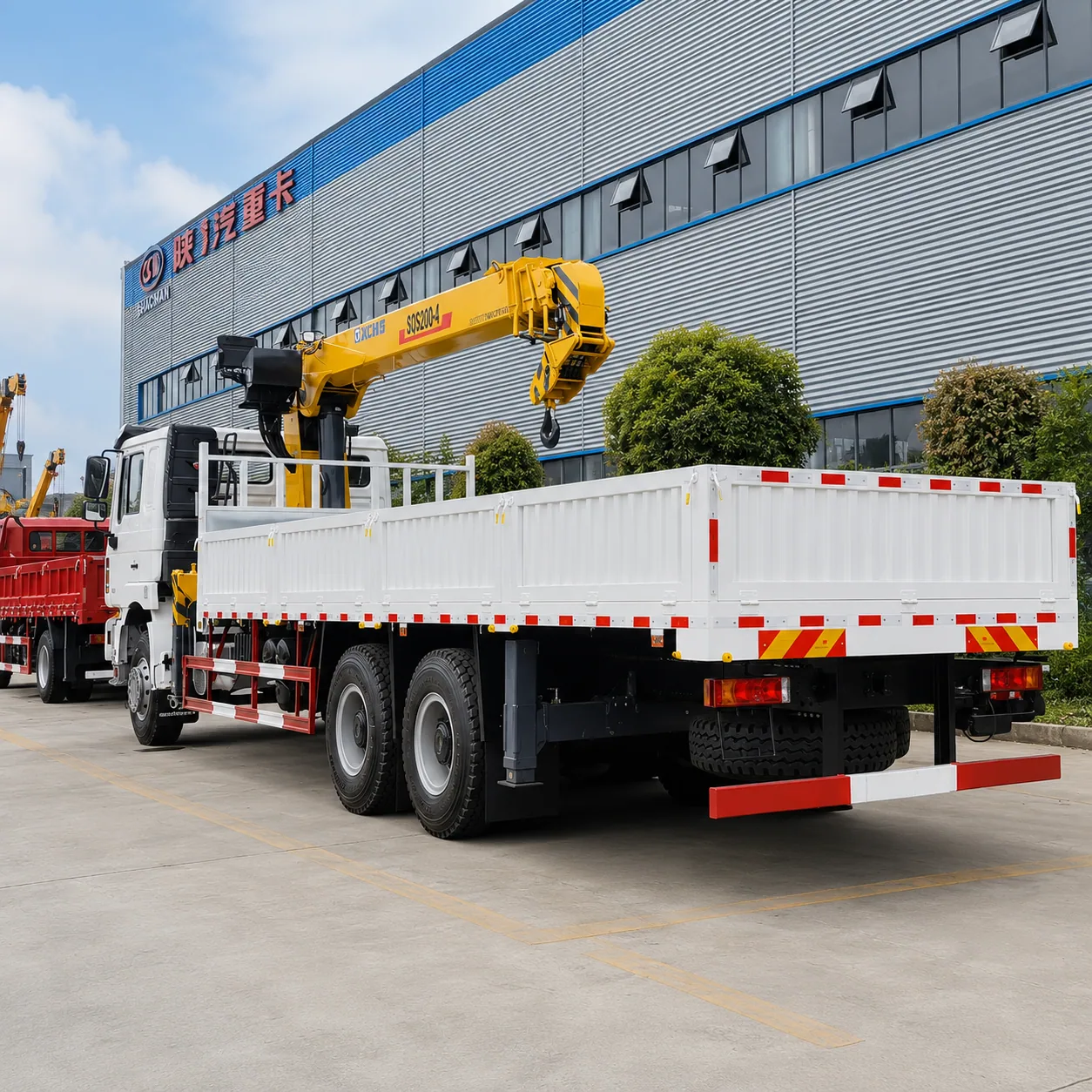

Product Details
Typical Applications
- Construction-material lifting and transportation
- steel transportation
- prefabricated component lifting
- machinery loading and unloading
- generator transportation
- transformer installation
- power-equipment handling
- utility construction
- power-line projects
- telecommunications projects
- pipeline construction
- road construction
- bridge construction
- building-material delivery
- industrial equipment installation
- factory equipment relocation
- warehouse cargo handling
- port and terminal operations
- mining-site material handling
- oilfield equipment transportation
- agricultural machinery transportation
- municipal engineering
- emergency lifting operations.
Available Configurations
- 300HP, 340HP, 375HP, 380HP, 400HP or 420HP diesel engine
- SHACMAN F3000 6×4 or 8×4 heavy-duty chassis
- Weichai or Cummins diesel engine
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V configuration according to chassis
- FAST 10-speed or 12-speed manual transmission
- 8T, 10T, 12T, 14T, 16T or 20T truck-mounted crane
- XCMG, SANY or other compatible crane brands
- straight-boom or knuckle-boom crane
- 4-section, 5-section or 6-section boom
- approximately 14–25m maximum lifting height
- approximately 12–22m maximum working radius
- 360° rotation according to crane model
- hydraulic H-type outriggers
- rear hydraulic outriggers
- ground control
- high-seat control
- electro-hydraulic proportional control
- wireless remote control
- overload protection
- moment limiter
- load indicator
- approximately 5.0–8.5m cargo body
- dropside cargo body
- flatbed cargo body
- removable side panels
- reinforced steel floor
- rear-mounted crane configuration
- auxiliary hydraulic winch
- working basket
- lifting slings
- shackles
- spreader beam
- crane camera
- reversing camera
- 360° monitoring system
- LED working lights
- toolbox
- customized crane capacity, cargo body dimensions, hydraulic system, paint color, company logo and export markings.
Buyer Support
- SHACMAN F3000 Truck Mounted Crane combines a heavy-duty SHACMAN F3000 chassis with a professional hydraulic crane and reinforced cargo body, allowing lifting, loading, transportation and unloading to be completed by one vehicle. This integrated solution is suitable for construction, mining, industrial equipment installation and other projects requiring both heavy lifting and cargo transportation. Crane capacities from approximately 8T to 20T cover medium- and heavy-duty lifting requirements. 8T and 10T cranes are suitable for construction materials, generators and general machinery
- 12T, 14T and 16T configurations provide greater lifting capability for industrial equipment and engineering applications
- 20T cranes are suitable for heavier equipment and demanding project work. 6×4 and 8×4 chassis configurations provide strong load capacity and operating stability. 6×4 versions offer a practical balance between maneuverability and payload, while 8×4 configurations provide higher chassis capacity and a longer platform for larger cranes and heavier cargo. Straight-boom cranes provide greater lifting height and longer working radius for construction, machinery handling and equipment installation. Knuckle-boom cranes can be selected when compact folded dimensions and flexible operation in restricted spaces are required. Hydraulic H-type outriggers provide stable support during crane operation. Larger 12–20T crane configurations can be equipped with rear hydraulic outriggers to increase the support area and improve stability at longer working radii. Ground control, high-seat control and optional wireless remote control provide flexible operating methods. Overload protection, moment limiters, load indicators, boom-angle indicators and crane cameras can be configured to improve operational control and safety. The reinforced cargo body allows materials and machinery to be transported immediately after lifting. Cargo-body dimensions, side-wall height, floor thickness and structural reinforcement can be customized for steel, generators, construction materials, industrial equipment and machinery. Left-hand-drive and right-hand-drive versions are available for different export markets. Engine power, drive configuration, crane brand, lifting capacity, boom sections, lifting height, working radius, outriggers, cargo-body dimensions, hydraulic control system, cameras, paint color and other specifications can be customized according to project requirements.

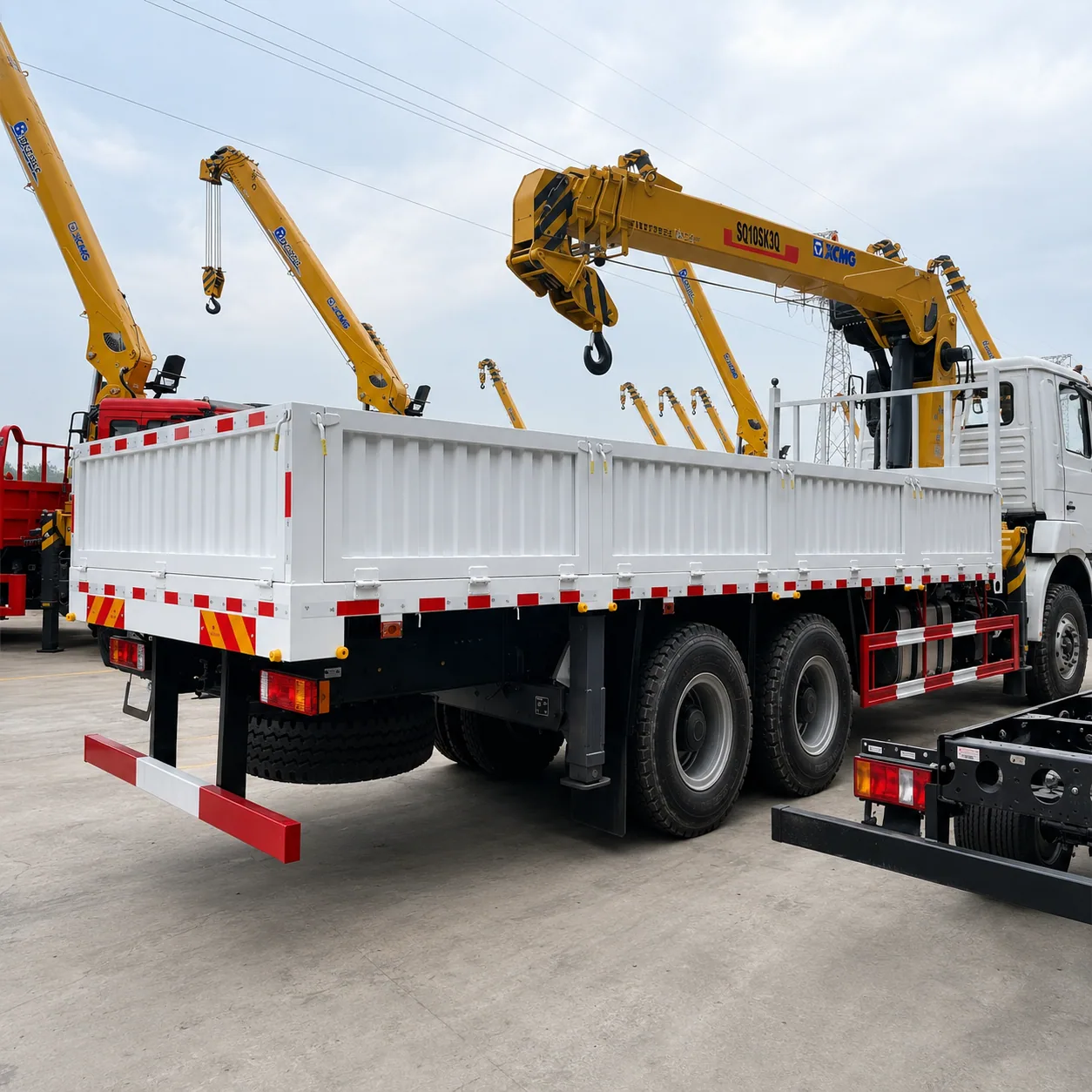

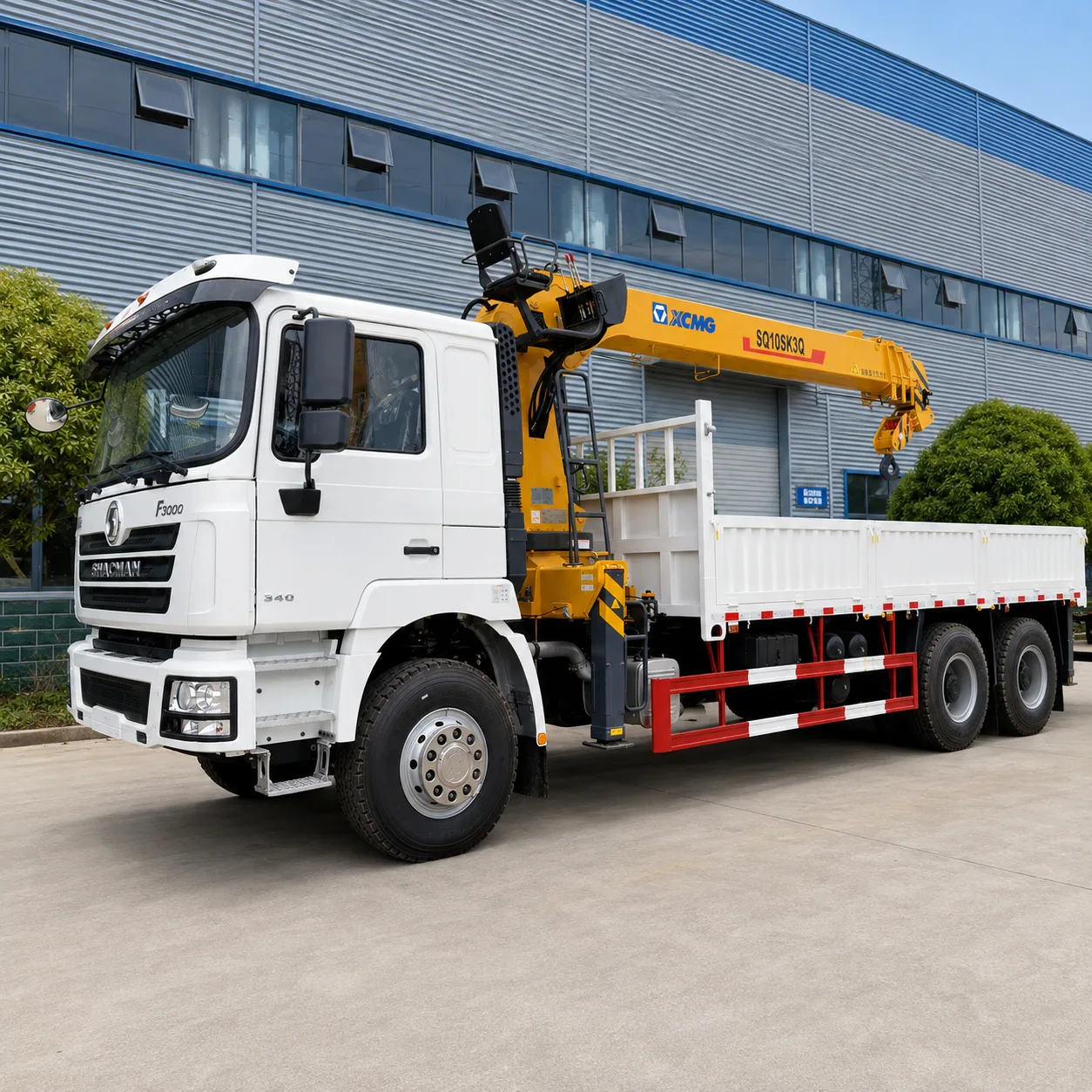

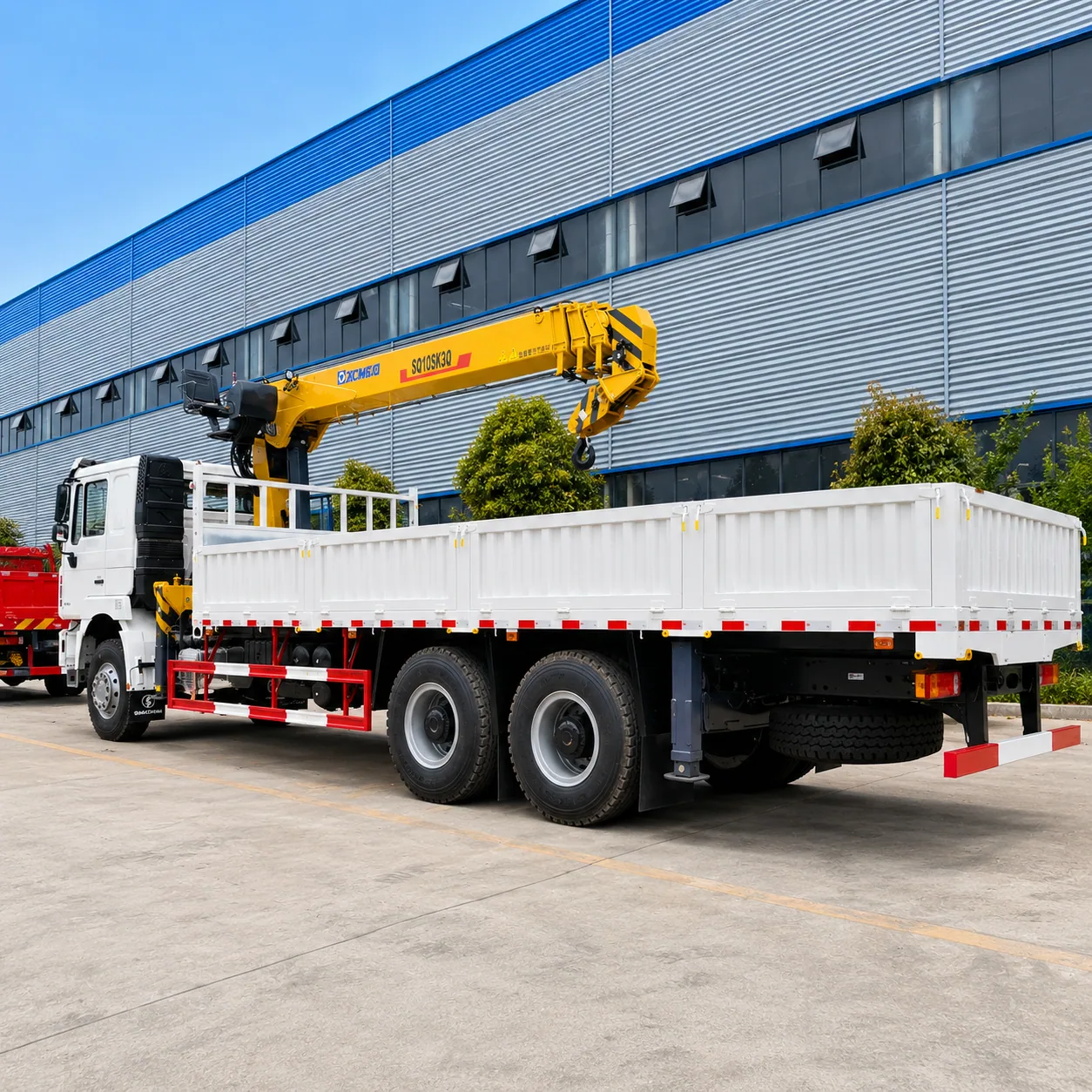

Product Display
