SHACMAN F3000 Sewage Suction Truck 300 / 340 / 375 / 380 / 400 / 420HP 12 / 15 / 18 / 20 / 25 / 30CBM Available
SHACMAN F3000 Sewage Suction Truck is a heavy-duty vacuum tanker designed for municipal sewage collection, septic tank cleaning, sludge removal, industrial wastewater transportation and construction-site sanitation. The vehicle combines a durable SHACMAN F3000 heavy-duty chassis with a sealed vacuum tank, high-performance vacuum pump, large-diameter suction pipeline, hydraulic tank lifting system and hydraulic rear door for efficient collection, transportation and discharge of liquid and semi-liquid waste. SHACMAN F3000 sewage suction trucks are available with 6×4 and 8×4 chassis configurations. Engine options include approximately 300HP, 340HP, 375HP, 380HP, 400HP and 420HP, while sewage tank capacities of approximately 12CBM, 15CBM, 18CBM, 20CBM, 25CBM and 30CBM can be selected according to chassis capacity, road conditions and operating requirements. The PTO-driven vacuum system generates strong negative pressure inside the sealed tank, allowing sewage, sludge, septic waste and sediment-containing wastewater to be collected through a large-diameter suction hose. Hydraulic tank lifting and a hydraulically operated rear door provide efficient discharge of accumulated sludge and sediment. Vacuum pump type, suction depth, tank material, tank thickness, hose diameter, suction boom, discharge system and auxiliary cleaning equipment can be customized.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Sewage Suction Truck / Vacuum Sewage Truck / Vacuum Tanker Truck / Septic Tank Truck |
| Brand | SHACMAN |
| Chassis Series | SHACMAN F3000 |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 300HP / 340HP / 375HP / 380HP / 400HP / 420HP available according to chassis and stock |
| Engine Brand | Weichai / Cummins |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to chassis and export market |
| Transmission Brand | FAST |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed available |
| PTO | Heavy-duty PTO for vacuum pump and hydraulic system |
| Cab Series | SHACMAN F3000 |
| Cab Type | Standard / extended heavy-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Available |
| Driver Seat | Adjustable / air-suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,500–12,000 mm depending on chassis and tank capacity |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,200–3,900 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 25–41 tons depending on chassis |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–95 km/h |
| Front Axle | SHACMAN / HANDE heavy-duty steering axle |
| Rear Axle | SHACMAN / HANDE heavy-duty drive axle |
| Rear Axle Type | Hub-reduction / single-reduction available |
| Differential Lock | Available |
| Frame | Reinforced high-strength heavy-duty chassis frame |
| Tank Subframe | Reinforced heavy-duty vacuum tanker subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Heavy-duty multi-leaf spring / balance suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 300–500 L |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Sewage Tank Capacity | 12CBM / 15CBM / 18CBM / 20CBM / 25CBM / 30CBM available |
| Common 6×4 Tank Capacity | Approx. 12–20 CBM |
| Common 8×4 Tank Capacity | Approx. 20–30 CBM |
| Tank Shape | Cylindrical vacuum tank |
| Tank Structure | Fully sealed negative-pressure tank |
| Tank Material | Q235 carbon steel / high-strength steel / stainless steel optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Tank Body Thickness | Approx. 5–8 mm or customized |
| Tank Head Thickness | Approx. 6–10 mm or customized |
| Internal Reinforcement | Reinforcing rings / anti-deformation structure |
| Tank Welding | Continuous sealed welding |
| Tank Top Manhole | Available |
| Manhole Cover | Sealed quick-opening / bolted type |
| Tank Ladder | Available |
| Top Walkway | Optional |
| Vacuum Pump Type | Rotary vane vacuum pump / water-ring vacuum pump optional |
| Vacuum Pump Drive | PTO-driven |
| Vacuum Pump Air Displacement | Approx. 8–18 m³/min depending on pump |
| Maximum Vacuum Degree | Approx. -0.08 to -0.095 MPa depending on pump |
| Maximum Suction Depth | Approx. 6–9 m |
| Typical Suction Time | Approx. 5–12 minutes depending on tank volume, pump and material |
| Suction Hose Diameter | Approx. 100–150 mm |
| Suction Hose Length | Approx. 5–10 m standard / customized |
| Additional Suction Hose | Optional |
| Hose Material | Heavy-duty reinforced flexible suction hose |
| Rear Suction Port | Available |
| Side Suction Port | Optional |
| Top Suction Port | Optional |
| Rotary Suction Boom | Optional |
| Suction Boom Control | Manual / hydraulic optional |
| Suction Valve | Heavy-duty sewage valve |
| Vacuum Gauge | Available |
| Pressure Gauge | Available |
| Vacuum Control Valve | Available |
| Four-Way Valve | Available according to vacuum pump configuration |
| Oil-Water Separator | Available |
| Gas-Water Separator | Available |
| Secondary Separator | Optional |
| Vacuum Pump Lubrication System | Available according to pump type |
| Anti-Overflow Device | Available |
| Float-Level Anti-Overflow Valve | Available |
| High-Level Alarm | Optional |
| Liquid Level Indicator | Mechanical / electronic optional |
| Sight Glass | Optional |
| Tank Lifting | Hydraulic lifting |
| Maximum Tank Tipping Angle | Approx. 40–50° |
| Rear Door Opening | Hydraulic |
| Rear Door Locking | Hydraulic / mechanical locking |
| Rear Door Sealing | Heavy-duty rubber sealing ring |
| Large Rear Discharge Port | Available |
| Sewage Discharge Valve | Heavy-duty discharge valve |
| Discharge Method | Gravity discharge / hydraulic tipping discharge |
| Pressure-Assisted Discharge | Optional according to vacuum system |
| Sediment Discharge | Hydraulic rear opening + tank lifting |
| Self-Unloading Function | Available |
| Hydraulic Pump | PTO-driven heavy-duty hydraulic gear pump |
| Hydraulic Working Pressure | Approx. 16–25 MPa depending on system |
| Hydraulic Oil Tank | Available |
| Hydraulic Cylinders | Heavy-duty hydraulic cylinders |
| Tank Lifting Cylinder | Heavy-duty hydraulic lifting cylinder |
| Rear Door Cylinder | Hydraulic |
| Hydraulic Control Valve | Multi-way hydraulic valve |
| Operation Control | Manual hydraulic / electro-hydraulic optional |
| External Control Panel | Available |
| Cab-Mounted Control | Optional |
| Wireless Remote Control | Optional |
| Emergency Manual Control | Optional |
| Internal Tank Cleaning | Optional |
| Internal Flushing Nozzle | Optional |
| Auxiliary Clean-Water Tank | Optional |
| High-Pressure Cleaning Pump | Optional |
| High-Pressure Cleaning Hose | Optional |
| Hose Reel | Optional |
| Hand-Wash Tank | Optional |
| Drainage Port | Available |
| Overflow Pipe | Available according to tank structure |
| Internal Anti-Corrosion Coating | Optional |
| External Anti-Corrosion Treatment | Available |
| External Painting | Industrial primer + topcoat |
| Stainless-Steel Pipeline | Optional |
| Stainless-Steel Valves | Optional |
| Rear Working Platform | Optional |
| Rear Working Lights | Optional |
| Warning Beacon | Optional |
| LED Warning Lights | Optional |
| Reversing Camera | Optional |
| Rear Operation Camera | Optional |
| Tank Monitoring Camera | Optional |
| 360° Monitoring System | Optional |
| Toolbox | Available |
| Hose Storage Rack | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, blue, green, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, tank capacity, tank material, tank thickness, vacuum pump, suction depth, hose diameter, hose length, suction boom, hydraulic lifting system, rear door, cleaning equipment, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal sewage collection
- septic tank cleaning
- sewer sludge removal
- cesspit emptying
- residential-community sewage collection
- industrial wastewater transportation
- factory sewage removal
- construction-site wastewater collection
- mining-camp sewage collection
- oilfield wastewater handling
- sludge transportation
- sediment removal
- municipal drainage maintenance
- industrial-park sanitation
- livestock-farm wastewater collection
- public toilet waste collection
- hotel sewage collection
- port and terminal sewage handling
- construction-camp sanitation
- large-scale municipal sanitation projects.
Available Configurations
- 300HP, 340HP, 375HP, 380HP, 400HP or 420HP diesel engine
- SHACMAN F3000 6×4 or 8×4 heavy-duty chassis
- Weichai or Cummins diesel engine
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V configuration according to chassis
- FAST 10-speed or 12-speed manual transmission
- 12CBM, 15CBM, 18CBM, 20CBM, 25CBM or 30CBM sewage tank
- Q235 carbon-steel, high-strength steel or stainless-steel tank
- customized tank-body and tank-head thickness
- rotary vane vacuum pump
- water-ring vacuum pump
- approximately 8–18m³/min vacuum-pump air displacement
- approximately 6–9m suction depth
- 100–150mm suction hose
- 5–10m suction hose or customized length
- rear, side or top suction port
- hydraulic rotary suction boom
- hydraulic tank lifting
- hydraulic rear-door opening
- gravity discharge
- hydraulic tipping discharge
- pressure-assisted discharge
- anti-overflow protection
- oil-water separator
- gas-water separator
- high-level alarm
- electronic liquid-level indicator
- internal tank-cleaning system
- auxiliary clean-water tank
- high-pressure flushing system
- hose reel
- stainless-steel valves and pipelines
- wireless remote control
- reversing camera
- rear operation camera
- tank monitoring camera
- 360° monitoring system
- LED warning lights
- toolbox
- customized tank volume, vacuum system, hydraulic system, paint color, company logo and export markings.
Buyer Support
- SHACMAN F3000 Sewage Suction Truck combines a heavy-duty SHACMAN F3000 chassis with a high-capacity vacuum sewage system, providing a reliable solution for municipal sanitation, industrial wastewater collection, septic tank cleaning, mining projects and large-scale sludge transportation. Tank capacities from approximately 12CBM to 30CBM provide strong sewage handling capacity for medium- and heavy-duty applications. 12–20CBM configurations provide a practical balance between capacity and maneuverability, while 20–30CBM 8×4 versions are suitable for high-volume municipal, industrial, mining and construction projects. The PTO-driven vacuum pump generates strong negative pressure inside the sealed tank, allowing sewage, septic waste, sludge and semi-liquid material to be collected through a large-diameter suction hose. High-capacity vacuum pump configurations can be selected for larger tanks and operations requiring faster suction performance. A maximum suction depth of approximately 6–9 meters allows the vehicle to service underground septic tanks, sewage pits, drainage structures and other below-ground collection points. Heavy-duty 100–150mm suction hoses provide good flow capacity for sludge and sediment-containing sewage. The hydraulic lifting tank and hydraulically operated rear door provide efficient unloading. For sludge and sediment that cannot be completely discharged through the outlet valve, the rear door can be opened and the tank raised hydraulically to discharge accumulated material directly. Anti-overflow protection, vacuum gauges, oil-water separators and gas-water separators help protect the vacuum pump and improve system reliability. High-level alarms, electronic liquid-level indicators and monitoring cameras can be selected for additional operational control. Carbon-steel tanks provide strong durability and cost efficiency for general sewage applications, while high-strength steel, stainless steel and anti-corrosion coatings can be selected for projects requiring greater corrosion resistance and service life. Left-hand-drive and right-hand-drive configurations are available for different export markets. Engine power, drive configuration, tank capacity, tank material, vacuum pump, suction depth, suction hose, rotary suction boom, hydraulic lifting system, rear-door structure, auxiliary cleaning system, cameras, warning devices, paint color and other specifications can be customized according to project requirements.

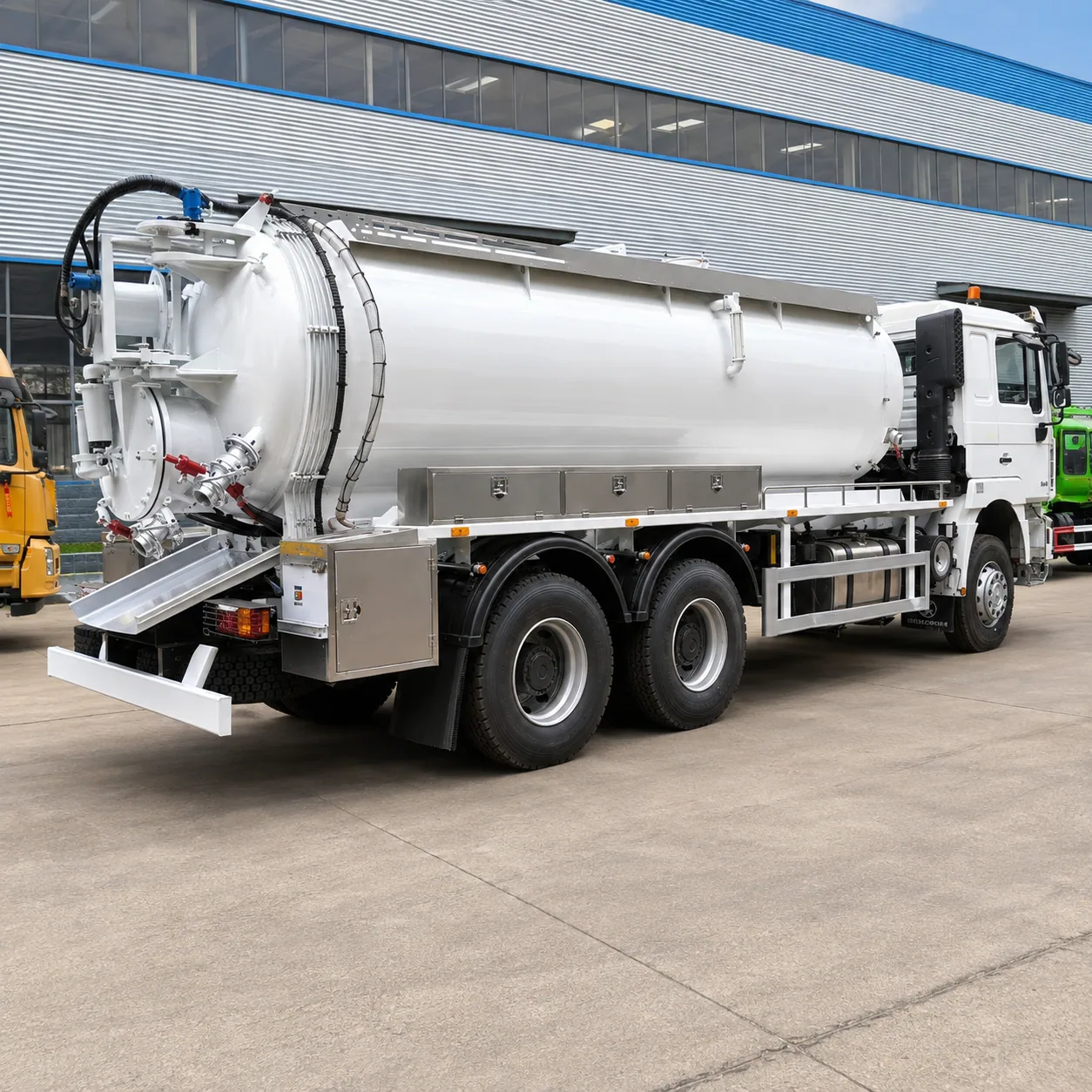

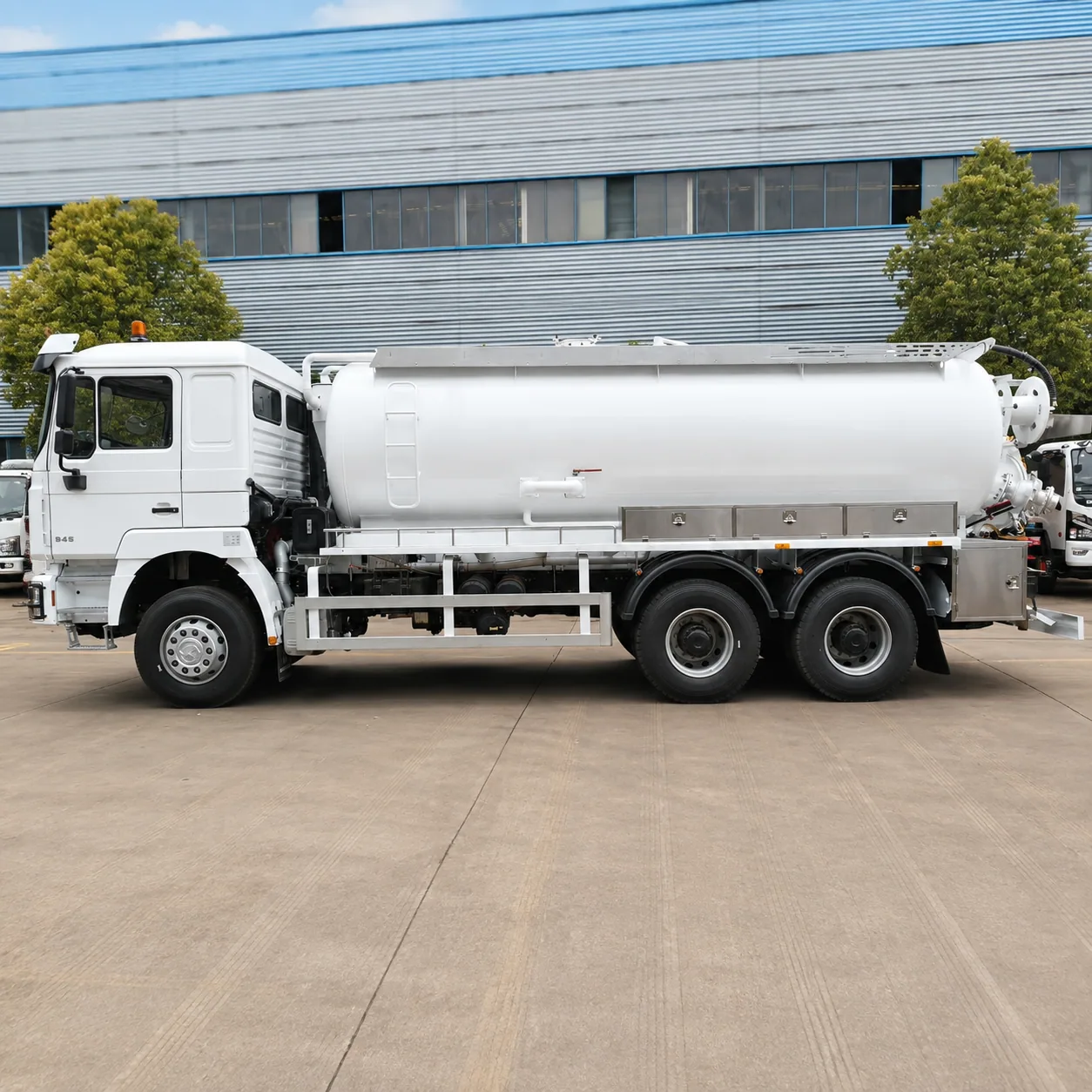

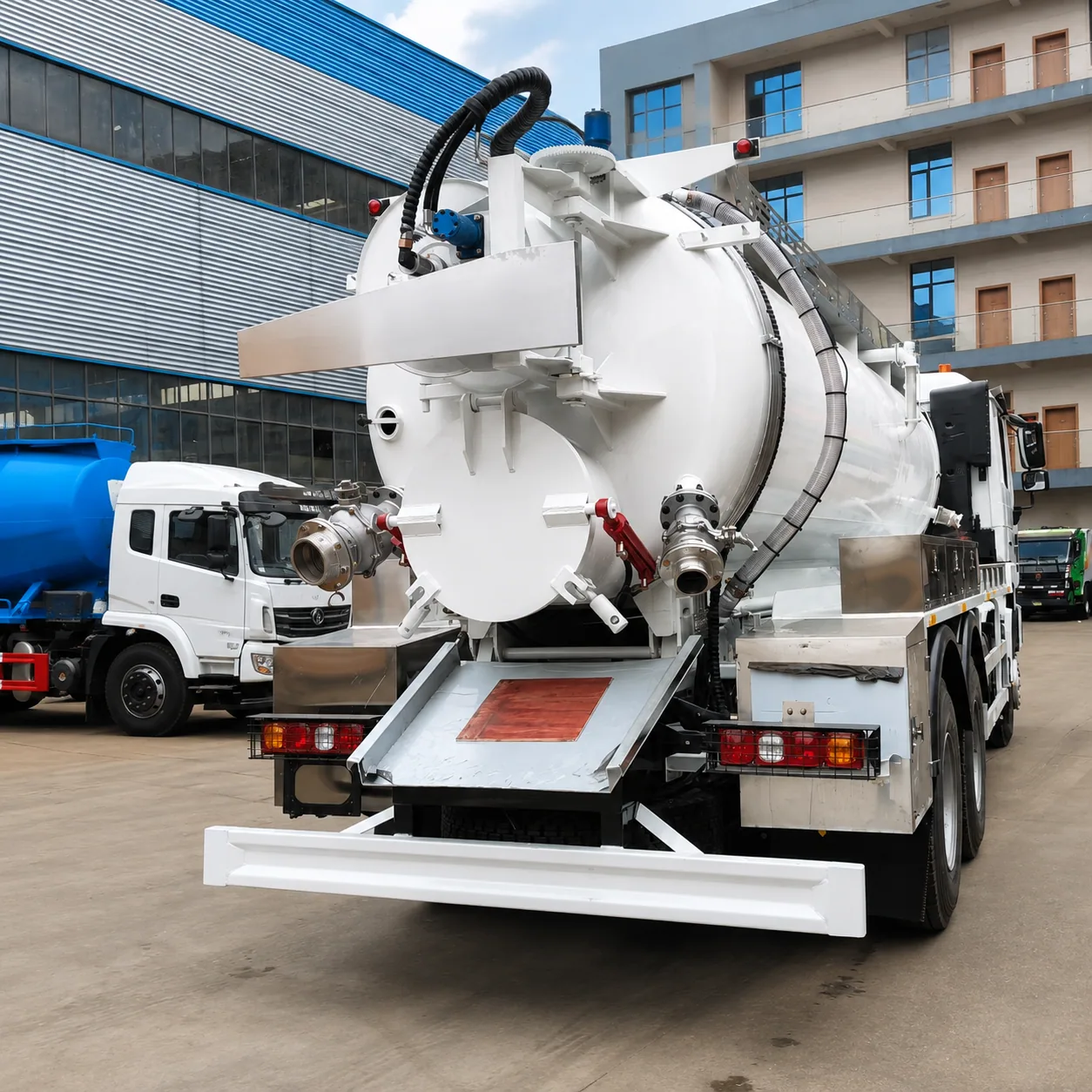

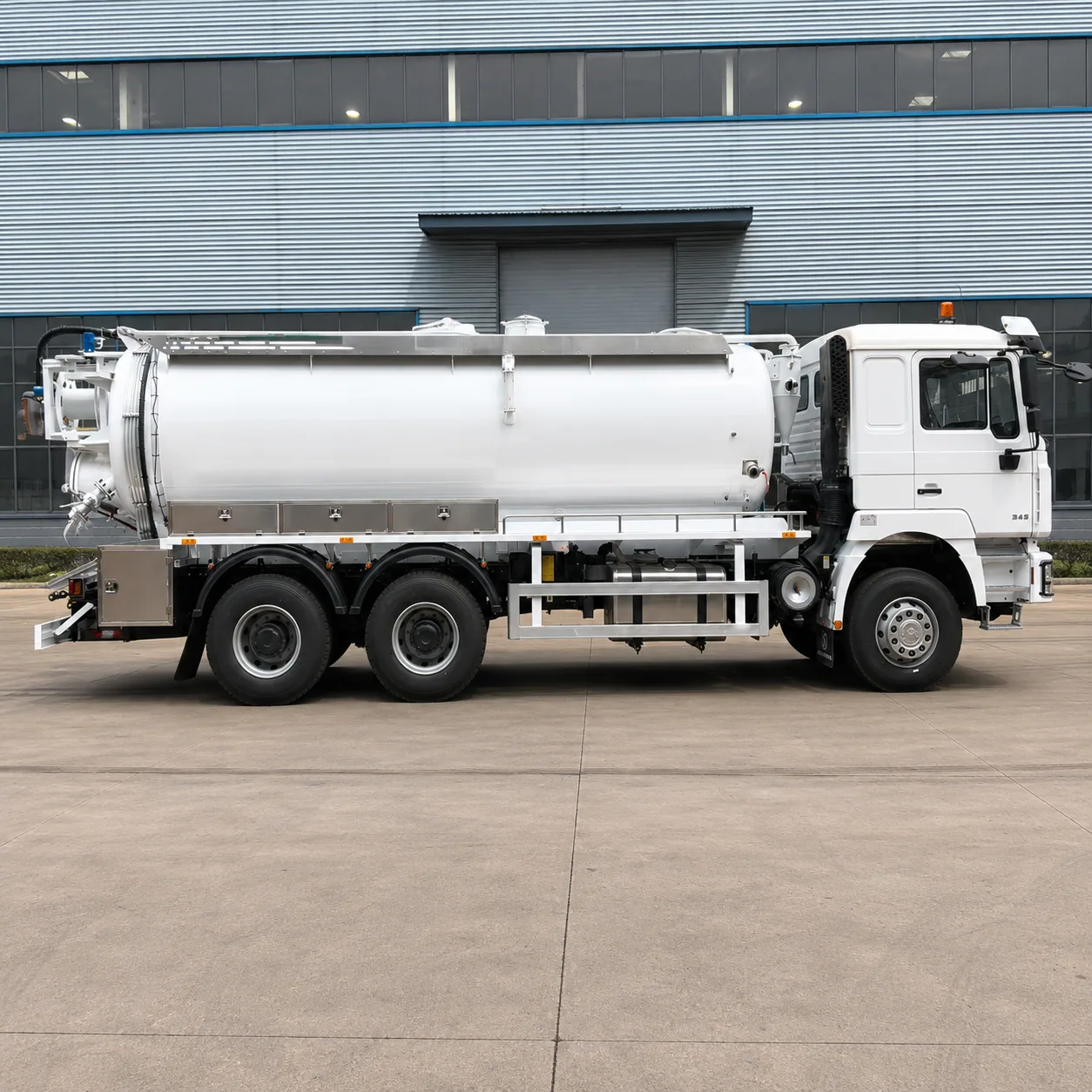

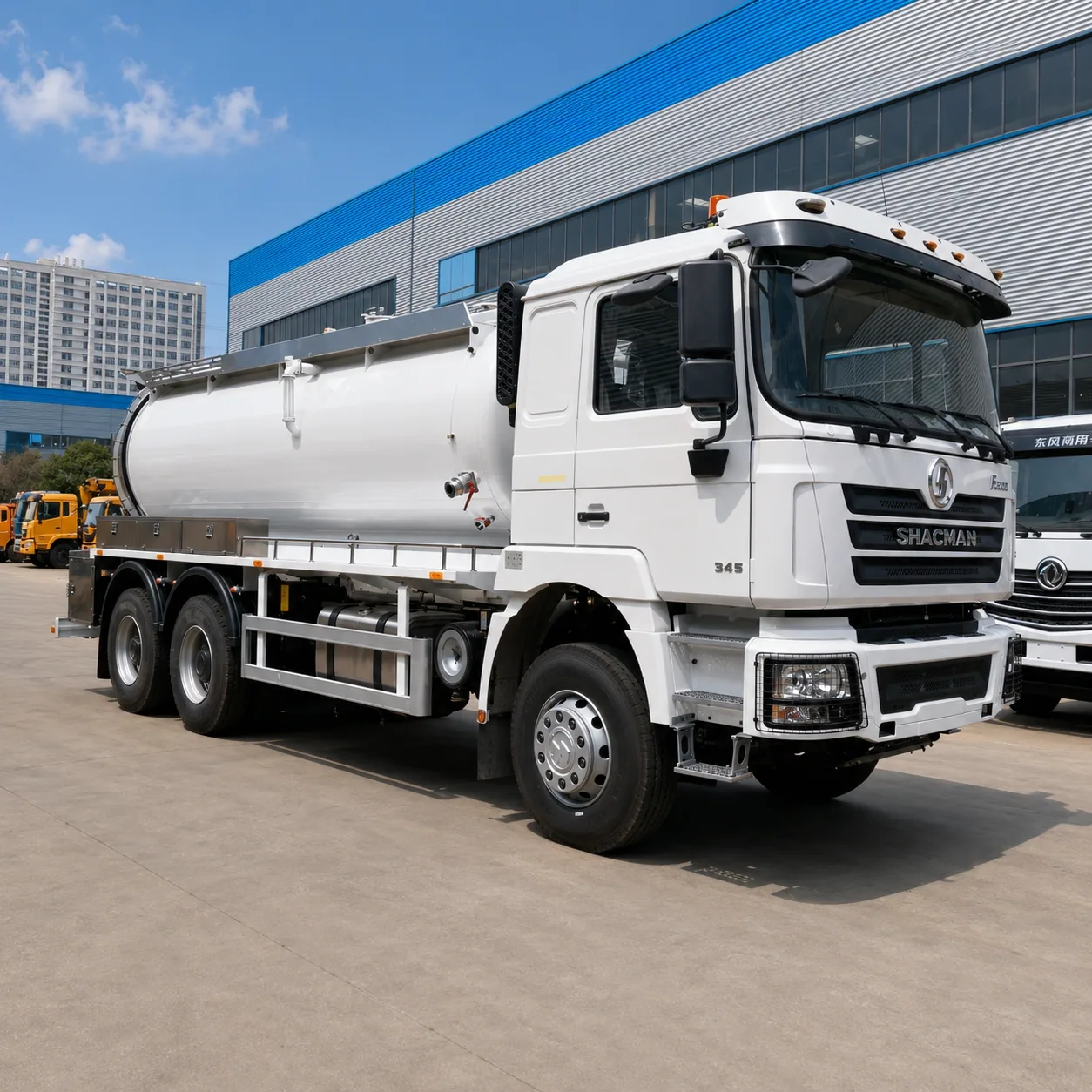

Product Display
