SHACMAN F3000 Concrete Mixer Truck 340 / 375 / 380 / 400 / 420HP 8 / 10 / 12 / 14 / 16CBM Available
SHACMAN F3000 Concrete Mixer Truck is a heavy-duty construction vehicle designed for transporting ready-mixed concrete from batching plants to construction sites while continuously agitating the concrete during transportation. It combines the proven SHACMAN F3000 engineering-truck chassis with a high-strength concrete mixing drum, hydraulic drive system, hydraulic pump, hydraulic motor, reducer, feeding hopper, discharge chute, water system and reinforced mixer subframe. The F3000 platform is designed for demanding engineering and heavy-load applications and is available with Weichai or Cummins diesel engines, FAST manual transmissions and heavy-duty MAN technology axles. Common mixer-truck power configurations include 340HP, 375HP, 380HP, 400HP and 420HP, with 6×4 and 8×4 chassis options available for different concrete transportation requirements. SHACMAN's F3000 heavy-duty platforms support 10–12L engines, Euro II–Euro V configurations and heavy-duty driveline systems suitable for engineering applications. Different mixer superstructures can be configured with approximately 8CBM, 10CBM, 12CBM, 14CBM and 16CBM capacities. The mixer drum uses high-strength wear-resistant steel and internal spiral blades to maintain concrete uniformity during transport. The hydrostatic hydraulic drive system provides smooth and adjustable drum rotation during feeding, transportation and discharge, while the reinforced chassis and mixer subframe provide stable support for frequent loaded operation.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Concrete Mixer Truck / Cement Mixer Truck / Transit Mixer Truck |
| Brand | SHACMAN |
| Model Series | F3000 |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 340HP / 375HP / 380HP / 400HP / 420HP available |
| Engine Brand | Weichai / Cummins |
| Common Engine Series | WP10 / WP12 / ISM series or equivalent |
| Engine Type | Inline six-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 10–12 L |
| Maximum Torque | Approx. 1,400–2,100 N·m depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to model year and export market |
| Transmission Brand | FAST |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed manual transmission available |
| Clutch | φ430 mm heavy-duty clutch |
| PTO | Heavy-duty power take-off for mixer hydraulic system |
| Steering Gear | ZF8098 or equivalent |
| Cab Series | SHACMAN F3000 |
| Cab Type | F3000 extended / sleeper cab according to chassis |
| Seating Capacity | 2 persons commonly available |
| Sleeper | Single sleeper available |
| Driver Seat | Adjustable / air-suspension driver seat available |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,500–11,500 mm |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,700–4,000 mm |
| Wheelbase | Multiple wheelbase configurations available for 6×4 / 8×4 chassis |
| Gross Vehicle Weight | Approx. 25–35 tons depending on chassis and mixer configuration |
| Curb Weight | Approx. 12–17 tons depending on chassis and upper body |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | MAN technology heavy-duty steering axle |
| Front Axle Capacity | Approx. 7.5–9.5 tons depending on chassis |
| Rear Axle | MAN technology heavy-duty drive axle |
| Rear Axle Capacity | Approx. 13–16 tons per drive axle depending on configuration |
| Rear Axle Type | Single-reduction / hub-reduction drive axle available |
| Differential Lock | Available |
| Frame | Reinforced high-strength steel frame |
| Frame Size | Approx. 850×300 mm heavy-duty frame according to chassis |
| Subframe | Reinforced concrete-mixer subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 chassis; spare tire available |
| Fuel Tank | Approx. 300–500 L |
| Fuel Tank Material | Aluminum / steel optional |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Weichai WEVB / engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Mixer Body Type | Rotating concrete mixing drum |
| Effective Mixer Capacity | 8CBM / 10CBM / 12CBM / 14CBM / 16CBM available |
| Mixer Drum Material | High-strength wear-resistant steel |
| Drum Structure | Reinforced drum with internal double-helical mixing blades |
| Drum Rotation | Forward / reverse rotation |
| Drum Rotation Speed | Approx. 0–16 rpm |
| Mixing Blade Type | Double-helical / spiral mixing blades |
| Mixing Blade Material | High-strength wear-resistant steel |
| Hydraulic Drive Type | Hydrostatic hydraulic drive system |
| Hydraulic Pump | Rexroth / EATON / PMP or equivalent optional |
| Hydraulic Motor | Rexroth / EATON / PMP or equivalent optional |
| Reducer | Bonfiglioli / ZF / PMP or equivalent mixer reducer optional |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Available / optional |
| Feeding System | Rear feeding hopper |
| Feeding Hopper | Reinforced large-capacity feeding hopper |
| Hopper Material | High-strength steel with wear-resistant lining optional |
| Feeding Speed | Approx. ≥3 m³/min depending on mixer system |
| Discharge System | Rear discharge chute |
| Discharge Speed | Approx. 2–3 m³/min depending on mixer configuration and concrete condition |
| Main Discharge Chute | Adjustable and rotatable discharge chute |
| Extension Chute | One or more extension chutes optional |
| Concrete Residual Rate | Low-residual drum and blade design |
| Water Tank Capacity | Approx. 300–500 L |
| Water Tank Material | Steel / aluminum optional |
| Water Supply System | Pressurized / gravity water supply system |
| Drum Cleaning System | Integrated water flushing system |
| Hopper Cleaning | Available |
| Chute Cleaning | Available |
| Hand-Washing Outlet | Optional |
| Rear Operating Control | Mechanical / electro-hydraulic control |
| Drum Speed Control | Adjustable |
| Drum Direction Control | Mixing / neutral / discharge |
| Cab Drum Control | Optional |
| Support Roller | Heavy-duty mixer drum support rollers |
| Drum Support Structure | Reinforced front and rear drum supports |
| Rear Ladder | Available |
| Rear Fender | Available |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Working Lights | Optional |
| Warning Lamp | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, green, yellow or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, transmission, drive type, mixer capacity, mixer drum material, hydraulic pump, hydraulic motor, reducer, water system, axle ratio, tires, steering side, paint color, company logo and export markings |
Product Details
Typical Applications
- Ready-mixed concrete transportation
- commercial concrete batching plants
- residential building construction
- commercial building construction
- industrial plant construction
- road construction
- highway construction
- bridge construction
- tunnel construction
- railway projects
- airport construction
- port construction
- hydropower projects
- municipal infrastructure
- industrial park development
- foundation construction
- mining infrastructure
- precast concrete projects
- dam construction
- large-scale infrastructure construction
- urban development projects
- construction contractor fleet operations.
Available Configurations
- 340HP, 375HP, 380HP, 400HP or 420HP diesel engine
- Weichai WP10, WP12, Cummins or equivalent engine
- 6×4 or 8×4 drive configuration
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V emission configuration according to model year and export market
- FAST 10-speed or 12-speed manual transmission
- 8CBM, 10CBM, 12CBM, 14CBM or 16CBM effective mixer capacity
- high-strength wear-resistant mixer drum
- reinforced double-helical mixing blades
- Rexroth, EATON, PMP or equivalent hydraulic pump
- Rexroth, EATON, PMP or equivalent hydraulic motor
- Bonfiglioli, ZF, PMP or equivalent mixer reducer
- hydraulic oil cooling system
- approximately 300–500L water tank
- pressurized water system
- reinforced feeding hopper
- wear-resistant hopper lining
- adjustable discharge chute
- extension discharge chute
- mechanical or electro-hydraulic rear controls
- cab-mounted drum control
- reversing camera
- rear working camera
- 360° monitoring system
- working lights
- warning lamps
- ABS
- air conditioner
- air-suspension driver seat
- different axle ratios and tire specifications
- spare tire
- toolbox
- fire extinguisher
- customized mixer capacity, hydraulic system, paint color, company logo and export markings.
Buyer Support
- SHACMAN F3000 Concrete Mixer Truck combines the proven F3000 heavy-duty engineering chassis with a professional concrete mixing and transportation system for batching plants, contractors and infrastructure projects
- 340HP, 375HP, 380HP, 400HP and 420HP engine options provide strong power for loaded concrete transportation and demanding construction-site conditions
- Weichai and Cummins diesel engine options provide mature powertrain solutions for different export markets
- FAST 10-speed and 12-speed manual transmissions provide strong torque transmission and durability for frequent loaded operation. The F3000 platform is designed for engineering and heavy-load applications, with reinforced chassis construction, high load capacity and strong driveline performance for demanding operating environments. 6×4 and 8×4 chassis configurations provide flexibility for different mixer capacities and axle-load requirements
- 8CBM, 10CBM, 12CBM, 14CBM and 16CBM mixer options cover medium- and large-capacity concrete transportation applications. High-strength wear-resistant mixer drums and reinforced spiral mixing blades provide continuous concrete agitation during transportation and efficient feeding and discharge
- the hydrostatic hydraulic drive system provides smooth and adjustable drum rotation
- multiple hydraulic pump, motor and reducer options are available to meet different operating and maintenance requirements. Heavy-duty MAN technology axles, reinforced steel frame, multi-leaf spring suspension and dedicated mixer subframe provide strong support for continuous loaded operation
- approximately 300–500L water-system options support cleaning of the mixer drum, feeding hopper and discharge chute after unloading
- adjustable discharge chutes simplify concrete placement at construction sites
- left-hand-drive and right-hand-drive configurations support different export markets
- engine, transmission, mixer capacity, hydraulic system, reducer, water system, axle ratio, tires, paint color and other configurations can be customized.

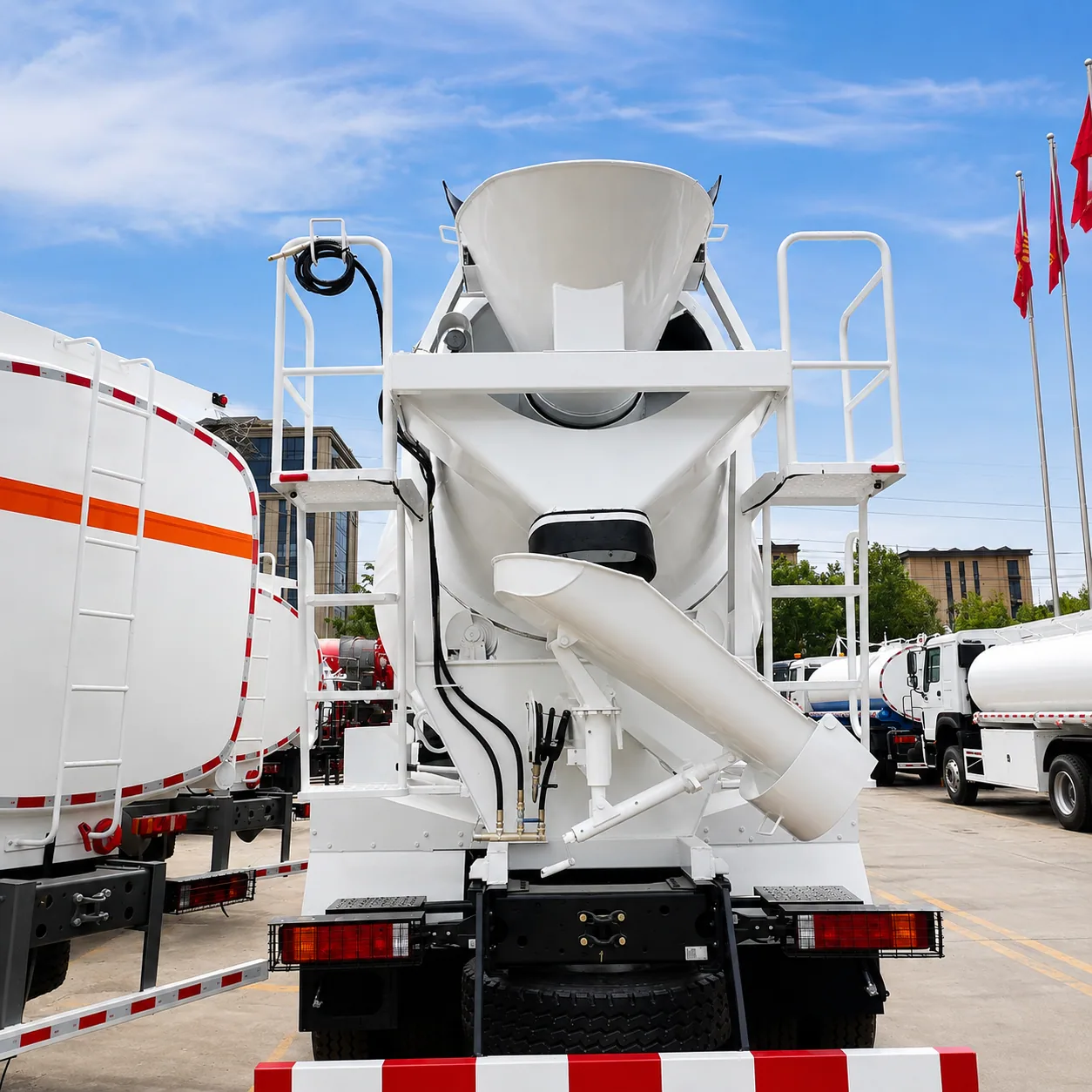

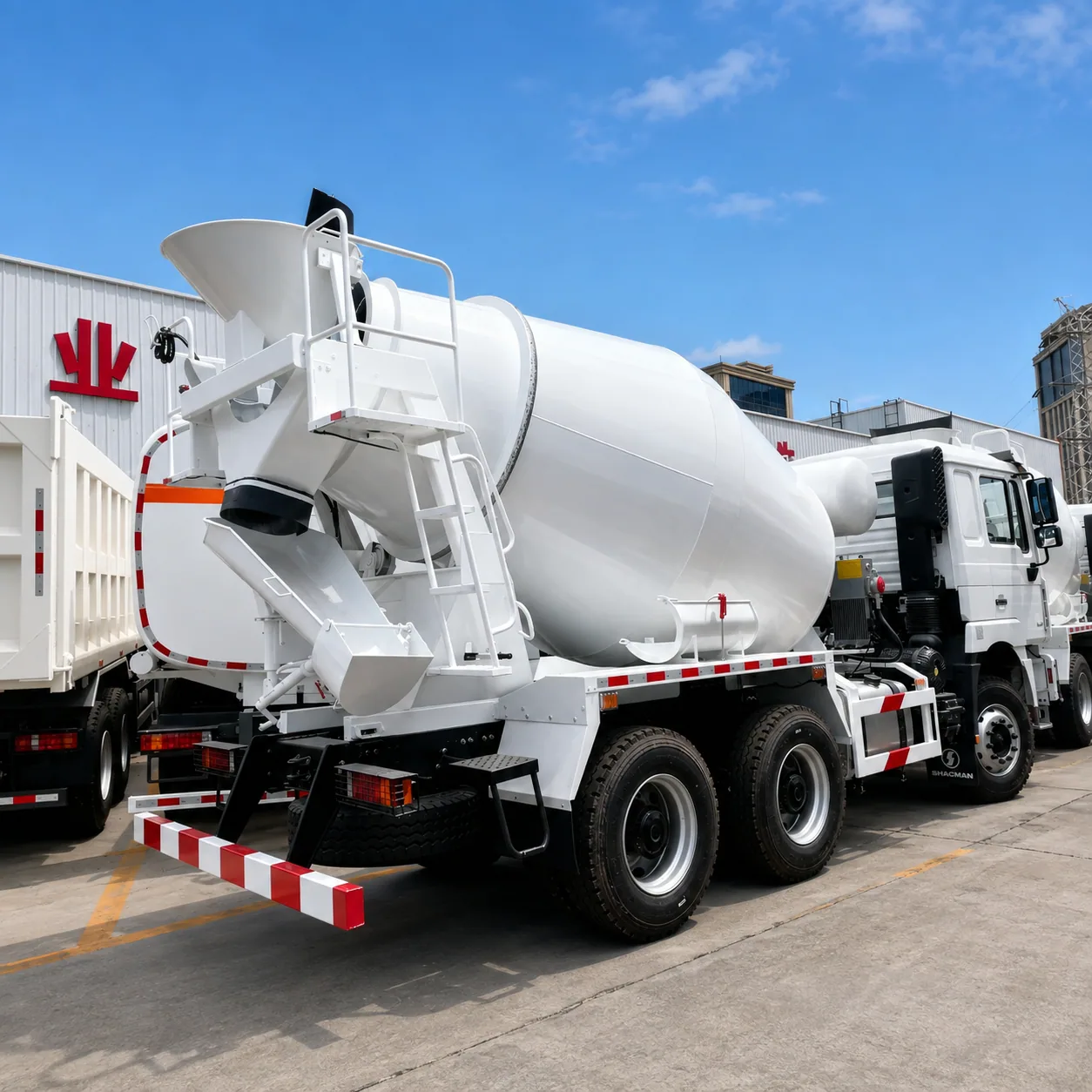

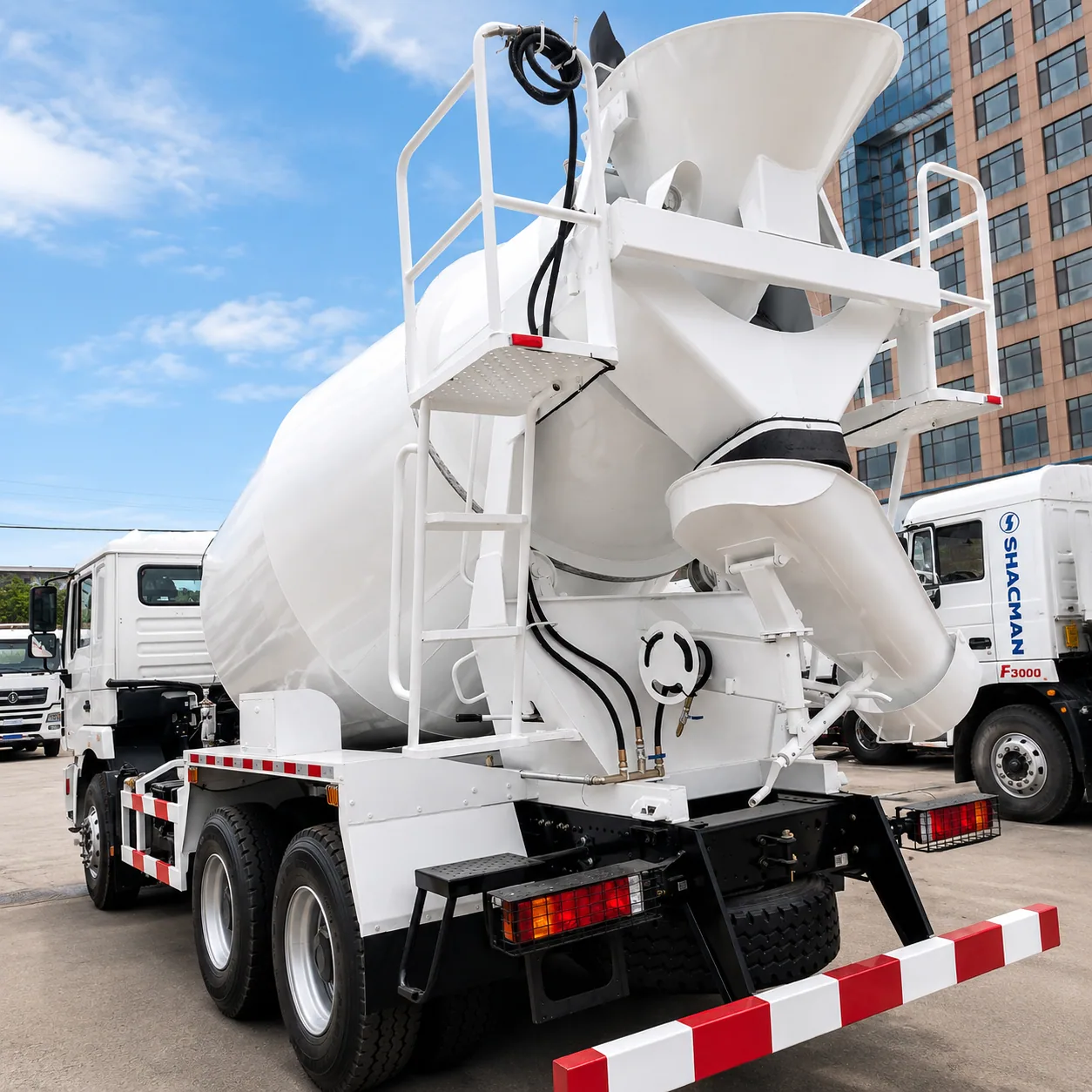

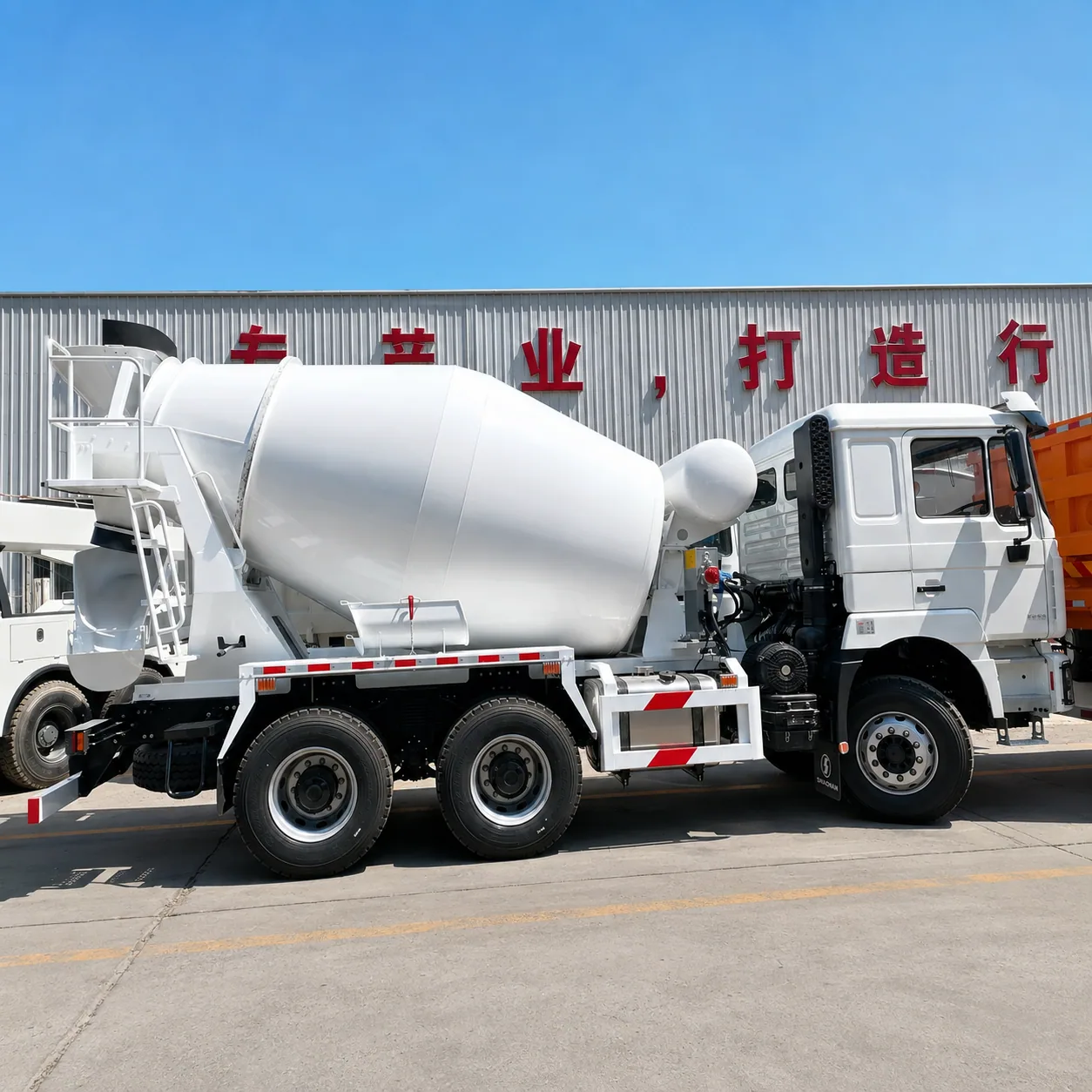

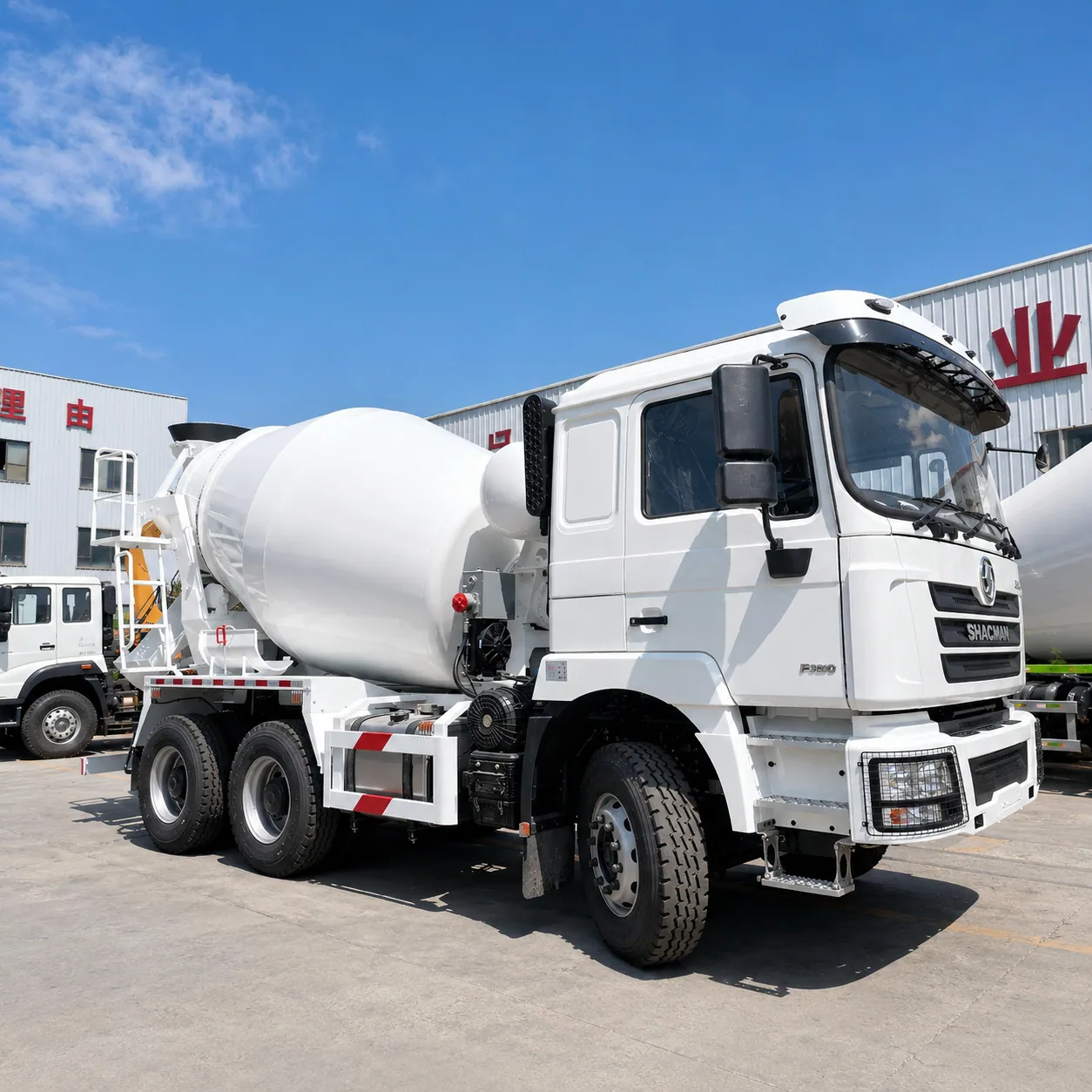

Product Display
