Shacman F3000 8×4 Dump Truck 375 / 380 / 400 / 430HP Available

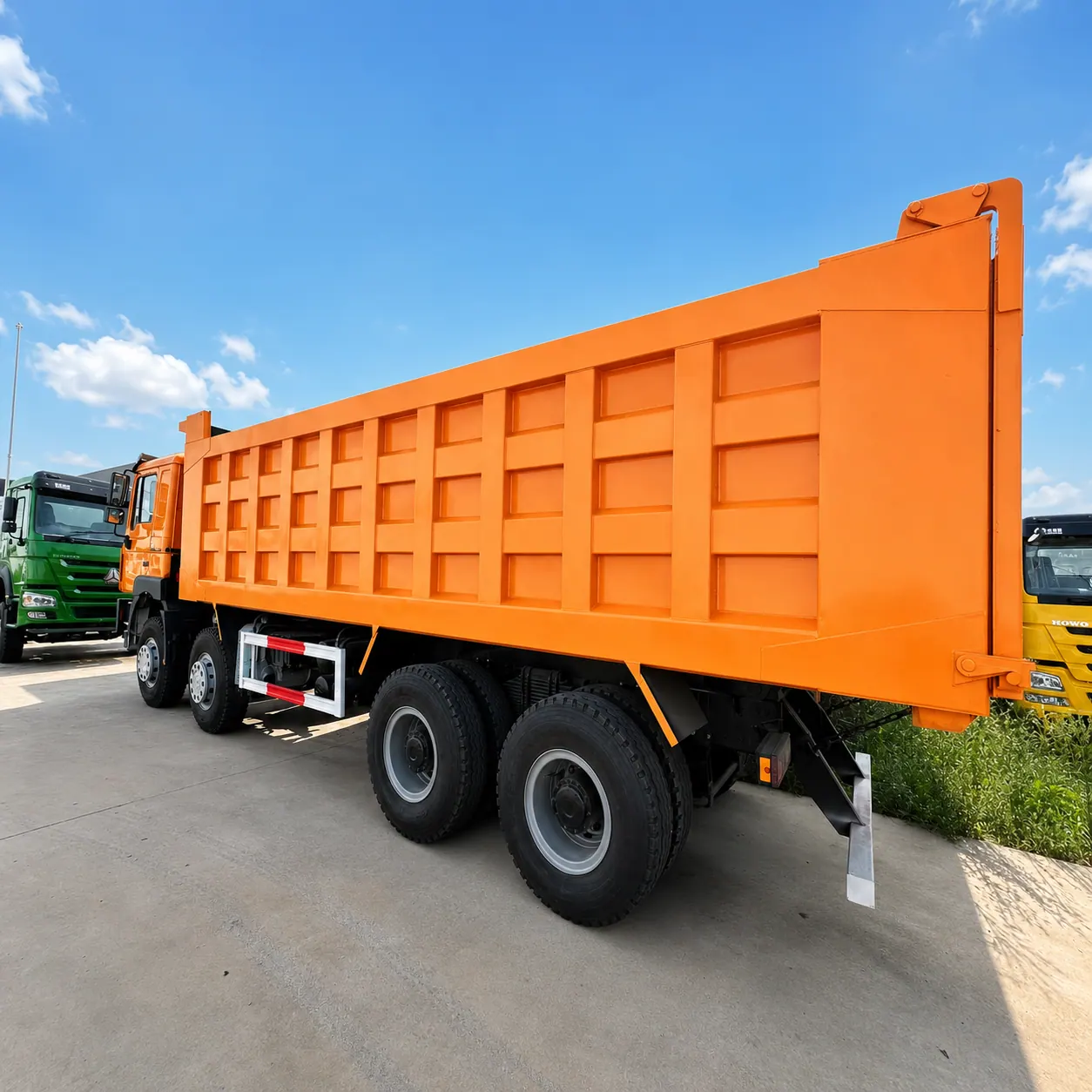

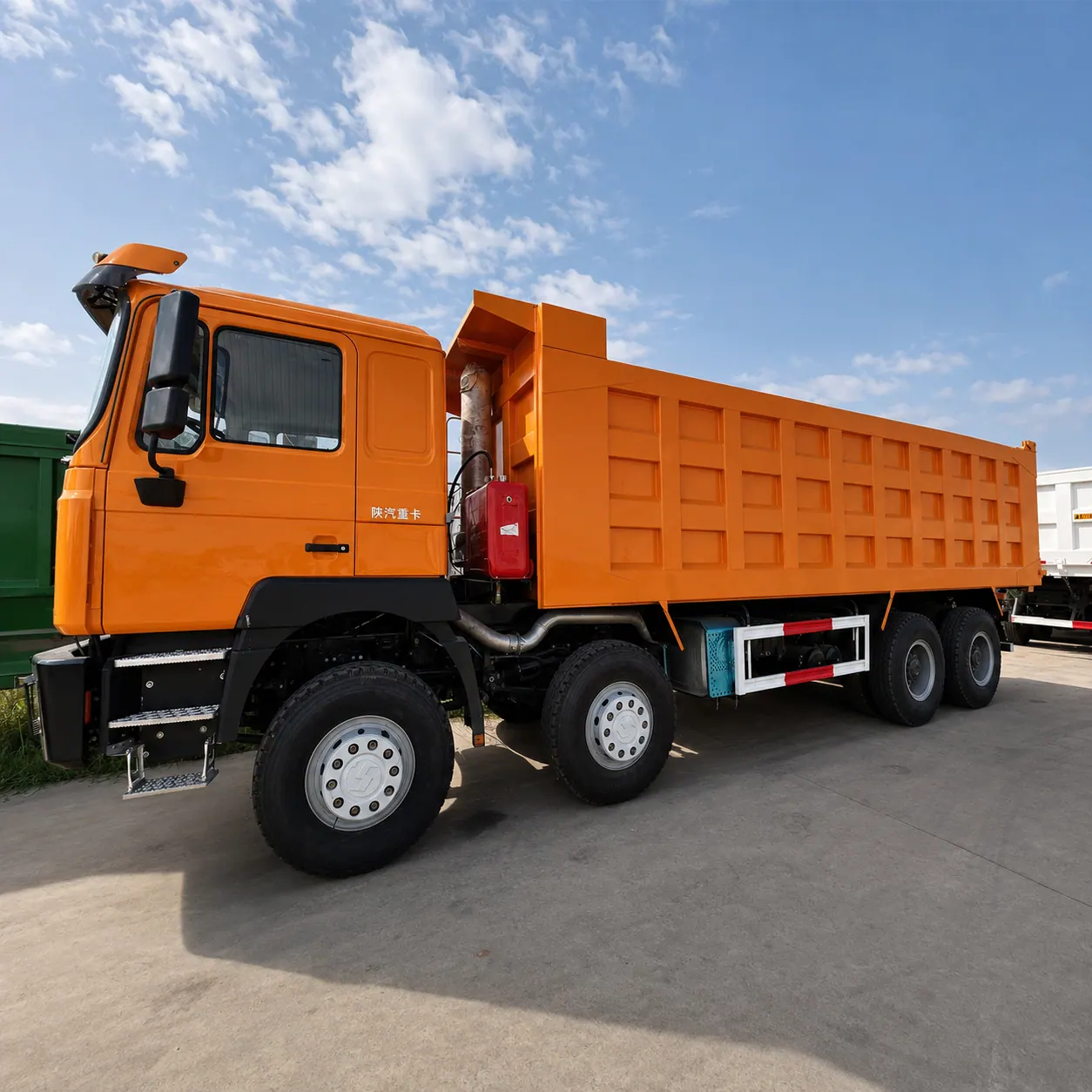

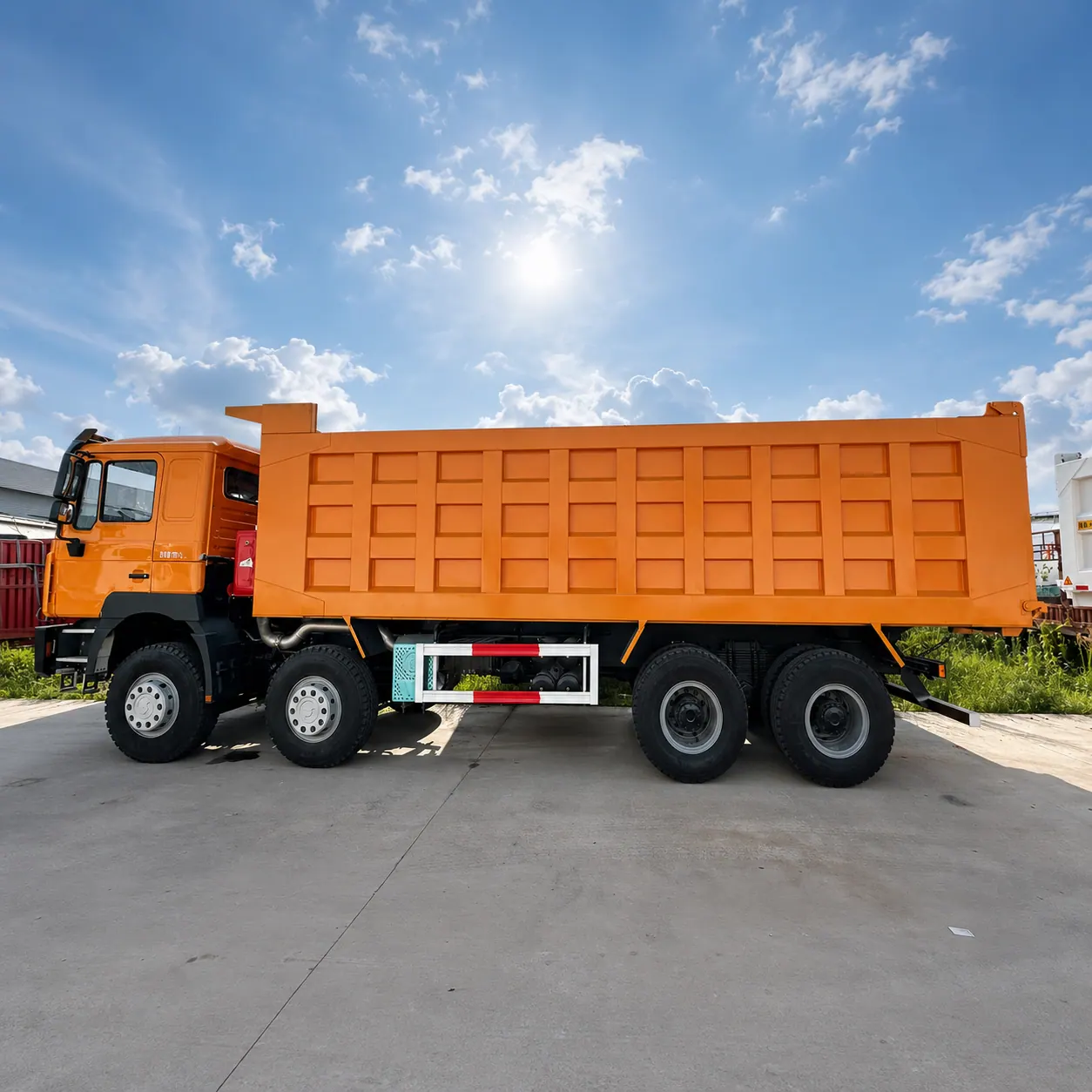

Shacman F3000 8×4 Dump Truck 375HP 380HP 400HP 430HP Heavy Duty Tipper Truck Shacman F3000 8×4 dump truck is a heavy-duty tipper truck designed for large-volume bulk material transportation and rear tipping unloading. It is widely used in construction projects, mining areas, quarry operations, road construction, earthwork projects and infrastructure construction. Compared with 6×4 dump trucks, the 8×4 model provides a longer chassis, larger cargo box, stronger loading capacity and better stability for heavy-duty transport. The F3000 series is well known for its classic heavy-duty chassis, mature power chain and convenient maintenance. It can be equipped with Weichai engine, FAST gearbox, Hande / MAN technology axles, reinforced dump body and reliable hydraulic lifting system. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized according to stock condition and customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | SHACMAN |
| Model Series | F3000 |
| Drive Type | 8×4 |
| Engine Power | 375HP / 380HP / 400HP / 430HP available |
| Engine Brand | Weichai engine optional |
| Engine Model | WP10 / WP12 series optional |
| Emission Standard | Euro II / Euro III / Euro V optional |
| Transmission | FAST 10-speed / 12-speed manual transmission |

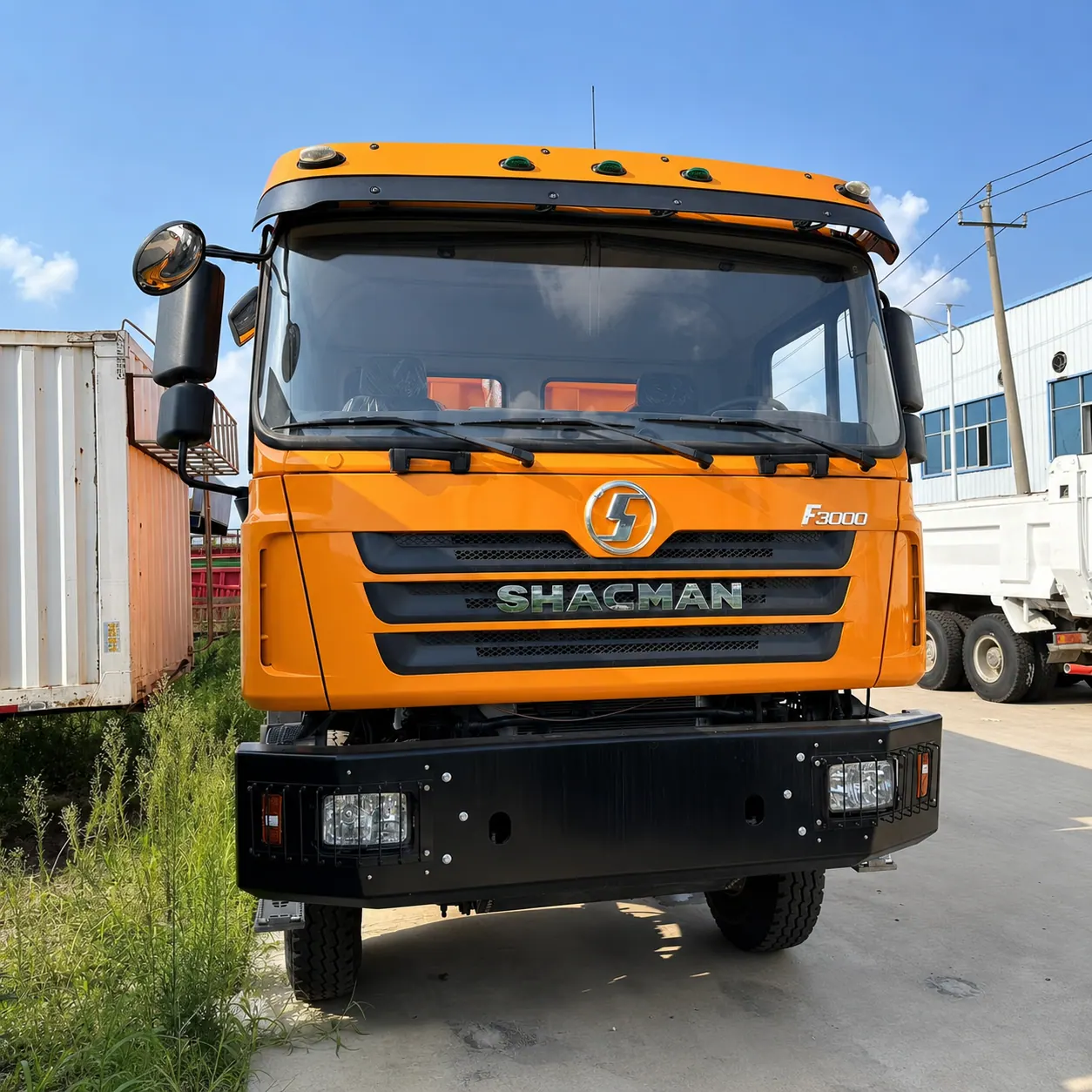

| Cab | F3000 cab, flat roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 9,300-11,500 mm L × 2,490-2,550 mm W × 3,300-3,700 mm H |
| Wheelbase | Approx. 1,800 + 3,575-4,600 + 1,400 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 7,000-8,200 mm L × 2,300-2,500 mm W × 1,200-1,800 mm H |
| Cargo Box Volume | Approx. 22-35 m³, depending on box size |
| Loading Capacity | Approx. 30-50 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 2 front steering axles + 2 rear drive axles |
| Front Axle | 7.5T / 9.5T heavy-duty front axle optional |
| Rear Axle | 13T / 16T Hande or MAN technology double rear drive axles optional |
| Frame | Reinforced heavy-duty frame optional |

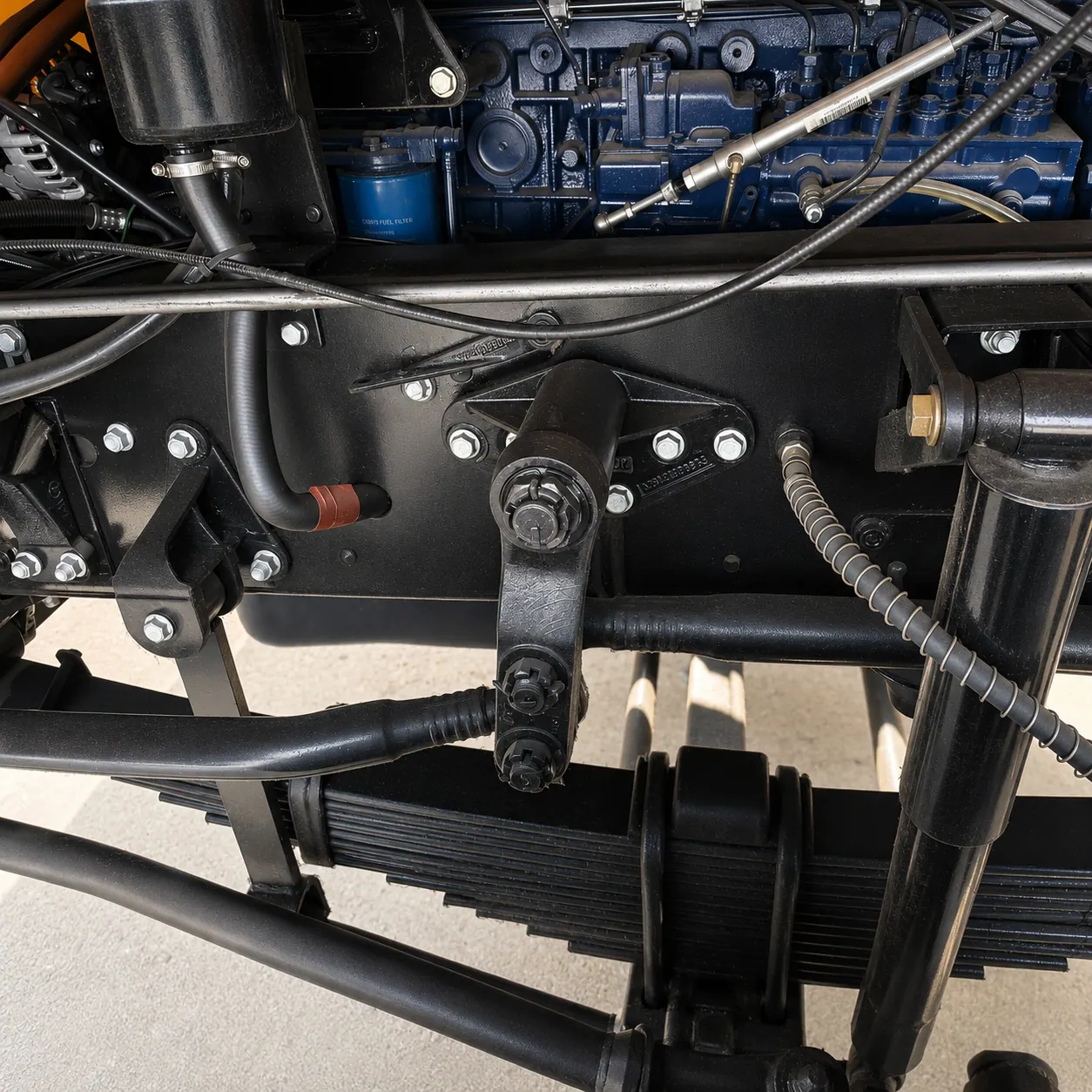

| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 13R22.5 / 315/80R22.5 optional |
| Tire Quantity | 12 tires + 1 spare tire |
| Fuel Tank | Approx. 300-400 L, steel or aluminum fuel tank optional |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Typical Applications
- Large construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- demolition waste transportation
- large-volume short and medium-distance bulk cargo transport.
Available Configurations
- 375HP, 380HP, 400HP or 430HP engine
- Weichai WP10 or WP12 engine
- Euro II / Euro III / Euro V emission standard
- left-hand drive or right-hand drive
- flat roof cab or high roof cab
- sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 12.00R20, 12R22.5, 13R22.5 or 315/80R22.5 tires
- reinforced rear axle
- air conditioner
- ABS
- steel or aluminum fuel tank
- spare tire
- customized paint color, logo and export markings.
Buyer Support
- Classic Shacman F3000 heavy-duty chassis with strong market recognition
- 8×4 drive type provides larger cargo volume and stronger loading capacity than 6×4 models
- Weichai engine + FAST gearbox + Hande axle classic power chain offers reliable performance and convenient maintenance
- 375 / 380 / 400 / 430HP engine options meet different construction, mining and quarry transport needs
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- reliable hydraulic rear tipping system improves unloading efficiency
- heavy-duty axles and multi-leaf spring suspension are suitable for rough construction and mining roads
- multiple emission standards and driving-side options are available for different export markets
- used, refurbished and customized trucks can be supplied with flexible configuration and competitive cost performance.
