Shacman F3000 6×4 Dump Truck 340 / 375 / 380 / 400HP Available
Shacman F3000 6×4 dump truck is a classic heavy-duty tipper truck designed for construction, mining, quarry, road construction and bulk material transportation. It is widely used for transporting sand, gravel, soil, coal, ore, construction waste and other loose materials under heavy-load working conditions. This model can be supplied with mature engine, gearbox and heavy-duty axle configurations according to stock condition and customer requirements. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized for different export markets and working conditions.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | SHACMAN |
| Model Series | F3000 |
| Drive Type | 6×4 |
| Engine Power | 340HP / 375HP / 380HP / 400HP available, 430HP optional according to stock |
| Engine Brand | Weichai engine optional |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V optional |
| Transmission | FAST 10-speed / 12-speed manual transmission |
| Cab | F3000 cab, flat roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 8,400-8,900 mm L ? 2,490-2,550 mm W ? 3,400-3,600 mm H |
| Wheelbase | Approx. 3,775-3,975 mm + 1,400 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 5,600-6,300 mm L ? 2,300-2,500 mm W ? 1,200-1,800 mm H |
| Cargo Box Volume | Approx. 18-28 m3, depending on box size |
| Loading Capacity | Approx. 20-35 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 2 rear drive axles |
| Front Axle | 9.5T front axle optional |
| Rear Axle | 13T / 16T heavy-duty rear drive axle optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 optional |
| Tire Quantity | 10 tires + 1 spare tire |
| Fuel Tank | Approx. 300-400 L |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-85 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |

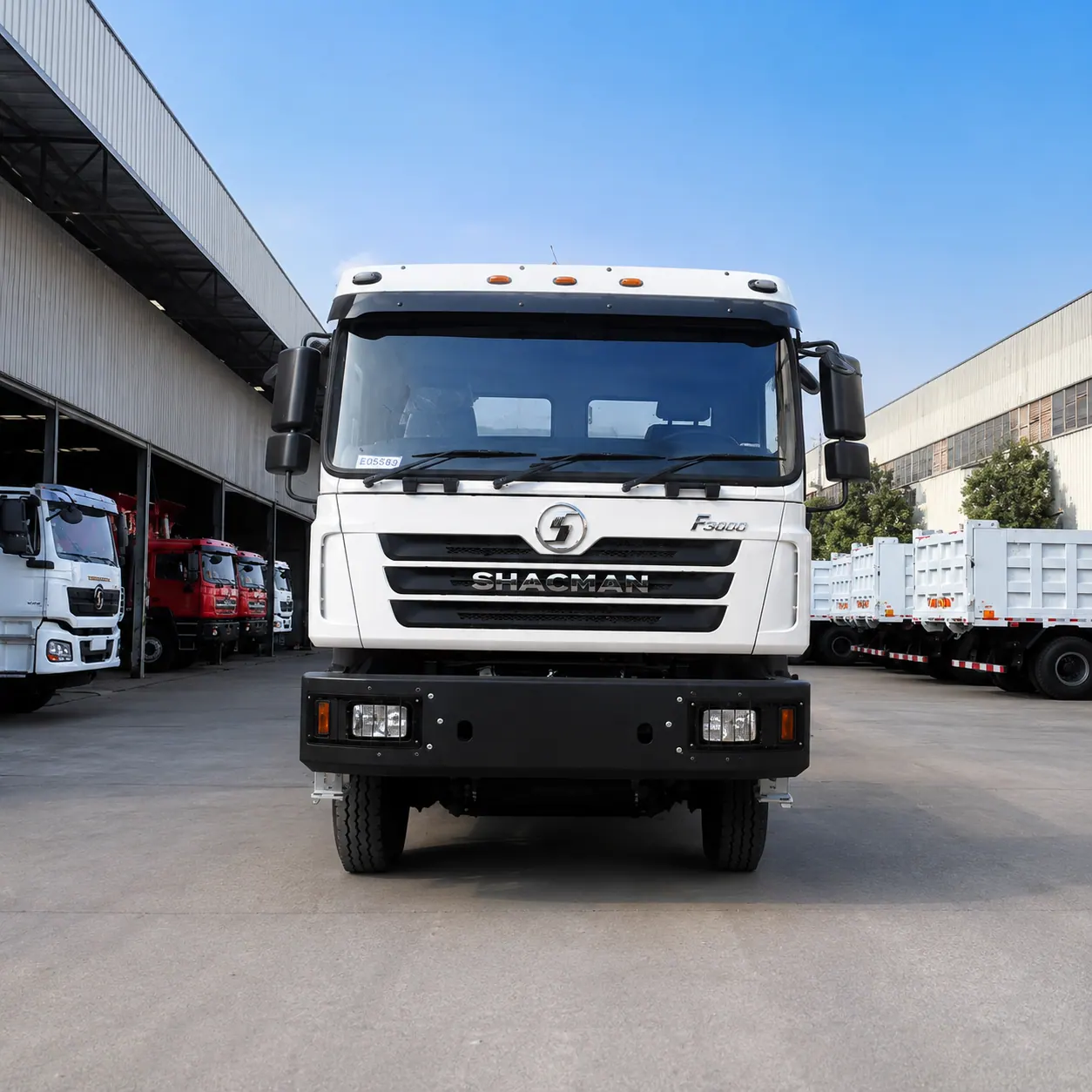

Product Details
Typical Applications
- Construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- demolition waste transportation
- short and medium-distance bulk cargo transport
Available Configurations
- left-hand drive or right-hand drive
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 12.00R20, 12R22.5 or 315/80R22.5 tires
- reinforced rear axle
- air conditioner
- customized paint color, logo and export markings
- 340HP, 375HP, 380HP or 400HP engine
- Euro II / Euro III / Euro V emission standard
- flat roof cab or high roof cab
- sleeper cab
- spare tire
Buyer Support
- Classic Shacman F3000 heavy-duty chassis with strong market recognition
- Weichai engine + FAST gearbox + Hande axle classic power chain
- 6×4 drive type provides strong traction and stable performance
- multiple horsepower options for different working conditions
- reinforced dump body improves durability for sand, gravel, soil, coal and ore
- reliable hydraulic rear tipping system improves unloading efficiency
- spare parts are widely available and maintenance is convenient
- suitable for construction, mining, quarry and infrastructure projects
- cost-effective used or refurbished trucks available with flexible customization

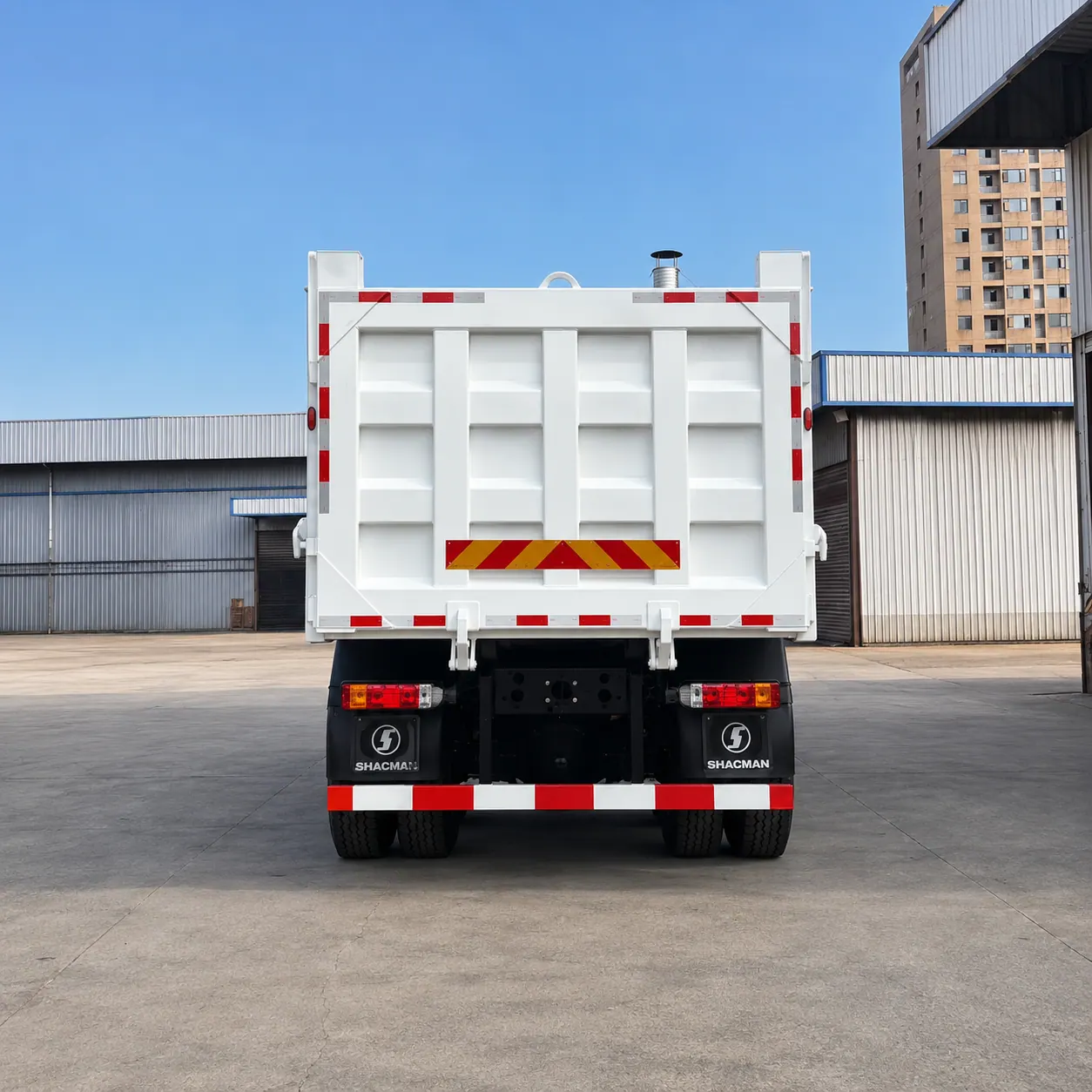

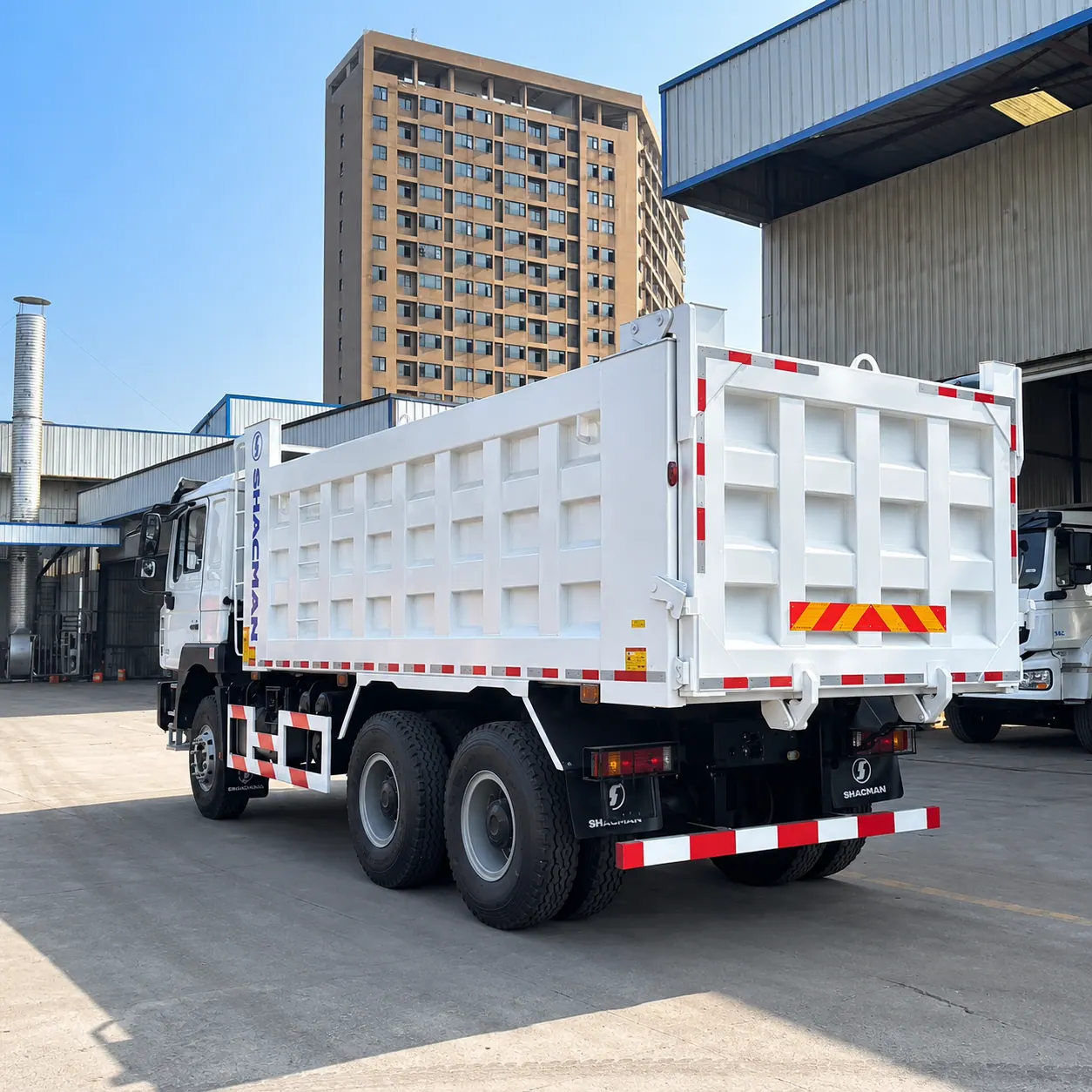

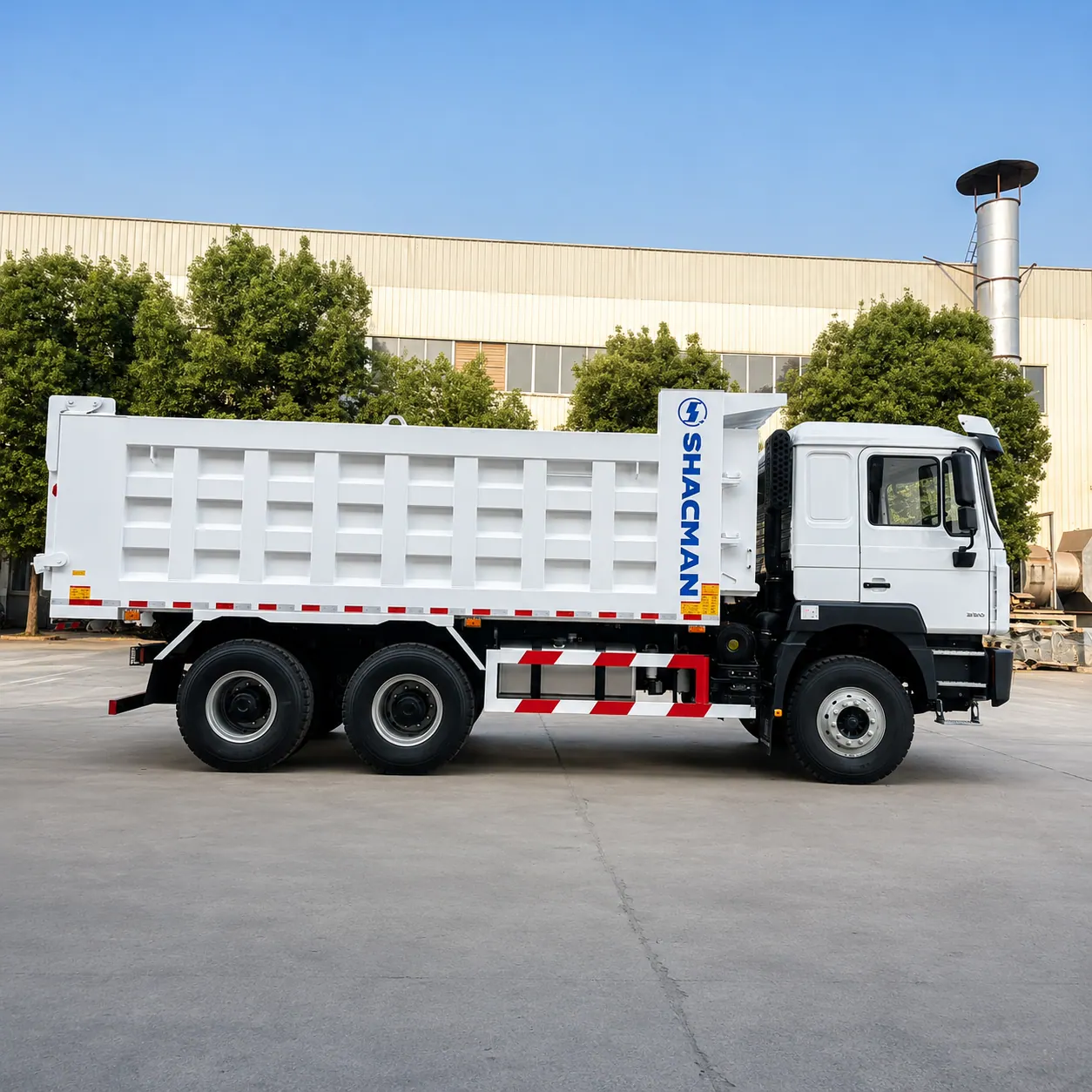

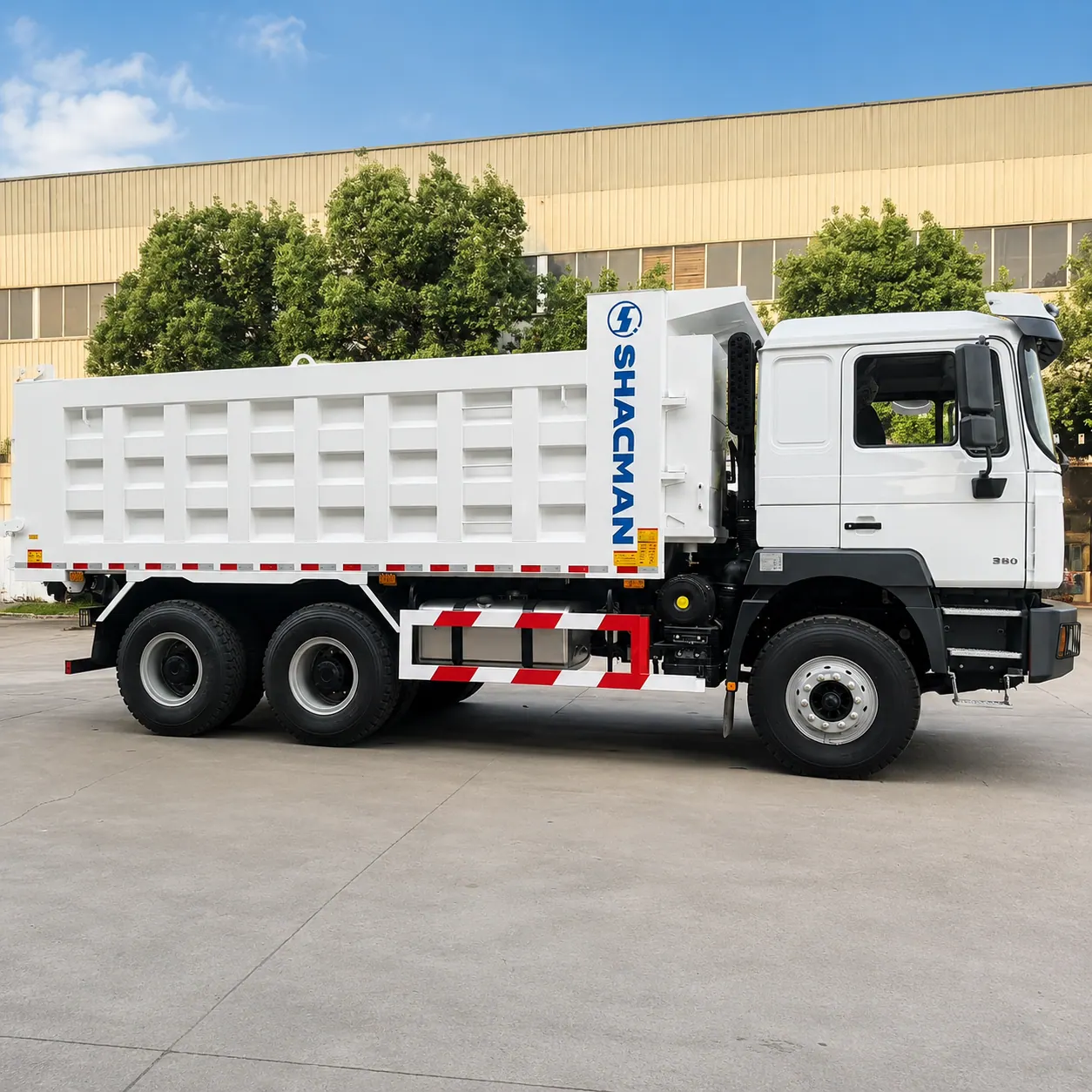

Product Display
