ISUZU Truck Mounted Crane 120 / 130 / 190 / 205 / 240 / 300HP 2 / 3.2 / 5 / 6.3 / 8 / 10 / 12T Available
ISUZU Truck Mounted Crane is a multipurpose lifting and transportation vehicle designed for construction, municipal engineering, utility installation, equipment handling, machinery transportation and general cargo operations. The vehicle combines a reliable ISUZU commercial truck chassis with a hydraulic truck-mounted crane, reinforced crane subframe, hydraulic outriggers and cargo body, allowing lifting, loading, transportation and unloading operations to be completed by one vehicle. ISUZU crane trucks are available with light-, medium- and heavy-duty chassis configurations. Engine options include approximately 120HP, 130HP, 190HP, 205HP, 240HP and 300HP, while crane capacities of approximately 2T, 3.2T, 5T, 6.3T, 8T, 10T and 12T can be selected according to chassis capacity, cargo payload and lifting requirements. Light-duty ISUZU crane trucks are suitable for urban construction, equipment maintenance and municipal work where maneuverability is important, while medium- and heavy-duty configurations provide higher payload and lifting capacity for machinery, construction materials and industrial equipment. Straight-boom and knuckle-boom cranes are available, and crane brand, lifting capacity, boom sections, working radius, outriggers, cargo-body dimensions and control system can be customized.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Truck Mounted Crane / Crane Truck / Lorry Mounted Crane / Cargo Truck with Crane |
| Brand | ISUZU |
| Chassis Brand | ISUZU |
| Common Chassis Series | NKR / NPR / NQR / FTR / FVR / GIGA or equivalent ISUZU chassis |
| Drive Type | 4×2 / 6×4 available |
| Engine Power | 120HP / 130HP / 190HP / 205HP / 240HP / 300HP available according to chassis and stock |
| Engine Brand | ISUZU |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro IV / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | ISUZU / MLD / MZW or equivalent |
| Transmission Type | Manual transmission |
| Transmission Gears | 5-speed / 6-speed / 8-speed / 9-speed according to chassis |
| PTO | PTO for hydraulic crane system |
| Cab Type | Standard / wide / extended ISUZU cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium- and heavy-duty chassis |
| Driver Seat | Adjustable / suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 6,000–11,000 mm depending on chassis, crane and cargo body |
| Overall Width | Approx. 2,000–2,550 mm |
| Overall Height | Approx. 2,500–3,800 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 7–30 tons depending on chassis |
| Curb Weight | Approx. 4–16 tons depending on crane and cargo body |
| Rated Payload | According to chassis, crane weight, cargo body and local certification |
| Maximum Driving Speed | Approx. 90–110 km/h |
| Front Axle | ISUZU steering axle |
| Rear Axle | ISUZU drive axle |
| Rear Axle Type | Single-reduction / heavy-duty drive axle according to chassis |
| Differential Lock | Available on selected heavy-duty configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Crane Subframe | Reinforced crane mounting subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring suspension |
| Tire Model | 7.00R16 / 7.50R16 / 8.25R16 / 9.00R20 / 10.00R20 / 11R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 100–300 L depending on chassis |
| Brake System | Hydraulic / dual-circuit compressed-air brake system according to chassis |
| Parking Brake | Mechanical / spring-energy brake according to chassis |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Crane Type | Straight Boom Crane / Knuckle Boom Crane optional |
| Crane Installation Position | Behind cab standard / rear-mounted optional |
| Crane Brand | XCMG / SANY / UNIC / Palfinger / other compatible brands optional |
| Rated Crane Capacity | 2T / 3.2T / 5T / 6.3T / 8T / 10T / 12T available |
| Light Crane Capacity | Approx. 2–3.2 tons |
| Medium Crane Capacity | Approx. 5–8 tons |
| Heavy Crane Capacity | Approx. 10–12 tons |
| Boom Sections | 2 / 3 / 4 / 5 / 6 sections depending on crane model |
| Boom Structure | Hydraulic telescopic straight boom / articulated folding boom |
| Boom Material | High-strength structural steel |
| Maximum Lifting Height | Approx. 7–20 m depending on crane model |
| Maximum Working Radius | Approx. 6–18 m depending on crane model |
| Maximum Lifting Moment | According to crane model and rated capacity |
| Boom Extension | Hydraulic telescopic |
| Boom Elevation | Hydraulic |
| Crane Slewing | Hydraulic rotation |
| Slewing Angle | 360° continuous / limited rotation depending on crane model |
| Slewing Bearing | Heavy-duty slewing bearing |
| Main Hook | Heavy-duty lifting hook |
| Hook Block | Single / multi-sheave depending on crane |
| Steel Wire Rope | High-strength lifting wire rope |
| Main Winch | Hydraulic winch |
| Winch Brake | Automatic hydraulic / mechanical brake |
| Hydraulic Pump | PTO-driven hydraulic pump |
| Hydraulic Working Pressure | Approx. 18–30 MPa depending on crane |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Optional |
| Hydraulic Control Valve | Multi-way hydraulic / proportional control valve |
| Hydraulic Cylinders | Heavy-duty hydraulic cylinders |
| Crane Control System | Manual hydraulic / electro-hydraulic control |
| Ground Control | Available |
| High-Seat Control | Optional |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Emergency Manual Control | Available / optional |
| Overload Protection | Available / optional |
| Moment Limiter | Optional |
| Load Indicator | Optional |
| Boom Angle Indicator | Optional |
| Working Radius Indicator | Optional |
| Outrigger Type | Hydraulic H-type / telescopic outriggers |
| Front Outriggers | Available |
| Rear Outriggers | Optional / recommended for larger cranes |
| Outrigger Extension | Manual / hydraulic optional |
| Outrigger Span | According to crane model |
| Vertical Outrigger Cylinder | Hydraulic |
| Outrigger Foot Pads | Heavy-duty steel pads |
| Cargo Body Type | Dropside cargo body / flatbed cargo body |
| Cargo Body Length | Approx. 3,800–7,500 mm depending on chassis and crane |
| Cargo Body Width | Approx. 1,900–2,500 mm |
| Cargo Body Height | Approx. 400–800 mm for dropside configuration |
| Cargo Body Material | Carbon steel / high-strength steel |
| Cargo Floor | Checkered steel plate / flat steel plate / wood-steel combination optional |
| Floor Thickness | Approx. 3–8 mm or customized |
| Side Wall Thickness | Approx. 2–4 mm or customized |
| Side Panels | Fixed / foldable / removable optional |
| Rear Tailgate | Foldable / removable |
| Cargo Body Reinforcement | Reinforced longitudinal and transverse beams |
| Flatbed Configuration | Optional |
| Dropside Configuration | Available |
| Stake Body Configuration | Optional |
| Rear-Mounted Crane Configuration | Optional |
| Hydraulic Rear Outriggers | Optional |
| Auxiliary Winch | Optional |
| Additional Hook | Optional |
| Working Basket | Optional for compatible crane applications |
| Lifting Slings | Optional |
| Shackles | Optional |
| Spreader Beam | Optional |
| Crane Working Lights | Optional |
| Boom Working Light | Optional |
| Reversing Camera | Optional |
| Crane Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Lights | Optional |
| Audible Warning Alarm | Optional |
| Toolbox | Available |
| Outrigger Pad Storage | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, yellow, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, crane brand, crane capacity, boom sections, lifting height, working radius, outriggers, cargo body size, hydraulic system, control system, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Construction-material lifting and transportation
- urban construction
- municipal engineering
- electrical equipment installation
- transformer transportation
- generator transportation
- telecommunications equipment installation
- utility maintenance
- street-light installation
- machinery loading and unloading
- building-material transportation
- steel transportation
- pipeline construction
- road maintenance
- industrial equipment handling
- factory equipment relocation
- warehouse cargo handling
- agricultural machinery transportation
- landscaping projects
- equipment maintenance
- emergency lifting operations.
Available Configurations
- 120HP, 130HP, 190HP, 205HP, 240HP or 300HP diesel engine
- ISUZU NKR, NPR, NQR, FTR, FVR, GIGA or equivalent chassis
- 4×2 or 6×4 drive configuration
- left-hand drive or right-hand drive
- Euro III / Euro IV / Euro V / Euro VI configuration according to chassis
- 5-speed, 6-speed, 8-speed or 9-speed manual transmission
- 2T, 3.2T, 5T, 6.3T, 8T, 10T or 12T truck-mounted crane
- XCMG, SANY, UNIC, Palfinger or other compatible crane brands
- straight-boom or knuckle-boom crane
- 2-section, 3-section, 4-section, 5-section or 6-section boom
- approximately 7–20m maximum lifting height
- approximately 6–18m maximum working radius
- 360° rotation according to crane model
- hydraulic H-type outriggers
- optional rear hydraulic outriggers
- ground control
- high-seat control
- electro-hydraulic control
- wireless remote control
- overload protection
- moment limiter
- load indicator
- approximately 3.8–7.5m cargo body
- dropside cargo body
- flatbed cargo body
- removable side panels
- reinforced steel floor
- rear-mounted crane configuration
- auxiliary winch
- working basket
- lifting slings
- shackles
- crane camera
- reversing camera
- 360° monitoring system
- LED working lights
- toolbox
- customized crane capacity, cargo body dimensions, paint color, company logo and export markings.
Buyer Support
- ISUZU Truck Mounted Crane combines a reliable ISUZU commercial chassis with a hydraulic crane and practical cargo body, allowing one vehicle to complete lifting, loading, transportation and unloading operations. The integrated design is suitable for construction, municipal, utility and equipment-handling projects where maneuverability, fuel efficiency and flexible operation are important. Crane capacities from approximately 2T to 12T cover light- and medium-duty lifting requirements. 2T and 3.2T cranes are suitable for municipal maintenance, electrical equipment and light cargo
- 5T, 6.3T and 8T cranes provide greater lifting capability for construction materials and machinery
- 10T and 12T configurations are suitable for heavier equipment and engineering applications. The ISUZU chassis range allows the crane and cargo body to be matched with different vehicle sizes. Compact N-series 4×2 configurations are suitable for urban roads and restricted construction sites, while larger F-series and heavy-duty chassis provide greater payload capacity for medium and heavy lifting applications. Straight-boom cranes provide longer working radius and greater lifting height for general construction and cargo handling. Knuckle-boom cranes can be selected when compact folded dimensions and flexible lifting geometry are required in narrow streets, industrial areas or restricted working spaces. Hydraulic outriggers provide stable support during lifting operations. Larger crane configurations can be equipped with additional rear hydraulic outriggers to increase the support area and improve stability when operating at extended boom radius. Ground control, high-seat control and optional wireless remote control provide flexible crane operation. Overload protection, moment limiters, load indicators and crane cameras can also be selected to improve operational control and safety. The reinforced cargo body allows construction materials, machinery, generators, utility equipment and other cargo to be transported immediately after lifting. Cargo-body length, side-wall height, floor thickness and structural reinforcement can be customized according to the transported materials. Left-hand-drive and right-hand-drive versions are available for different export markets. Chassis series, engine power, crane brand, lifting capacity, boom sections, working radius, lifting height, outriggers, cargo-body dimensions, hydraulic controls, cameras, paint color and other specifications can be customized according to project requirements.

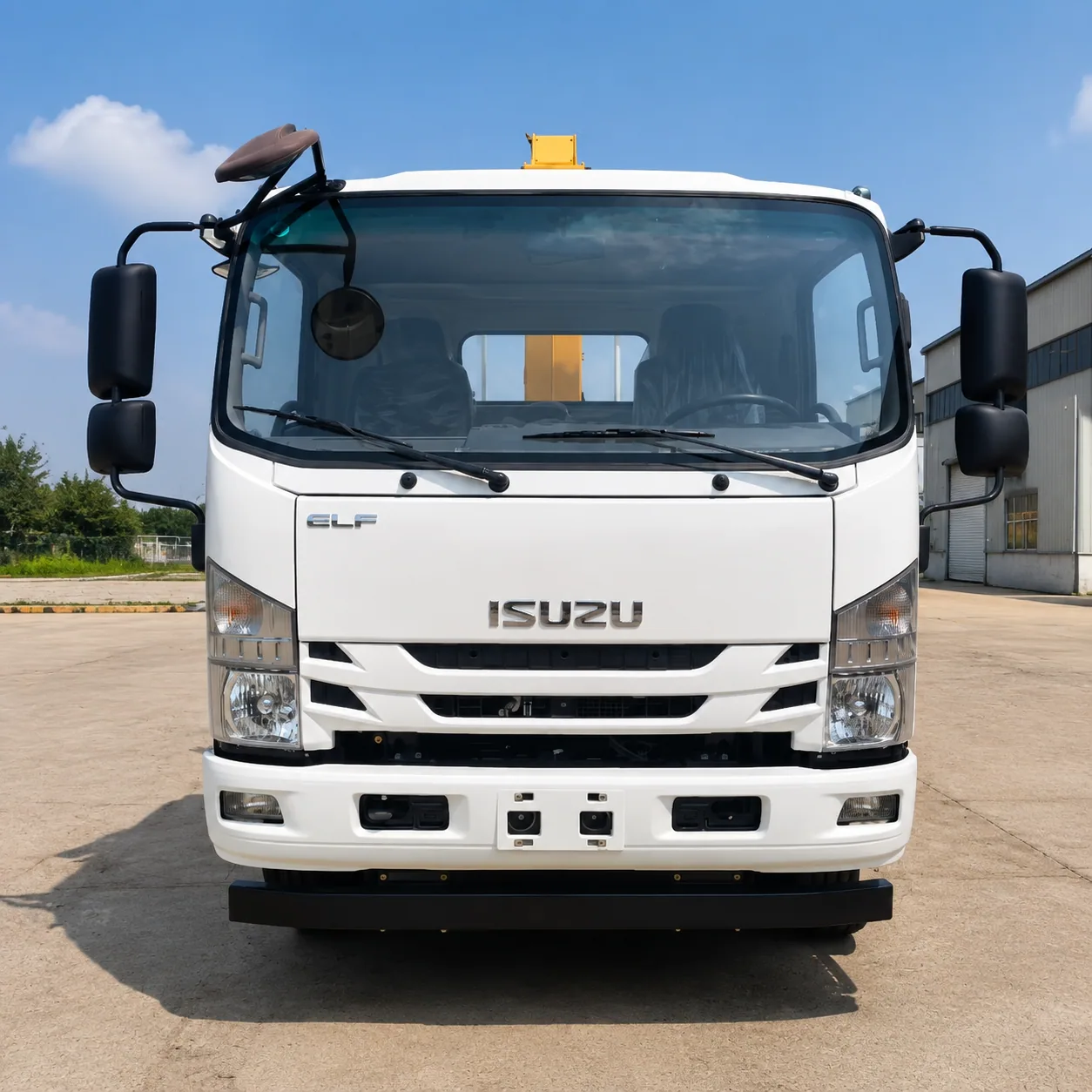

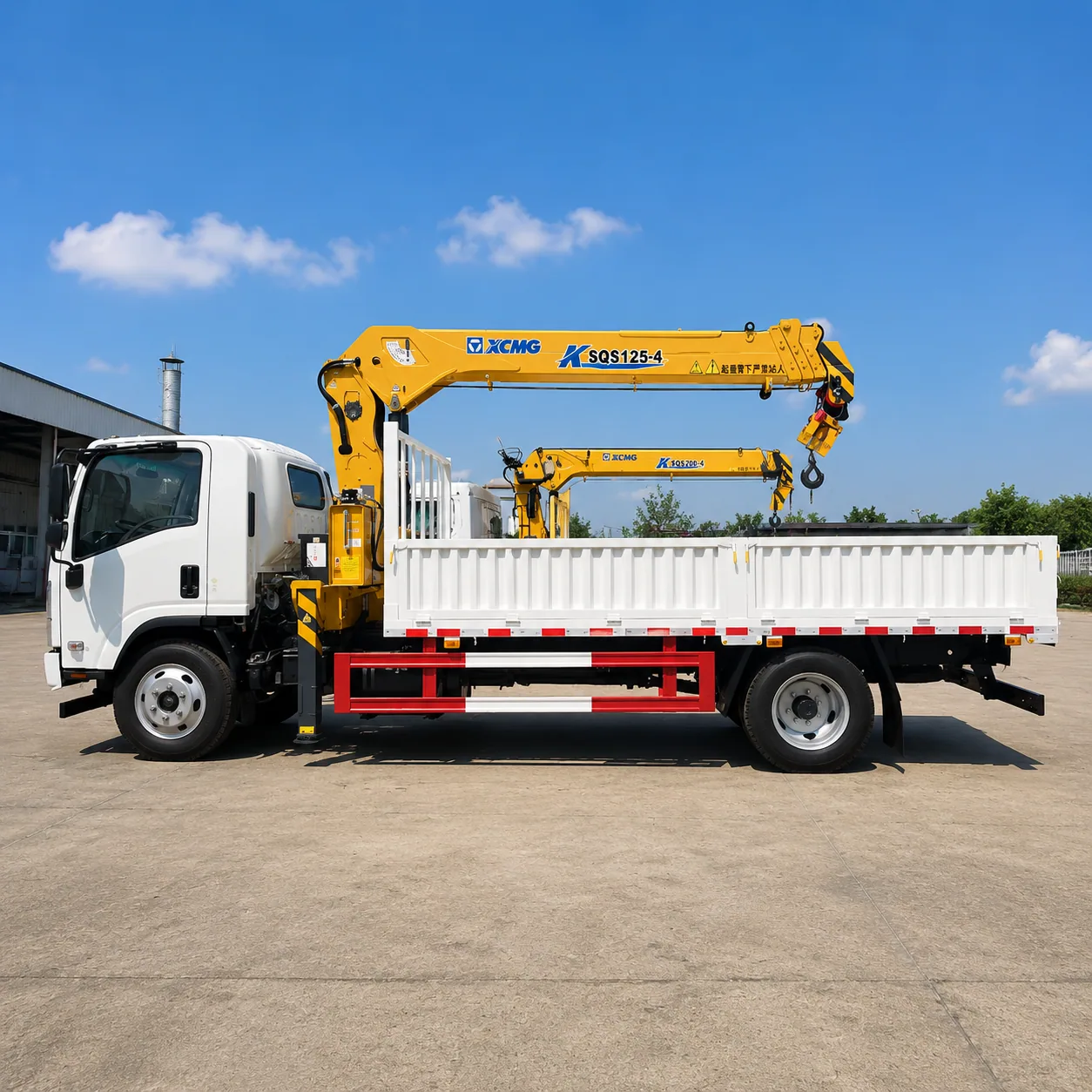

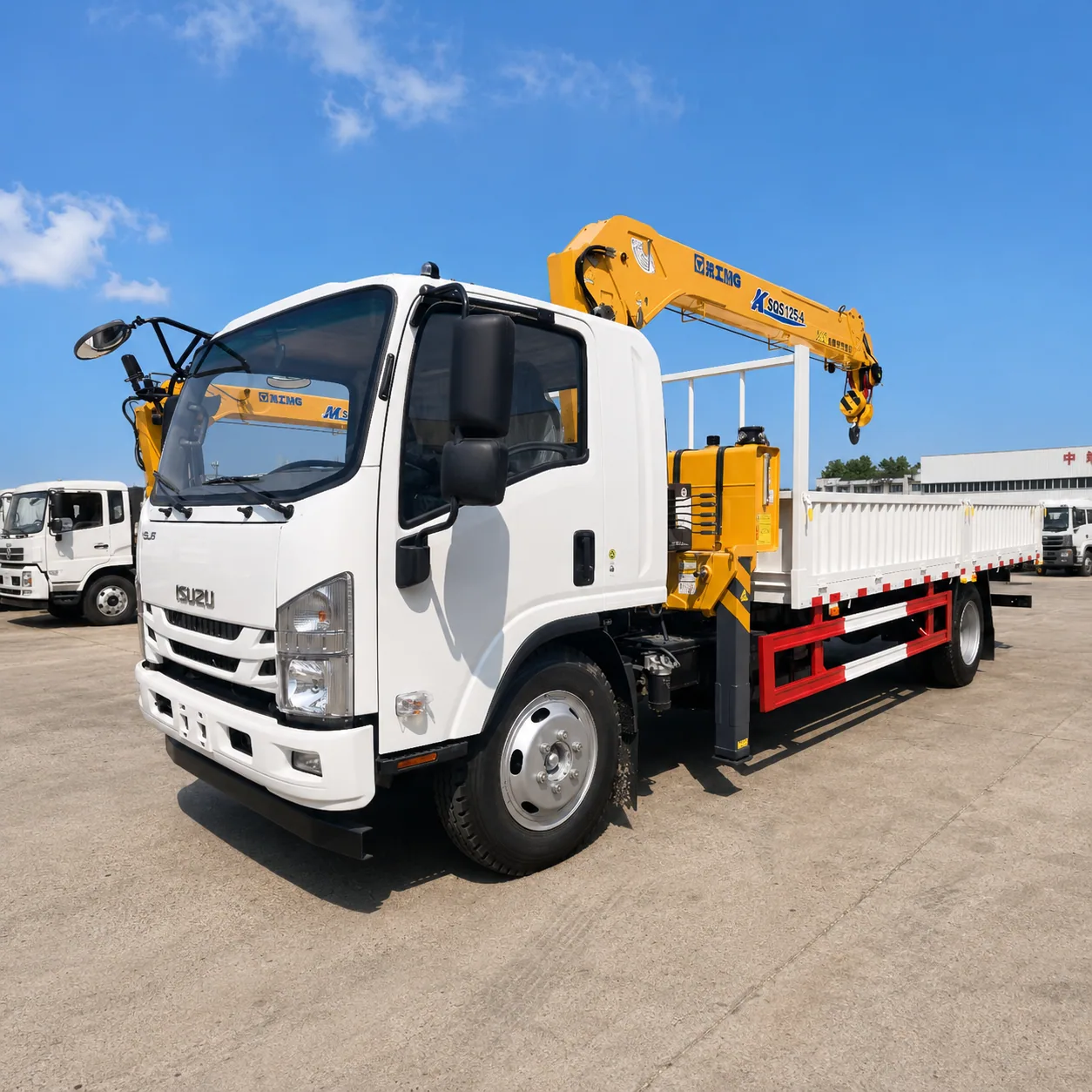

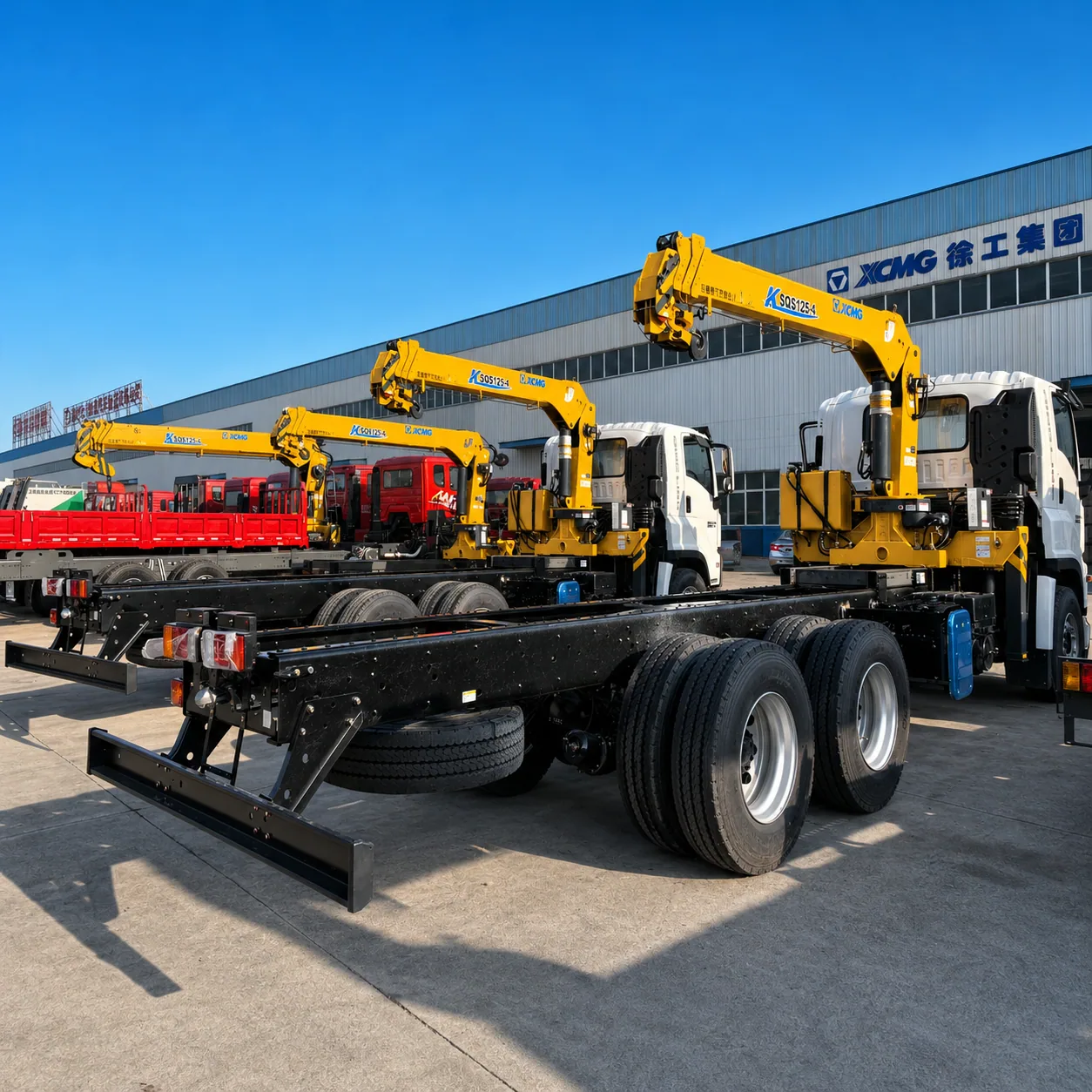

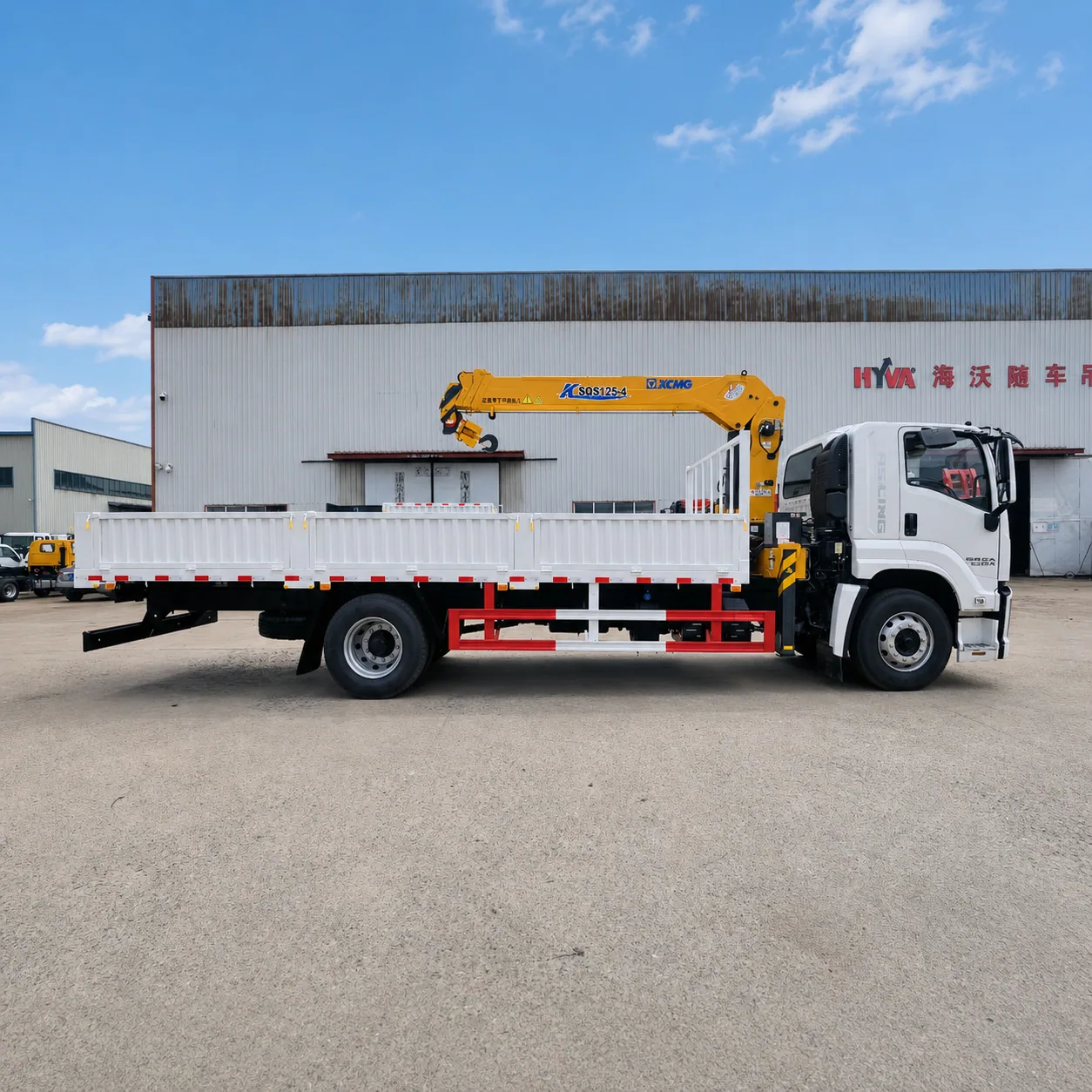

Product Display
