Dump Trucks

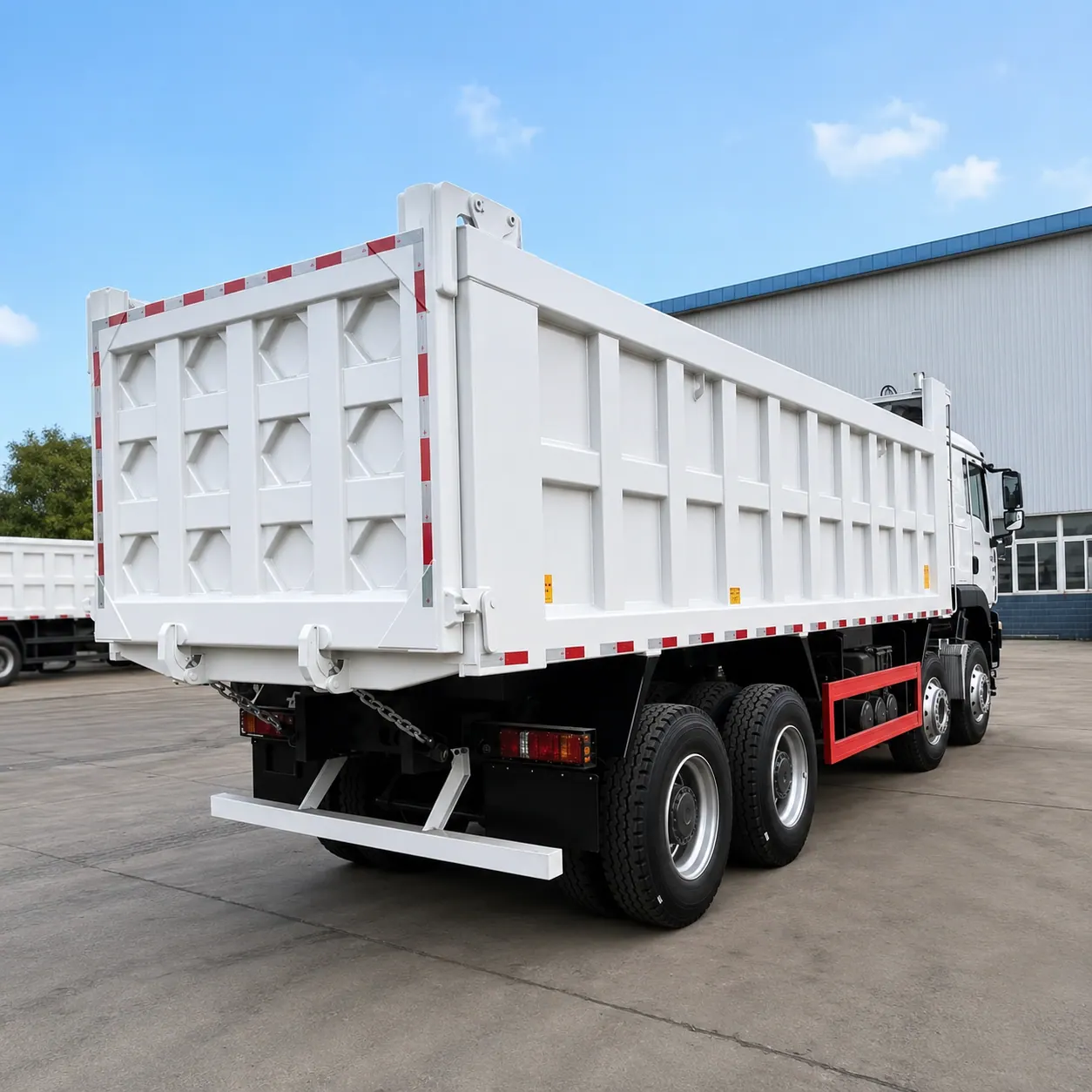

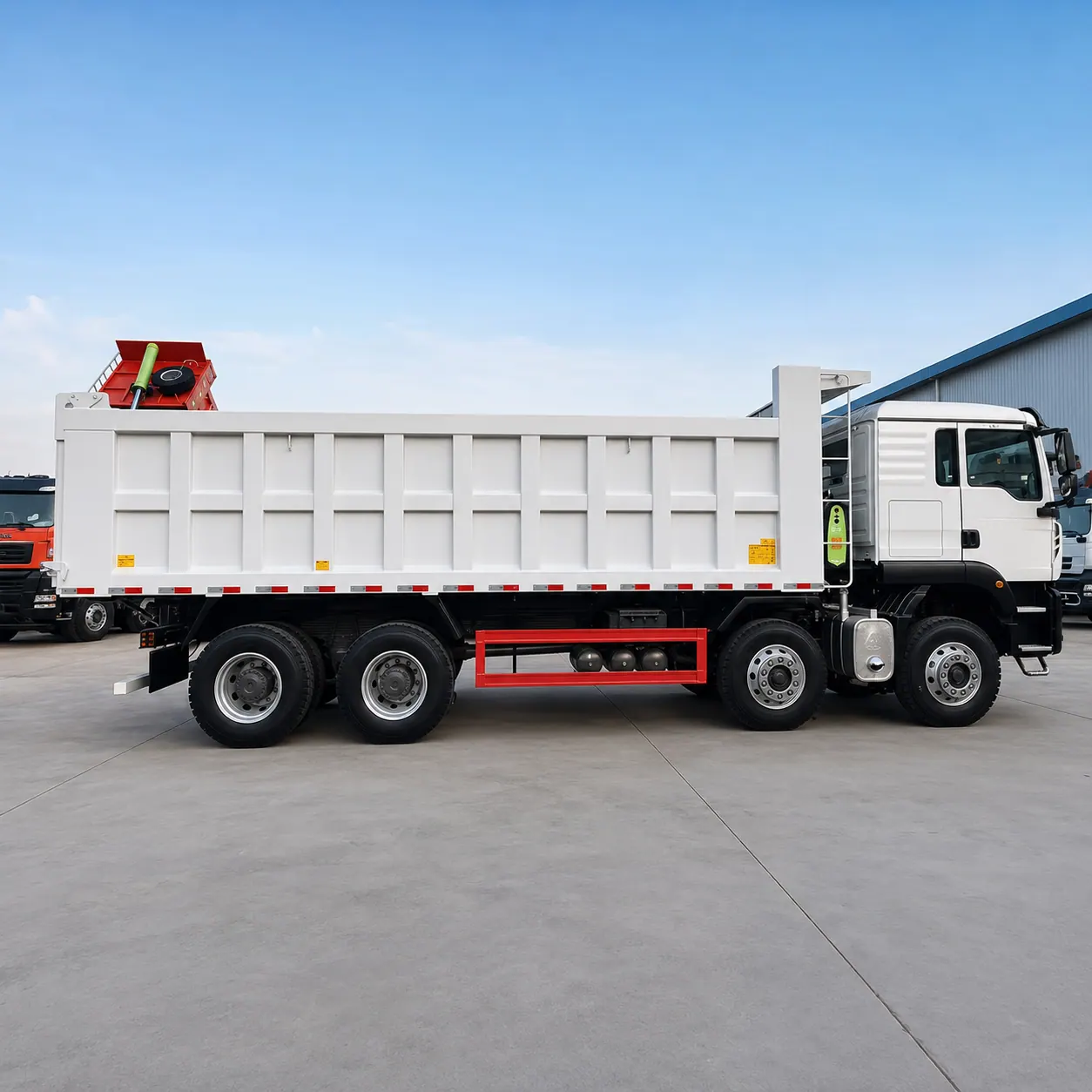

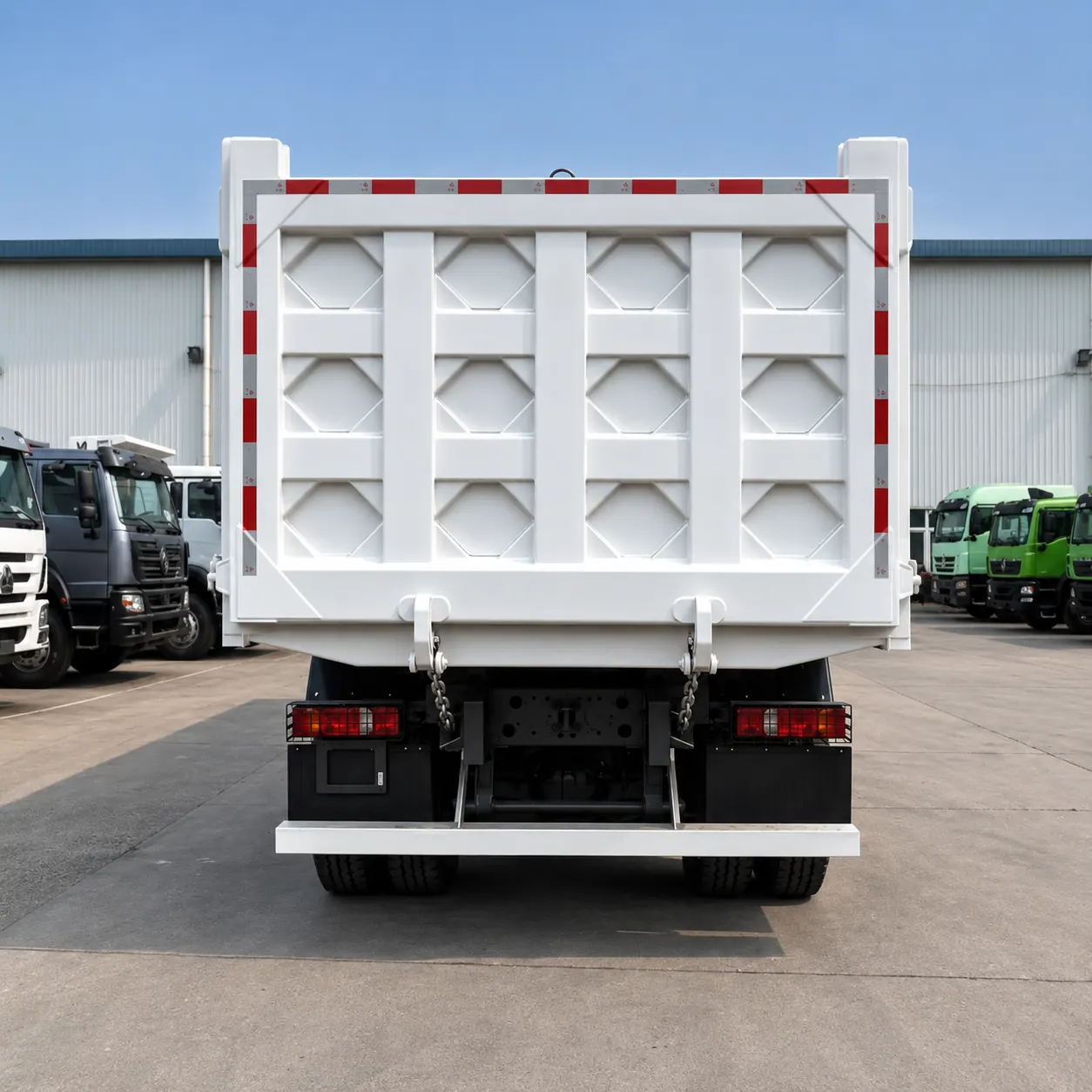

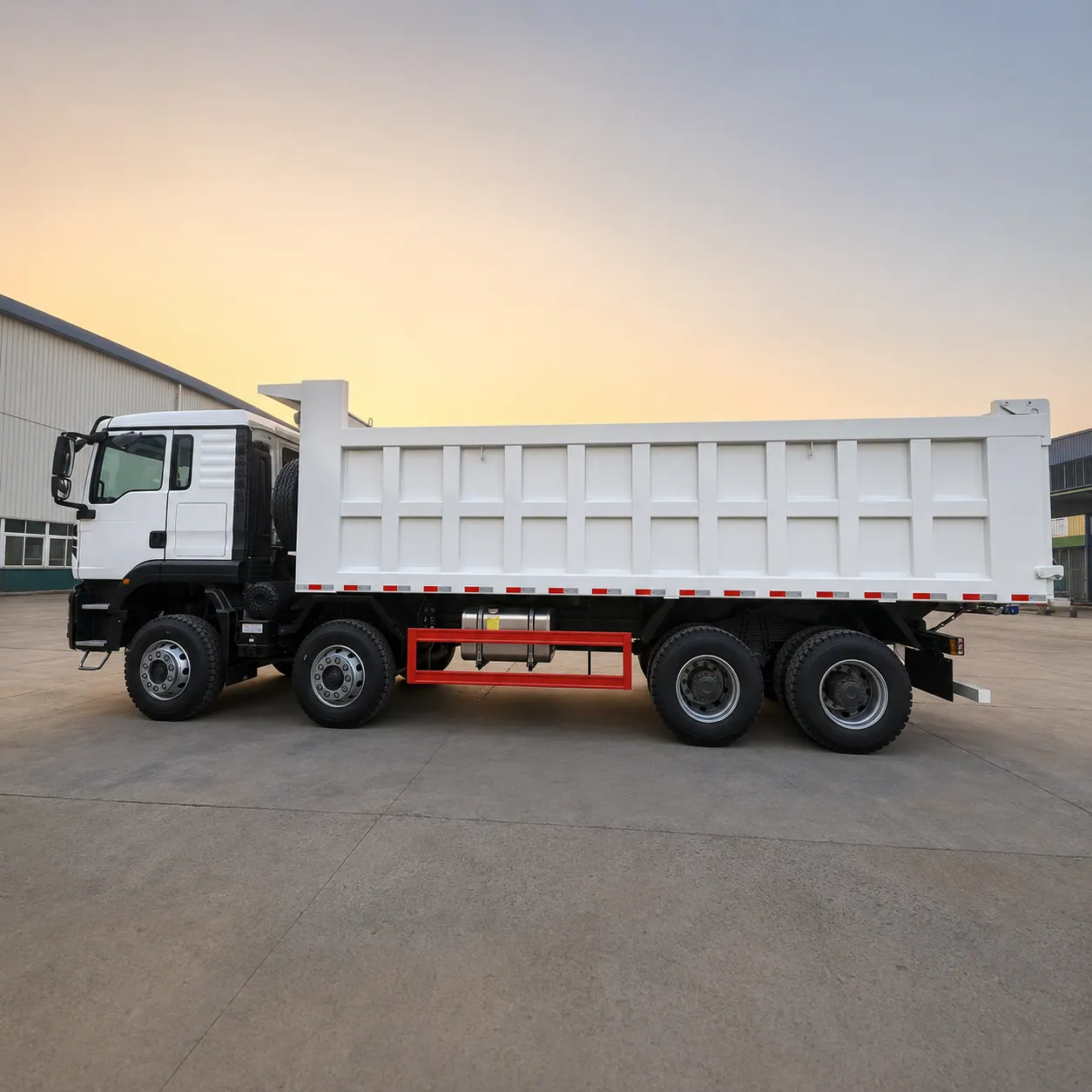

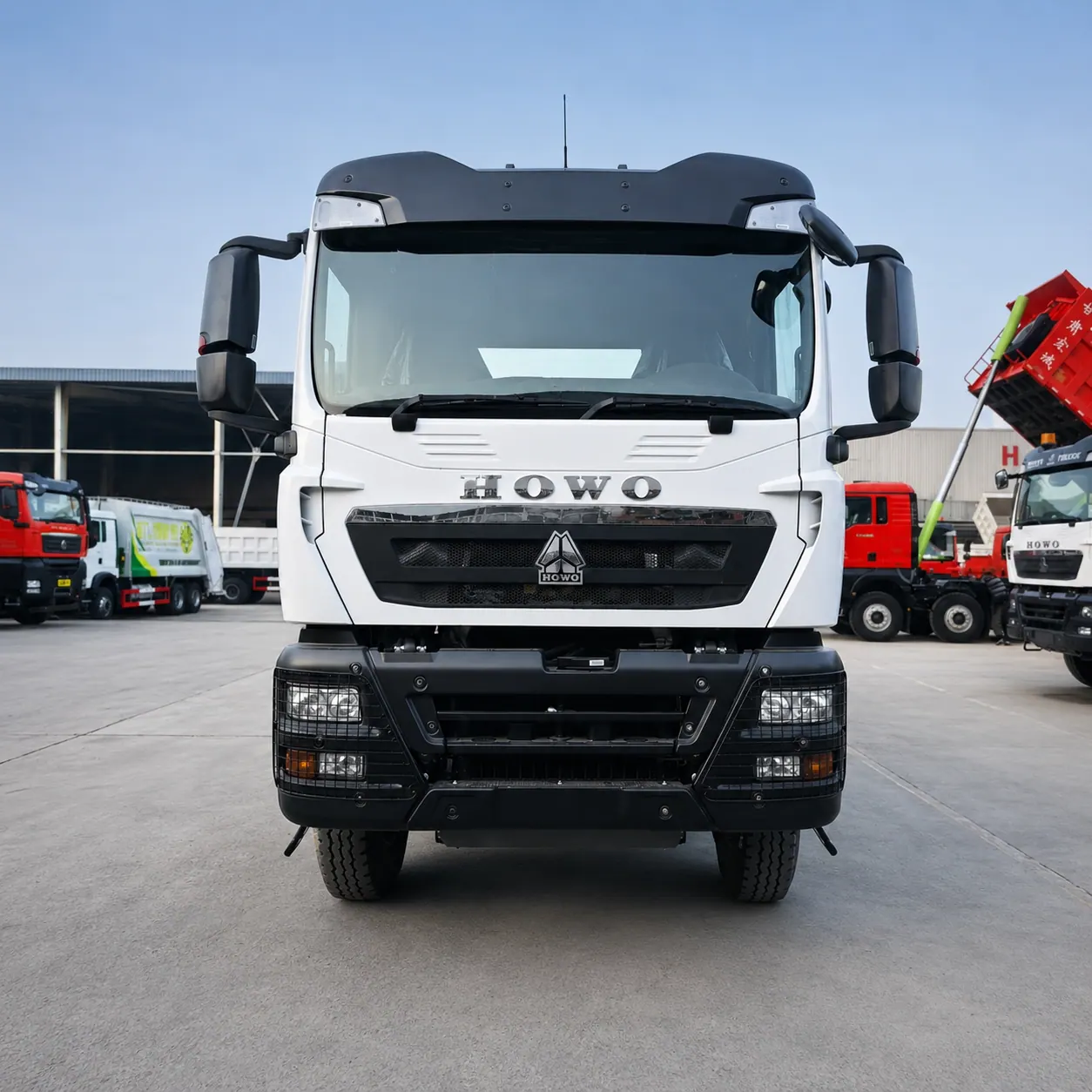

HOWO TX / TX7 6×4 Dump Truck 380 / 400 / 430HP Available
HOWO TX / TX7 6×4 dump truck is designed for heavy-duty bulk material transportation and rear tipping unloading. It is widely used for transporting sand, gravel, soil, coal, ore, construction waste and other loose materials in construction sites, mining areas, quarry operations, road projects and infrastructure projects. This model is available with 380HP, 400HP and 430HP engine options, and other power configurations can be supplied according to stock condition and customer requirements. The truck adopts a strong 6×4 drive chassis, reinforced cargo body, heavy-duty suspension, reliable hydraulic lifting system and comfortable HOWO TX / TX7 cab. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized according to different working conditions and market requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | SINOTRUK HOWO |
| Model Series | HOWO TX / TX7 |
| Drive Type | 6×4 |
| Engine Power | 380HP / 400HP / 430HP available |
| Engine Model | WD615 / WP10 / WP12 series optional |
| Emission Standard | Euro II / Euro III / Euro V optional |
| Transmission | 10-speed / 12-speed manual transmission |
| Cab | HOWO TX / TX7 cab, single sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 8,400-8,900 mm L ? 2,500-2,550 mm W ? 3,400-3,700 mm H |
| Wheelbase | Approx. 3,800-4,325 mm + 1,350 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 5,600-6,500 mm L ? 2,300-2,500 mm W ? 1,200-1,800 mm H |
| Cargo Box Volume | Approx. 18-28 m3, depending on box size |
| Loading Capacity | Approx. 20-35 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 2 rear drive axles |
| Rear Axle | Heavy-duty double rear drive axles |
| Suspension | Heavy-duty leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 optional |
| Tire Quantity | 10 tires + 1 spare tire |
| Fuel Tank | Approx. 300-400 L |
| Brake System | Dual-circuit air brake system |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | White, red, green, yellow or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Typical Applications
- Construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- demolition waste transportation
- short and medium-distance bulk cargo transport
Available Configurations
- 380HP, 400HP or 430HP engine
- Euro II / Euro III / Euro V emission standard
- left-hand drive or right-hand drive
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 12.00R20, 12R22.5 or 315/80R22.5 tires
- reinforced rear axle
- air conditioner
- single sleeper cab
- spare tire
- customized paint color, logo and export markings
Buyer Support
- HOWO TX / TX7 heavy-duty chassis with strong market recognition
- 6×4 drive type provides strong traction and stable performance
- 380 / 400 / 430HP engine options meet different working conditions
- reinforced dump body improves durability for sand, gravel, soil, coal and ore
- reliable hydraulic rear tipping system improves unloading efficiency
- suitable for construction, mining, quarry and infrastructure projects
- multiple emission standards and driving-side options for different export markets
- cost-effective used or refurbished trucks available with flexible customization
