HOWO TX Truck Mounted Crane 340 / 380 / 400 / 430HP 5 / 6.3 / 8 / 10 / 12 / 14 / 16T Available
HOWO TX Truck Mounted Crane is a medium- and heavy-duty lifting and transportation vehicle designed for construction, engineering projects, machinery handling, equipment installation, utility work and industrial material transportation. The vehicle combines a SINOTRUK HOWO TX chassis with a hydraulic truck-mounted crane, reinforced crane subframe, hydraulic outriggers and cargo body, allowing lifting, loading, transportation and unloading to be completed by one vehicle. HOWO TX crane trucks are available with 4×2, 6×4 and 8×4 chassis configurations. Engine options include approximately 340HP, 380HP, 400HP and 430HP, while crane capacities of approximately 5T, 6.3T, 8T, 10T, 12T, 14T and 16T can be selected according to chassis configuration, cargo payload and lifting requirements. Straight-boom cranes are suitable for projects requiring longer working radius and higher lifting height, while knuckle-boom cranes can be selected where compact installation and flexible lifting geometry are required. Crane brand, lifting capacity, boom sections, maximum working radius, lifting height, outriggers, cargo-body dimensions and control system can be customized according to project requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Truck Mounted Crane / Crane Truck / Lorry Mounted Crane / Cargo Truck with Crane |
| Brand | SINOTRUK HOWO |
| Chassis Series | HOWO TX |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 340HP / 380HP / 400HP / 430HP available |
| Engine Brand | SINOTRUK / Weichai |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed available |
| Common Transmission | HW19710 / HW19712 or equivalent |
| PTO | Heavy-duty PTO for crane hydraulic system |
| Cab Series | HOWO TX |
| Cab Type | Standard / extended / high-roof cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available |
| Driver Seat | Adjustable / air-suspension driver seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 7,500–12,000 mm depending on chassis, crane and cargo body |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 3,000–3,900 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 18–41 tons depending on chassis |
| Rated Payload | According to chassis, crane weight, cargo body and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | SINOTRUK heavy-duty steering axle |
| Rear Axle | SINOTRUK / MC-series heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available |
| Frame | Reinforced high-strength steel chassis frame |
| Crane Subframe | Heavy-duty reinforced crane mounting subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Heavy-duty multi-leaf spring / balance suspension |
| Tire Model | 11.00R20 / 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 300–500 L |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Crane Type | Straight Boom Crane / Knuckle Boom Crane optional |
| Crane Installation Position | Behind cab standard / rear-mounted optional |
| Crane Brand | XCMG / SANY / other compatible Chinese crane brands |
| Rated Crane Capacity | 5T / 6.3T / 8T / 10T / 12T / 14T / 16T available |
| Light Crane Capacity | Approx. 5–6.3 tons |
| Medium Crane Capacity | Approx. 8–10 tons |
| Heavy Crane Capacity | Approx. 12–16 tons |
| Boom Sections | 3 / 4 / 5 / 6 sections depending on crane model |
| Boom Structure | Hydraulic telescopic straight boom / articulated folding boom |
| Boom Material | High-strength structural steel |
| Maximum Lifting Height | Approx. 10–22 m depending on crane |
| Maximum Working Radius | Approx. 8–20 m depending on crane |
| Maximum Lifting Moment | According to crane model and capacity |
| Boom Extension | Hydraulic telescopic |
| Boom Elevation | Hydraulic |
| Crane Slewing | Hydraulic rotation |
| Slewing Angle | 360° continuous / limited rotation depending on crane model |
| Slewing Bearing | Heavy-duty slewing bearing |
| Main Hook | Heavy-duty lifting hook |
| Hook Block | Single / multi-sheave according to crane |
| Steel Wire Rope | High-strength crane wire rope |
| Main Winch | Hydraulic winch |
| Winch Brake | Automatic hydraulic / mechanical braking system |
| Hydraulic Pump | PTO-driven hydraulic pump |
| Hydraulic Working Pressure | Approx. 20–32 MPa depending on crane |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Optional |
| Hydraulic Control Valve | Multi-way proportional hydraulic valve |
| Hydraulic Cylinders | Heavy-duty double-acting hydraulic cylinders |
| Crane Control System | Manual hydraulic / electro-hydraulic control |
| Ground Control | Available |
| High-Seat Control | Optional |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Emergency Manual Control | Available / optional |
| Overload Protection | Available / optional |
| Moment Limiter | Optional |
| Load Indicator | Optional |
| Boom Angle Indicator | Optional |
| Outrigger Type | Hydraulic H-type / telescopic outriggers |
| Front Outriggers | Available |
| Rear Outriggers | Optional / recommended for larger cranes |
| Outrigger Extension | Manual / hydraulic optional |
| Outrigger Span | According to crane model |
| Vertical Outrigger Cylinder | Hydraulic |
| Outrigger Foot Pads | Heavy-duty steel pads |
| Cargo Body Type | Dropside cargo body / flatbed cargo body |
| Cargo Body Length | Approx. 4,500–8,500 mm depending on chassis and crane |
| Cargo Body Width | Approx. 2,300–2,500 mm |
| Cargo Body Height | Approx. 500–800 mm for dropside body |
| Cargo Body Material | Carbon steel / high-strength steel |
| Cargo Floor | Checkered steel plate / flat steel plate / wood-steel combination optional |
| Floor Thickness | Approx. 3–8 mm or customized |
| Side Wall Thickness | Approx. 2–4 mm or customized |
| Side Panels | Fixed / foldable / removable optional |
| Rear Tailgate | Foldable / removable |
| Cargo Body Reinforcement | Reinforced longitudinal and transverse beams |
| Flatbed Configuration | Optional |
| Dropside Configuration | Available |
| Stake Body Configuration | Optional |
| Rear-Mounted Crane Configuration | Optional |
| Hydraulic Rear Outriggers | Optional |
| Auxiliary Winch | Optional |
| Additional Hook | Optional |
| Working Basket | Optional for compatible crane applications |
| Lifting Slings | Optional |
| Shackles | Optional |
| Spreader Beam | Optional |
| Crane Working Lights | Optional |
| Boom Working Light | Optional |
| Reversing Camera | Optional |
| Crane Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Lights | Optional |
| Audible Warning Alarm | Optional |
| Toolbox | Available |
| Outrigger Pad Storage | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, yellow, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, crane brand, crane capacity, boom sections, lifting height, working radius, outriggers, cargo body size, hydraulic system, control system, steering side, cameras, paint color, company logo and export markings |

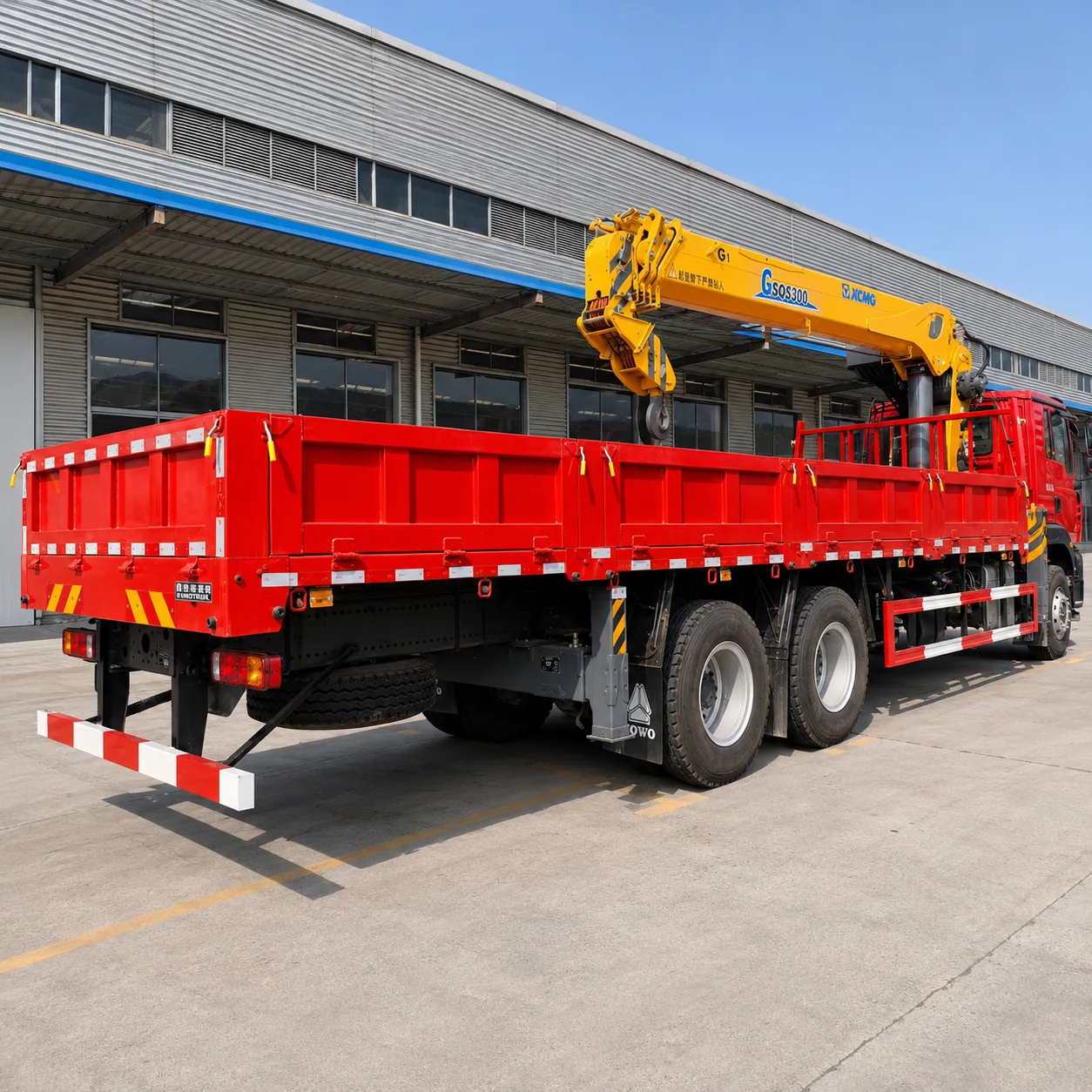

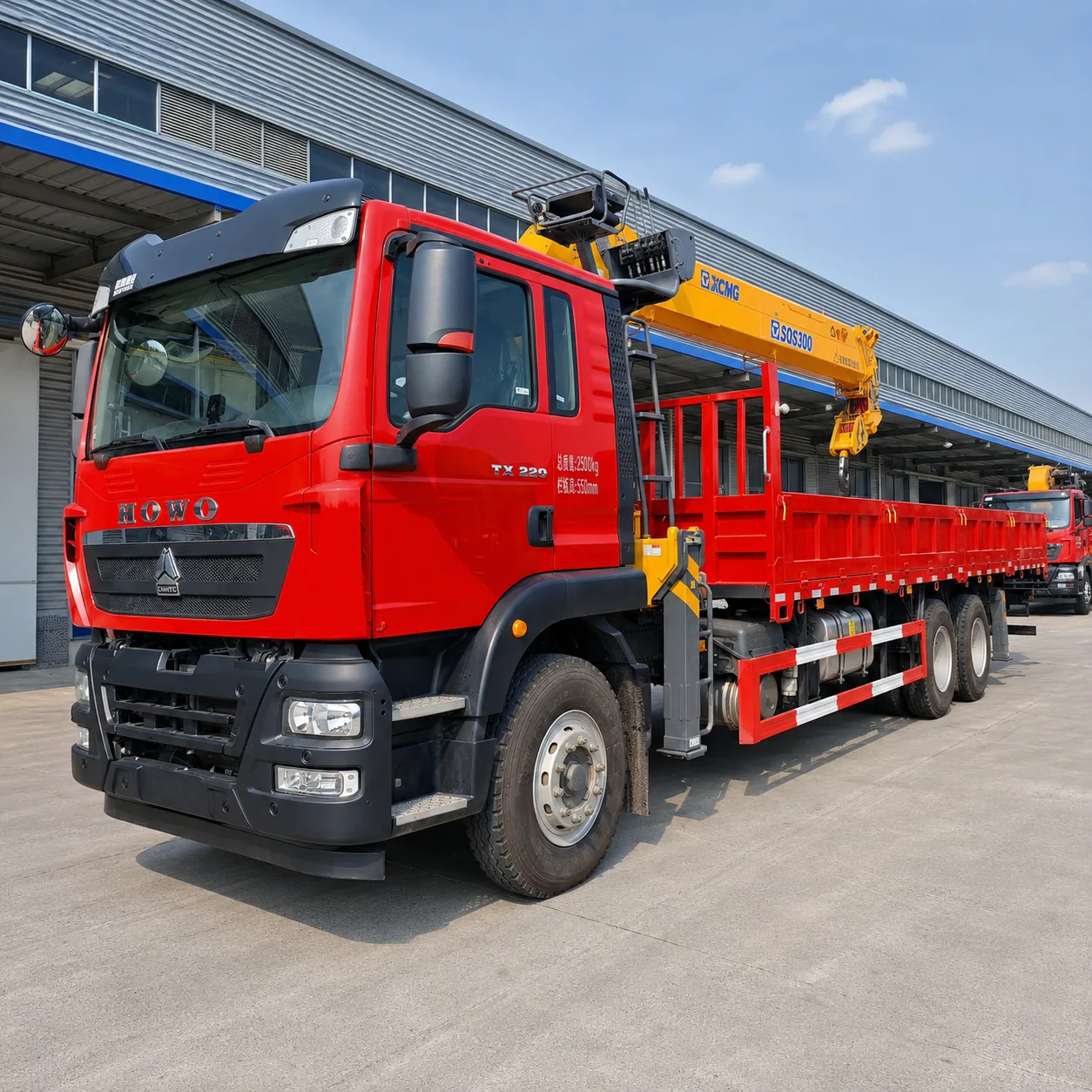

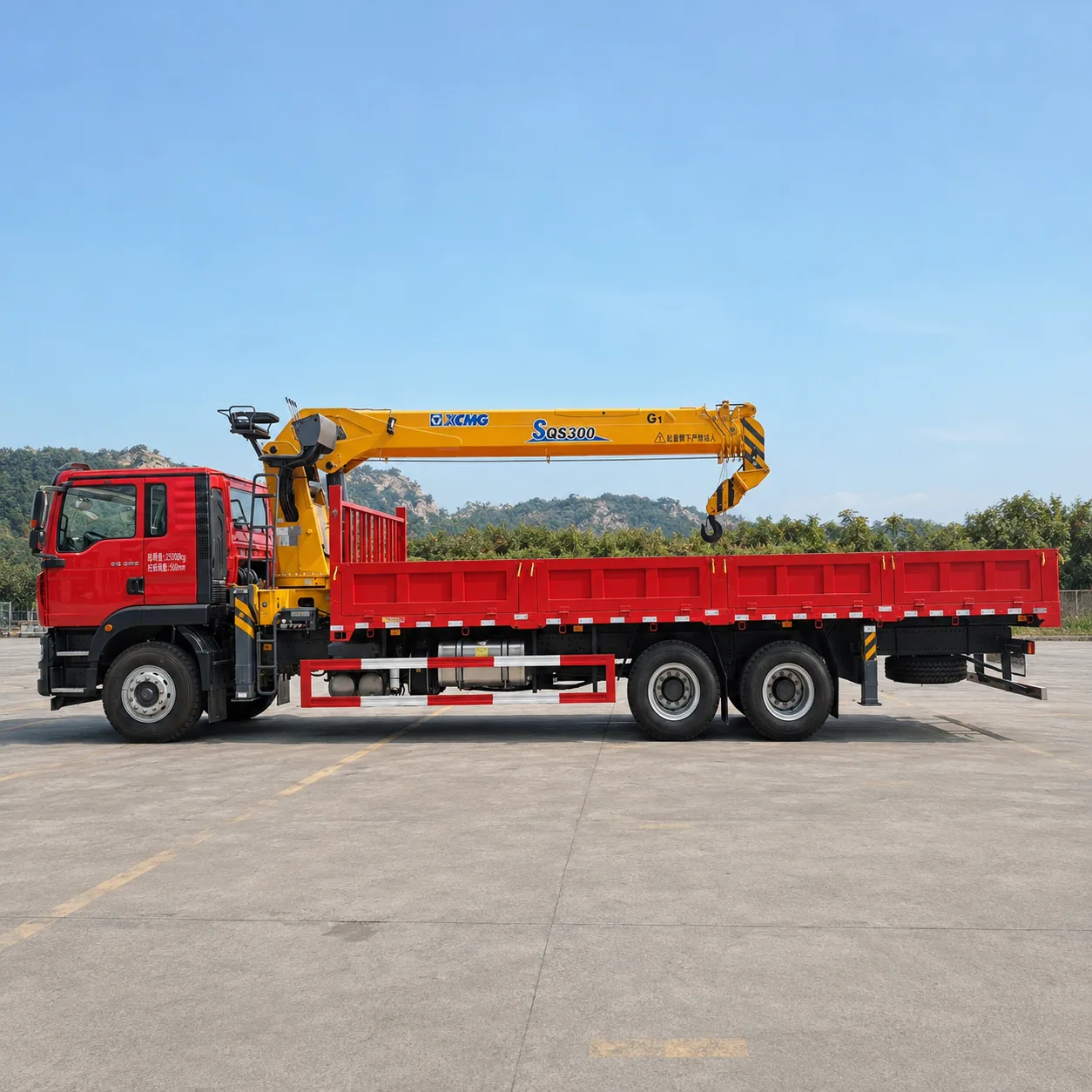

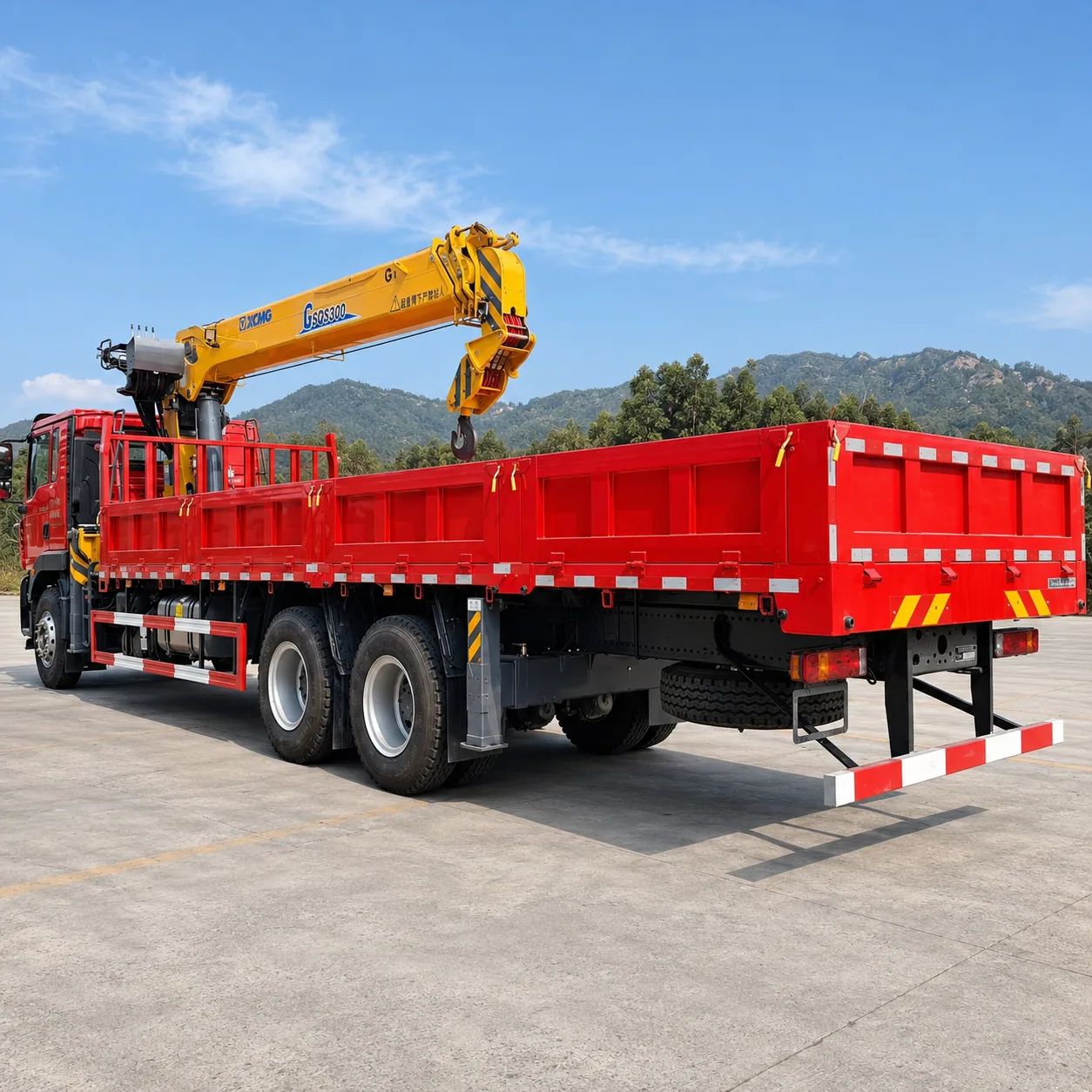

Product Details
Typical Applications
- Construction-material lifting and transportation
- steel transportation
- prefabricated component lifting
- machinery loading and unloading
- generator transportation
- transformer installation
- electrical equipment handling
- utility construction
- power-line projects
- telecommunications projects
- pipeline construction
- road construction
- bridge construction
- building-material delivery
- industrial equipment installation
- factory equipment relocation
- warehouse cargo handling
- port and terminal operations
- municipal engineering
- mining-site material handling
- agricultural machinery transportation
- landscaping projects
- emergency lifting operations.
Available Configurations
- 340HP, 380HP, 400HP or 430HP diesel engine
- HOWO TX 4×2, 6×4 or 8×4 chassis
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- HW19710, HW19712 or equivalent 10-speed / 12-speed manual transmission
- 5T, 6.3T, 8T, 10T, 12T, 14T or 16T truck-mounted crane
- XCMG, SANY or other compatible crane brands
- straight-boom or knuckle-boom crane
- 3-section, 4-section, 5-section or 6-section boom
- approximately 10–22m maximum lifting height
- approximately 8–20m maximum working radius
- 360° continuous rotation according to crane model
- hydraulic H-type outriggers
- hydraulic telescopic outriggers
- optional rear hydraulic outriggers
- ground control
- high-seat control
- electro-hydraulic proportional control
- wireless remote control
- overload protection
- moment limiter
- load indicator
- approximately 4.5–8.5m cargo body
- dropside cargo body
- flatbed cargo body
- removable side panels
- reinforced steel floor
- rear-mounted crane configuration
- auxiliary winch
- working basket
- lifting slings
- shackles
- crane camera
- reversing camera
- 360° monitoring system
- LED working lights
- toolbox
- customized crane capacity, cargo body dimensions, hydraulic system, paint color, company logo and export markings.
Buyer Support
- HOWO TX Truck Mounted Crane combines a SINOTRUK HOWO TX commercial chassis with a professional hydraulic crane and cargo body, allowing lifting, loading, transportation and unloading to be completed by one vehicle. The integrated design reduces the need for separate lifting and transport equipment and is suitable for construction, engineering, industrial and utility projects. Crane capacities from approximately 5T to 16T provide solutions for different lifting requirements. 5T and 6.3T cranes are suitable for building materials and light machinery
- 8T and 10T cranes provide greater lifting capability for construction equipment and industrial cargo
- 12T, 14T and 16T configurations are suitable for heavier equipment and engineering applications. 4×2, 6×4 and 8×4 chassis options allow different combinations of crane capacity, cargo payload and operating stability. 4×2 configurations provide good maneuverability for urban and medium-duty work, while 6×4 and 8×4 chassis provide greater load capacity and stronger support for larger cranes. Straight-boom cranes provide long working radius and greater lifting height for general construction and material handling. Knuckle-boom cranes can be selected for projects requiring compact folded dimensions and more flexible operation around buildings, machinery or restricted working areas. Hydraulic outriggers provide stable support during lifting operations. Larger crane configurations can be equipped with additional rear hydraulic outriggers to increase the support area and improve stability when lifting heavy loads at longer working radii. Ground controls, high-seat controls and optional wireless remote controls provide flexible operating methods. Overload protection, moment limiters, load indicators and optional crane cameras can be configured to improve operational control and working safety. The reinforced cargo body allows materials and equipment to be transported immediately after loading. Cargo-body length, floor thickness, side-wall height and structure can be customized according to steel, construction materials, machinery, generators, utility equipment and other cargo. Left-hand-drive and right-hand-drive configurations are available for different export markets. Engine power, drive type, crane brand, lifting capacity, boom sections, working radius, lifting height, outriggers, cargo-body dimensions, hydraulic controls, cameras, paint color and other specifications can be customized according to project requirements.

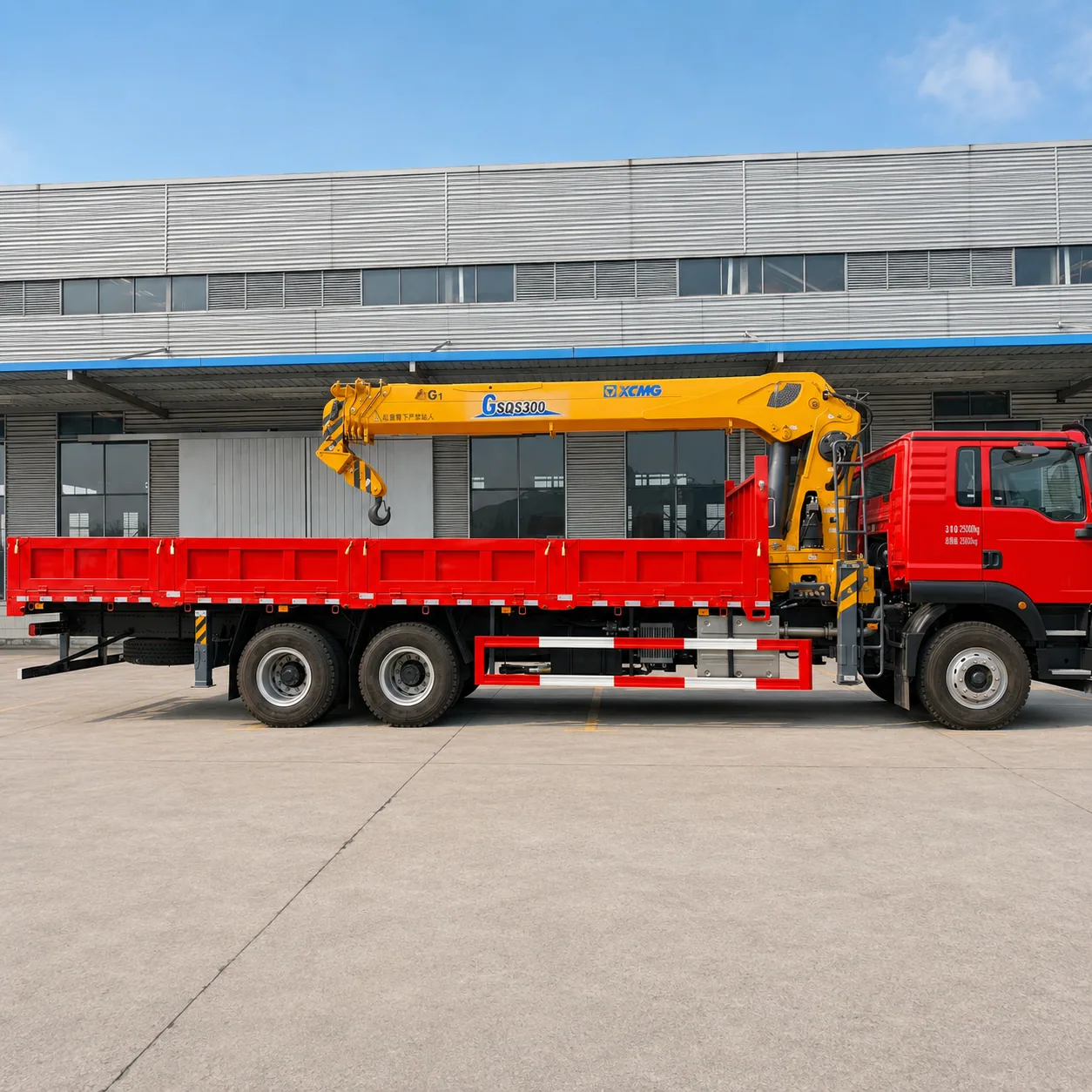

Product Display
