Special Trucks
HOWO TX Concrete Mixer Truck 340 / 380 / 400 / 430HP 8 / 10 / 12 / 14 / 16CBM Available
HOWO TX Concrete Mixer Truck is a heavy-duty construction vehicle designed for ready-mixed concrete transportation between batching plants and construction sites. It combines the SINOTRUK HOWO TX heavy-duty chassis with a high-strength concrete mixing drum, hydraulic drive system, reducer, hydraulic pump, hydraulic motor, feeding hopper, discharge chute, water system and reinforced mixer subframe for continuous concrete mixing and transportation. The HOWO TX platform supports a wide range of SINOTRUK MC-series and Weichai WP-series diesel engines, including 340HP, 380HP, 400HP and 430HP configurations. Heavy-duty HW-series manual transmissions are available, including 10-speed and 12-speed models suitable for construction and loaded transportation applications. HOWO TX concrete mixer configurations are available with 6×4 and 8×4 chassis layouts and approximately 8–16CBM mixer capacities for medium- and heavy-duty concrete transportation. The mixing drum uses high-strength wear-resistant steel and internal spiral blades to maintain concrete uniformity during transportation, while the hydrostatic hydraulic drive system provides smooth drum rotation during feeding, transportation and discharge. SINOTRUK's HOWO concrete mixer platform supports mixer body capacities up to 16CBM.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Concrete Mixer Truck / Cement Mixer Truck / Transit Mixer Truck |
| Brand | SINOTRUK HOWO |
| Model Series | HOWO TX |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 340HP / 380HP / 400HP / 430HP available |
| Engine Brand | SINOTRUK / Weichai |
| Engine Series | MC07 / MC11 / WP10 / WP12 series |
| Common Engine Options | MC07 340HP / WP10 340HP / WP10 380HP / MC11 400HP / WP12 400HP / MC11 430HP / WP12 430HP |
| Engine Type | Inline six-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 6.87–11.60 L depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro V / Euro VI available according to export configuration |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Common Transmission | HW19710 / HW19712 / HW25712 series or equivalent |
| Transmission Gears | 10-speed / 12-speed manual transmission available |
| PTO | Heavy-duty power take-off for mixer hydraulic system |
| Cab Series | HOWO TX |
| Cab Type | TX-M / TX-D / TX-J / TX-K / TX-F or compatible TX cab |
| Cab Width | Approx. 2,240 mm exterior width |
| Seating Capacity | 2 persons commonly available |
| Sleeper | Single sleeper available according to cab configuration |
| Driver Seat | Adjustable air-suspension driver seat available |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available |
| Overall Length | Approx. 8,500–11,500 mm |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,700–4,000 mm |
| Wheelbase | Different wheelbase configurations available for 6×4 and 8×4 chassis |
| Gross Vehicle Weight | Approx. 25–35 tons depending on chassis and mixer capacity |
| Curb Weight | Approx. 12–17 tons depending on chassis and mixer body |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | V-series heavy-duty steering axle |
| Rear Axle | MC-series heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction drive axle available |
| Differential Lock | Available |
| Frame | High-strength reinforced steel frame |
| Subframe | Reinforced concrete-mixer subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 configuration; spare tire optional |
| Fuel Tank | Approx. 300–400 L or larger according to chassis |
| Fuel Tank Material | Aluminum / steel optional |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Mixer Body Type | Rotating concrete mixing drum |
| Effective Mixer Capacity | 8CBM / 10CBM / 12CBM / 14CBM / 16CBM available |
| Mixer Drum Material | High-strength wear-resistant steel |
| Drum Structure | Reinforced drum with internal double-helical mixing blades |
| Drum Rotation | Forward / reverse rotation |
| Drum Rotation Speed | Approx. 0–16 rpm |
| Mixing Blade Type | Double-helical / spiral mixing blades |
| Mixing Blade Material | High-strength wear-resistant steel |
| Hydraulic Drive Type | Hydrostatic hydraulic drive system |
| Hydraulic Pump | EATON / PMP / Rexroth or equivalent optional |
| Hydraulic Motor | EATON / PMP / Rexroth or equivalent optional |
| Reducer | Bonfiglioli / PMP / ZF or equivalent mixer reducer optional |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Available |
| Feeding System | Rear feeding hopper |
| Feeding Hopper | Reinforced large-capacity feeding hopper |
| Hopper Material | High-strength steel with wear-resistant lining optional |
| Feeding Speed | Approx. ≥3 m³/min |
| Discharge System | Rear discharge chute |
| Discharge Speed | Approx. 2–3 m³/min |
| Main Discharge Chute | Adjustable and rotatable discharge chute |
| Extension Chute | One or more extension chutes optional |
| Concrete Residual Rate | Low-residual drum and blade design |
| Water Tank Capacity | Approx. 300–500 L |
| Water Tank Material | Steel / aluminum optional |
| Water Supply System | Pressurized / gravity water supply system |
| Drum Cleaning System | Integrated water flushing system |
| Hopper Cleaning | Available |
| Chute Cleaning | Available |
| Hand-Washing Outlet | Optional |
| Rear Operating Control | Mechanical / electro-hydraulic control |
| Drum Speed Control | Adjustable |
| Drum Direction Control | Mixing / neutral / discharge |
| Cab Drum Control | Optional |
| Support Roller | Heavy-duty mixer drum support rollers |
| Drum Support Structure | Reinforced front and rear drum supports |
| Rear Ladder | Available |
| Rear Fender | Available |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| Four-Way Monitoring System | Optional |
| Working Lights | Optional |
| Warning Lamp | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, green, yellow or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, transmission, drive type, mixer capacity, mixer drum material, hydraulic pump, hydraulic motor, reducer, water system, axle, tires, steering side, paint color, company logo and export markings |
Product Details
Typical Applications
- Ready-mixed concrete transportation
- commercial concrete batching plants
- residential construction
- commercial building construction
- industrial plant construction
- highway construction
- urban road construction
- bridge construction
- tunnel construction
- railway projects
- airport construction
- port construction
- municipal infrastructure
- hydropower projects
- industrial park development
- foundation construction
- mining infrastructure
- precast concrete projects
- large-scale infrastructure construction
- urban development projects
- construction contractor fleet operations.
Available Configurations
- 340HP, 380HP, 400HP or 430HP diesel engine
- SINOTRUK MC07, MC11, Weichai WP10 or WP12 engine
- 6×4 or 8×4 drive configuration
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro V / Euro VI emission configuration
- HOWO TX cab configuration
- HW19710, HW19712, HW25712 or equivalent manual transmission
- 8CBM, 10CBM, 12CBM, 14CBM or 16CBM effective mixer capacity
- high-strength wear-resistant mixer drum
- reinforced double-helical mixing blades
- EATON, PMP, Rexroth or equivalent hydraulic pump
- EATON, PMP, Rexroth or equivalent hydraulic motor
- Bonfiglioli, PMP, ZF or equivalent mixer reducer
- hydraulic oil cooling system
- approximately 300–500L water tank
- pressurized water system
- reinforced feeding hopper
- wear-resistant hopper lining
- adjustable discharge chute
- extension discharge chute
- mechanical or electro-hydraulic rear controls
- cab-mounted drum control
- reversing camera
- rear working camera
- four-way monitoring system
- working lights
- warning lamps
- ABS
- air conditioner
- air-suspension driver seat
- different axle and tire configurations
- spare tire
- toolbox
- fire extinguisher
- customized mixer capacity, hydraulic system, paint color, company logo and export markings.
Buyer Support
- HOWO TX Concrete Mixer Truck combines the versatile HOWO TX heavy-duty chassis with a professional concrete mixing and transportation system for commercial batching plants, construction contractors and infrastructure projects
- 340HP, 380HP, 400HP and 430HP engine options provide strong power for loaded concrete transportation and demanding construction-site conditions
- SINOTRUK MC-series and Weichai WP-series power options provide multiple powertrain combinations for different markets and operating requirements
- heavy-duty HW-series 10-speed and 12-speed transmissions provide reliable torque transfer and durability for frequent loaded operation. 6×4 and 8×4 chassis configurations provide flexibility for different mixer volumes and axle-load requirements
- 8CBM, 10CBM, 12CBM, 14CBM and 16CBM mixer options cover medium- and large-capacity concrete transportation
- high-strength wear-resistant mixer drums and reinforced spiral blades provide continuous agitation and efficient feeding and discharge
- hydrostatic hydraulic drive provides smooth and adjustable drum operation
- multiple hydraulic pump, motor and reducer options are available for different operating conditions. The high-strength HOWO TX chassis, heavy-duty V-series steering axle, MC-series drive axles and reinforced mixer subframe provide a durable foundation for continuous loaded construction work. Approximately 300–500L water-system options support cleaning of the drum, feeding hopper and discharge chute after unloading
- adjustable discharge chutes provide convenient concrete placement
- optional cameras and monitoring systems improve visibility around the vehicle
- left-hand-drive and right-hand-drive versions can be supplied for different export markets
- engine, transmission, mixer capacity, hydraulic system, reducer, water system, tires, paint color and other configurations can be customized.

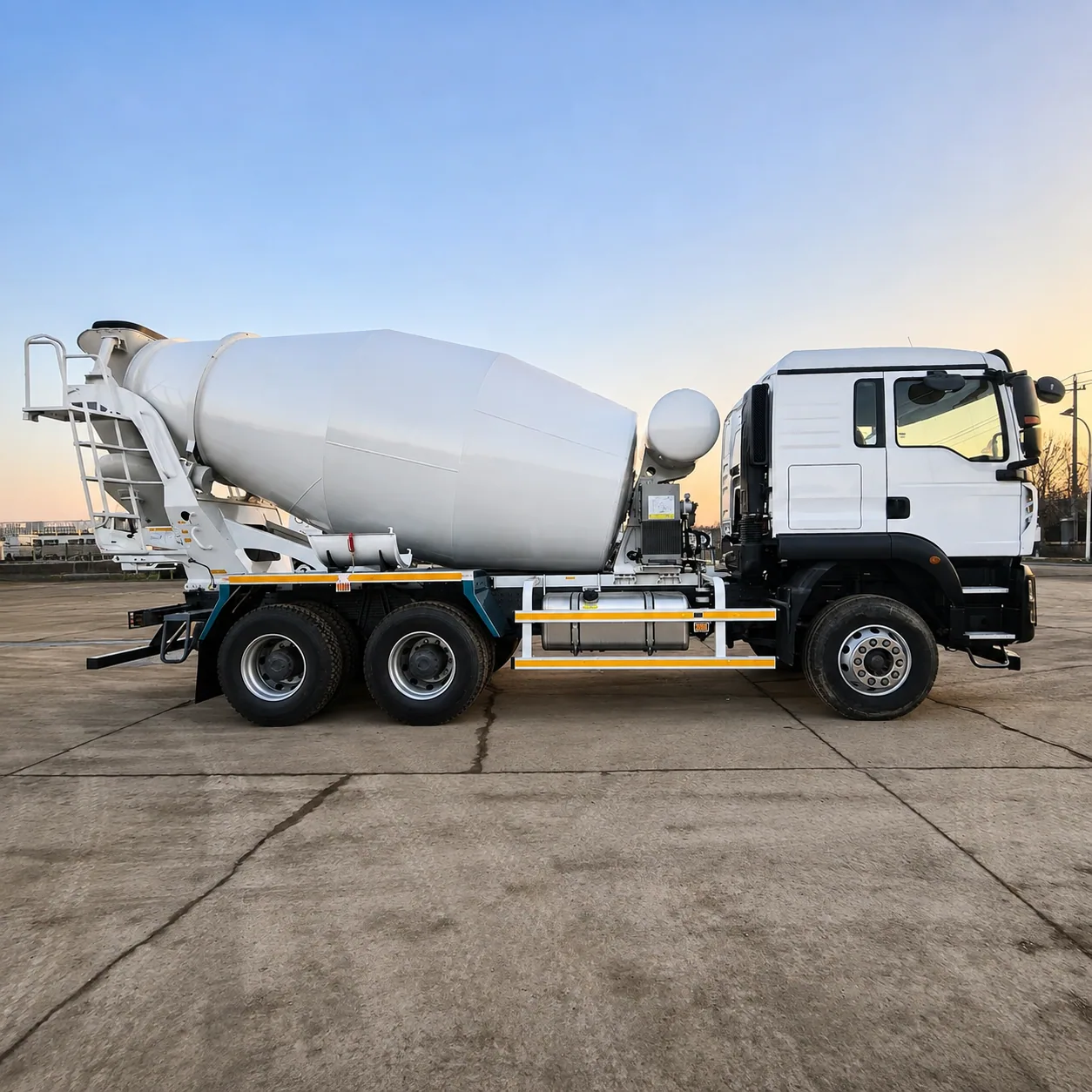

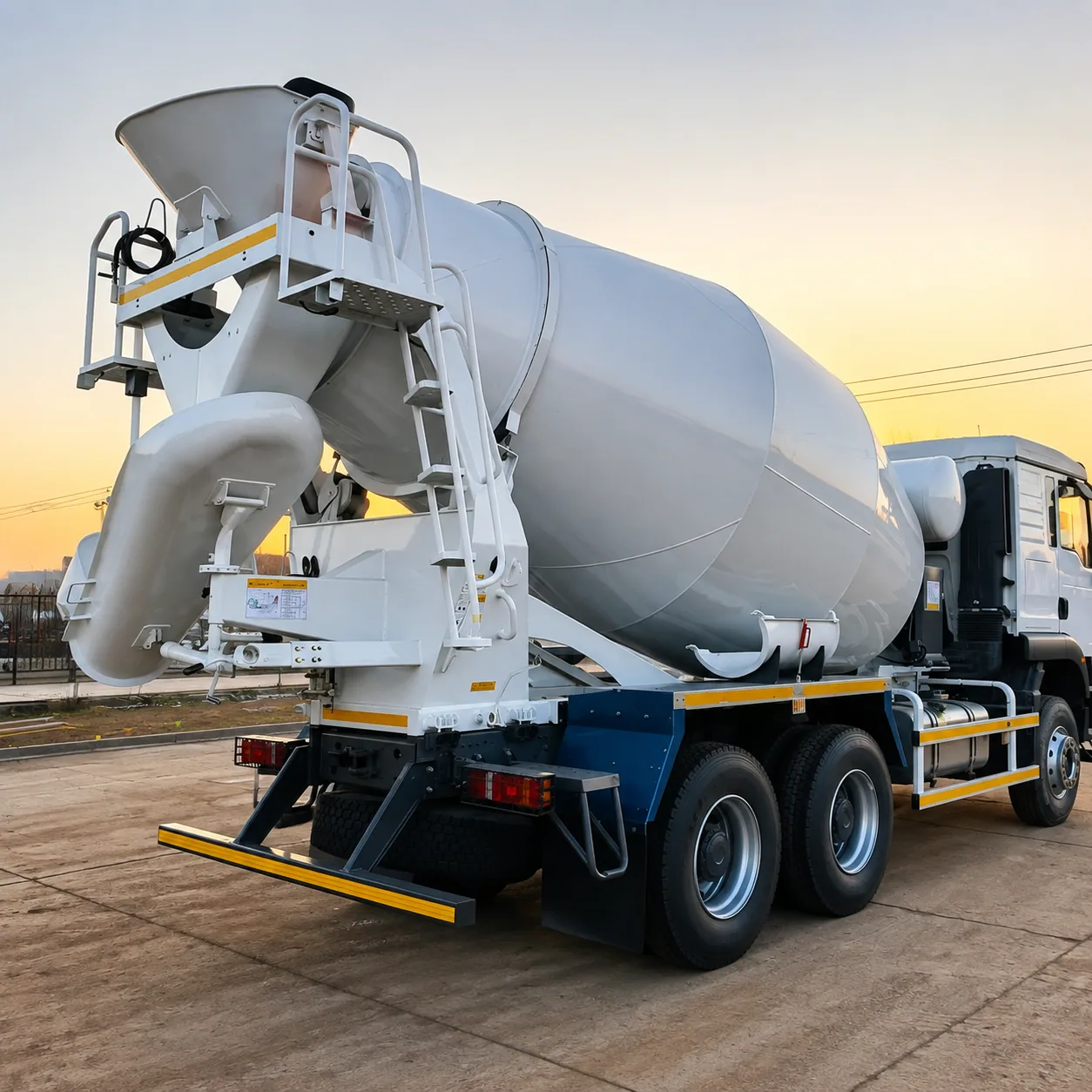

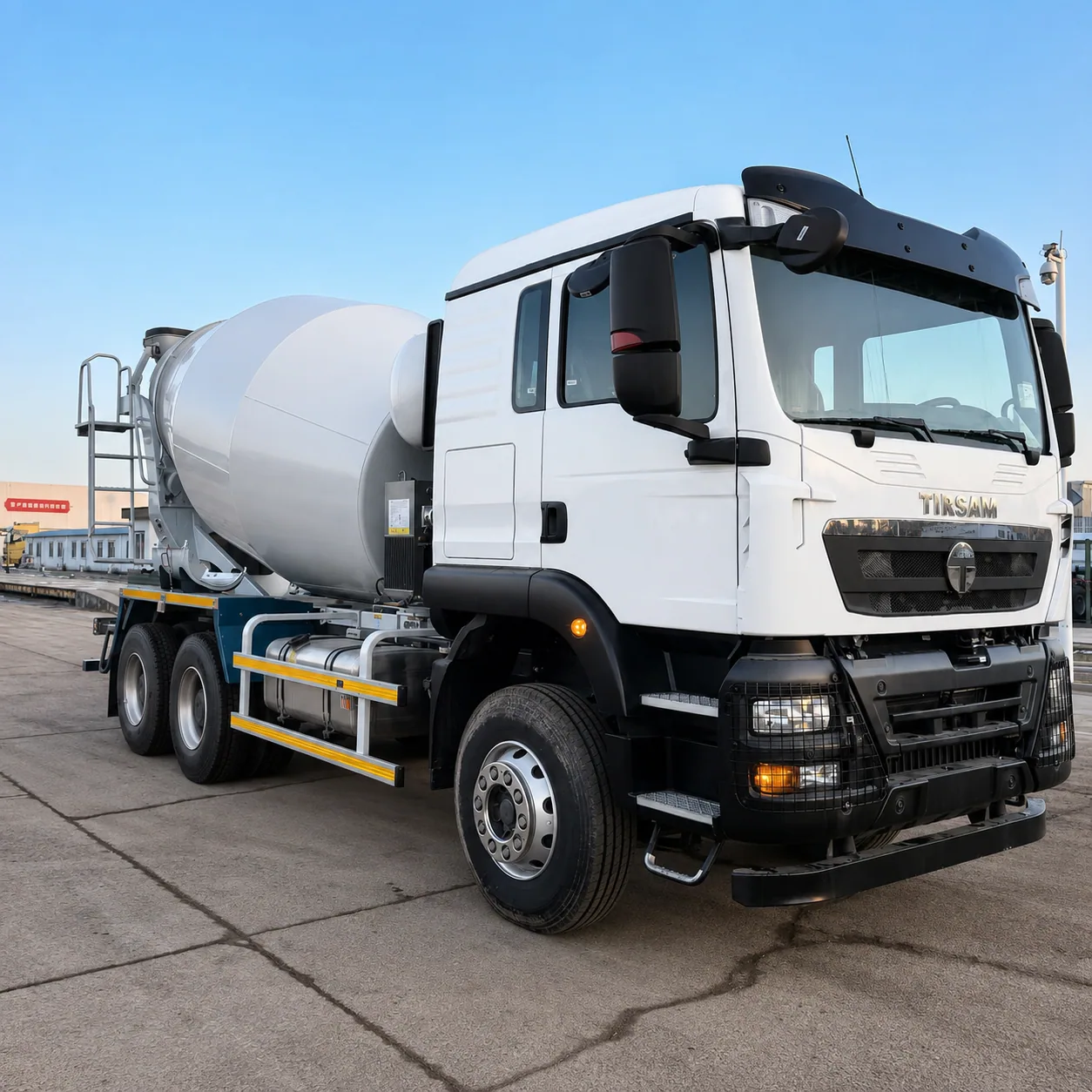

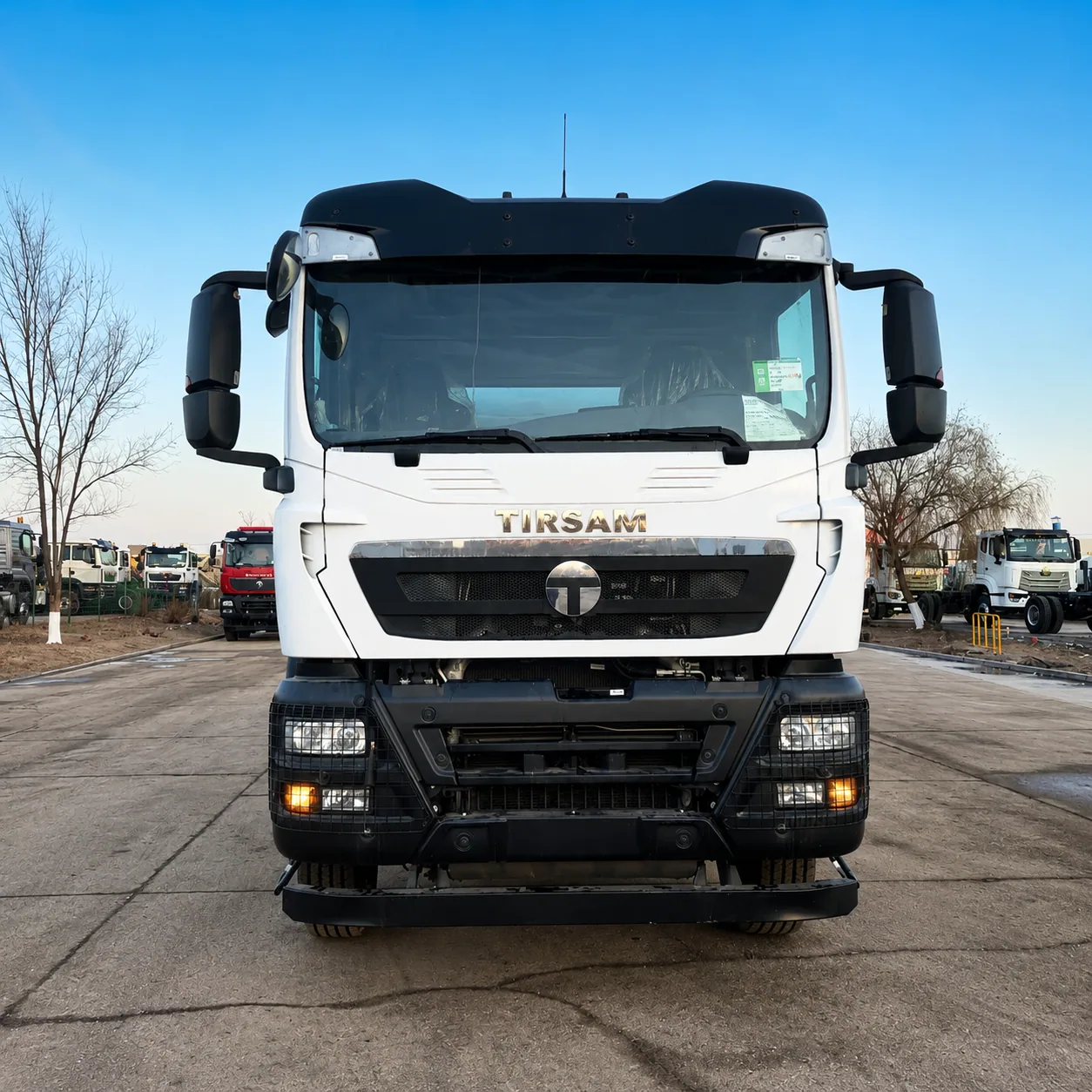

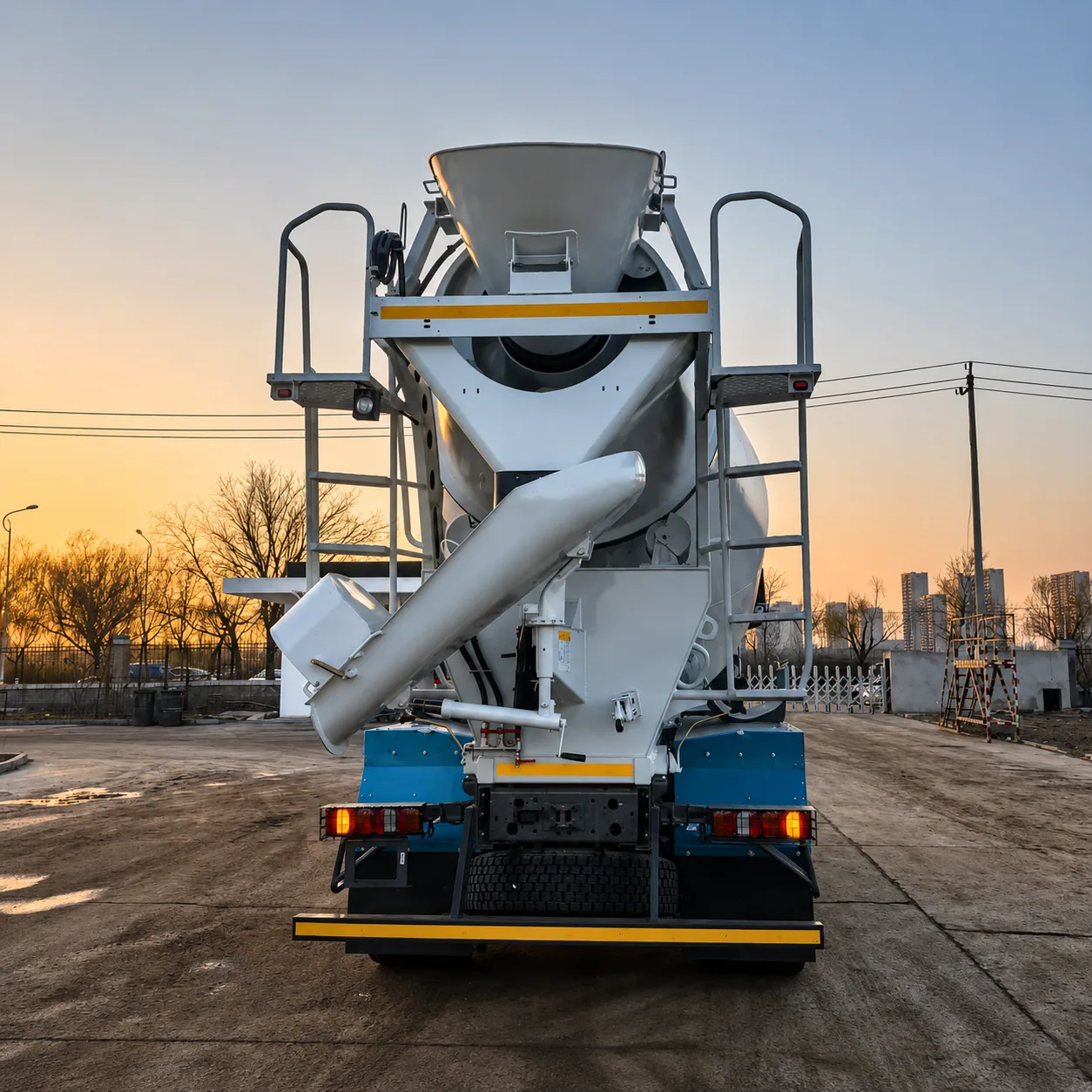

Product Display
