HOWO Sewage Suction Truck 266 / 336 / 371 / 380 / 400HP 10 / 12 / 15 / 20 / 25CBM Available
HOWO Sewage Suction Truck is a heavy-duty vacuum tanker designed for collecting, transporting and discharging sewage, sludge, septic waste, wastewater and other liquid or semi-liquid waste. The vehicle combines a durable SINOTRUK HOWO chassis with a sealed vacuum tank, high-performance vacuum pump, suction pipeline, hydraulic lifting system and rear discharge structure for efficient sewage-handling operations. HOWO sewage suction trucks are available with 4×2, 6×4 and 8×4 chassis configurations. Engine options include approximately 266HP, 336HP, 371HP, 380HP and 400HP, while sewage tank capacities of approximately 10CBM, 12CBM, 15CBM, 20CBM and 25CBM can be configured according to chassis capacity, operating conditions and project requirements. The vacuum system creates negative pressure inside the tank and allows sewage, sludge and septic waste to be drawn through a large-diameter suction hose. Hydraulic tank lifting and an opening rear cover provide efficient discharge and easier removal of sediment or high-viscosity waste. Vacuum pump type, suction depth, hose diameter, tank material, tank thickness and discharge system can be customized.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Sewage Suction Truck / Vacuum Sewage Truck / Vacuum Tanker Truck / Septic Tank Truck |
| Brand | SINOTRUK HOWO |
| Chassis Brand | HOWO |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 266HP / 336HP / 371HP / 380HP / 400HP available according to chassis and stock |
| Engine Brand | SINOTRUK / Weichai |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to chassis and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Common Transmission | HW19710 / HW19712 or equivalent |
| Transmission Gears | 10-speed / 12-speed available |
| PTO | Heavy-duty PTO for vacuum pump and hydraulic system |
| Cab Type | HOWO standard / extended heavy-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Available according to chassis |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,500–12,000 mm depending on chassis and tank volume |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 3,000–3,800 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 18–41 tons depending on chassis |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | HOWO heavy-duty steering axle |
| Rear Axle | HOWO heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available on selected heavy-duty configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced vacuum-tanker special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / balance suspension |
| Tire Model | 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 300–500 L |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Sewage Tank Capacity | 10CBM / 12CBM / 15CBM / 20CBM / 25CBM available |
| Common 4×2 Tank Capacity | Approx. 10–15 CBM |
| Common 6×4 Tank Capacity | Approx. 15–20 CBM |
| Common 8×4 Tank Capacity | Approx. 20–25 CBM |
| Tank Shape | Cylindrical vacuum tank |
| Tank Cross Section | Circular / optimized cylindrical structure |
| Tank Material | Q235 carbon steel / high-strength steel / stainless steel optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Tank Body Thickness | Approx. 5–8 mm or customized |
| Tank Head Thickness | Approx. 6–10 mm or customized |
| Internal Reinforcement | Reinforced rings / anti-deformation structure |
| Vacuum Tank Design | Fully sealed negative-pressure tank |
| Vacuum Pump Type | Rotary vane vacuum pump / water-ring vacuum pump optional |
| Vacuum Pump Drive | PTO-driven |
| Vacuum Pump Air Displacement | Approx. 6–15 m³/min depending on pump |
| Maximum Vacuum Degree | Approx. -0.08 to -0.095 MPa depending on pump |
| Maximum Suction Depth | Approx. 6–8 m |
| Suction Time | Approx. 5–10 minutes depending on tank volume, pump and material |
| Suction Hose Diameter | Approx. 100–150 mm |
| Suction Hose Length | Approx. 5–10 m standard / customized |
| Additional Suction Hose | Optional |
| Hose Material | Heavy-duty flexible reinforced hose |
| Suction Boom | Optional |
| Rotary Suction Boom | Optional |
| Suction Inlet | Large-diameter sewage suction port |
| Rear Suction Port | Available |
| Side Suction Port | Optional |
| Suction Valve | Heavy-duty ball / gate valve |
| Vacuum Gauge | Available |
| Pressure Gauge | Available |
| Vacuum Control Valve | Available |
| Four-Way Valve | Available according to vacuum system |
| Oil-Water Separator | Available |
| Gas-Water Separator | Available |
| Secondary Separator | Optional |
| Vacuum Pump Lubrication System | Available according to pump type |
| Anti-Overflow Device | Available |
| Float-Level Anti-Overflow Valve | Available |
| High-Level Alarm | Optional |
| Liquid Level Indicator | Mechanical / electronic optional |
| Sight Glass | Optional |
| Tank Lifting | Hydraulic lifting |
| Maximum Tank Tipping Angle | Approx. 40–50° |
| Hydraulic Rear Door | Available |
| Rear Door Opening | Hydraulic |
| Rear Door Locking | Hydraulic / mechanical locking |
| Rear Door Sealing | Heavy-duty rubber sealing ring |
| Discharge Method | Gravity discharge / hydraulic tipping discharge |
| Pressure-Assisted Discharge | Optional according to vacuum system |
| Large Rear Discharge Port | Available |
| Sewage Discharge Valve | Available |
| Sediment Discharge | Hydraulic rear opening + tank lifting |
| Self-Unloading Function | Available |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Working Pressure | Approx. 16–25 MPa depending on system |
| Hydraulic Oil Tank | Available |
| Hydraulic Cylinders | Heavy-duty double-acting hydraulic cylinders |
| Tank Lifting Cylinder | Heavy-duty hydraulic lifting cylinder |
| Rear Door Cylinder | Hydraulic |
| Hydraulic Control Valve | Multi-way hydraulic control valve |
| Operation Control | Manual hydraulic / electro-hydraulic optional |
| External Control | Available |
| Cab-Mounted Control | Optional |
| Wireless Remote Control | Optional |
| Emergency Manual Control | Optional |
| Tank Cleaning System | Optional |
| Internal Flushing Nozzle | Optional |
| High-Pressure Cleaning System | Optional |
| Water Tank for Cleaning | Optional |
| Hand-Wash Tank | Optional |
| Hose Reel | Optional |
| Rear Working Platform | Optional |
| Tank Top Manhole | Available |
| Manhole Cover | Sealed quick-opening / bolted cover |
| Tank Ladder | Available |
| Top Walkway | Optional |
| Overflow Pipe | According to tank design |
| Drainage Port | Available |
| Anti-Corrosion Treatment | Internal / external anti-corrosion coating optional |
| External Painting | Primer + industrial topcoat |
| Stainless-Steel Valve | Optional |
| Stainless-Steel Pipeline | Optional |
| Rear Working Lights | Optional |
| LED Warning Lights | Optional |
| Warning Beacon | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| Tank Camera | Optional |
| 360° Monitoring System | Optional |
| Toolbox | Available |
| Hose Storage | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, blue, green, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis, engine, drive type, tank capacity, tank material, tank thickness, vacuum pump, suction depth, hose diameter, hose length, hydraulic lifting system, rear door, cleaning equipment, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal sewage collection
- septic tank cleaning
- residential-community sewage removal
- rural sanitation
- sewer sludge collection
- wastewater transportation
- industrial wastewater collection
- factory sewage removal
- construction-site wastewater collection
- sludge transportation
- sediment removal
- cesspit emptying
- public toilet waste collection
- hotel sewage collection
- restaurant wastewater collection
- hospital non-hazardous wastewater collection
- industrial-park sanitation
- livestock-farm wastewater collection
- port and terminal sewage handling
- mining-camp sewage collection
- construction-camp sanitation
- municipal drainage maintenance.
Available Configurations
- 266HP, 336HP, 371HP, 380HP or 400HP diesel engine
- HOWO 4×2, 6×4 or 8×4 chassis
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V configuration according to chassis
- HW19710, HW19712 or equivalent manual transmission
- 10CBM, 12CBM, 15CBM, 20CBM or 25CBM sewage tank
- Q235 carbon-steel, high-strength steel or stainless-steel tank
- customized tank-body and tank-head thickness
- rotary vane vacuum pump
- water-ring vacuum pump
- approximately 6–15m³/min vacuum-pump capacity
- approximately 6–8m suction depth
- 100–150mm suction hose
- 5–10m suction hose or customized length
- rotary suction boom
- hydraulic tank lifting
- hydraulic rear-door opening
- gravity discharge
- hydraulic tipping discharge
- pressure-assisted discharge
- anti-overflow protection
- oil-water separator
- gas-water separator
- electronic liquid-level indicator
- high-level alarm
- internal tank-cleaning system
- high-pressure flushing system
- auxiliary clean-water tank
- hose reel
- wireless remote control
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning lights
- stainless-steel valves and pipelines
- anti-corrosion coating
- toolbox
- customized tank volume, vacuum system, hydraulic equipment, paint color, company logo and export markings.
Buyer Support
- HOWO Sewage Suction Truck combines a durable SINOTRUK HOWO chassis with a high-capacity vacuum sewage tank for municipal, industrial and construction wastewater applications. 4×2, 6×4 and 8×4 chassis configurations allow the vehicle to cover medium- and heavy-duty sewage collection requirements, while 266HP, 336HP, 371HP, 380HP and 400HP engine options provide sufficient power for loaded transportation and vacuum equipment operation. Approximately 10–25CBM tank capacities are available for different project requirements. Smaller configurations provide better maneuverability for urban and municipal work, while larger 6×4 and 8×4 versions provide greater sewage capacity for industrial sites, large septic tanks, mining camps and high-volume wastewater transportation. The PTO-driven vacuum pump creates strong negative pressure inside the sealed tank, allowing sewage, sludge and semi-liquid waste to be drawn through a large-diameter suction hose. Different vacuum-pump capacities can be selected according to tank size, required suction speed and waste characteristics. A maximum suction depth of approximately 6–8 meters allows the truck to service underground septic tanks, sewage pits, drainage structures and other locations below road level. Large-diameter 100–150mm suction hoses improve handling of sludge and higher-viscosity sewage. The hydraulic lifting tank and hydraulic rear door provide efficient unloading. When handling sediment, sludge or material that cannot be completely discharged through the outlet valve, the rear door can be opened and the tank hydraulically raised for direct dumping and easier internal cleaning. Anti-overflow devices, vacuum gauges, oil-water separators and gas-water separators help protect the vacuum pump and improve system reliability. Electronic liquid-level indicators, high-level alarms and additional protection devices can be added according to operating requirements. Carbon-steel tanks provide a durable and economical solution for municipal and general sewage applications, while stainless-steel tanks and corrosion-resistant internal coatings can be selected for projects requiring improved resistance to corrosive wastewater. Left-hand-drive and right-hand-drive configurations are available for different export markets. Tank capacity, tank material, vacuum pump, suction depth, hose diameter, hose length, hydraulic lifting system, rear-door structure, cleaning equipment, cameras, warning devices, paint color and other specifications can be customized according to project requirements.

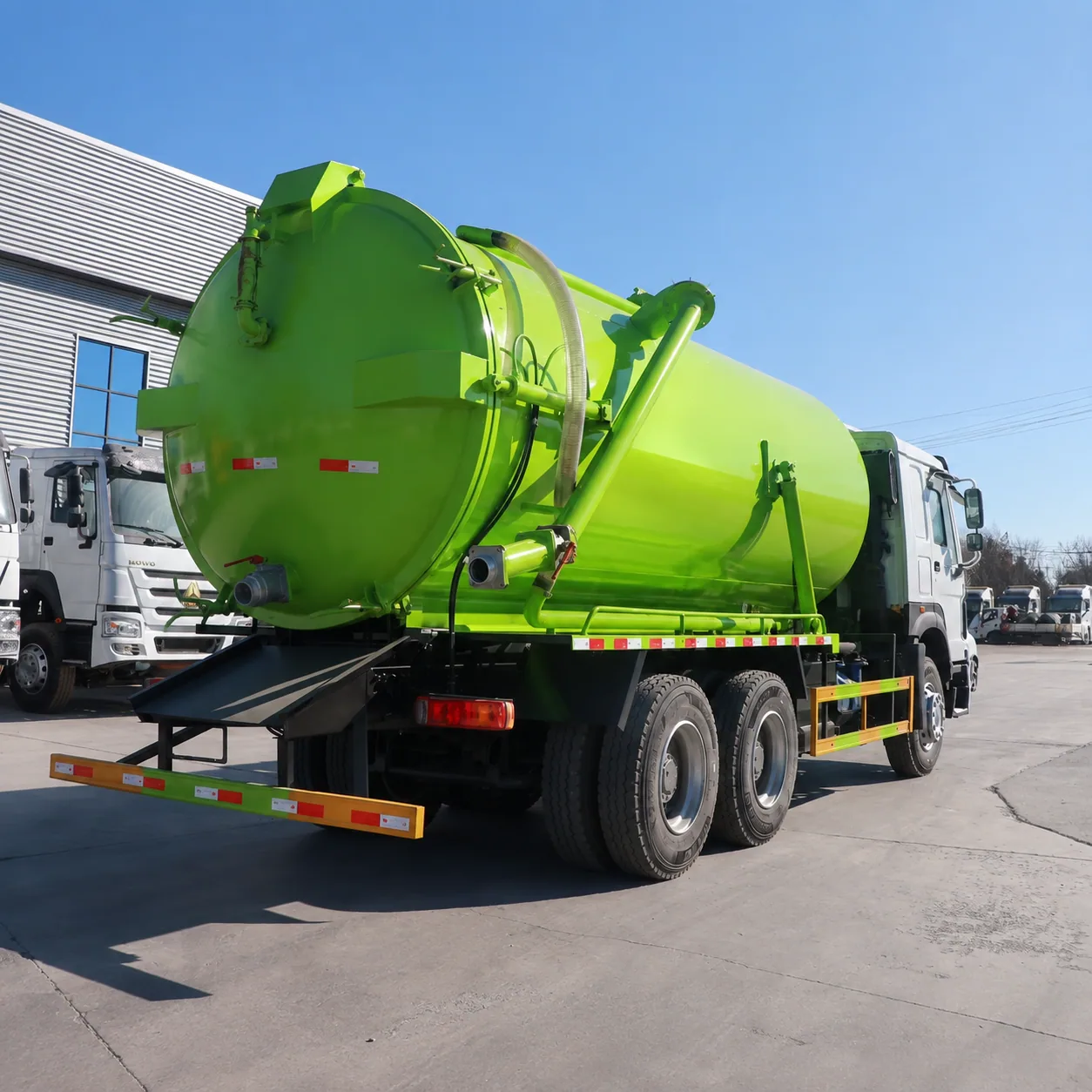

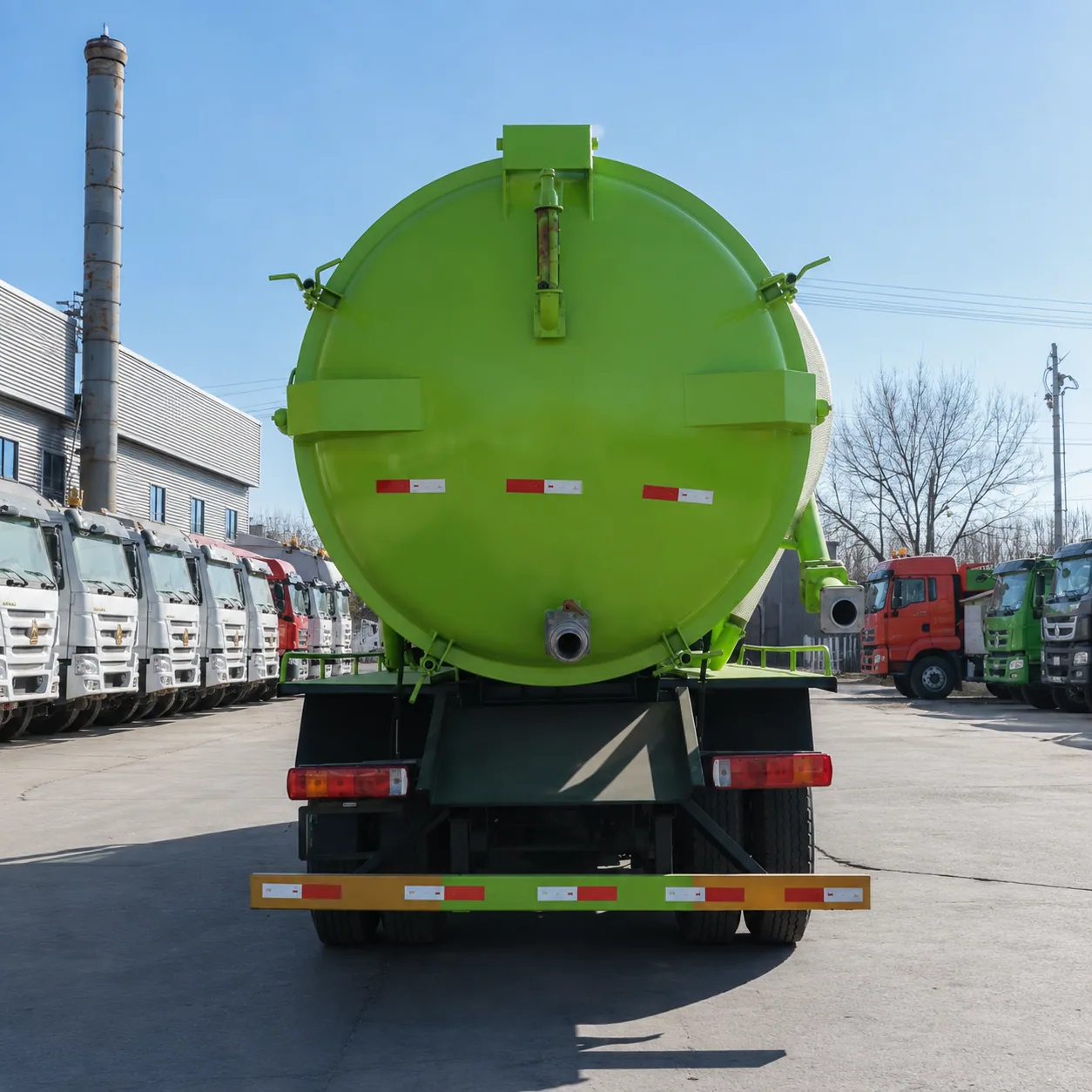

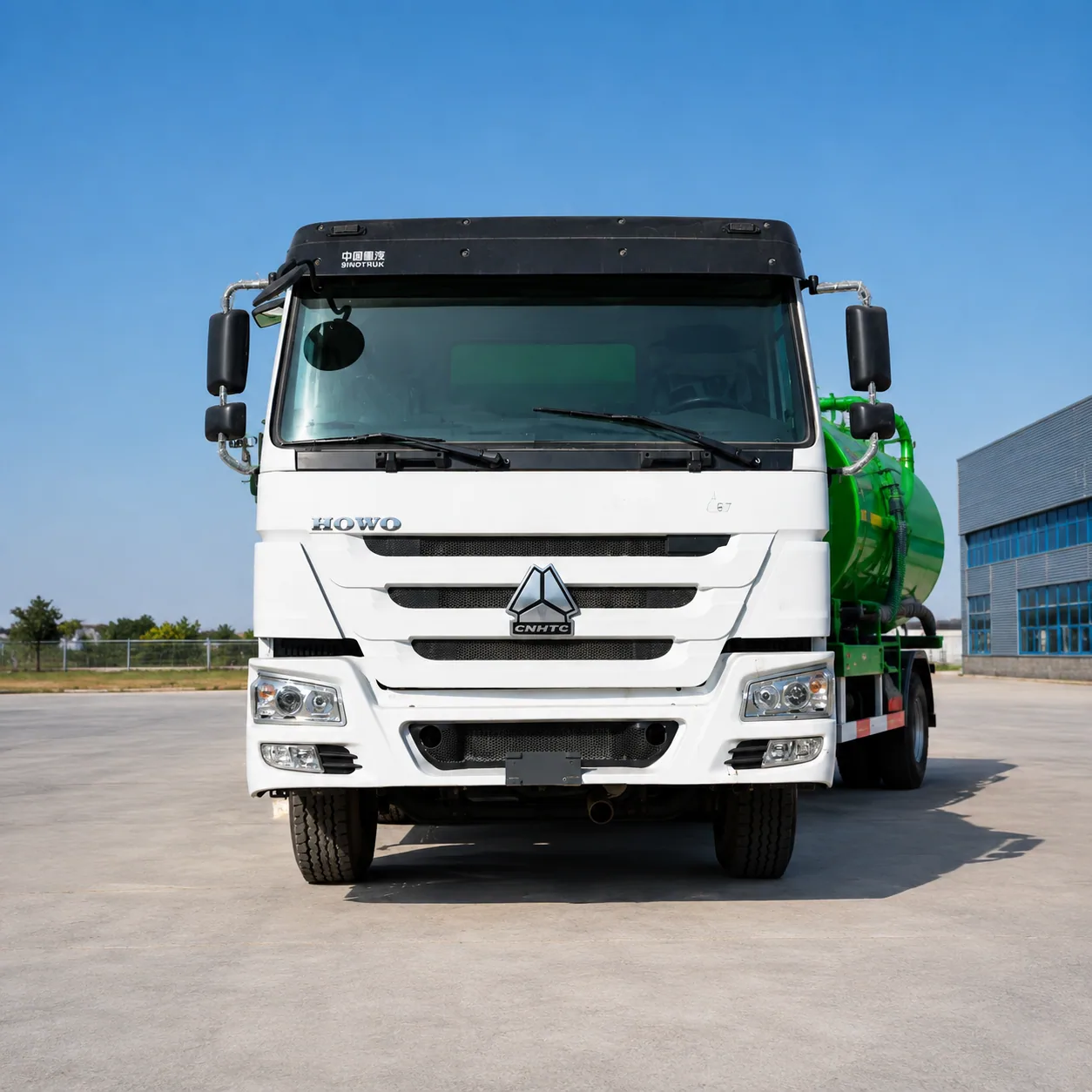

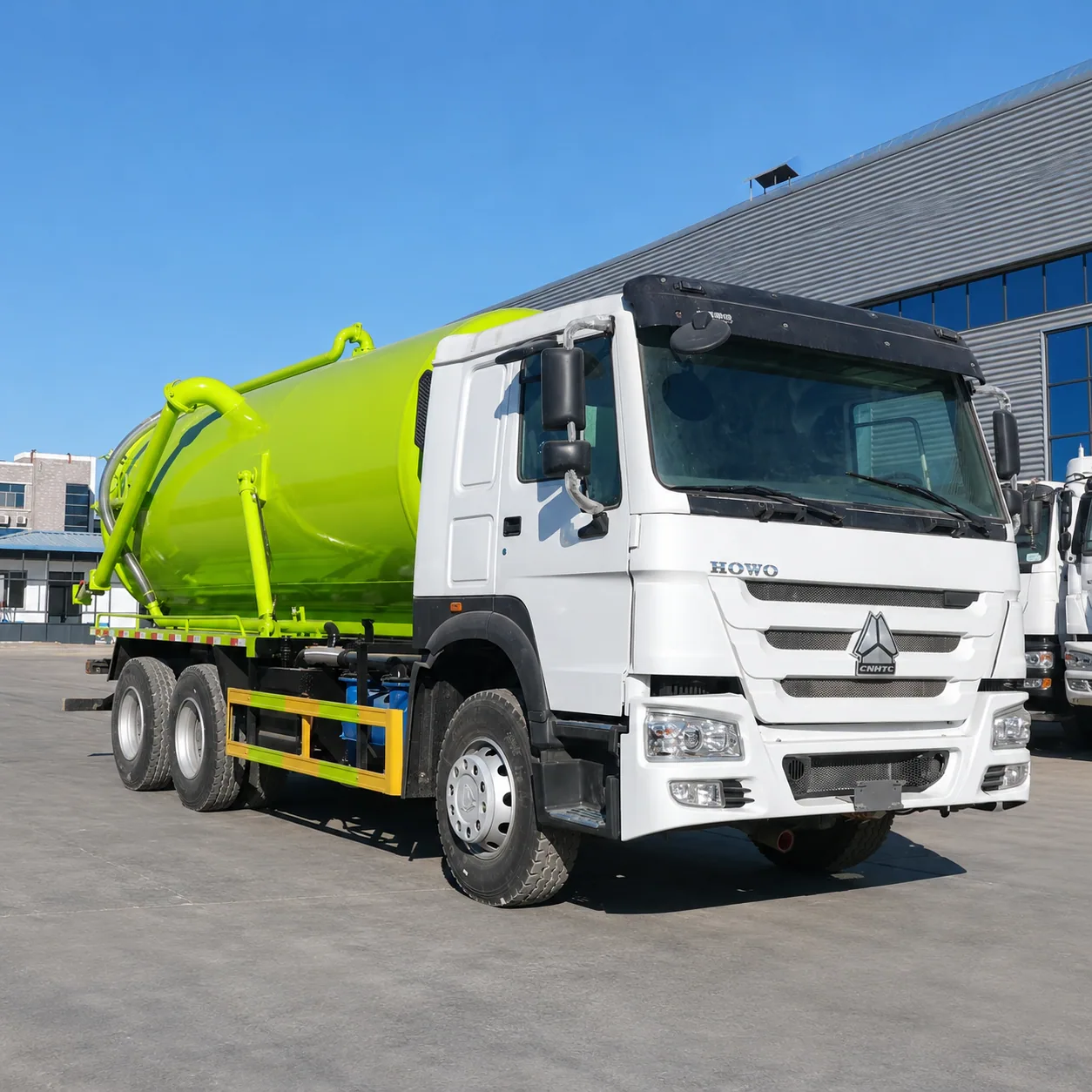

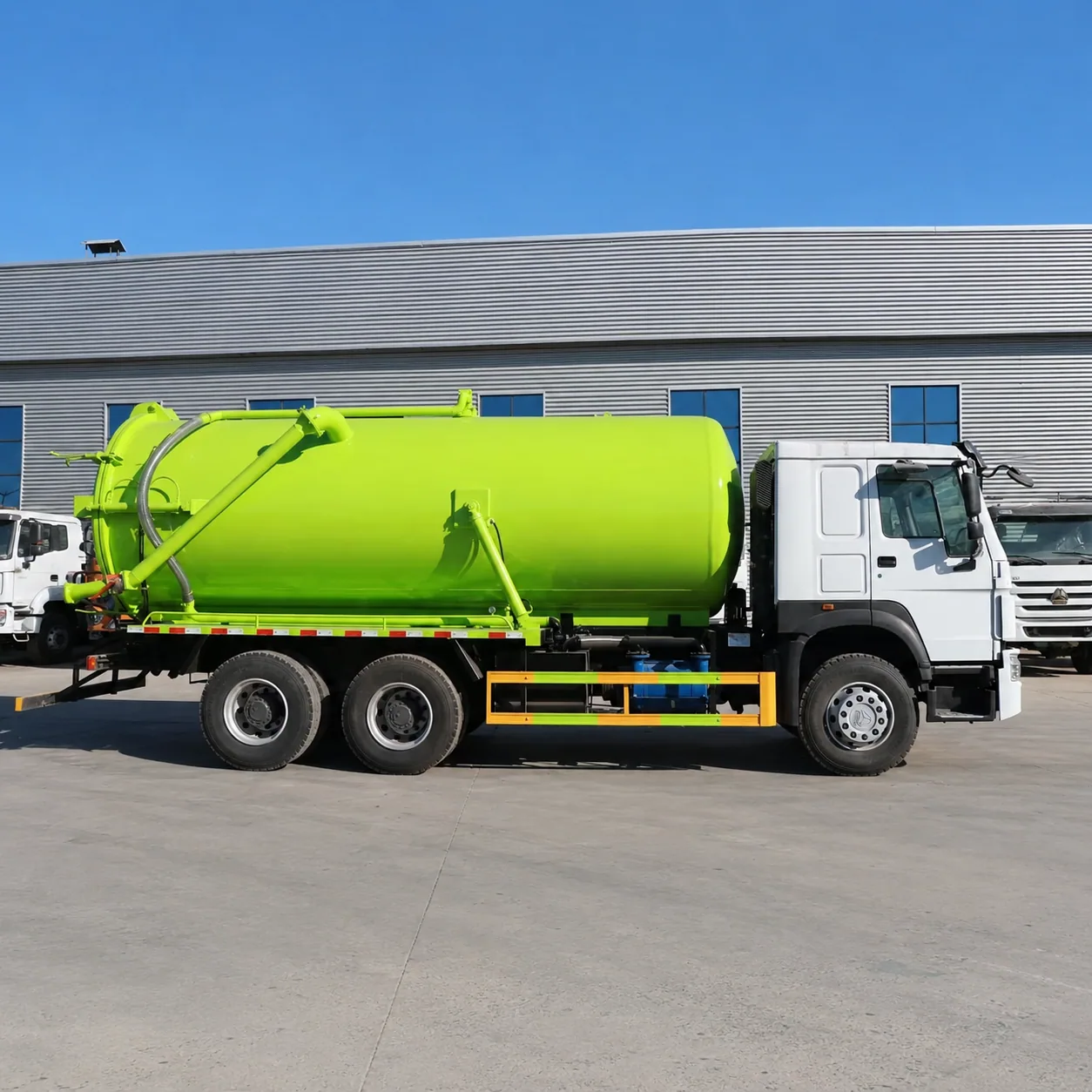

Product Display
