HOWO NX Truck Mounted Crane 340 / 380 / 400 / 430HP 5 / 6.3 / 8 / 10 / 12 / 14 / 16T Available
HOWO NX Truck Mounted Crane is a medium- and heavy-duty lifting and transportation vehicle designed for construction, engineering, equipment installation, material handling and industrial applications. The vehicle combines a SINOTRUK HOWO NX chassis with a hydraulic truck-mounted crane, reinforced subframe, hydraulic outriggers and cargo body, allowing one truck to complete lifting, loading, transportation and unloading operations. HOWO NX crane trucks are available with 4×2, 6×4 and 8×4 chassis configurations. Engine options include approximately 340HP, 380HP, 400HP and 430HP, while crane capacities of approximately 5T, 6.3T, 8T, 10T, 12T, 14T and 16T can be selected according to chassis capacity and project requirements. Straight-boom cranes are available for applications requiring greater lifting height and working radius, while knuckle-boom cranes can be selected for projects requiring compact installation and flexible lifting in restricted spaces. Crane brand, boom sections, lifting capacity, working radius, outriggers, cargo-body dimensions and control system can be customized.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Truck Mounted Crane / Crane Truck / Lorry Mounted Crane / Cargo Truck with Crane |
| Brand | SINOTRUK HOWO |
| Chassis Series | HOWO NX |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 340HP / 380HP / 400HP / 430HP available |
| Engine Brand | Weichai / SINOTRUK |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed available |
| PTO | Heavy-duty PTO for hydraulic crane system |
| Cab Series | HOWO NX |
| Cab Type | Standard / extended / high-roof cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available |
| Driver Seat | Adjustable / air-suspension seat available |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 7,500–12,000 mm depending on chassis, crane and cargo body |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 3,000–3,900 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 18–41 tons depending on chassis |
| Rated Payload | According to chassis, crane weight and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | SINOTRUK heavy-duty steering axle |
| Rear Axle | SINOTRUK / MC-series heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available |
| Frame | Reinforced high-strength steel chassis frame |
| Crane Subframe | Heavy-duty reinforced crane mounting subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Heavy-duty multi-leaf spring / balance suspension |
| Tire Model | 11.00R20 / 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 300–500 L |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Crane Type | Straight Boom Crane / Knuckle Boom Crane optional |
| Crane Installation Position | Behind cab standard / rear-mounted optional |
| Crane Brand | XCMG / SANY / other compatible Chinese crane brands |
| Rated Crane Capacity | 5T / 6.3T / 8T / 10T / 12T / 14T / 16T available |
| Boom Sections | 3 / 4 / 5 / 6 sections depending on crane model |
| Boom Structure | Hydraulic telescopic straight boom / articulated folding boom |
| Boom Material | High-strength structural steel |
| Maximum Lifting Height | Approx. 10–22 m depending on crane model |
| Maximum Working Radius | Approx. 8–20 m depending on crane model |
| Maximum Lifting Moment | According to crane model and capacity |
| Boom Extension | Hydraulic telescopic |
| Boom Elevation | Hydraulic |
| Crane Slewing | Hydraulic |
| Slewing Angle | 360° continuous / limited rotation depending on crane |
| Slewing Bearing | Heavy-duty slewing bearing |
| Main Hook | Heavy-duty lifting hook |
| Steel Wire Rope | High-strength lifting wire rope |
| Main Winch | Hydraulic winch |
| Winch Brake | Automatic braking system |
| Hydraulic Pump | PTO-driven hydraulic pump |
| Hydraulic Working Pressure | Approx. 20–32 MPa depending on crane |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Optional |
| Hydraulic Control Valve | Multi-way proportional hydraulic valve |
| Hydraulic Cylinders | Heavy-duty hydraulic cylinders |
| Crane Control | Manual hydraulic / electro-hydraulic control |
| Ground Control | Available |
| High-Seat Control | Optional |
| Wireless Remote Control | Optional |
| Cab Control | Optional |
| Emergency Manual Control | Optional |
| Overload Protection | Available / optional |
| Moment Limiter | Optional |
| Load Indicator | Optional |
| Boom Angle Indicator | Optional |
| Outrigger Type | Hydraulic H-type / telescopic outriggers |
| Front Outriggers | Available |
| Rear Outriggers | Optional / recommended for heavy cranes |
| Outrigger Extension | Manual / hydraulic optional |
| Outrigger Span | According to crane model |
| Vertical Outrigger Cylinder | Hydraulic |
| Outrigger Foot Pads | Heavy-duty steel pads |
| Cargo Body Type | Dropside cargo body / flatbed cargo body |
| Cargo Body Length | Approx. 4,500–8,500 mm |
| Cargo Body Width | Approx. 2,300–2,500 mm |
| Cargo Body Height | Approx. 500–800 mm for dropside configuration |
| Cargo Body Material | Carbon steel / high-strength steel |
| Cargo Floor | Checkered steel plate / flat steel plate / wood-steel combination |
| Floor Thickness | Approx. 3–8 mm or customized |
| Side Wall Thickness | Approx. 2–4 mm or customized |
| Side Panels | Fixed / foldable / removable optional |
| Rear Tailgate | Foldable / removable |
| Cargo Body Reinforcement | Reinforced longitudinal and transverse beams |
| Flatbed Configuration | Optional |
| Dropside Configuration | Available |
| Stake Body Configuration | Optional |
| Hydraulic Rear Outriggers | Optional |
| Auxiliary Winch | Optional |
| Additional Hook | Optional |
| Working Basket | Optional for compatible applications |
| Lifting Slings | Optional |
| Shackles | Optional |
| Spreader Beam | Optional |
| Crane Working Lights | Optional |
| Reversing Camera | Optional |
| Crane Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Lights | Optional |
| Audible Warning Alarm | Optional |
| Toolbox | Available |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, yellow, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, crane brand, crane capacity, boom sections, lifting height, working radius, outriggers, cargo body size, control system, steering side, cameras, paint color, company logo and export markings |

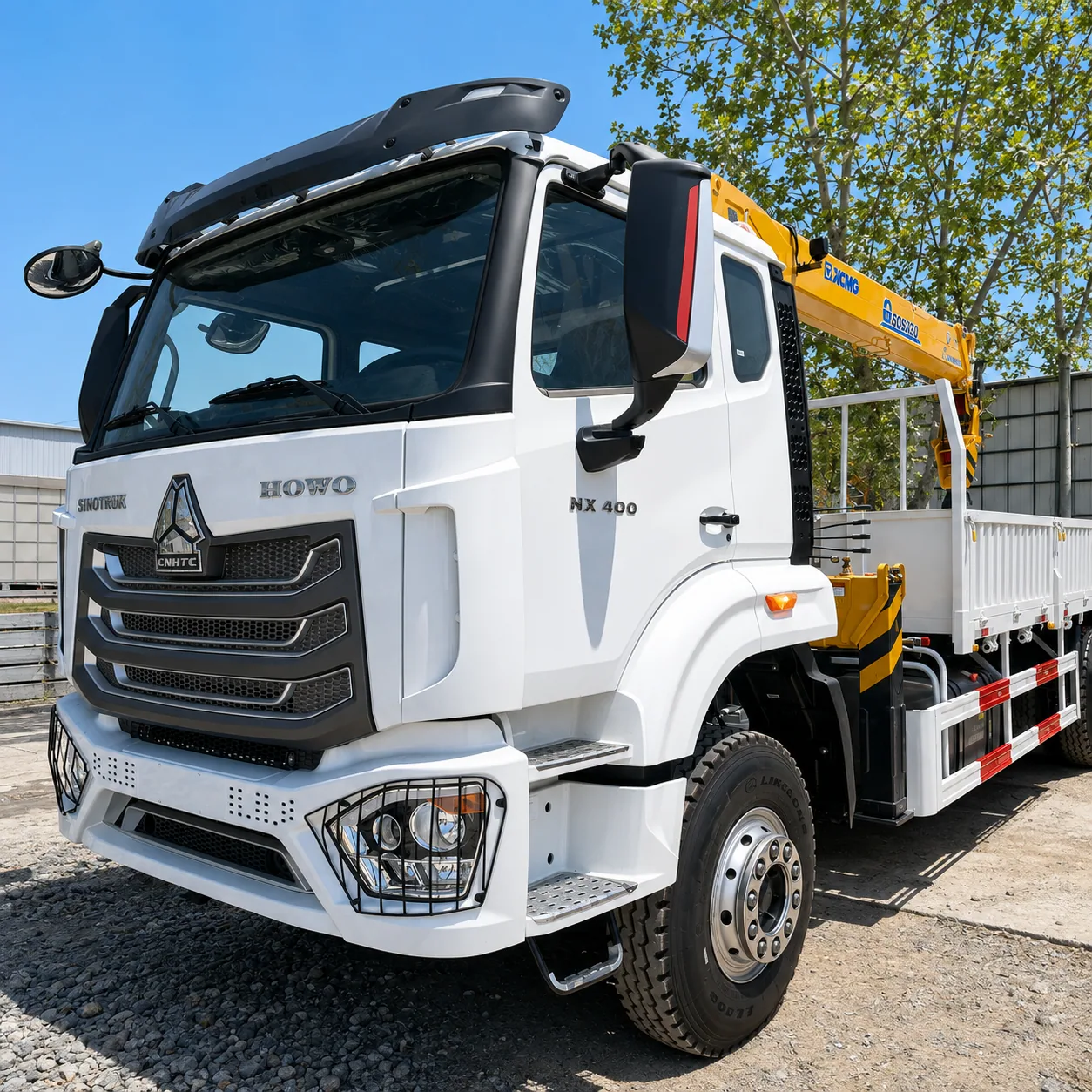

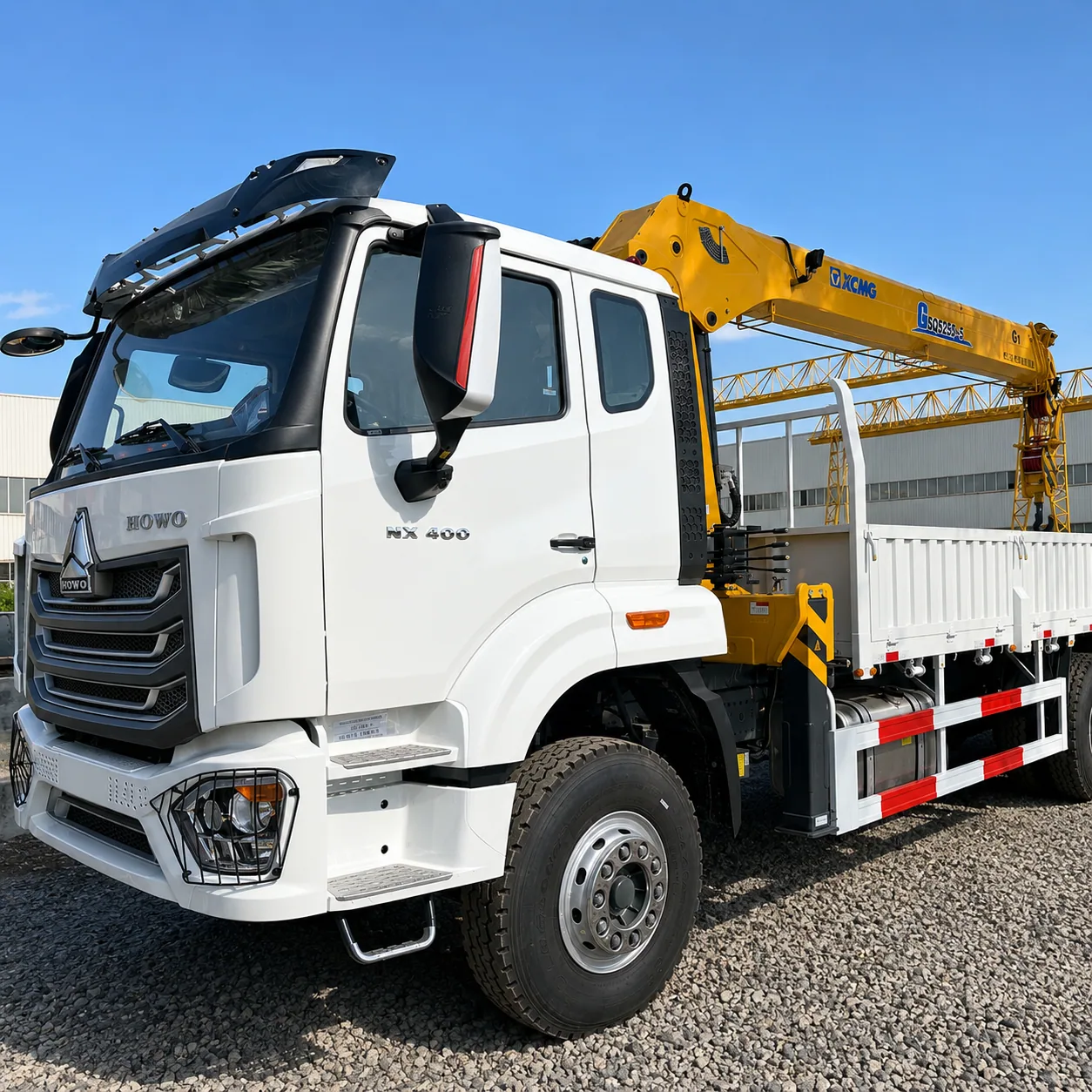

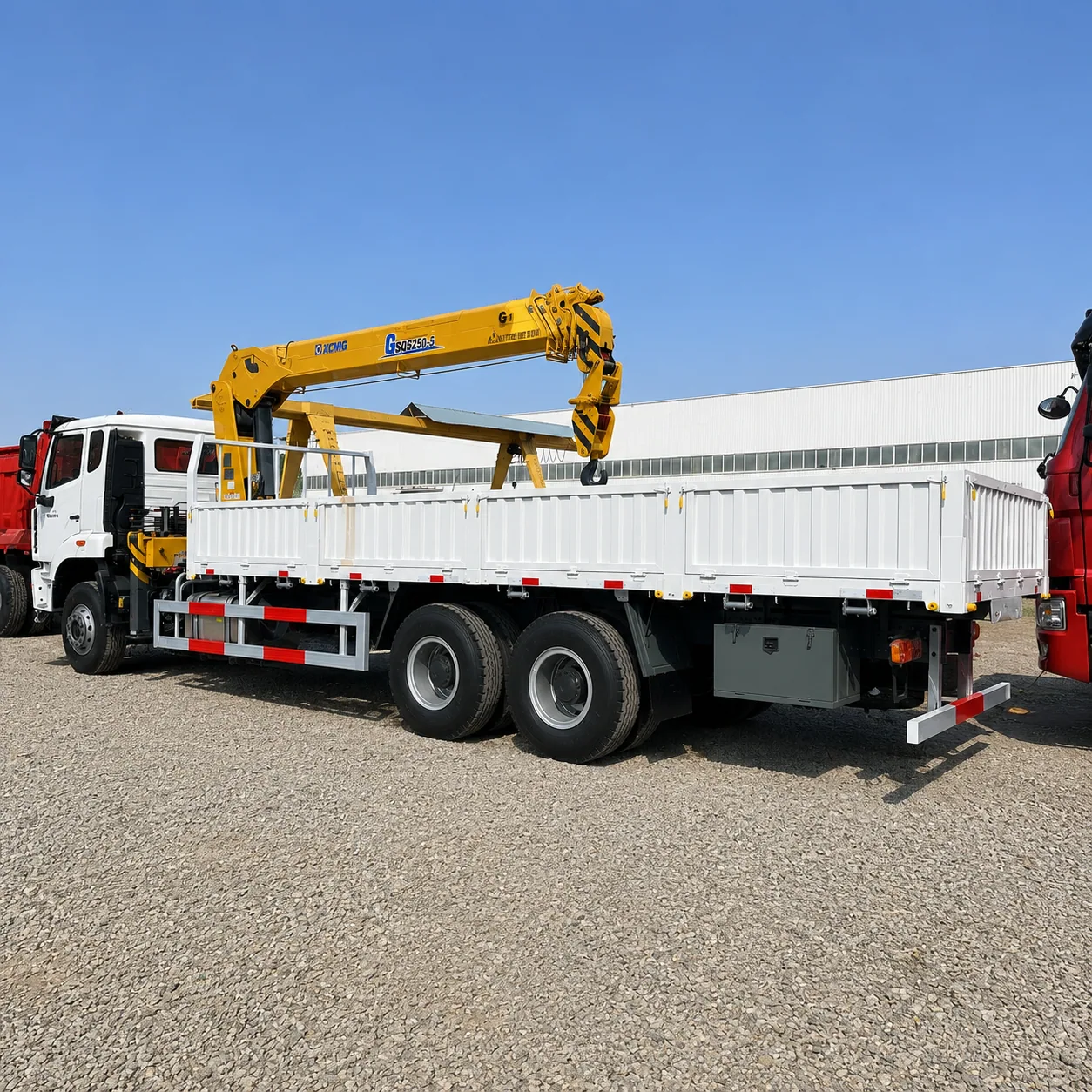

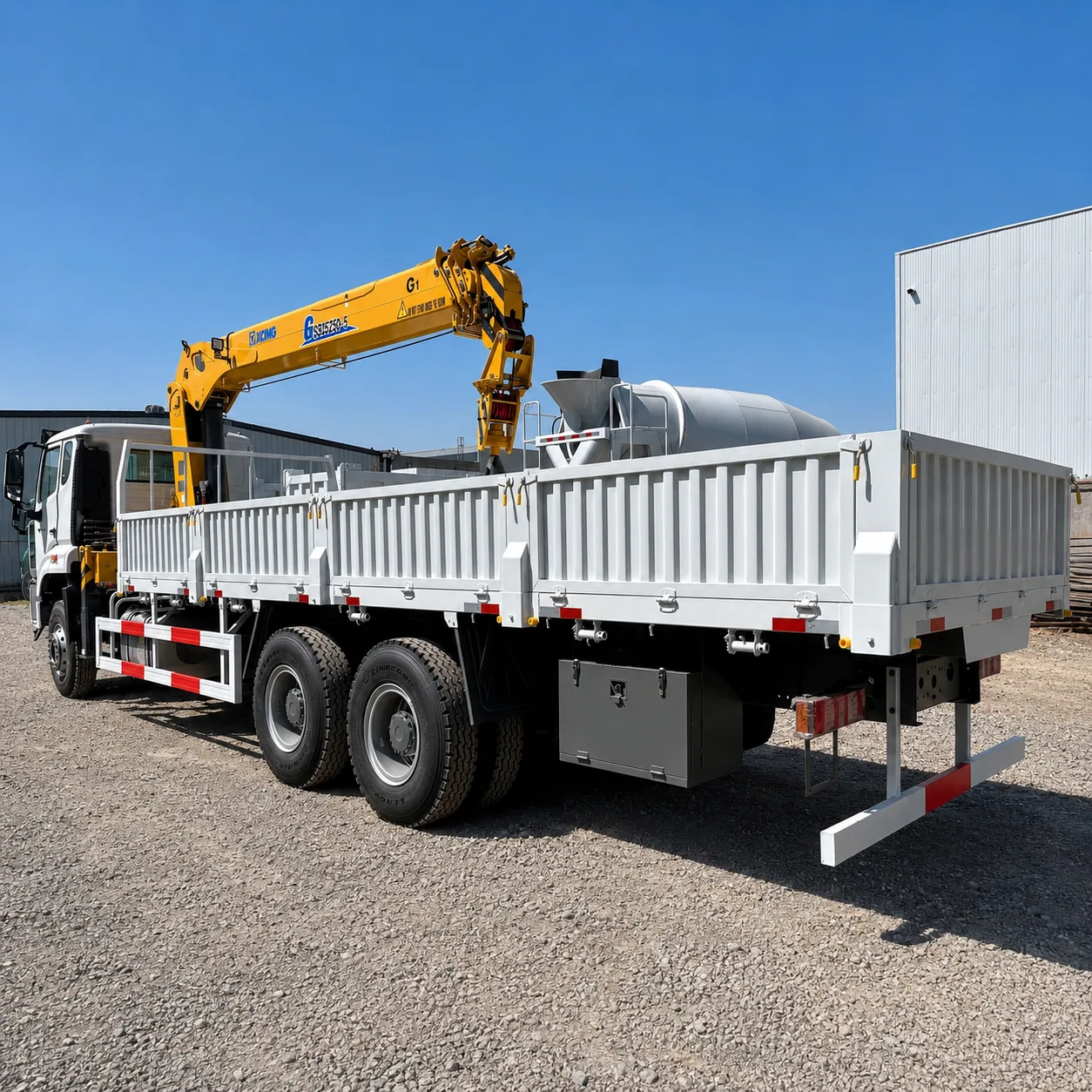

Product Details
Typical Applications
- Construction-material lifting and transportation
- steel transportation
- prefabricated component lifting
- machinery loading and unloading
- generator transportation
- transformer installation
- electrical equipment transportation
- utility construction
- pipeline projects
- road construction
- bridge construction
- building-material transportation
- industrial equipment installation
- factory relocation
- warehouse cargo handling
- port operations
- municipal engineering
- telecommunications equipment installation
- mining-site material handling
- agricultural machinery transportation
- landscaping projects
- emergency lifting operations.
Available Configurations
- 340HP, 380HP, 400HP or 430HP diesel engine
- HOWO NX 4×2, 6×4 or 8×4 chassis
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 10-speed or 12-speed manual transmission
- 5T, 6.3T, 8T, 10T, 12T, 14T or 16T truck-mounted crane
- XCMG, SANY or other compatible crane brands
- straight-boom or knuckle-boom crane
- 3-section, 4-section, 5-section or 6-section boom
- approximately 10–22m lifting height
- approximately 8–20m working radius
- 360° rotation according to crane model
- hydraulic H-type outriggers
- rear hydraulic outriggers
- ground control
- high-seat control
- electro-hydraulic proportional control
- wireless remote control
- overload protection
- moment limiter
- load indicator
- approximately 4.5–8.5m cargo body
- dropside cargo body
- flatbed cargo body
- removable side panels
- reinforced steel floor
- auxiliary hydraulic winch
- working basket
- crane camera
- reversing camera
- 360° monitoring system
- LED working lights
- toolbox
- lifting accessories
- customized crane capacity, cargo body, paint color, company logo and export markings.
Buyer Support
- HOWO NX Truck Mounted Crane combines the modern HOWO NX chassis with a professional hydraulic crane and cargo body, allowing lifting, loading, transportation and unloading to be completed by one vehicle. This integrated configuration reduces dependence on separate cranes and transport trucks and improves efficiency for construction, engineering and equipment-handling projects. Crane capacities from approximately 5T to 16T provide flexible solutions for different lifting requirements. 5T and 6.3T cranes are suitable for building materials and light machinery
- 8T and 10T cranes provide greater lifting capacity for construction and industrial equipment
- 12T, 14T and 16T cranes are suitable for heavier machinery, utility equipment and engineering applications. 4×2, 6×4 and 8×4 chassis configurations allow the HOWO NX platform to match different crane capacities and cargo loads. Medium-duty configurations provide better maneuverability, while 6×4 and 8×4 versions provide stronger chassis capacity and improved stability for larger cranes and heavier loads. Straight-boom cranes provide greater lifting height and longer working radius for general construction and equipment loading. Knuckle-boom cranes can be selected for projects requiring compact folded dimensions and more flexible lifting in restricted working spaces. Hydraulic outriggers provide a stable working base during crane operation. Larger 10–16T crane configurations can be equipped with additional rear outriggers to increase the support area and improve stability when operating at extended boom radius. Ground controls, high-seat controls and optional wireless remote control provide flexible operating methods. Overload protection, moment limiters, load indicators and crane cameras can be added to improve operational control and safety. The reinforced cargo body allows materials and equipment to be transported immediately after lifting. Cargo-body length, floor thickness, side-wall height and body structure can be customized according to steel, construction materials, machinery, generators and other cargo. Left-hand-drive and right-hand-drive configurations are available for different export markets. Engine power, drive configuration, crane brand, lifting capacity, boom sections, lifting height, working radius, outriggers, cargo-body dimensions, control system, cameras, paint color and other specifications can be customized according to project requirements.

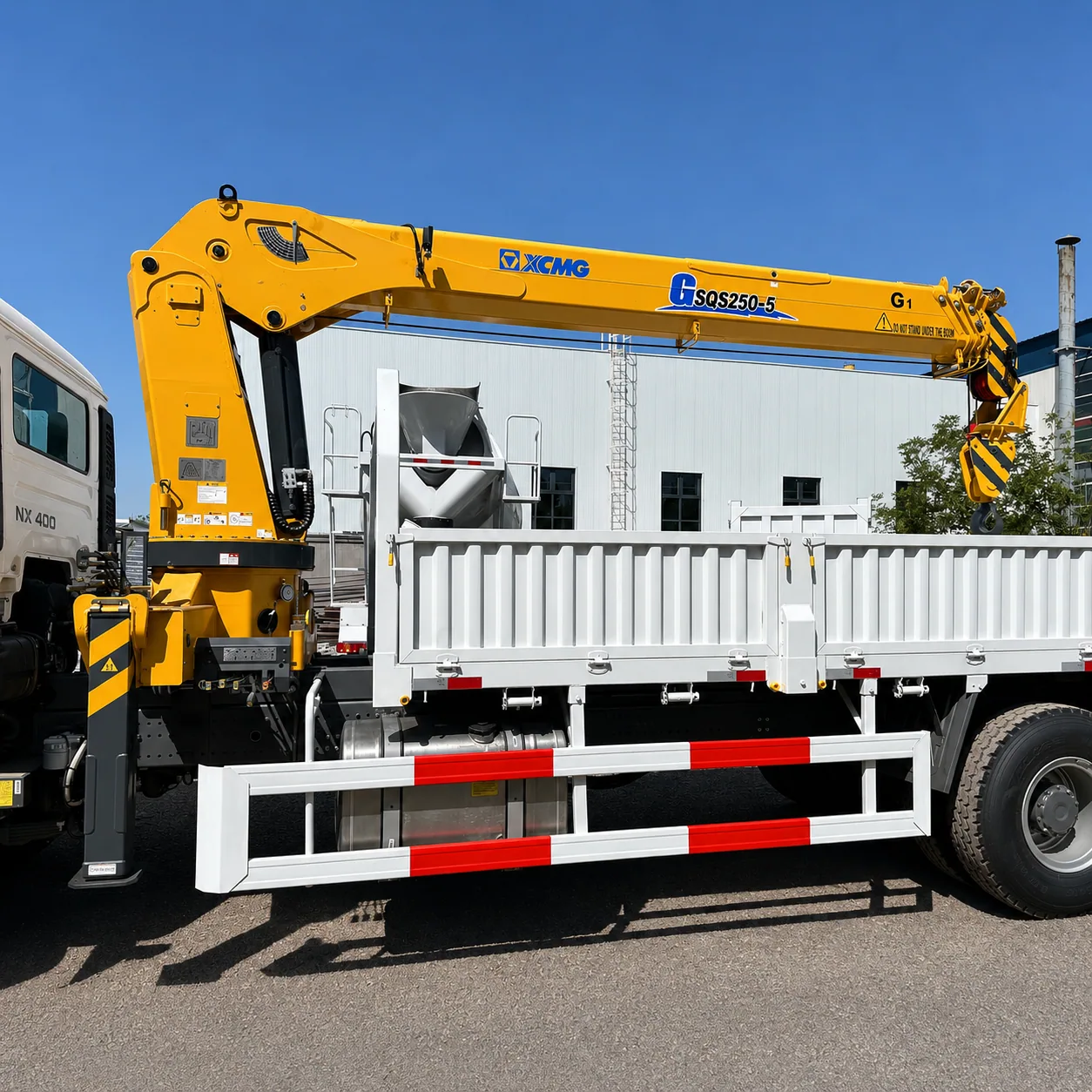

Product Display
