Special Trucks
HOWO NX Fuel Tanker Truck 340 / 380 / 400 / 430HP 15 / 20 / 25 / 30CBM Available
HOWO NX Fuel Tanker Truck is a medium- and heavy-duty petroleum transportation and mobile refueling vehicle designed for fuel distribution, construction projects, mining operations, fleet support and remote-site fuel supply. The vehicle combines a SINOTRUK HOWO NX chassis with a professionally manufactured fuel tank body, internal anti-wave baffles, loading and discharge pipelines, safety valves and optional mobile refueling equipment. HOWO NX fuel tanker trucks are available with 6×4 and 8×4 chassis configurations, with selected 4×2 configurations available for smaller-capacity applications. Engine options include approximately 340HP, 380HP, 400HP and 430HP, while tank capacities of approximately 15CBM, 20CBM, 25CBM and 30CBM can be configured according to chassis capacity, transported product and destination-market requirements. Single- or multi-compartment tank configurations are available. The truck can be supplied as a standard fuel transportation tanker or equipped with a PTO-driven fuel pump, flow meter, fuel dispenser, hose reel and refueling gun for direct on-site refueling. Bottom loading, API adapters, vapor recovery, emergency shut-off valves, overfill protection and anti-static systems can be added according to the transported fuel and local regulations.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Fuel Tanker Truck / Oil Tanker Truck / Fuel Bowser / Mobile Refueling Truck |
| Brand | SINOTRUK HOWO |
| Chassis Series | HOWO NX |
| Drive Type | 4×2 / 6×4 / 8×4 available according to chassis |
| Engine Power | 340HP / 380HP / 400HP / 430HP available |
| Engine Brand | SINOTRUK / Weichai |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed available |
| PTO | Available for fuel pump system |
| Cab Series | HOWO NX |
| Cab Type | Standard / extended / high-roof cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available |
| Driver Seat | Adjustable / air-suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,000–12,000 mm depending on chassis and tank capacity |
| Overall Width | Approx. 2,450–2,550 mm |
| Overall Height | Approx. 3,000–3,800 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 25–41 tons depending on chassis |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | SINOTRUK heavy-duty steering axle |
| Rear Axle | SINOTRUK / MC-series heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced fuel-tanker special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Heavy-duty multi-leaf spring / balance suspension |
| Tire Model | 11.00R20 / 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Vehicle Fuel Tank | Approx. 300–500 L depending on chassis |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Tank Capacity | 15CBM / 20CBM / 25CBM / 30CBM available |
| Common 6×4 Tank Capacity | Approx. 15–25 CBM |
| Common 8×4 Tank Capacity | Approx. 20–30 CBM |
| Tank Shape | Elliptical / oval fuel tank |
| Tank Structure | Welded sealed petroleum transportation tank |
| Tank Material | Q235 carbon steel / stainless steel / aluminum alloy optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Aluminum-Alloy Tank | Optional |
| Tank Body Thickness | Approx. 4–6 mm for carbon steel or customized |
| Tank Head Thickness | Approx. 5–7 mm for carbon steel or customized |
| Compartment Quantity | 1 / 2 / 3 / 4 / 5 / 6 compartments optional |
| Single Compartment | Available |
| Multi-Compartment | Available |
| Compartment Capacity | Customized according to transport requirements |
| Compartment Isolation | Independent sealed compartments |
| Anti-Wave Baffles | Multiple internal anti-surge baffles |
| Baffle Structure | Reinforced anti-surge design |
| Manhole Quantity | According to number of compartments |
| Manhole Diameter | Approx. 500 mm or according to design |
| Manhole Cover | Fuel-tanker safety manhole cover |
| Emergency Vent | Available according to configuration |
| Breathing Valve | Available |
| Pressure/Vacuum Valve | Available / optional |
| Tank Ladder | Available |
| Top Walkway | Available |
| Safety Guardrail | Optional |
| Loading Method | Top loading / bottom loading optional |
| Top Loading | Available |
| Bottom Loading | Optional according to market requirements |
| Bottom Loading Adapter | API-type adapter optional |
| Bottom Loading Pipeline | Optional |
| Loading Pipeline Material | Carbon steel / stainless steel / aluminum alloy |
| Discharge Method | Gravity discharge / pump discharge |
| Bottom Discharge | Available |
| Independent Compartment Discharge | Available |
| Fuel Pump | Optional |
| Fuel Pump Type | Gear pump / centrifugal fuel pump or equivalent |
| Fuel Pump Drive | PTO-driven / auxiliary drive optional |
| Pump Flow Rate | Approx. 30–80 m³/h depending on pump |
| Pump Suction Depth | Approx. 5–7 m depending on pump |
| Pump Inlet Diameter | According to pump configuration |
| Pump Outlet Diameter | According to pump configuration |
| Pump Bypass System | Optional |
| Fuel Dispenser | Optional |
| Fuel Dispenser Type | Mechanical / electronic dispenser |
| Fuel Meter | Mechanical / electronic flow meter optional |
| Flow Meter Accuracy | According to selected metering system |
| Refueling Gun | Optional |
| Automatic Fuel Nozzle | Optional |
| Hose Reel | Optional |
| Hose Reel Type | Manual / spring-return / electric optional |
| Refueling Hose Length | Approx. 10–30 m or customized |
| Hose Diameter | According to flow requirement |
| Mobile Refueling System | Optional |
| Fuel Transportation Configuration | Available |
| Fuel Distribution Configuration | Available |
| Digital Fuel Meter | Optional |
| Digital Display | Optional |
| Printer | Optional for compatible dispenser |
| Bottom Valve | Manual / pneumatic bottom valve optional |
| Emergency Shut-Off Valve | Optional / according to market requirements |
| Emergency Valve Control | Manual / pneumatic optional |
| API Discharge Adapter | Optional |
| Dust Cap | Available / optional |
| Vapor Recovery System | Optional |
| Vapor Recovery Valve | Optional |
| Vapor Recovery Adapter | Optional |
| Overfill Protection | Optional |
| Overfill Sensor | Optional |
| Overfill Socket | Optional |
| Static Grounding Reel | Optional / recommended |
| Grounding Wire | Available |
| Anti-Static Chain | Available / optional |
| Conductive Hose | Optional |
| Pipeline Material | Carbon steel / stainless steel / aluminum alloy |
| Pipeline Layout | Independent pipeline / manifold system |
| Valve Material | Aluminum alloy / stainless steel / carbon steel |
| Pipeline Box | Available / optional |
| Hose Box | Available |
| Toolbox | Available |
| Tank Level Indicator | Mechanical / electronic optional |
| Liquid Level Gauge | Optional |
| Electronic Level Monitoring | Optional |
| Compartment Identification | Optional |
| Rear Bumper | Heavy-duty protective structure |
| Side Guard | Available |
| Mudguards | Available |
| Fire Extinguisher | Available / according to local requirements |
| Fire Extinguisher Bracket | Available |
| Warning Signs | Optional / according to local regulations |
| Reflective Markings | Optional |
| Hazard Identification Plate | Optional / according to local requirements |
| Warning Beacon | Optional |
| Explosion-Proof Electrical Equipment | Optional according to project requirements |
| Explosion-Proof Junction Box | Optional |
| Master Electrical Isolation Switch | Optional |
| Emergency Power Cut-Off | Optional |
| Reversing Camera | Optional |
| Rear Monitoring Camera | Optional |
| 360° Monitoring System | Optional |
| Internal Anti-Corrosion Treatment | Optional according to transported product |
| External Anti-Corrosion Treatment | Available |
| External Painting | Industrial primer + topcoat |
| Tank Color | White / silver / yellow / blue / red / customized |
| Company Logo | Customized |
| Export Markings | Customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, tank capacity, tank material, compartments, fuel pump, dispenser, flow meter, hose reel, loading system, API equipment, vapor recovery, overfill protection, safety devices, steering side, cameras, paint color, logo and export markings |
Product Details
Typical Applications
- Diesel transportation
- gasoline transportation where compatible and legally permitted
- commercial fuel distribution
- construction-site refueling
- mining equipment refueling
- quarry machinery refueling
- truck fleet refueling
- generator refueling
- agricultural machinery refueling
- industrial fuel delivery
- remote-site fuel supply
- infrastructure project fuel supply
- road-construction machinery refueling
- logistics fleet fuel supply
- municipal fleet refueling
- fuel station distribution
- oilfield support operations.
Available Configurations
- 340HP, 380HP, 400HP or 430HP diesel engine
- HOWO NX 4×2, 6×4 or 8×4 chassis
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 10-speed or 12-speed manual transmission
- 15CBM, 20CBM, 25CBM or 30CBM fuel tank
- Q235 carbon-steel, stainless-steel or aluminum-alloy tank
- single compartment or 2 / 3 / 4 / 5 / 6 compartments
- customized compartment volumes
- internal anti-wave baffles
- top loading
- bottom loading
- API bottom-loading adapters
- independent compartment pipelines
- manual or pneumatic bottom valves
- emergency shut-off valves
- gravity discharge
- PTO-driven fuel pump
- approximately 30–80m³/h pump flow
- mobile refueling system
- mechanical or electronic fuel dispenser
- fuel flow meter
- automatic refueling gun
- 10–30m hose reel
- digital display
- printer
- API discharge adapters
- vapor recovery system
- overfill sensors
- static grounding reel
- anti-static chain
- conductive hose
- mechanical or electronic liquid-level monitoring
- explosion-proof electrical components
- master electrical isolation switch
- fire extinguishers
- warning markings
- reversing camera
- 360° monitoring system
- customized tank structure, fuel equipment, safety configuration, paint color, company logo and export markings.
Buyer Support
- HOWO NX Fuel Tanker Truck combines the HOWO NX heavy-duty chassis with a professionally designed fuel transportation tank, providing an efficient solution for commercial fuel distribution, construction sites, mining operations, logistics fleets and remote projects. Tank capacities from approximately 15CBM to 30CBM provide flexible solutions for medium- and heavy-duty fuel transport. 6×4 configurations offer a practical balance between tank volume, maneuverability and road performance, while 8×4 configurations provide greater axle capacity for larger-volume fuel transportation applications. Single- and multi-compartment configurations are available. Independent compartments allow different compatible fuel products or separate delivery quantities to be transported according to distribution requirements, with individual valves and pipelines available for each compartment. The vehicle can be configured as a dedicated fuel transportation tanker or as a mobile refueling truck. Optional fuel pumps, meters, dispensers, hose reels and refueling guns allow direct fuel supply to mining machinery, excavators, loaders, generators, agricultural equipment and commercial fleets. Carbon-steel tanks provide a cost-effective and durable solution for general fuel transportation, while stainless-steel and aluminum-alloy tank bodies are available for customers requiring different corrosion resistance, weight or product compatibility. Internal anti-wave baffles reduce liquid surge during braking, acceleration and cornering, while the reinforced tank subframe provides reliable connection between the tank and the HOWO NX chassis during loaded transportation. Optional bottom loading, API adapters, pneumatic bottom valves, emergency shut-off devices, vapor recovery equipment, overfill sensors, static grounding systems and other components can be configured according to the transported product and destination-market requirements. Left-hand-drive and right-hand-drive configurations are available for different export markets. Engine power, drive type, tank capacity, tank material, number of compartments, loading and discharge systems, fuel pump, dispenser, metering system, hose reel, safety equipment, cameras, paint color and other specifications can be customized according to project requirements.

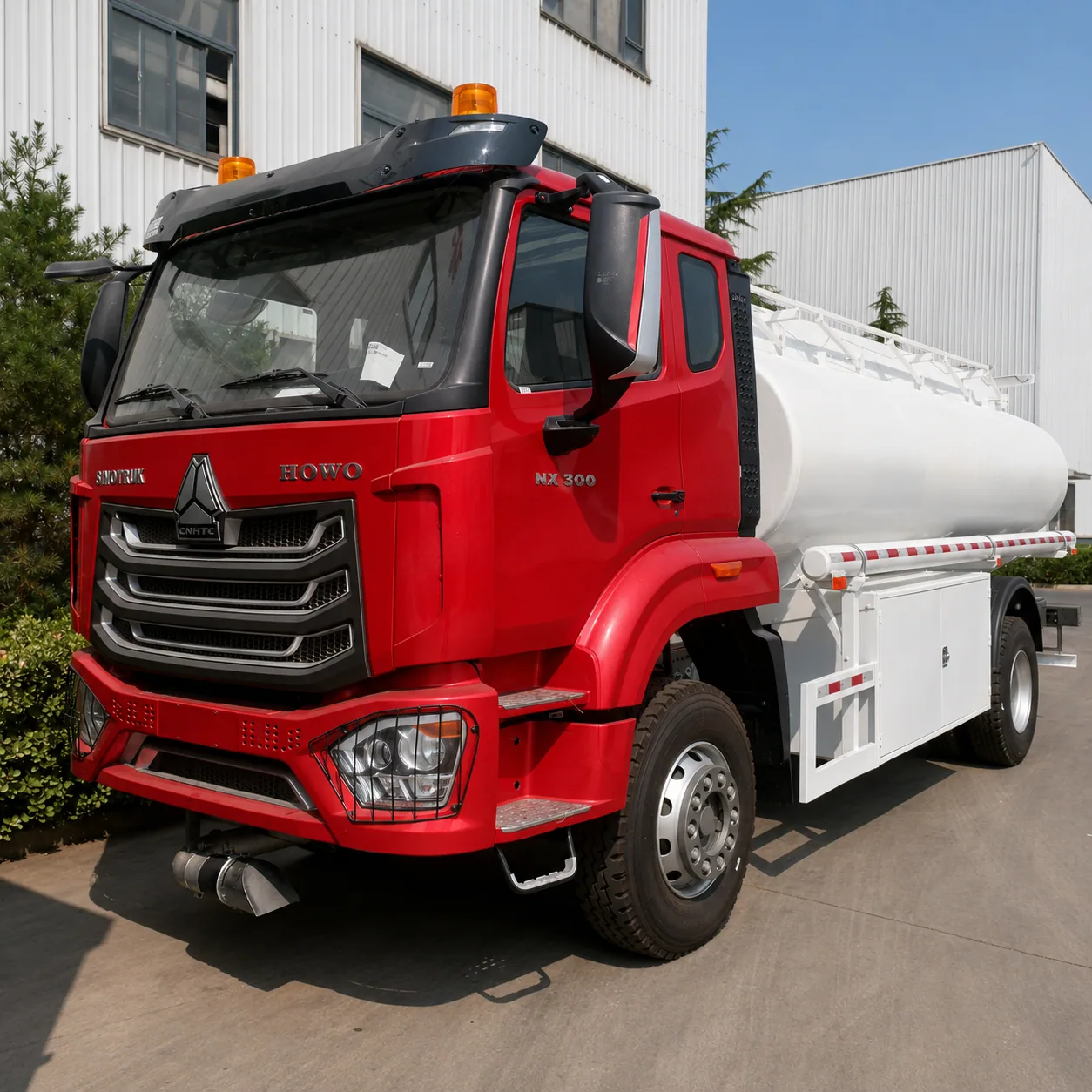

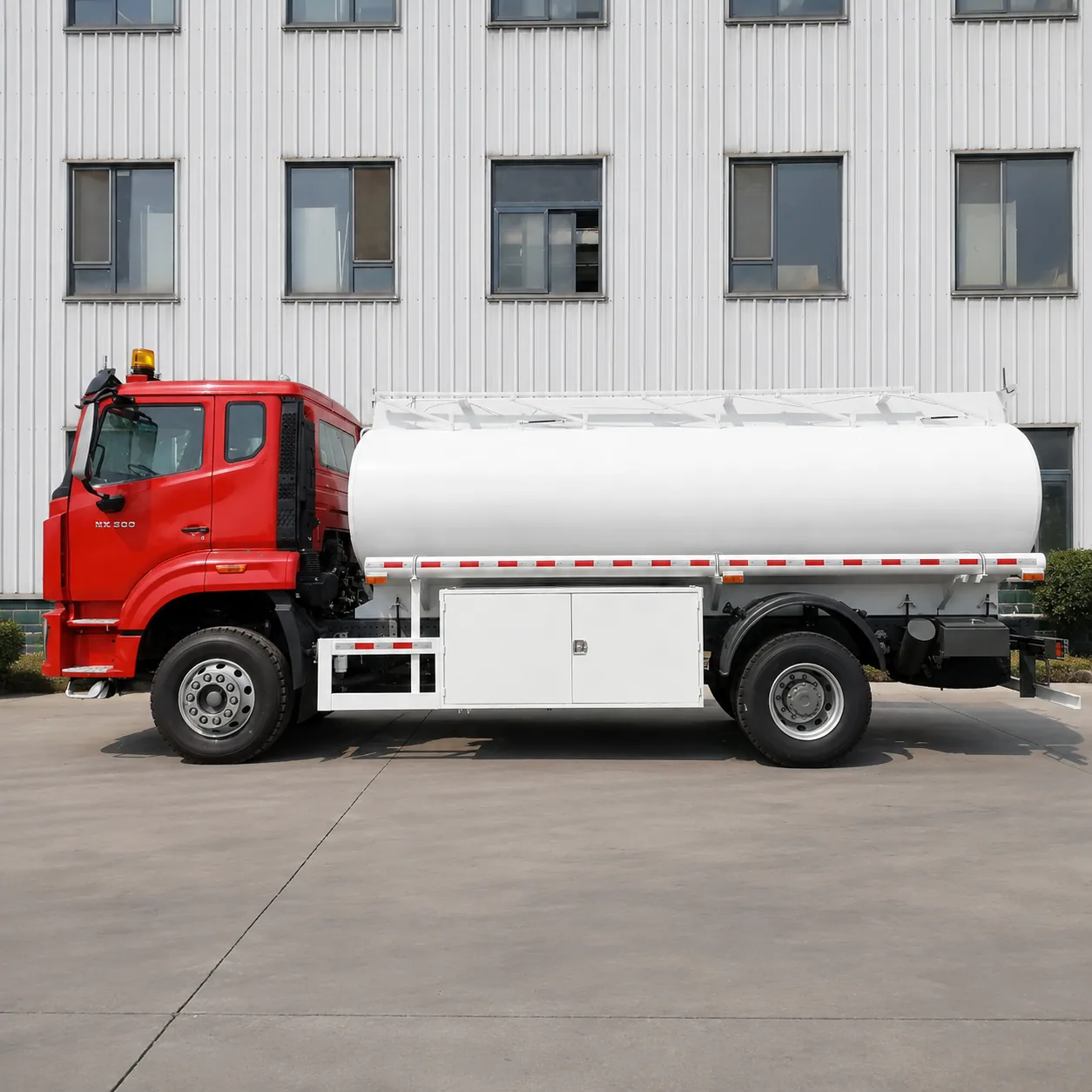

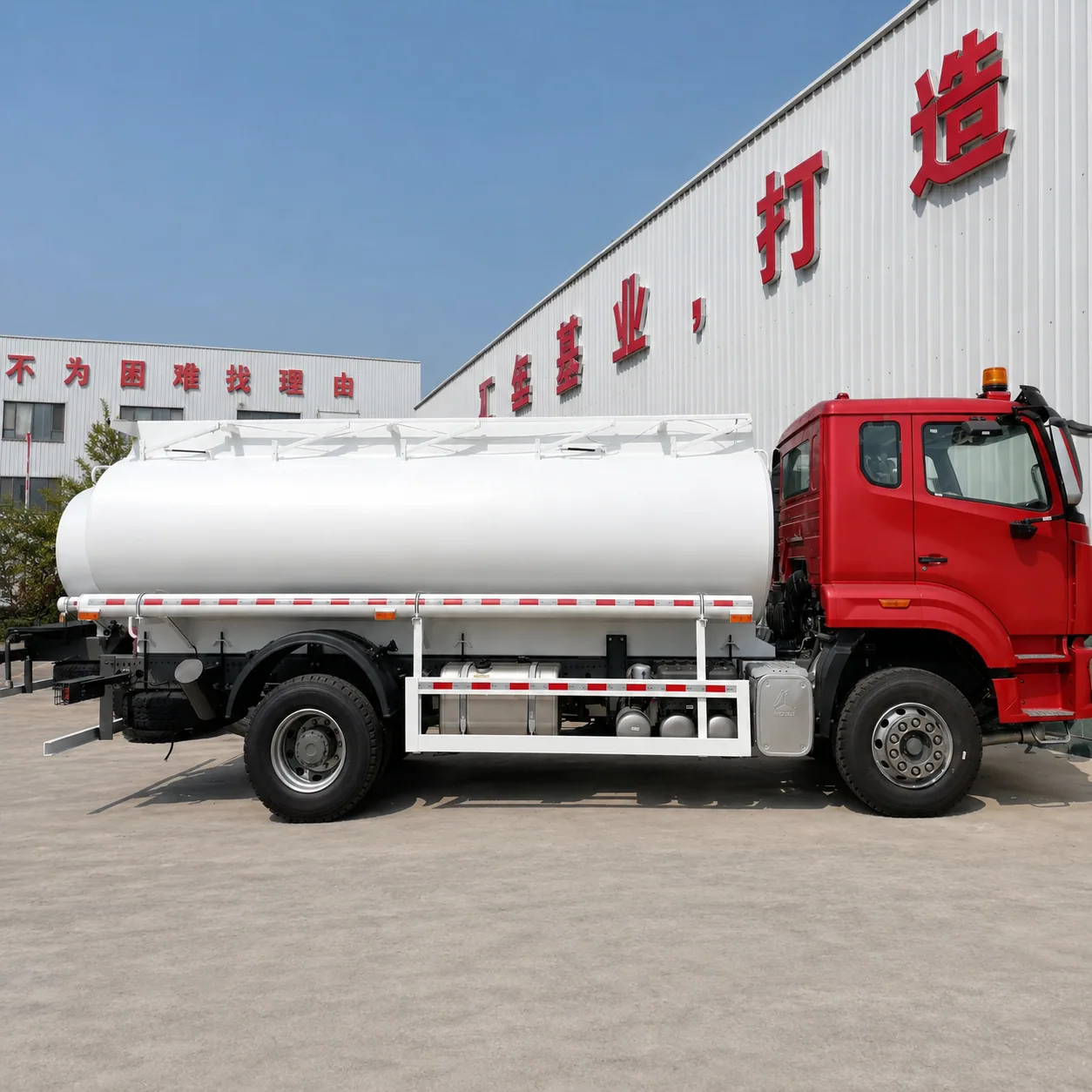

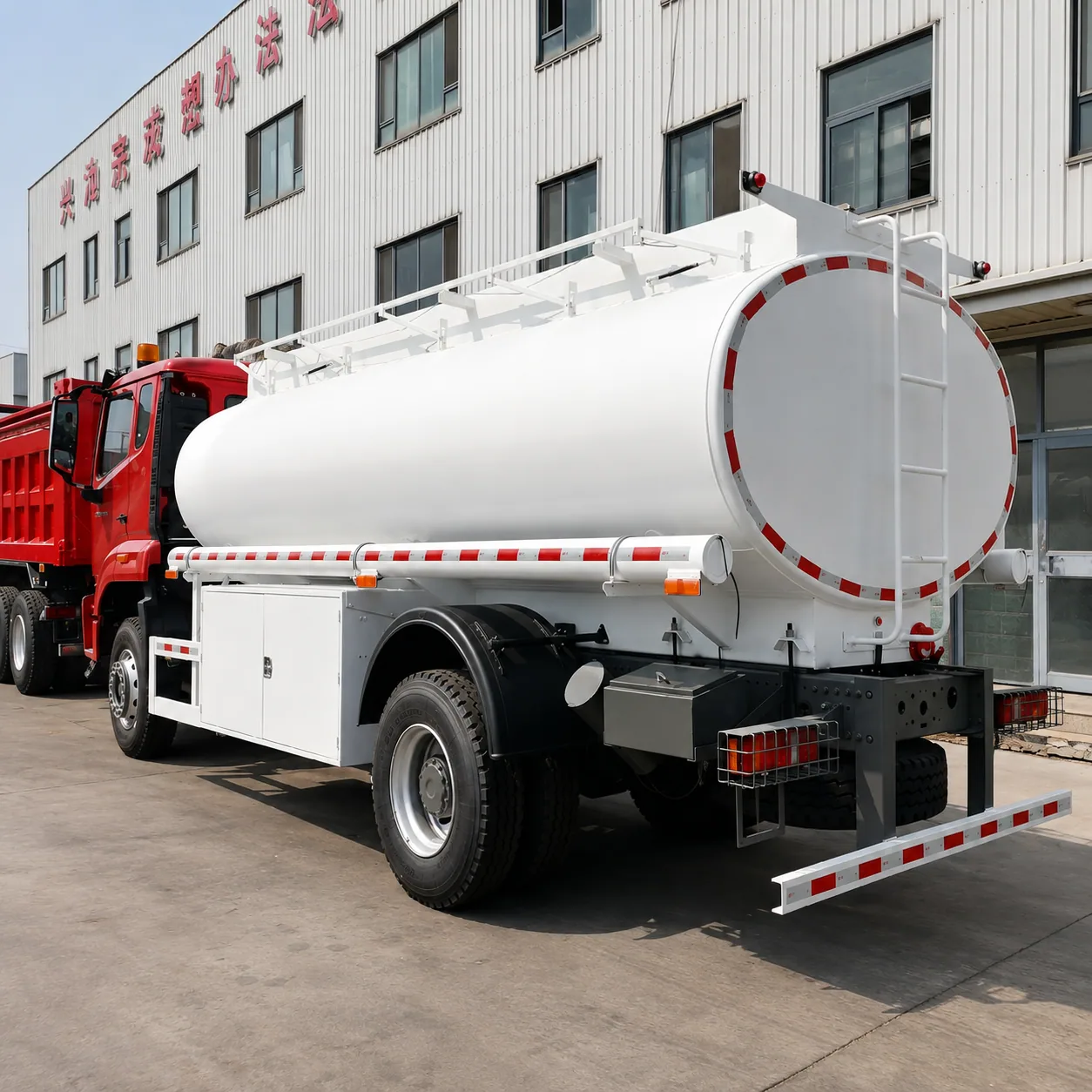

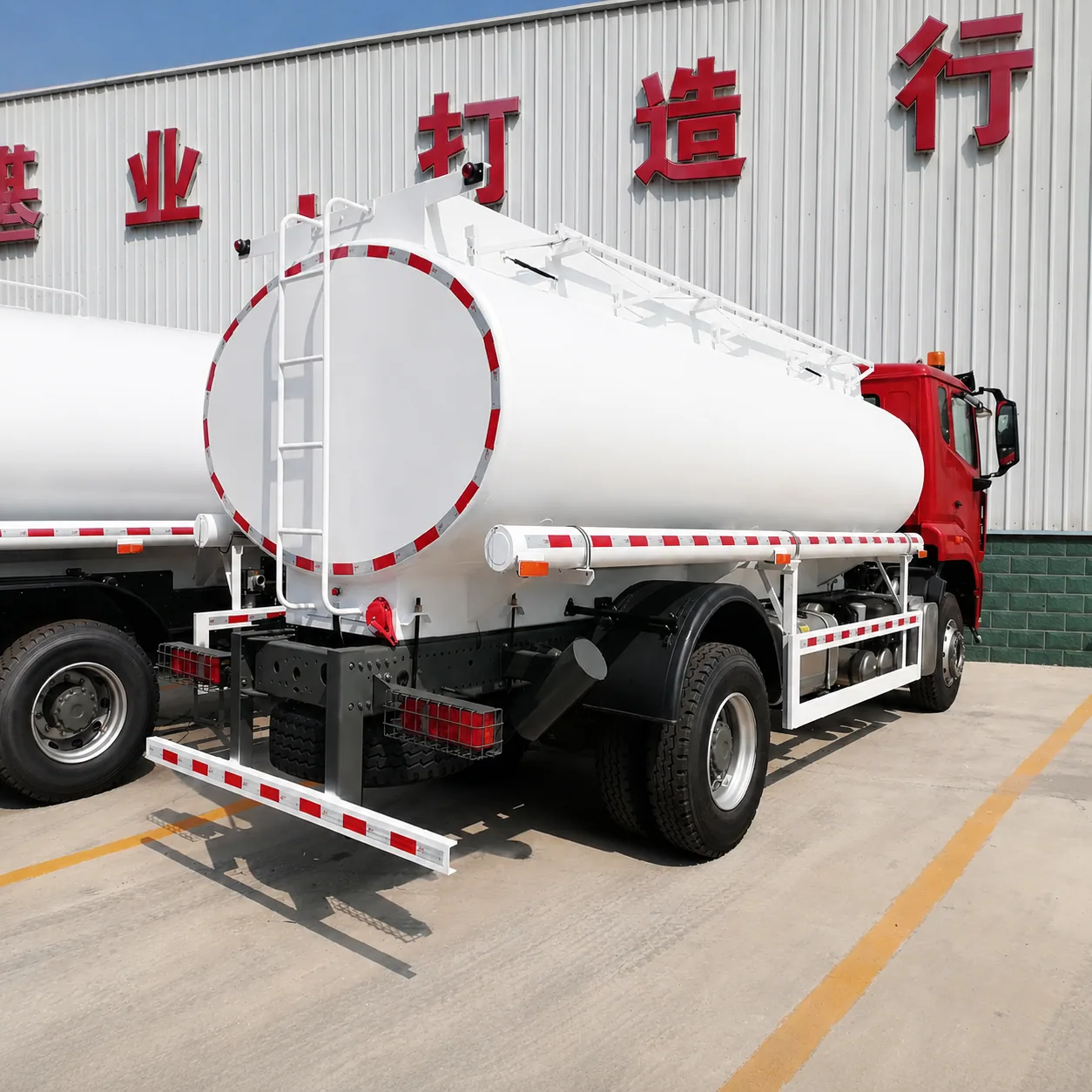

Product Display
