Special Trucks
HOWO Hook Lift Garbage Truck 110 / 140 / 160 / 290 / 371HP 5–28CBM Available
HOWO Hook Lift Garbage Truck is a specialized waste collection and transfer vehicle designed for municipal solid waste, construction waste, industrial waste and bulk refuse transportation. The vehicle combines a reliable SINOTRUK HOWO chassis with a fully hydraulic hook-lift system, reinforced subframe, hydraulic cylinders, locking mechanism and detachable waste container, allowing the container to be loaded, unloaded and tipped directly by the truck. The hook-lift design allows one HOWO truck chassis to work with multiple interchangeable containers. Empty containers can be placed at residential communities, industrial areas, construction sites, markets or waste collection points, while the truck collects and replaces full containers as required. This configuration improves chassis utilization and reduces the number of trucks required for decentralized waste collection. Representative HOWO hook-lift configurations include compact 4×2 trucks with approximately 5CBM containers and 5-ton hook systems, as well as heavier HOWO TX and multi-axle versions with significantly higher hook-loading capacities. Different HOWO chassis and hook-lift systems are available for light-, medium- and heavy-duty waste operations. Drive configurations can include 4×2, 6×4 and 8×4, while detachable container volumes can range from approximately 5CBM to 28CBM depending on chassis size, hook capacity and operating requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Hook Lift Garbage Truck / Roll-Off Garbage Truck / Detachable Container Garbage Truck / Hook Arm Garbage Truck |
| Brand | SINOTRUK HOWO |
| Chassis Brand | HOWO |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 110HP / 140HP / 160HP / 290HP / 371HP available according to chassis and stock |
| Engine Brand | Cummins / Yuchai / Weichai / SINOTRUK or equivalent according to chassis |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro V / Euro VI available according to model year and export market |
| Transmission Brand | WLY / SINOTRUK / FAST or equivalent according to chassis |
| Transmission Type | Manual transmission |
| Transmission Gears | 5-speed / 6-speed / 10-speed / 12-speed available according to chassis |
| PTO | Power take-off for hydraulic hook-lift system |
| Cab Type | Single-row / extended HOWO cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium- and heavy-duty chassis |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional according to chassis |
| Overall Length | Approx. 5,500–10,000 mm depending on chassis and hook-lift system |
| Overall Width | Approx. 2,200–2,550 mm |
| Overall Height | Approx. 2,450–3,500 mm |
| Wheelbase | Approx. 3,300–5,000 mm; multi-axle wheelbases available |
| Gross Vehicle Weight | Approx. 7–35 tons depending on chassis |
| Curb Weight | Approx. 3.8–15 tons depending on chassis and hook-lift equipment |
| Rated Payload | Approx. 3–25 tons depending on chassis and local certification |
| Maximum Driving Speed | Approx. 80–105 km/h |
| Front Axle | HOWO / compatible steering axle according to chassis |
| Rear Axle | HOWO heavy-duty drive axle according to chassis |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available on heavy-duty configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Subframe | Reinforced hook-lift special-purpose subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 7.50R16 / 8.25R16 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis; spare tire available |
| Fuel Tank | Approx. 100–400 L depending on chassis |
| Brake System | Hydraulic / dual-circuit compressed-air brake system according to chassis |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Hook Lift Type | Hydraulic hook-arm / roll-off hook-lift system |
| Hook Lift Capacity | Approx. 5T / 8T / 10T / 12T / 15T / 20T / 25T available |
| Container Capacity | Approx. 5–28 CBM depending on chassis and hook-lift capacity |
| Common Container Capacity | 5CBM / 8CBM / 10CBM / 12CBM / 16CBM / 20CBM / 25CBM / 28CBM |
| Container Type | Open-top / sealed / municipal waste / construction-waste container optional |
| Container Material | Q235 / high-strength carbon steel / manganese steel optional |
| Container Floor Thickness | Approx. 4–6 mm or customized |
| Container Side Thickness | Approx. 3–5 mm or customized |
| Container Rear Door | Manual / hydraulic locking rear door optional |
| Container Cover | Manual / hydraulic / tarpaulin cover optional |
| Hook Height | Approx. 1,000–1,570 mm depending on hook-lift system |
| Hook Structure | Fixed / telescopic hook arm according to configuration |
| Hook Loading Time | Approx. 40–60 seconds depending on system |
| Hook Unloading Time | Approx. 40–60 seconds depending on system |
| Self-Dumping Function | Available |
| Maximum Dumping Angle | Approx. 45–50° |
| Hydraulic System Pressure | Approx. 16–30 MPa depending on hook system |
| Main Hydraulic Cylinder | Heavy-duty double-acting hydraulic cylinder |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Control Valve | Multi-way hydraulic control valve |
| Hydraulic Oil Tank | Available |
| Container Locking System | Hydraulic / mechanical locking system |
| Rear Support Device | Hydraulic rear support roller / stabilizer available |
| Guide Rail System | Reinforced container guide rails |
| Container Rollers | Heavy-duty steel rollers |
| Operation Control | Manual hydraulic control / electric control / remote control optional |
| Cab Control | Optional |
| External Control | Available |
| Emergency Manual Control | Optional |
| Container Interchangeability | Multiple compatible containers can be operated by one chassis |
| Sealed Waste Container | Optional |
| Open Construction-Waste Container | Optional |
| Compactor Container | Optional according to hook-lift system |
| Container Drainage | Drain outlet / sewage collection design optional |
| Anti-Corrosion Treatment | Primer + industrial paint / anti-corrosion coating available |
| Rear Warning Light | Optional |
| Working Lights | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Spare Tire | Available |
| Color | White, green, blue, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis, engine, drive type, hook capacity, container capacity, container structure, steel thickness, hydraulic system, control system, steering side, tires, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal solid waste collection
- residential-community waste collection
- urban sanitation
- rural waste collection
- garbage transfer stations
- construction-waste transportation
- demolition-waste transportation
- industrial waste collection
- factory waste transportation
- commercial-area waste collection
- wholesale-market waste collection
- hospital non-hazardous waste transportation
- school and campus waste collection
- logistics-park waste collection
- port and terminal waste management
- mining-camp waste transportation
- large public-area sanitation
- bulk refuse collection
- recyclable-material transportation
- temporary waste-container collection
- municipal waste transfer operations.
Available Configurations
- 110HP, 140HP, 160HP, 290HP or 371HP diesel engine
- light-, medium- or heavy-duty HOWO chassis
- 4×2, 6×4 or 8×4 drive configuration
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro V / Euro VI emission configuration according to chassis
- manual transmission
- 5T, 8T, 10T, 12T, 15T, 20T or 25T hydraulic hook-lift system
- 5CBM, 8CBM, 10CBM, 12CBM, 16CBM, 20CBM, 25CBM or 28CBM detachable container
- fixed or telescopic hook arm
- open-top waste container
- fully sealed garbage container
- construction-waste container
- reinforced heavy-duty container
- compactor container according to hook-lift compatibility
- Q235 carbon-steel or high-strength steel container
- customized container floor and side-wall thickness
- manual or hydraulic rear door
- hydraulic container locking system
- hydraulic rear stabilizer
- hydraulic self-dumping system
- electric hydraulic control
- remote control
- cab-mounted controls
- reversing camera
- rear working camera
- LED warning lights
- hydraulic / manual container cover
- tarpaulin system
- anti-corrosion coating
- toolbox
- spare tire
- air conditioner
- customized container dimensions, hook capacity, paint color, company logo and export markings.
Buyer Support
- HOWO Hook Lift Garbage Truck combines a durable SINOTRUK HOWO chassis with a fully hydraulic detachable-container system for efficient municipal, industrial and construction-waste collection
- one truck can operate with multiple interchangeable waste containers, allowing containers to remain at different collection points while the chassis performs continuous transportation and replacement operations
- this operating model improves vehicle utilization and is particularly suitable for decentralized garbage collection and centralized waste transfer. Light-, medium- and heavy-duty HOWO chassis options allow the vehicle to cover different waste volumes and operating environments
- 4×2, 6×4 and 8×4 configurations can be selected according to payload, road conditions and container size
- approximately 5–25T hook-lift capacities and 5–28CBM container options provide solutions ranging from residential waste collection to heavy construction-waste and industrial-waste transportation. Hook-lift systems can complete container loading, unloading and hydraulic tipping without requiring separate lifting equipment. The reinforced subframe, heavy-duty hook arm, hydraulic cylinders, guide rails, locking mechanism and rear support system provide stable container handling during daily operation
- hydraulic self-dumping allows collected waste to be discharged directly at transfer stations, landfills or treatment facilities
- sealed, open-top and reinforced construction-waste containers can be selected for different materials
- multiple container sizes and structures allow one chassis to serve different waste-management tasks. Left-hand-drive and right-hand-drive configurations are available for different export markets
- hook capacity, container volume, steel thickness, container structure, hydraulic system, control system, rear door, cover system, monitoring cameras, warning equipment, paint color and other configurations can be customized according to municipal projects, contractor requirements and operating conditions.

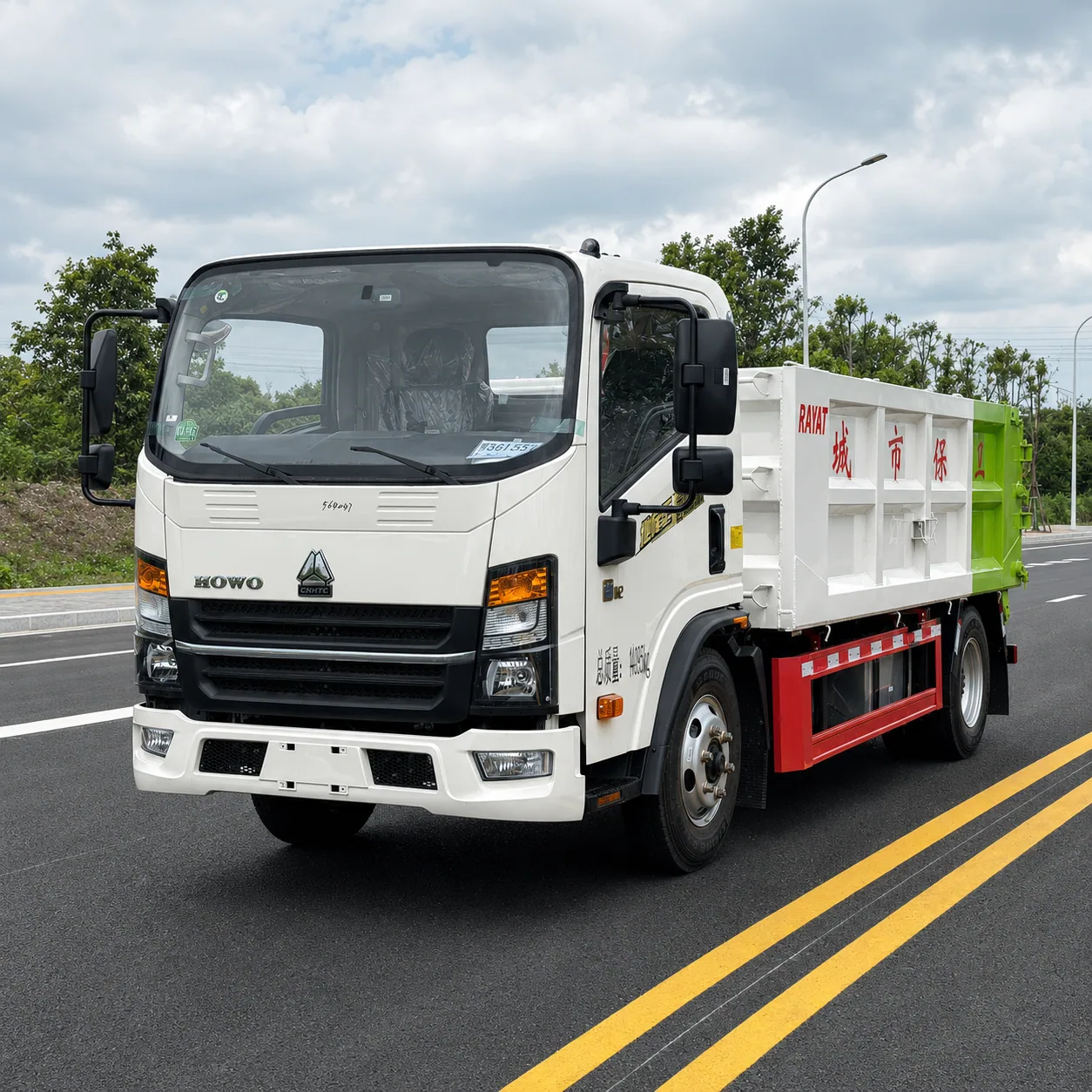

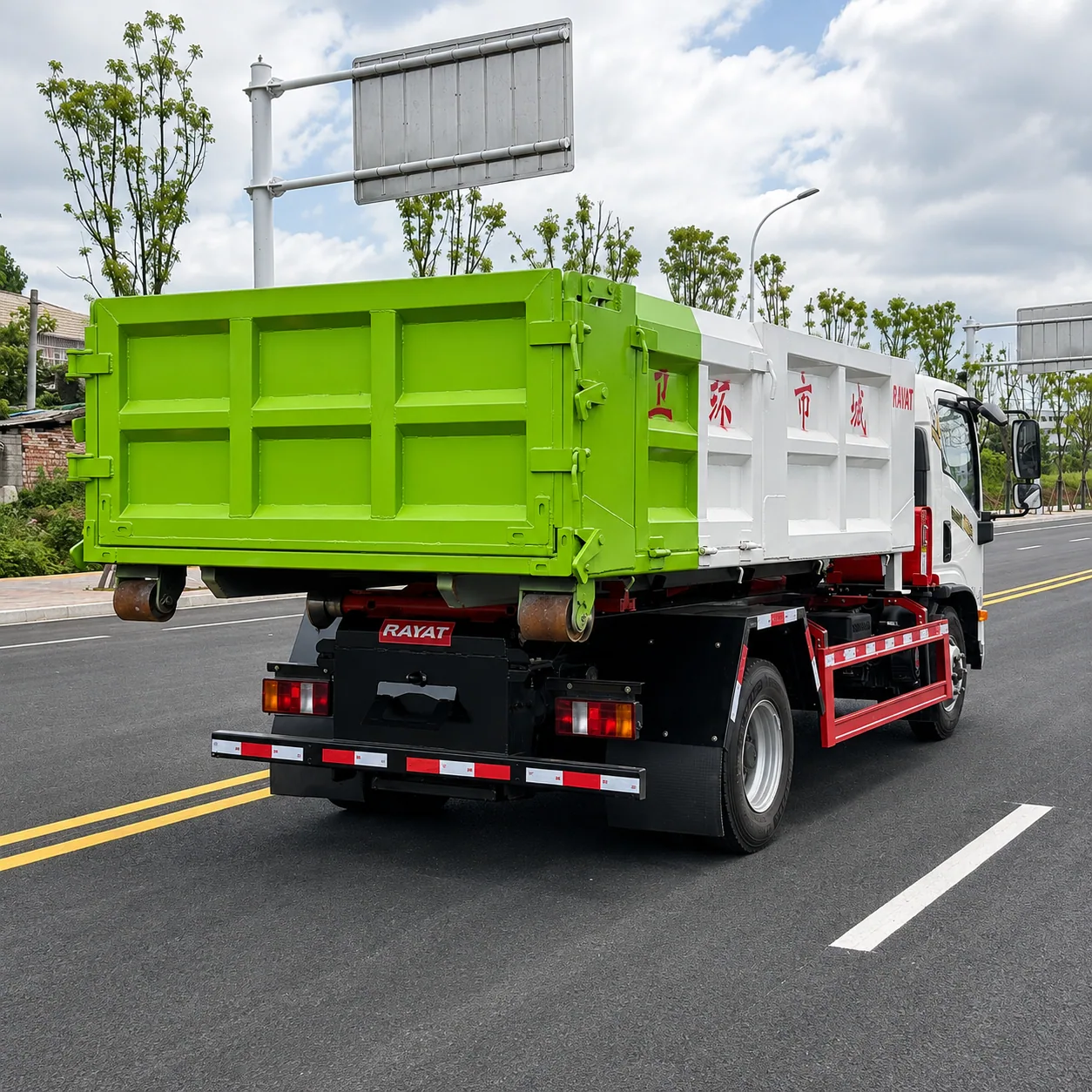

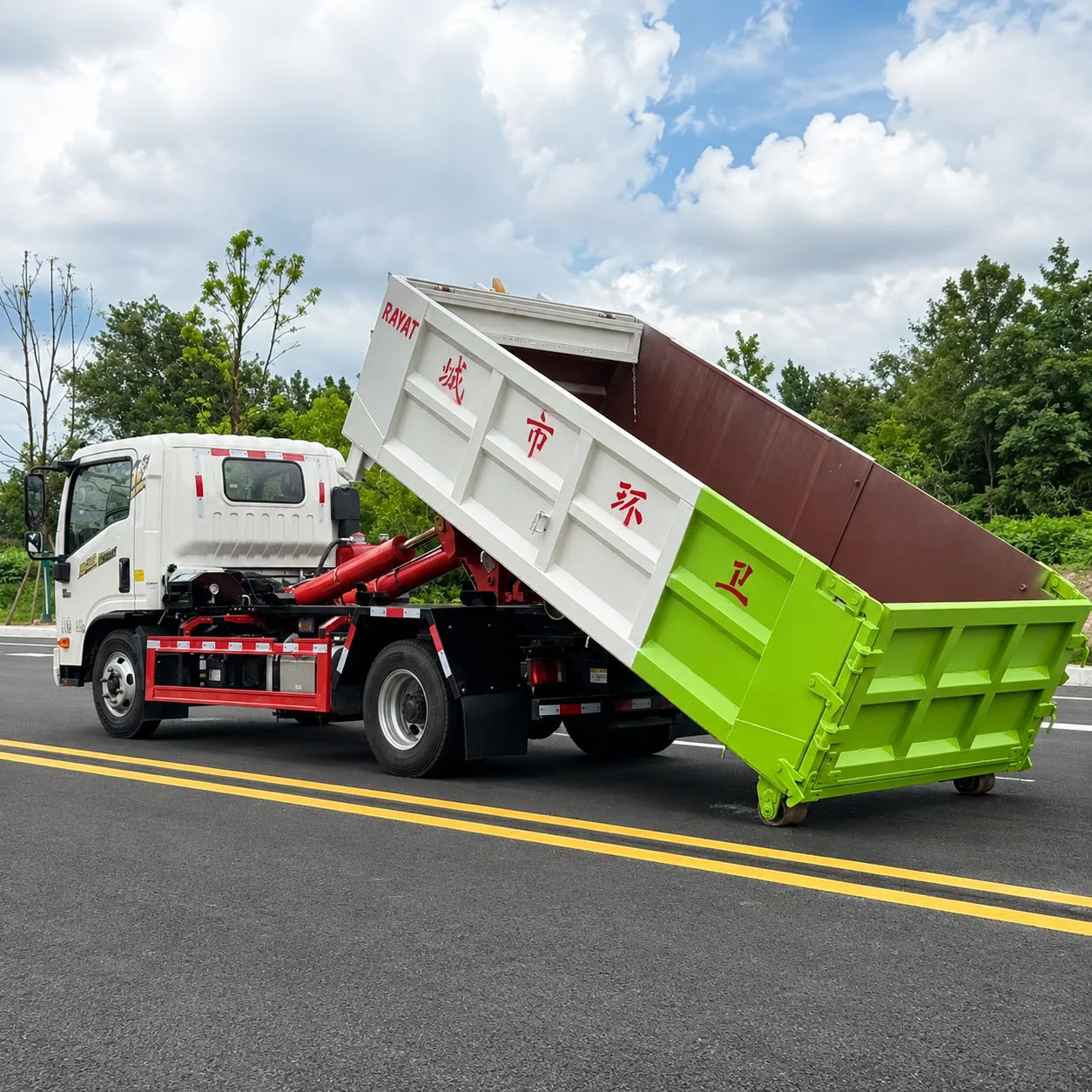

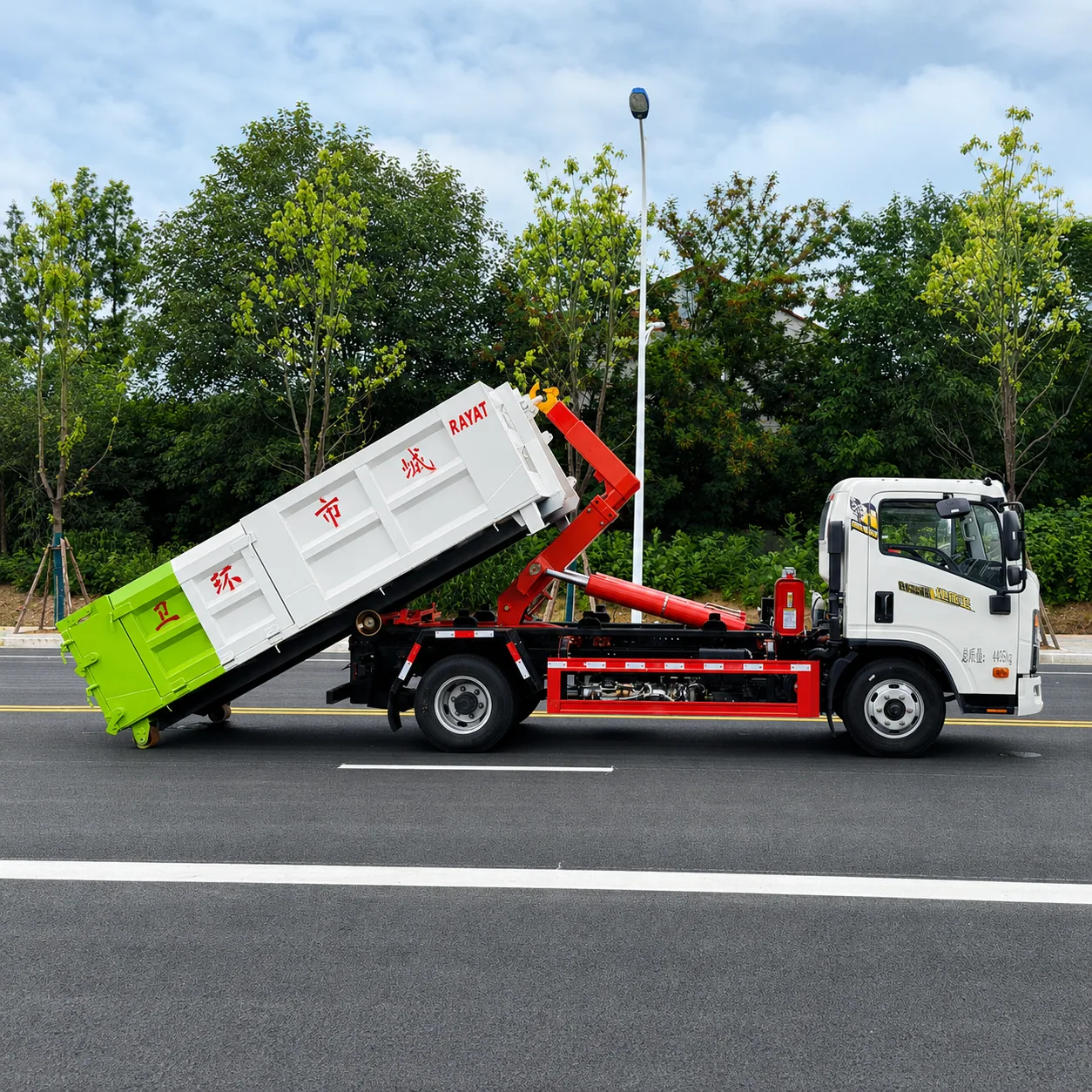

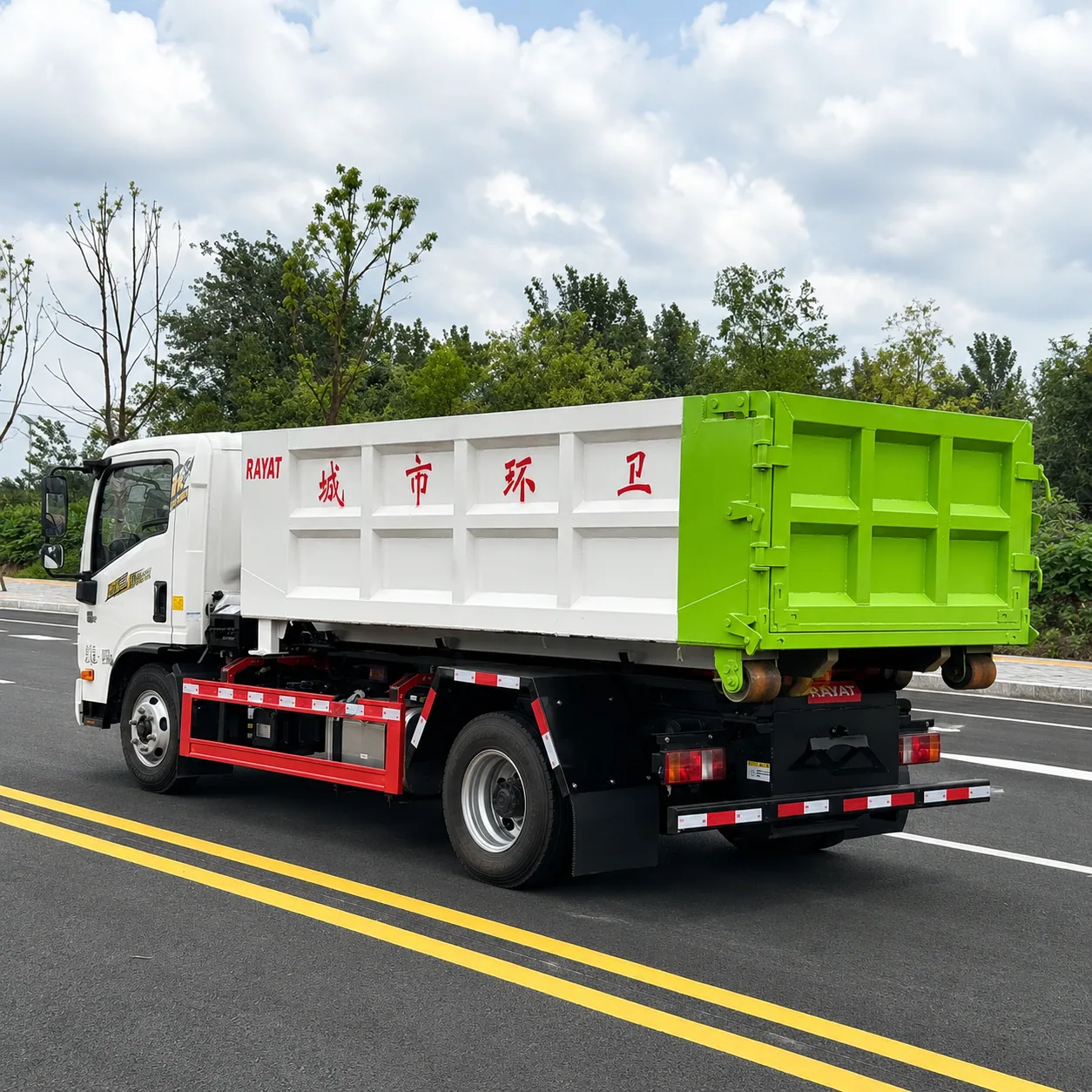

Product Display
