HOWO Heavy Duty Recovery Truck 336 / 371 / 380 / 400 / 430HP 20 / 25 / 30 / 40 / 50T Available
HOWO Heavy Duty Recovery Truck is a specialized heavy vehicle designed for towing, lifting, pulling and recovering heavy trucks, tractor-trailers, buses, construction vehicles, dump trucks and other large commercial vehicles. It combines a heavy-duty SINOTRUK HOWO chassis with a reinforced recovery boom, telescopic underlift, hydraulic winches, rear stabilizers, hydraulic control system and professional towing accessories for roadside rescue and accident-recovery operations. The HOWO heavy-duty recovery platform can be configured with 6×4 or 8×4 chassis layouts and approximately 336HP, 371HP, 380HP, 400HP and 430HP diesel engines. HOWO heavy-duty chassis use high-strength steel frames, HW-series transmissions and heavy-duty drive axles designed for high-load operation. Different recovery superstructures are available for approximately 20T, 25T, 30T, 40T and 50T recovery applications. A representative HOWO 6×4 heavy wrecker uses an 18-ton maximum boom lifting capacity, approximately 11-ton initial underlift capacity, 24-ton rated towing mass and dual 100kN winches, while larger 8×4 rotator configurations can provide substantially higher lifting, pulling and towing performance for severe heavy-recovery operations.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Heavy Duty Recovery Truck / Heavy Wrecker Truck / Heavy Tow Truck / Road Rescue Truck |
| Brand | SINOTRUK HOWO |
| Chassis Brand | HOWO |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 336HP / 371HP / 380HP / 400HP / 430HP available |
| Engine Brand | SINOTRUK / Weichai |
| Common Engine Series | WD615 / D10 / WP10 / WP12 / MC11 series or equivalent |
| Engine Type | Inline six-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 9.7–12 L depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to model year and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Common Transmission | HW19710 / HW19712 or equivalent |
| Transmission Gears | 10-speed / 12-speed manual transmission |
| PTO | Heavy-duty power take-off for hydraulic recovery system |
| Cab Type | HOWO HW76 / H77L / other compatible heavy-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Single sleeper available according to cab configuration |
| Driver Seat | Adjustable / air-suspension driver seat available |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 10,000–12,000 mm depending on chassis and recovery body |
| Overall Width | Approx. 2,496–2,550 mm |
| Overall Height | Approx. 3,500–4,000 mm |
| Wheelbase | Multiple wheelbase configurations available for 6×4 / 8×4 chassis |
| Representative 6×4 Wheelbase | Approx. 5,800 + 1,350 / 1,400 mm |
| Representative 8×4 Wheelbase | Approx. 1,800 + 4,600 + 1,350 mm |
| Gross Vehicle Weight | Approx. 24–38 tons depending on chassis and recovery equipment |
| Curb Weight | Approx. 17–28 tons depending on recovery system |
| Maximum Driving Speed | Approx. 80–95 km/h |
| Front Axle | HOWO / V-series heavy-duty steering axle |
| Front Axle Capacity | Approx. 9 tons on heavy-duty configurations |
| Rear Axle | HOWO / MC-series heavy-duty drive axle |
| Rear Axle Capacity | Approx. 13–16 tons per drive axle |
| Rear Axle Type | Single-reduction / hub-reduction heavy-duty axle |
| Differential Lock | Available |
| Frame | Reinforced high-strength steel heavy-duty frame |
| Recovery Subframe | Reinforced high-strength recovery subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 chassis; spare tire available |
| Fuel Tank | Approx. 300–500 L |
| Fuel Tank Material | Aluminum / steel optional |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Recovery Capacity Class | Approx. 20T / 25T / 30T / 40T / 50T available |
| Recovery Structure | Heavy-duty boom + telescopic underlift + hydraulic winches |
| Boom Type | Fixed recovery boom / folding boom / rotating recovery boom optional |
| Maximum Boom Lifting Capacity | Approx. 18–50 tons depending on recovery system |
| Representative 6×4 Boom Capacity | Approx. 18 tons |
| Heavy Rotator Boom Capacity | Up to approx. 50 tons |
| Boom Extension | Hydraulic telescopic |
| Boom Extension Stroke | Approx. 3,000–4,000 mm depending on system |
| Maximum Lifting Height | Approx. 6–12 m depending on boom configuration |
| Boom Elevation | Hydraulic |
| Rotator Slewing | 360° rotation optional on heavy rotator versions |
| Underlift Type | Heavy-duty hydraulic telescopic underlift |
| Initial Underlift Capacity | Approx. 10–30 tons depending on configuration |
| Representative Initial Underlift Capacity | Approx. 11 tons |
| Extended Underlift Capacity | Approx. 4–20 tons depending on extension length |
| Wheel-Lift Capacity | Approx. 6–30 tons depending on system |
| Underlift Effective Length | Approx. 2,500–4,000 mm |
| Underlift Extension | Hydraulic telescopic extension |
| Underlift Tilt | Hydraulic adjustment |
| Rated Towing Capacity | Approx. 20–100 tons depending on chassis and recovery system |
| Common Heavy-Duty Towing Capacity | Approx. 24–50 tons |
| Rotator Towing Capacity | Up to approx. 80–100 tons on specialized configurations |
| Main Winch Quantity | Dual hydraulic winches commonly available |
| Winch Pulling Capacity | Approx. 2×10T / 2×15T / 2×20T / 2×25T optional |
| Representative Winch Pulling Force | 2 × 100 kN |
| Wire Rope Length | Approx. 40–50 m |
| Wire Rope Type | Heavy-duty steel wire rope |
| Winch Control | Hydraulic proportional control |
| Winch Free-Spool | Available / optional |
| Rear Stabilizers | Hydraulic stabilizers |
| Stabilizer Type | H-type / rear outrigger / multi-point stabilizer according to recovery body |
| Stabilizer Span | According to recovery system |
| Side Stabilizers | Optional |
| Front Stabilizers | Optional |
| Hydraulic Pump | PTO-driven heavy-duty hydraulic pump |
| Hydraulic Working Pressure | Approx. 20–35 MPa depending on system |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Available |
| Hydraulic Control Valve | Multi-way proportional hydraulic control valve |
| Control System | Manual hydraulic / electro-hydraulic proportional control |
| External Control | Available |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Emergency Manual Control | Available / optional |
| Tow Forks | Multiple heavy-duty tow forks included / optional |
| Fork Capacity | Different fork sizes for truck axles and chassis |
| Wheel-Lift Attachments | Optional |
| Fifth-Wheel Towing Attachment | Optional |
| Tractor-Towing Fork | Optional |
| Bus-Towing Fork | Optional |
| Tow Bar | Optional |
| Safety Chains | Heavy-duty safety chains available |
| Recovery Shackles | Available |
| Snatch Block | Available / optional |
| Pulley System | Heavy-duty pulley / snatch-block system optional |
| Air Supply System | Auxiliary air line for recovered vehicle optional |
| Electrical Supply | Trailer / towed-vehicle lighting connection optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Boom Camera | Optional |
| Underlift Camera | Optional |
| LED Warning Light Bar | Optional |
| Rear Warning Lights | Optional |
| Search Lights | Optional |
| High-Intensity Working Lights | Optional |
| Traffic Cones | Optional |
| Toolbox | Heavy-duty recovery toolbox available |
| Fire Extinguisher | Available / optional |
| Spare Tire | Available / optional |
| Color | Yellow, red, blue, white, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, drive type, boom capacity, underlift capacity, towing capacity, winch capacity, rotator system, stabilizers, hydraulic system, tow forks, recovery accessories, steering side, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Heavy truck roadside rescue
- tractor-trailer recovery
- semi-truck towing
- bus recovery
- dump-truck recovery
- construction-vehicle recovery
- concrete-mixer recovery
- tanker-truck recovery
- heavy cargo-truck towing
- accident vehicle recovery
- rollover recovery
- highway emergency rescue
- fleet roadside support
- mining truck recovery
- construction-site vehicle rescue
- port vehicle recovery
- logistics-fleet recovery
- traffic-police emergency support
- towing-company heavy recovery operations
- highway maintenance rescue
- large commercial vehicle transportation and recovery.
Available Configurations
- 336HP, 371HP, 380HP, 400HP or 430HP diesel engine
- HOWO heavy-duty 6×4 or 8×4 chassis
- WD615, D10, WP10, WP12, MC11 or equivalent diesel engine
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V emission configuration according to chassis
- HW19710, HW19712 or equivalent manual transmission
- 20T, 25T, 30T, 40T or 50T heavy-duty recovery system
- fixed boom, folding boom or 360° rotating recovery boom
- approximately 18–50T boom lifting capacity
- heavy-duty telescopic underlift
- approximately 10–30T initial underlift capacity
- approximately 20–100T towing capacity according to recovery system
- dual hydraulic winches
- 2×10T, 2×15T, 2×20T or 2×25T winch configuration
- 40–50m steel wire rope
- hydraulic rear stabilizers
- side stabilizers
- front stabilizers
- proportional hydraulic control system
- wireless remote control
- multiple heavy-duty towing forks
- wheel-lift accessories
- fifth-wheel towing adapter
- bus and truck towing forks
- snatch blocks
- safety chains
- recovery shackles
- auxiliary air supply
- reversing camera
- rear working camera
- boom camera
- underlift camera
- 360° monitoring system
- LED warning light bar
- high-intensity working lights
- search lights
- traffic cones
- heavy-duty toolbox
- fire extinguisher
- customized recovery capacity, hydraulic system, towing accessories, paint color, company logo and export markings.
Buyer Support
- HOWO Heavy Duty Recovery Truck combines a high-strength SINOTRUK HOWO heavy-duty chassis with a professional boom, underlift and hydraulic winch recovery system for large commercial vehicles and severe roadside-recovery applications
- 336HP, 371HP, 380HP, 400HP and 430HP power options provide strong torque for heavy towing, recovery and highway rescue operations. HOWO heavy-duty platforms use high-strength chassis construction, HW-series transmissions and heavy-duty axles designed for demanding loaded operation. 6×4 and 8×4 chassis configurations provide solutions for different recovery capacities and operating conditions
- approximately 20T, 25T, 30T, 40T and 50T recovery-system options cover heavy trucks, tractor-trailers, buses and construction vehicles
- representative HOWO 6×4 heavy wreckers provide approximately 18T boom lifting capacity, 11T initial underlift capacity and 24T rated towing mass. Dual hydraulic winches provide strong pulling force for disabled, accident-damaged or overturned vehicles, while telescopic underlift systems allow trucks and buses to be lifted by their axle, suspension or chassis for towing
- multiple towing forks and recovery attachments improve compatibility with different commercial vehicles. Hydraulic stabilizers provide additional stability during lifting and recovery operations
- optional 360° rotating boom configurations allow recovery work beside or behind the truck and are suitable for severe accident, rollover and off-road recovery. Heavy 8×4 rotator versions can be configured with up to approximately 50T boom lifting capability and substantially higher towing capacities. Electro-hydraulic proportional controls and optional wireless remote operation allow operators to control the boom, winches, underlift and stabilizers from safer working positions
- reversing cameras, boom cameras, underlift cameras, high-intensity work lights and LED warning systems improve visibility and roadside operating safety. Left-hand-drive and right-hand-drive versions can be supplied for different export markets
- chassis, engine, recovery capacity, boom, underlift, winches, stabilizers, hydraulic controls, towing forks, recovery accessories, monitoring equipment, warning systems, paint color and other configurations can be customized according to towing-company, fleet, highway-rescue and government-project requirements.

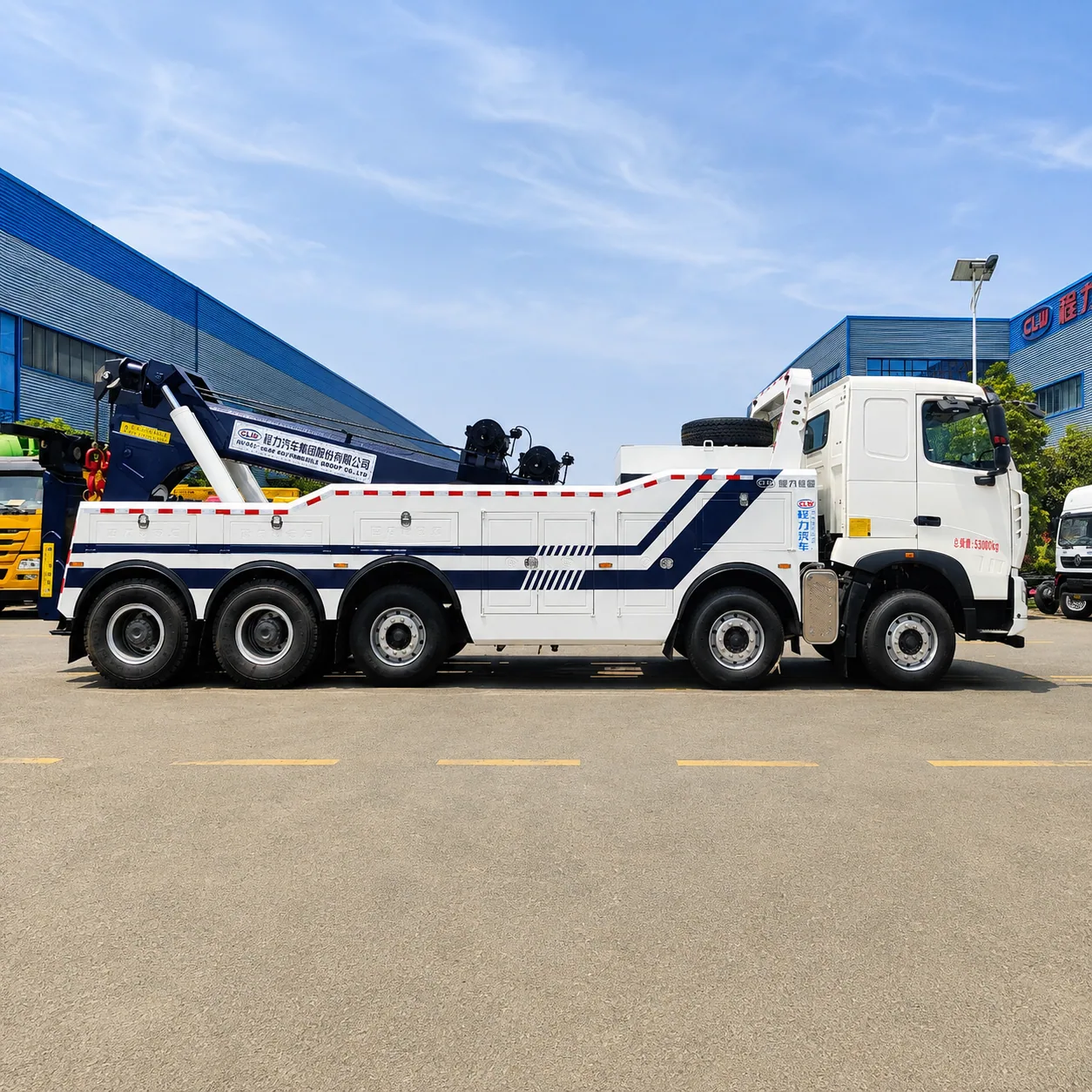

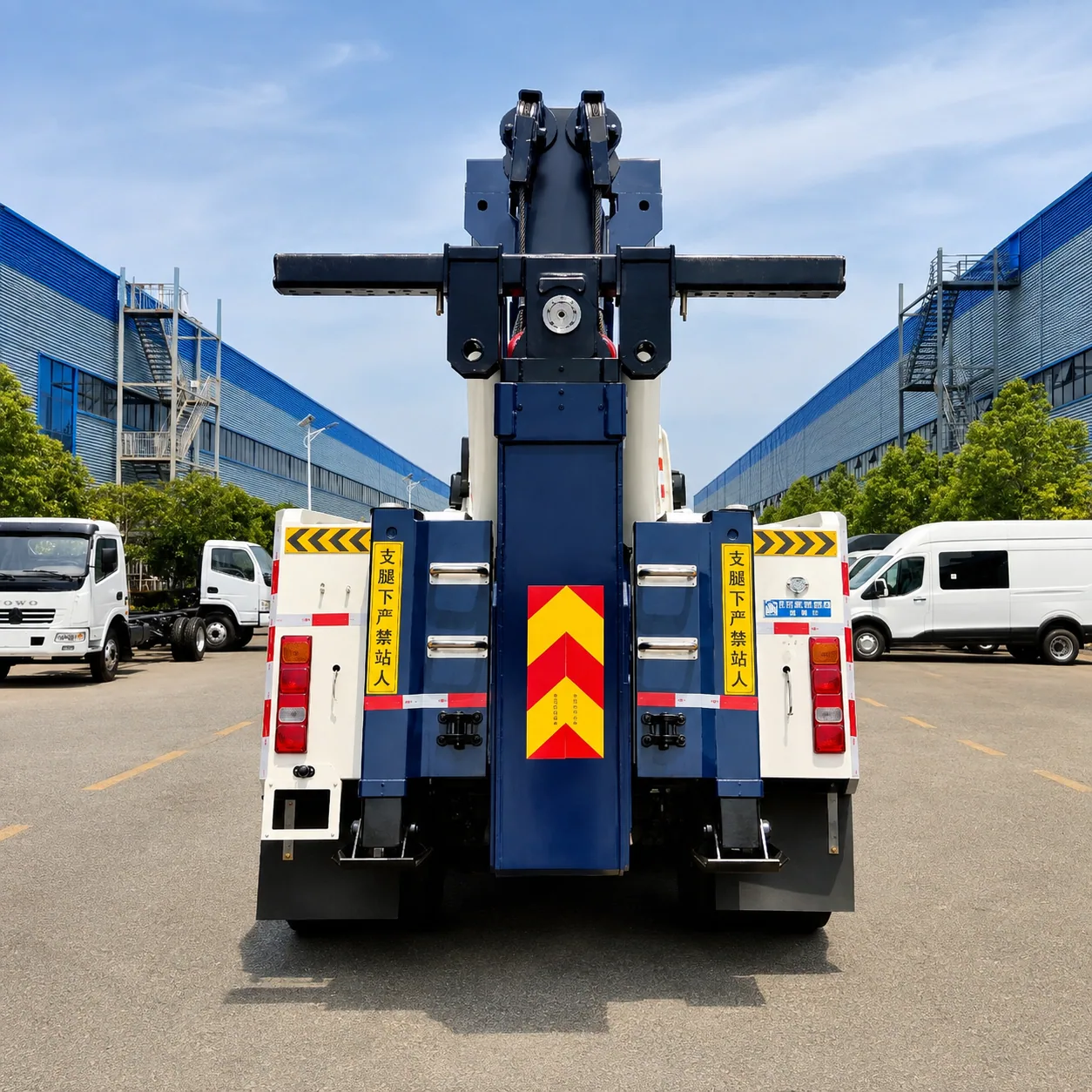

Product Display
