Special Trucks
HOWO Garbage Compactor Truck 340 / 380 / 400HP 10 / 14 / 16 / 20CBM Available
HOWO Garbage Compactor Truck is a heavy-duty municipal sanitation vehicle designed for the collection, compression and transportation of household waste, commercial refuse and municipal solid waste. The vehicle combines a durable SINOTRUK HOWO chassis with a sealed garbage body, rear loading hopper, hydraulic compression mechanism, push plate, lifting mechanism, sewage collection system and electro-hydraulic control system. HOWO compression garbage trucks are available with 4×2 and 6×4 chassis configurations, 340HP, 380HP and 400HP engine options, and 10CBM, 14CBM, 16CBM and 20CBM garbage-body capacities. Heavy-duty versions can be equipped with the SINOTRUK HW19710 10-speed manual transmission and reinforced HOWO chassis systems for frequent municipal collection and loaded transportation. The rear-loading compression system automatically collects waste through the rear hopper and compresses it inside the sealed body using a hydraulic slide plate and scraper mechanism. Depending on the upper-body configuration, compression ratios of approximately 3:1 to 5:1 can be provided, significantly increasing effective waste-loading capacity compared with non-compaction garbage trucks. Filling cycles of approximately 25–30 seconds and hydraulic working pressures around 16–20MPa are available according to the compactor system. The vehicle can be configured with lifting mechanisms suitable for common 120L, 240L, 660L and 1100L waste bins, while optional bucket, swing-arm and other rear-loading devices allow the truck to adapt to different municipal waste collection systems. A sealed body, sewage tank and leak-resistant rear structure help reduce liquid leakage and secondary pollution during waste transportation.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Garbage Compactor Truck / Compression Garbage Truck / Rear Loader Garbage Truck / Refuse Collection Truck |
| Brand | SINOTRUK HOWO |
| Chassis Brand | HOWO |
| Drive Type | 4×2 / 6×4 available |
| Engine Power | 340HP / 380HP / 400HP available |
| Engine Brand | SINOTRUK / Weichai |
| Common Engine Series | WP10 / MC series or equivalent according to chassis |
| Engine Type | Inline six-cylinder, turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro V / Euro VI available according to model year and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Common Transmission | HW19710 or equivalent |
| Transmission Gears | 10 forward + 2 reverse gears commonly available |
| PTO | Power take-off for hydraulic garbage compactor system |
| Cab Type | HOWO standard / extended heavy-duty cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available according to chassis configuration |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 7,000–10,000 mm depending on chassis and garbage-body capacity |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 3,000–3,700 mm |
| Wheelbase | Different wheelbase configurations available according to 4×2 / 6×4 chassis |
| Gross Vehicle Weight | Approx. 16–35 tons depending on chassis and upper-body configuration |
| Curb Weight | Approx. 9–16 tons depending on chassis and garbage-body size |
| Rated Payload | According to chassis, body capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | HOWO / VGD heavy-duty steering axle according to chassis |
| Rear Axle | HOWO / HC / MC series heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available according to chassis |
| Differential Lock | Available on heavy-duty configurations |
| Frame | Reinforced high-strength steel ladder frame |
| Subframe | Reinforced garbage-compactor special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 configuration; spare tire available |
| Fuel Tank | Approx. 200–400 L according to chassis |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Garbage Body Type | Sealed rear-loading compression body |
| Garbage Body Capacity | 10CBM / 14CBM / 16CBM / 20CBM available |
| Body Material | High-strength carbon steel / corrosion-resistant steel optional |
| Common Body Steel | Q235 / high-strength steel or equivalent |
| Body Side Thickness | Approx. 4–5 mm or customized |
| Body Floor Thickness | Approx. 4–6 mm or customized |
| Hopper Volume | Approx. 1.5–2.5 CBM depending on configuration |
| Loading Type | Rear loading |
| Compression Type | Hydraulic bidirectional compression |
| Compression Ratio | Approx. 3:1–5:1 depending on compactor configuration |
| Hydraulic System Pressure | Approx. 16–20 MPa depending on system |
| Compression Mechanism | Slide plate + scraper compression mechanism |
| Compression Plate | High-strength hydraulic compression plate |
| Scraper Mechanism | Hydraulic scraper / rotating scraper mechanism |
| Push Plate | Hydraulic ejector push plate |
| Filling Cycle Time | Approx. 25–30 seconds |
| Discharge Time | Approx. 40–60 seconds depending on system |
| Waste Discharge Type | Hydraulic push-out discharge |
| Loading Control | Automatic / semi-automatic / manual operation |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Cylinder | Heavy-duty double-acting hydraulic cylinders |
| Hydraulic Control Valve | Multi-way hydraulic control valve |
| Hydraulic Oil Tank | Available |
| Control System | Electro-hydraulic control + manual emergency control |
| Cab Control | Available / optional |
| Rear Control Panel | Available |
| One-Key Loading Cycle | Optional |
| Automatic Compression Cycle | Available / optional |
| Manual Operation Mode | Available |
| Emergency Stop | Available |
| Bin Lifting Mechanism | Rear hydraulic bin lifter |
| 120L Waste Bin | Compatible / optional |
| 240L Waste Bin | Compatible / optional |
| 660L Waste Bin | Compatible / optional |
| 1100L Waste Bin | Compatible / optional |
| Bucket Loading Device | Optional |
| Swing-Arm Loading Device | Optional |
| Rear Hopper | Reinforced sealed loading hopper |
| Hopper Lifting | Hydraulic lifting |
| Rear Door / Tailgate | Hydraulic opening and locking |
| Tailgate Sealing | Rubber sealing strip / leak-resistant sealing structure |
| Sewage Tank | Available |
| Sewage Tank Capacity | Approx. 200–500 L depending on body configuration |
| Sewage Drain | Drain valve / sewage discharge outlet |
| Leakage Prevention | Sealed garbage body + rear-door sealing system |
| Anti-Corrosion Treatment | Primer + industrial coating / anti-corrosion treatment |
| Rear Working Lights | Available / optional |
| LED Warning Lights | Optional |
| Rear Warning Board | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Spare Tire | Available |
| Color | White, green, blue, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, garbage-body capacity, compression system, body material, steel thickness, bin lifter, hopper, sewage tank, control system, steering side, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal household waste collection
- urban sanitation
- residential-community waste collection
- commercial-area waste collection
- shopping-center waste collection
- wholesale-market sanitation
- restaurant and food-market waste collection
- factory waste collection
- industrial park sanitation
- school and campus waste collection
- hospital non-hazardous waste collection
- airport sanitation
- railway-station sanitation
- bus-station waste collection
- port and terminal sanitation
- logistics-park waste collection
- rural household waste collection
- municipal waste transfer
- public-area sanitation
- daily solid-waste collection and transportation.
Available Configurations
- 340HP, 380HP or 400HP diesel engine
- 4×2 or 6×4 HOWO chassis
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro V / Euro VI emission configuration according to chassis
- HW19710 or equivalent manual transmission
- 10CBM, 14CBM, 16CBM or 20CBM sealed garbage compactor body
- high-strength carbon-steel body
- customized side and floor thickness
- hydraulic bidirectional compression system
- approximately 3:1–5:1 compression ratio
- hydraulic slide plate and scraper mechanism
- automatic compression cycle
- hydraulic ejector push plate
- electro-hydraulic control system
- rear control panel
- cab-mounted control
- emergency manual control
- 120L, 240L, 660L or 1100L waste-bin lifting device
- rear bucket lifting system
- swing-arm loading device
- reinforced rear hopper
- hydraulic tailgate
- sewage collection tank
- leakage-resistant sealing system
- stainless-steel sewage components
- rear working lights
- LED warning lights
- reversing camera
- rear working camera
- 360° monitoring system
- air conditioner
- ABS
- spare tire
- toolbox
- fire extinguisher
- customized body capacity, loading mechanism, compression system, paint color, company logo and export markings.
Buyer Support
- HOWO Garbage Compactor Truck combines a heavy-duty SINOTRUK HOWO chassis with a professional rear-loading waste compression system for municipal solid-waste collection and transportation
- 340HP, 380HP and 400HP engine options provide strong power for frequent stop-and-go sanitation operation and fully loaded waste transportation
- 4×2 and 6×4 chassis options allow the vehicle to meet different garbage-body capacities, road conditions and municipal project requirements. SINOTRUK lists 10CBM, 14CBM, 16CBM and 20CBM body options for its compression garbage truck platform. The hydraulic compression mechanism compacts loose household and commercial waste inside the sealed garbage body, increasing effective loading capacity and reducing the number of transport trips
- approximately 3:1–5:1 compression ratios can be configured according to the upper-body system, providing efficient waste-volume reduction for high-density municipal collection routes. The rear-loading hopper can be equipped with lifting devices compatible with common municipal waste bins, including 120L, 240L, 660L and 1100L containers
- automatic or semi-automatic loading, compression and discharge functions reduce manual handling and improve sanitation work efficiency. Hydraulic push-out unloading allows compacted garbage to be discharged directly without tipping the entire garbage body. The sealed garbage body, rear-door sealing structure and sewage collection tank help contain wastewater and reduce leakage during transportation
- high-strength steel body construction and reinforced subframe provide durability for frequent loading and compression cycles
- electro-hydraulic controls, rear operation panels and optional cab controls simplify daily operation. Left-hand-drive and right-hand-drive versions can be supplied for different export markets
- garbage-body capacity, compression ratio, body steel thickness, bin lifting mechanism, loading hopper, hydraulic system, sewage tank, control system, cameras, warning lights, paint color and other configurations can be customized according to municipal sanitation and waste-management project requirements.

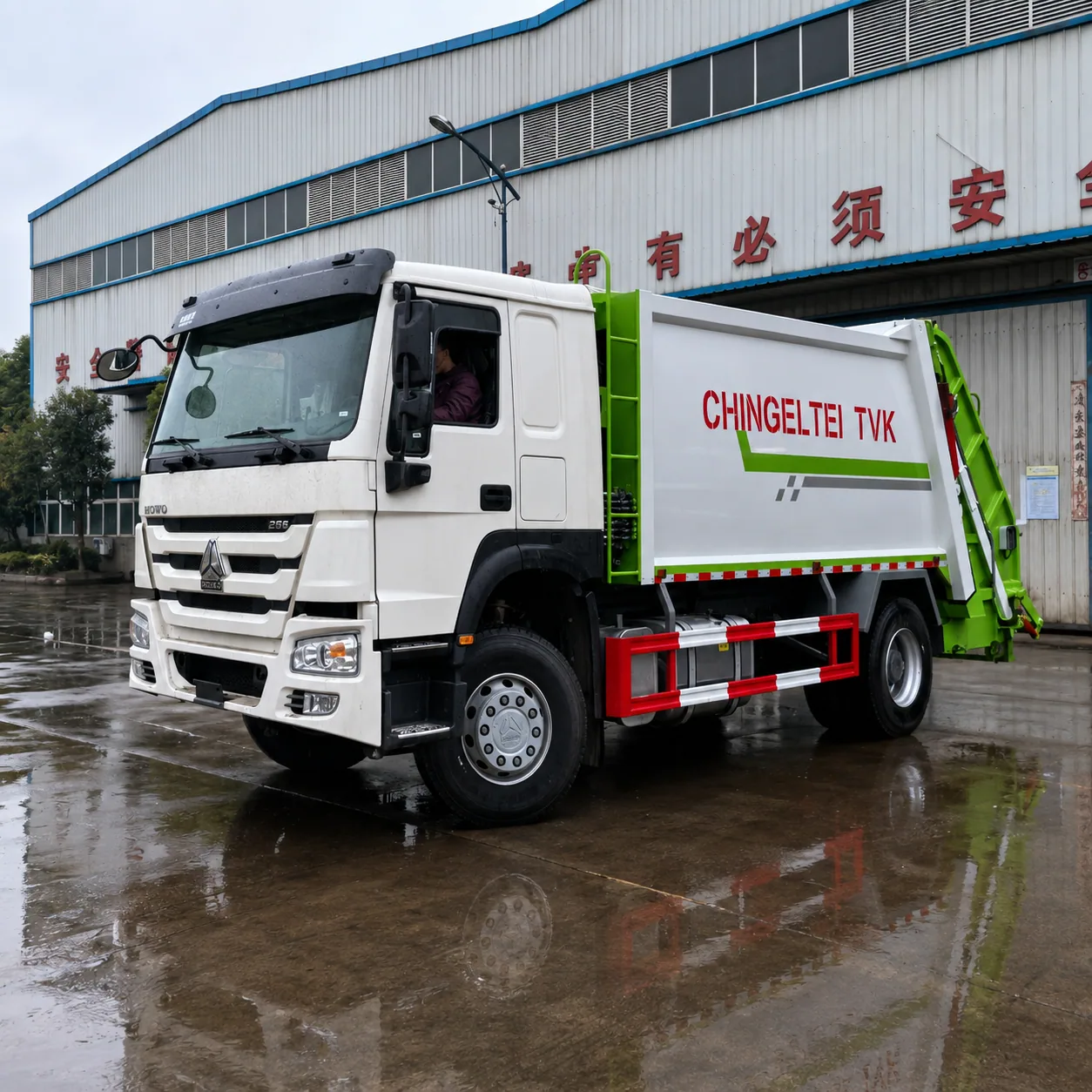

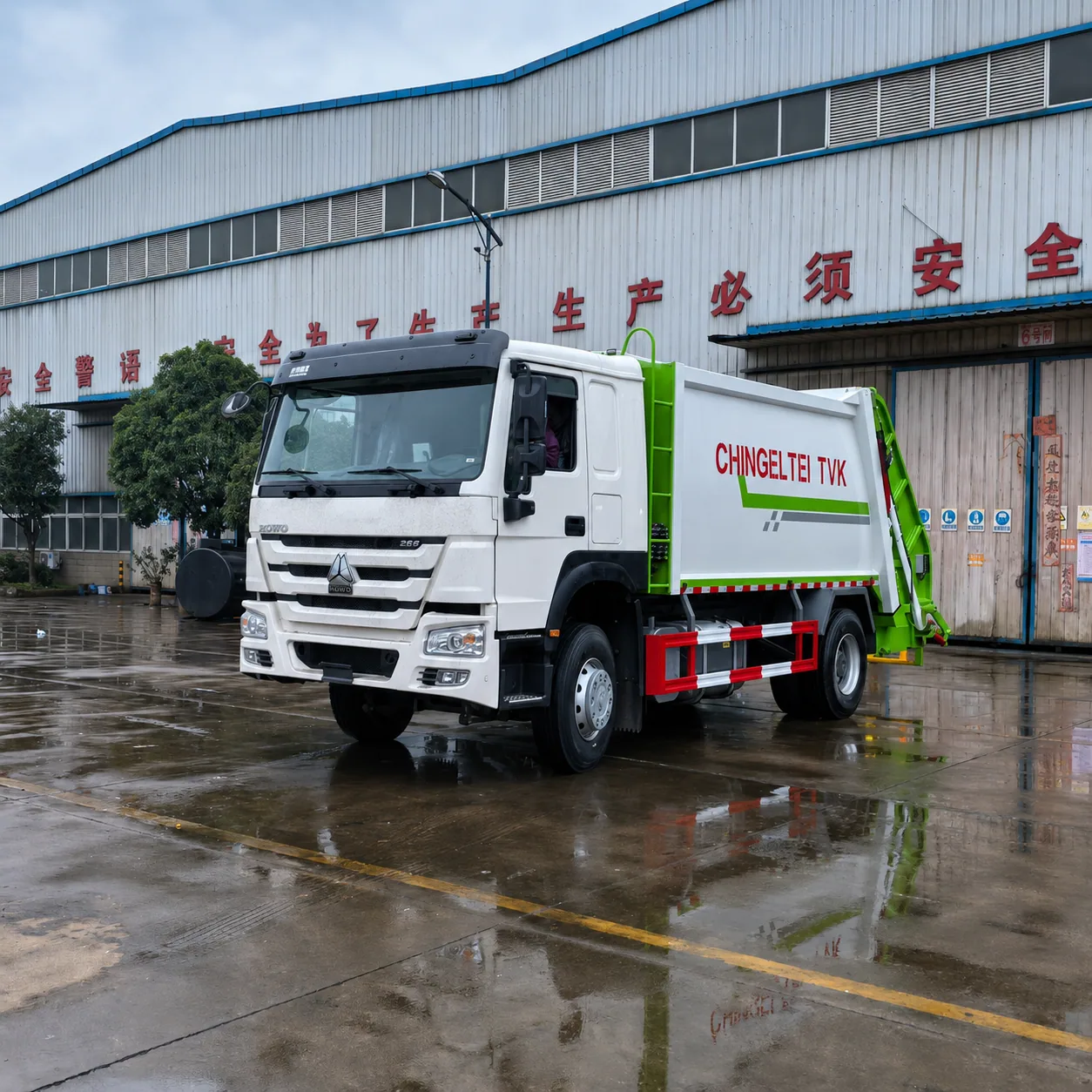

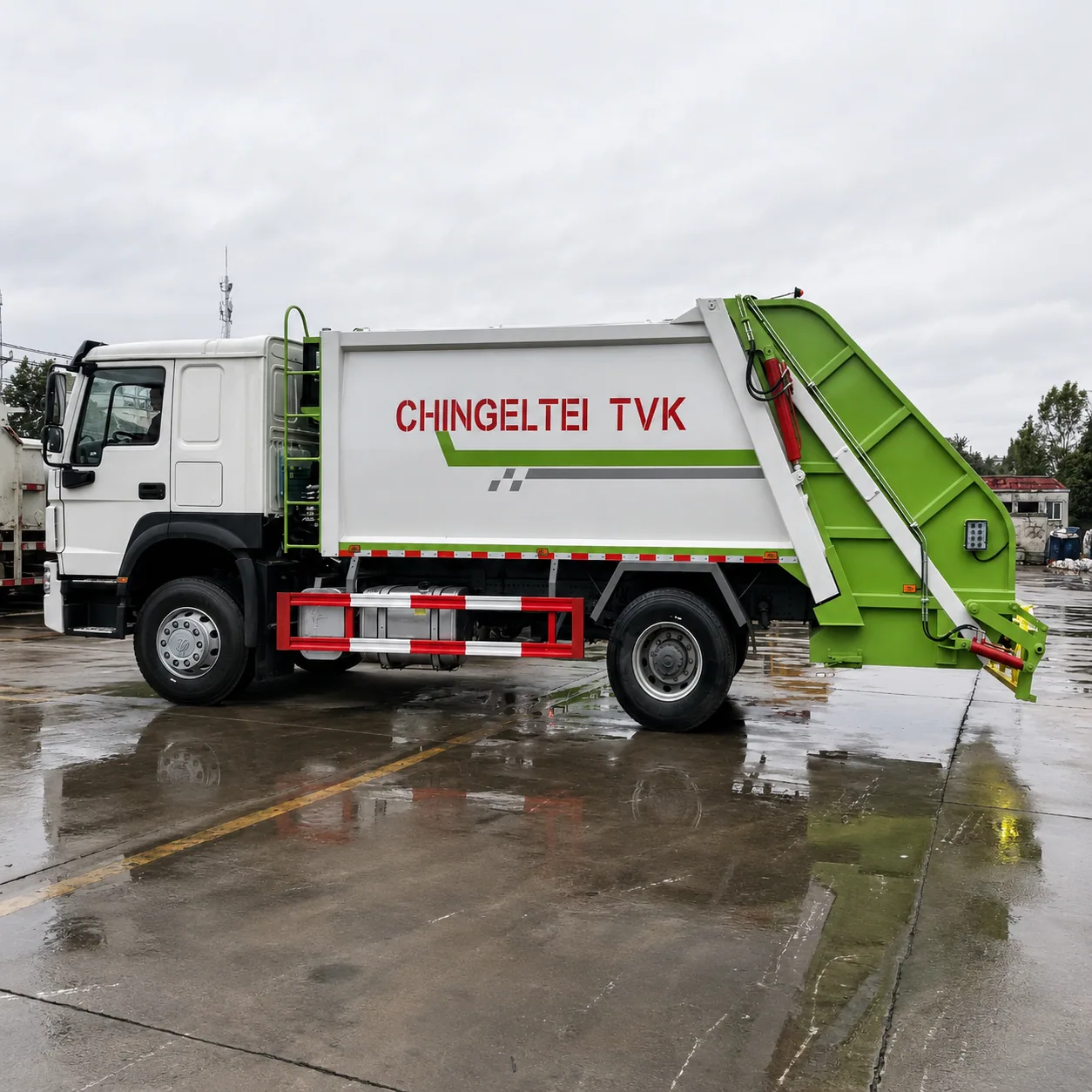

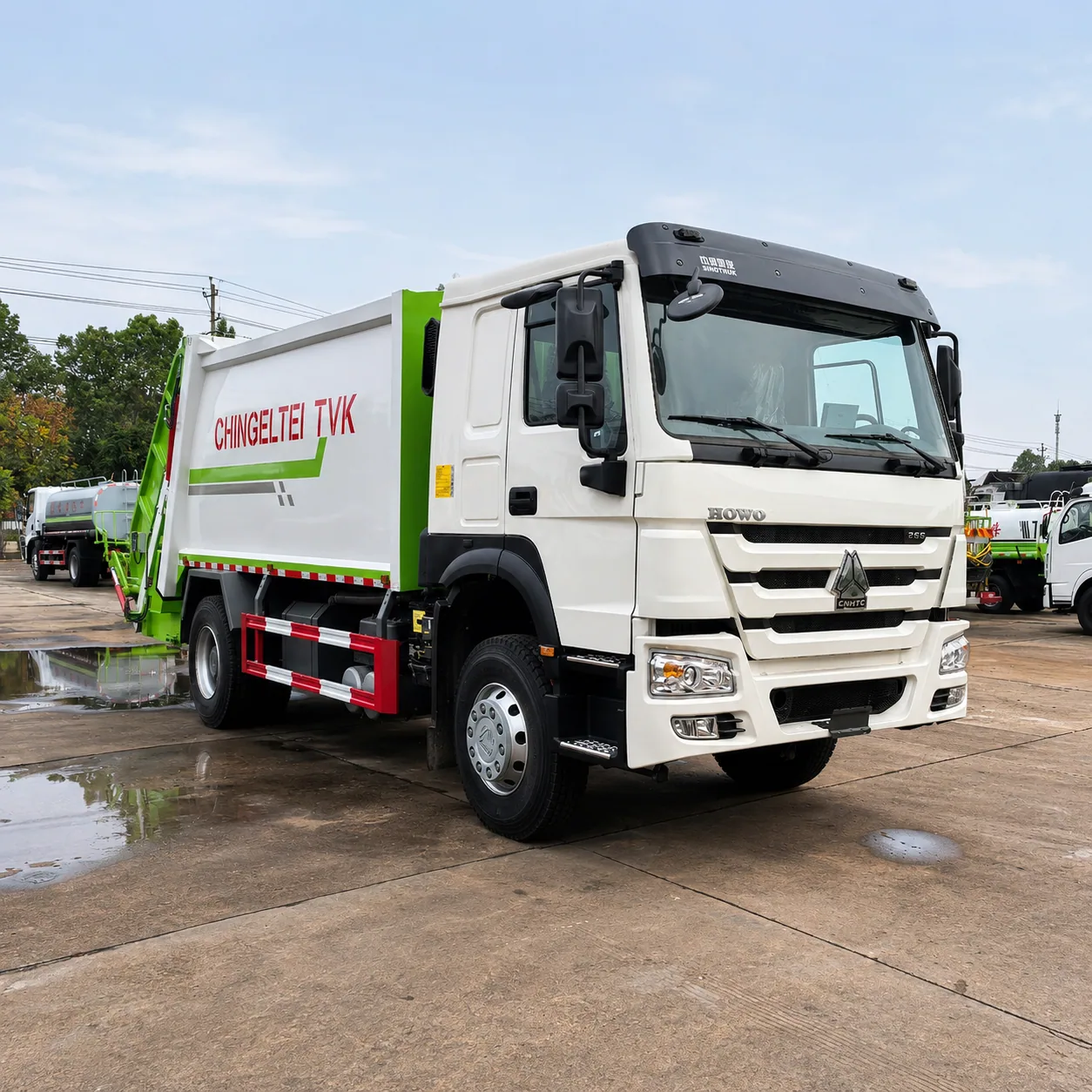

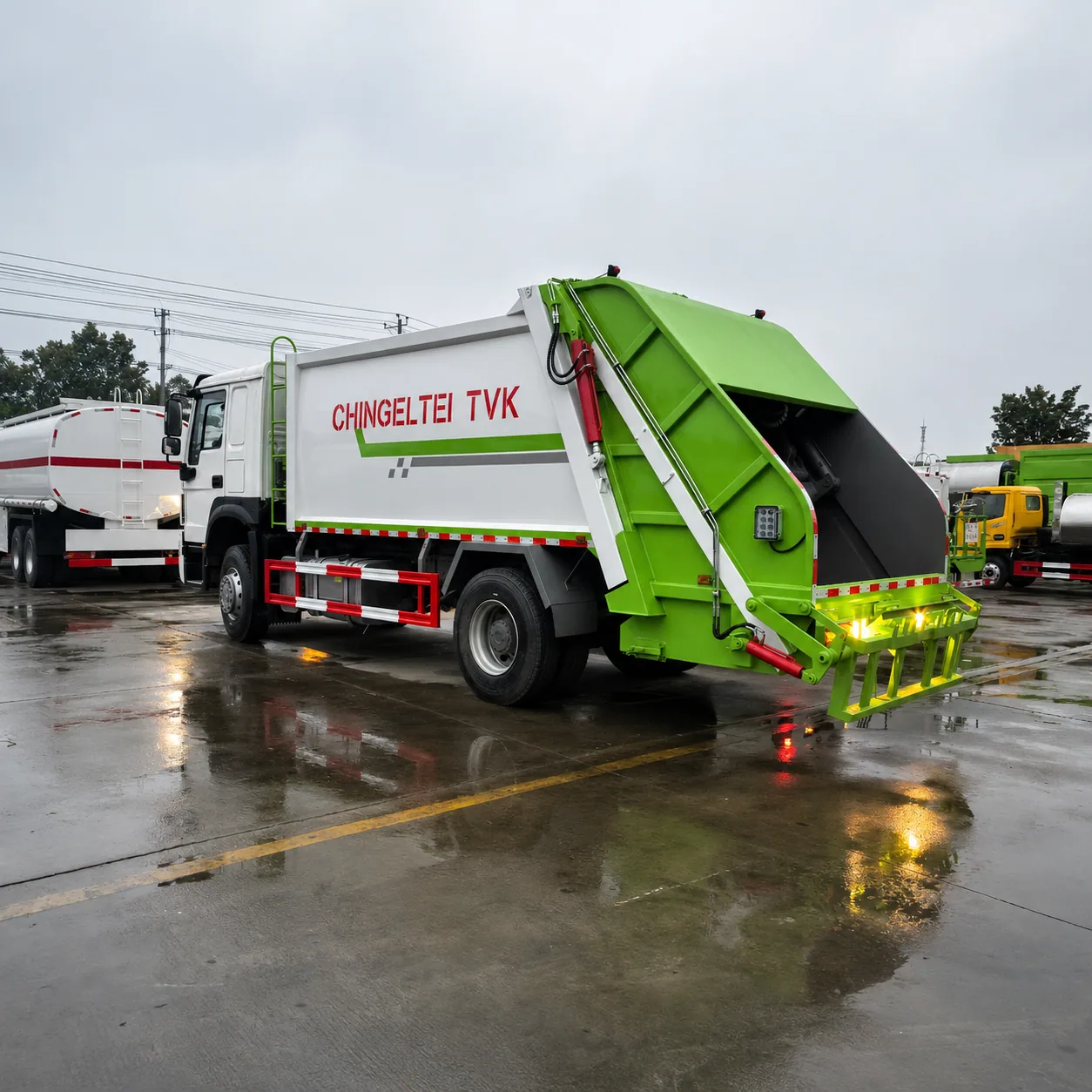

Product Display
