Special Trucks

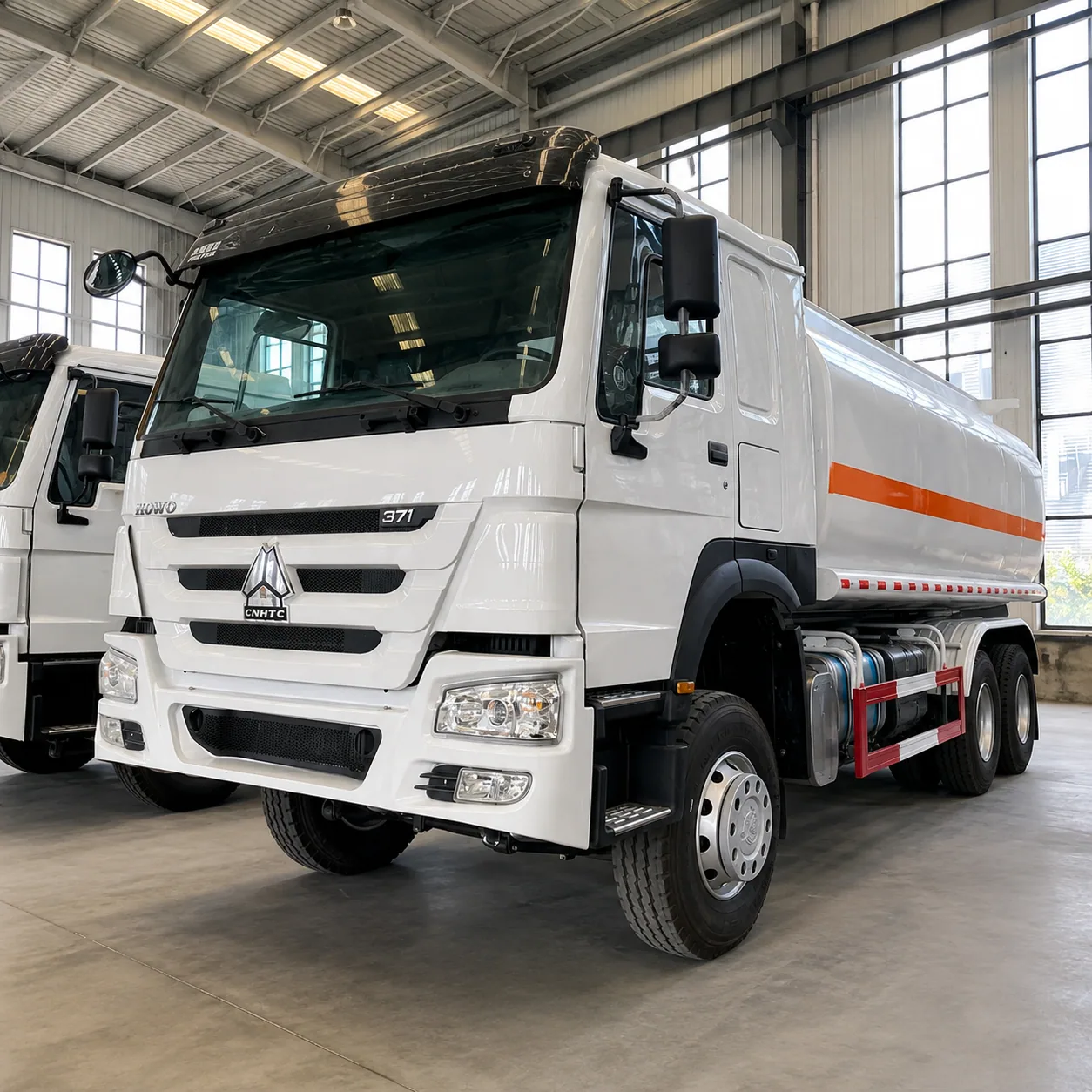

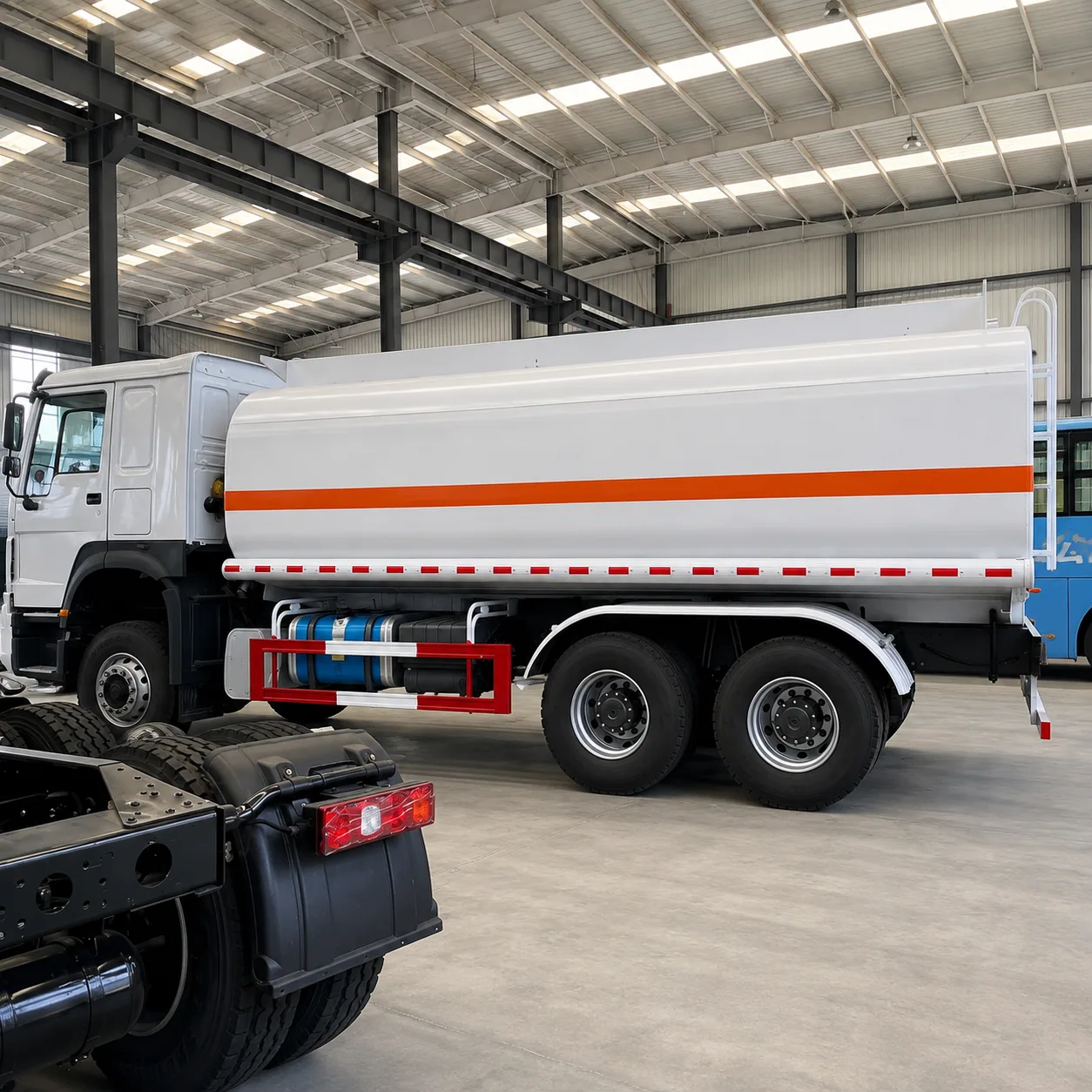

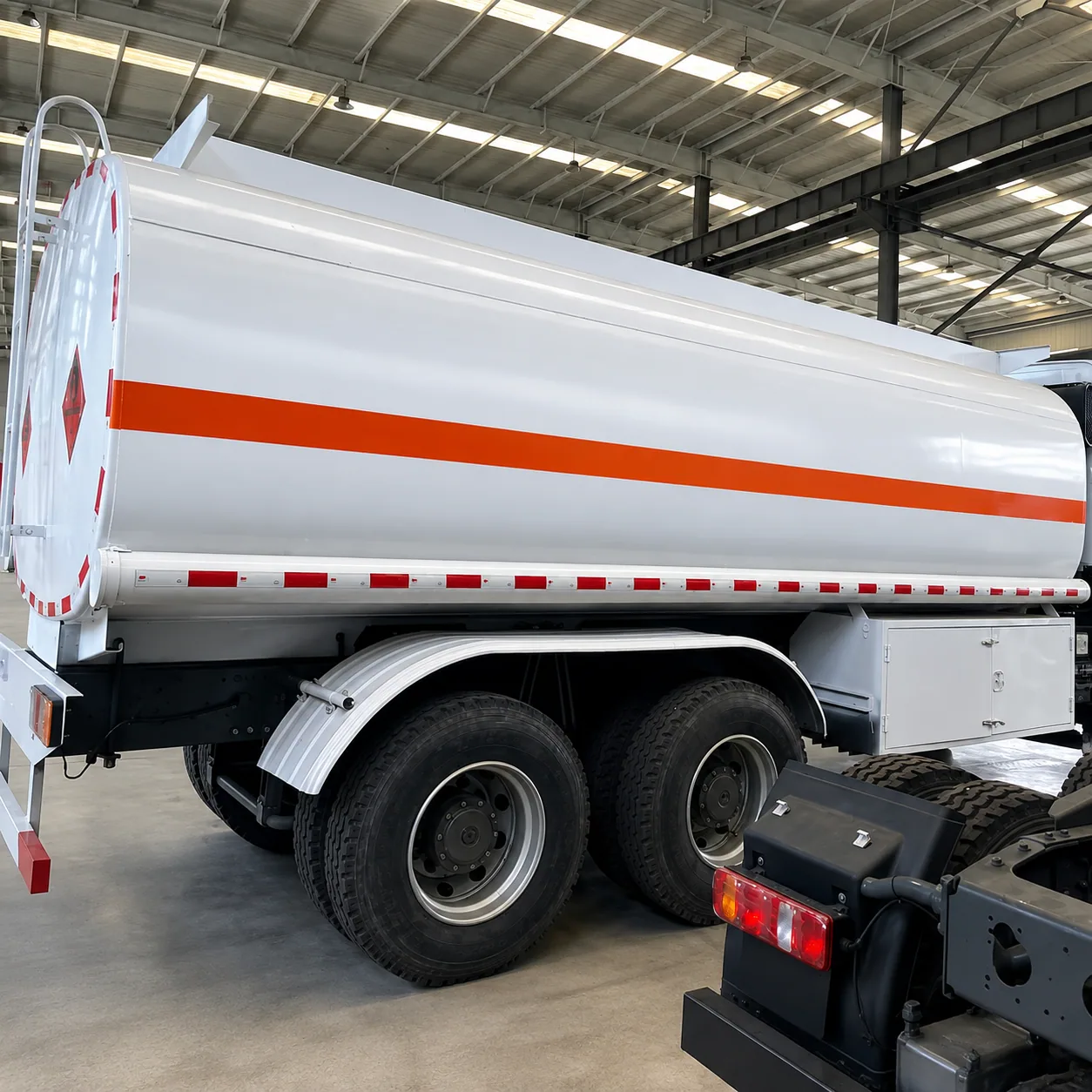

HOWO Fuel Tanker Truck 266 / 336 / 371 / 380 / 400HP 10 / 15 / 20 / 25 / 30CBM Available
HOWO Fuel Tanker Truck is a heavy-duty fuel transportation and mobile refueling vehicle designed for transporting diesel, gasoline and other compatible petroleum products. The vehicle combines a durable SINOTRUK HOWO chassis with a professionally manufactured fuel tank body, anti-wave baffles, fuel pipelines, valves, loading and discharge systems and optional mobile refueling equipment. HOWO fuel tanker trucks are available with 4×2, 6×4 and 8×4 chassis configurations. Engine options include approximately 266HP, 336HP, 371HP, 380HP and 400HP, while tank capacities of approximately 10CBM, 15CBM, 20CBM, 25CBM and 30CBM can be selected according to chassis capacity, transportation requirements and local regulations. Single- or multi-compartment tank configurations are available for transporting different fuel products separately. Customers can select a basic fuel transportation configuration or add a fuel pump, flow meter, fuel dispenser, hose reel and refueling gun for construction sites, mining operations, fleets, generators and agricultural machinery. Bottom loading, vapor recovery, emergency shut-off valves, overfill protection and other safety systems can be configured according to destination-market requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Fuel Tanker Truck / Oil Tanker Truck / Fuel Bowser / Mobile Refueling Truck |
| Brand | SINOTRUK HOWO |
| Chassis Brand | HOWO |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 266HP / 336HP / 371HP / 380HP / 400HP available according to chassis and stock |
| Engine Brand | SINOTRUK / Weichai |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V available according to chassis and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Transmission Gears | 10-speed / 12-speed available |
| Common Transmission | HW19710 / HW19712 or equivalent |
| PTO | Available for fuel pump system |
| Cab Type | HOWO standard / extended heavy-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Available according to chassis |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,500–12,000 mm depending on chassis and tank volume |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 3,000–3,800 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 18–41 tons depending on chassis |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | HOWO heavy-duty steering axle |
| Rear Axle | HOWO heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available on selected configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced fuel-tanker special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / balance suspension |
| Tire Model | 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 300–500 L for vehicle engine |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Tank Capacity | 10CBM / 15CBM / 20CBM / 25CBM / 30CBM available |
| Common 4×2 Tank Capacity | Approx. 10–15 CBM |
| Common 6×4 Tank Capacity | Approx. 15–25 CBM |
| Common 8×4 Tank Capacity | Approx. 20–30 CBM |
| Tank Shape | Elliptical / oval fuel tank |
| Tank Material | Q235 carbon steel / stainless steel / aluminum alloy optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Aluminum-Alloy Tank | Optional |
| Tank Body Thickness | Approx. 4–6 mm for carbon steel or customized |
| Tank Head Thickness | Approx. 5–7 mm for carbon steel or customized |
| Tank Structure | Welded sealed fuel transportation tank |
| Compartment Quantity | 1 / 2 / 3 / 4 / 5 / 6 compartments optional |
| Single Compartment | Available |
| Multi-Compartment | Available |
| Compartment Volume | Customized according to fuel distribution requirements |
| Anti-Wave Baffles | Multiple internal anti-surge baffles |
| Baffle Material | Same / compatible material as tank body |
| Manhole Quantity | According to compartment quantity |
| Manhole Diameter | Approx. 500 mm or according to design |
| Manhole Cover | Fuel-tanker safety manhole cover |
| Emergency Vent | Available according to tank design |
| Breathing Valve | Available |
| Pressure/Vacuum Valve | Available / optional |
| Top Walkway | Available |
| Tank Ladder | Available |
| Top Safety Guardrail | Optional |
| Tank Inspection Port | Available |
| Loading Method | Top loading / bottom loading optional |
| Top Loading | Available |
| Bottom Loading | Optional according to market requirements |
| Bottom Loading Adapter | API-type adapter optional |
| Loading Pipeline | Carbon steel / stainless steel / aluminum alloy according to tank |
| Discharge Method | Gravity discharge / pump discharge |
| Bottom Discharge | Available |
| Fuel Pump | Optional |
| Fuel Pump Type | Gear pump / centrifugal fuel pump or equivalent |
| Fuel Pump Drive | PTO-driven / auxiliary drive optional |
| Pump Flow Rate | Approx. 30–80 m³/h depending on pump |
| Pump Suction Depth | Approx. 5–7 m depending on pump |
| Pump Inlet Diameter | According to pump configuration |
| Pump Outlet Diameter | According to pump configuration |
| Pump Inlet Valve | Available |
| Pump Outlet Valve | Available |
| Pump Bypass System | Optional |
| Fuel Dispenser | Optional |
| Fuel Dispenser Type | Mechanical / electronic fuel dispenser |
| Fuel Meter | Mechanical / electronic flow meter optional |
| Meter Accuracy | According to selected dispenser / meter |
| Refueling Gun | Optional |
| Automatic Fuel Nozzle | Optional |
| Hose Reel | Optional |
| Hose Reel Type | Manual / spring-return / electric optional |
| Refueling Hose Length | Approx. 10–30 m or customized |
| Hose Diameter | According to dispenser and flow requirement |

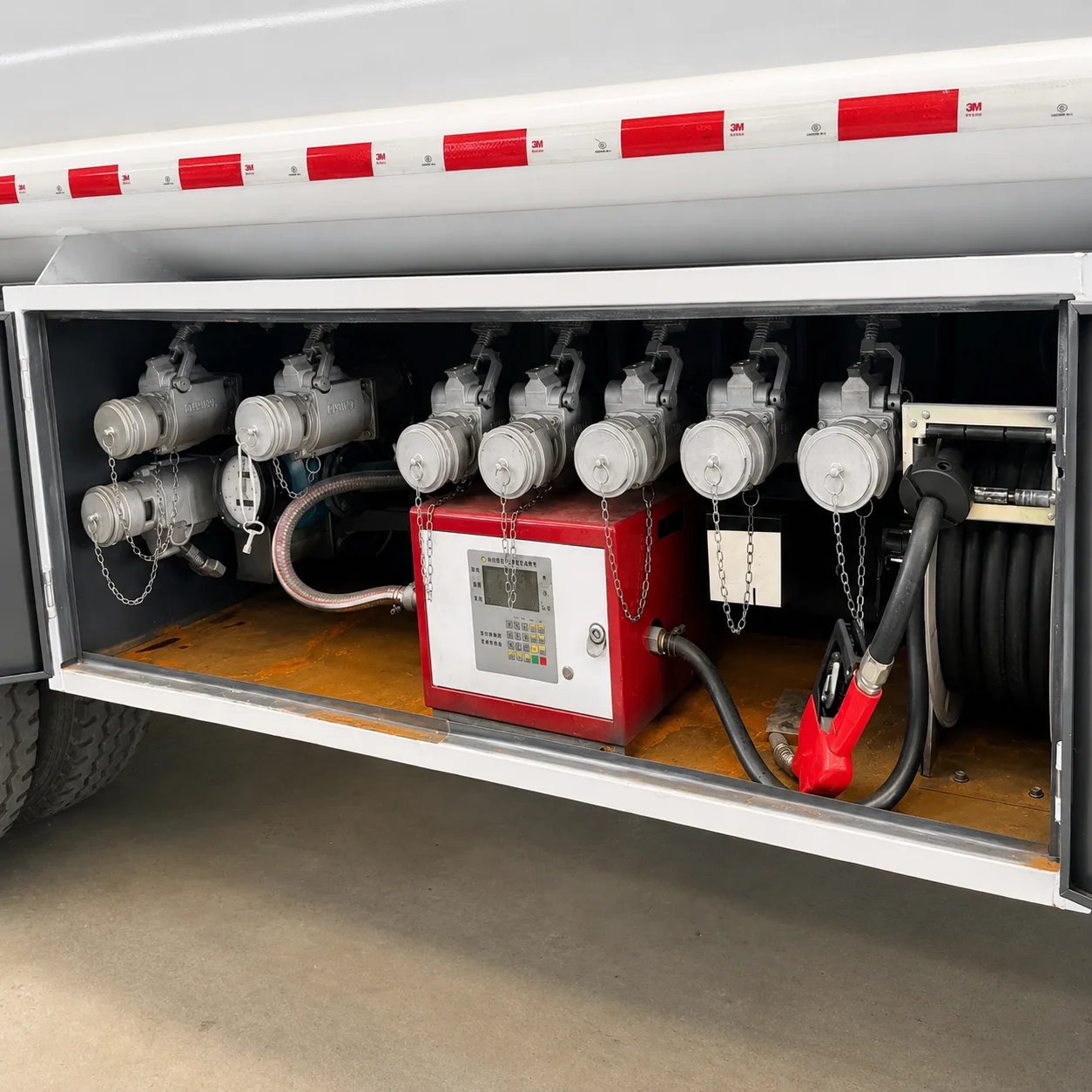

| Mobile Refueling System | Optional |
| Fuel Transportation Configuration | Available |
| Fuel Distribution Configuration | Available |
| Flow Meter | Optional |
| Digital Display | Optional |
| Printer | Optional for compatible dispenser |
| Compartment Discharge Valves | Independent valves available |
| Bottom Valve | Pneumatic / manual bottom valve optional |
| Emergency Shut-Off Valve | Optional / available according to market requirements |
| API Discharge Adapter | Optional |
| Vapor Recovery System | Optional according to fuel and market requirements |
| Vapor Recovery Valve | Optional |
| Vapor Recovery Adapter | Optional |
| Overfill Protection | Optional |
| Overfill Sensor | Optional |
| Overfill Socket | Optional |
| Static Grounding Reel | Optional / recommended |
| Grounding Wire | Available |
| Anti-Static Chain | Available / optional |
| Conductive Hose | Optional |
| Pipeline Material | Carbon steel / stainless steel / aluminum alloy |
| Pipeline Layout | Independent / manifold configuration |
| Valve Material | Aluminum alloy / stainless steel / carbon steel |
| Pipeline Box | Available / optional |
| Hose Box | Available |
| Toolbox | Available |
| Rear Bumper | Heavy-duty protection structure |
| Side Guard | Available |
| Mudguards | Available |
| Fire Extinguisher | Available / according to local requirements |
| Fire Extinguisher Bracket | Available |
| Warning Signs | Optional / according to local regulations |
| Reflective Markings | Optional / according to local regulations |
| Warning Beacon | Optional |
| Explosion-Proof Electrical Equipment | Optional according to project requirements |
| Explosion-Proof Junction Box | Optional |
| Electrical Isolation Switch | Optional |
| Emergency Power Cut-Off | Optional |
| Rear Working Light | Optional where permitted |
| Reversing Camera | Optional |
| 360° Monitoring System | Optional |
| Tank Level Indicator | Mechanical / electronic optional |
| Liquid Level Gauge | Optional |
| Compartment Identification | Optional |
| Internal Anti-Corrosion Treatment | Optional according to transported product |
| External Anti-Corrosion Treatment | Available |
| External Painting | Industrial primer + topcoat |
| Tank Color | White / silver / yellow / red / blue / customized |
| Tank Logo | Customized |
| Company Branding | Customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis, engine, drive type, tank capacity, tank material, compartments, fuel pump, dispenser, flow meter, hose reel, bottom loading, vapor recovery, overfill protection, safety equipment, steering side, paint color, logo and export markings |
Product Details
Typical Applications
- Diesel transportation
- gasoline transportation where compatible and legally permitted
- fuel distribution
- construction-site refueling
- mining equipment refueling
- truck fleet refueling
- generator refueling
- agricultural machinery refueling
- industrial fuel delivery
- remote-site fuel supply
- infrastructure project fuel supply
- quarry equipment refueling
- road-construction machinery refueling
- logistics fleet fuel supply
- municipal fleet refueling
- fuel station distribution
- commercial fuel transportation.
Available Configurations
- 266HP, 336HP, 371HP, 380HP or 400HP diesel engine
- HOWO 4×2, 6×4 or 8×4 chassis
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V configuration according to chassis
- 10CBM, 15CBM, 20CBM, 25CBM or 30CBM fuel tank
- Q235 carbon-steel, stainless-steel or aluminum-alloy tank
- single compartment or 2 / 3 / 4 / 5 / 6 compartments
- customized compartment volumes
- internal anti-wave baffles
- top loading or bottom loading
- API bottom-loading adapters
- independent compartment discharge valves
- pneumatic bottom valves
- emergency shut-off valves
- gravity discharge
- PTO-driven fuel pump
- approximately 30–80m³/h fuel pump
- mobile refueling system
- mechanical or electronic fuel dispenser
- flow meter
- refueling gun
- 10–30m hose reel
- digital display
- printer
- API discharge adapters
- vapor recovery system
- overfill protection
- static grounding reel
- anti-static chain
- conductive hose
- tank level indicator
- stainless-steel or aluminum pipelines
- explosion-proof electrical components
- emergency electrical cut-off
- fire extinguishers
- side guards
- warning markings
- reversing camera
- 360° monitoring system
- customized tank structure, fuel handling equipment, safety configuration, paint color, company logo and export markings.
Buyer Support
- HOWO Fuel Tanker Truck combines a durable SINOTRUK HOWO chassis with a professionally designed fuel transportation tank, providing a practical solution for fuel distribution, construction projects, mining operations, fleet refueling and remote-site fuel supply. Tank capacities from approximately 10CBM to 30CBM are available for different transportation requirements. 4×2 configurations provide better maneuverability for local fuel distribution, while 6×4 and 8×4 versions provide greater tank capacity and chassis load capability for long-distance and high-volume operations. Single- and multi-compartment configurations allow one vehicle to be adapted to different fuel distribution requirements. Multiple independent compartments can be configured with individual loading and discharge pipelines to improve flexibility when transporting compatible petroleum products. The vehicle can be supplied as a basic fuel transportation tanker or configured as a mobile refueling truck. Optional fuel pumps, flow meters, dispensers, hose reels and refueling guns allow direct refueling of construction machinery, mining equipment, generators, agricultural machinery and commercial fleets at the work site. Carbon-steel tanks provide a durable and economical solution for general fuel transportation. Stainless-steel and aluminum-alloy tank configurations can also be supplied according to transported product, weight requirements and customer specifications. Internal anti-wave baffles help reduce liquid movement during acceleration, braking and cornering. Tank structure, compartment design, mounting system and pipeline layout can be configured according to tank capacity and vehicle chassis. Optional bottom loading, API adapters, vapor recovery, pneumatic bottom valves, emergency shut-off systems, overfill sensors, static grounding reels and other equipment can be added according to the transported fuel and destination-market requirements. Left-hand-drive and right-hand-drive versions are available for different export markets. Engine power, drive configuration, tank capacity, tank material, number of compartments, loading system, fuel pump, dispenser, metering system, hose reel, safety equipment, paint color and other specifications can be customized according to project requirements.

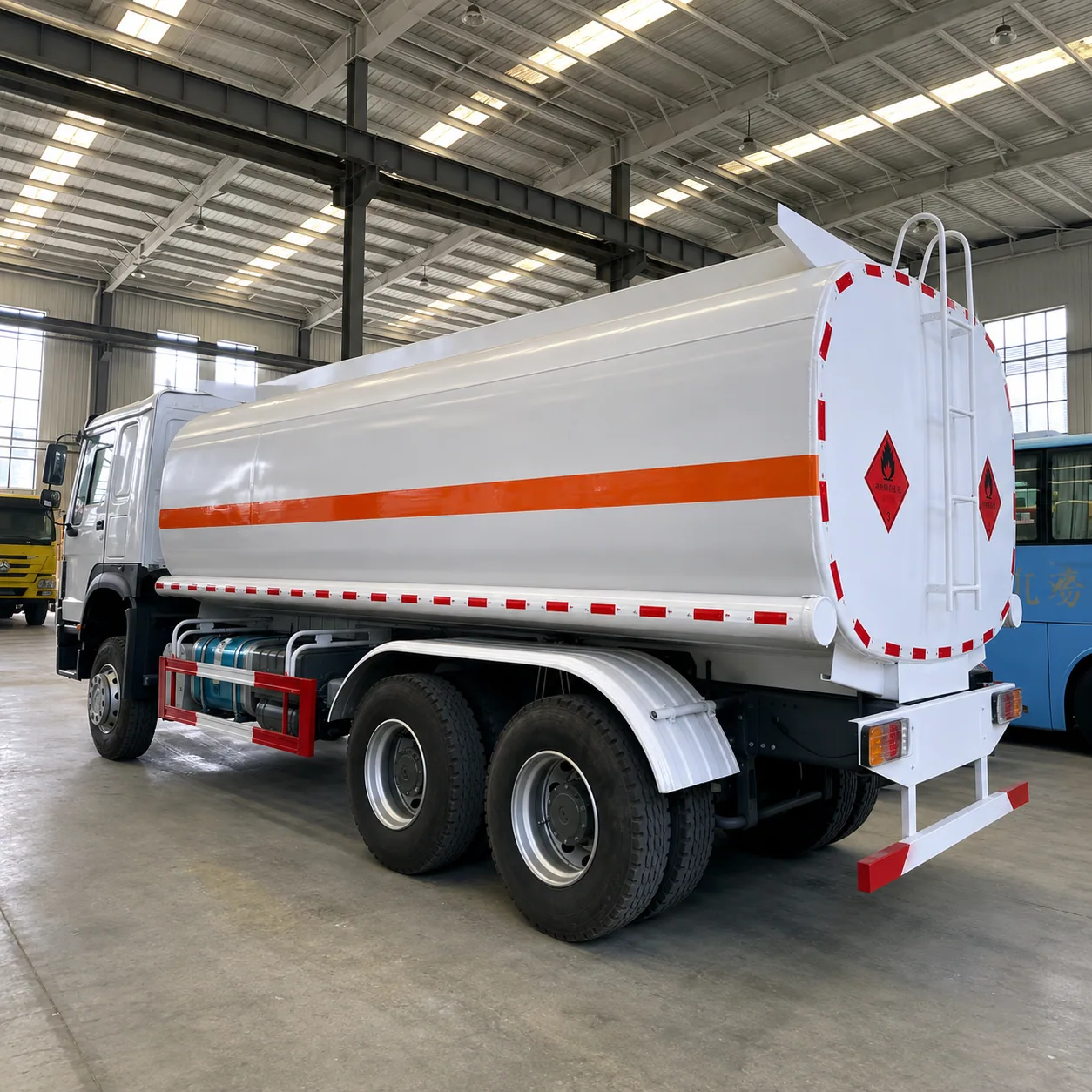

Product Display
