Special Trucks
HOWO Concrete Mixer Truck 340 / 380 / 400HP 6 / 8 / 10 / 12 / 14 / 16CBM Available
HOWO Concrete Mixer Truck is a heavy-duty construction vehicle designed for transporting ready-mixed concrete from batching plants to construction sites while continuously agitating the concrete during transportation. The vehicle combines a durable SINOTRUK HOWO chassis with a high-strength mixing drum, hydraulic drive system, reducer, hydraulic pump, hydraulic motor, feeding hopper, discharge chute, water system and rear operating controls. Different HOWO concrete mixer configurations are available for urban construction, commercial concrete plants, road and bridge projects, industrial construction and large infrastructure projects. Common configurations include 340HP, 380HP and 400HP engines, 4×2 / 6×4 / 8×4 chassis options and 6CBM, 8CBM, 10CBM, 12CBM, 14CBM and 16CBM mixer capacities. HOWO mixer platforms commonly use HW19710-series manual transmissions, with left-hand-drive and right-hand-drive configurations available for different export markets. The mixer drum is manufactured from high-strength wear-resistant steel and uses internal helical mixing blades to maintain concrete uniformity during transportation and provide efficient feeding and discharging. The hydraulic system drives the drum continuously and allows the operator to control drum rotation direction and speed according to loading, transportation and unloading requirements. Representative HOWO mixer configurations use imported or equivalent hydraulic pumps, motors and reducers, including EATON hydraulic components and Bonfiglioli reducers.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Concrete Mixer Truck / Cement Mixer Truck / Transit Mixer Truck |
| Brand | SINOTRUK HOWO |
| Chassis Brand | HOWO |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 340HP / 380HP / 400HP available according to chassis and stock |
| Engine Brand | Weichai / SINOTRUK MC series or equivalent according to model and stock |
| Common Engine Model | WP10 series / MC series or equivalent |
| Engine Type | Six-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 9.7–11 L depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro V / Euro VI available according to model year and export market |
| Transmission Brand | SINOTRUK |
| Transmission Type | Manual transmission |
| Common Transmission | HW19710 / HW19710CL or equivalent |
| Transmission Gears | Commonly 10 forward + 2 reverse gears |
| PTO | Power take-off available for mixer hydraulic system |
| Cab Type | HOWO long cab / day cab according to chassis |
| Common Cab | HW76 / H77L or equivalent according to chassis series |
| Seating Capacity | 2 persons commonly available |
| Sleeper | Single sleeper available on selected heavy-duty configurations |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,000–11,000 mm depending on drive type and mixer capacity |
| Overall Width | Approx. 2,496–2,550 mm |
| Overall Height | Approx. 3,600–4,000 mm |
| Wheelbase | Different wheelbase configurations available according to 4×2 / 6×4 / 8×4 chassis |
| Gross Vehicle Weight | Approx. 18–35 tons depending on chassis and mixer capacity |
| Curb Weight | Approx. 10–16 tons depending on chassis and upper body |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | HOWO / VGD steering axle according to chassis |
| Front Axle Capacity | Approx. 7.5–9.5 tons depending on configuration |
| Rear Axle | HOWO / MC series heavy-duty drive axle |
| Rear Axle Capacity | Approx. 13–16 tons per drive axle depending on configuration |
| Rear Axle Type | Single-reduction / hub-reduction heavy-duty drive axle according to chassis |
| Differential Lock | Available according to axle configuration |
| Frame | Reinforced high-strength steel frame |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to drive type; spare tire available |
| Fuel Tank | Approx. 300–400 L; 400L commonly available on heavy-duty configurations |
| Brake System | Dual-circuit compressed-air brake system |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Mixer Body Type | Rotating concrete mixing drum |
| Effective Mixer Capacity | 6CBM / 8CBM / 10CBM / 12CBM / 14CBM / 16CBM available |
| Mixer Drum Material | High-strength wear-resistant steel |
| Drum Structure | Reinforced drum body with internal double-helical mixing blades |
| Drum Rotation | Forward / reverse rotation for mixing and discharging |
| Drum Rotation Speed | Approx. 0–16 rpm depending on mixer system and configuration |
| Mixing Blade | High-strength wear-resistant spiral blades |
| Blade Structure | Double-helical / spiral mixing blade design |
| Mixer Hydraulic Drive | Hydrostatic hydraulic drive system |
| Hydraulic Pump | EATON / PMP / equivalent hydraulic pump according to configuration |
| Hydraulic Motor | EATON / PMP / equivalent hydraulic motor according to configuration |
| Reducer | Bonfiglioli / PMP / equivalent heavy-duty mixer reducer |
| Hydraulic Oil Tank | Available |
| Hydraulic Cooling System | Available according to configuration |
| Feeding Hopper | Reinforced large feeding hopper |
| Feeding Hopper Material | High-strength steel with wear-resistant lining optional |
| Feeding System | Rear feeding hopper |
| Discharge System | Rear discharge chute |
| Main Discharge Chute | Adjustable and rotatable discharge chute |
| Extension Chute | One or more extension chutes optional |
| Discharge Speed | Approx. 2–3 m³/min depending on mixer capacity and concrete condition |
| Feeding Speed | Approx. ≥3 m³/min depending on mixer configuration |
| Concrete Residual Rate | Low-residual drum and blade design |
| Water Tank Capacity | Approx. 300–500 L; 400L commonly available |
| Water Tank Type | Pressurized / gravity water system according to configuration |
| Water Supply System | Water tank + pipeline + control valve |
| Drum Cleaning System | Water flushing system |
| Hand Washing Outlet | Available / optional |
| Rear Operating Control | Mechanical / electro-hydraulic operating controls |
| Control Position | Rear left and right operating controls available |
| Cab Drum Control | Optional |
| Drum Speed Control | Adjustable |
| Drum Rotation Direction Control | Mixing / neutral / discharge |
| Roller System | Heavy-duty support rollers |
| Drum Support Frame | Reinforced front and rear drum support structure |
| Subframe | Reinforced mixer subframe |
| Rear Fender | Available |
| Rear Ladder | Available |
| Working Lights | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| Warning Lamp | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, green, yellow or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, transmission, drive type, mixer capacity, mixer drum material, hydraulic pump, hydraulic motor, reducer, water tank, discharge chute, tires, steering side, paint color, company logo and export markings |
Product Details
Typical Applications
- Ready-mixed concrete transportation
- commercial concrete batching plants
- residential building construction
- commercial building construction
- industrial plant construction
- road construction
- highway construction
- bridge construction
- tunnel construction
- airport construction
- port construction
- railway construction
- hydropower projects
- municipal infrastructure
- foundation construction
- industrial park development
- mining infrastructure
- precast concrete projects
- large-scale infrastructure construction
- urban development projects.
Available Configurations
- 340HP, 380HP or 400HP diesel engine
- Weichai or SINOTRUK engine configuration according to chassis
- 4×2, 6×4 or 8×4 drive type
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro V / Euro VI emission configuration according to model year and market
- HW19710, HW19710CL or equivalent manual transmission
- 6CBM, 8CBM, 10CBM, 12CBM, 14CBM or 16CBM effective mixer capacity
- high-strength wear-resistant mixer drum
- reinforced double-helical mixing blades
- EATON, PMP or equivalent hydraulic pump
- EATON, PMP or equivalent hydraulic motor
- Bonfiglioli, PMP or equivalent reducer
- hydraulic oil cooling system
- approximately 300–500L water tank
- pressurized water system
- reinforced feeding hopper
- wear-resistant hopper lining
- adjustable discharge chute
- extension discharge chute
- rear mechanical or electro-hydraulic controls
- cab-mounted drum control
- rear working camera
- reversing camera
- working lights
- warning lamps
- ABS
- air conditioner
- different tire specifications
- reinforced suspension
- spare tire
- toolbox
- fire extinguisher
- customized mixer capacity, hydraulic system, paint color, company logo and export markings.
Buyer Support
- HOWO Concrete Mixer Truck combines a proven SINOTRUK HOWO heavy-duty chassis with a professional concrete mixing and transportation system for commercial concrete plants and construction projects
- 340HP, 380HP and 400HP engine configurations provide strong power for loaded concrete transportation and demanding construction-site conditions
- 4×2, 6×4 and 8×4 chassis options allow customers to select suitable configurations for different mixer capacities, road conditions and transport requirements
- 6CBM, 8CBM, 10CBM, 12CBM, 14CBM and 16CBM mixer capacities cover small, medium and large concrete transportation applications. The high-strength wear-resistant mixer drum and spiral blade system provide continuous concrete agitation during transportation and efficient feeding and unloading at the construction site
- hydraulic drum drive provides smooth and adjustable drum rotation for loading, transportation and discharge operations
- EATON hydraulic pumps and motors and Bonfiglioli reducer configurations are available on representative HOWO mixer systems, with equivalent hydraulic components also available according to stock and project requirements. Reinforced chassis, heavy-duty axles, multi-leaf spring suspension and high-strength subframe provide a strong foundation for concrete transportation
- approximately 300–500L water-system configurations support mixer-drum and discharge-chute cleaning after unloading
- adjustable rear discharge chutes simplify concrete placement at construction sites
- left-hand-drive and right-hand-drive options support different export markets
- engine, transmission, drive type, mixer volume, hydraulic system, reducer, drum material, water system, tires, paint color and other configurations can be customized according to project requirements.

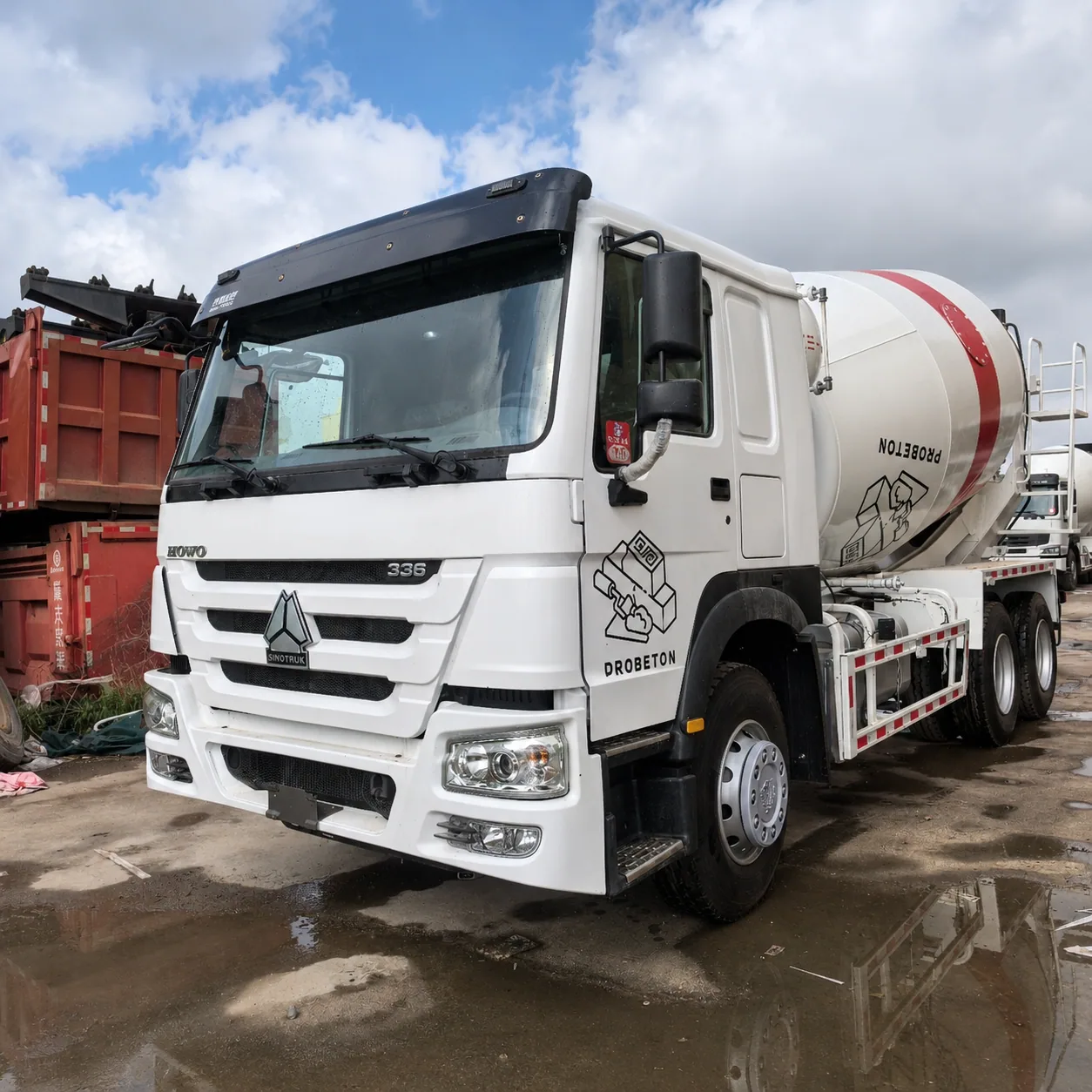

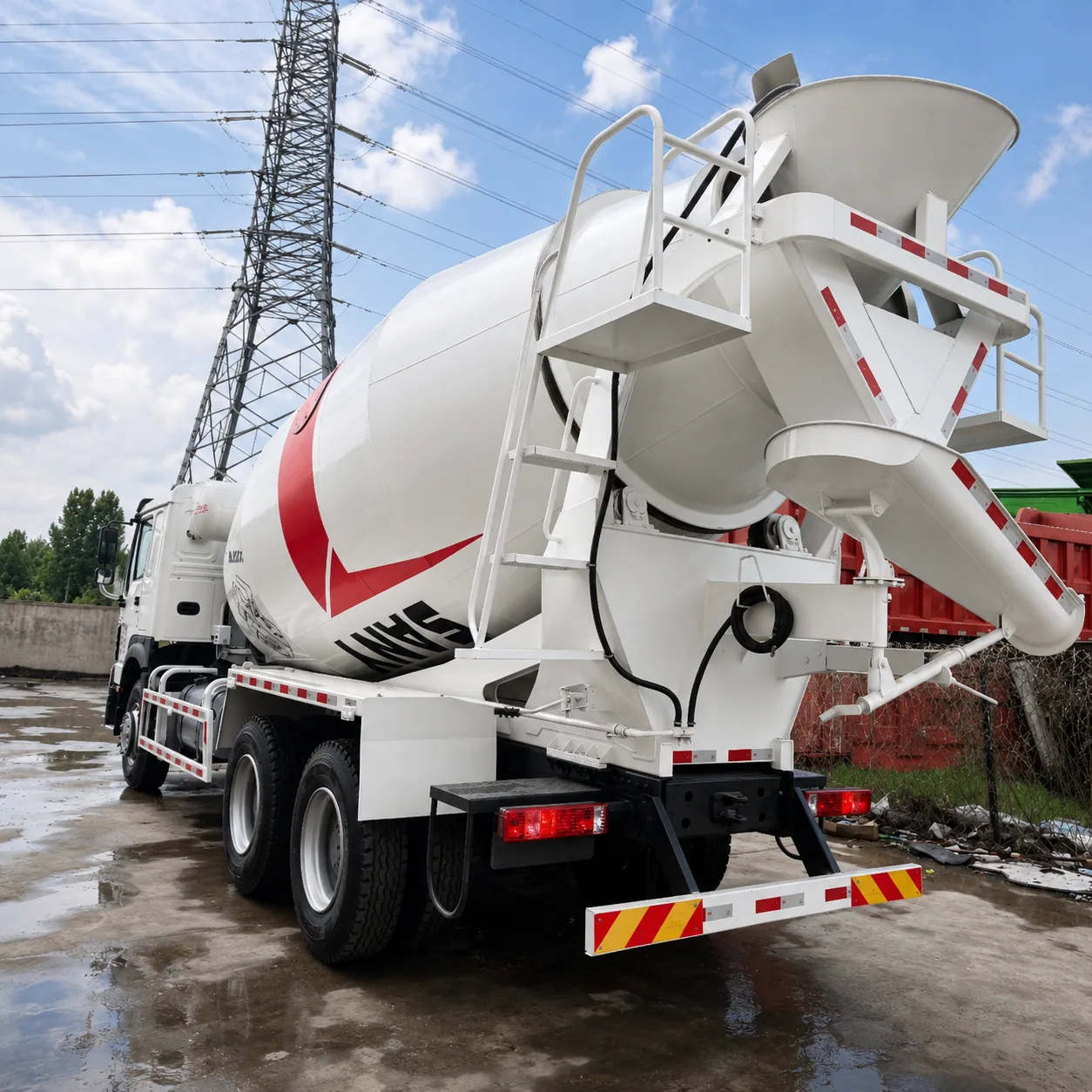

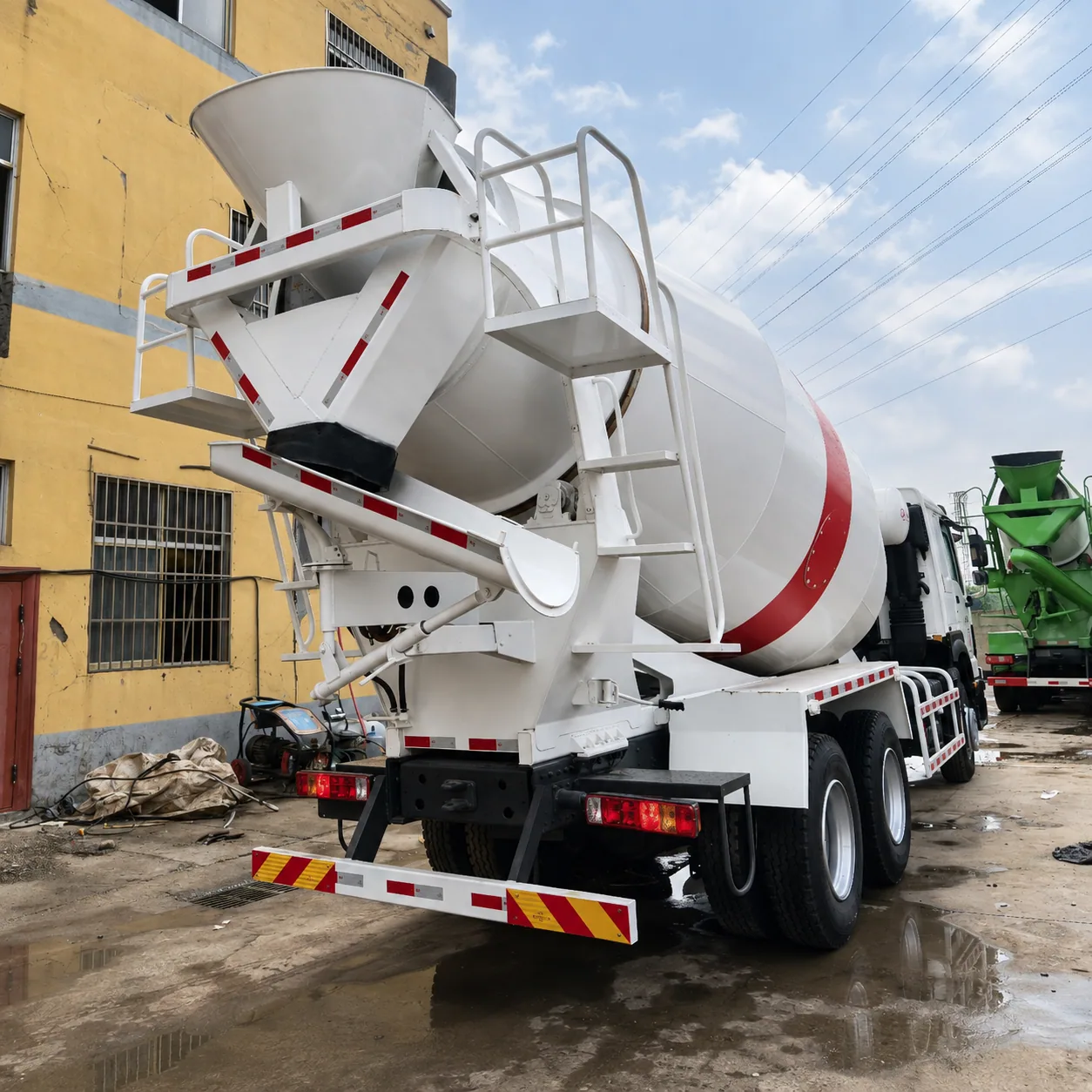

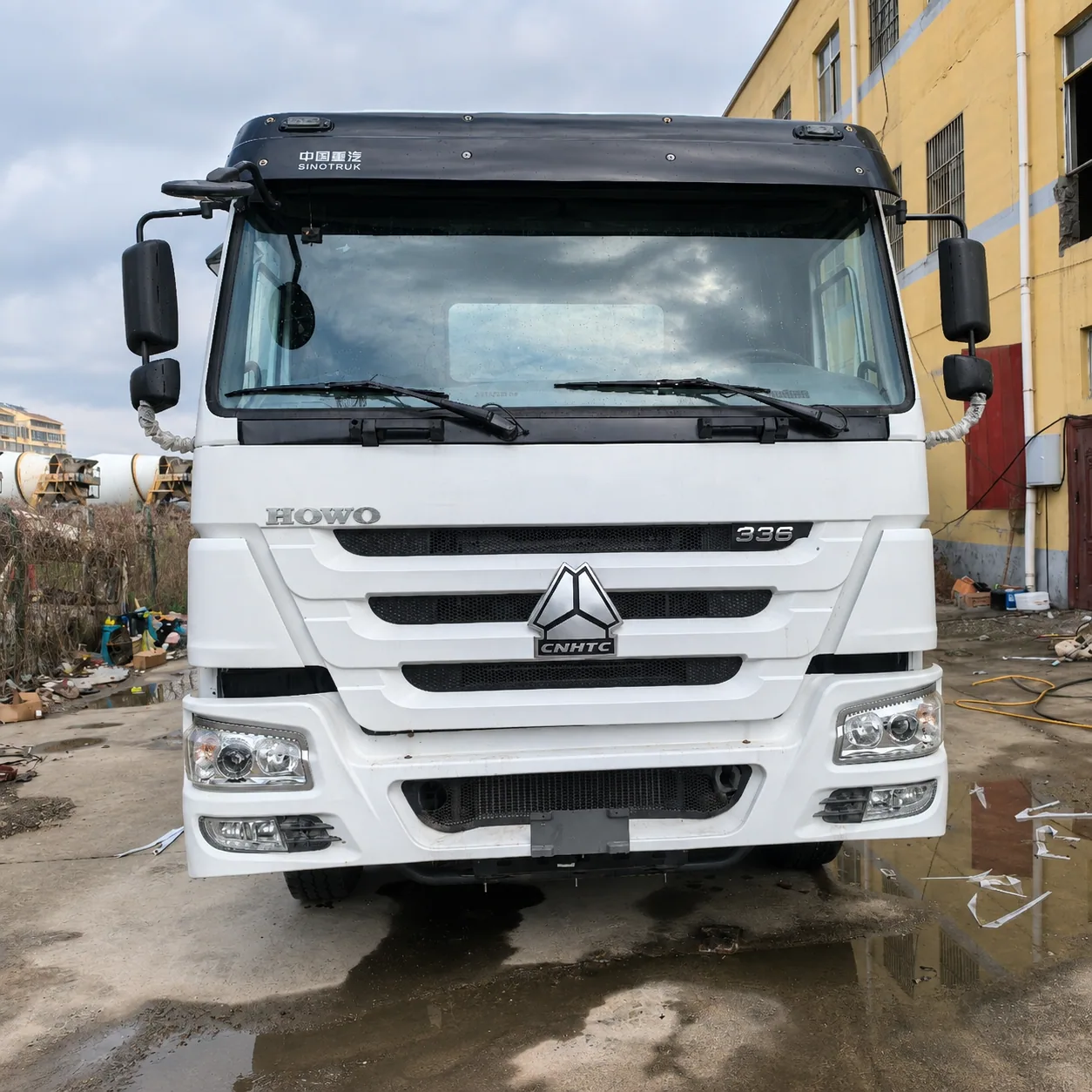

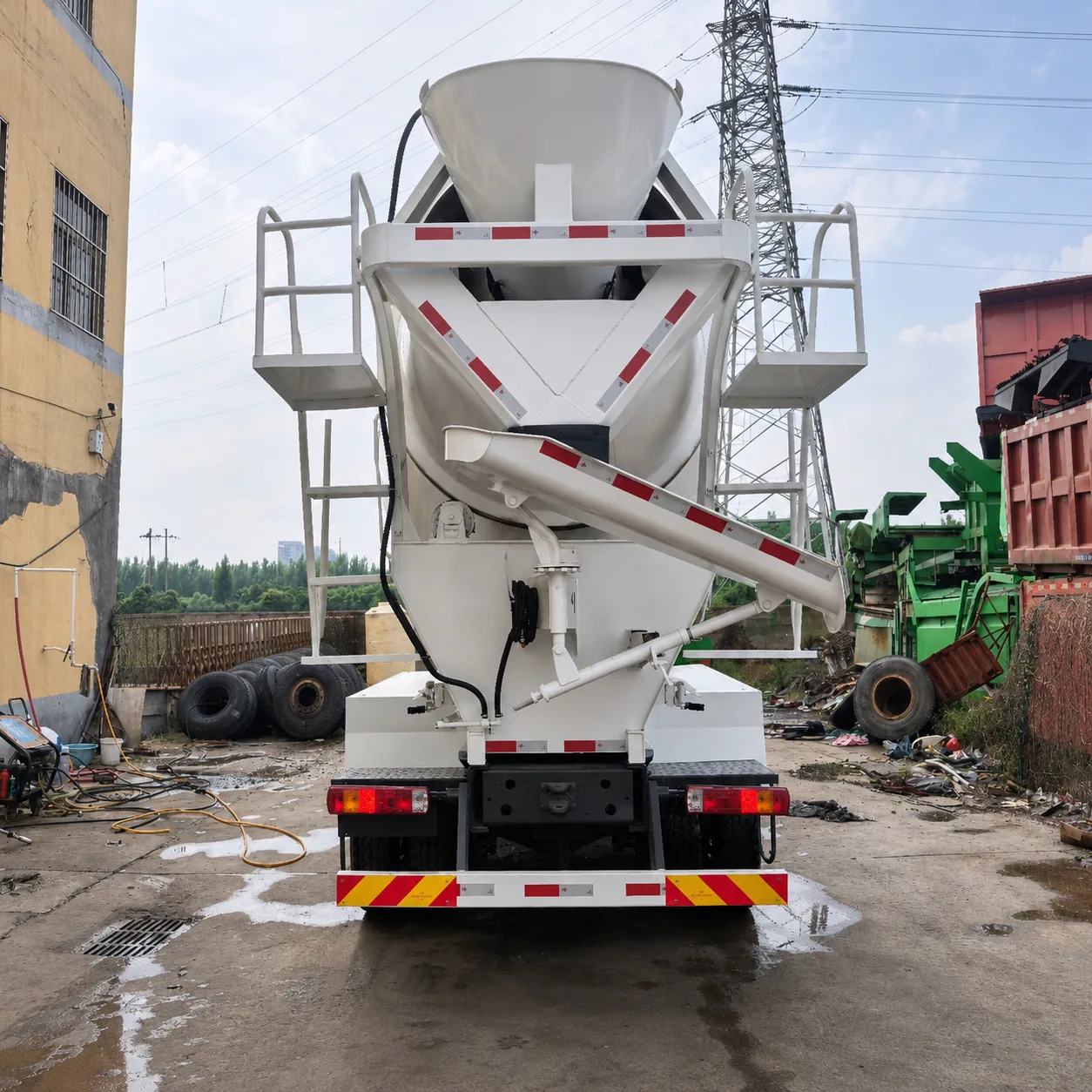

Product Display
