HOWO 4×2 Dump Truck 240 / 266 / 290 / 336HP Available
HOWO 4×2 Dump Truck 240HP 266HP 290HP 336HP Light Duty Tipper Truck HOWO 4×2 dump truck is a practical tipper truck designed for short-distance bulk material transportation and rear tipping unloading. Compared with 6×4 and 8×4 dump trucks, the 4×2 model has a shorter wheelbase, smaller turning radius and better flexibility, making it suitable for narrow roads, village construction, urban projects and small-to-medium construction sites.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | SINOTRUK HOWO |
| Model Series | HOWO / HOWO 7 Series |
| Drive Type | 4×2 |
| Engine Power | 240HP / 266HP / 290HP / 336HP available |
| Engine Brand | SINOTRUK / Weichai optional according to stock |
| Engine Model | WD615 / WP10 / MC series optional |
| Emission Standard | Euro II / Euro III / Euro V optional |
| Transmission | 8-speed / 10-speed manual transmission |
| Cab | HW70 / HW76 / HOWO cab, no sleeper or single sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 6,800-7,800 mm L × 2,490-2,550 mm W × 3,100-3,600 mm H |
| Wheelbase | Approx. 3,600-4,600 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 4,200-5,200 mm L × 2,200-2,500 mm W × 800-1,500 mm H |
| Cargo Box Volume | Approx. 8-16 m³, depending on box size |
| Loading Capacity | Approx. 8-18 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 1 rear drive axle |
| Front Axle | 7T / 9T front axle optional |
| Rear Axle | 13T / 16T rear drive axle optional |
| Suspension | Heavy-duty leaf spring suspension |
| Tire Model | 11.00R20 / 12.00R20 / 12R22.5 optional |
| Tire Quantity | 6 tires + 1 spare tire |
| Fuel Tank | Approx. 200-300 L |
| Brake System | Dual-circuit air brake system |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | White, red, green, yellow or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Urban construction material transportation
- village road construction
- sand, gravel and soil transport
- small mining area material transfer
- farm and agricultural material transport
- municipal engineering
- landscaping projects
- short-distance building material delivery
- narrow road transportation
- construction waste transportation
- small and medium bulk cargo transport
Available Configurations
- 240HP, 266HP, 290HP or 336HP engine
- Euro II / Euro III / Euro V emission standard
- left-hand drive or right-hand drive
- HW70 / HW76 cab
- no sleeper or single sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 11.00R20, 12.00R20 or 12R22.5 tires
- reinforced rear axle
- air conditioner
- spare tire
- customized paint color, logo and export markings
Buyer Support
- HOWO 4×2 dump truck has a compact structure and flexible operation, suitable for narrow roads and short-distance transport
- 4×2 drive type offers lower purchase cost and lower fuel consumption compared with larger 6×4 and 8×4 dump trucks
- mature SINOTRUK powertrain provides reliable performance and convenient maintenance
- reinforced cargo body improves durability for sand, gravel, soil and construction materials
- hydraulic rear tipping system improves unloading efficiency
- suitable for urban construction, village projects, farms and municipal work
- multiple emission standards and driving-side options for different export markets
- used, refurbished and customized trucks available with competitive cost performance

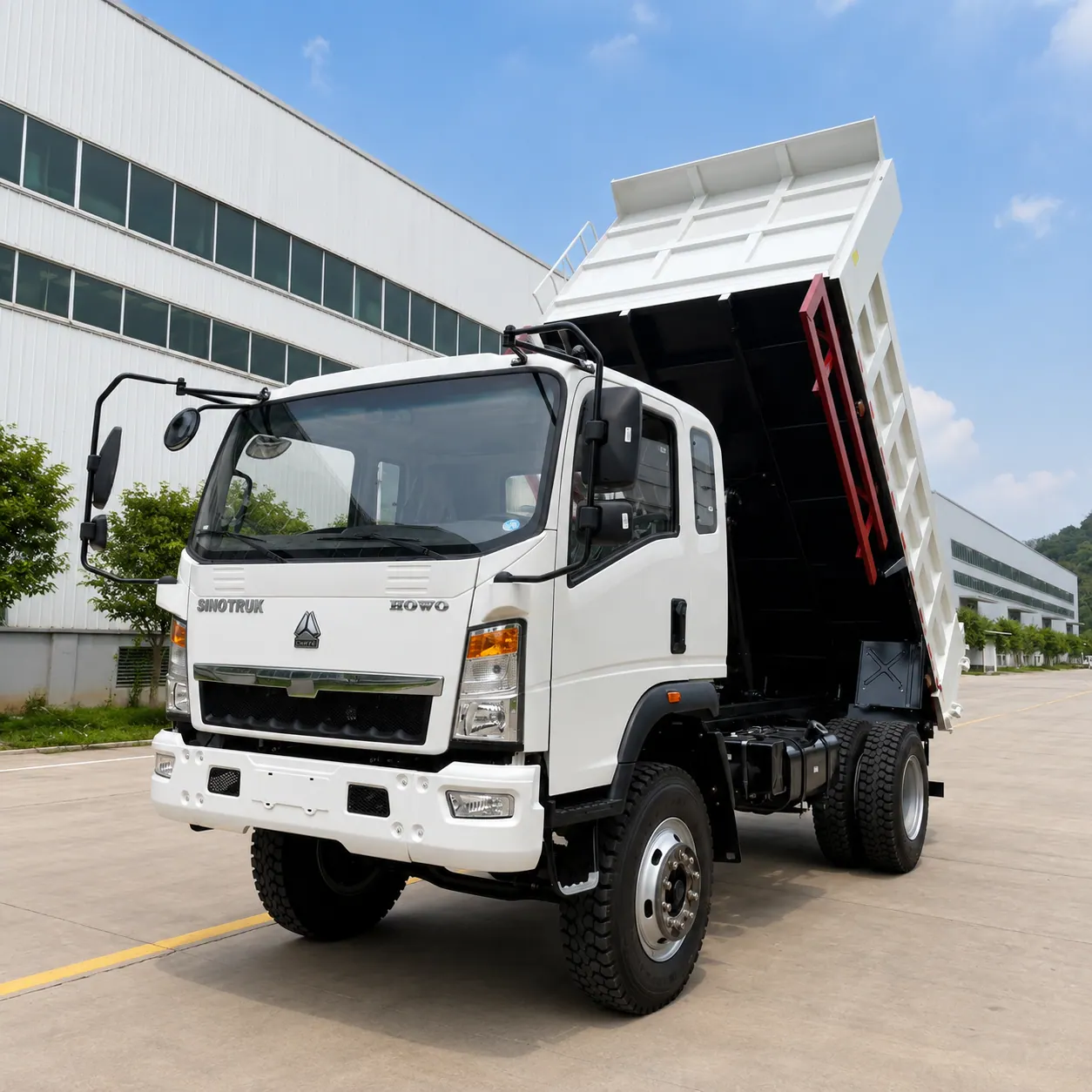

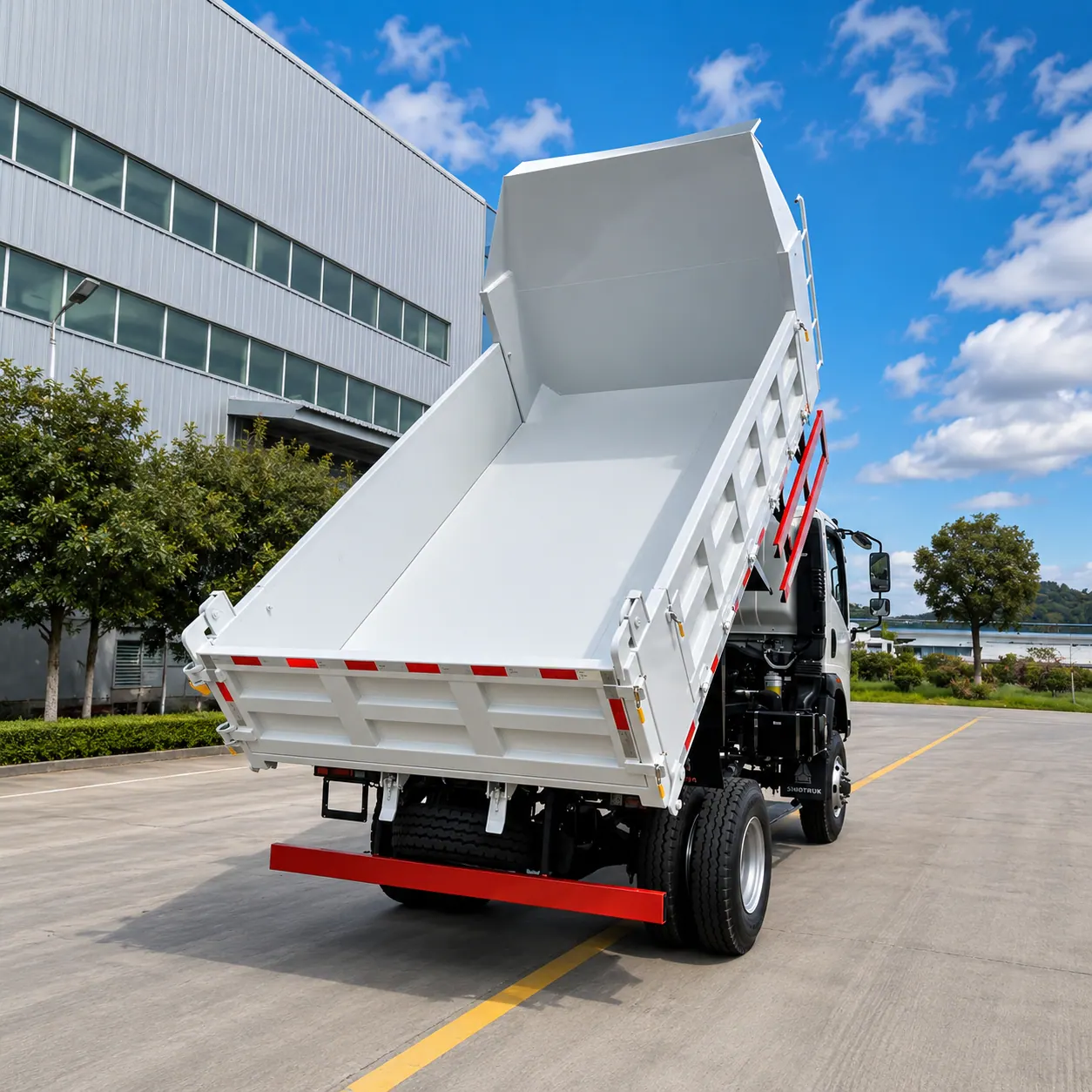

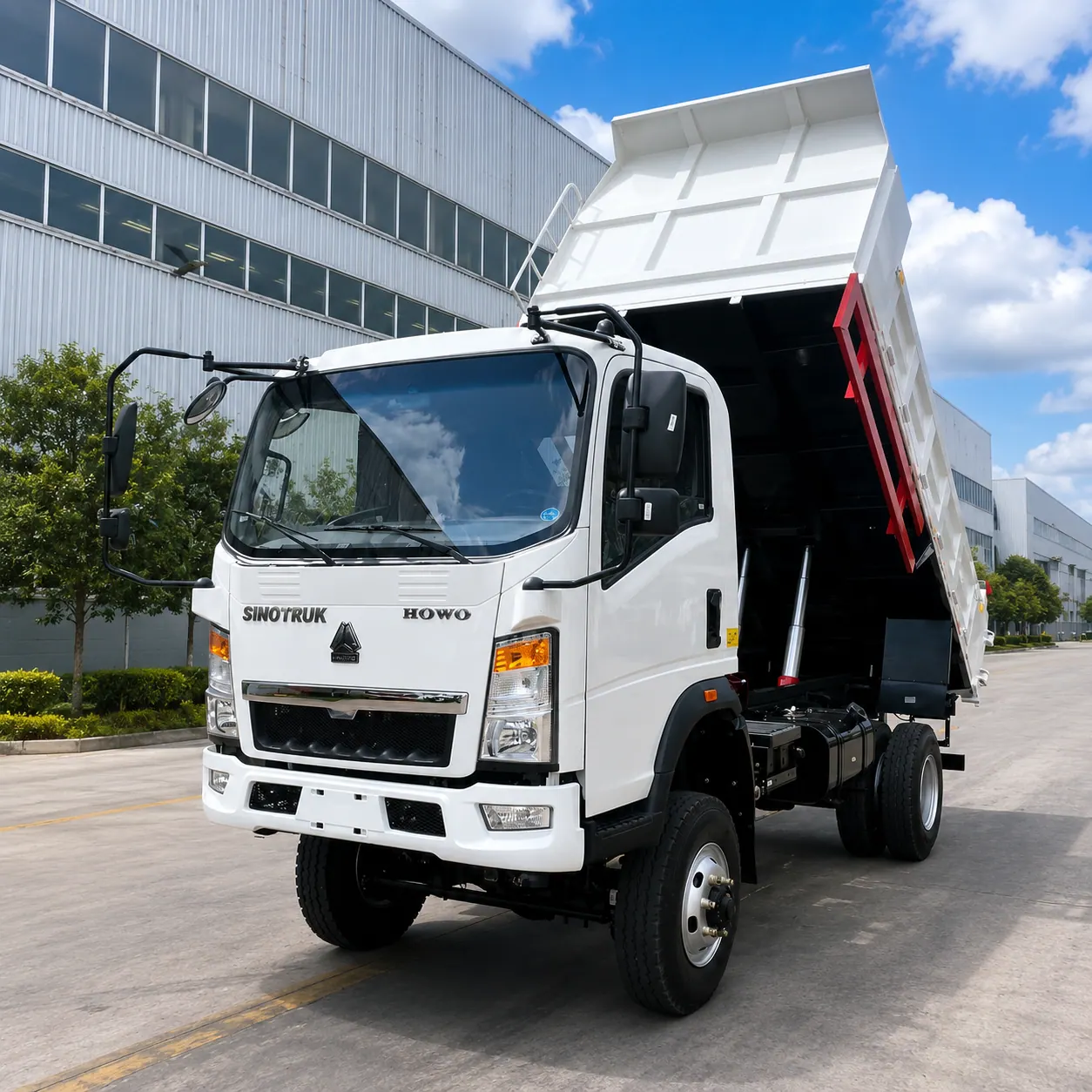

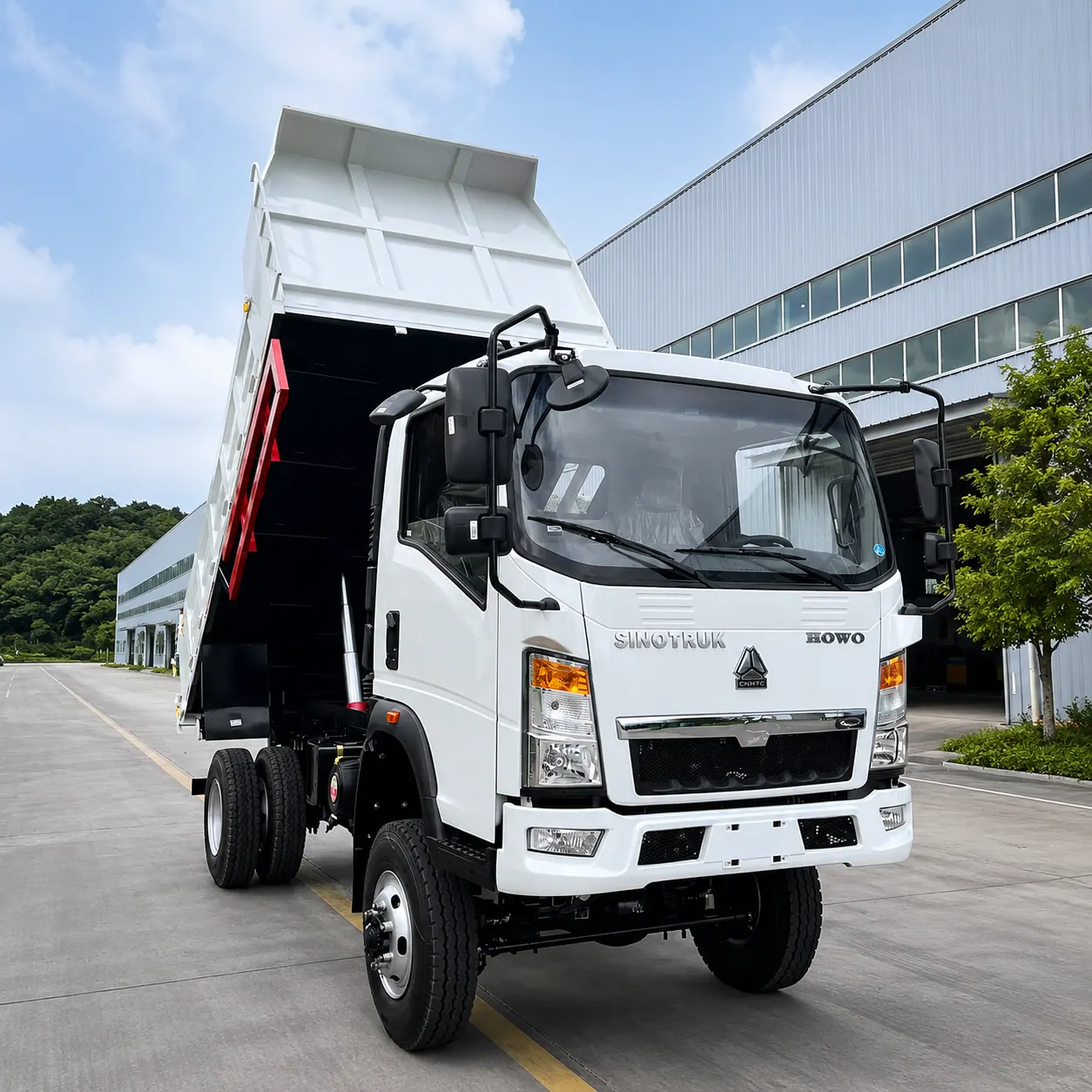

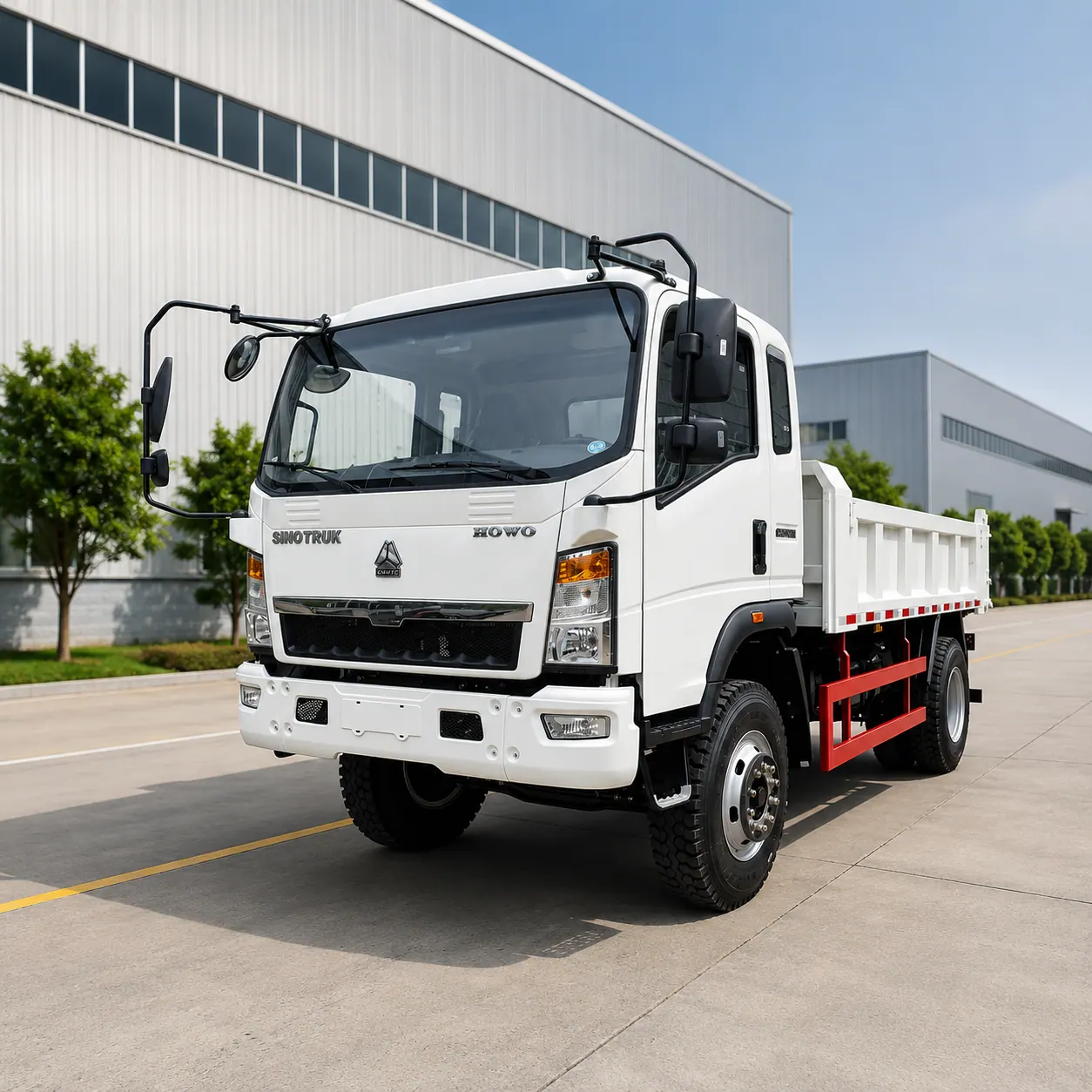

Product Display
