Dump Trucks
Foton Forland / Aumark 4×2 Dump Truck 88 / 115 / 130 / 150 / 154 / 170HP Available
Foton Forland / Aumark 4×2 Dump Truck 88HP 115HP 150HP 170HP Light Duty Tipper Truck Foton Forland / Aumark 4×2 dump truck is a light-duty and light-to-medium duty tipper truck designed for short-distance bulk material transportation and rear tipping unloading. It is suitable for urban construction, village road projects, municipal engineering, farm transportation, landscaping projects and small construction sites.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | Foton |
| Model Series | Forland / Aumark |
| Drive Type | 4×2 |
| Engine Power | 88HP / 115HP / 130HP / 150HP / 154HP / 170HP available, lower or higher power optional according to stock |
| Engine Brand | Foton Cummins / Quanchai / Yunnei / Weichai optional according to stock |
| Engine Model | ISF / F series / 4A / 4B / WP series optional |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V optional, Euro VI according to stock |
| Transmission | 5-speed / 6-speed / 8-speed manual transmission, AMT optional according to stock |
| Cab | Foton Forland cab / Aumark cab, single cab or wide cab optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 5,200-7,500 mm L × 1,900-2,350 mm W × 2,200-3,000 mm H |
| Wheelbase | Approx. 2,600-4,200 mm |
| GVW | Approx. 4,500-12,000 kg, depending on model and market |
| Cargo Box Type | Rear dump body, rectangular tipper body optional |
| Cargo Box Size | Approx. 3,000-4,800 mm L × 1,700-2,300 mm W × 500-1,200 mm H |
| Cargo Box Volume | Approx. 3-12 m³, depending on box size |
| Loading Capacity | Approx. 2-10 tons, depending on configuration and local regulations |
| Hydraulic System | Middle lifting system or front lifting cylinder optional |
| Axle Configuration | 1 front steering axle + 1 rear drive axle |
| Front Axle | 2T / 3T / 4T / 5.5T optional |
| Rear Axle | 3T / 5T / 7T / 9T optional |
| Frame | Reinforced light-duty or medium-duty frame optional |
| Suspension | Front and rear leaf spring suspension |
| Tire Model | 6.50R16 / 7.00R16 / 7.50R16 / 8.25R16 / 9.00R20 optional |
| Tire Quantity | 6 tires + 1 spare tire |
| Fuel Tank | Approx. 60-200 L |
| Brake System | Hydraulic brake / air brake, ABS optional |
| Max Speed | Approx. 75-100 km/h, depending on configuration |
| Color | White, blue, red, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Urban construction material transportation
- village road construction
- municipal engineering
- landscaping projects
- sand, gravel and soil transport
- farm and agricultural material transport
- road maintenance
- construction waste transportation
- short-distance building material delivery
- narrow road transportation
- small quarry material transfer
- small and medium bulk cargo transport
Available Configurations
- 88HP, 115HP, 130HP, 150HP, 154HP or 170HP engine
- Foton Cummins, Quanchai, Yunnei or Weichai engine
- Euro II / Euro III / Euro IV / Euro V emission standard
- left-hand drive or right-hand drive
- Forland cab or Aumark cab
- single cab or wide cab
- manual transmission or AMT according to stock
- rectangular dump body
- different cargo box length, height and steel thickness
- middle lifting system or front hydraulic lifting system
- 6.50R16, 7.00R16, 7.50R16, 8.25R16 or 9.00R20 tires
- reinforced rear axle
- air conditioner
- ABS
- spare tire
- customized paint color, logo and export markings
Buyer Support
- Foton Forland / Aumark 4×2 dump truck has a compact body and flexible operation, suitable for city roads, village roads and narrow working sites
- 4×2 drive type provides lower purchase cost, lower fuel consumption and easier maintenance compared with larger dump trucks
- Forland models are suitable for small-load and short-distance transport, while Aumark models provide stronger chassis and better comfort for municipal and construction work
- multiple engine options meet different loading and road condition requirements
- reinforced dump body improves durability for sand, gravel, soil and construction material transport
- hydraulic rear tipping system improves unloading efficiency
- spare parts are easy to source in many markets
- used, refurbished and customized trucks can be supplied with flexible configuration

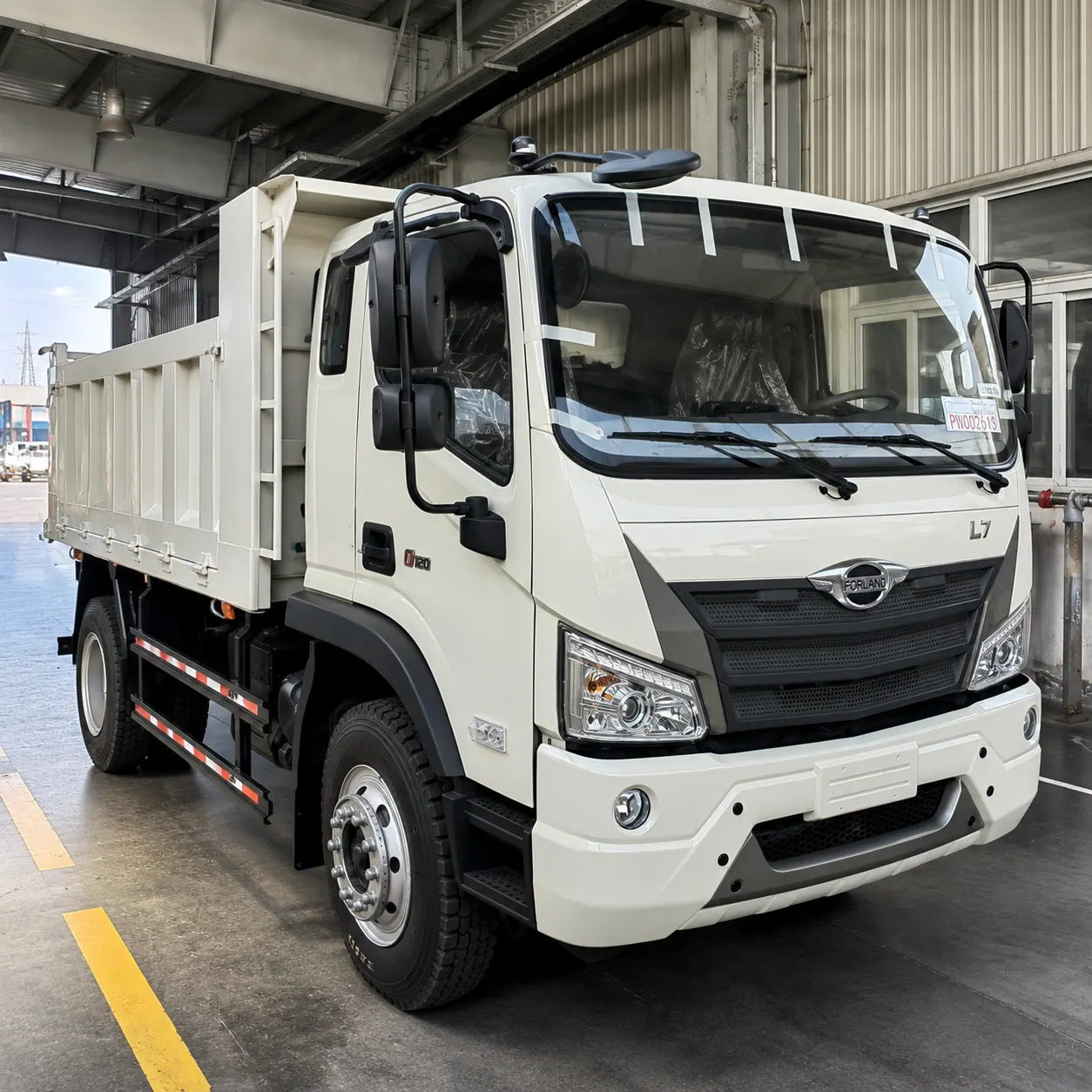

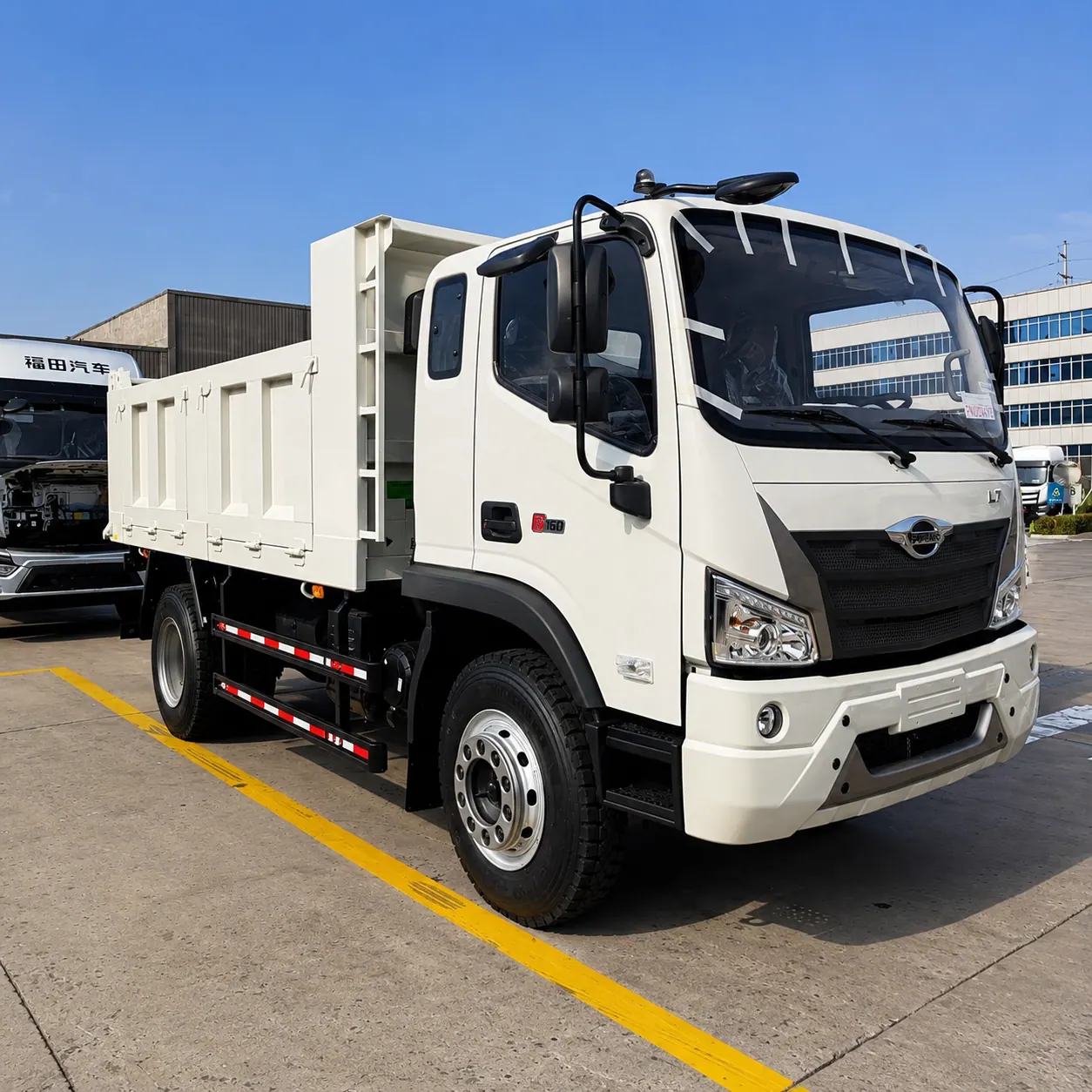

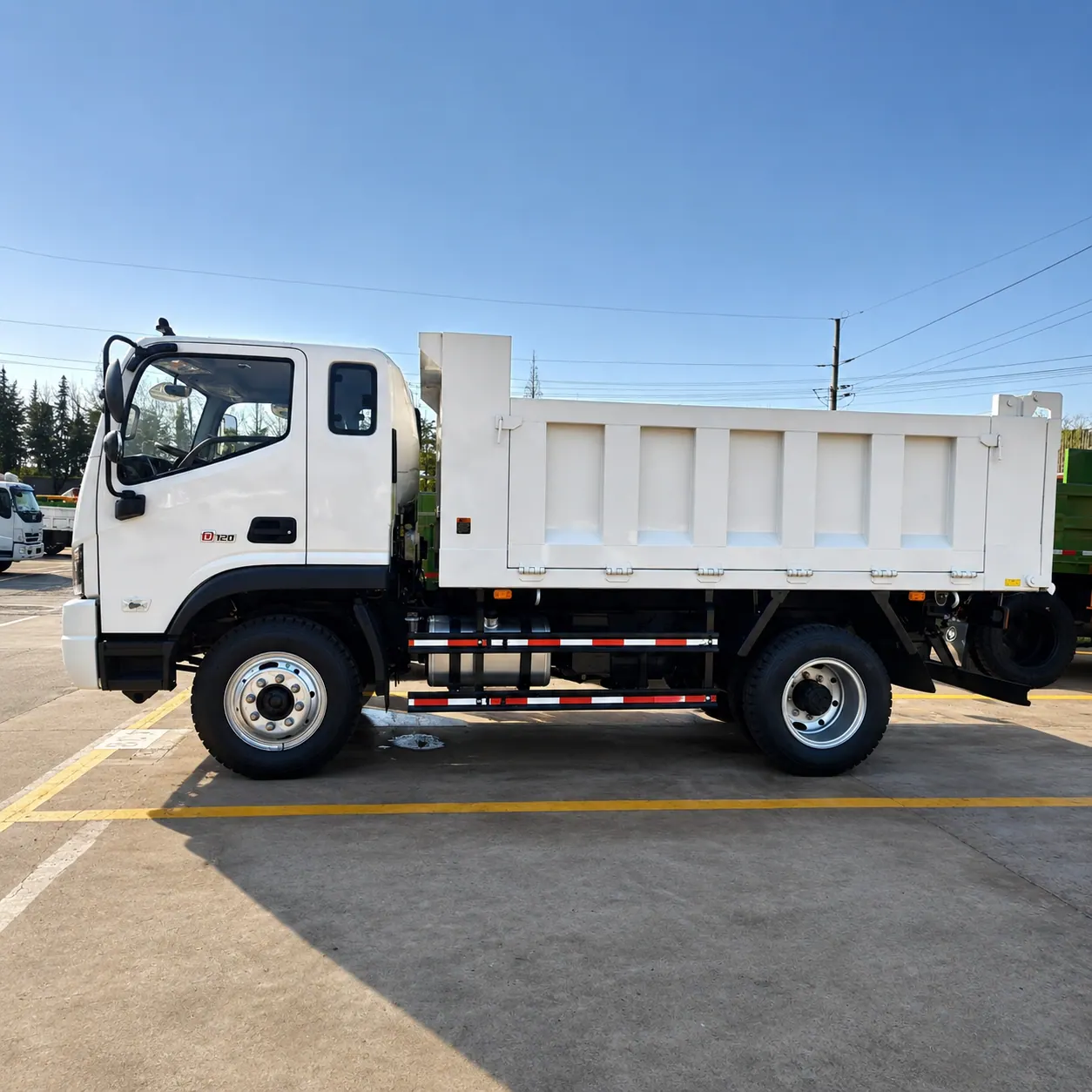

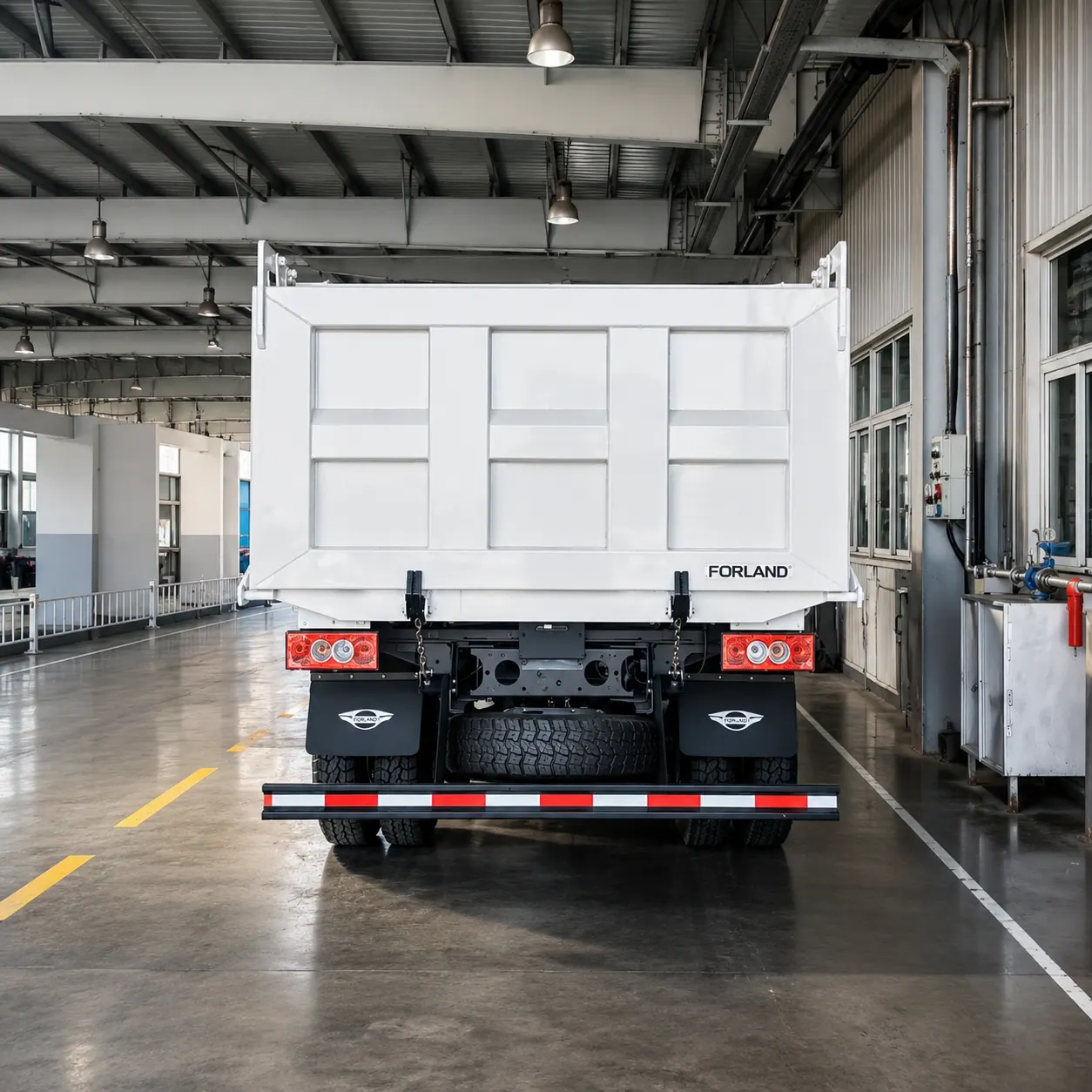

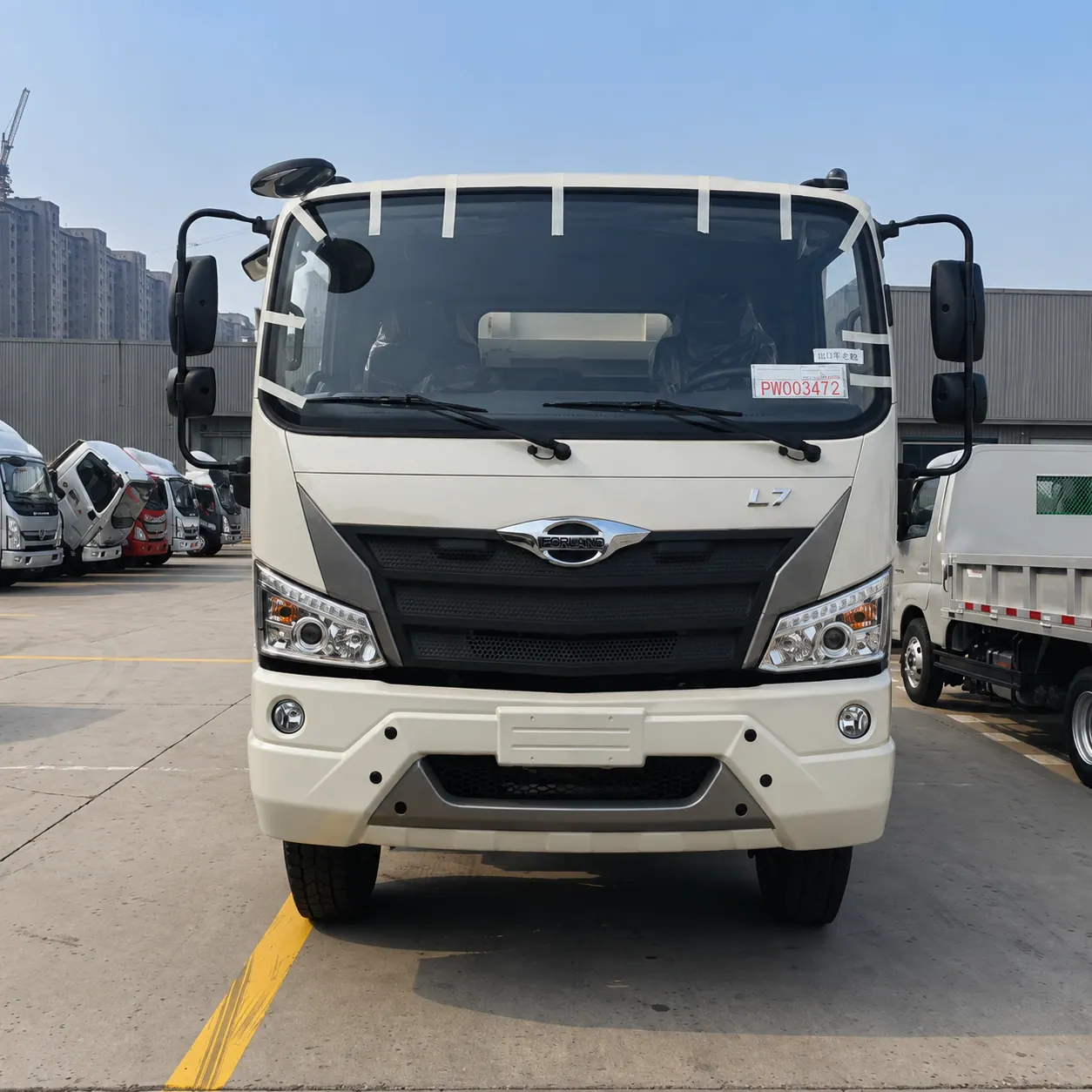

Product Display
