Dump Trucks
Foton Auman GTL / GTL-E 6×4 Dump Truck 336 / 380 / 400 / 430HP Available
Foton Auman GTL / GTL-E 6×4 dump truck is a heavy-duty tipper truck designed for construction, mining, quarry, road construction and bulk material transportation. It is widely used for transporting sand, gravel, soil, coal, ore, construction waste and other loose materials under demanding working conditions. The Auman GTL / GTL-E series offers a modern cab design, reliable chassis structure and mature powertrain options. Common configurations include Foton Cummins or Weichai engine, FAST manual transmission, reinforced cargo body, heavy-duty rear drive axles and reliable hydraulic lifting system. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized according to stock condition and customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | Foton Auman |
| Model Series | GTL / GTL-E |
| Drive Type | 6×4 |
| Engine Power | 336HP / 380HP / 400HP / 430HP available, 460HP optional according to stock |
| Engine Brand | Foton Cummins / Weichai optional |
| Engine Model | ISG / ISGe / SGe / WP10 / WP12 series optional |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V optional |
| Transmission | FAST 10-speed / 12-speed manual transmission |

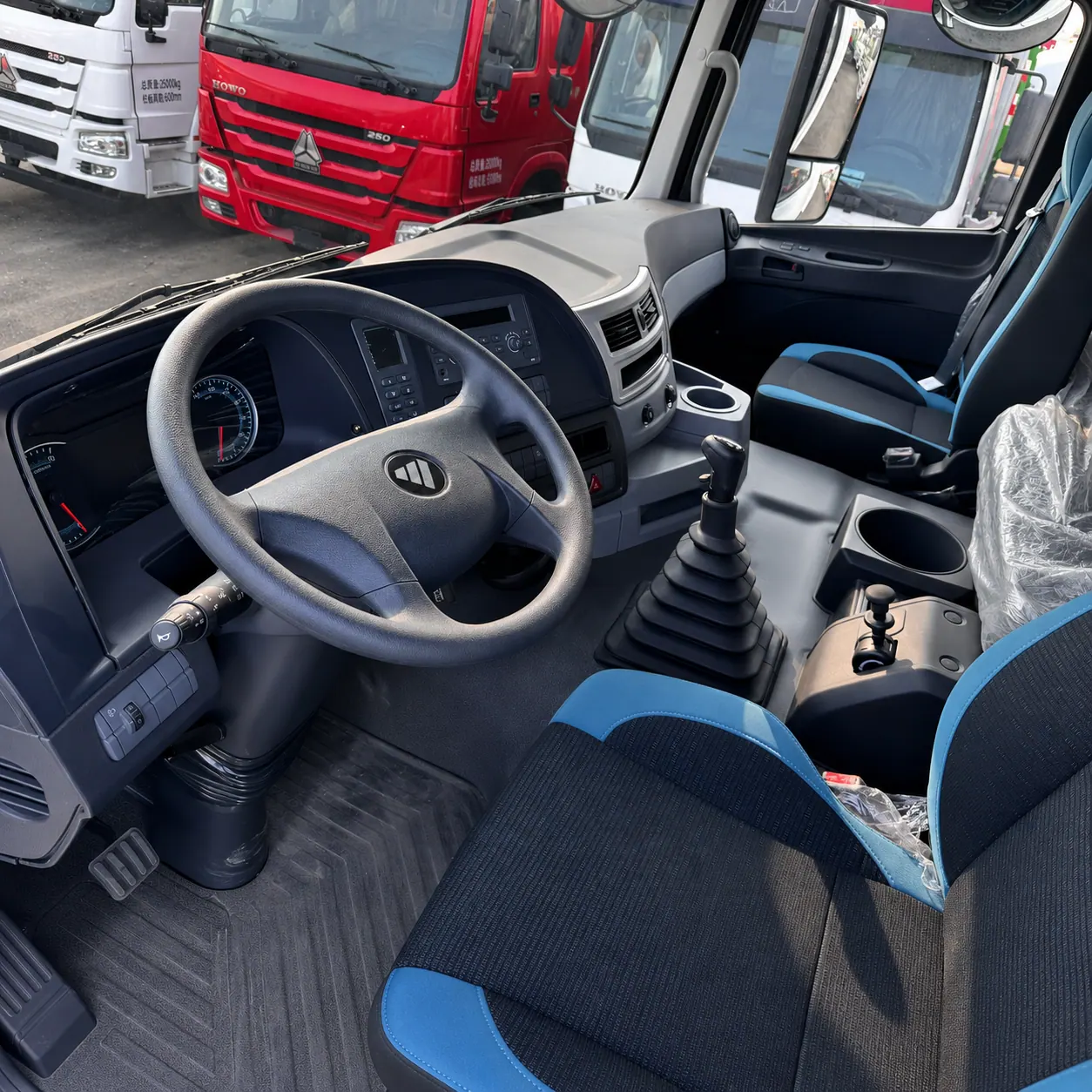

| Cab | Auman GTL / GTL-E cab, flat roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 8,400-8,900 mm L × 2,490-2,550 mm W × 3,300-3,650 mm H |
| Wheelbase | Approx. 3,575-4,100 mm + 1,350 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 5,600-6,500 mm L × 2,300-2,500 mm W × 1,100-1,800 mm H |
| Cargo Box Volume | Approx. 16-28 m3, depending on box size |
| Loading Capacity | Approx. 20-35 tons, depending on configuration and local regulations |

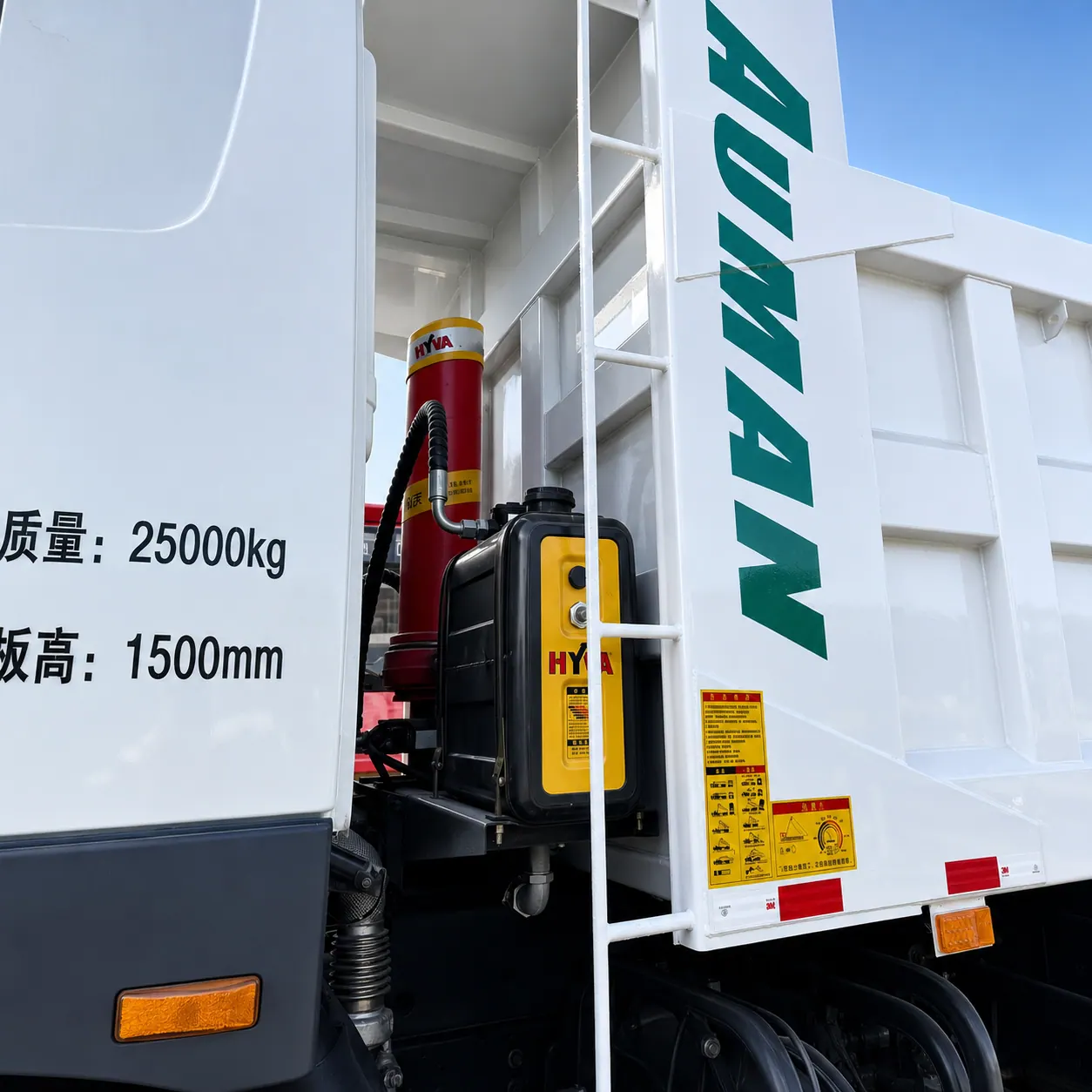

| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 2 rear drive axles |
| Front Axle | 7.5T / 9T front axle optional |
| Rear Axle | 13T / 16T heavy-duty rear drive axle optional |
| Frame | Reinforced heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 optional |
| Tire Quantity | 10 tires + 1 spare tire |
| Fuel Tank | Approx. 300-400 L, steel or aluminum fuel tank optional |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- urban muck transportation
- demolition waste transportation
- short and medium-distance heavy bulk cargo transport
Available Configurations
- left-hand drive or right-hand drive
- flat roof cab, high roof cab or sleeper cab according to stock
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- reinforced rear axle
- air conditioner
- air suspension seat
- ABS
- steel or aluminum fuel tank
- customized paint color, logo and export markings
- 336HP, 380HP, 400HP or 430HP engine
- Foton Cummins or Weichai engine
- Euro II / Euro III / Euro IV / Euro V emission standard
- 12.00R20, 12R22.5 or 315/80R22.5 tires
Buyer Support
- Foton Auman GTL / GTL-E modern heavy-duty chassis with good market recognition
- Foton Cummins / Weichai engine options provide strong power and reliable performance
- FAST 10-speed or 12-speed transmission offers stable power delivery and convenient maintenance
- 6×4 drive type provides strong traction and load-bearing performance
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- reliable hydraulic rear tipping system improves unloading efficiency
- comfortable GTL cab is suitable for daily construction and mining operation
- multiple emission standards and driving-side options for different export markets
- used, refurbished and customized trucks available with competitive cost performance

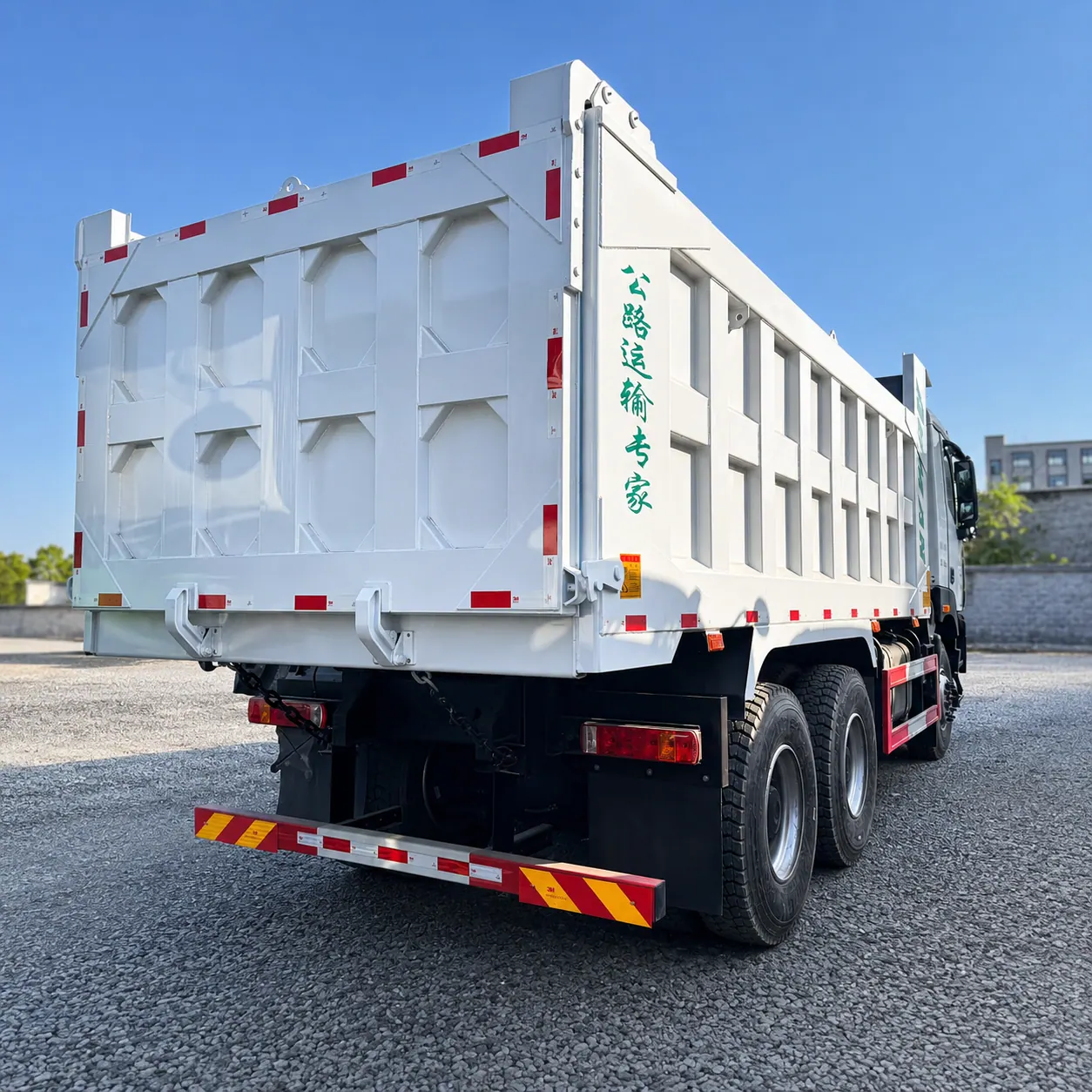

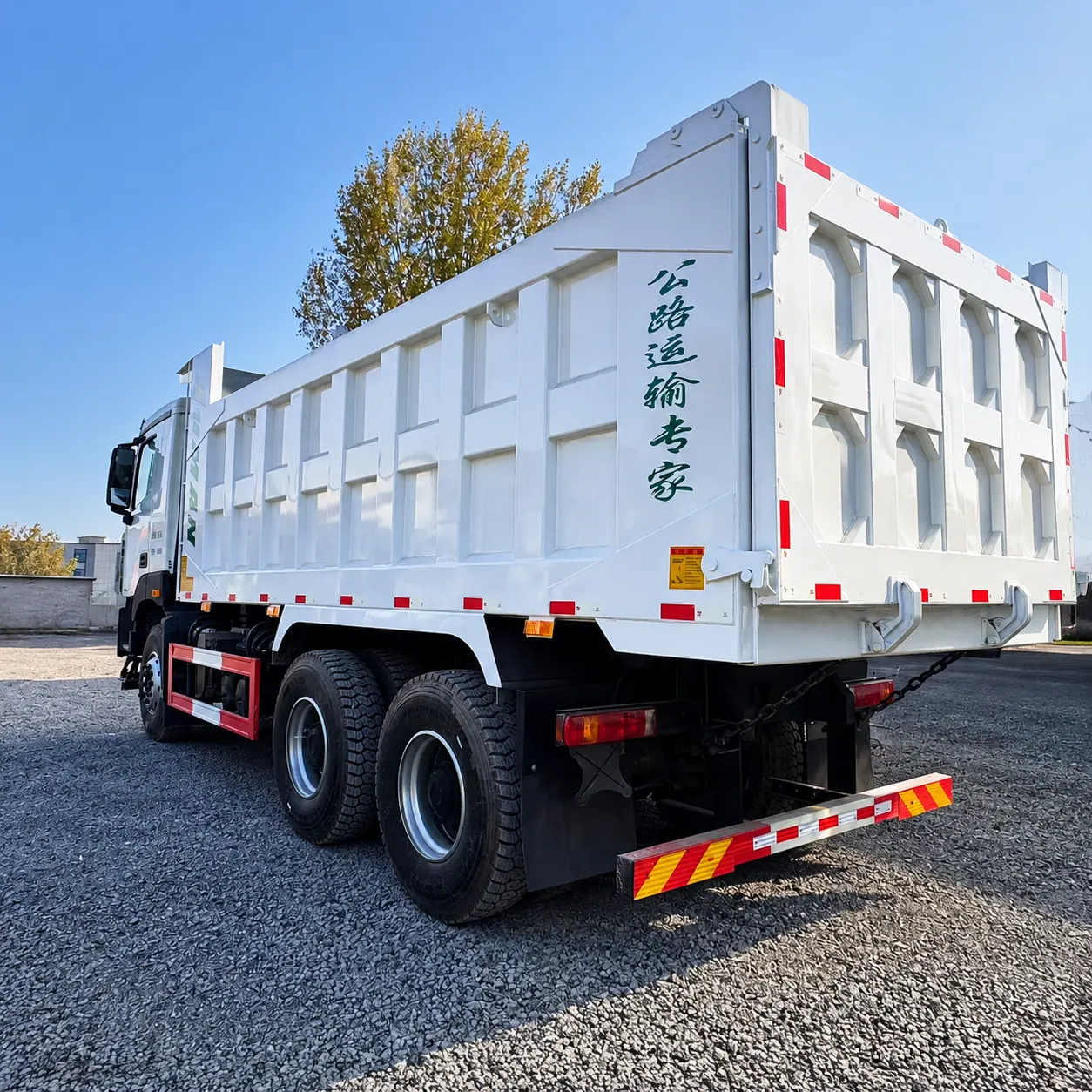

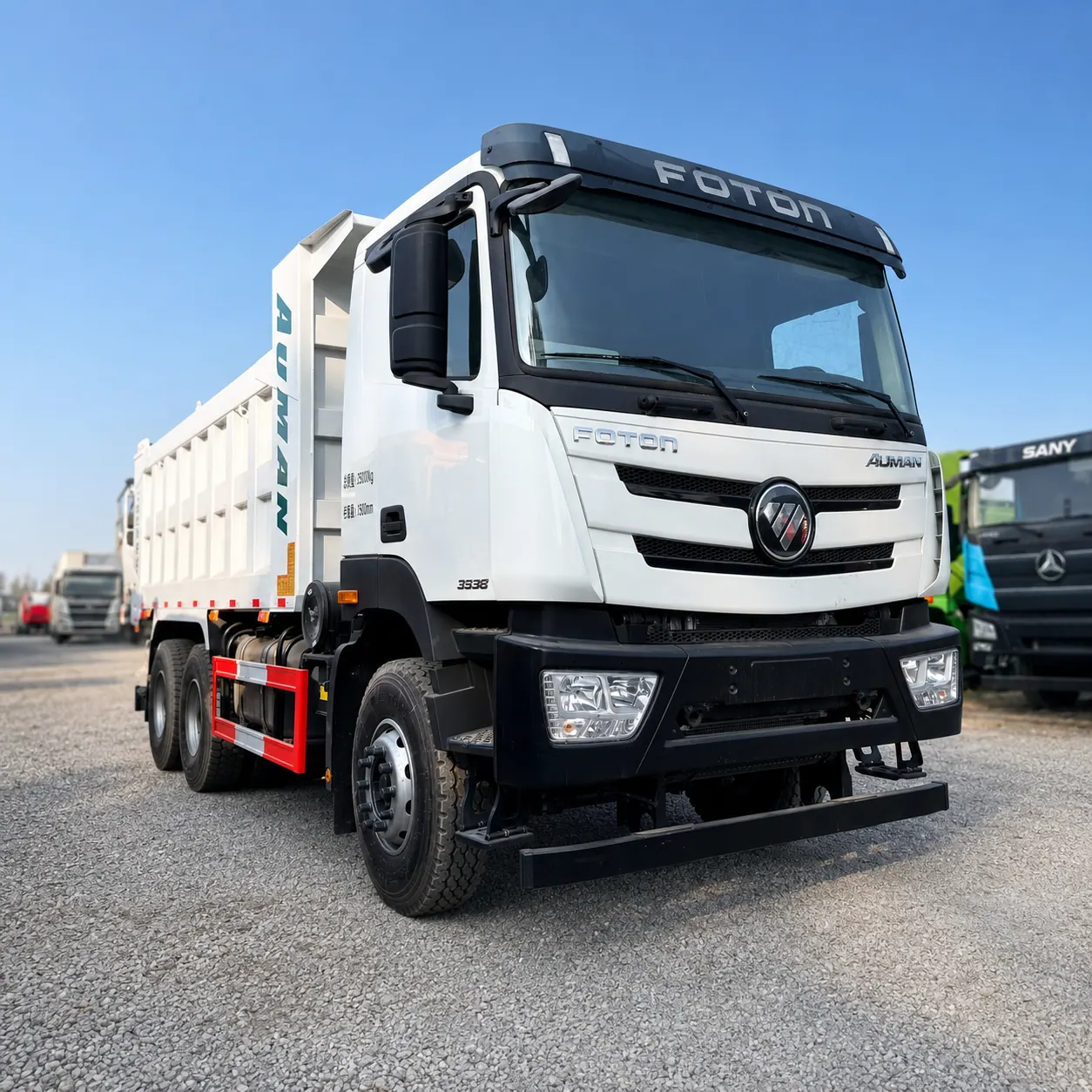

Product Display
