FAW Jiefang Truck Mounted Crane 180 / 220 / 260 / 320 / 350 / 390HP 3.2 / 5 / 6.3 / 8 / 10 / 12 / 14 / 16T Available
FAW Jiefang Truck Mounted Crane is a multipurpose lifting and transportation vehicle designed for construction, engineering projects, machinery handling, utility work, industrial equipment installation and material transportation. The vehicle combines a reliable FAW Jiefang commercial chassis with a hydraulic truck-mounted crane, reinforced mounting subframe, hydraulic outriggers and cargo body, allowing lifting, loading, transportation and unloading operations to be completed by one vehicle. FAW Jiefang crane trucks are available with 4×2, 6×4 and 8×4 chassis configurations. Engine options include approximately 180HP, 220HP, 260HP, 320HP, 350HP and 390HP, while crane capacities of approximately 3.2T, 5T, 6.3T, 8T, 10T, 12T, 14T and 16T can be selected according to chassis capacity, cargo payload and lifting requirements. Different FAW Jiefang chassis platforms can be matched according to application. Medium-duty configurations are suitable for urban construction and utility work, while heavy-duty chassis provide greater payload and stability for larger cranes, machinery transportation and engineering projects. Straight-boom and knuckle-boom crane configurations are available, and crane brand, lifting capacity, boom sections, working radius, outriggers, cargo-body dimensions and control system can be customized.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Truck Mounted Crane / Crane Truck / Lorry Mounted Crane / Cargo Truck with Crane |
| Brand | FAW Jiefang |
| Chassis Brand | FAW Jiefang |
| Common Chassis Series | J6L / J6M / J6P / JH6 or equivalent FAW Jiefang chassis |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 180HP / 220HP / 260HP / 320HP / 350HP / 390HP available according to chassis and stock |
| Engine Brand | FAWDE / Weichai or equivalent |
| Engine Type | Four-cylinder / inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | FAW / FAST or equivalent |
| Transmission Type | Manual transmission |
| Transmission Gears | 6-speed / 8-speed / 10-speed / 12-speed according to chassis |
| PTO | Heavy-duty PTO for hydraulic crane system |
| Cab Type | Standard / extended / high-roof FAW Jiefang cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium- and heavy-duty chassis |
| Driver Seat | Adjustable / air-suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,000–12,000 mm depending on chassis, crane and cargo body |
| Overall Width | Approx. 2,350–2,550 mm |
| Overall Height | Approx. 2,900–3,900 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 12–41 tons depending on chassis |
| Curb Weight | Approx. 6–20 tons depending on crane and cargo body |
| Rated Payload | According to chassis, crane weight, cargo body and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | FAW Jiefang steering axle |
| Rear Axle | FAW Jiefang heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available on selected heavy-duty configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Crane Subframe | Heavy-duty reinforced crane mounting subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / balance suspension |
| Tire Model | 9.00R20 / 10.00R20 / 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 200–500 L depending on chassis |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Crane Type | Straight Boom Crane / Knuckle Boom Crane optional |
| Crane Installation Position | Behind cab standard / rear-mounted optional |
| Crane Brand | XCMG / SANY / other compatible Chinese crane brands |
| Rated Crane Capacity | 3.2T / 5T / 6.3T / 8T / 10T / 12T / 14T / 16T available |
| Light Crane Capacity | Approx. 3.2–5 tons |
| Medium Crane Capacity | Approx. 6.3–10 tons |
| Heavy Crane Capacity | Approx. 12–16 tons |
| Boom Sections | 2 / 3 / 4 / 5 / 6 sections depending on crane model |
| Boom Structure | Hydraulic telescopic straight boom / articulated folding boom |
| Boom Material | High-strength structural steel |
| Maximum Lifting Height | Approx. 8–22 m depending on crane model |
| Maximum Working Radius | Approx. 7–20 m depending on crane model |
| Maximum Lifting Moment | According to crane model and rated capacity |
| Boom Extension | Hydraulic telescopic |
| Boom Elevation | Hydraulic |
| Crane Slewing | Hydraulic rotation |
| Slewing Angle | 360° continuous / limited rotation depending on crane |
| Slewing Bearing | Heavy-duty slewing bearing |
| Main Hook | Heavy-duty lifting hook |
| Hook Block | Single / multi-sheave depending on crane |
| Steel Wire Rope | High-strength lifting wire rope |
| Main Winch | Hydraulic winch |
| Winch Brake | Automatic hydraulic / mechanical brake |
| Hydraulic Pump | PTO-driven hydraulic pump |
| Hydraulic Working Pressure | Approx. 20–32 MPa depending on crane |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Optional |
| Hydraulic Control Valve | Multi-way proportional hydraulic valve |
| Hydraulic Cylinders | Heavy-duty hydraulic cylinders |
| Crane Control System | Manual hydraulic / electro-hydraulic control |
| Ground Control | Available |
| High-Seat Control | Optional |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Emergency Manual Control | Available / optional |
| Overload Protection | Available / optional |
| Moment Limiter | Optional |
| Load Indicator | Optional |
| Boom Angle Indicator | Optional |
| Outrigger Type | Hydraulic H-type / telescopic outriggers |
| Front Outriggers | Available |
| Rear Outriggers | Optional / recommended for larger cranes |
| Outrigger Extension | Manual / hydraulic optional |
| Outrigger Span | According to crane model |
| Vertical Outrigger Cylinder | Hydraulic |
| Outrigger Foot Pads | Heavy-duty steel pads |
| Cargo Body Type | Dropside cargo body / flatbed cargo body |
| Cargo Body Length | Approx. 4,500–8,500 mm depending on chassis and crane |
| Cargo Body Width | Approx. 2,300–2,500 mm |
| Cargo Body Height | Approx. 500–800 mm for dropside configuration |
| Cargo Body Material | Carbon steel / high-strength steel |
| Cargo Floor | Checkered steel plate / flat steel plate / wood-steel combination optional |
| Floor Thickness | Approx. 3–8 mm or customized |
| Side Wall Thickness | Approx. 2–4 mm or customized |
| Side Panels | Fixed / foldable / removable optional |
| Rear Tailgate | Foldable / removable |
| Cargo Body Reinforcement | Reinforced longitudinal and transverse beams |
| Flatbed Configuration | Optional |
| Dropside Configuration | Available |
| Stake Body Configuration | Optional |
| Rear-Mounted Crane Configuration | Optional |
| Hydraulic Rear Outriggers | Optional |
| Auxiliary Winch | Optional |
| Additional Hook | Optional |
| Working Basket | Optional for compatible crane applications |
| Lifting Slings | Optional |
| Shackles | Optional |
| Spreader Beam | Optional |
| Crane Working Lights | Optional |
| Boom Working Light | Optional |
| Reversing Camera | Optional |
| Crane Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Lights | Optional |
| Audible Warning Alarm | Optional |
| Toolbox | Available |
| Outrigger Pad Storage | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, yellow, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, drive type, crane brand, crane capacity, boom sections, lifting height, working radius, outriggers, cargo body size, hydraulic system, control system, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Construction-material lifting and transportation
- steel transportation
- prefabricated component lifting
- machinery loading and unloading
- generator transportation
- transformer installation
- electrical equipment handling
- utility construction
- power-line projects
- telecommunications projects
- pipeline construction
- road construction
- bridge construction
- building-material delivery
- industrial equipment installation
- factory equipment relocation
- warehouse cargo handling
- port and terminal operations
- municipal engineering
- mining-site material handling
- agricultural machinery transportation
- landscaping projects
- emergency lifting operations.
Available Configurations
- 180HP, 220HP, 260HP, 320HP, 350HP or 390HP diesel engine
- FAW Jiefang J6L, J6M, J6P, JH6 or equivalent chassis
- 4×2, 6×4 or 8×4 drive configuration
- FAWDE, Weichai or equivalent diesel engine
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 6-speed, 8-speed, 10-speed or 12-speed manual transmission
- 3.2T, 5T, 6.3T, 8T, 10T, 12T, 14T or 16T truck-mounted crane
- XCMG, SANY or other compatible crane brands
- straight-boom or knuckle-boom crane
- 2-section, 3-section, 4-section, 5-section or 6-section boom
- approximately 8–22m maximum lifting height
- approximately 7–20m maximum working radius
- 360° rotation according to crane model
- hydraulic H-type outriggers
- optional rear hydraulic outriggers
- ground control
- high-seat control
- electro-hydraulic proportional control
- wireless remote control
- overload protection
- moment limiter
- load indicator
- approximately 4.5–8.5m cargo body
- dropside cargo body
- flatbed cargo body
- removable side panels
- reinforced steel floor
- rear-mounted crane configuration
- auxiliary winch
- working basket
- lifting slings
- shackles
- crane camera
- reversing camera
- 360° monitoring system
- LED working lights
- toolbox
- customized crane capacity, cargo body dimensions, hydraulic system, paint color, company logo and export markings.
Buyer Support
- FAW Jiefang Truck Mounted Crane combines a reliable FAW Jiefang commercial chassis with a professional hydraulic crane and cargo body, allowing lifting, loading, transportation and unloading to be completed by one truck. The integrated configuration reduces dependence on separate lifting equipment and transport vehicles, helping improve efficiency on construction sites, industrial projects and utility operations. Crane capacities from approximately 3.2T to 16T cover light-, medium- and heavy-duty lifting requirements. 3.2T and 5T cranes are suitable for building materials and utility equipment
- 6.3T, 8T and 10T configurations are suitable for general construction and machinery handling
- 12T, 14T and 16T cranes provide greater lifting capability for heavy equipment and engineering projects. 4×2, 6×4 and 8×4 chassis configurations allow the crane capacity and cargo payload to be matched with different operating requirements. Medium-duty 4×2 configurations provide good maneuverability for urban projects, while 6×4 and 8×4 heavy-duty chassis provide stronger load capacity and improved stability for larger cranes. Straight-boom cranes provide greater lifting height and longer working radius for construction and general cargo handling. Knuckle-boom cranes can be selected for projects requiring compact folded dimensions and more flexible operation in restricted working areas. Hydraulic outriggers provide stable support during lifting operations. Heavy crane configurations can be equipped with additional rear hydraulic outriggers to increase the support area and improve stability when lifting at longer working radii. Ground controls, high-seat controls and optional wireless remote control provide flexible operating methods. Overload protection, moment limiters, load indicators and monitoring cameras can also be configured to improve crane operation and safety. The reinforced cargo body allows the same vehicle to transport the materials or equipment it lifts. Cargo-body length, side-wall height, floor thickness and structural reinforcement can be customized for steel, machinery, generators, construction materials and industrial equipment. Left-hand-drive and right-hand-drive configurations are available for different export markets. Chassis series, engine power, drive type, crane brand, crane capacity, boom sections, lifting height, working radius, outriggers, cargo-body dimensions, hydraulic controls, cameras, paint color and other specifications can be customized according to project requirements.

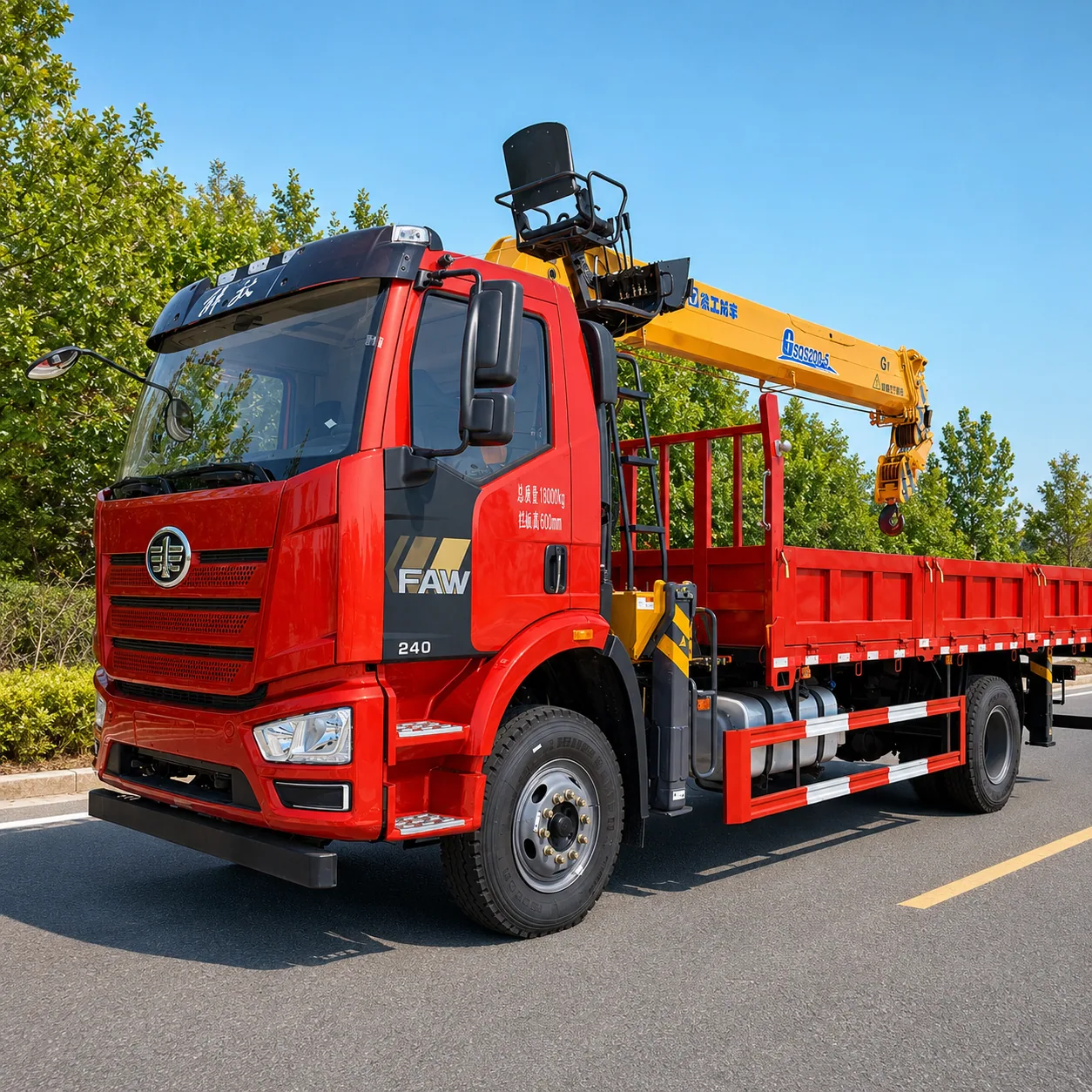

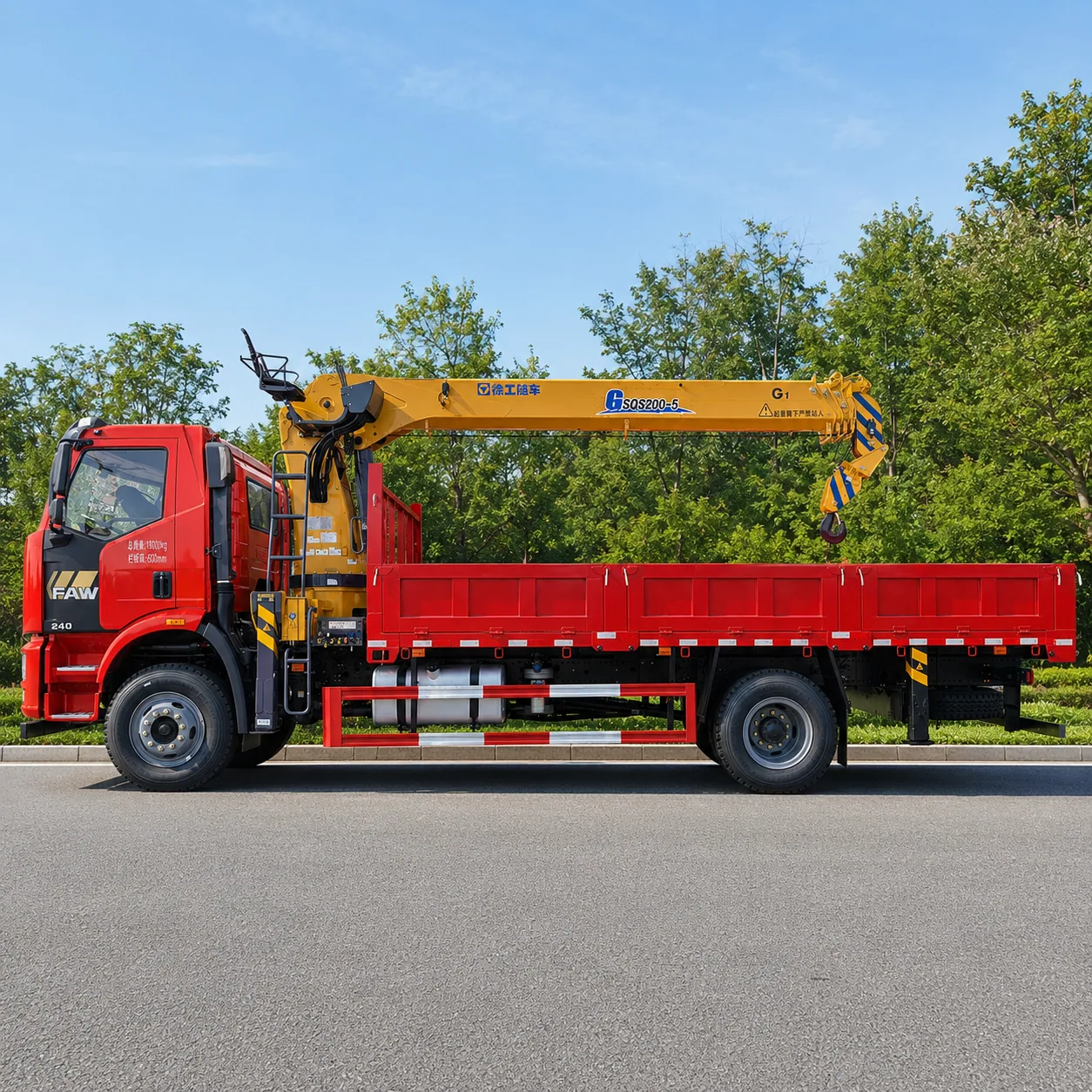

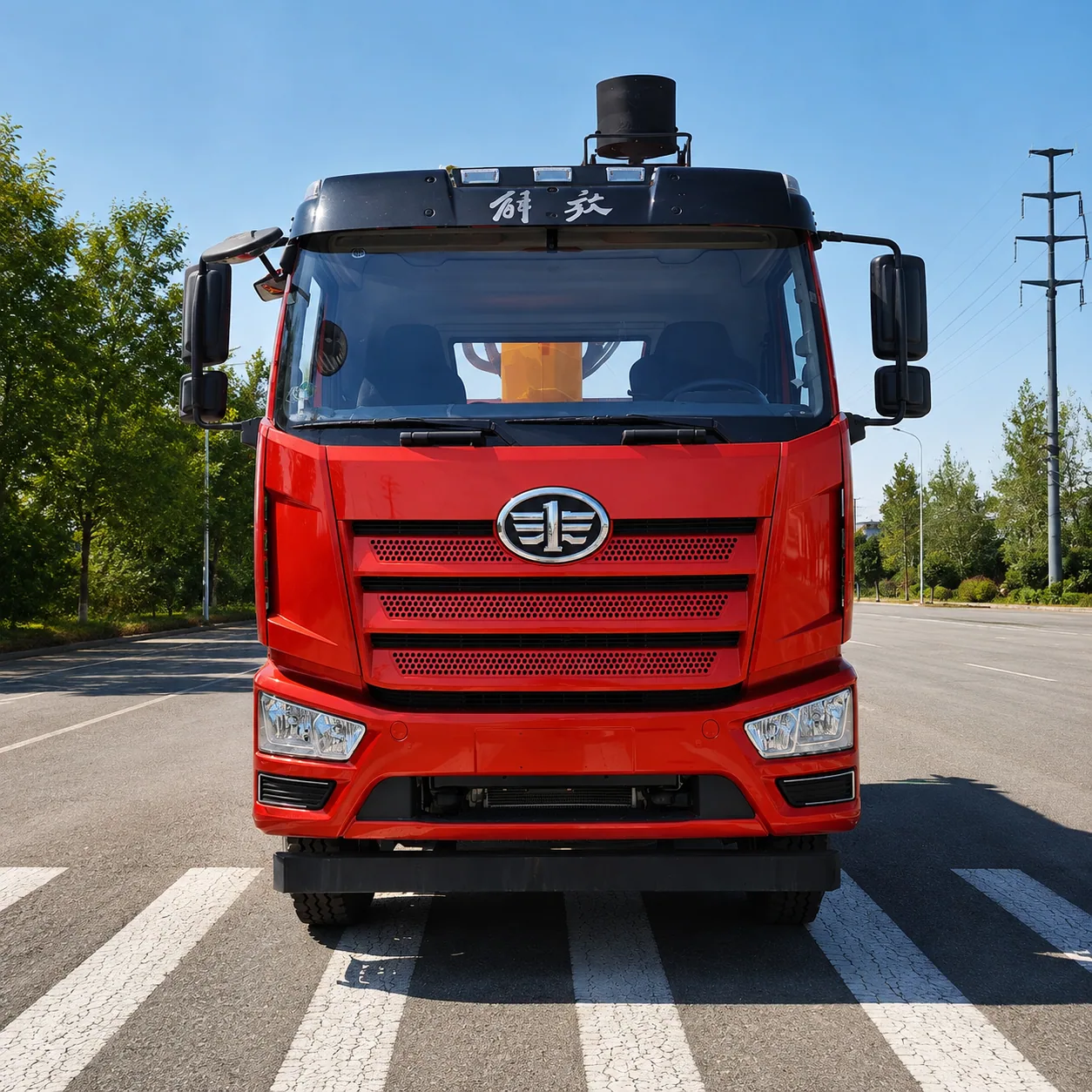

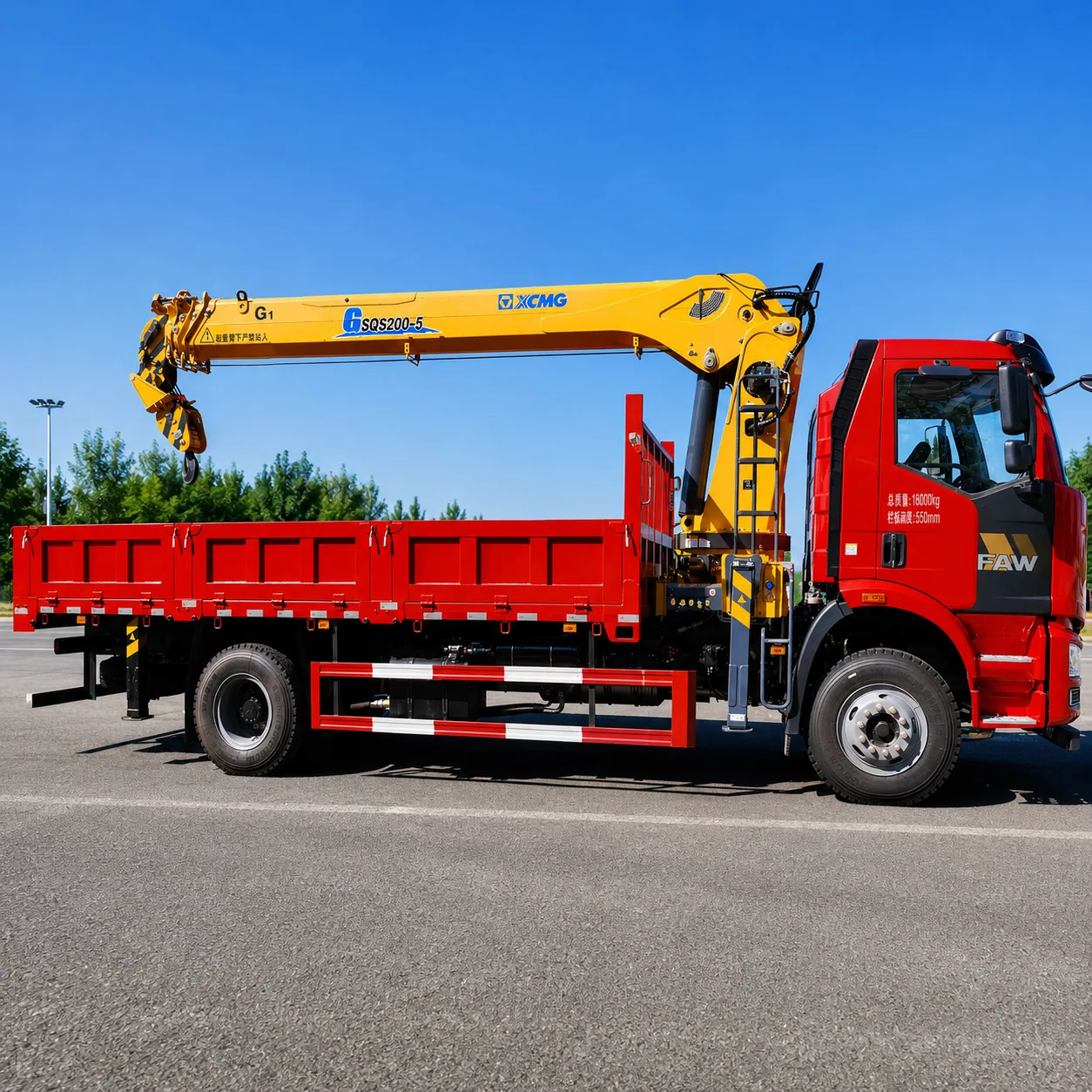

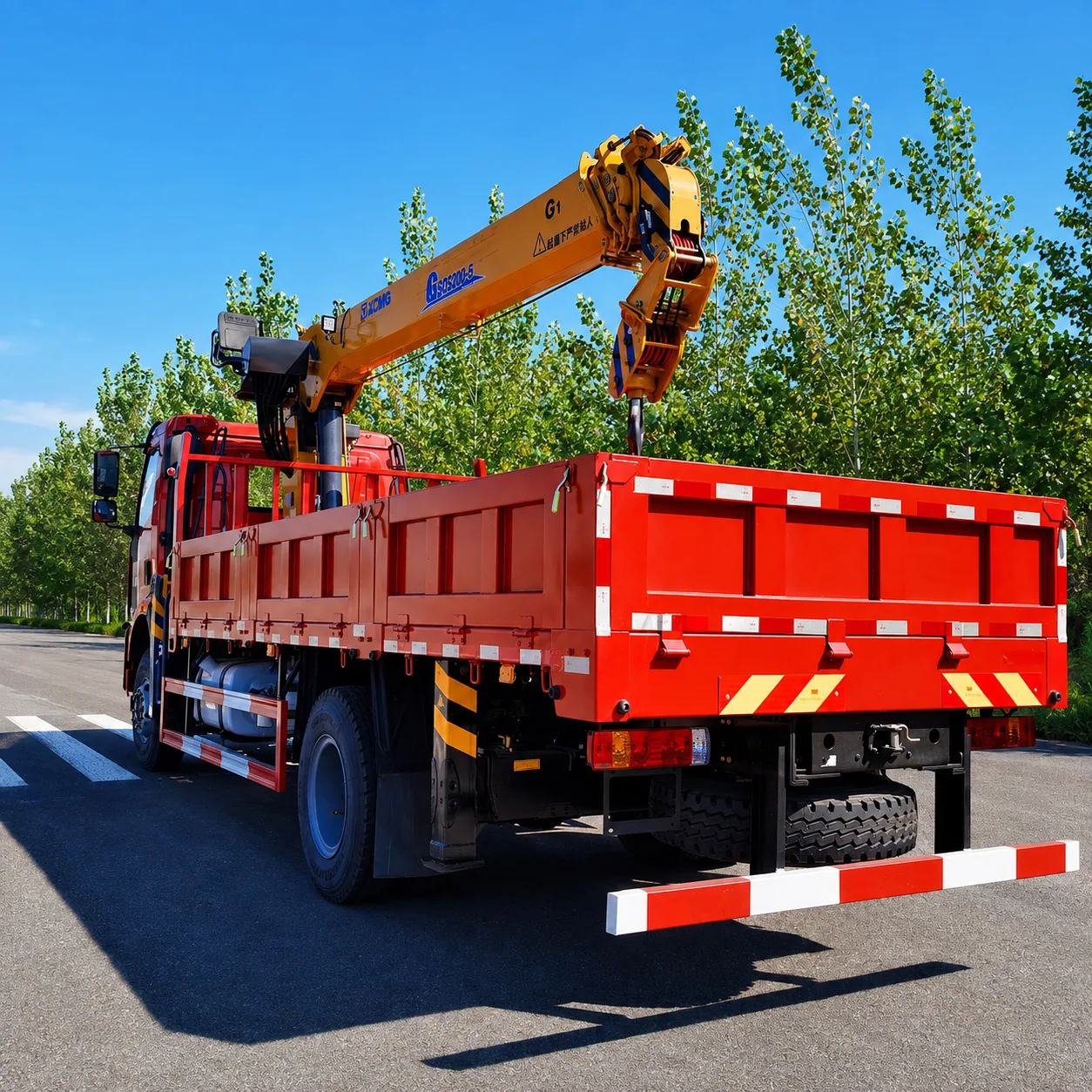

Product Display
