Cargo Trucks
FAW Jiefang Tiger VN 4×2 Dropside Cargo Truck 110 / 130 / 140 / 150 / 152 / 160 / 170HP Available
FAW Jiefang Tiger VN 4×2 dropside cargo truck is a compact light-duty commercial truck designed for urban distribution, regional logistics, agricultural products, building materials, wholesale goods and general cargo transportation. The cab-over layout provides good maneuverability and efficient chassis-space utilization, making it suitable for city streets, markets, farms, warehouses and short-to-medium-distance delivery routes. The Tiger VN series is available with multiple diesel power configurations. Market versions include 110HP, 130HP, 132HP, 137HP, 140HP, 150HP, 152HP, 160HP and 170HP trucks, while 4.2-meter dropside versions are especially common. Available engines include FAW/Xichai, Weichai, Yunnei and Quanchai diesel units, matched with 5-speed, 6-speed or 8-speed transmissions. The open dropside cargo body allows loading and unloading from the rear and both sides. Different wheelbases, single-row or extended cabs, cargo-body lengths, side-panel heights, transmission ratios, tires, driving sides, colors and accessories can be customized according to transportation requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dropside Cargo Truck / Sidewall Cargo Truck / Light Duty Cargo Truck |
| Brand | FAW Jiefang |
| Model Series | Tiger VN / Hu VN / CA1040 / CA1044 Series |
| Drive Type | 4×2 |
| Engine Power | 110HP / 130HP / 132HP / 137HP / 140HP / 150HP / 152HP / 160HP / 170HP available 360汽车 |
| Engine Brand | FAW / Xichai / Weichai / Yunnei / Quanchai optional according to configuration |
| Engine Model | CA4DB / WP2.1 / WP2.3 / Yunnei 490PLUS / Q23 / Q25 series or equivalent |
| Engine Type | Four-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 2.0–2.5 L, depending on engine model |
| Fuel Type | Diesel |
| Emission Standard | Euro V / Euro VI commonly available; other export standards according to stock |
| Transmission Brand | Wanliyang / FAST / other matched transmissions |
| Transmission Type | 5-speed / 6-speed / 8-speed manual transmission 三百六十车产品 |
| Cab Type | Single-row / extended cab optional |
| Seating Capacity | 2–3 persons |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Length | Approx. 5,500–6,000 mm, depending on cargo body |
| Overall Width | Approx. 1,900–2,220 mm |
| Overall Height | Approx. 2,300–2,600 mm |
| Wheelbase | Approx. 2,800–3,300 mm 360车产品 |
| Cargo Body Type | Open dropside / flatbed with side panels |
| Cargo Body Length | Approx. 3,270–4,200 mm |
| Cargo Body Width | Approx. 1,800–2,100 mm |
| Cargo Body Height | Approx. 350–500 mm |
| Common Cargo Body | Approx. 4,200 × 2,100 × 410 mm on selected 4.2m versions 360汽车 |
| Cargo Body Material | High-strength steel |
| Side Panel Type | Foldable / removable dropside panels optional |
| Curb Weight | Approx. 2,300–2,900 kg, depending on chassis and body |
| Gross Vehicle Weight | Approx. 4.5 tons on common light-truck versions |
| Rated Payload | Approx. 1.5–2.0 tons, depending on chassis, body and local certification |
| Front Axle | Reinforced light-duty steering axle |
| Rear Axle | FAW light-duty rear drive axle |
| Rear Axle Type | Single-reduction drive axle |
| Frame | Reinforced steel chassis |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring suspension |
| Tire Model | 6.50R16 / 7.00R16 / 7.50R16 optional |
| Tire Quantity | 6 tires + spare tire |
| Fuel Tank | Approx. 80–150 L, depending on configuration |
| Brake System | Hydraulic or compressed-air brake system according to chassis |
| Safety System | ABS available |
| Maximum Speed | Approx. 90–110 km/h, depending on engine, transmission and axle ratio |
| Air Conditioner | Optional / available according to stock |
| Power Steering | Available |
| Cargo Body Customization | Length, width, floor structure and side-panel height can be customized |
| Color | White, blue, red, green, silver or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, transmission, cab, wheelbase, cargo body, tires, driving side, color, logo and accessories |
Product Details
Typical Applications
- Urban goods distribution
- regional logistics
- agricultural product transportation
- fruit and vegetable transportation
- building material delivery
- hardware and machinery transportation
- wholesale market delivery
- supermarket distribution
- beverage and packaged food transportation
- furniture transportation
- household goods delivery
- farm supply transportation
- factory logistics
- construction material delivery
- express cargo transportation
- general commercial cargo transportation.
Available Configurations
- 110HP, 130HP, 140HP, 150HP, 152HP, 160HP or 170HP diesel engine
- FAW / Xichai, Weichai, Yunnei or Quanchai engine
- Euro V or Euro VI emission standard
- left-hand drive or right-hand drive
- single-row or extended cab
- 5-speed, 6-speed or 8-speed manual transmission
- approximately 2,800mm or 3,300mm wheelbase
- 3.3m, 3.65m, 3.82m or 4.2m dropside cargo body
- foldable or removable side panels
- reinforced steel cargo floor
- higher side panels
- tarpaulin frame
- toolbox
- rear ladder
- spare tire
- air conditioner
- power steering
- ABS
- customized body dimensions, paint color, company logo and export markings.
Buyer Support
- FAW Jiefang Tiger VN 4×2 dropside cargo truck combines compact dimensions, flexible body configurations and economical operating costs for daily commercial transportation
- multiple diesel power options from approximately 110HP to 170HP meet different urban, regional and mountainous-route requirements
- 5-speed, 6-speed and 8-speed transmission options provide flexible matching for different loads and road conditions
- the compact cab-over chassis provides good maneuverability in narrow urban streets and wholesale markets
- 3.3–4.2m cargo-body options meet different cargo-volume requirements
- the open dropside structure allows convenient loading and unloading from three sides
- reinforced leaf-spring suspension supports frequent loaded operation
- multiple engine brands and transmission configurations provide flexibility for maintenance and spare-parts supply
- single-row and extended-cab options suit both city distribution and longer regional routes
- used, refurbished and customized trucks can be supplied for different export markets. Current market versions extend up to 170HP with an 8-speed drivetrain and 4.2m dropside body.

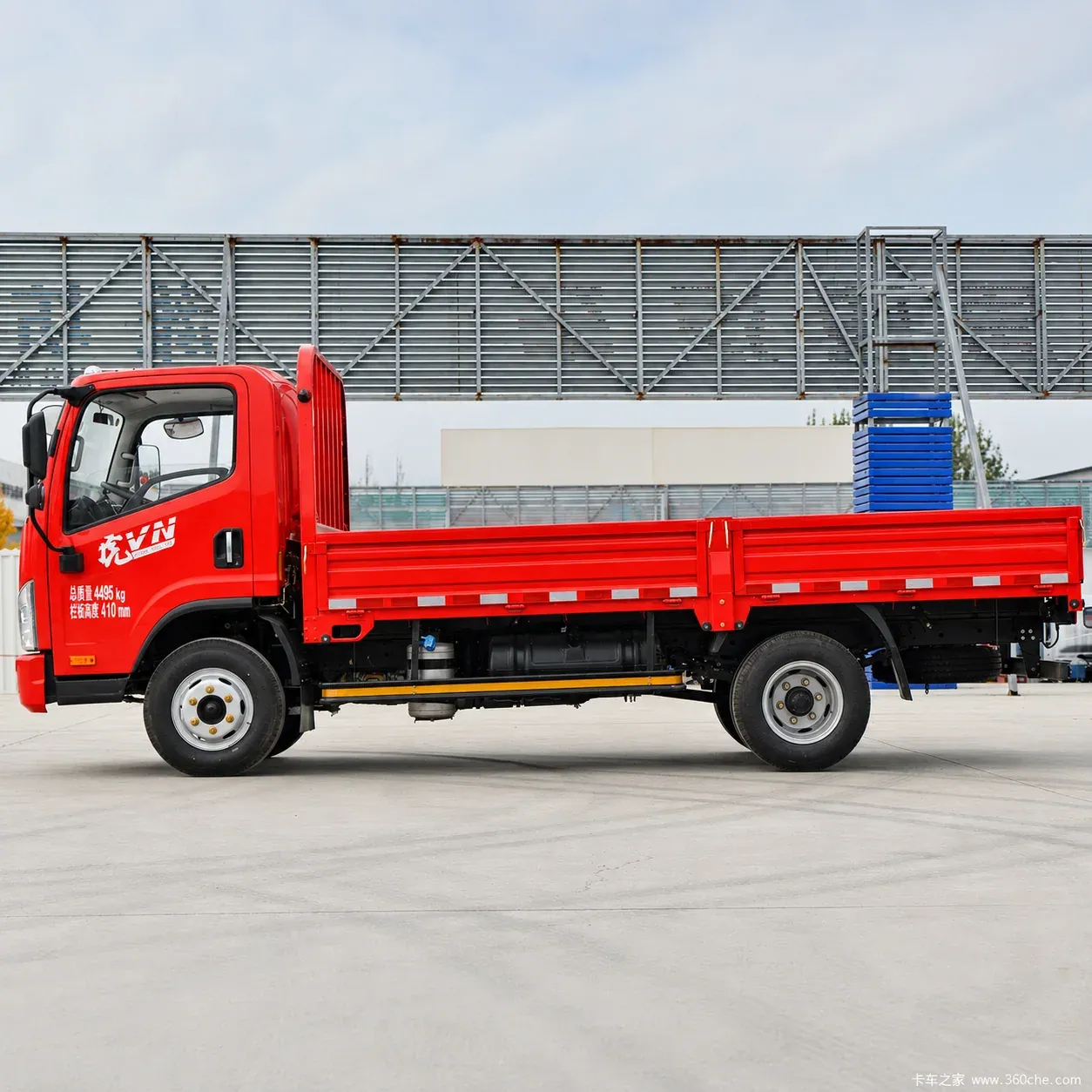

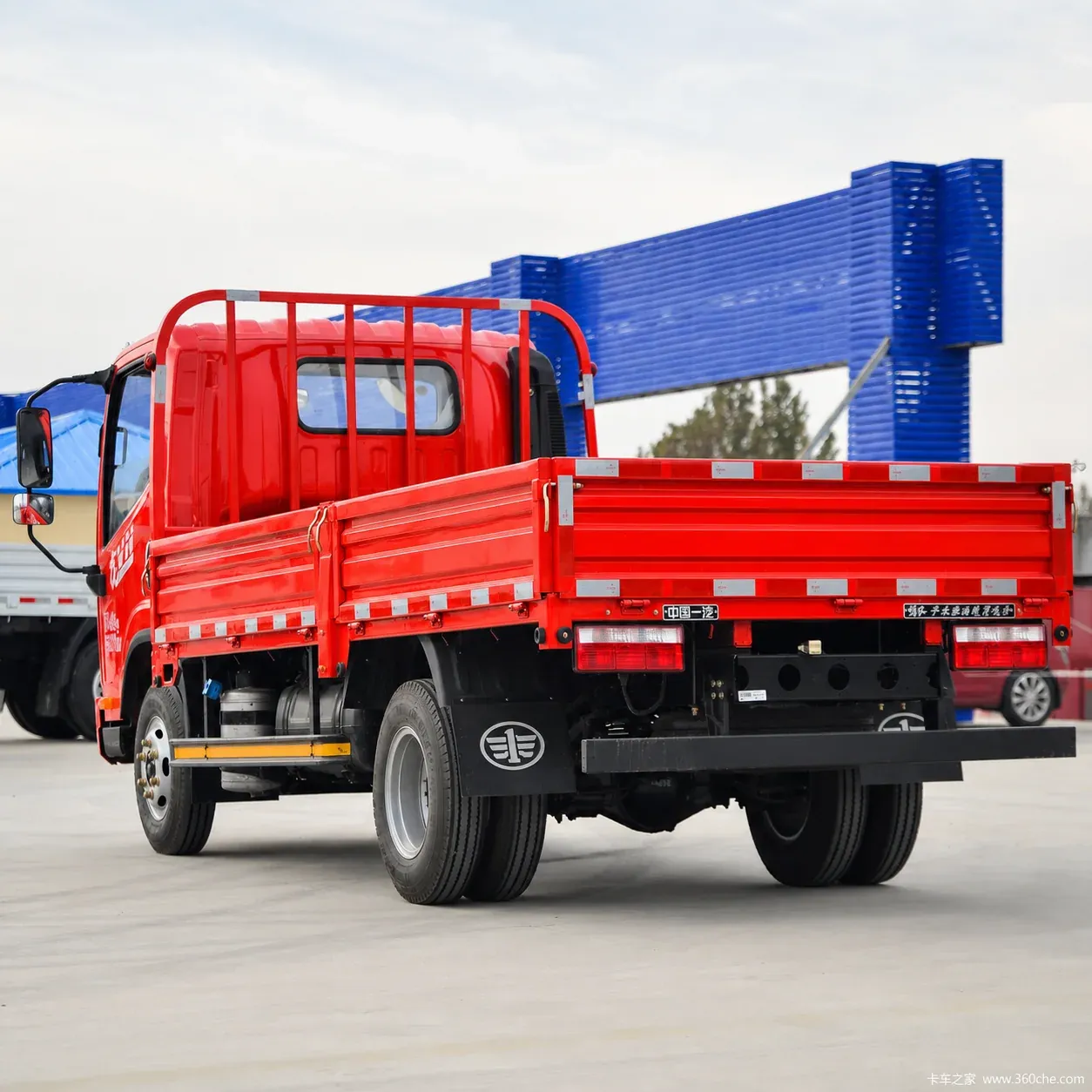

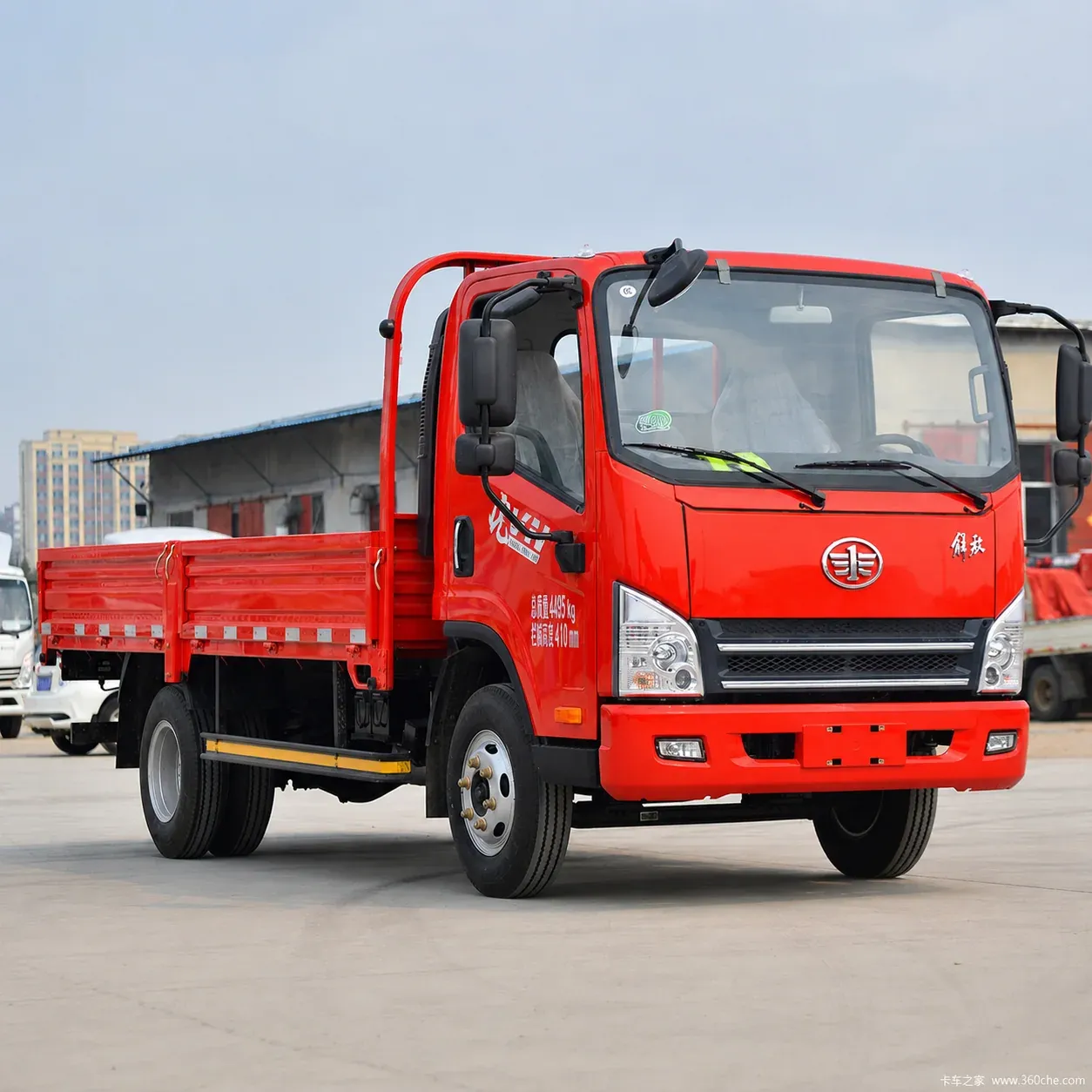

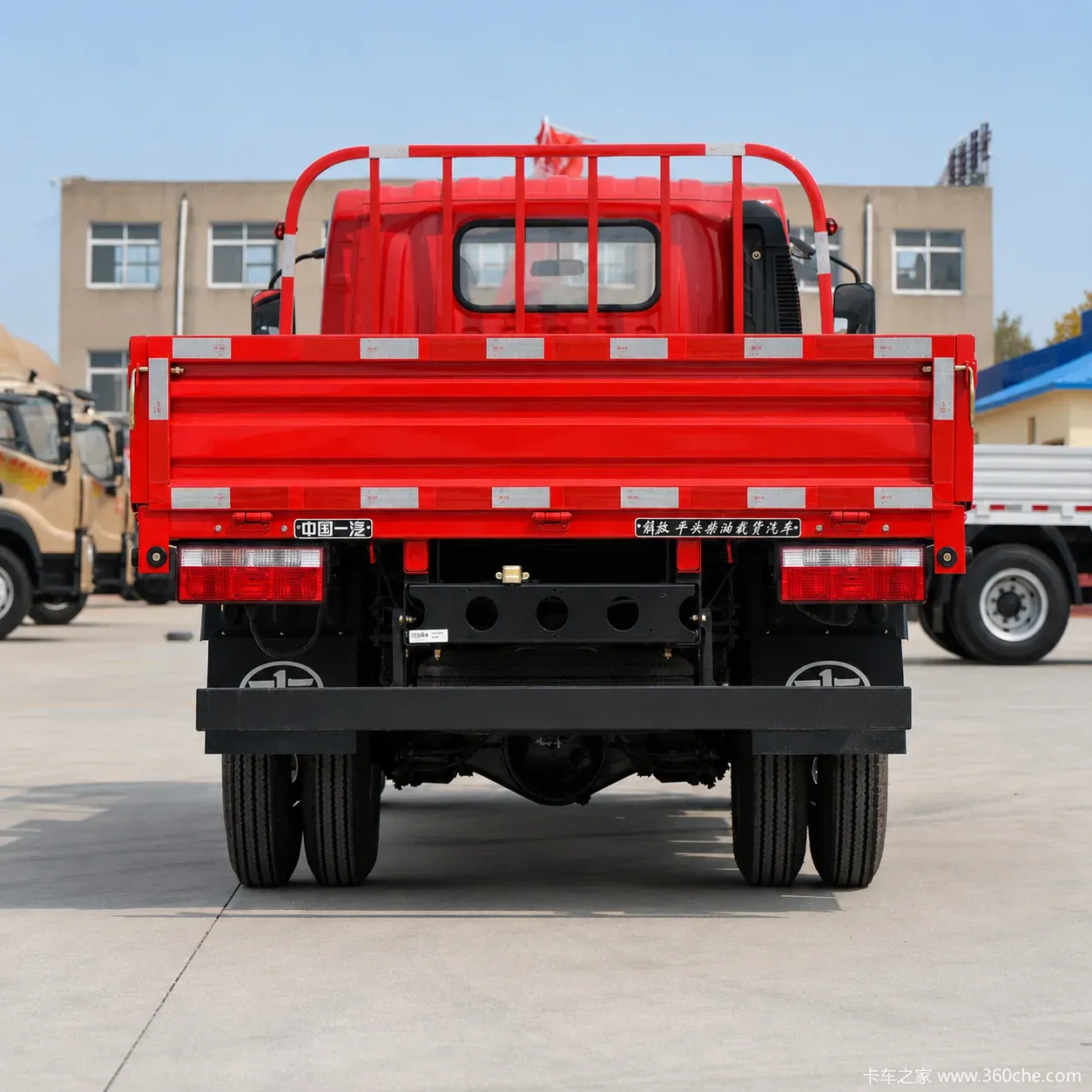

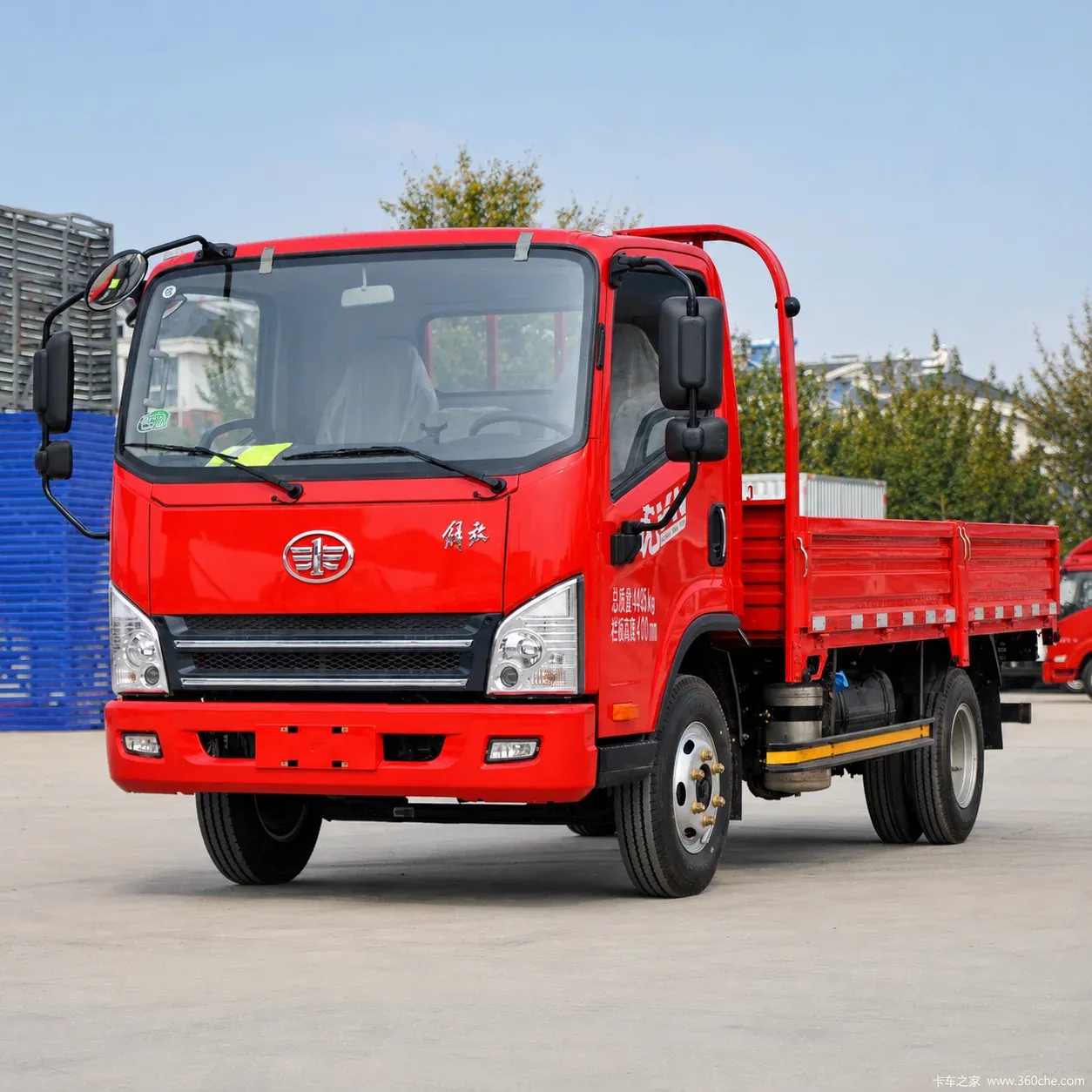

Product Display
