FAW Jiefang Sewage Suction Truck 180 / 220 / 260 / 320 / 350 / 390HP 8 / 10 / 12 / 15 / 18 / 20 / 25CBM Available
FAW Jiefang Sewage Suction Truck is a professional vacuum tanker designed for collecting, transporting and discharging sewage, septic waste, sludge, wastewater and sediment-containing liquid waste. The vehicle combines a reliable FAW Jiefang commercial chassis with a sealed vacuum tank, high-performance vacuum pump, large-diameter suction pipeline, hydraulic tank lifting system and rear opening structure for efficient municipal, industrial and construction-site sewage operations. FAW Jiefang sewage suction trucks are available with 4×2, 6×4 and 8×4 chassis configurations. Engine options include approximately 180HP, 220HP, 260HP, 320HP, 350HP and 390HP, while sewage tank capacities of approximately 8CBM, 10CBM, 12CBM, 15CBM, 18CBM, 20CBM and 25CBM can be selected according to chassis capacity, road conditions and operating requirements. The PTO-driven vacuum system generates negative pressure inside the sealed tank, allowing sewage, septic waste and sludge to be collected through a large-diameter suction hose. Hydraulic tank lifting and a hydraulically operated rear door can be configured for efficient discharge of sediment and high-viscosity sludge. Vacuum pump type, tank material, tank thickness, suction depth, hose diameter, cleaning equipment and discharge system can be customized.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Sewage Suction Truck / Vacuum Sewage Truck / Vacuum Tanker Truck / Septic Tank Truck |
| Brand | FAW Jiefang |
| Chassis Brand | FAW Jiefang |
| Common Chassis Series | J6L / J6M / J6P / JH6 or equivalent FAW Jiefang chassis |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 180HP / 220HP / 260HP / 320HP / 350HP / 390HP available according to chassis and stock |
| Engine Brand | FAWDE / Weichai or equivalent |
| Engine Type | Four-cylinder / inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | FAW / FAST or equivalent |
| Transmission Type | Manual transmission |
| Transmission Gears | 6-speed / 8-speed / 10-speed / 12-speed according to chassis |
| PTO | PTO for vacuum pump and hydraulic system |
| Cab Type | Standard / extended / high-roof FAW Jiefang cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium- and heavy-duty chassis |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 6,500–12,000 mm depending on chassis and tank volume |
| Overall Width | Approx. 2,300–2,550 mm |
| Overall Height | Approx. 2,800–3,900 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 12–41 tons depending on chassis |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | FAW Jiefang steering axle |
| Rear Axle | FAW Jiefang heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available on selected heavy-duty configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced vacuum-tanker special-purpose subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / balance suspension |
| Tire Model | 9.00R20 / 10.00R20 / 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 200–500 L depending on chassis |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Sewage Tank Capacity | 8CBM / 10CBM / 12CBM / 15CBM / 18CBM / 20CBM / 25CBM available |
| Medium-Duty Tank Capacity | Approx. 8–15 CBM |
| Heavy-Duty Tank Capacity | Approx. 15–25 CBM |
| Tank Shape | Cylindrical vacuum tank |
| Tank Structure | Fully sealed negative-pressure tank |
| Tank Material | Q235 carbon steel / high-strength steel / stainless steel optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Tank Body Thickness | Approx. 5–8 mm or customized |
| Tank Head Thickness | Approx. 6–10 mm or customized |
| Internal Reinforcement | Reinforcement rings / anti-deformation structure |
| Tank Welding | Continuous sealed welding |
| Tank Top Manhole | Available |
| Manhole Cover | Sealed quick-opening / bolted type |
| Tank Ladder | Available |
| Top Walkway | Optional |
| Vacuum Pump Type | Rotary vane vacuum pump / water-ring vacuum pump optional |
| Vacuum Pump Drive | PTO-driven |
| Vacuum Pump Air Displacement | Approx. 6–15 m³/min depending on pump |
| Maximum Vacuum Degree | Approx. -0.08 to -0.095 MPa depending on pump |
| Maximum Suction Depth | Approx. 6–8 m |
| Typical Suction Time | Approx. 5–10 minutes depending on tank volume, pump and material |
| Suction Hose Diameter | Approx. 100–150 mm |
| Suction Hose Length | Approx. 5–10 m standard / customized |
| Additional Suction Hose | Optional |
| Hose Material | Heavy-duty reinforced flexible suction hose |
| Rear Suction Port | Available |
| Side Suction Port | Optional |
| Rotary Suction Boom | Optional |
| Suction Boom Control | Manual / hydraulic optional |
| Suction Valve | Heavy-duty sewage valve |
| Vacuum Gauge | Available |
| Pressure Gauge | Available |
| Vacuum Control Valve | Available |
| Four-Way Valve | Available according to vacuum pump configuration |
| Oil-Water Separator | Available |
| Gas-Water Separator | Available |
| Secondary Separator | Optional |
| Vacuum Pump Lubrication System | According to pump type |
| Anti-Overflow Device | Available |
| Float-Level Anti-Overflow Valve | Available |
| High-Level Alarm | Optional |
| Liquid Level Indicator | Mechanical / electronic optional |
| Sight Glass | Optional |
| Tank Lifting | Hydraulic lifting |
| Maximum Tank Tipping Angle | Approx. 40–50° |
| Rear Door Opening | Hydraulic |
| Rear Door Locking | Hydraulic / mechanical locking |
| Rear Door Sealing | Heavy-duty sealing ring |
| Rear Discharge Port | Available |
| Sewage Discharge Valve | Heavy-duty discharge valve |
| Discharge Method | Gravity discharge / hydraulic tipping discharge |
| Pressure-Assisted Discharge | Optional according to vacuum system |
| Sediment Discharge | Hydraulic rear opening + tank lifting |
| Self-Unloading Function | Available |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Working Pressure | Approx. 16–25 MPa depending on system |
| Hydraulic Oil Tank | Available |
| Hydraulic Cylinders | Heavy-duty hydraulic cylinders |
| Tank Lifting Cylinder | Heavy-duty hydraulic lifting cylinder |
| Rear Door Cylinder | Hydraulic |
| Hydraulic Control Valve | Multi-way hydraulic valve |
| Operation Control | Manual hydraulic / electro-hydraulic optional |
| External Control Panel | Available |
| Cab-Mounted Control | Optional |
| Wireless Remote Control | Optional |
| Emergency Manual Control | Optional |
| Internal Tank Cleaning | Optional |
| Internal Flushing Nozzle | Optional |
| Auxiliary Clean-Water Tank | Optional |
| High-Pressure Cleaning Pump | Optional |
| Hose Reel | Optional |
| Hand-Wash Tank | Optional |
| Drainage Port | Available |
| Overflow Pipe | Available according to tank design |
| Internal Anti-Corrosion Coating | Optional |
| External Anti-Corrosion Treatment | Available |
| External Painting | Industrial primer + topcoat |
| Stainless-Steel Pipeline | Optional |
| Stainless-Steel Valves | Optional |
| Rear Working Platform | Optional |
| Rear Working Lights | Optional |
| Warning Beacon | Optional |
| LED Warning Lights | Optional |
| Reversing Camera | Optional |
| Rear Operation Camera | Optional |
| 360° Monitoring System | Optional |
| Toolbox | Available |
| Hose Storage Rack | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, blue, green, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, drive type, tank capacity, tank material, tank thickness, vacuum pump, suction depth, hose diameter, hose length, hydraulic lifting, rear door, cleaning system, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal sewage collection
- septic tank cleaning
- residential-community sewage removal
- rural sanitation
- cesspit emptying
- sewer sludge collection
- municipal drainage maintenance
- industrial wastewater collection
- factory sewage removal
- construction-site wastewater collection
- sludge transportation
- sediment removal
- public toilet waste collection
- hotel sewage collection
- restaurant wastewater collection
- livestock-farm wastewater collection
- industrial-park sanitation
- mining-camp sewage collection
- construction-camp sanitation
- port and terminal sewage handling
- municipal sanitation projects.
Available Configurations
- 180HP, 220HP, 260HP, 320HP, 350HP or 390HP diesel engine
- FAW Jiefang J6L, J6M, J6P, JH6 or equivalent chassis
- 4×2, 6×4 or 8×4 drive configuration
- FAWDE, Weichai or equivalent diesel engine
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 6-speed, 8-speed, 10-speed or 12-speed manual transmission
- 8CBM, 10CBM, 12CBM, 15CBM, 18CBM, 20CBM or 25CBM sewage tank
- Q235 carbon-steel, high-strength steel or stainless-steel tank
- customized tank-body and tank-head thickness
- rotary vane vacuum pump
- water-ring vacuum pump
- approximately 6–15m³/min vacuum-pump air displacement
- approximately 6–8m suction depth
- 100–150mm suction hose
- 5–10m suction hose or customized length
- rear suction port
- side suction port
- hydraulic rotary suction boom
- hydraulic tank lifting
- hydraulic rear-door opening
- gravity discharge
- hydraulic tipping discharge
- pressure-assisted discharge
- anti-overflow protection
- oil-water separator
- gas-water separator
- high-level alarm
- electronic liquid-level indicator
- internal tank-cleaning system
- auxiliary clean-water tank
- high-pressure flushing system
- hose reel
- stainless-steel valves and pipelines
- wireless remote control
- reversing camera
- rear operation camera
- 360° monitoring system
- LED warning lights
- toolbox
- customized tank volume, vacuum system, hydraulic equipment, paint color, company logo and export markings.
Buyer Support
- FAW Jiefang Sewage Suction Truck combines a durable FAW Jiefang commercial chassis with a professional vacuum sewage collection system, providing an efficient solution for septic tank cleaning, municipal sewage collection, sludge removal and industrial wastewater transportation. Tank capacities from approximately 8CBM to 25CBM allow the vehicle to cover medium- and heavy-duty sewage collection requirements. Smaller 8–12CBM configurations provide good maneuverability for urban sanitation and residential projects, while larger 15–25CBM versions provide higher transport efficiency for municipal, industrial, mining and construction applications. The PTO-driven vacuum pump generates strong negative pressure inside the sealed tank, allowing sewage, sludge and semi-liquid waste to be collected through a large-diameter suction hose. Rotary vane and water-ring vacuum pumps can be selected according to tank size, operating conditions and required suction performance. A maximum suction depth of approximately 6–8 meters allows the truck to work with underground septic tanks, sewage pits, drainage structures and other below-ground collection points. Large-diameter 100–150mm suction hoses improve the handling of sludge and sediment-containing sewage. Hydraulic tank lifting and a hydraulically operated rear door provide efficient discharge of sludge and sediment. The tank can be raised after the rear door is opened, helping remove settled material more completely and simplifying internal cleaning after operation. Anti-overflow devices, vacuum gauges, oil-water separators and gas-water separators help protect the vacuum system during operation. Optional high-level alarms, electronic liquid-level indicators and monitoring equipment provide additional operational control. Carbon-steel tanks provide an economical and durable solution for general sewage applications, while high-strength steel, stainless steel and internal anti-corrosion coatings can be selected for projects requiring improved durability or corrosion resistance. Left-hand-drive and right-hand-drive configurations are available for different export markets. Chassis series, engine power, drive configuration, tank capacity, tank material, vacuum pump, suction depth, hose diameter, hydraulic lifting system, rear-door structure, cleaning equipment, cameras, paint color and other specifications can be customized according to project requirements.

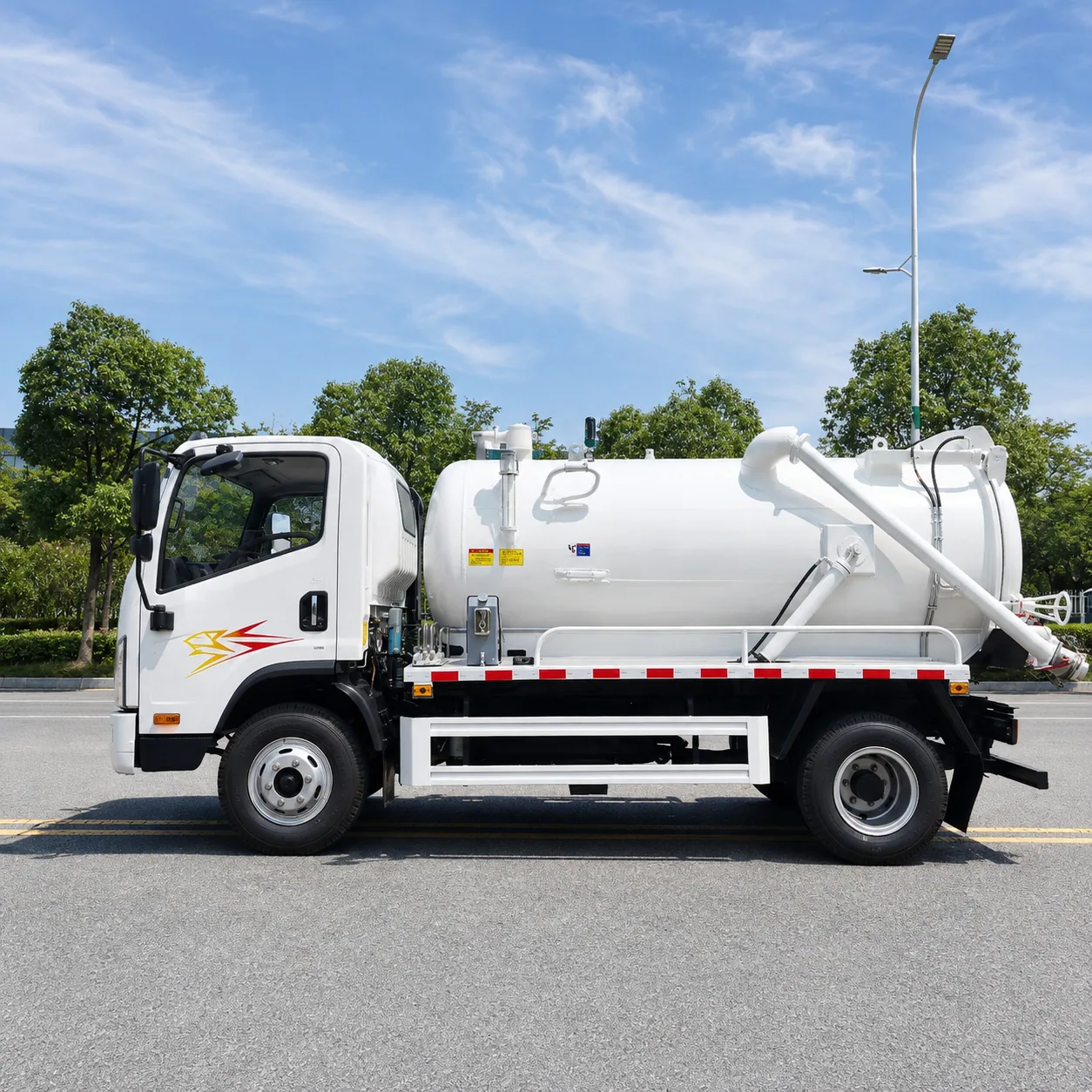

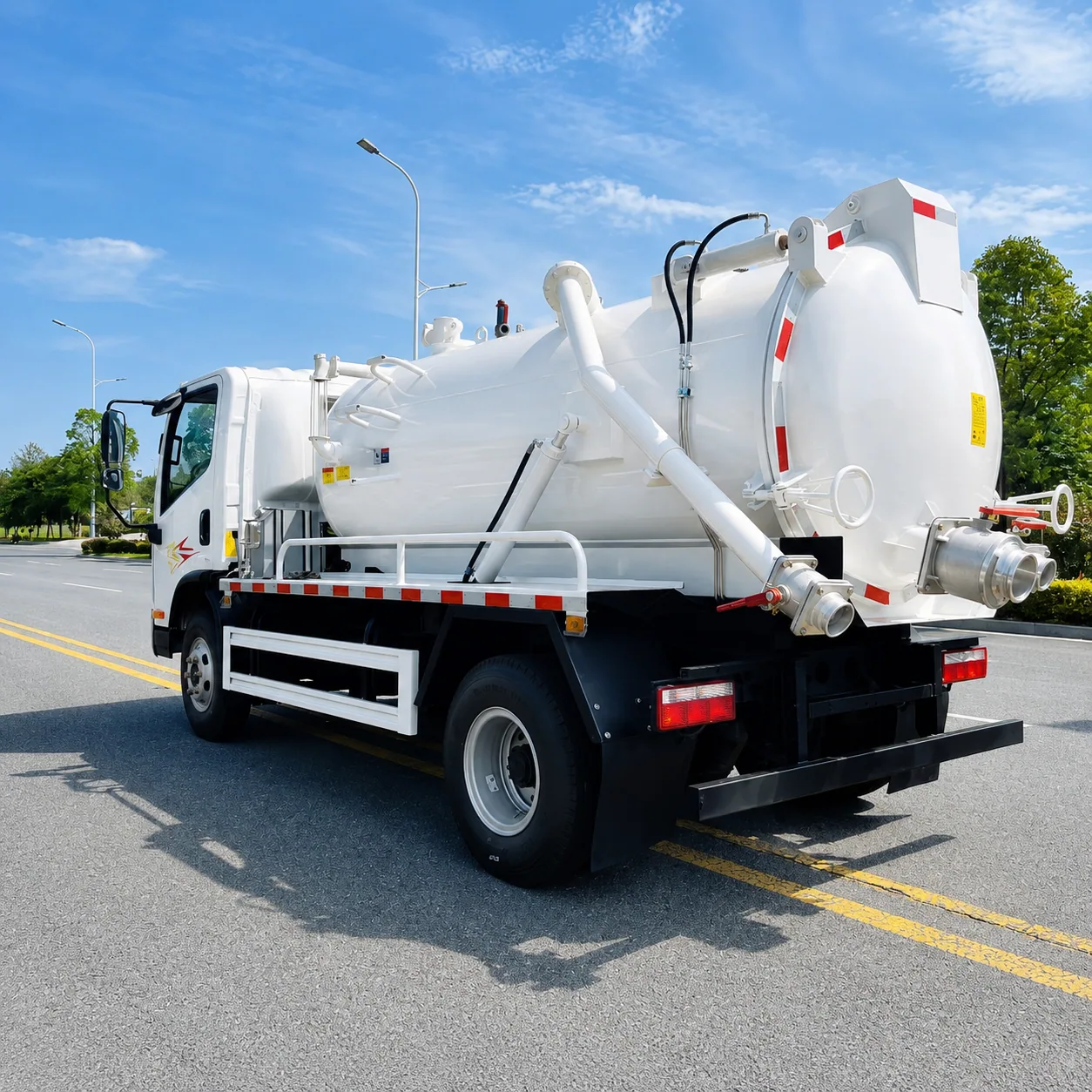

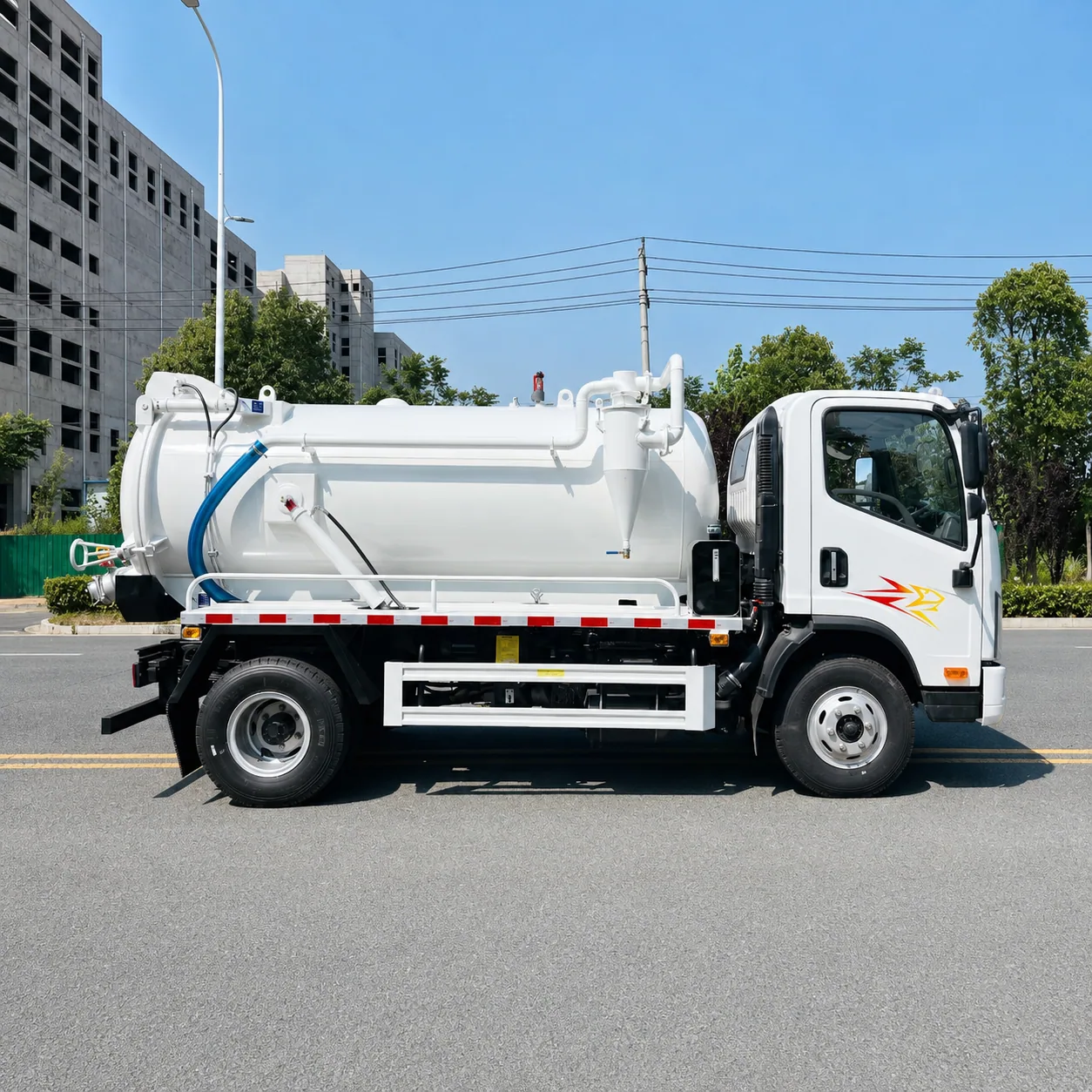

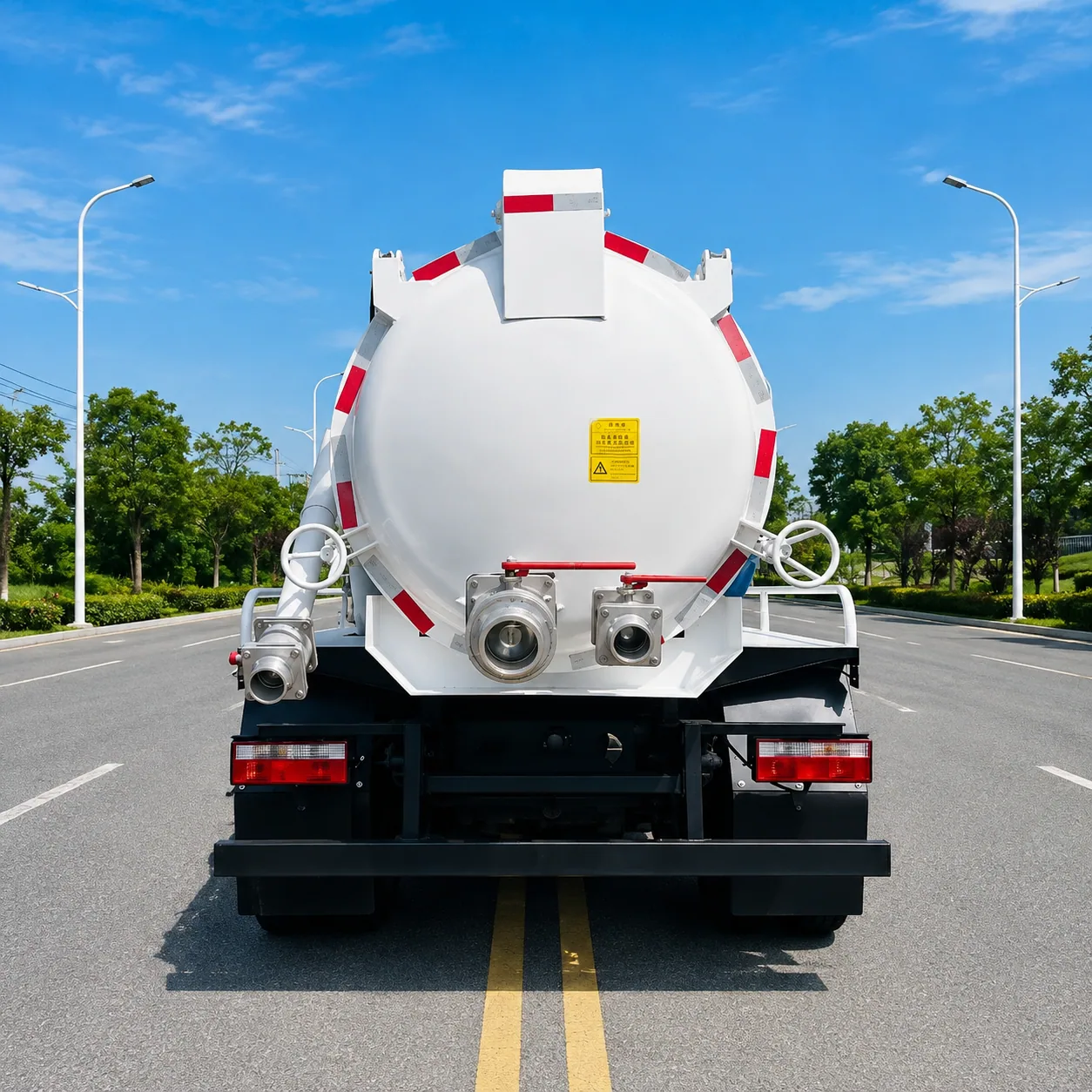

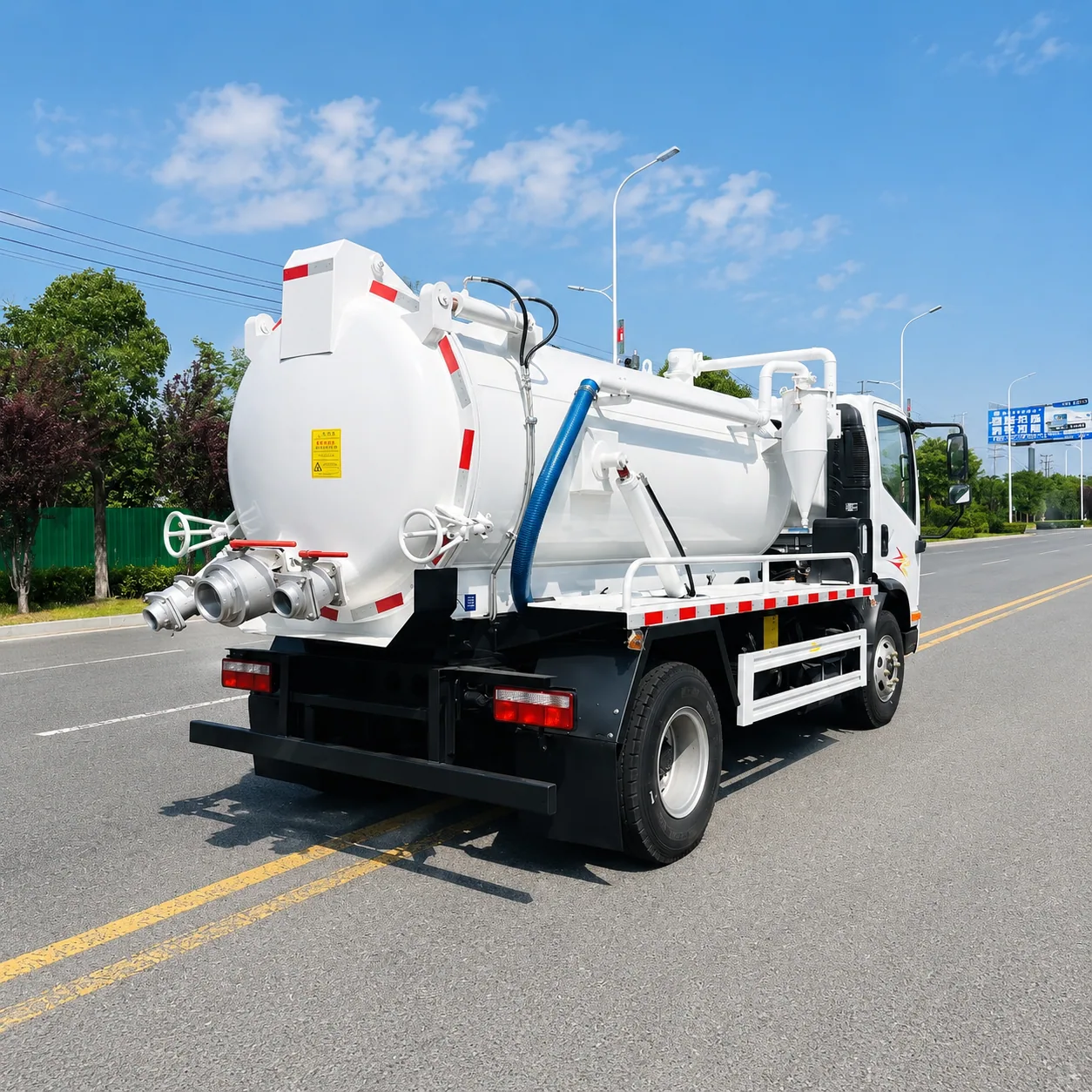

Product Display
