FAW Jiefang JH6 8×4 Dump Truck 380 / 420 / 430 / 460 / 550HP Available
FAW Jiefang JH6 8×4 Dump Truck 380HP 420HP 460HP 550HP Heavy Duty Tipper Truck FAW Jiefang JH6 8×4 dump truck is a heavy-duty tipper truck designed for large-volume bulk material transportation and rear tipping unloading. It is suitable for construction projects, mining areas, quarry operations, road construction, earthwork projects and infrastructure transportation. Compared with 6×4 dump trucks, the 8×4 model provides a longer chassis, larger cargo body, stronger loading capacity and better driving stability for heavy-duty working conditions. The JH6 series features a modern high-end cab, powerful FAWDE / Xichai engine options, reinforced heavy-duty frame, strong drive axles, multi-leaf spring suspension and reliable hydraulic lifting system. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized according to stock condition and customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | FAW Jiefang |
| Model Series | JH6 |
| Drive Type | 8×4 |
| Engine Power | 380HP / 420HP / 430HP / 460HP / 550HP available |
| Engine Brand | FAWDE / Xichai engine optional |
| Engine Model | CA6DL2 / CA6DM2 / CA6DM3 series optional |
| Emission Standard | Euro II / Euro III / Euro V optional, Euro VI according to stock |
| Transmission | FAW CA12TA / CA12TAX / 12-speed manual transmission, AMT optional according to stock |
| Cab | JH6 cab, flat roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 9,500-12,000 mm L × 2,500-2,550 mm W × 3,400-3,900 mm H |
| Wheelbase | Approx. 1,900-2,100 + 3,600-4,600 + 1,350 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 7,200-8,800 mm L × 2,300-2,500 mm W × 1,200-2,000 mm H |
| Cargo Box Volume | Approx. 24-40 m³, depending on box size |
| Loading Capacity | Approx. 30-55 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 2 front steering axles + 2 rear drive axles |
| Front Axle | 7.5T / 9T heavy-duty front axle optional |
| Rear Axle | 13T / 16T heavy-duty rear drive axle, wheel reduction axle optional |
| Frame | Reinforced heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 13R22.5 / 315/80R22.5 optional |
| Tire Quantity | 12 tires + 1 spare tire |
| Fuel Tank | Approx. 300-600 L, steel or aluminum fuel tank optional |
| Brake System | Dual-circuit air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Large construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- urban muck transportation
- demolition waste transportation
- large-volume short and medium-distance bulk cargo transport.
Available Configurations
- 380HP, 420HP, 430HP, 460HP or 550HP engine
- FAWDE / Xichai engine
- Euro II / Euro III / Euro V emission standard
- Euro VI according to stock
- left-hand drive or right-hand drive
- flat roof cab or high roof cab
- sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 12.00R20, 12R22.5, 13R22.5 or 315/80R22.5 tires
- reinforced rear axle
- wheel reduction axle
- air conditioner
- air suspension seat
- ABS
- steel or aluminum fuel tank
- spare tire
- customized paint color, logo and export markings.
Buyer Support
- FAW Jiefang JH6 8×4 dump truck adopts a modern high-end cab with good comfort, visibility and market recognition
- 8×4 drive type provides larger cargo volume and stronger loading capacity than 6×4 models
- FAWDE / Xichai engine offers strong power and reliable performance for construction, mining and quarry transport
- 12-speed transmission provides stable power delivery under heavy-load conditions
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- reliable hydraulic rear tipping system improves unloading efficiency
- heavy-duty axles and multi-leaf spring suspension are suitable for rough construction and mining roads
- multiple emission standards and driving-side options are available for different export markets
- used, refurbished and customized trucks can be supplied with flexible configuration and competitive cost performance.

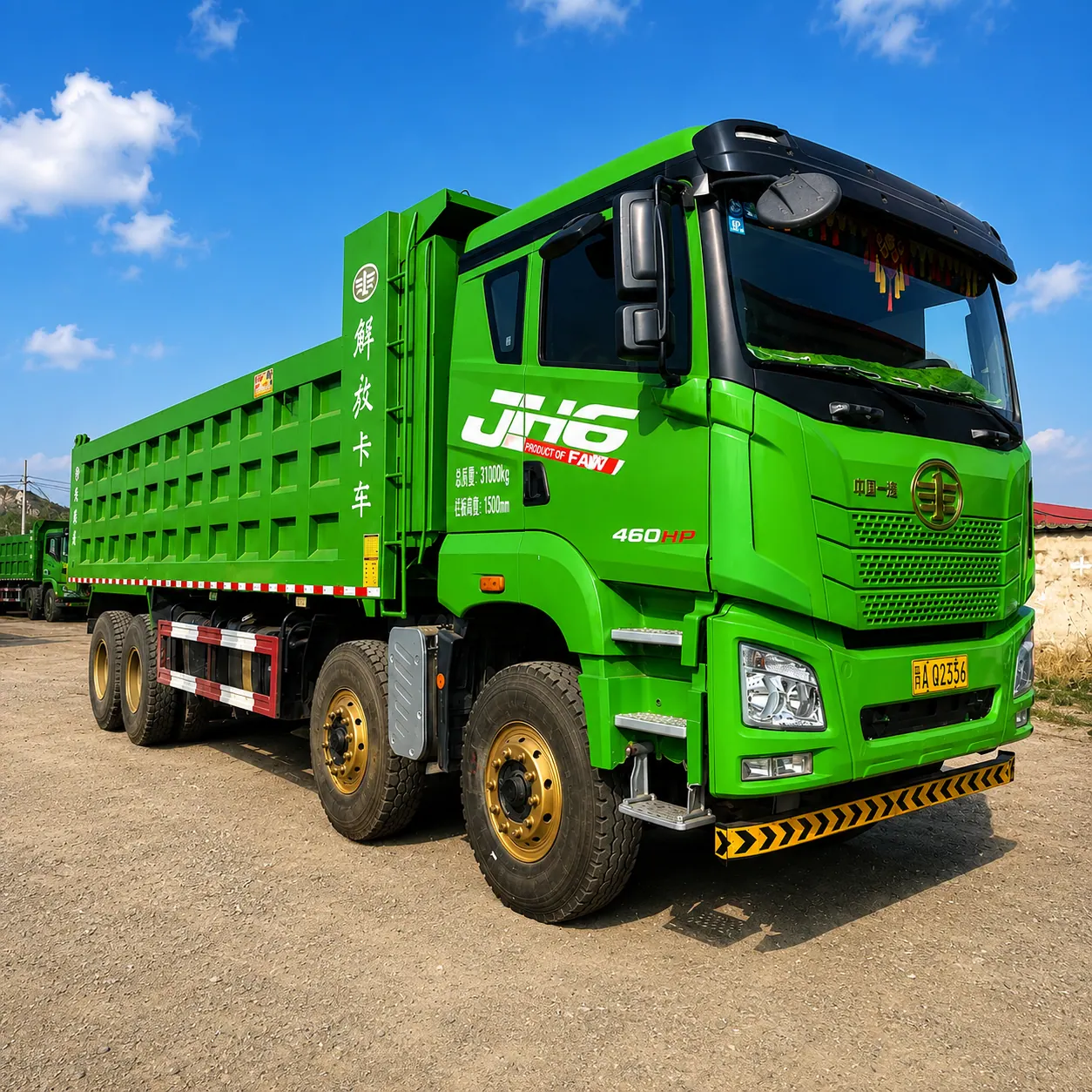

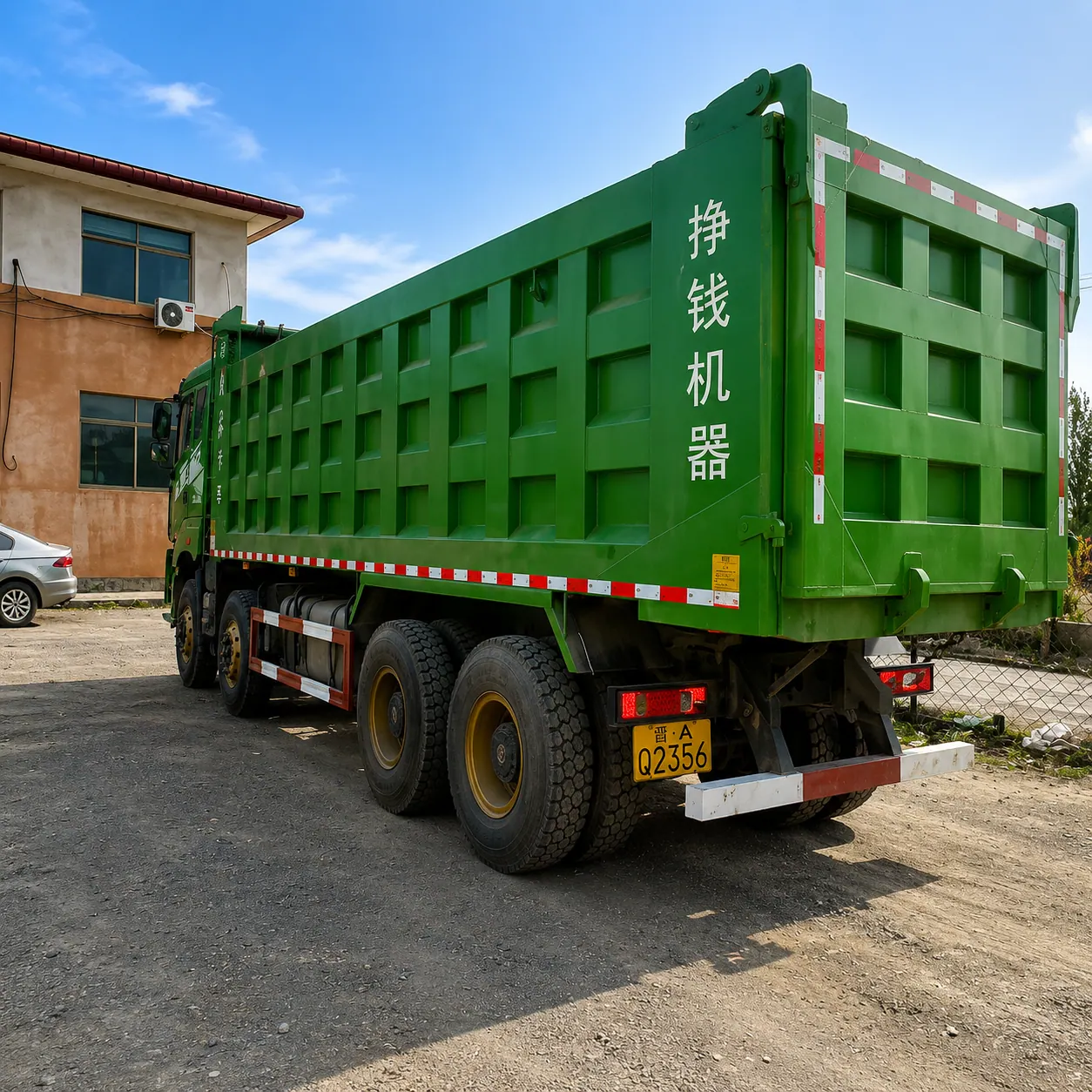

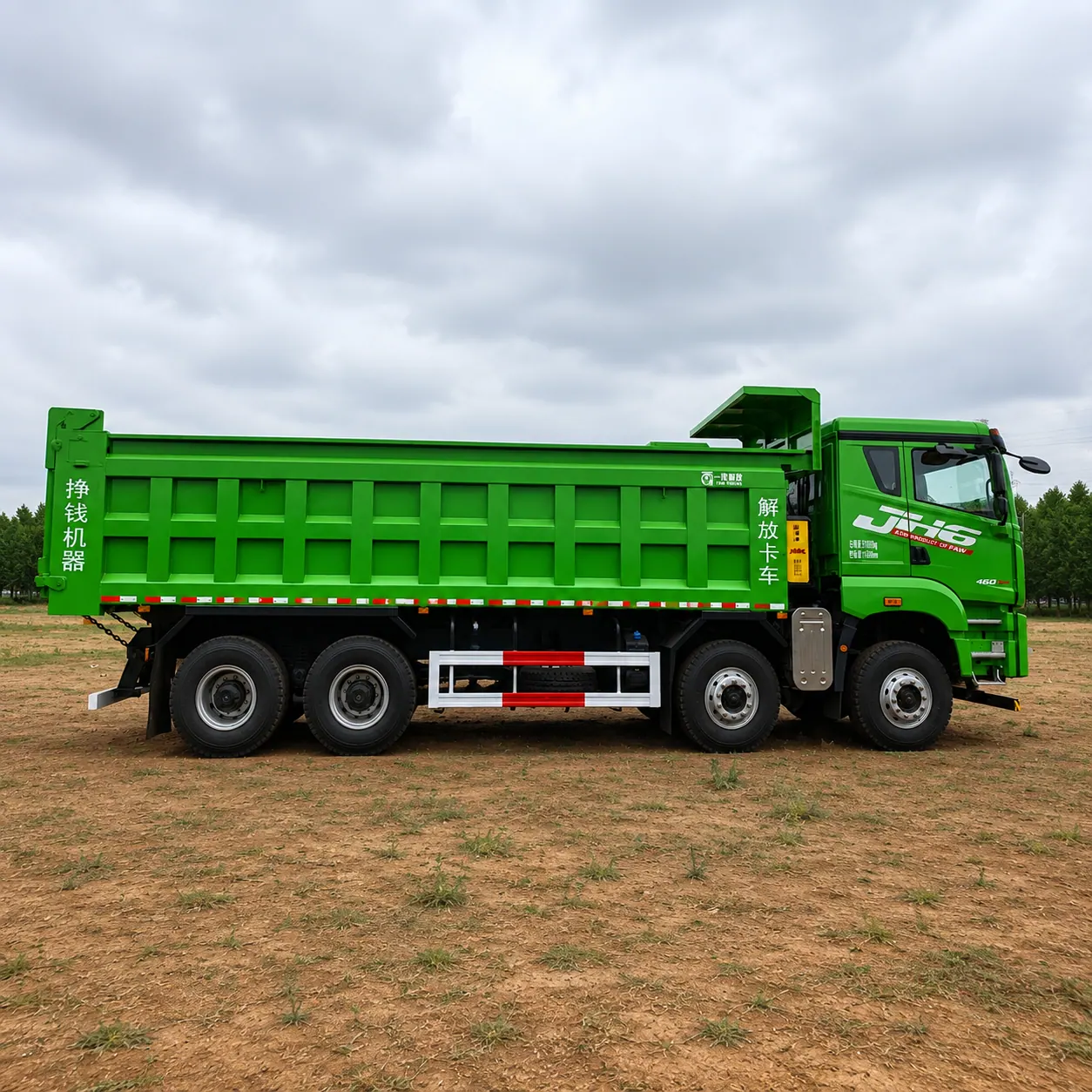

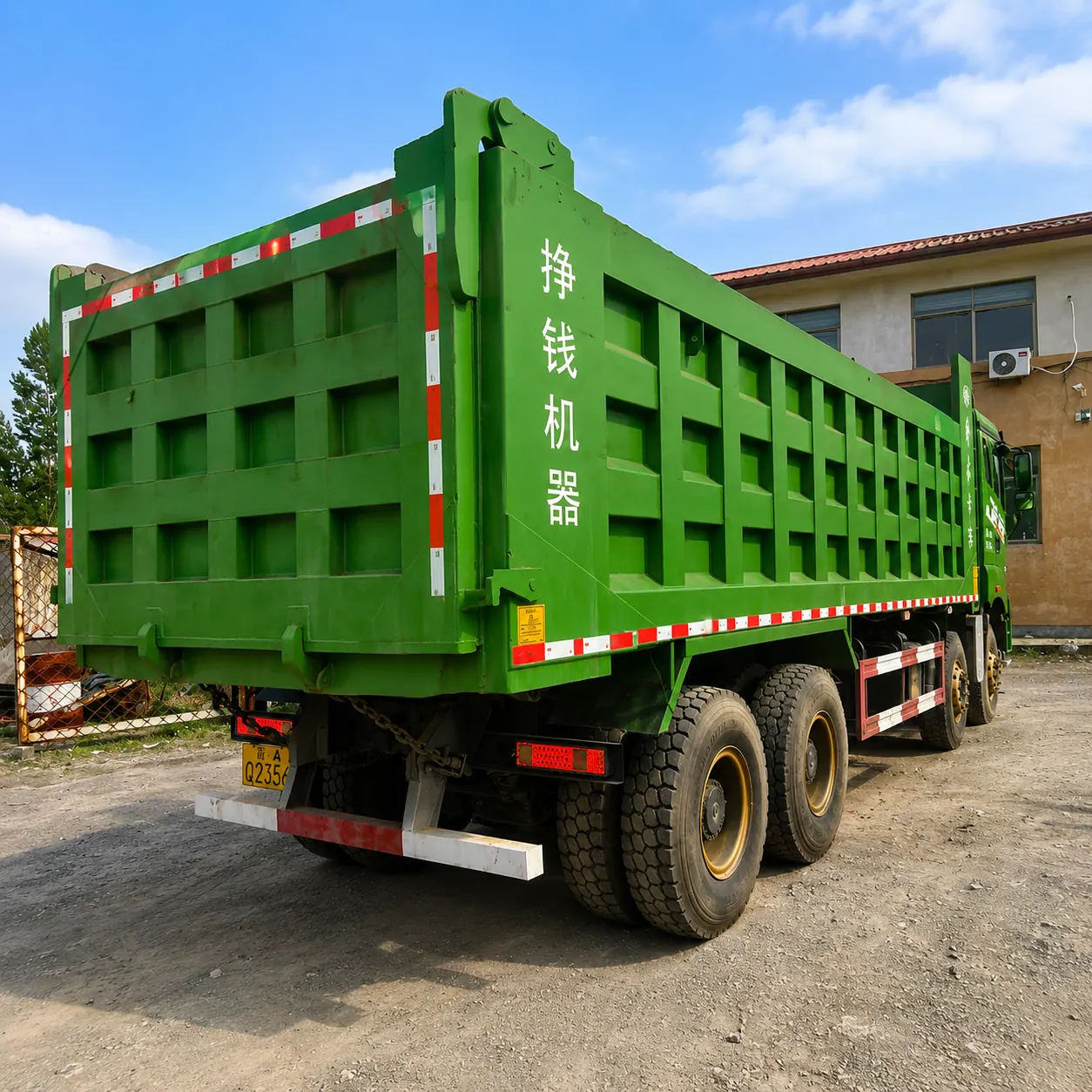

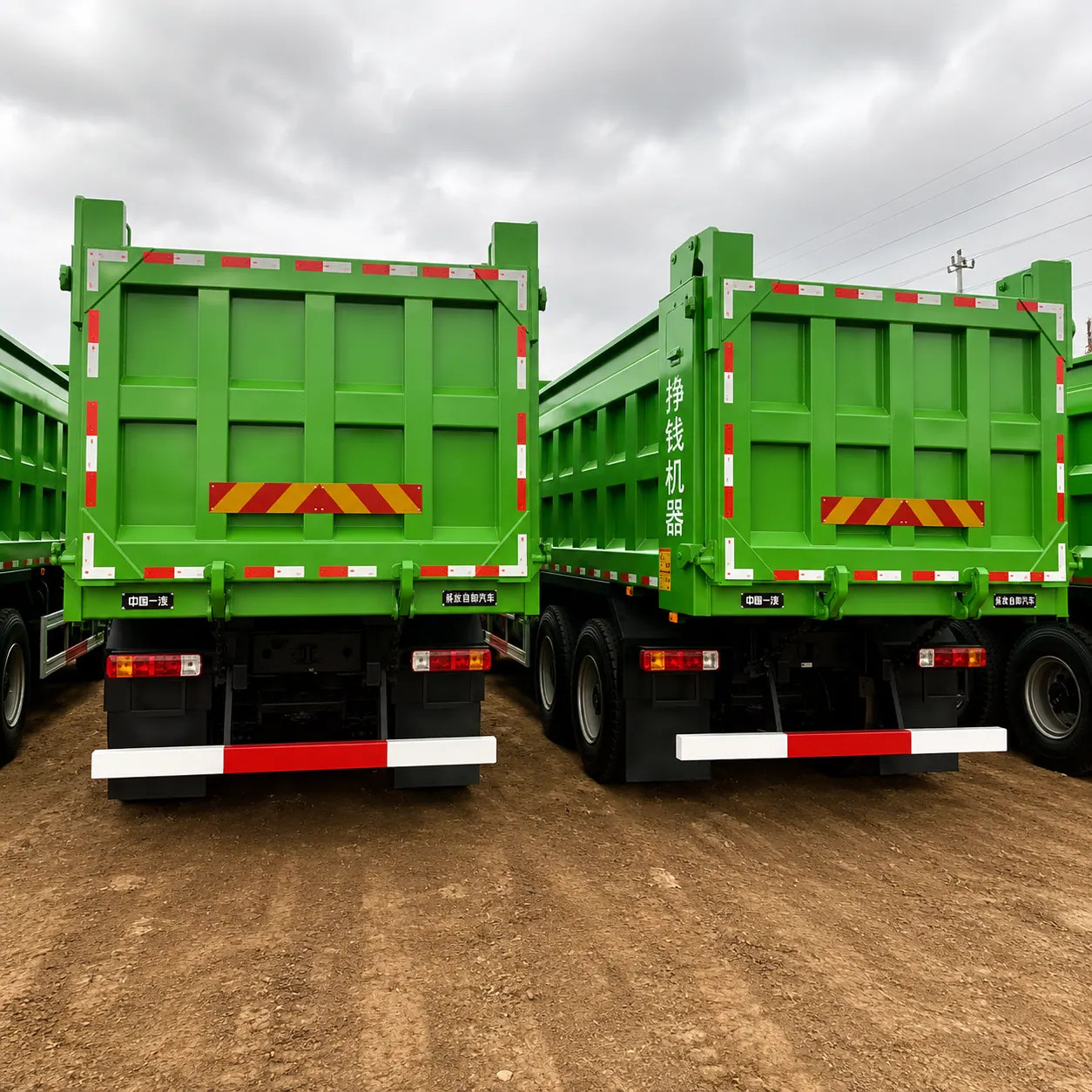

Product Display
