Dump Trucks
FAW Jiefang JH6 6×4 Dump Truck 390 / 420 / 430 / 460HP Available
FAW Jiefang JH6 6×4 dump truck is a heavy-duty tipper truck designed for construction, mining, quarry, road construction and bulk material transportation. It is widely used for transporting sand, gravel, soil, coal, ore, muck, construction waste and other loose materials under heavy-duty working conditions. The JH6 series features a modern cab design, strong chassis structure, high-horsepower engine options and reliable powertrain system. Compared with traditional heavy-duty dump trucks, the JH6 offers improved driving comfort, better safety performance and stronger adaptability for demanding road conditions. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic lifting system can be customized according to stock condition and customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | FAW Jiefang |
| Model Series | JH6 |
| Drive Type | 6×4 |
| Engine Power | 390HP / 420HP / 430HP / 460HP available |
| Engine Brand | FAWDE / Xichai engine, Weichai optional according to stock |
| Engine Model | CA6DM2 / CA6DL2 series optional |
| Emission Standard | Euro II / Euro III / Euro V optional, Euro VI according to stock |
| Transmission | FAW CA12TA / CA12TAX manual transmission, 10-speed or 12-speed optional |
| Cab | JH6 cab, flat roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 8,400-9,000 mm L × 2,500-2,550 mm W × 3,400-3,800 mm H |
| Wheelbase | Approx. 3,800-4,500 mm + 1,350 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 5,600-6,500 mm L × 2,300-2,500 mm W × 1,200-1,800 mm H |
| Cargo Box Volume | Approx. 18-28 m3, depending on box size |
| Loading Capacity | Approx. 20-40 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 2 rear drive axles |
| Front Axle | 7.5T / 9T front axle optional |
| Rear Axle | 13T / 16T heavy-duty rear drive axle, 300 wheel reduction axle optional |
| Frame | Reinforced heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 optional |
| Tire Quantity | 10 tires + 1 spare tire |
| Fuel Tank | Approx. 300-600 L, steel or aluminum fuel tank optional |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- urban muck transportation
- demolition waste transportation
- short and medium-distance heavy bulk cargo transport
Available Configurations
- left-hand drive or right-hand drive
- flat roof cab, high roof cab or sleeper cab according to stock
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- reinforced rear axle
- air conditioner
- air suspension seat
- ABS
- steel or aluminum fuel tank
- customized paint color, logo and export markings
- 390HP, 420HP, 430HP or 460HP engine
- FAWDE / Xichai engine
- Euro II / Euro III / Euro V emission standard
- 12.00R20, 12R22.5 or 315/80R22.5 tires
Buyer Support
- FAW Jiefang JH6 modern heavy-duty chassis with strong market recognition
- high-horsepower engine options provide strong power for construction and mining transport
- FAW CA12TA / CA12TAX transmission offers reliable power delivery and stable operation
- 6×4 drive type provides strong traction and load-bearing performance
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- reliable hydraulic rear tipping system improves unloading efficiency
- JH6 cab offers better comfort, visibility and safety for daily operation
- multiple emission standards and driving-side options for different export markets
- used, refurbished and customized trucks available with competitive cost performance

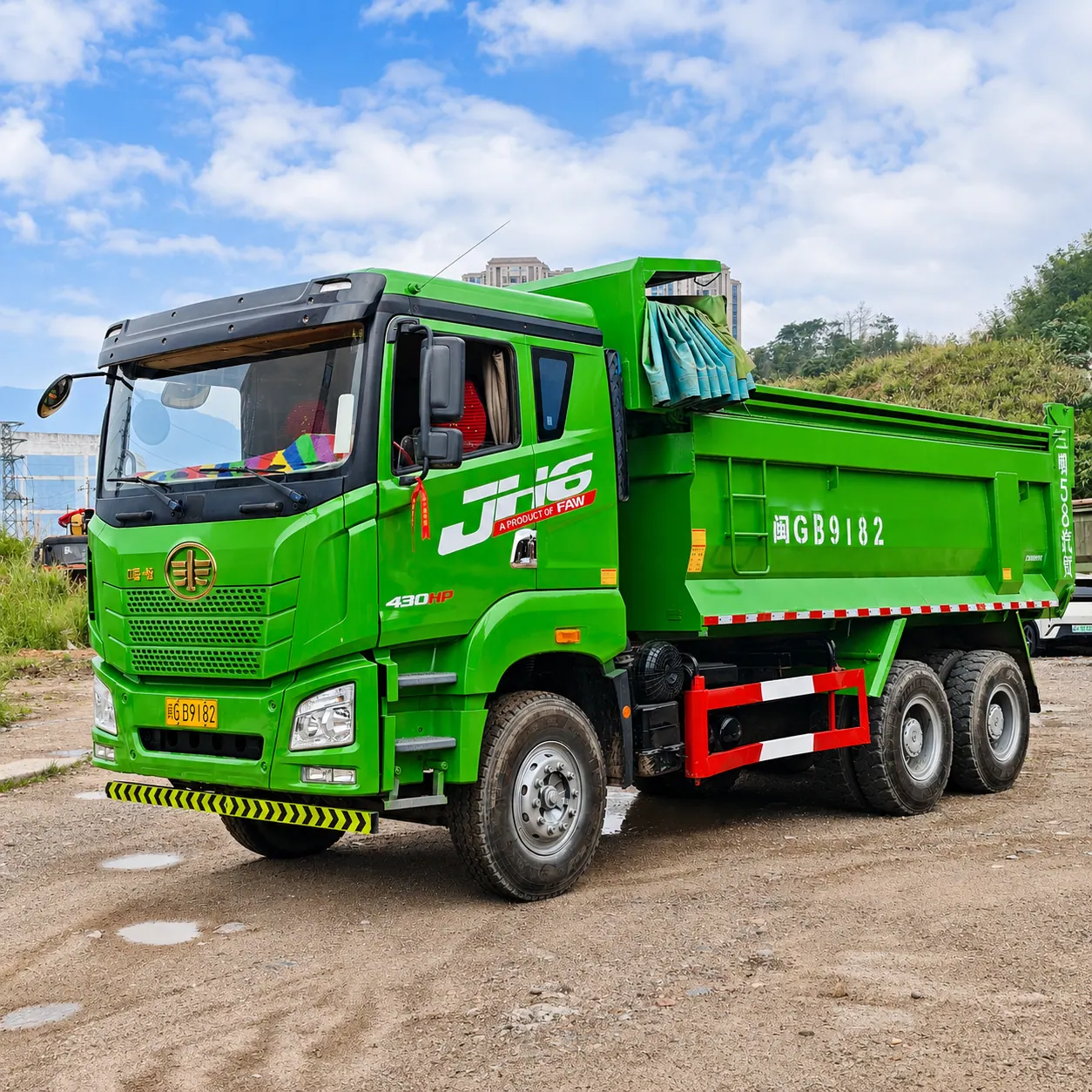

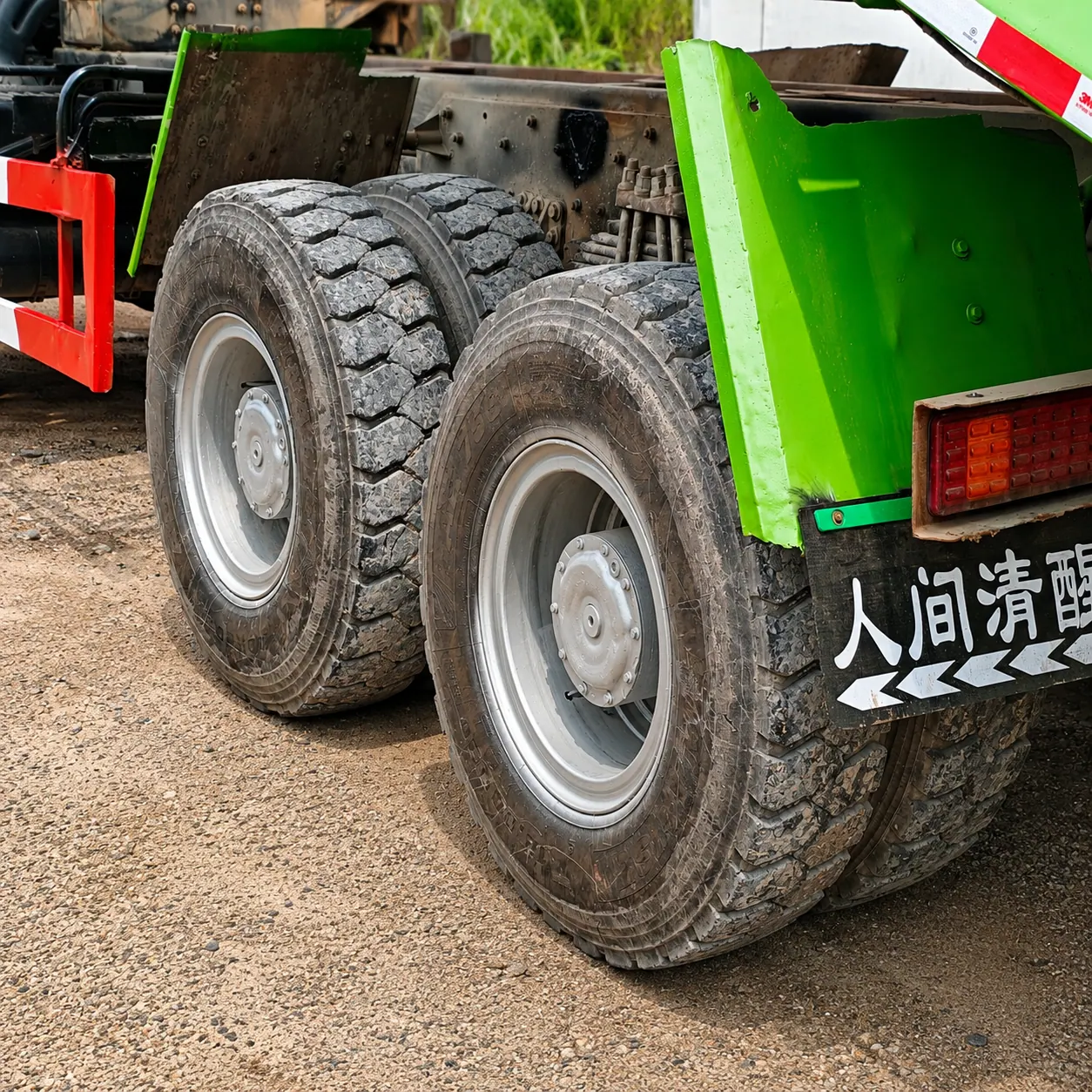

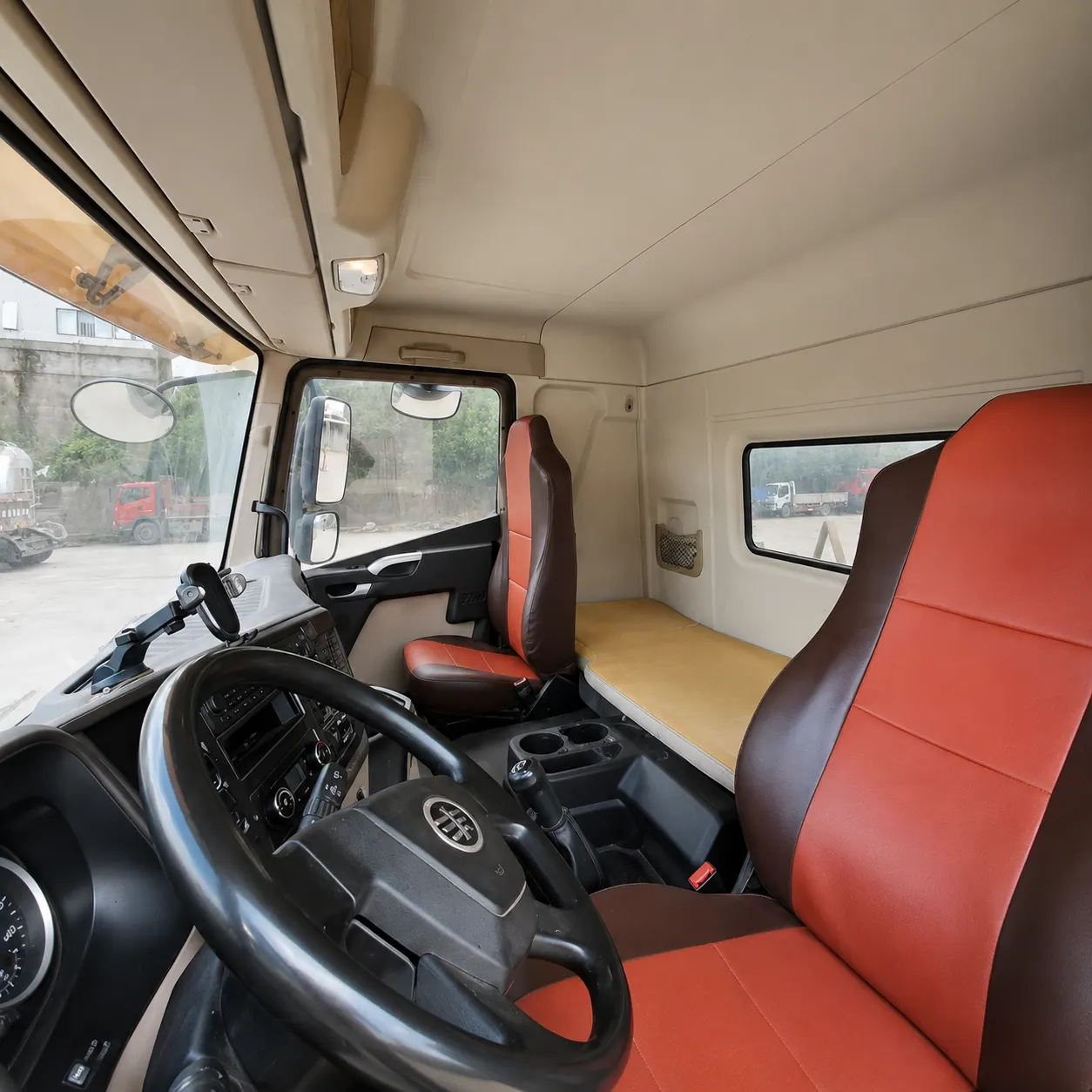

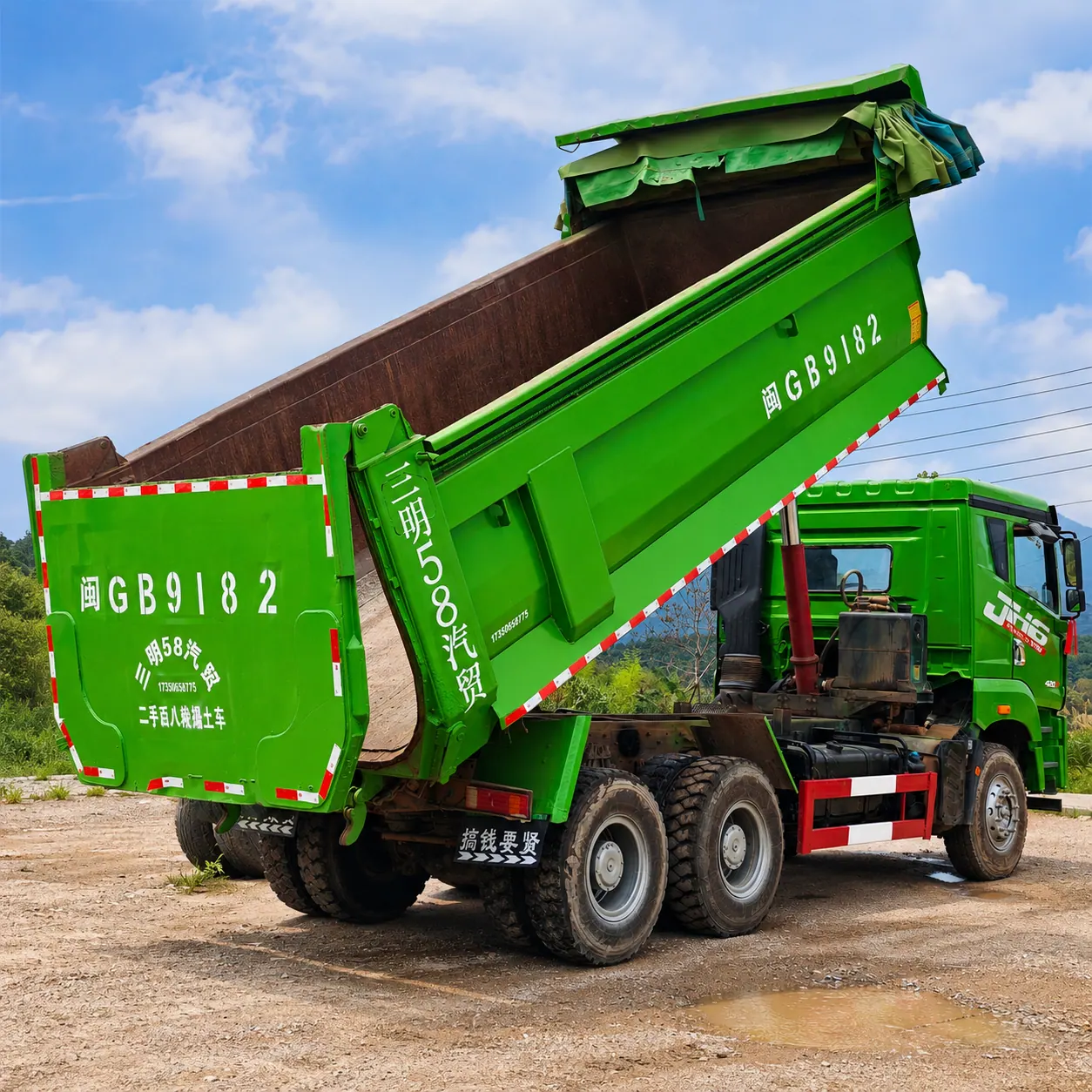

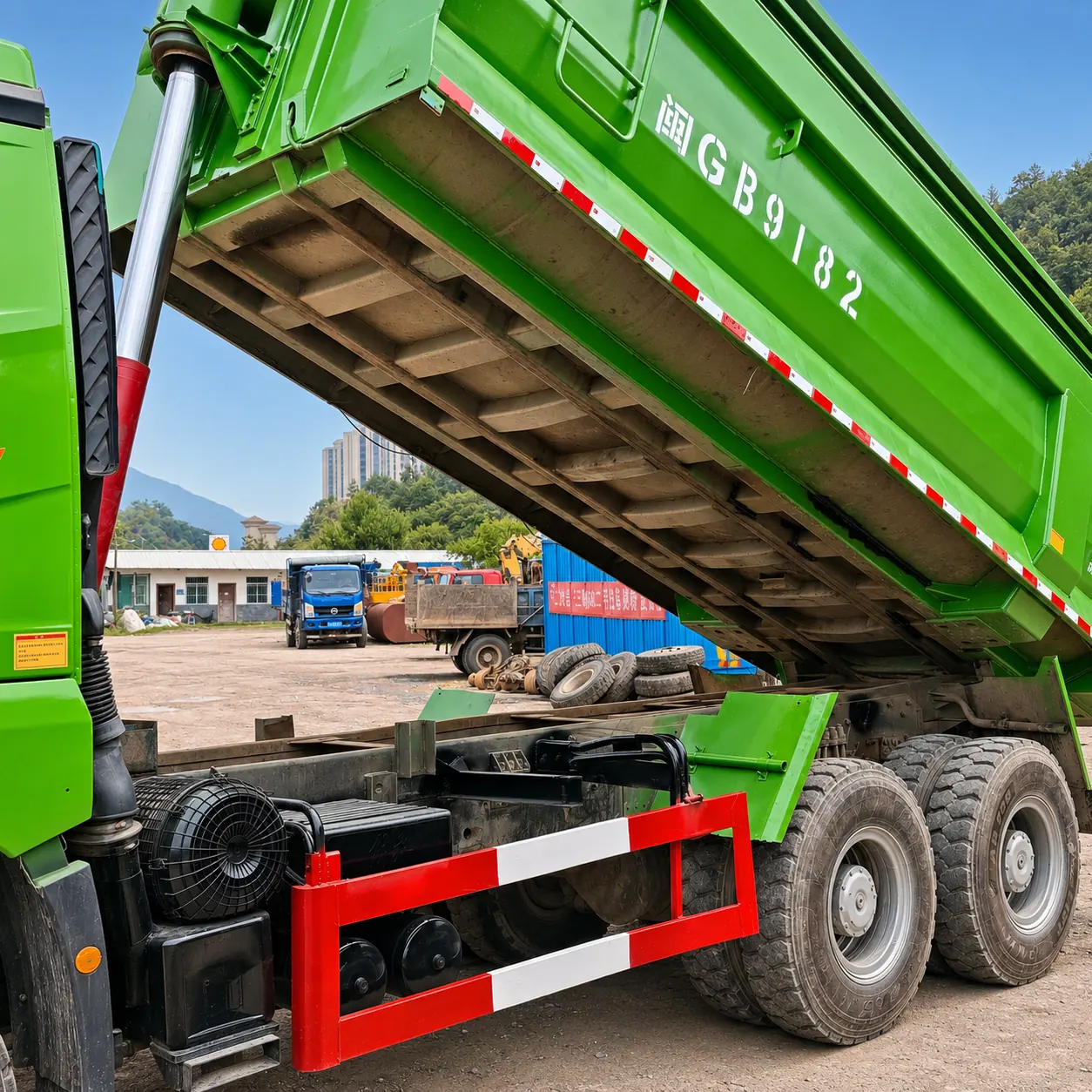

Product Display
