FAW Jiefang J6P / JH6 Concrete Mixer Truck 280 / 350 / 375 / 390 / 420HP 6 / 8 / 10 / 12 / 14 / 16CBM Available
FAW Jiefang Concrete Mixer Truck is a heavy-duty construction vehicle designed for transporting ready-mixed concrete from batching plants to construction sites while continuously agitating the concrete during transportation. The vehicle combines the durable FAW Jiefang J6P or JH6 chassis with a high-strength mixing drum, hydraulic drive system, reducer, hydraulic pump, hydraulic motor, feeding hopper, discharge chute, water system and reinforced mixer subframe. FAW officially offers J6P concrete mixer trucks in 6×4 configuration and J6P / JH6 mixer platforms in 8×4 configuration, providing suitable chassis options for medium- and heavy-duty concrete transportation. The J6P platform supports CA6DL2-series engines with power covering approximately 280–375PS, while higher-power J6P and JH6 chassis configurations are available for large-capacity mixer applications. Different FAW Jiefang concrete mixer configurations can be supplied with approximately 280HP, 350HP, 375HP, 390HP and 420HP power options, 6×4 or 8×4 chassis layouts and approximately 6–16CBM mixer capacities. The high-strength mixer drum and internal spiral blades maintain concrete uniformity during transport, while the hydraulic drive system provides smooth drum rotation for loading, mixing and discharge operations.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Concrete Mixer Truck / Cement Mixer Truck / Transit Mixer Truck |
| Brand | FAW Jiefang |
| Model Series | J6P / JH6 |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | Approx. 280HP / 350HP / 375HP / 390HP / 420HP available according to model and stock |
| Engine Brand | FAWDE / Xichai |
| Common Engine Series | CA6DL2 / CA6DM2 series or equivalent |
| Engine Type | Inline six-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 8.6–11 L depending on engine configuration |
| Maximum Torque | Approx. 1,350–2,100 N·m depending on engine |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro V / Euro VI available according to model year and export market |
| Transmission Brand | FAW / FAST or equivalent according to chassis |
| Transmission Type | Manual transmission |
| Common Transmission | CA10TA / CA12TA / FAST 12-speed series or equivalent |
| Transmission Gears | 10-speed / 12-speed manual transmission available |
| PTO | Heavy-duty PTO for mixer hydraulic system |
| Cab Series | FAW J6P / JH6 |
| Cab Type | Flat-roof / high-roof heavy-duty cab according to chassis |
| Seating Capacity | 2 persons commonly available |
| Sleeper | Single sleeper available according to cab configuration |
| Driver Seat | Adjustable air-suspension driver seat available |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,500–11,500 mm |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,700–4,000 mm |
| Wheelbase | Approx. 3,800+1,350 mm / 4,300+1,350 mm for common 6×4 versions; different 8×4 wheelbases available |
| Gross Vehicle Weight | Approx. 25–35 tons depending on chassis and mixer capacity |
| Curb Weight | Approx. 11–17 tons depending on chassis and upper body |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | FAW heavy-duty steering axle |
| Front Axle Capacity | Approx. 7–9 tons depending on chassis |
| Rear Axle | FAW 300 / 435 / equivalent heavy-duty drive axle |
| Rear Axle Capacity | Approx. 13–16 tons per drive axle depending on configuration |
| Rear Axle Type | Single-reduction / hub-reduction heavy-duty axle available |
| Rear Axle Ratio | Multiple ratios available according to operating conditions |
| Differential Lock | Available according to axle configuration |
| Frame | Reinforced high-strength steel chassis frame |
| Subframe | Reinforced concrete-mixer subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / bogie suspension |
| Tire Model | 11.00R20 / 12.00R20 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 configuration; spare tire available |
| Fuel Tank | Approx. 300–500 L |
| Fuel Tank Material | Aluminum / steel optional |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Mixer Body Type | Rotating concrete mixing drum |
| Effective Mixer Capacity | 6CBM / 8CBM / 10CBM / 12CBM / 14CBM / 16CBM available |
| Mixer Drum Material | High-strength wear-resistant steel |
| Drum Structure | Reinforced drum with internal double-helical mixing blades |
| Drum Rotation | Forward / reverse rotation |
| Drum Rotation Speed | Approx. 0–16 rpm depending on hydraulic system |
| Mixing Blade Type | Double-helical / spiral mixing blades |
| Mixing Blade Material | High-strength wear-resistant steel |
| Hydraulic Drive Type | Hydrostatic hydraulic drive system |
| Hydraulic Pump | Rexroth / EATON / PMP or equivalent optional |
| Hydraulic Motor | Rexroth / EATON / PMP or equivalent optional |
| Reducer | Bonfiglioli / ZF / PMP or equivalent mixer reducer optional |
| Hydraulic Oil Tank | Available |
| Hydraulic Oil Cooler | Available / optional |
| Feeding System | Rear feeding hopper |
| Feeding Hopper | Reinforced large-capacity feeding hopper |
| Hopper Material | High-strength steel with wear-resistant lining optional |
| Feeding Speed | Approx. ≥3 m³/min depending on mixer system |
| Discharge System | Rear discharge chute |
| Discharge Speed | Approx. 2–3 m³/min depending on mixer configuration and concrete condition |
| Main Discharge Chute | Adjustable and rotatable discharge chute |
| Extension Chute | One or more extension chutes optional |
| Concrete Residual Rate | Low-residual drum and blade design |
| Water Tank Capacity | Approx. 300–500 L |
| Water Tank Material | Steel / aluminum optional |
| Water Supply System | Pressurized / gravity water supply system |
| Drum Cleaning System | Integrated water flushing system |
| Hopper Cleaning | Available |
| Chute Cleaning | Available |
| Hand-Washing Outlet | Optional |
| Rear Operating Control | Mechanical / electro-hydraulic control |
| Drum Speed Control | Adjustable |
| Drum Direction Control | Mixing / neutral / discharge |
| Cab Drum Control | Optional |
| Support Roller | Heavy-duty mixer drum support rollers |
| Drum Support Structure | Reinforced front and rear mixer drum supports |
| Rear Ladder | Available |
| Rear Fender | Available |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Camera System | Optional |
| Tire Pressure Monitoring | Optional |
| Collision Warning | Optional |
| Lane Departure Warning | Optional |
| Working Lights | Optional |
| Warning Lamp | Optional |
| Toolbox | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, red, blue, green, yellow or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Model series, engine, transmission, drive type, mixer capacity, drum material, hydraulic pump, hydraulic motor, reducer, water system, axle, tires, steering side, paint color, company logo and export markings |
Product Details
Typical Applications
- Ready-mixed concrete transportation
- commercial concrete batching plants
- residential building construction
- commercial building construction
- industrial plant construction
- road construction
- highway construction
- bridge construction
- tunnel construction
- railway projects
- airport construction
- port construction
- hydropower projects
- municipal infrastructure
- industrial park development
- foundation construction
- mining infrastructure
- precast concrete projects
- large-scale infrastructure construction
- urban development projects
- construction contractor fleet operations.
Available Configurations
- 280HP, 350HP, 375HP, 390HP or 420HP diesel engine
- FAW J6P or JH6 chassis
- FAWDE / Xichai CA6DL2, CA6DM2 or equivalent engine
- 6×4 or 8×4 drive configuration
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro V / Euro VI emission configuration according to model year and export market
- CA10TA, CA12TA, FAST 12-speed or equivalent transmission
- 6CBM, 8CBM, 10CBM, 12CBM, 14CBM or 16CBM effective mixer capacity
- high-strength wear-resistant mixer drum
- reinforced double-helical mixing blades
- Rexroth, EATON, PMP or equivalent hydraulic pump
- Rexroth, EATON, PMP or equivalent hydraulic motor
- Bonfiglioli, ZF, PMP or equivalent mixer reducer
- hydraulic oil cooling system
- approximately 300–500L water tank
- pressurized water system
- reinforced feeding hopper
- wear-resistant hopper lining
- adjustable discharge chute
- extension discharge chute
- mechanical or electro-hydraulic rear controls
- cab-mounted drum control
- reversing camera
- rear working camera
- 360° monitoring system
- tire-pressure monitoring
- warning lamps
- ABS
- air conditioner
- air-suspension driver seat
- different axle ratios and tire specifications
- spare tire
- toolbox
- fire extinguisher
- customized mixer capacity, hydraulic system, paint color, company logo and export markings.
Buyer Support
- FAW Jiefang Concrete Mixer Truck combines the proven J6P and JH6 heavy-duty chassis platforms with a professional concrete mixing and transportation system for batching plants, construction contractors and infrastructure projects
- approximately 280HP to 420HP engine configurations provide multiple power options for different mixer capacities, road conditions and operating requirements
- 6×4 and 8×4 chassis configurations provide flexibility for medium- and heavy-duty concrete transportation
- 6CBM, 8CBM, 10CBM, 12CBM, 14CBM and 16CBM mixer options cover a wide range of construction applications. FAW officially positions the J6P concrete mixer as a special-purpose vehicle for demanding road conditions, with power, safety and reliability designed for concrete transportation. High-strength wear-resistant mixer drums and reinforced spiral blades provide continuous concrete agitation during transportation and efficient feeding and discharge
- hydrostatic hydraulic drive provides smooth and adjustable drum operation
- multiple hydraulic pump, motor and reducer brands are available according to stock and project requirements. The reinforced FAW chassis, heavy-duty drive axles, multi-leaf spring suspension and dedicated mixer subframe provide strong support for frequent loaded operation
- approximately 300–500L water-system configurations support cleaning of the drum, feeding hopper and discharge chute after unloading
- adjustable discharge chutes simplify concrete placement at construction sites
- optional reversing cameras, 360° monitoring, tire-pressure monitoring and other safety equipment improve daily operation
- left-hand-drive and right-hand-drive configurations are available for different export markets
- chassis series, engine, transmission, mixer capacity, hydraulic system, reducer, water system, tires, paint color and other configurations can be customized.

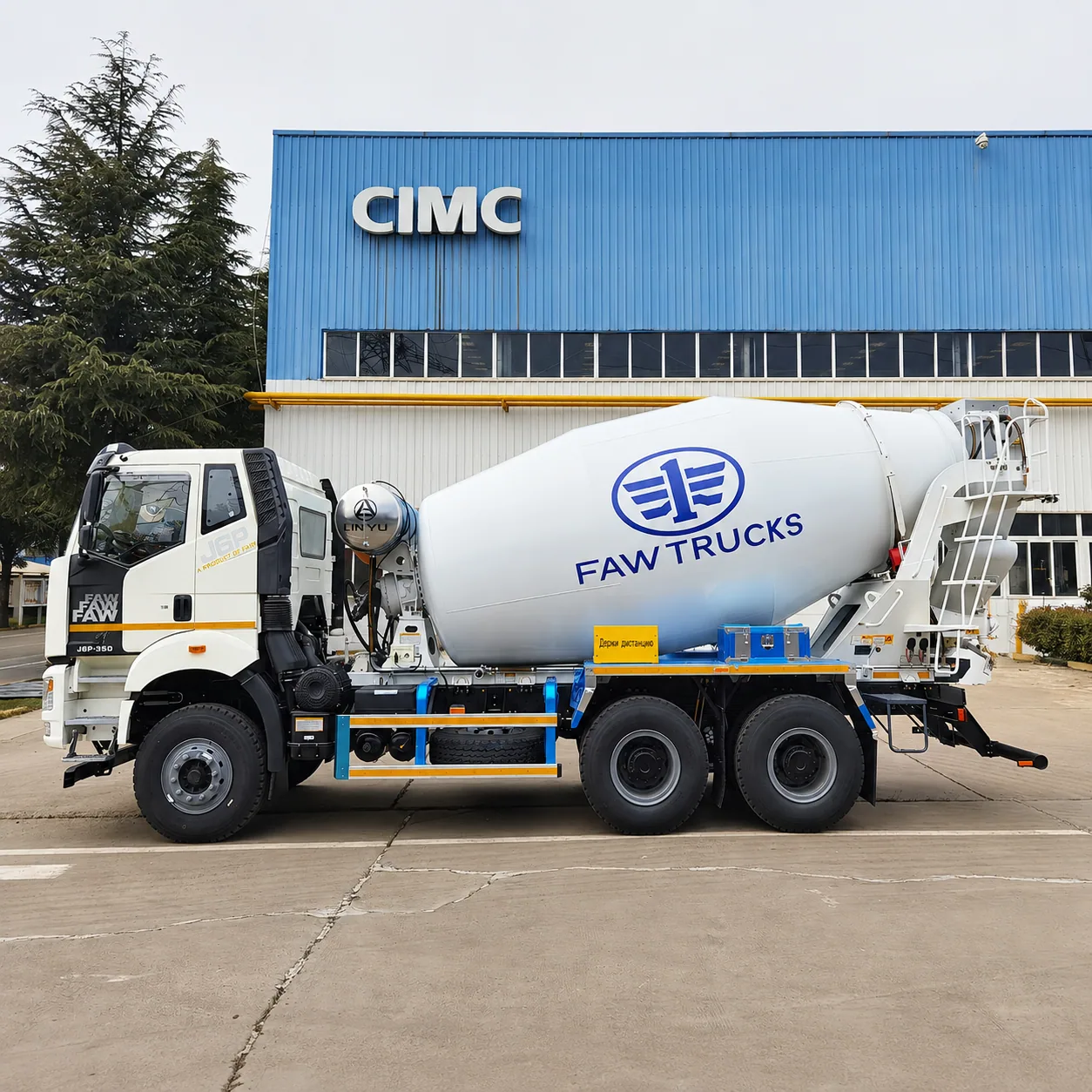

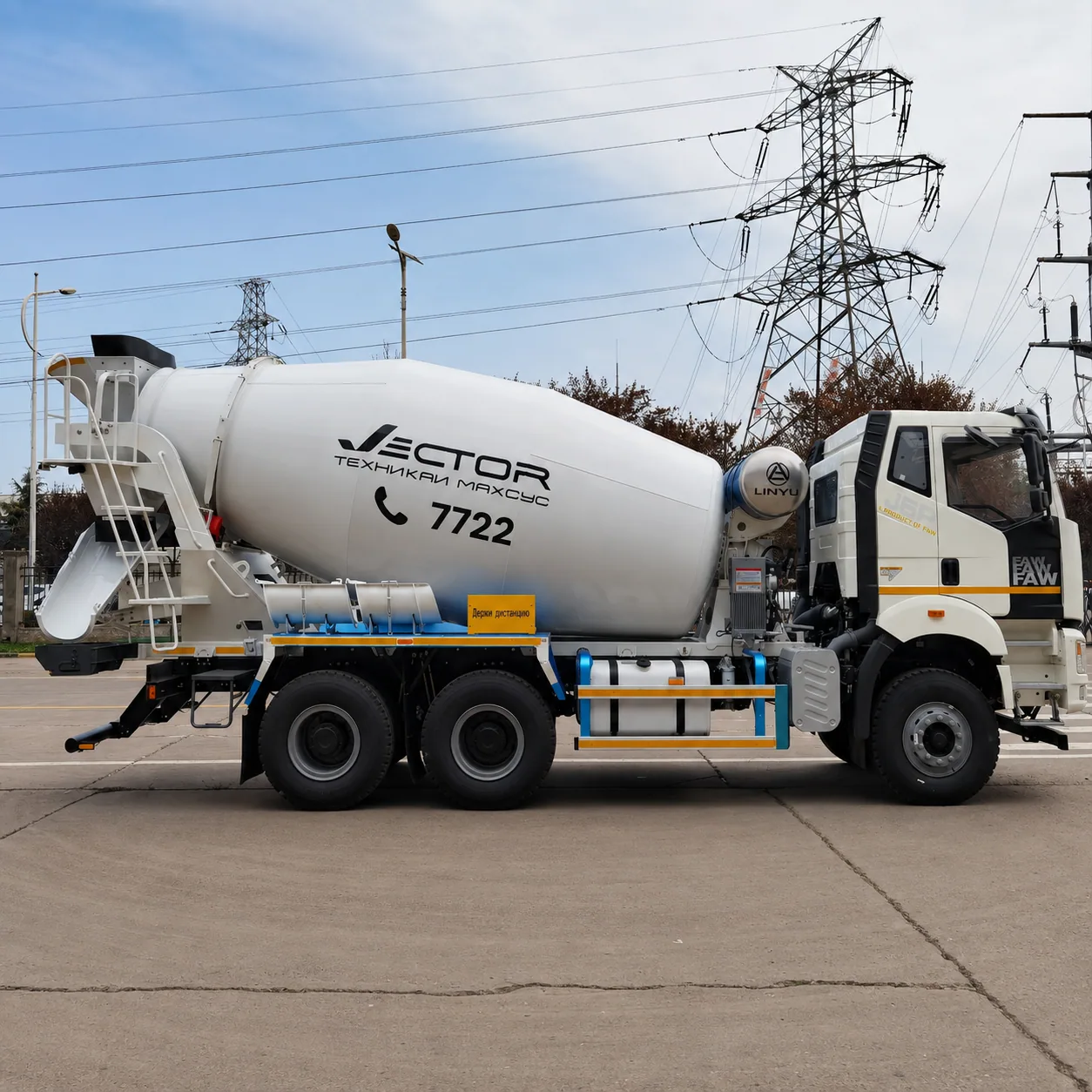

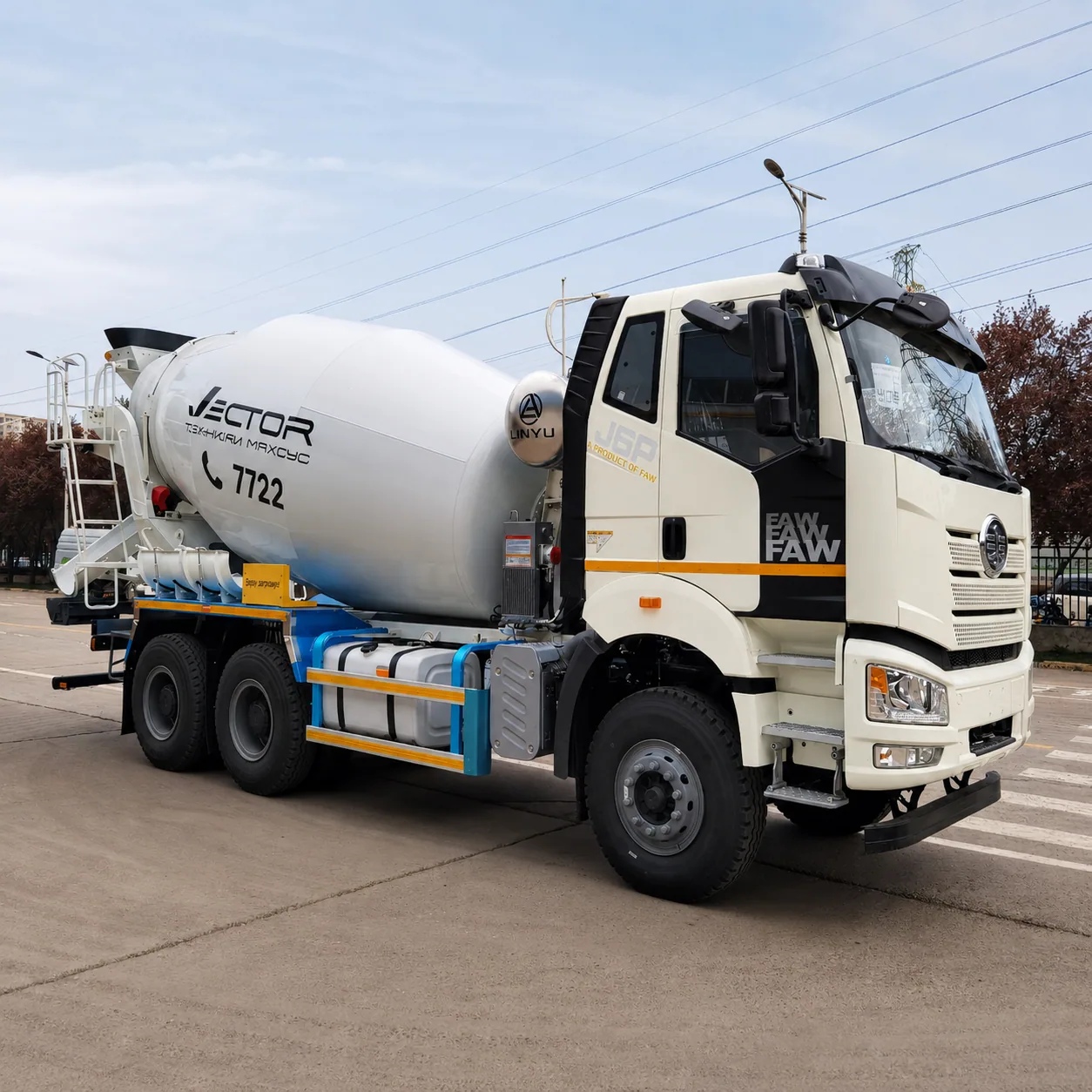

Product Display
