Dump Trucks

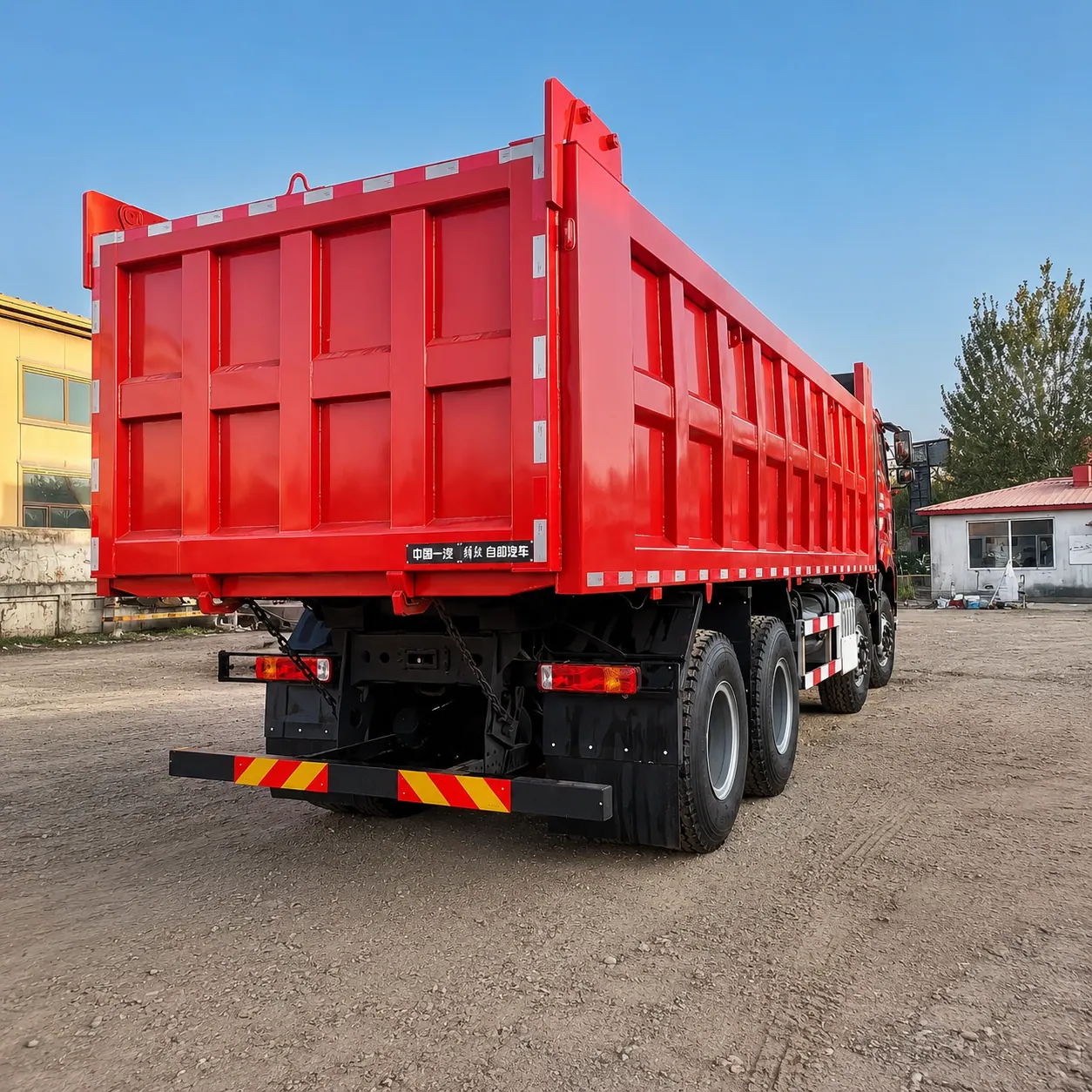

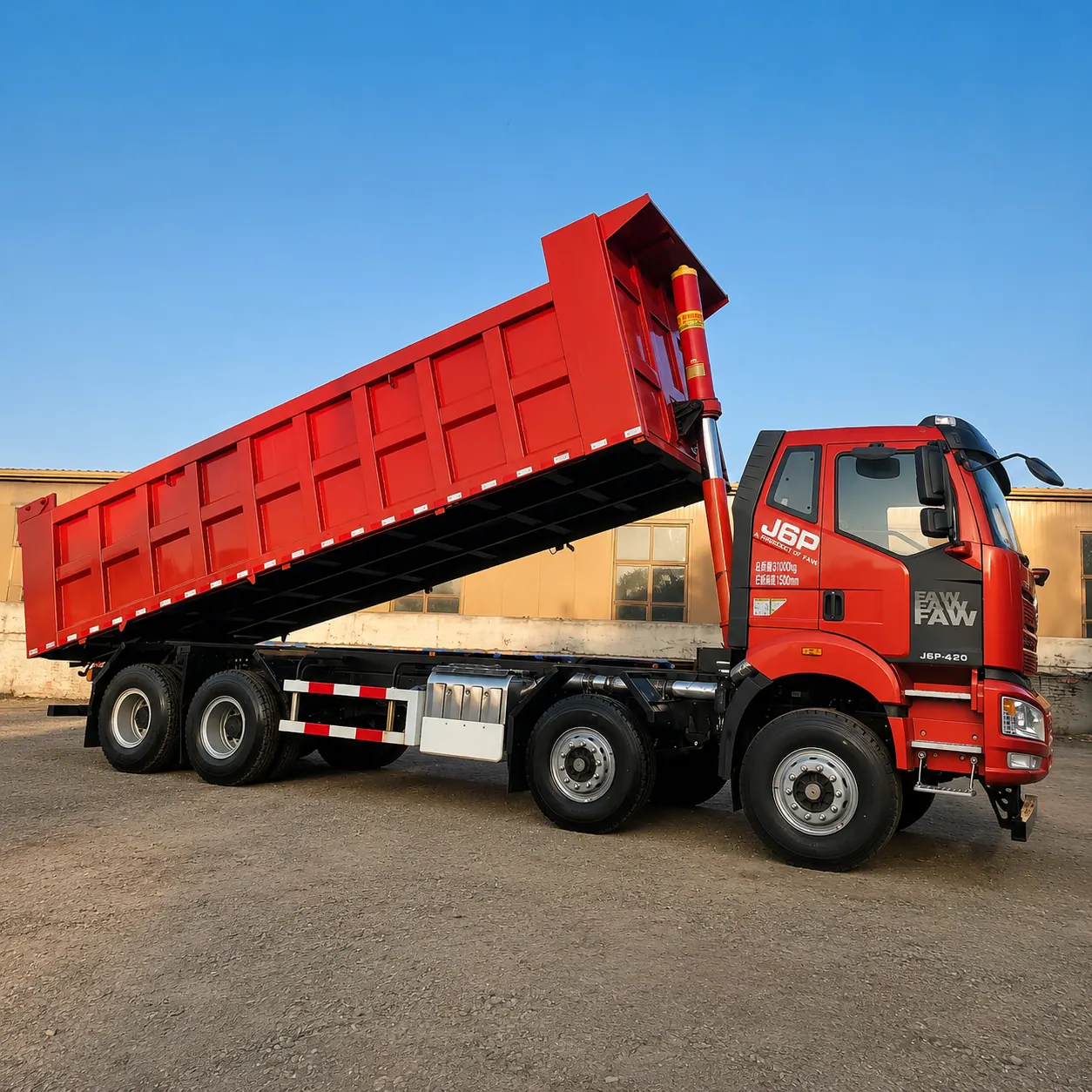

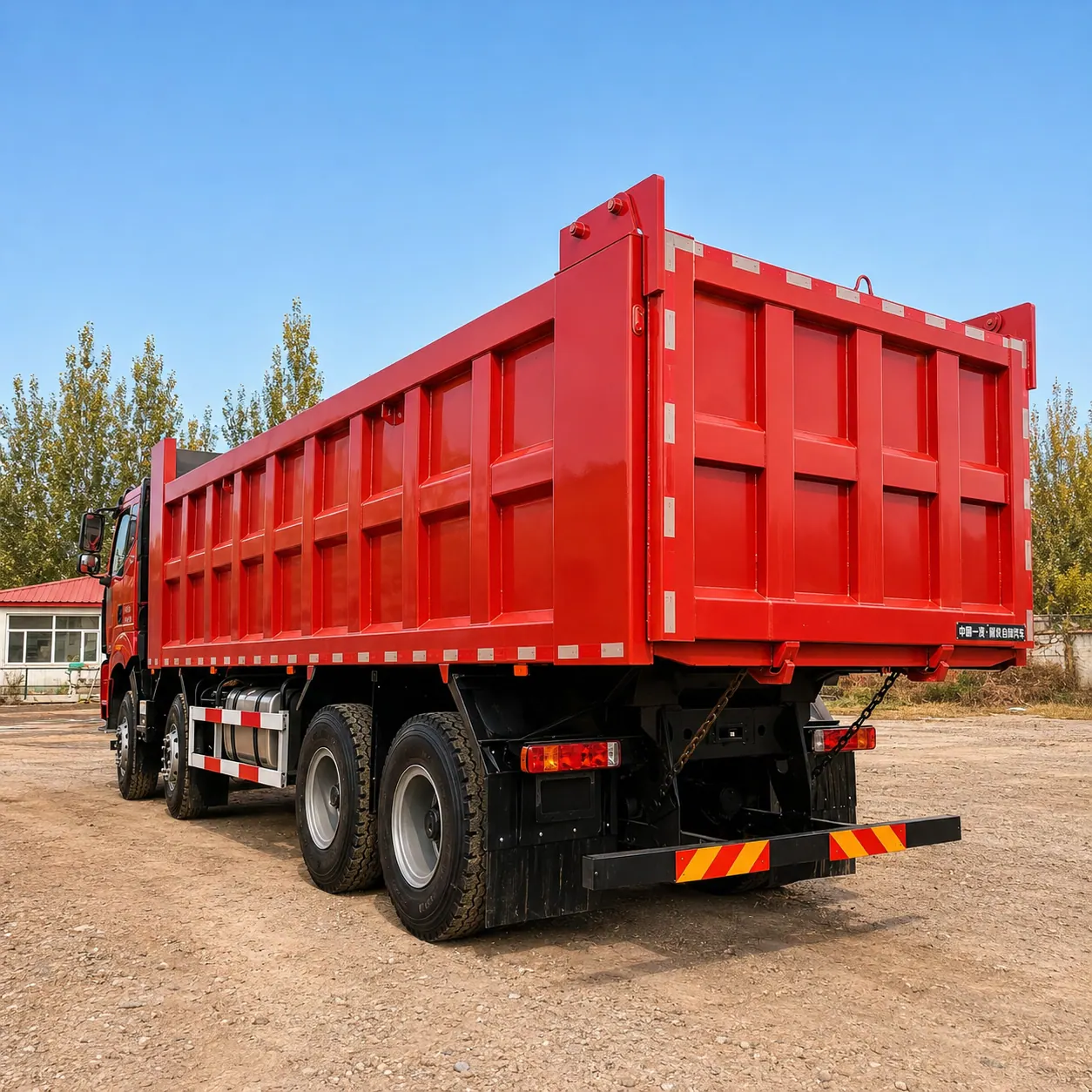

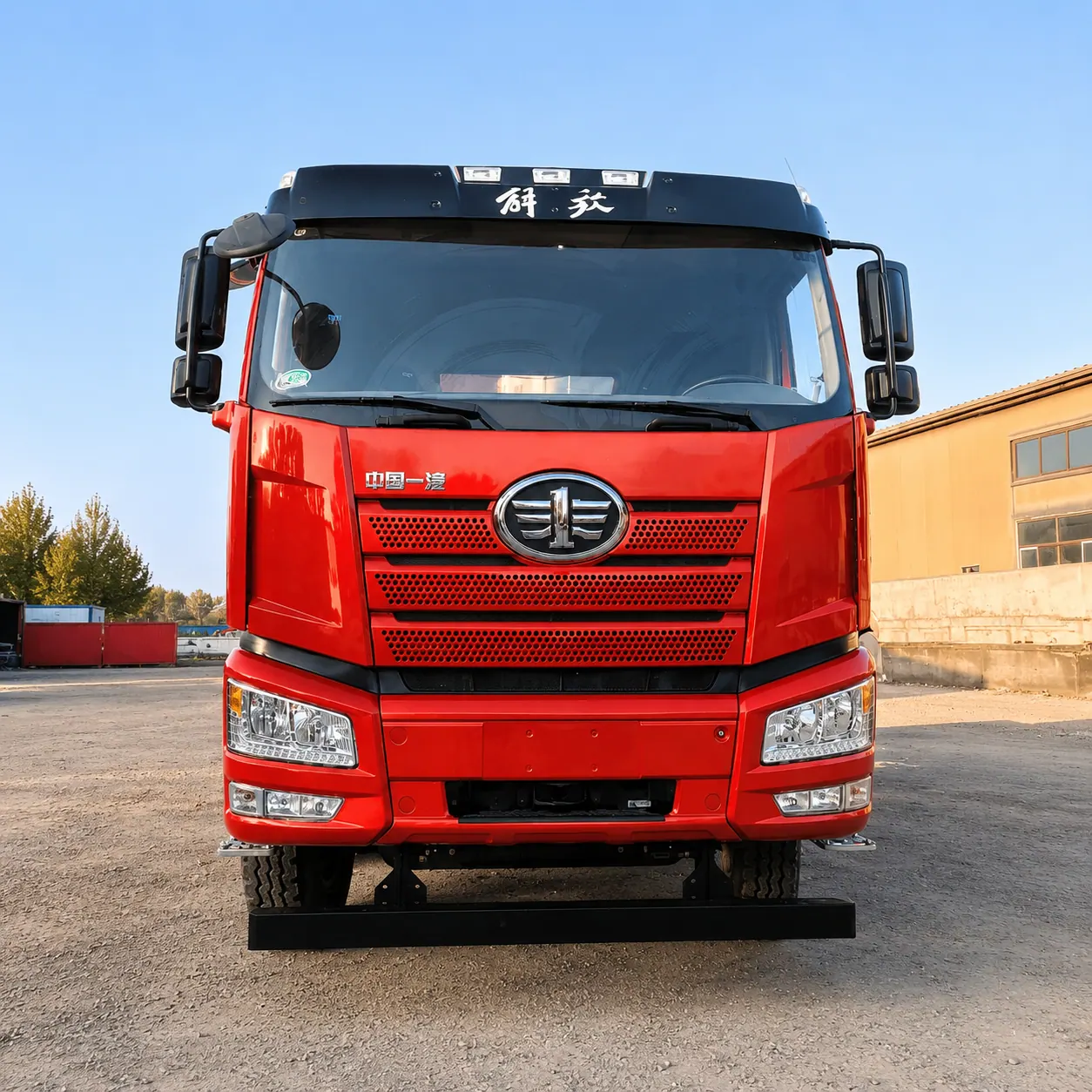

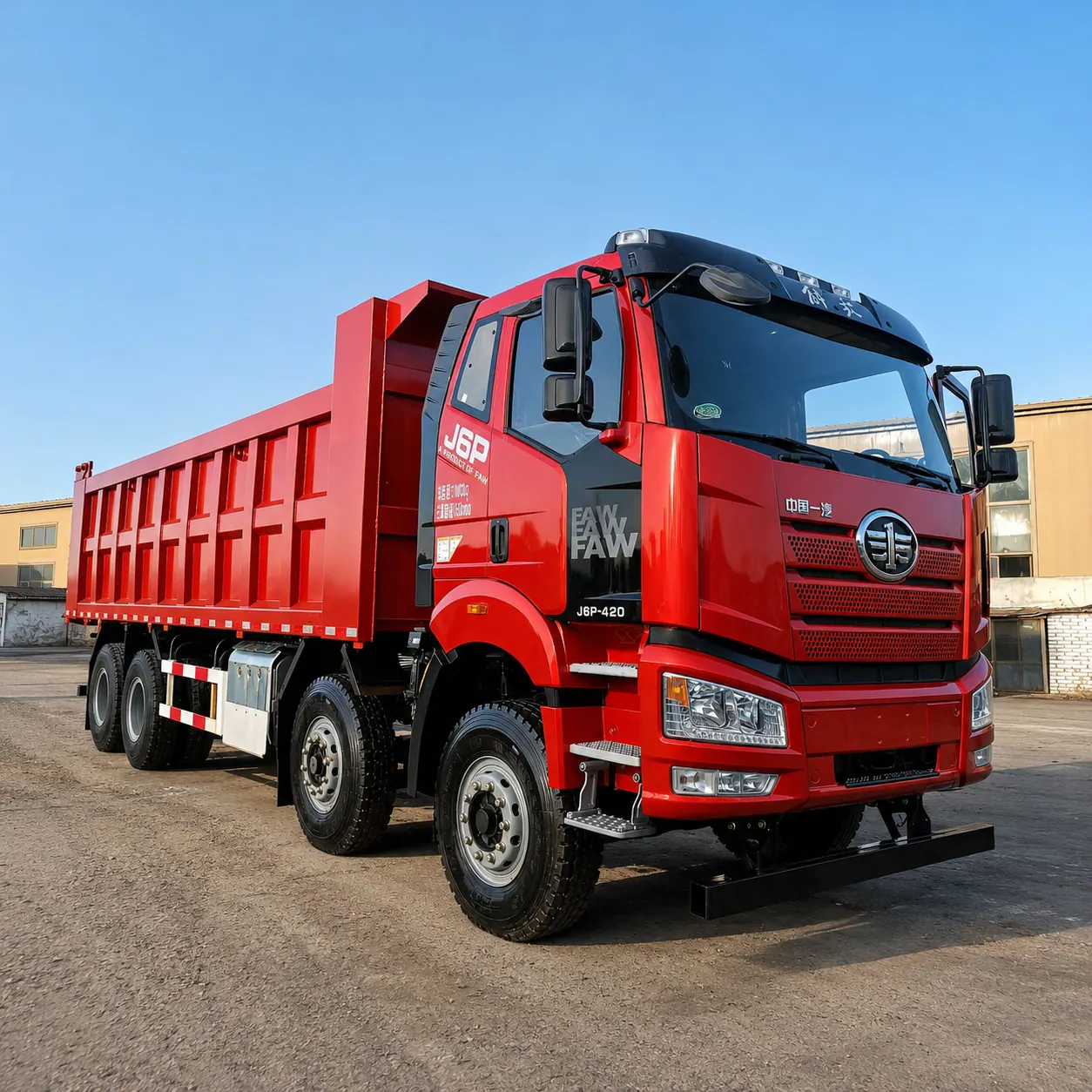

FAW Jiefang J6P / CA3310 8×4 Dump Truck 350 / 375 / 390 / 420 / 460HP Available
FAW Jiefang J6P CA3310 8×4 Dump Truck 350HP 375HP 420HP 460HP Heavy Duty Tipper Truck FAW Jiefang J6P / CA3310 8×4 dump truck is a heavy-duty tipper truck designed for large-volume bulk material transportation and rear tipping unloading. It is widely used in construction projects, mining areas, quarry operations, road construction, earthwork projects and infrastructure transportation. Compared with 6×4 dump trucks, the 8×4 model provides a longer chassis, larger cargo body, stronger loading capacity and better stability for heavy-duty working conditions. The J6P / CA3310 series adopts a strong FAW heavy-duty chassis, FAWDE / Xichai engine, 12-speed manual transmission, reinforced frame, heavy-duty drive axles, multi-leaf spring suspension and reliable hydraulic lifting system. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic system can be customized according to stock condition and customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | FAW Jiefang |
| Model Series | J6P / CA3310 Series |
| Drive Type | 8×4 |
| Engine Power | 350HP / 375HP / 390HP / 420HP / 460HP available |
| Engine Brand | FAWDE / Xichai engine optional |
| Engine Model | CA6DL2 / CA6DL3 / CA6DM2 series optional |
| Emission Standard | Euro II / Euro III / Euro V optional, Euro VI according to stock |
| Transmission | FAW CA12TA / CA12TAX / 12JSD series manual transmission |
| Cab | J6P flat roof cab or sleeper cab optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 9,200-11,500 mm L × 2,500-2,550 mm W × 3,300-3,700 mm H |
| Wheelbase | Approx. 1,900-2,100 + 3,600-4,300 + 1,350 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 7,000-8,200 mm L × 2,300-2,500 mm W × 1,200-1,800 mm H |
| Cargo Box Volume | Approx. 22-35 m³, depending on box size |
| Loading Capacity | Approx. 30-50 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 2 front steering axles + 2 rear drive axles |
| Front Axle | 7.5T / 9T front axle optional |
| Rear Axle | 13T / 16T heavy-duty rear drive axle, 300 wheel reduction axle optional |
| Frame | Reinforced heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 12.00R20 / 12R22.5 / 13R22.5 / 315/80R22.5 optional |
| Tire Quantity | 12 tires + 1 spare tire |
| Fuel Tank | Approx. 300-400 L, steel or aluminum fuel tank optional |
| Brake System | Dual-circuit air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Typical Applications
- Large construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- urban muck transportation
- demolition waste transportation
- large-volume short and medium-distance bulk cargo transport.
Available Configurations
- 350HP, 375HP, 390HP, 420HP or 460HP engine
- FAWDE / Xichai engine
- Euro II / Euro III / Euro V emission standard
- Euro VI according to stock
- left-hand drive or right-hand drive
- flat roof cab or sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 12.00R20, 12R22.5, 13R22.5 or 315/80R22.5 tires
- reinforced rear axle
- 300 wheel reduction axle
- air conditioner
- air suspension seat
- ABS
- steel or aluminum fuel tank
- spare tire
- customized paint color, logo and export markings.
Buyer Support
- FAW Jiefang J6P / CA3310 8×4 dump truck has a strong heavy-duty chassis and good market recognition
- 8×4 drive type provides larger cargo volume and stronger loading capacity than 6×4 models
- FAWDE / Xichai engine offers reliable power and good fuel economy for construction and mining transport
- 12-speed manual transmission provides stable power delivery under heavy-load conditions
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- reliable hydraulic rear tipping system improves unloading efficiency
- heavy-duty axles and multi-leaf spring suspension are suitable for rough construction and mining roads
- J6P cab provides good visibility and practical driving comfort
- multiple emission standards and driving-side options are available for different export markets
- used, refurbished and customized trucks can be supplied with flexible configuration and competitive cost performance.
