Dump Trucks
FAW Jiefang J6P / CA3250 6×4 Dump Truck 350 / 375 / 390 / 420 / 460HP Available
FAW Jiefang J6P / CA3250 6×4 dump truck is a heavy-duty tipper truck designed for construction, mining, quarry, road construction and bulk material transportation. It is widely used for transporting sand, gravel, soil, coal, ore, construction waste and other loose materials under demanding working conditions. The J6P series is one of FAW Jiefang's well-recognized heavy-duty truck models, featuring a strong chassis, reliable power system, reinforced dump body and comfortable cab design. This model is commonly available with 350HP, 375HP, 390HP, 420HP and 460HP engine options according to stock condition and customer requirements. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic lifting system can be customized for different markets and working conditions.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | FAW Jiefang |
| Model Series | J6P / CA3250 Series |
| Drive Type | 6×4 |
| Engine Power | 350HP / 375HP / 390HP / 420HP / 460HP available |
| Engine Brand | FAWDE / Xichai engine, Weichai optional according to stock |
| Engine Model | CA6DL2 / CA6DM2 series optional |
| Emission Standard | Euro II / Euro III / Euro V optional, Euro VI according to stock |
| Transmission | FAW CA10TA / CA12TA / CA12TAX manual transmission, 10-speed or 12-speed optional |
| Cab | J6P cab, flat roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 8,300-8,900 mm L × 2,500-2,550 mm W × 3,300-3,700 mm H |
| Wheelbase | Approx. 3,300-4,300 mm + 1,350 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 5,600-6,500 mm L × 2,300-2,500 mm W × 1,200-1,800 mm H |
| Cargo Box Volume | Approx. 18-28 m3, depending on box size |
| Loading Capacity | Approx. 20-40 tons, depending on configuration and local regulations |

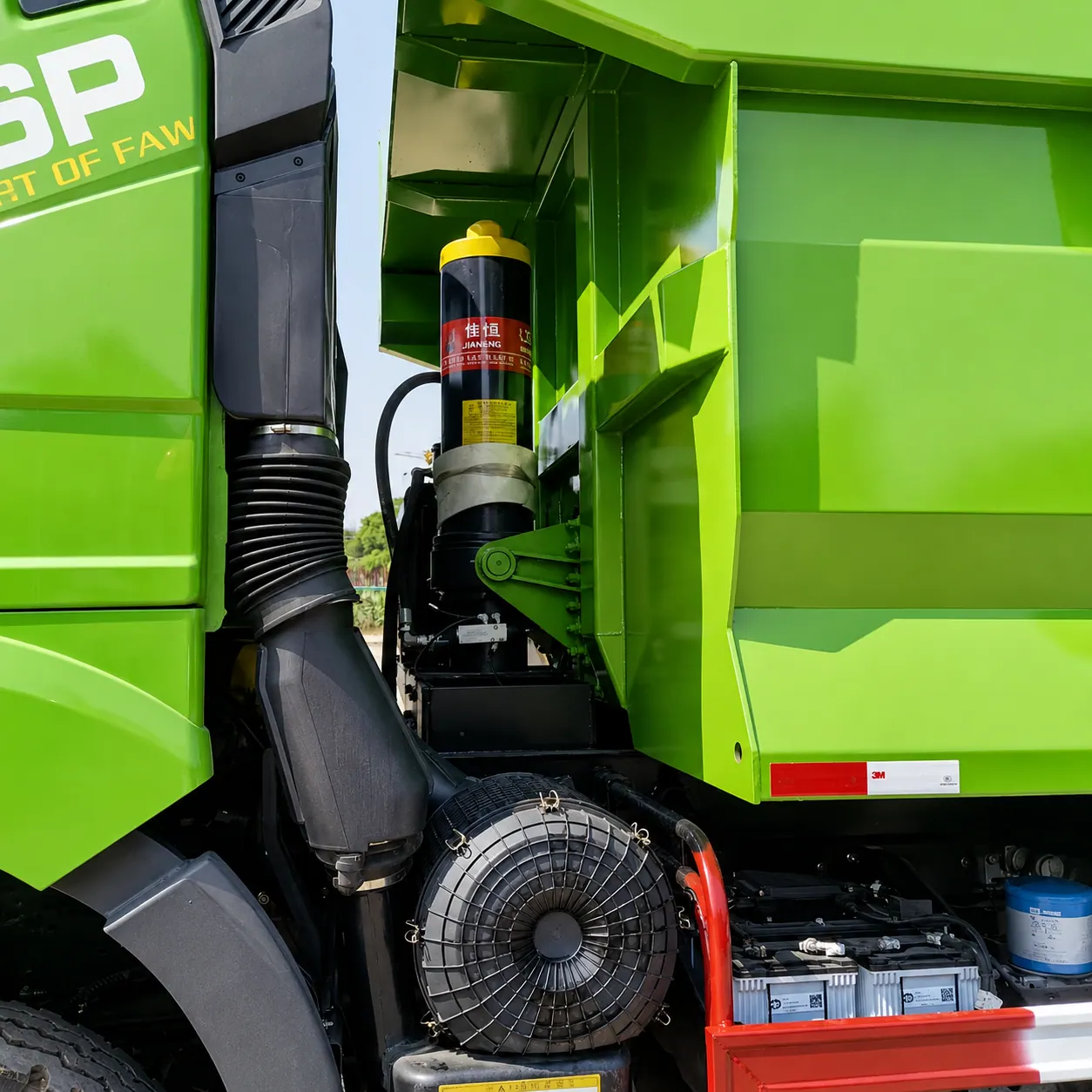

| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 1 front steering axle + 2 rear drive axles |
| Front Axle | 7.5T / 9T front axle optional |
| Rear Axle | 13T / 16T heavy-duty rear drive axle, 300 wheel reduction axle optional |
| Frame | Reinforced heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |

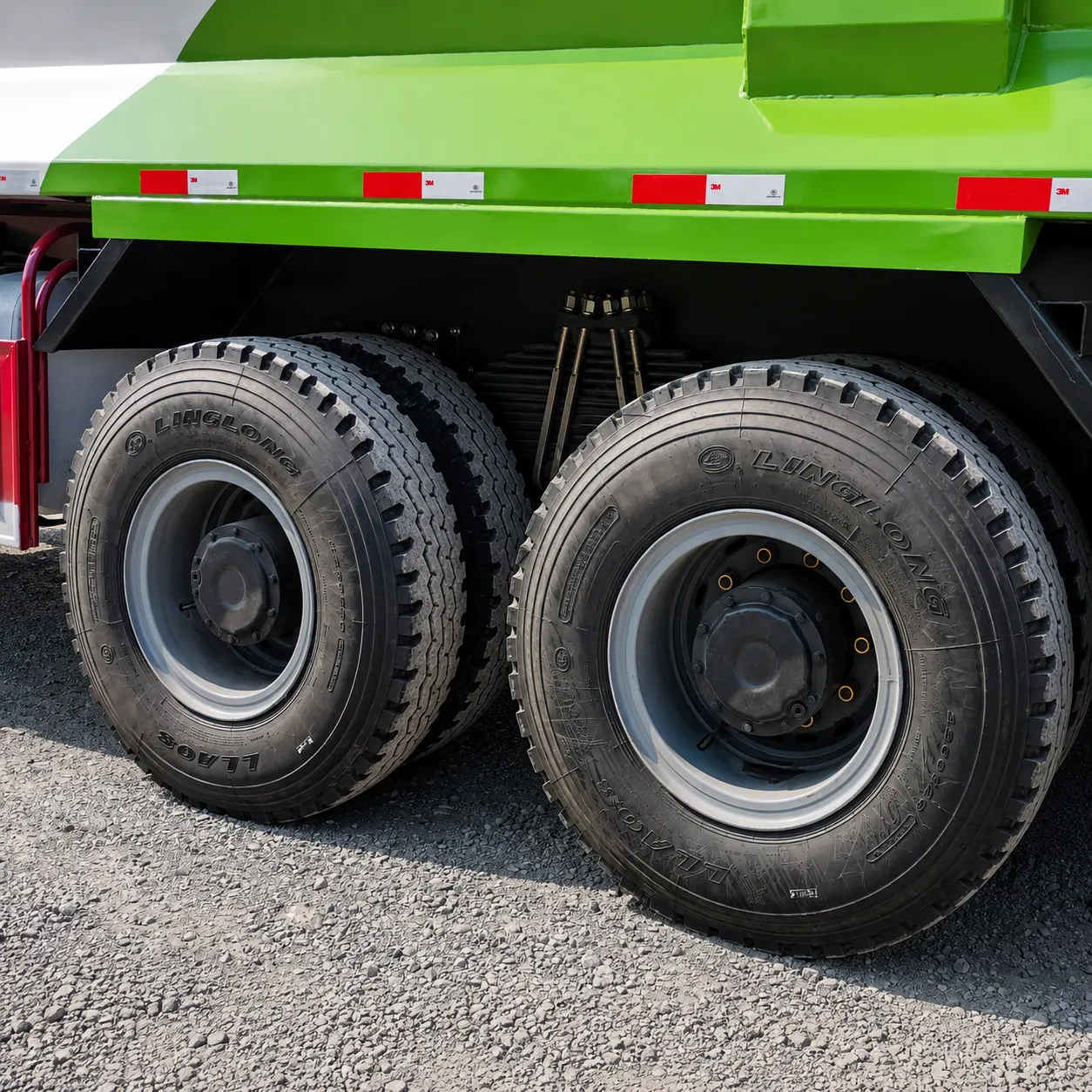

| Tire Model | 12.00R20 / 12R22.5 / 315/80R22.5 optional |
| Tire Quantity | 10 tires + 1 spare tire |
| Fuel Tank | Approx. 300-400 L, steel or aluminum fuel tank optional |
| Brake System | Air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Product Details
Typical Applications
- Construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- urban muck transportation
- demolition waste transportation
- short and medium-distance heavy bulk cargo transport
Available Configurations
- left-hand drive or right-hand drive
- flat roof cab, high roof cab or sleeper cab according to stock
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- reinforced rear axle
- air conditioner
- air suspension seat
- ABS
- steel or aluminum fuel tank
- customized paint color, logo and export markings
- 350HP, 375HP, 390HP, 420HP or 460HP engine
- FAWDE / Xichai engine
- Euro II / Euro III / Euro V emission standard
- 12.00R20, 12R22.5 or 315/80R22.5 tires
Buyer Support
- FAW Jiefang J6P heavy-duty chassis with strong market recognition
- CA3250 series 6×4 platform suitable for construction and mining transport
- FAWDE / Xichai engine provides strong power and reliable performance
- FAW CA12TA / CA12TAX transmission offers stable gear shifting and high load-bearing performance
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- reliable hydraulic rear tipping system improves unloading efficiency
- J6P cab provides good visibility and driving comfort
- multiple emission standards and driving-side options for different export markets
- used, refurbished and customized trucks available with competitive cost performance

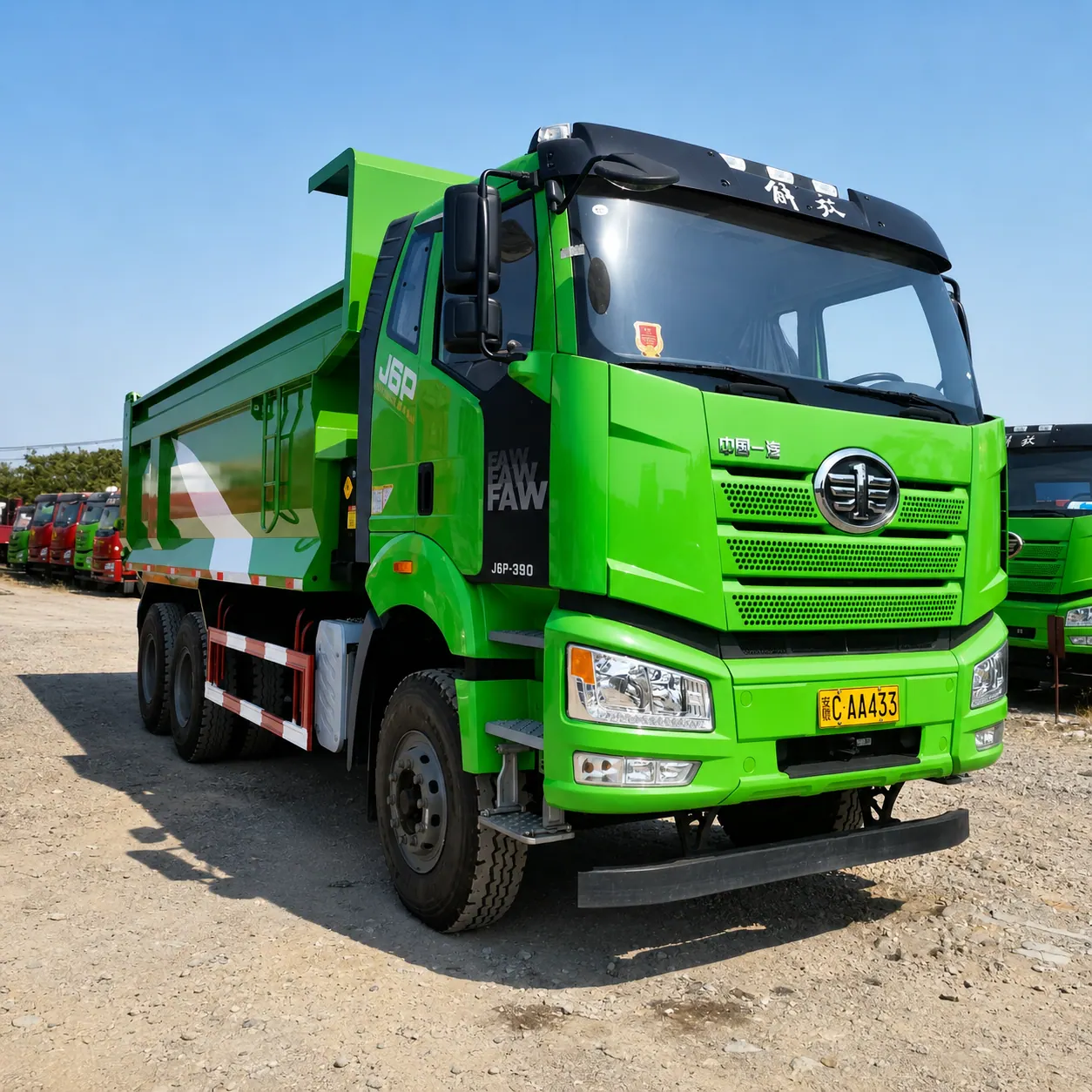

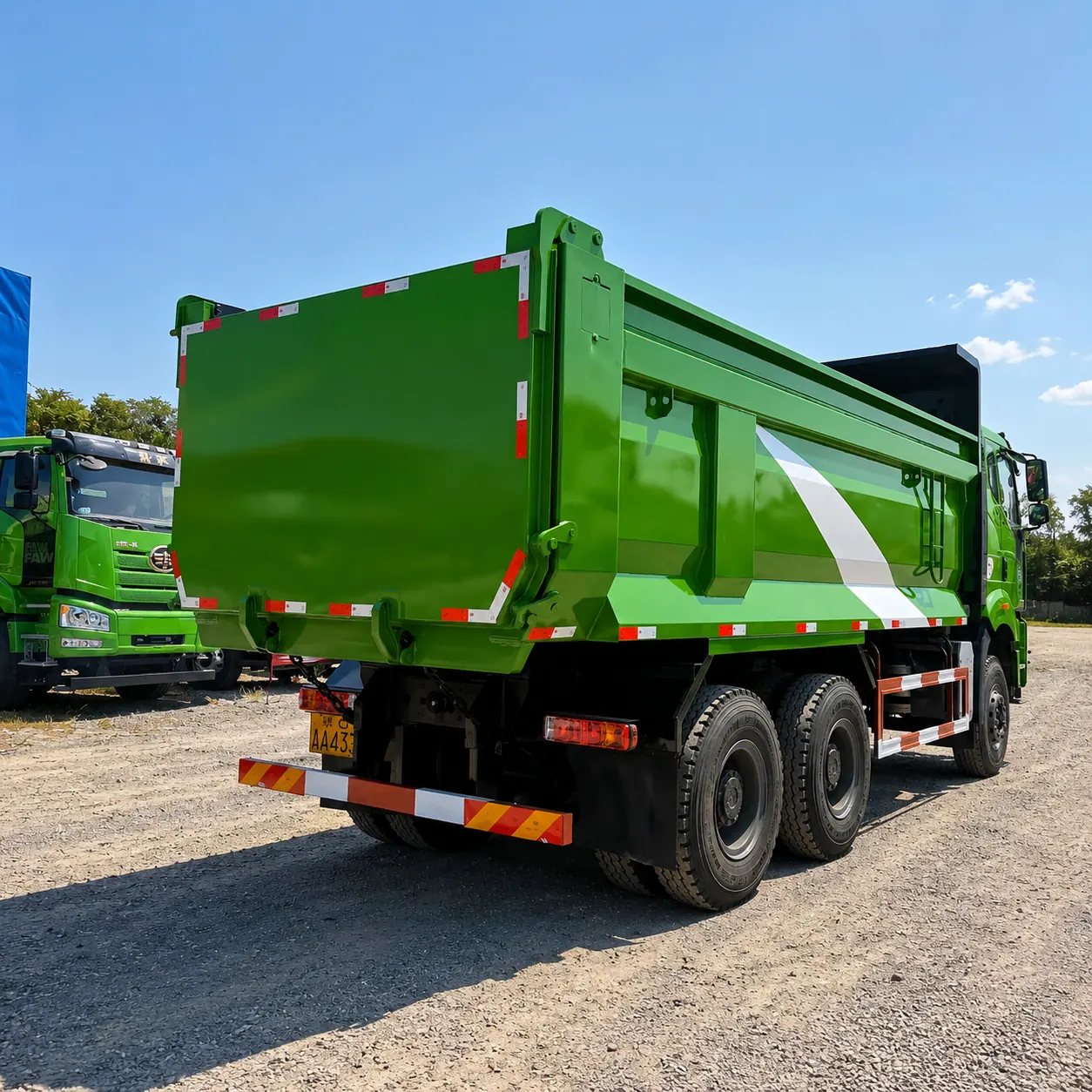

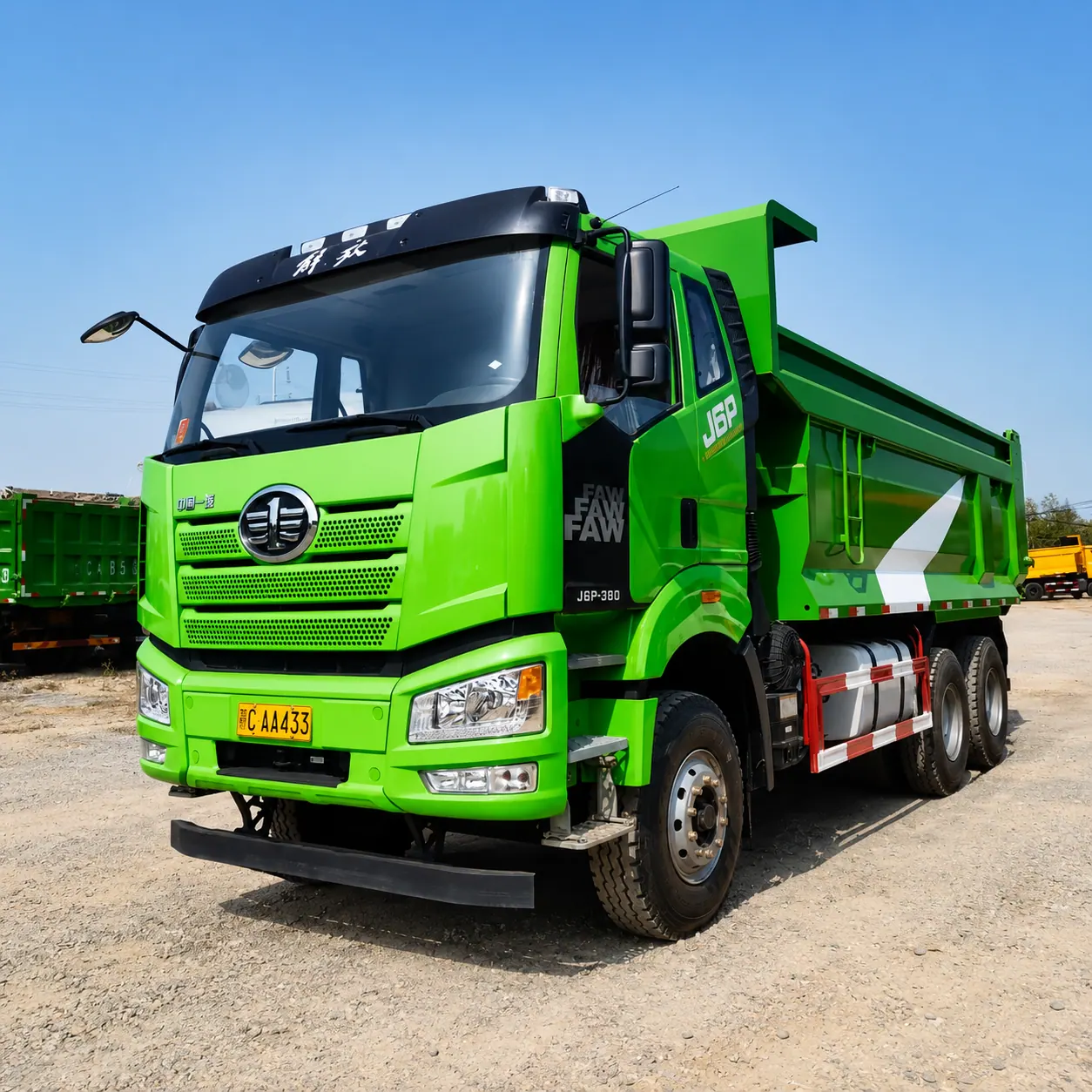

Product Display
