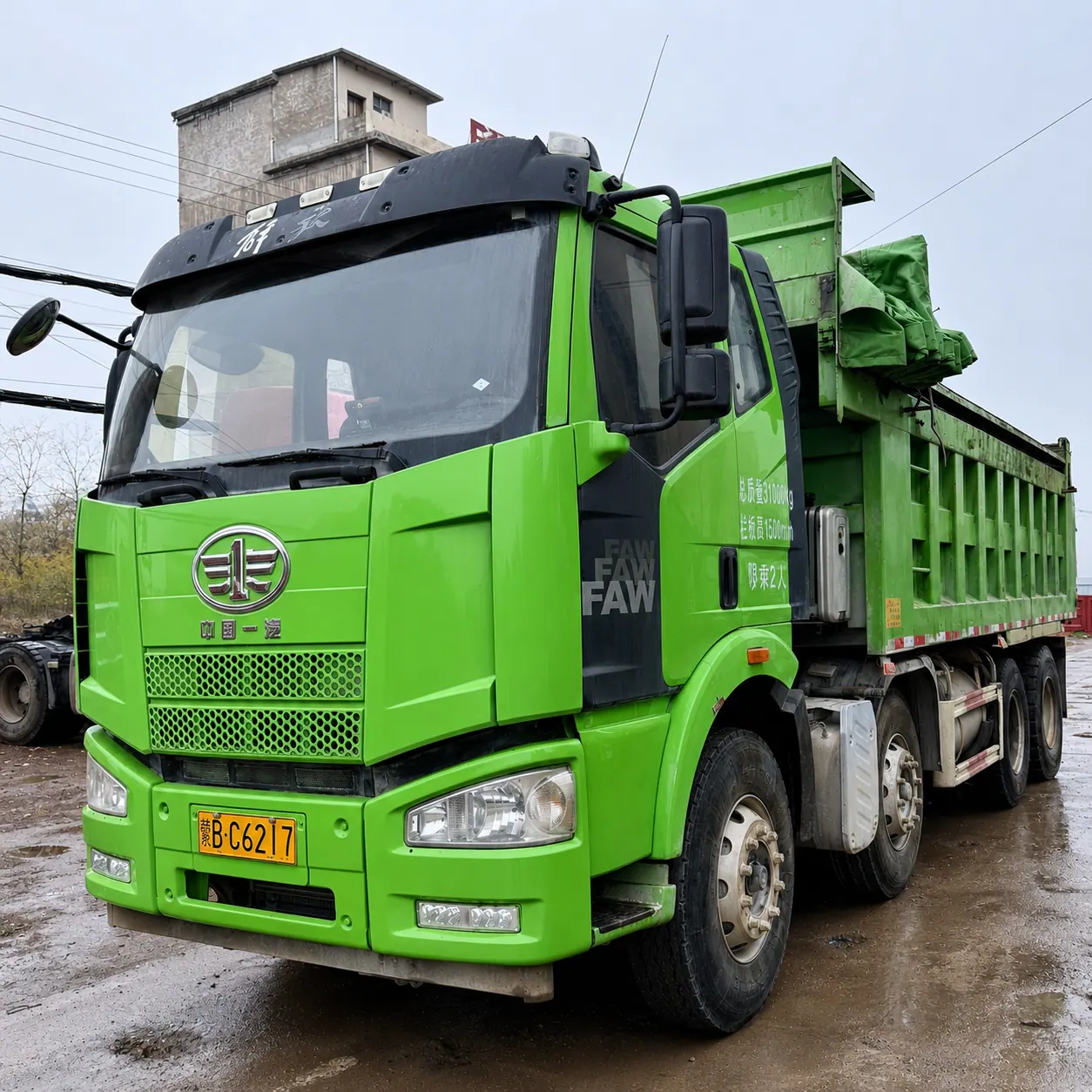

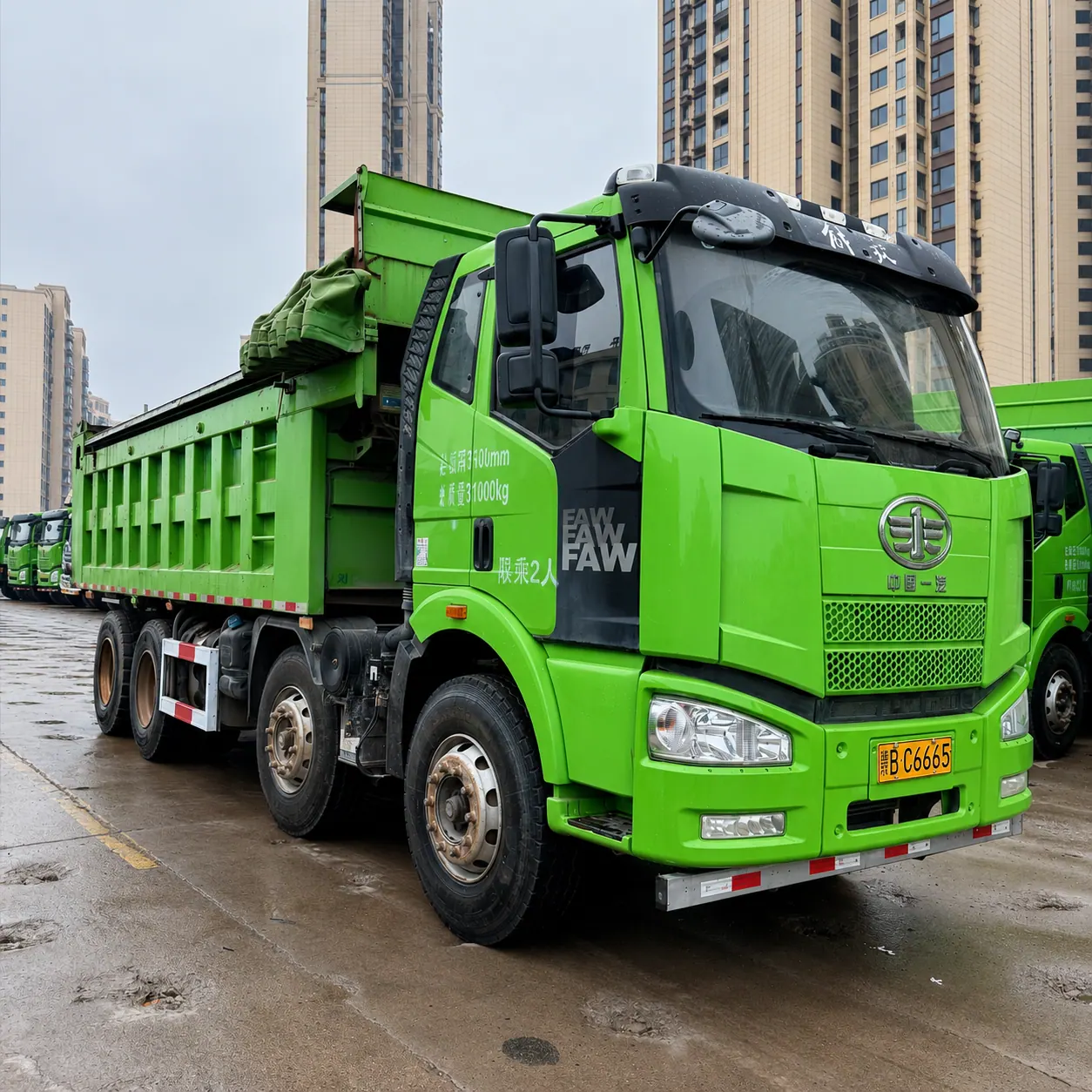

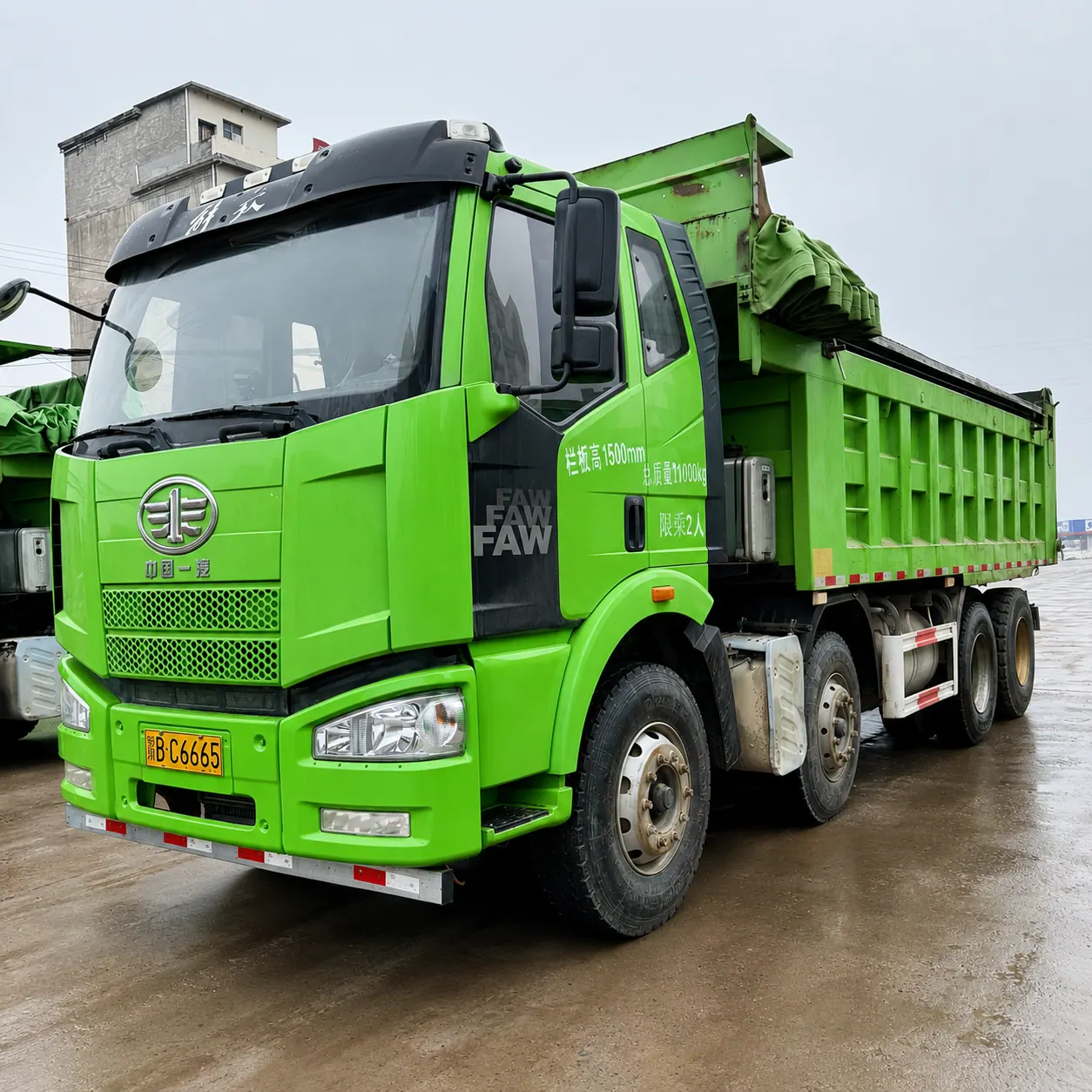

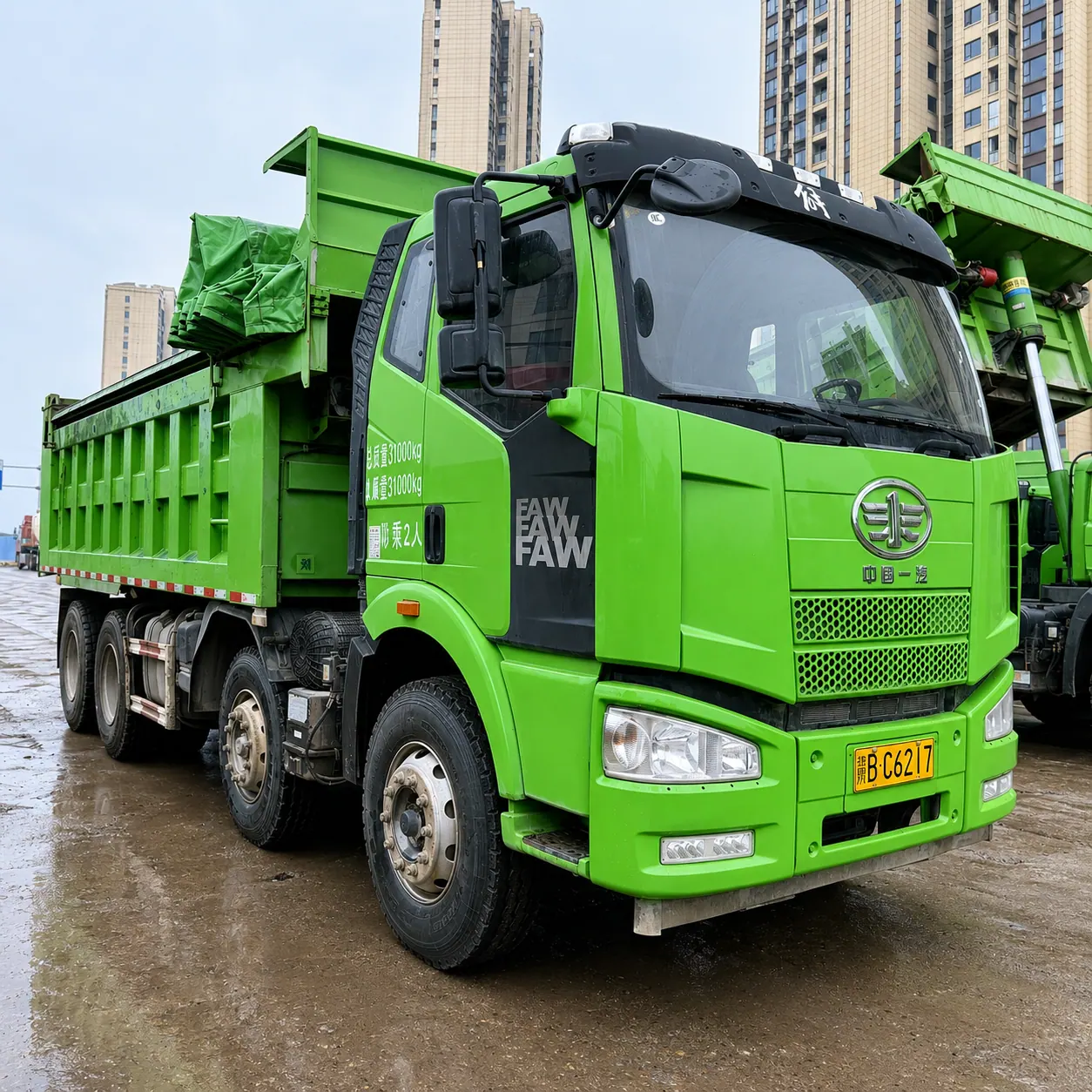

FAW Jiefang J6M / J6V 8×4 Dump Truck 280 / 320 / 350 / 420 / 460HP Available
FAW Jiefang J6M / J6V 8×4 Dump Truck 280HP 320HP 350HP 420HP 460HP Heavy Duty Tipper Truck FAW Jiefang J6M / J6V 8×4 dump truck is a heavy-duty tipper truck designed for large-volume bulk material transportation and rear tipping unloading. It is suitable for construction projects, mining areas, quarry operations, road construction, earthwork projects, urban muck transportation and infrastructure transportation. The J6M series is a practical heavy-duty model with mature chassis structure, reliable powertrain and good cost performance, while the J6V series offers a newer cab design, improved comfort and higher power configuration options. Compared with 6×4 dump trucks, the 8×4 model provides a longer chassis, larger cargo body, stronger loading capacity and better stability for heavy-duty working conditions. Engine power, emission standard, cargo box size, tire model, driving side, color, logo and hydraulic lifting system can be customized according to stock condition and customer requirements.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
| Item | Specification Range |
|---|---|
| Product Type | Dump Truck / Tipper Truck |
| Brand | FAW Jiefang |
| Model Series | J6M / J6V Series |
| Drive Type | 8×4 |
| Engine Power | 280HP / 320HP / 350HP / 420HP / 460HP available, higher power optional according to stock |
| Engine Brand | FAWDE / Xichai engine optional |
| Engine Model | CA6DK / CA6DL / CA6DM series optional |
| Emission Standard | Euro II / Euro III / Euro V optional, Euro VI according to stock |
| Transmission | FAW / FAST 10-speed or 12-speed manual transmission, AMT optional according to stock |
| Cab | J6M cab / J6V cab, flat roof or high roof optional, sleeper optional |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Dimension | Approx. 9,300-11,800 mm L × 2,490-2,550 mm W × 3,300-3,800 mm H |
| Wheelbase | Approx. 1,900-2,100 + 3,100-4,600 + 1,350 mm |
| Cargo Box Type | Rear dump body, rectangular box or U-shape box optional |
| Cargo Box Size | Approx. 6,800-8,500 mm L × 2,300-2,500 mm W × 1,100-1,900 mm H |
| Cargo Box Volume | Approx. 22-38 m³, depending on box size |
| Loading Capacity | Approx. 30-50 tons, depending on configuration and local regulations |
| Hydraulic System | Front lifting cylinder or middle lifting system optional |
| Axle Configuration | 2 front steering axles + 2 rear drive axles |
| Front Axle | 7.5T / 9T heavy-duty front axle optional |
| Rear Axle | 13T / 16T heavy-duty rear drive axle, wheel reduction axle optional |
| Frame | Reinforced heavy-duty frame optional |
| Suspension | Heavy-duty multi-leaf spring suspension |
| Tire Model | 11.00R20 / 12.00R20 / 12R22.5 / 13R22.5 / 315/80R22.5 optional |
| Tire Quantity | 12 tires + 1 spare tire |
| Fuel Tank | Approx. 300-500 L, steel or aluminum fuel tank optional |
| Brake System | Dual-circuit air brake system, ABS optional |
| Max Speed | Approx. 75-90 km/h, depending on configuration |
| Color | Red, white, yellow, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, emission, cargo box, tires, color, logo, driving side, hydraulic system and accessories |
Typical Applications
- Large construction material transportation
- sand, gravel and soil transport
- mining area material transfer
- coal and ore transportation
- quarry operation
- road construction projects
- earthwork projects
- infrastructure construction
- municipal engineering
- urban muck transportation
- demolition waste transportation
- large-volume short and medium-distance bulk cargo transport.
Available Configurations
- 280HP, 320HP, 350HP, 420HP or 460HP engine
- higher horsepower according to stock
- FAWDE / Xichai engine
- Euro II / Euro III / Euro V emission standard
- Euro VI according to stock
- left-hand drive or right-hand drive
- J6M cab or J6V cab
- flat roof cab or high roof cab
- sleeper cab
- rectangular cargo box or U-shape cargo box
- different cargo box length, height and steel thickness
- front hydraulic lifting system or middle lifting system
- 11.00R20, 12.00R20, 12R22.5, 13R22.5 or 315/80R22.5 tires
- reinforced rear axle
- wheel reduction axle
- air conditioner
- air suspension seat
- ABS
- steel or aluminum fuel tank
- spare tire
- customized paint color, logo and export markings.
Buyer Support
- FAW Jiefang J6M / J6V 8×4 dump truck provides a practical heavy-duty chassis with reliable performance and good cost efficiency
- 8×4 drive type offers larger cargo volume and stronger loading capacity than 6×4 models
- FAWDE / Xichai engine provides stable power for construction, mining and quarry transportation
- 10-speed or 12-speed transmission delivers reliable power under heavy-load conditions
- reinforced dump body improves durability for sand, gravel, soil, coal and ore transport
- hydraulic rear tipping system improves unloading efficiency
- J6M offers mature configuration and convenient maintenance, while J6V provides newer cab design and improved driving comfort
- multiple emission standards and driving-side options are available for different export markets
- used, refurbished and customized trucks can be supplied with flexible configuration and competitive cost performance.
