Special Trucks
FAW Jiefang J6L Water Tanker Truck 180 / 220 / 240 / 260HP 10 / 12 / 15 / 18CBM Available – Water Sprinkler Optional
FAW Jiefang J6L Water Tanker Truck is a medium-duty water transportation vehicle designed for construction sites, municipal projects, industrial facilities, road maintenance, agriculture and general water-supply operations. The vehicle combines the FAW Jiefang J6L commercial chassis with a reinforced water tank, PTO-driven water pump, pipelines, valves and filling/discharge equipment for efficient and reliable bulk-water transportation. The vehicle can be supplied as a pure water tanker for water loading, transportation and discharge, or equipped with an optional water sprinkler system for road watering, construction-site dust suppression, municipal cleaning, landscape irrigation and green-belt maintenance. Customers can select the required sprinkler equipment according to their actual operating conditions. FAW Jiefang J6L water tanker trucks are mainly configured on 4×2 medium-duty chassis. Engine options of approximately 180HP, 220HP, 240HP and 260HP are available according to chassis and stock, while tank capacities of approximately 10CBM, 12CBM, 15CBM and 18CBM can be selected according to payload requirements and local regulations. Carbon-steel and stainless-steel tank configurations are available.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Water Tanker Truck / Water Bowser Truck / Water Transport Truck / Water Sprinkler Truck |
| Brand | FAW Jiefang |
| Chassis Series | FAW Jiefang J6L |
| Drive Type | 4×2 |
| Engine Power | 180HP / 220HP / 240HP / 260HP available according to chassis and stock |
| Engine Brand | FAWDE / Weichai or equivalent according to chassis |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | FAW / FAST or equivalent |
| Transmission Type | Manual transmission |
| Transmission Gears | 6-speed / 8-speed / 10-speed according to chassis |
| PTO | Available for water-pump operation |
| Cab Series | FAW Jiefang J6L |
| Cab Type | Standard / extended medium-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected configurations |
| Driver Seat | Adjustable / air-suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,000–9,500 mm depending on wheelbase and tank capacity |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 2,800–3,400 mm |
| Wheelbase | Approx. 4,200–5,700 mm depending on chassis |
| Gross Vehicle Weight | Approx. 16–25 tons depending on chassis |
| Curb Weight | Approx. 7–11 tons depending on tank and equipment |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | FAW Jiefang steering axle |
| Rear Axle | FAW Jiefang drive axle |
| Rear Axle Type | Single-reduction drive axle |
| Differential Lock | Optional according to chassis |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced tanker special-purpose subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring suspension |
| Tire Model | 9.00R20 / 10.00R20 / 11R22.5 / 275/80R22.5 or equivalent |
| Tire Quantity | 6 tires + spare tire |
| Spare Tire | Available |
| Fuel Tank | Approx. 200–300 L |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Tank Capacity | 10CBM / 12CBM / 15CBM / 18CBM available |
| Common Tank Capacity | Approx. 10–18 CBM |
| Tank Shape | Elliptical / oval cylindrical tank |
| Tank Material | Q235 carbon steel / high-strength carbon steel / stainless steel optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Tank Body Thickness | Approx. 4–6 mm or customized |
| Tank Head Thickness | Approx. 5–7 mm or customized |
| Tank Compartments | Single compartment standard / multi-compartment optional |
| Internal Baffles | Multiple anti-wave baffles |
| Baffle Function | Reduces water surge during acceleration, braking and cornering |
| Manhole | Available |
| Manhole Cover | Bolt-type / quick-opening type optional |
| Tank Ladder | Available |
| Top Walkway | Anti-slip walkway optional |
| Tank Guardrail | Optional |
| Water Pump | Available |
| Pump Type | Self-priming centrifugal water pump |
| Pump Drive | PTO-driven |
| Pump Flow | Approx. 40–60 m³/h depending on pump |
| Pump Head | Approx. 45–75 m depending on pump configuration |
| Self-Priming Function | Available |
| Self-Suction Depth | Approx. 5–7 m depending on pump |
| Water Filling Method | Pump self-suction / external filling |
| Water Discharge Method | Pump discharge / gravity discharge |
| Water Inlet | Available |
| Water Outlet | Available |
| Gravity Discharge Valve | Available |
| Suction Hose | Available / optional |
| Suction Hose Length | Approx. 5–8 m or customized |
| Pipeline Material | Carbon steel / galvanized steel / stainless steel optional |
| Valve Material | Carbon steel / aluminum alloy / stainless steel optional |
| Pure Water Tanker Configuration | Available |
| Water Sprinkler Configuration | Optional |
| Front Sprinkler | Optional |
| Rear Sprinkler | Optional |
| Side Sprinkler | Optional |
| Front Duckbill Nozzle | Optional |
| Rear Spray Nozzle | Optional |
| Sprinkling Width | Approx. 14–20 m depending on sprinkler system |
| Rear Water Cannon | Optional |
| Water Cannon Range | Approx. 25–30 m depending on pump and nozzle |
| Water Cannon Rotation | Adjustable |
| Water Cannon Spray Pattern | Column / heavy rain / moderate rain / mist adjustable |
| High-Pressure Water Cannon | Optional |
| Front Flushing System | Optional |
| Rear Flushing System | Optional |
| Side Spray System | Optional |
| Road Washing System | Optional |
| Construction-Site Dust Control | Optional |
| Municipal Road Sprinkling | Optional |
| Landscape Irrigation System | Optional |
| Green-Belt Watering | Optional |
| Hand Spray Gun | Optional |
| High-Pressure Spray Gun | Optional |
| Hose Reel | Optional |
| Fire Hose Connection | Optional |
| Fire-Fighting Interface | Optional |
| Water Level Gauge | Mechanical / electronic optional |
| Electronic Water Level Indicator | Optional |
| Overflow Pipe | Available |
| Bottom Drain Valve | Available |
| Tank Cleaning Port | Available |
| Internal Anti-Corrosion Coating | Optional |
| External Anti-Corrosion Treatment | Primer + industrial topcoat |
| Stainless-Steel Inner Tank | Optional |
| Rear Working Platform | Optional |
| Pump Compartment | Optional |
| Hose Storage Box | Optional |
| Toolbox | Available / optional |
| Rear Working Lights | Optional |
| LED Warning Lights | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Fire Extinguisher | Available / optional |
| Color | White, blue, green, yellow, red, orange or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, tank capacity, tank material, tank thickness, water pump, pipelines, sprinkler equipment, water cannon, filling/discharge system, steering side, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Construction-site water supply
- municipal water transportation
- urban road watering
- road construction
- highway maintenance
- construction-site dust control
- industrial water transportation
- factory water supply
- residential-project water supply
- logistics-park water supply
- agricultural water transportation
- farm irrigation
- landscape irrigation
- green-belt watering
- municipal sanitation
- road washing
- rural water supply
- remote-area water delivery
- emergency water supply
- general bulk-water transportation.
Available Configurations
- 180HP, 220HP, 240HP or 260HP diesel engine
- FAW Jiefang J6L 4×2 chassis
- FAWDE, Weichai or equivalent diesel engine
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 6-speed, 8-speed or 10-speed manual transmission
- 10CBM, 12CBM, 15CBM or 18CBM water tank
- Q235 carbon-steel, high-strength steel or stainless-steel tank
- customized tank-body and tank-head thickness
- single-compartment or multi-compartment tank
- multiple anti-wave baffles
- PTO-driven self-priming centrifugal water pump
- customized pump flow and pump head
- self-suction filling
- external filling
- pump discharge
- gravity discharge
- pure water tanker configuration
- front sprinkler
- rear sprinkler
- side sprinkler
- duckbill nozzles
- rear water cannon
- high-pressure water cannon
- front and rear road-flushing system
- construction-site dust-suppression system
- municipal sprinkler system
- landscape irrigation system
- hose reel
- hand spray gun
- fire-fighting interface
- mechanical or electronic water-level indicator
- stainless-steel valves and pipelines
- internal anti-corrosion coating
- rear working platform
- pump compartment
- hose storage box
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning lights
- toolbox
- customized tank capacity, water system, paint color, company logo and export markings.
Buyer Support
- FAW Jiefang J6L Water Tanker Truck combines a medium-duty FAW Jiefang chassis with a practical large-capacity water tank for construction, municipal, industrial and agricultural applications. 180HP, 220HP, 240HP and 260HP engine options provide flexibility for different tank volumes, road conditions and operating requirements. The J6L 4×2 chassis offers a balance between payload capacity and maneuverability, making it suitable for urban roads, construction sites, industrial areas and regional water transportation where a heavy 6×4 tanker may not be necessary. The vehicle can be supplied as a pure water tanker when the customer's main requirement is water loading, transportation and discharge. This configuration simplifies the upper body and is suitable for construction projects, industrial water supply, farms, rural areas and emergency water transportation. A complete water sprinkler package can be added as an option. Front sprinklers, rear sprinklers, side sprays, duckbill nozzles, road-flushing nozzles and rear water cannons can be selected for road watering, construction-site dust suppression, municipal sanitation and landscape irrigation. 10CBM, 12CBM, 15CBM and 18CBM tank capacities provide flexible solutions for medium-volume water transportation. Internal anti-wave baffles reduce water movement during braking, acceleration and cornering, helping improve vehicle stability when the tank is full. The PTO-driven self-priming water pump allows the truck to draw water from ponds, reservoirs, storage tanks and other external water sources. Pump discharge and gravity discharge provide flexible water-delivery methods for different construction and municipal applications. Carbon-steel tanks provide an economical solution for general-purpose water transportation, while stainless-steel tanks can be selected when better corrosion resistance or cleaner water-storage conditions are required. Left-hand-drive and right-hand-drive versions are available for different export markets. Engine power, tank volume, tank material, pump, pipeline system, sprinkler equipment, water cannon, filling and discharge system, monitoring equipment, paint color and other specifications can be customized according to project requirements.

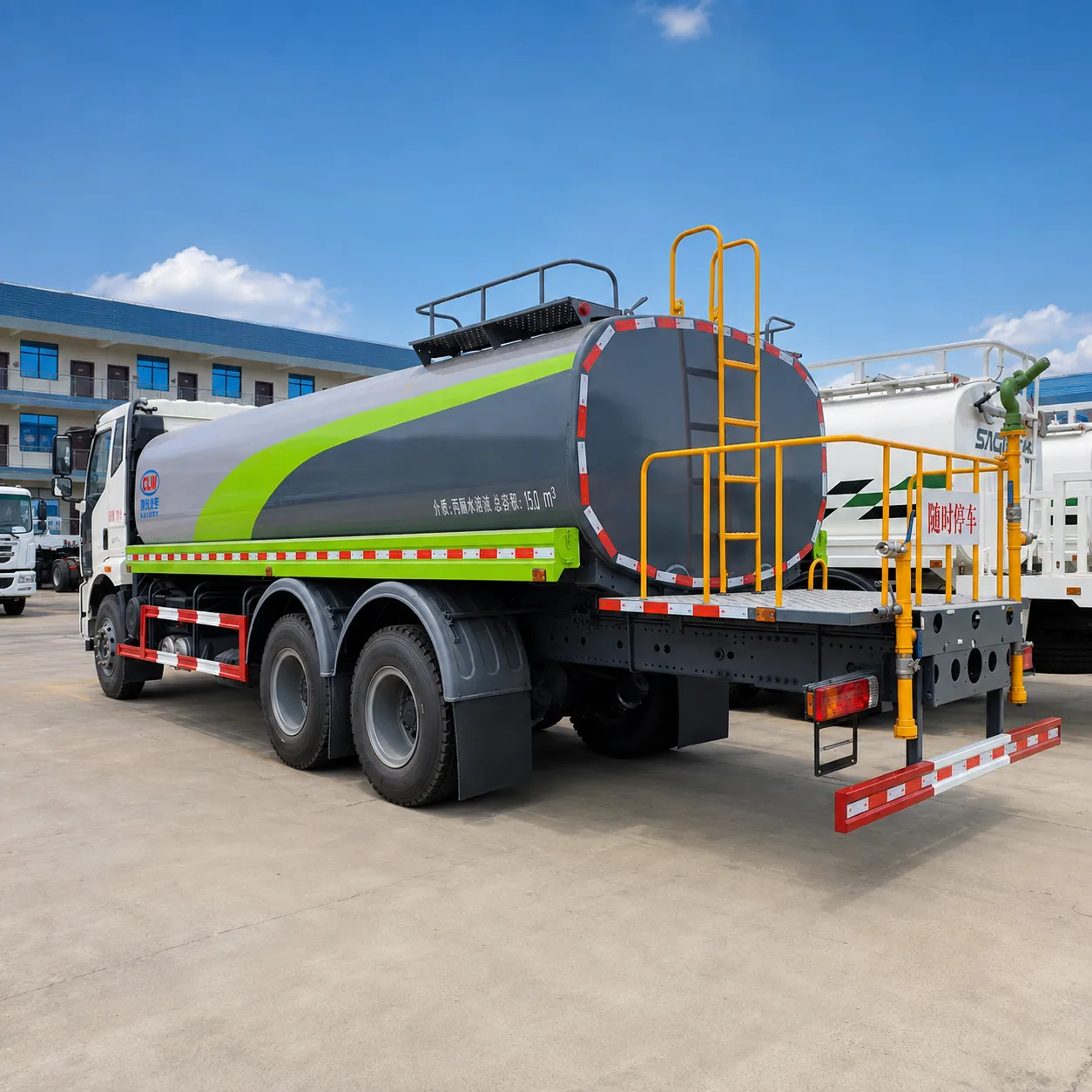

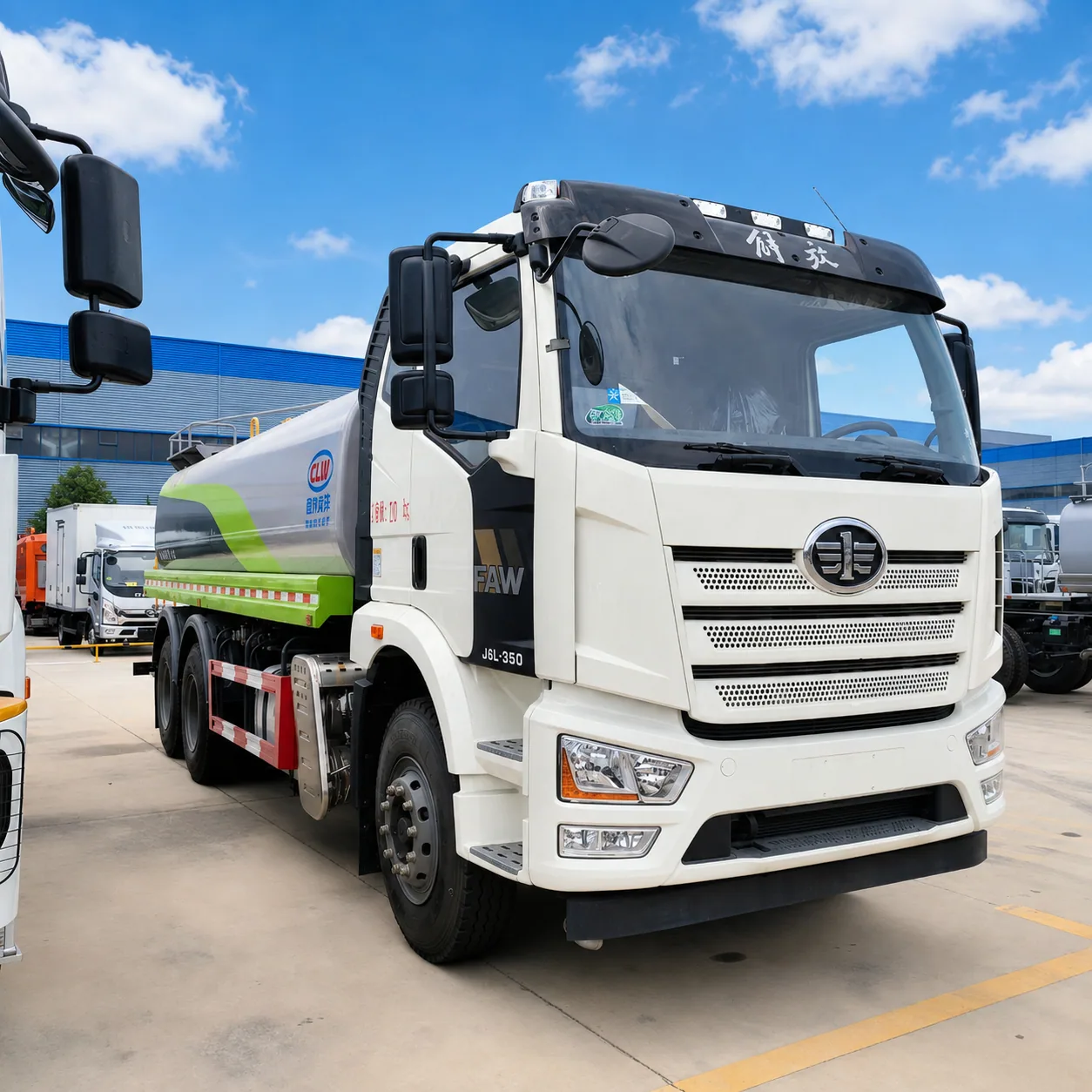

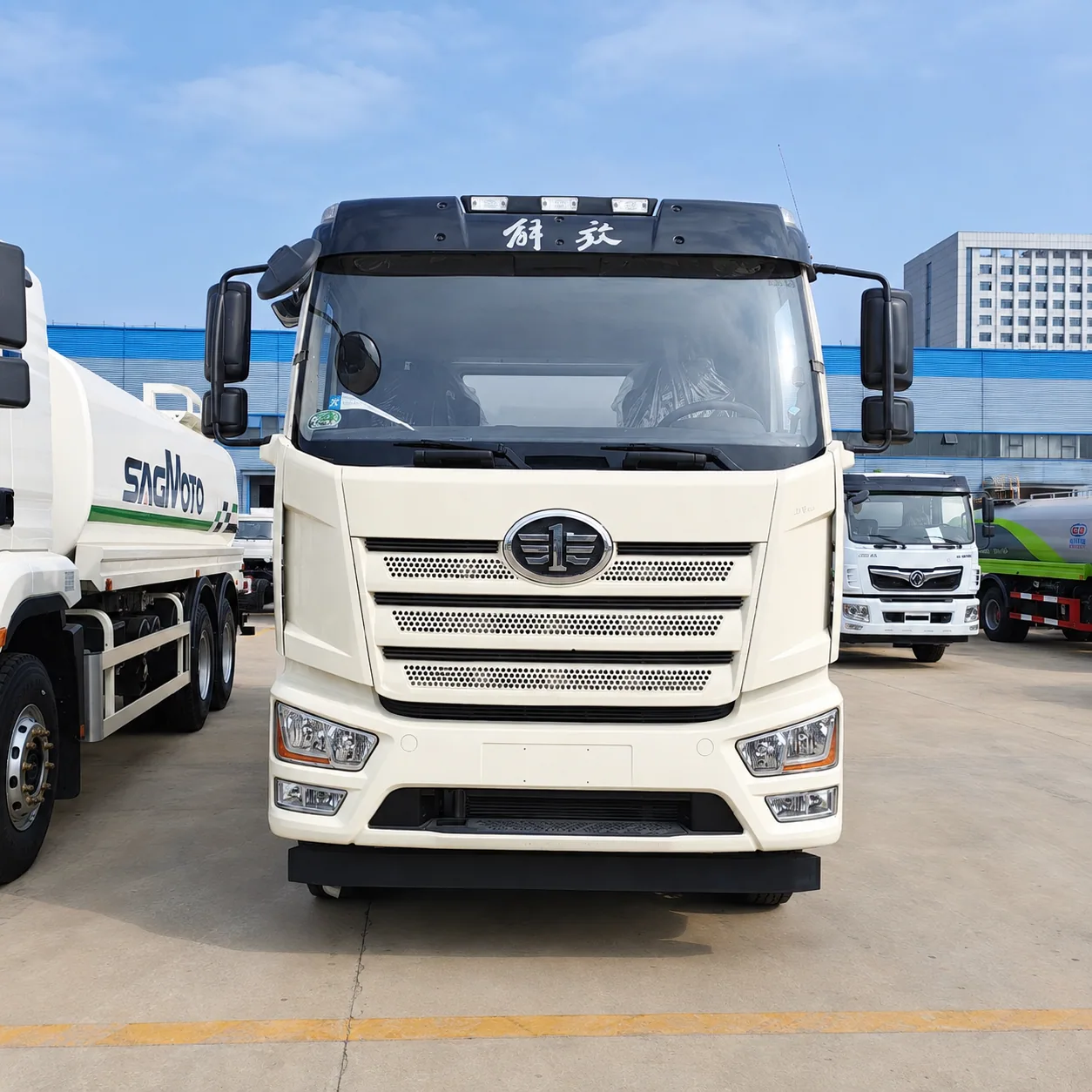

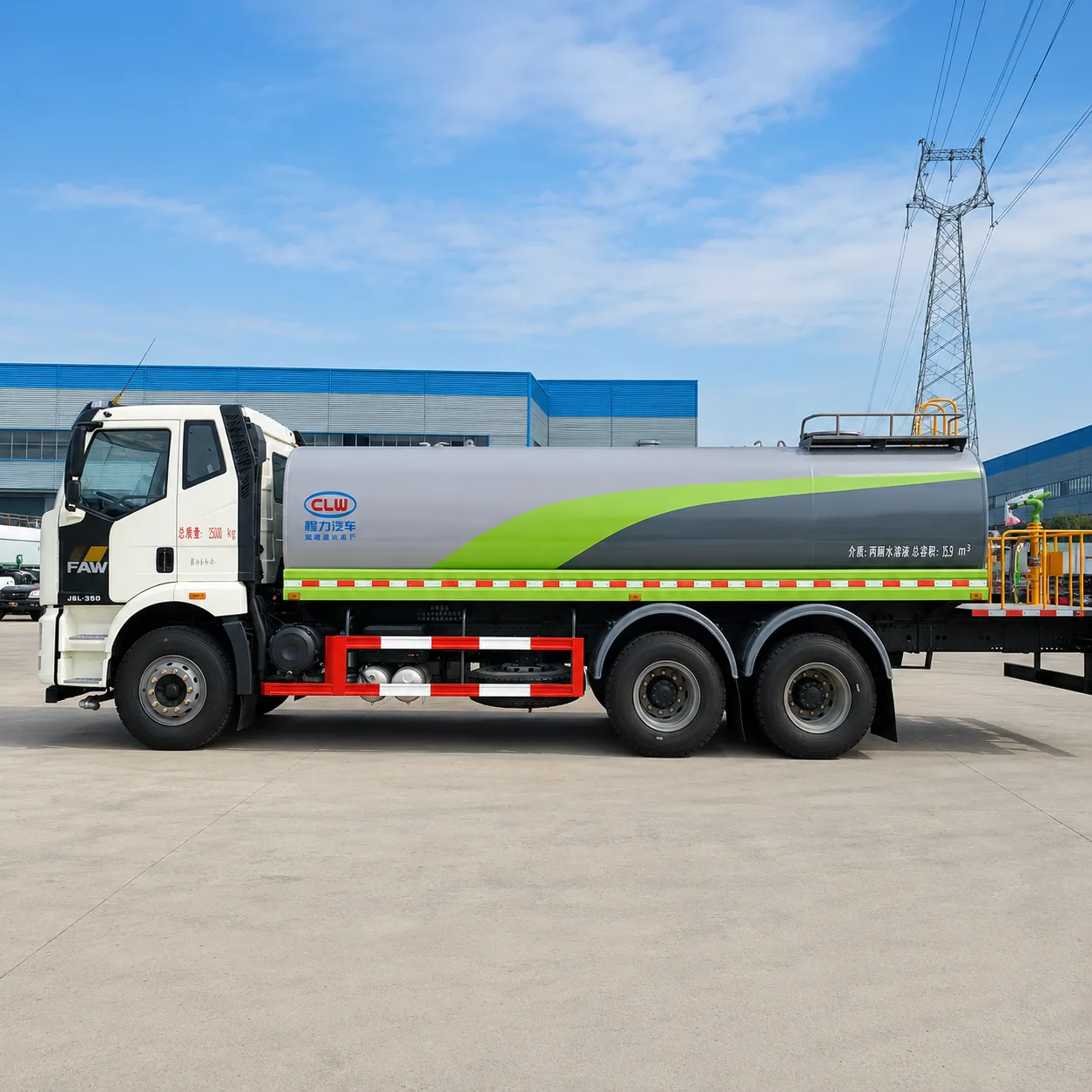

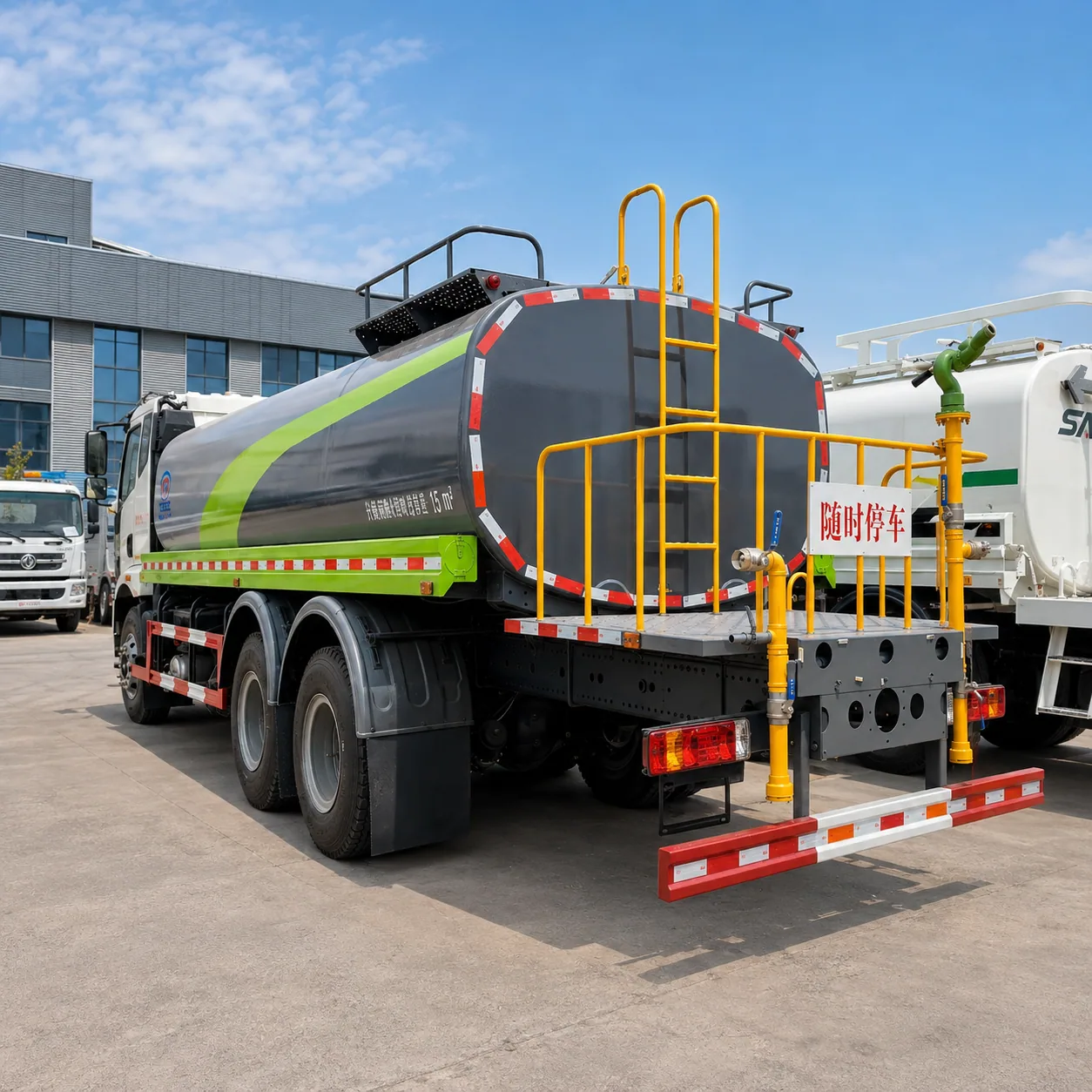

Product Display
