FAW Jiefang J6L Fuel Tanker Truck 180 / 220 / 240 / 260HP 8 / 10 / 12 / 15 / 18CBM Available
FAW Jiefang J6L Fuel Tanker Truck is a medium-duty fuel transportation and mobile refueling vehicle designed for regional fuel distribution, construction projects, municipal fleets, agricultural operations, industrial sites and equipment refueling. The vehicle combines a reliable FAW Jiefang J6L chassis with a professionally manufactured fuel tank body, internal anti-wave baffles, loading and discharge pipelines, fuel valves and optional mobile refueling equipment. FAW Jiefang J6L fuel tanker trucks are mainly available with 4×2 chassis configurations. Engine options include approximately 180HP, 220HP, 240HP and 260HP, while tank capacities of approximately 8CBM, 10CBM, 12CBM, 15CBM and 18CBM can be selected according to chassis capacity, transported product and destination-market requirements. Single- or multi-compartment tank structures are available for different fuel distribution requirements. The truck can be configured as a dedicated fuel transportation tanker or equipped with a fuel pump, flow meter, fuel dispenser, hose reel and refueling gun for direct on-site refueling. Bottom loading, API adapters, vapor recovery, emergency shut-off valves, overfill protection and anti-static equipment can be added according to the transported fuel and local regulations.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Fuel Tanker Truck / Oil Tanker Truck / Fuel Bowser / Mobile Refueling Truck |
| Brand | FAW Jiefang |
| Chassis Series | FAW Jiefang J6L |
| Drive Type | 4×2 |
| Engine Power | 180HP / 220HP / 240HP / 260HP available according to chassis and stock |
| Engine Brand | FAWDE / Weichai or equivalent |
| Engine Type | Four-cylinder / inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Brand | FAW / FAST or equivalent |
| Transmission Type | Manual transmission |
| Transmission Gears | 6-speed / 8-speed / 10-speed available according to chassis |
| PTO | Available for fuel pump system |
| Cab Series | FAW Jiefang J6L |
| Cab Type | Standard / extended medium-duty cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected chassis |
| Driver Seat | Adjustable / air-suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,000–10,500 mm depending on chassis and tank volume |
| Overall Width | Approx. 2,350–2,550 mm |
| Overall Height | Approx. 2,800–3,500 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 16–25 tons depending on chassis |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | FAW Jiefang steering axle |
| Rear Axle | FAW Jiefang drive axle |
| Rear Axle Type | Single-reduction drive axle |
| Differential Lock | Available on selected configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced fuel-tanker special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring suspension |
| Tire Model | 9.00R20 / 10.00R20 / 11R22.5 / equivalent |
| Tire Quantity | 6 + 1 spare tire or according to chassis |
| Spare Tire | Available / optional |
| Vehicle Fuel Tank | Approx. 200–400 L depending on chassis |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Tank Capacity | 8CBM / 10CBM / 12CBM / 15CBM / 18CBM available |
| Common Tank Capacity | Approx. 8–18 CBM |
| Tank Shape | Elliptical / oval fuel tank |
| Tank Structure | Welded sealed petroleum transportation tank |
| Tank Material | Q235 carbon steel / stainless steel / aluminum alloy optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Aluminum-Alloy Tank | Optional |
| Tank Body Thickness | Approx. 4–6 mm for carbon steel or customized |
| Tank Head Thickness | Approx. 5–7 mm for carbon steel or customized |
| Compartment Quantity | 1 / 2 / 3 / 4 / 5 compartments optional |
| Single Compartment | Available |
| Multi-Compartment | Available |
| Compartment Capacity | Customized according to delivery requirements |
| Compartment Isolation | Independent sealed compartments |
| Anti-Wave Baffles | Multiple internal anti-surge baffles |
| Baffle Material | Compatible with tank material |
| Baffle Structure | Reinforced anti-surge design |
| Manhole Quantity | According to number of compartments |
| Manhole Diameter | Approx. 500 mm or according to tank design |
| Manhole Cover | Fuel-tanker safety manhole cover |
| Emergency Vent | Available according to tank configuration |
| Breathing Valve | Available |
| Pressure / Vacuum Valve | Available / optional |
| Tank Ladder | Available |
| Top Walkway | Available |
| Top Safety Guardrail | Optional |
| Tank Inspection Port | Available |
| Loading Method | Top loading / bottom loading optional |
| Top Loading | Available |
| Bottom Loading | Optional according to destination requirements |
| Bottom Loading Adapter | API-type adapter optional |
| Bottom Loading Pipeline | Optional |
| Loading Pipeline Material | Carbon steel / stainless steel / aluminum alloy |
| Discharge Method | Gravity discharge / pump discharge |
| Bottom Discharge | Available |
| Independent Compartment Discharge | Available |
| Fuel Pump | Optional |
| Fuel Pump Type | Gear pump / centrifugal fuel pump or equivalent |
| Fuel Pump Drive | PTO-driven / auxiliary drive optional |
| Pump Flow Rate | Approx. 25–60 m³/h depending on pump |
| Pump Suction Depth | Approx. 5–7 m depending on pump |
| Pump Inlet Diameter | According to pump model |
| Pump Outlet Diameter | According to pump model |
| Pump Bypass System | Optional |
| Fuel Dispenser | Optional |
| Fuel Dispenser Type | Mechanical / electronic dispenser |
| Fuel Meter | Mechanical / electronic flow meter optional |
| Flow Meter Accuracy | According to selected metering equipment |
| Refueling Gun | Optional |
| Automatic Fuel Nozzle | Optional |
| Hose Reel | Optional |
| Hose Reel Type | Manual / spring-return / electric optional |
| Refueling Hose Length | Approx. 10–30 m or customized |
| Hose Diameter | According to flow requirement |
| Mobile Refueling System | Optional |
| Fuel Transportation Configuration | Available |
| Fuel Distribution Configuration | Available |
| Digital Fuel Meter | Optional |
| Digital Display | Optional |
| Printer | Optional for compatible dispenser |
| Bottom Valve | Manual / pneumatic bottom valve optional |
| Emergency Shut-Off Valve | Optional / according to market requirements |
| Emergency Valve Control | Manual / pneumatic optional |
| API Discharge Adapter | Optional |
| API Dust Cap | Optional |
| Vapor Recovery System | Optional |
| Vapor Recovery Valve | Optional |
| Vapor Recovery Adapter | Optional |
| Overfill Protection | Optional |
| Overfill Sensor | Optional |
| Overfill Socket | Optional |
| Static Grounding Reel | Optional / recommended |
| Grounding Wire | Available |
| Anti-Static Chain | Available / optional |
| Conductive Hose | Optional |
| Pipeline Material | Carbon steel / stainless steel / aluminum alloy |
| Pipeline Layout | Independent pipeline / manifold system |
| Valve Material | Aluminum alloy / stainless steel / carbon steel |
| Pipeline Box | Available / optional |
| Hose Box | Available |
| Toolbox | Available |
| Tank Level Indicator | Mechanical / electronic optional |
| Liquid Level Gauge | Optional |
| Electronic Level Monitoring | Optional |
| Compartment Identification | Optional |
| Rear Bumper | Heavy-duty protective structure |
| Side Guard | Available |
| Mudguards | Available |
| Fire Extinguisher | Available / according to local requirements |
| Fire Extinguisher Bracket | Available |
| Warning Signs | Optional / according to local regulations |
| Reflective Markings | Optional |
| Hazard Identification Plate | Optional / according to destination regulations |
| Warning Beacon | Optional |
| Explosion-Proof Electrical Equipment | Optional according to project requirements |
| Explosion-Proof Junction Box | Optional |
| Master Electrical Isolation Switch | Optional |
| Emergency Power Cut-Off | Optional |
| Reversing Camera | Optional |
| Rear Monitoring Camera | Optional |
| 360° Monitoring System | Optional |
| Internal Anti-Corrosion Treatment | Optional according to transported product |
| External Anti-Corrosion Treatment | Available |
| External Painting | Industrial primer + topcoat |
| Tank Color | White / silver / yellow / blue / red / customized |
| Company Logo | Customized |
| Export Markings | Customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, tank capacity, tank material, compartment quantity, fuel pump, dispenser, flow meter, hose reel, loading system, API equipment, vapor recovery, overfill protection, safety devices, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Diesel transportation
- gasoline transportation where compatible and legally permitted
- regional fuel distribution
- construction-site refueling
- municipal fleet refueling
- truck fleet refueling
- generator refueling
- agricultural machinery refueling
- excavator and loader refueling
- industrial fuel delivery
- factory fuel supply
- infrastructure project fuel supply
- road-construction machinery refueling
- rural fuel distribution
- logistics fleet fuel supply
- commercial fuel delivery
- remote-site fuel supply.
Available Configurations
- 180HP, 220HP, 240HP or 260HP diesel engine
- FAW Jiefang J6L 4×2 chassis
- FAWDE, Weichai or equivalent engine
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 6-speed, 8-speed or 10-speed manual transmission
- 8CBM, 10CBM, 12CBM, 15CBM or 18CBM fuel tank
- Q235 carbon-steel, stainless-steel or aluminum-alloy tank
- single compartment or 2 / 3 / 4 / 5 compartments
- customized compartment volumes
- multiple internal anti-wave baffles
- top loading
- bottom loading
- API bottom-loading adapters
- independent compartment pipelines
- manual or pneumatic bottom valves
- emergency shut-off valves
- gravity discharge
- PTO-driven fuel pump
- approximately 25–60m³/h fuel-pump flow
- mobile refueling system
- mechanical or electronic fuel dispenser
- fuel flow meter
- automatic refueling gun
- 10–30m hose reel
- digital display
- printer
- API discharge adapters
- vapor recovery system
- overfill protection
- static grounding reel
- anti-static chain
- conductive hose
- liquid-level monitoring
- explosion-proof electrical components
- master electrical isolation switch
- fire extinguishers
- safety markings
- reversing camera
- 360° monitoring system
- customized tank structure, refueling equipment, safety configuration, paint color, company logo and export markings.
Buyer Support
- FAW Jiefang J6L Fuel Tanker Truck combines a medium-duty J6L chassis with a professionally designed fuel tank, providing a practical solution for regional fuel distribution, construction projects, municipal fleets, agriculture and commercial refueling operations. Tank capacities from approximately 8CBM to 18CBM make the J6L platform particularly suitable for customers who require more fuel-carrying capacity than a light-duty truck while retaining better maneuverability than a large 6×4 or 8×4 tanker. It is well suited to frequent regional deliveries and work sites with limited operating space. Single- and multi-compartment tank configurations are available. Independent compartments can be equipped with separate valves and pipelines, allowing different delivery quantities and compatible petroleum products to be managed according to distribution requirements. The truck can be configured as a dedicated fuel transportation tanker or a mobile refueling truck. Optional fuel pumps, flow meters, dispensers, hose reels and automatic refueling nozzles allow direct fuel supply to excavators, loaders, generators, agricultural machinery, trucks and other equipment. Carbon-steel tank construction provides good durability and cost efficiency for general fuel transportation. Stainless-steel and aluminum-alloy configurations are also available where different material compatibility, corrosion resistance or vehicle tare-weight requirements apply. Multiple internal anti-wave baffles reduce liquid surge during acceleration, braking and cornering. The reinforced tanker subframe distributes the tank load across the FAW Jiefang J6L chassis and provides structural support during loaded transportation. Optional bottom-loading systems, API adapters, pneumatic bottom valves, emergency shut-off devices, vapor recovery systems, overfill sensors, static grounding equipment and other fuel-handling components can be selected according to destination-market regulations and transported-product requirements. Left-hand-drive and right-hand-drive configurations are available for different export markets. Engine power, tank capacity, tank material, compartment quantity, loading and discharge system, fuel pump, dispenser, metering system, hose reel, safety equipment, cameras, paint color and other specifications can be customized according to project requirements.

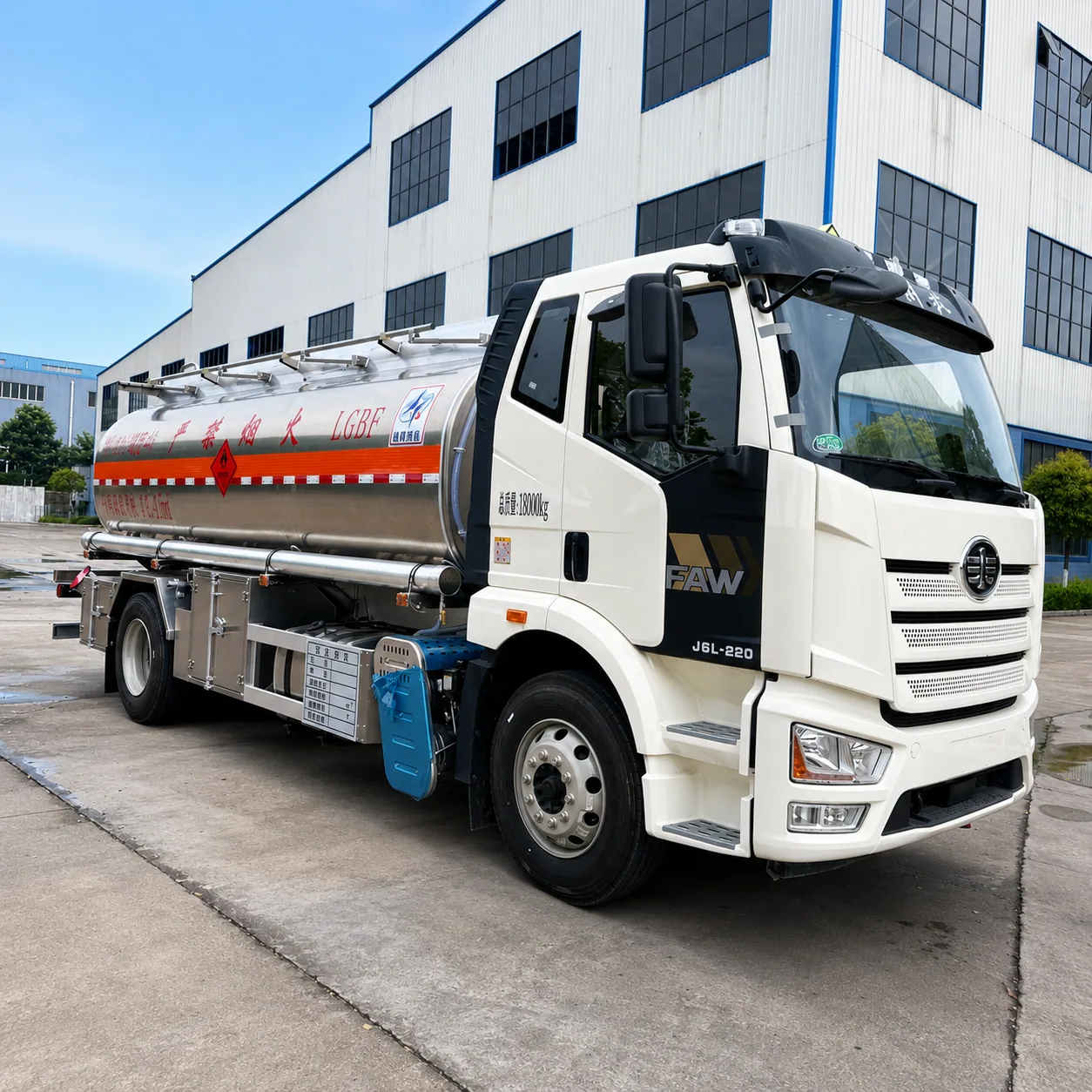

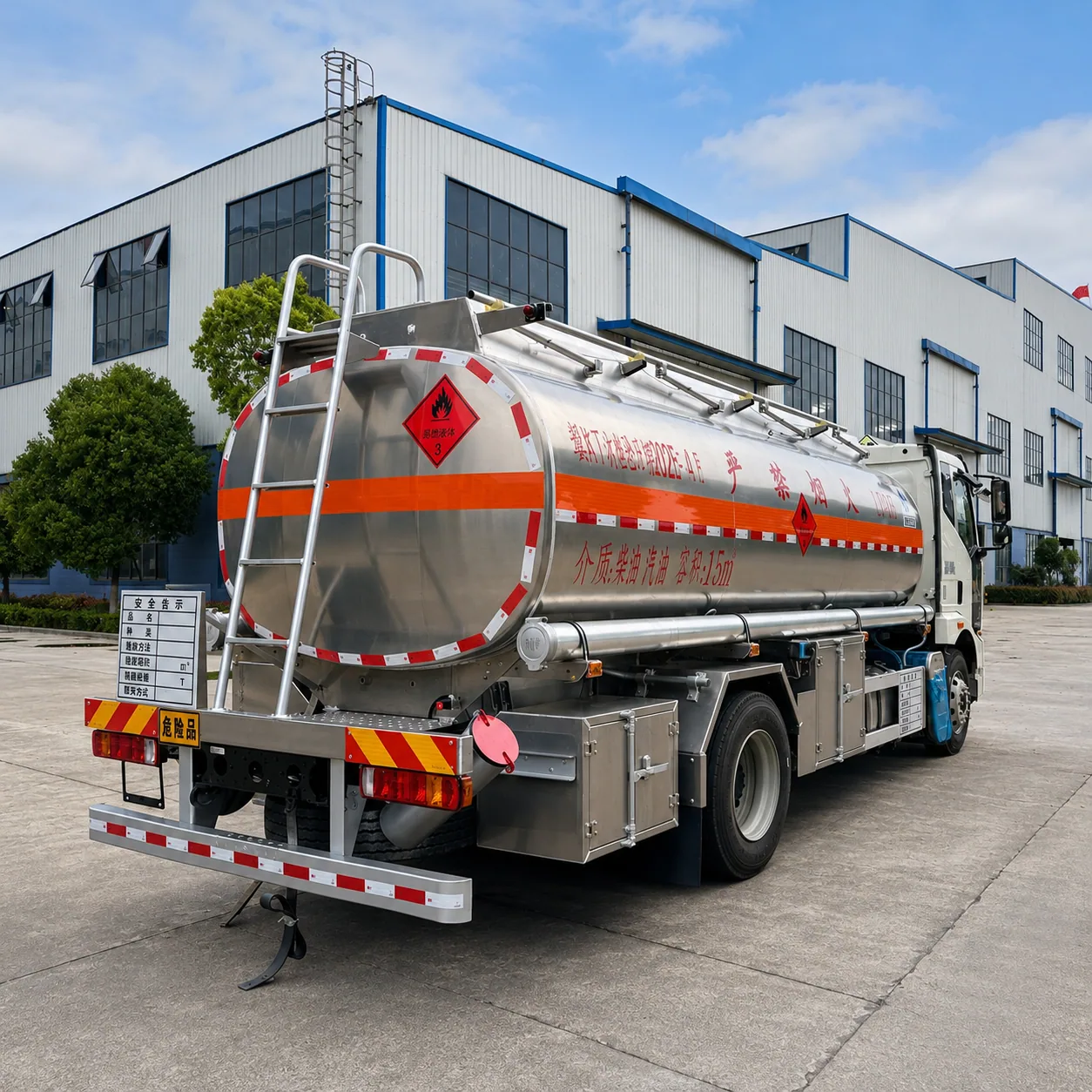

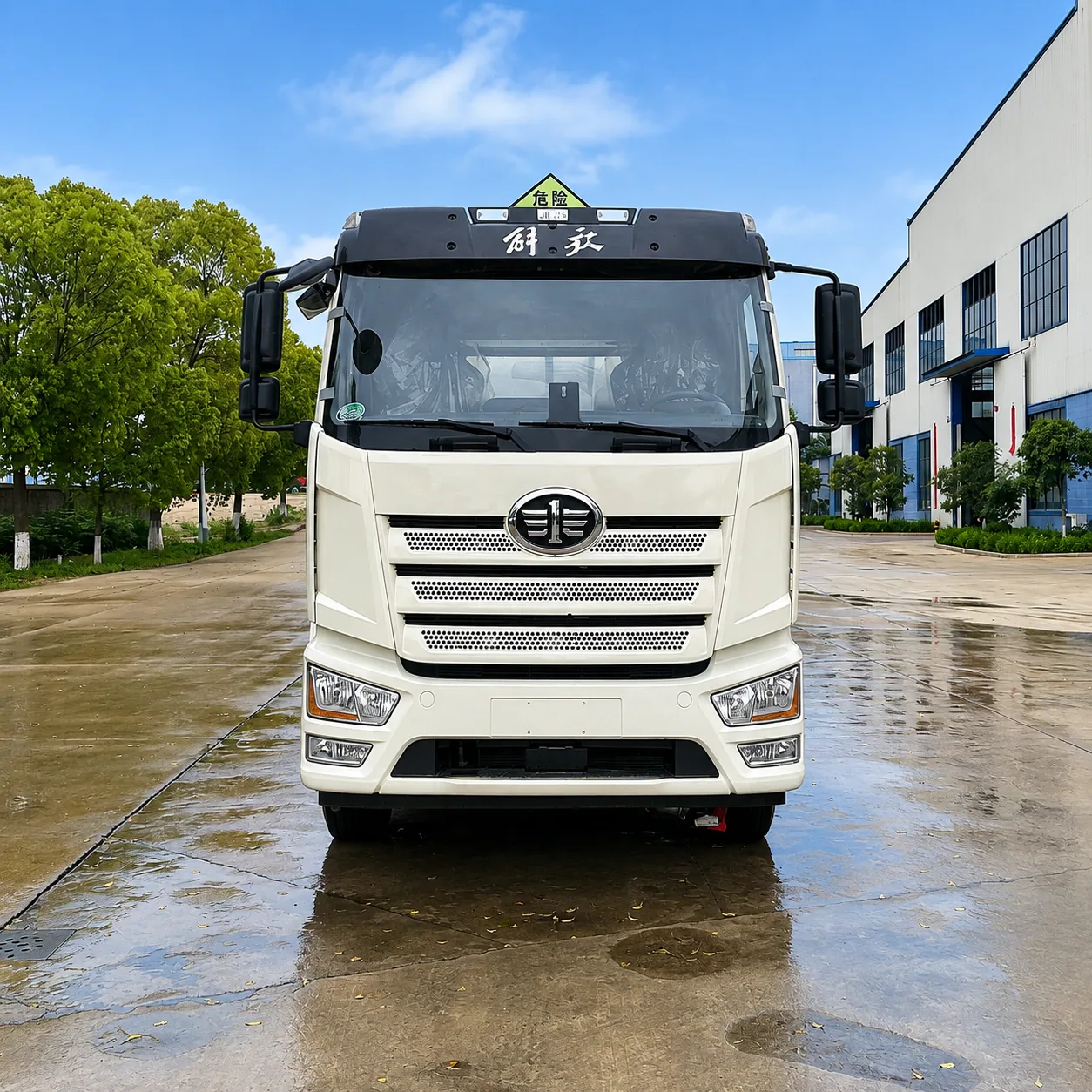

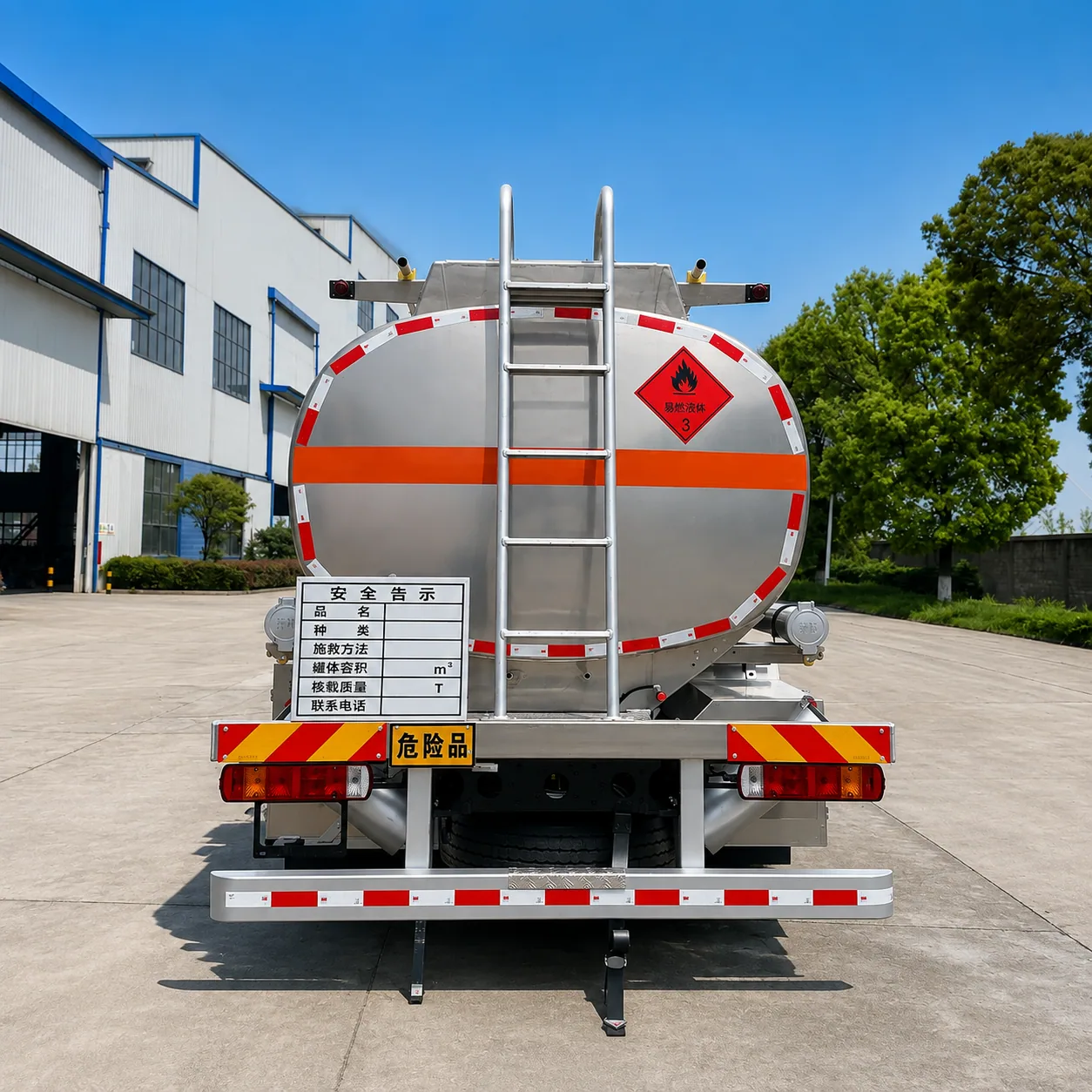

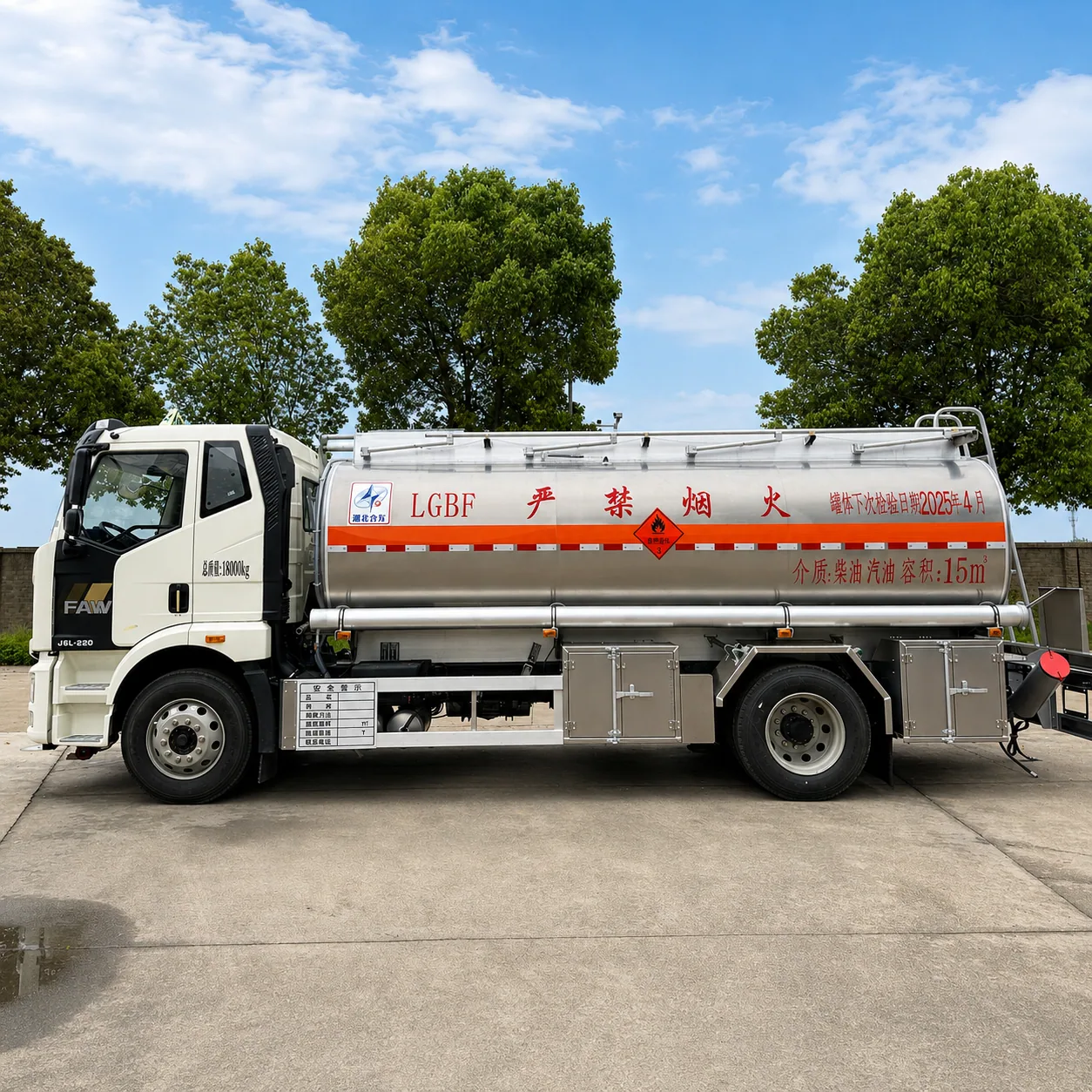

Product Display
