Cargo Trucks
FAW Jiefang J6L 4×2 Dropside Cargo Truck 140 / 160 / 180 / 220 / 240 / 260 / 320HP Available
FAW Jiefang J6L 4×2 dropside cargo truck is a medium-duty commercial truck designed for regional logistics, agricultural products, building materials, machinery, wholesale goods and general cargo transportation. Compared with smaller light-duty trucks, the J6L offers a larger cargo body, higher payload capability and stronger power, making it suitable for medium-load urban-to-intercity transportation. The J6L platform can be equipped with FAWDE / Xichai / Dachai diesel engines covering approximately 140HP to 320HP. FAW’s international J6L platform includes CA4DH, CA6DH and CA6DK engine families, with the CA6DK offering 7.1L displacement, 240–320PS and up to 1,200N·m torque. FAW Trucks The open dropside cargo body allows convenient loading and unloading from the rear and both sides. Different wheelbases, cargo-body lengths, side-panel heights, transmissions, rear axles, tires and cab configurations can be selected for different cargo and road conditions. A representative J6L 220HP 4×2 dropside truck uses a 4,800mm wheelbase, 6.2m cargo body and approximately 9.9-ton rated payload. 86火车
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Dropside Cargo Truck / Sidewall Cargo Truck / Medium Duty Cargo Truck |
| Brand | FAW Jiefang |
| Model Series | J6L / New J6L / CA1100 / CA1160 / CA1180 Series |
| Drive Type | 4×2 |
| Engine Power | 140HP / 160HP / 180HP / 220HP / 240HP / 260HP / 320HP available |
| Engine Brand | FAWDE / Xichai / Dachai |
| Engine Model | CA4DH / CA4DK / CA6DH / CA6DK series optional |
| Engine Type | Four-cylinder or six-cylinder, turbocharged and intercooled diesel engine |
| Engine Displacement | Approx. 3.8–7.1 L, depending on engine model |
| Maximum Torque | Approx. 500–1,200 N·m, depending on engine configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro IV / Euro V / Euro VI optional according to model |
| Transmission Brand | FAW / FAST optional |
| Transmission Type | 6-speed / 8-speed / 9-speed manual transmission; AMT optional according to configuration |
| Cab Type | J6L single-row / extended sleeper cab |
| Cab Roof | Flat-roof / raised-roof optional |
| Cab Suspension | Mechanical / semi-floating / air suspension according to configuration |
| Seating Capacity | 2–3 persons |
| Steering | Left-hand drive or right-hand drive optional |
| Overall Length | Approx. 7,000–10,000 mm, depending on wheelbase and cargo body |
| Overall Width | Approx. 2,300–2,550 mm |
| Overall Height | Approx. 2,700–3,300 mm |
| Wheelbase | Approx. 3,900–5,800 mm |
| Cargo Body Type | Open dropside / flatbed with side panels |
| Cargo Body Length | Approx. 5,200–7,800 mm |
| Cargo Body Width | Approx. 2,300–2,500 mm |
| Cargo Body Height | Approx. 550–800 mm |
| Cargo Body Material | High-strength steel |
| Side Panel Type | Foldable / removable dropside panels optional |
| Curb Weight | Approx. 5,000–8,000 kg, depending on chassis and cargo body |
| Gross Vehicle Weight | Approx. 10–18 tons, depending on model and local regulations |
| Rated Payload | Approx. 5–11 tons, depending on chassis and certification |
| Front Axle | Approx. 4–6.5T FAW steering axle |
| Rear Axle | FAW 378 / 435 or equivalent drive axle |
| Rear Axle Capacity | Approx. 9–13 tons |
| Rear Axle Type | Single-reduction drive axle |
| Rear Axle Ratio | Approx. 3.545–6.5, depending on axle and operating conditions |
| Frame | Reinforced high-strength steel chassis |
| Front Suspension | Leaf spring / parabolic leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf / few-leaf spring suspension |
| Tire Model | 8.25R20 / 9.00R20 / 10.00R20 / 275/80R22.5 optional |
| Tire Quantity | 6 tires + spare tire |
| Fuel Tank | Approx. 200–400 L, steel or aluminum fuel tank optional |
| Electrical System | 24V |
| Brake System | Dual-circuit compressed-air brake system |
| Safety System | ABS available; ESC and other safety systems optional according to model |
| Maximum Speed | Approx. 90–110 km/h, depending on engine, transmission and axle ratio |
| Air Conditioner | Optional / available according to stock |
| Air Suspension Driver Seat | Optional |
| Power Steering | Available |
| Cargo Body Customization | Length, width, floor thickness, side-panel height and structure can be customized |
| Color | White, blue, red, green, silver or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, transmission, wheelbase, cargo body, axle ratio, tires, driving side, color, logo and accessories |
Product Details
Typical Applications
- Regional cargo distribution
- intercity logistics
- agricultural product transportation
- fruit and vegetable transportation
- building material delivery
- steel and hardware transportation
- machinery and equipment transportation
- wholesale market delivery
- beverage and packaged food distribution
- furniture transportation
- factory logistics
- farm supply transportation
- construction material delivery
- palletized cargo transportation
- general commercial cargo transportation.
Available Configurations
- 140HP, 160HP, 180HP, 220HP, 240HP, 260HP or 320HP diesel engine
- FAWDE / Xichai / Dachai engine
- CA4DH, CA4DK, CA6DH or CA6DK engine
- Euro III / Euro IV / Euro V / Euro VI emission standard
- left-hand drive or right-hand drive
- single-row or extended sleeper cab
- flat-roof or raised-roof cab
- 6-speed, 8-speed or 9-speed manual transmission
- AMT according to configuration
- different wheelbases
- approximately 5.2m, 6.2m, 6.75m, 6.8m or 7.8m cargo body
- foldable or removable side panels
- reinforced steel cargo floor
- high side panels
- tarpaulin frame
- 378 or 435 rear axle
- different rear axle ratios
- leaf-spring or few-leaf suspension
- 8.25R20, 9.00R20, 10.00R20 or 275/80R22.5 tires
- 200–400L fuel tank
- air conditioner
- air-suspension driver seat
- ABS
- toolbox
- spare tire
- customized cargo-body dimensions, paint color, company logo and export markings. FAW Trucks
Buyer Support
- FAW Jiefang J6L 4×2 dropside cargo truck combines strong payload capability, flexible body dimensions and efficient medium-duty performance
- 140–320HP engine options cover a wide range of regional and intercity cargo applications
- FAW CA4DH, CA4DK, CA6DH and CA6DK engines provide different power levels for light, medium and heavier cargo operation
- the 4×2 chassis provides good maneuverability while supporting larger cargo bodies than conventional light-duty trucks
- open dropside construction enables loading and unloading from three sides
- 5.2–7.8m cargo-body options can meet different cargo-volume requirements
- 378 and 435 rear axle options provide different load-bearing capacities for regional logistics and heavier operations
- reinforced leaf-spring suspension supports frequent loaded transportation
- sleeper cab and air-suspension driver-seat options improve comfort for intercity operation
- multiple wheelbase, transmission, axle-ratio and body configurations can be supplied for different export markets. FAW highlights the J6L platform for strong power, fuel efficiency, driving comfort and reliability. FAW Trucks

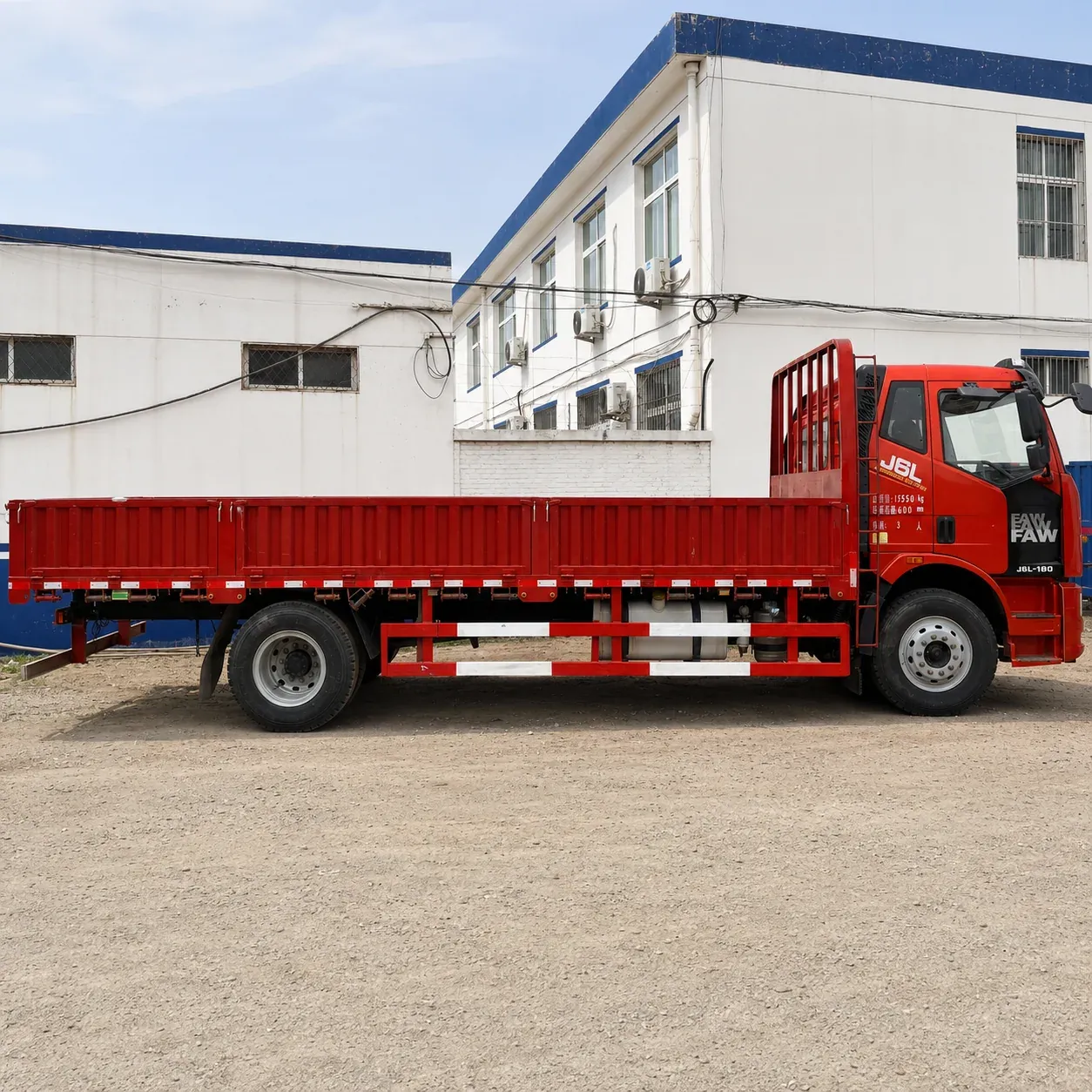

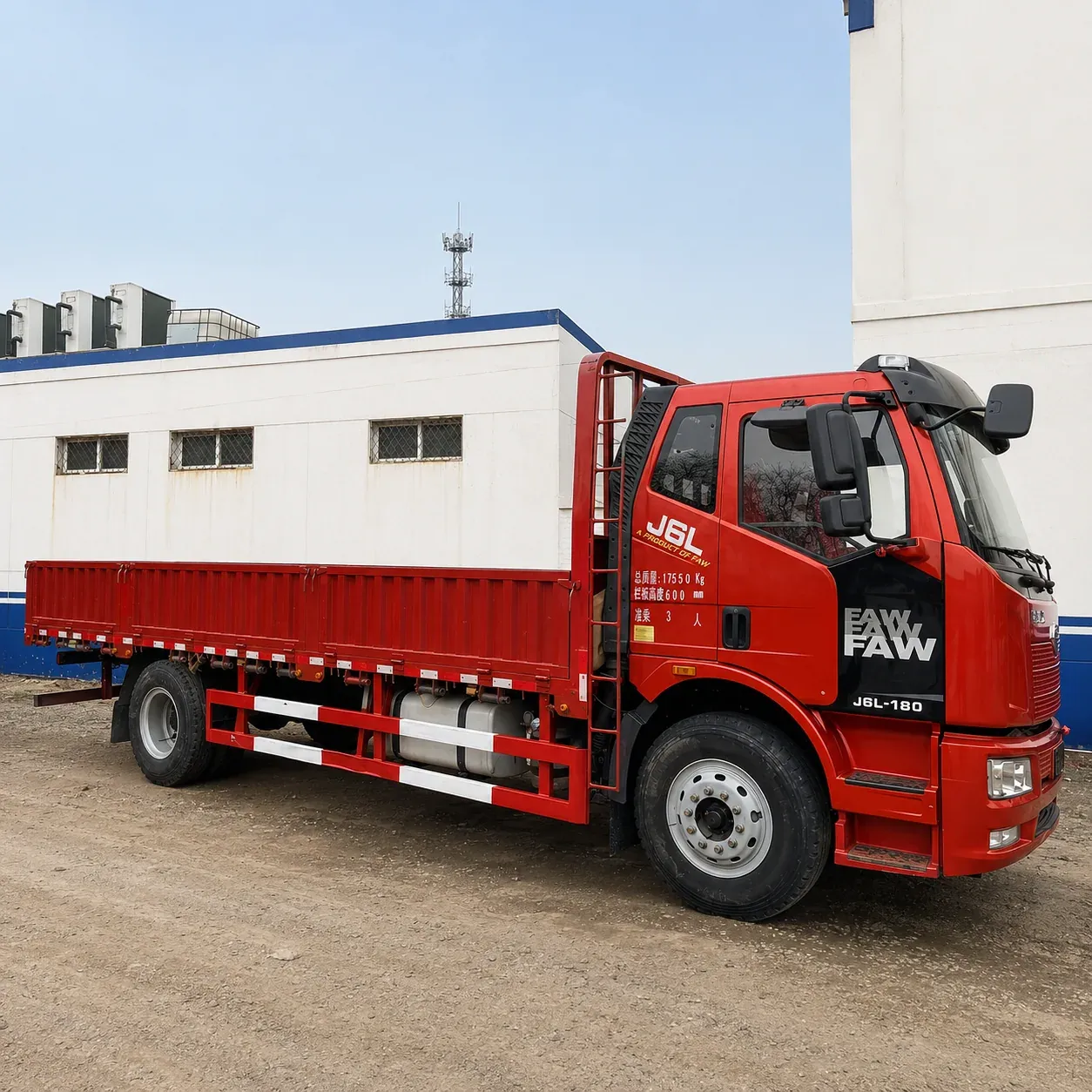

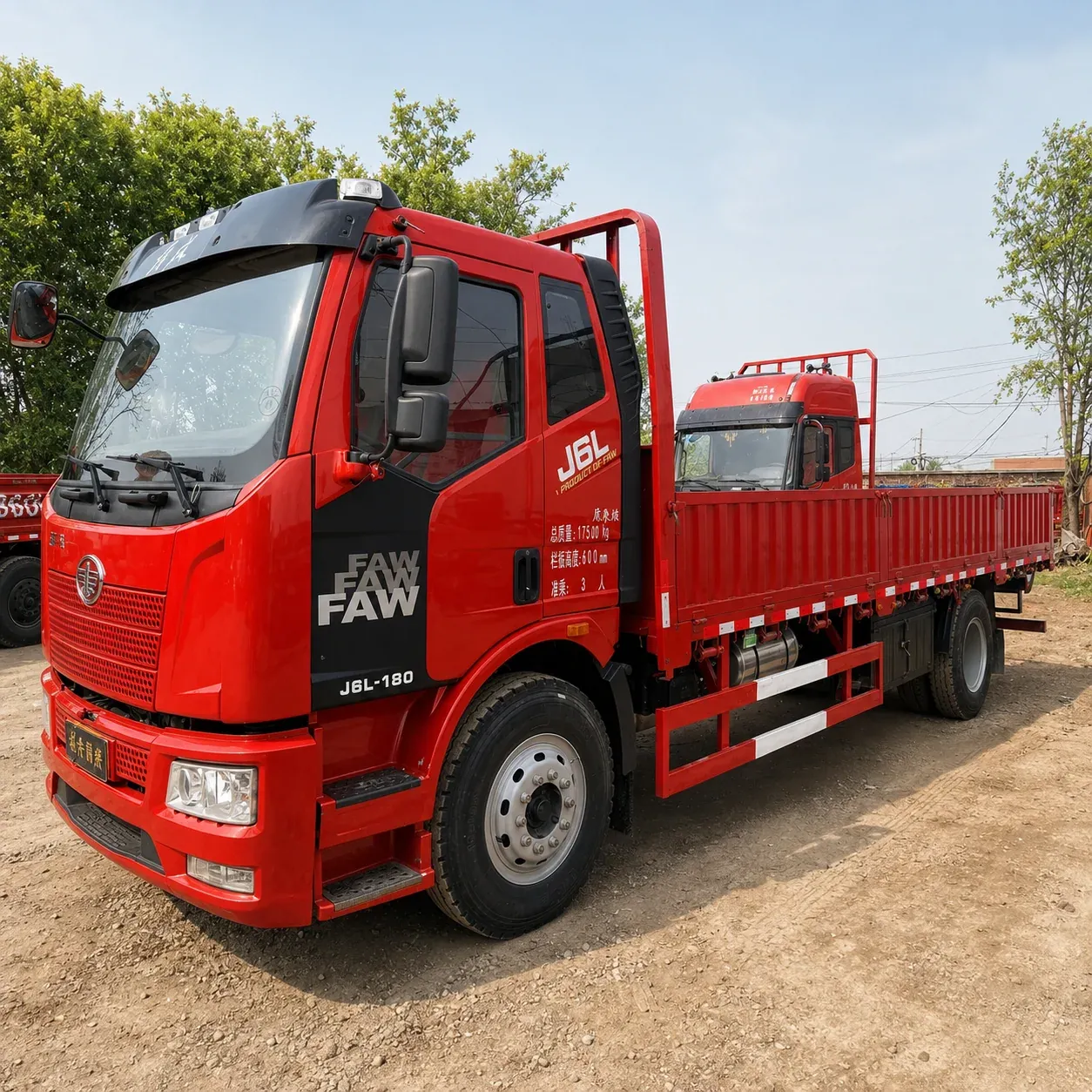

Product Display
