Special Trucks
Dongfeng Wrecker Truck 115 / 120 / 140 / 170 / 190HP 3 / 4 / 5 / 8T Available
Dongfeng Wrecker Truck is a specialized road-rescue and vehicle-recovery truck designed for towing, loading, transporting and recovering passenger cars, SUVs, vans, pickups, light trucks and medium commercial vehicles. The vehicle combines a reliable Dongfeng commercial chassis with a hydraulic sliding flatbed, telescopic wheel-lift underlift, hydraulic winch, reinforced recovery subframe and hydraulic control system, allowing damaged, disabled or accident vehicles to be safely loaded and transported. Different Dongfeng chassis platforms are available for light- and medium-duty recovery applications. Common engine configurations include approximately 115HP, 120HP, 140HP, 170HP and 190HP, while representative Dongfeng flatbed wreckers provide approximately 3–8 ton flatbed capacities. Dongfeng D6 and Duolika chassis are suitable for light urban recovery, while larger D9 and Tianjin chassis provide higher loading and towing capacity for commercial vehicles. Representative 190HP Dongfeng D9 recovery trucks use an 8-speed transmission and can be configured with large recovery platforms for multi-vehicle transportation. The hydraulic flatbed slides backward and tilts toward the ground to provide a low loading angle. A hydraulic winch pulls disabled vehicles onto the platform, while the rear telescopic underlift can lift the front or rear axle of another vehicle for towing. Depending on recovery requirements, the vehicle can be configured as a one-to-one or one-to-two recovery truck with different platform, underlift and winch capacities. Representative Dongfeng recovery platforms range from approximately 5.4m to more than 7m in length.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Wrecker Truck / Tow Truck / Flatbed Recovery Truck / Road Rescue Truck |
| Brand | Dongfeng |
| Chassis Brand | Dongfeng |
| Common Chassis Series | Dongfeng D6 / Duolika / D7 / D9 / Tianjin or equivalent Dongfeng chassis |
| Drive Type | 4×2 commonly available |
| Engine Power | 115HP / 120HP / 140HP / 170HP / 190HP available according to chassis and stock |
| Engine Brand | Quanchai / Chaoyang / Yuchai / Dongfeng Cummins or equivalent according to chassis |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to model year and export market |
| Transmission Type | Manual transmission |
| Transmission Gears | 5-speed / 6-speed / 8-speed manual transmission according to chassis |
| Common Light-Duty Transmission | WLY 5-speed / 6-speed or equivalent |
| Common Medium-Duty Transmission | FAST 6-speed / 8-speed or equivalent |
| PTO | Power take-off for hydraulic recovery system |
| Cab Type | Single-row / extended Dongfeng cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium-duty chassis |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 6,000–10,000 mm depending on chassis and recovery body |
| Overall Width | Approx. 2,200–2,550 mm |
| Overall Height | Approx. 2,300–3,000 mm |
| Wheelbase | Approx. 3,300–5,600 mm depending on chassis |
| Gross Vehicle Weight | Approx. 7–18 tons depending on chassis |
| Curb Weight | Approx. 4–10 tons depending on recovery equipment |
| Maximum Driving Speed | Approx. 90–100 km/h |
| Front Axle | Dongfeng steering axle according to chassis |
| Front Axle Capacity | Approx. 2–6 tons depending on chassis |
| Rear Axle | Dongfeng single drive axle |
| Rear Axle Capacity | Approx. 3.5–10 tons depending on chassis |
| Frame | Reinforced high-strength steel chassis frame |
| Recovery Subframe | Reinforced wrecker special-purpose subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring suspension |
| Tire Model | 7.00R16 / 7.50R16 / 8.25R16 / 10.00R20 or equivalent |
| Tire Quantity | 6 tires + spare tire |
| Fuel Tank | Approx. 100–300 L depending on chassis |
| Brake System | Hydraulic / dual-circuit compressed-air brake system according to chassis |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Recovery Structure | Hydraulic sliding flatbed + telescopic wheel-lift underlift |
| Flatbed Type | Hydraulic sliding and tilting flatbed |
| Flatbed Loading Capacity | Approx. 3 / 4 / 5 / 8 tons available according to recovery system |
| Common Light-Duty Flatbed Capacity | Approx. 3–5 tons |
| Flatbed Length | Approx. 5,400–7,400 mm |
| Flatbed Width | Approx. 2,250–2,500 mm |
| Common Flatbed Size | Approx. 5,600 × 2,250 mm / 5,800 × 2,250 mm or equivalent |
| Large Recovery Platform | Approx. 7,400 × 2,500 mm available on larger chassis |
| Flatbed Material | High-strength steel |
| Flatbed Surface | Anti-skid checkered steel plate |
| Flatbed Thickness | Approx. 4 mm or customized |
| Flatbed Extension | Optional |
| Minimum Loading Angle | Approx. 7–10° depending on platform system |
| Flatbed Sliding Stroke | Approx. 2,600–2,800 mm depending on system |
| Underlift Type | Hydraulic telescopic wheel-lift |
| Underlift Capacity | Approx. 1.5–5 tons depending on recovery system |
| Underlift Extension | Hydraulic telescopic extension |
| Underlift Tilt | Hydraulic adjustment |
| Wheel Fork | Adjustable wheel forks |
| Tow Bar | Optional |
| Hydraulic Winch | Available |
| Winch Quantity | Single / dual hydraulic winch optional |
| Winch Capacity | Approx. 3–6 tons depending on recovery configuration |
| Representative Winch Capacity | Approx. 3–5 tons |
| Winch Pulling Force | Approx. 30–60 kN depending on system |
| Wire Rope Length | Approx. 20–30 m |
| Wire Rope Type | Heavy-duty steel wire rope |
| Winch Control | Hydraulic control |
| Winch Free-Spool | Optional |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Working Pressure | Approx. 16–25 MPa depending on recovery system |
| Hydraulic Cylinder | Heavy-duty double-acting hydraulic cylinders |
| Hydraulic Control Valve | Multi-way hydraulic control valve |
| Hydraulic Oil Tank | Available |
| Flatbed Sliding | Hydraulic |
| Flatbed Tilting | Hydraulic |
| Underlift Extension | Hydraulic |
| Underlift Lifting | Hydraulic |
| Vehicle Loading | Hydraulic winch pulling |
| Vehicle Unloading | Hydraulic flatbed sliding and tilting |
| One-to-One Recovery | Available |
| One-to-Two Recovery | Available / optional |
| Multi-Vehicle Recovery | Available on extended-platform configurations |
| Wheel Dolly | Optional |
| Auxiliary Tow Wheels | Optional |
| Wheel Straps | Available / optional |
| Safety Chains | Available |
| Tow Forks | Available |
| Fork Holders | Available |
| Recovery Shackles | Optional |
| Snatch Block | Optional |
| Emergency Manual Pump | Optional |
| Operation Control | Manual hydraulic / electro-hydraulic control |
| External Control | Available |
| Wireless Remote Control | Optional |
| Cab-Mounted Control | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| LED Warning Light Bar | Optional |
| Rear Warning Lights | Optional |
| Search Light | Optional |
| Working Lights | Optional |
| Traffic Cones | Optional |
| Toolbox | Available |
| Fire Extinguisher | Available / optional |
| Spare Tire | Available |
| Color | Yellow, blue, red, white, orange, green or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis series, engine, flatbed dimensions, flatbed capacity, underlift capacity, winch capacity, hydraulic system, towing accessories, steering side, tires, cameras, warning lights, paint color, company logo and export markings |
Product Details
Typical Applications
- Urban roadside rescue
- highway vehicle recovery
- passenger-car towing
- SUV recovery
- pickup-truck recovery
- van recovery
- light commercial vehicle towing
- light-truck recovery
- medium-truck recovery
- accident vehicle transportation
- disabled vehicle recovery
- municipal road rescue
- traffic-police support
- insurance roadside assistance
- towing-company operations
- automobile repair-shop recovery
- dealership vehicle transportation
- logistics-fleet roadside support
- rental-car recovery
- parking enforcement
- vehicle relocation
- emergency road service.
Available Configurations
- 115HP, 120HP, 140HP, 170HP or 190HP diesel engine
- Dongfeng D6, Duolika, D7, D9, Tianjin or equivalent chassis
- Quanchai, Chaoyang, Yuchai, Dongfeng Cummins or equivalent engine
- 4×2 drive configuration
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI emission configuration according to chassis
- 5-speed, 6-speed or 8-speed manual transmission
- approximately 3T, 4T, 5T or 8T flatbed recovery capacity
- approximately 5.4–7.4m hydraulic sliding flatbed
- anti-skid steel platform
- low-angle hydraulic loading system
- hydraulic telescopic underlift
- approximately 1.5–5T underlift capacity
- adjustable wheel forks
- single or dual hydraulic winch
- approximately 3–6T winch capacity
- heavy-duty steel wire rope
- tow forks
- safety chains
- wheel straps
- auxiliary wheel dolly
- snatch block
- hydraulic flatbed extension
- electro-hydraulic controls
- wireless remote control
- emergency manual hydraulic pump
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning light bar
- search light
- working lights
- traffic cones
- toolbox
- fire extinguisher
- spare tire
- customized recovery capacity, flatbed dimensions, towing equipment, paint color, company logo and export markings.
Buyer Support
- Dongfeng Wrecker Truck combines a widely used Dongfeng commercial chassis with a professional hydraulic flatbed and underlift recovery system for roadside rescue, vehicle towing and transportation
- 115HP, 120HP, 140HP, 170HP and 190HP configurations provide flexible solutions for passenger vehicles, vans, pickups, light trucks and medium commercial vehicles. Representative Dongfeng recovery trucks range from compact 115HP Duolika models to 190HP D9 platforms with larger recovery bodies and heavier axles. The hydraulic sliding flatbed allows disabled or accident-damaged vehicles to be pulled onto the platform using a hydraulic winch, while approximately 7–10° low loading angles are available on representative recovery systems to improve loading of low-clearance or non-running vehicles. The rear hydraulic underlift allows another vehicle to be lifted by its wheels or axle for towing, enabling flatbed transportation and wheel-lift towing to be combined in one vehicle. Different underlift capacities, wheel forks and towing accessories can be selected according to the recovered vehicle. Approximately 3–8 ton recovery-platform configurations cover different operating requirements, while flatbeds from approximately 5.4m to more than 7m are available for light vehicles, commercial vehicles and extended transportation applications. Larger Dongfeng D9 recovery configurations can also be designed for multiple-vehicle transport. Hydraulic winches, sliding platforms, underlift systems and reinforced recovery subframes simplify vehicle loading, towing and unloading
- single or dual winches, wheel dollies, tow forks, safety chains, wheel straps and other professional accessories can be selected for different recovery operations. Left-hand-drive and right-hand-drive versions can be supplied for different export markets
- chassis series, engine, flatbed dimensions, recovery capacity, underlift, winch, hydraulic controls, towing accessories, cameras, warning equipment, paint color and other configurations can be customized according to roadside-rescue, towing-company and fleet requirements.

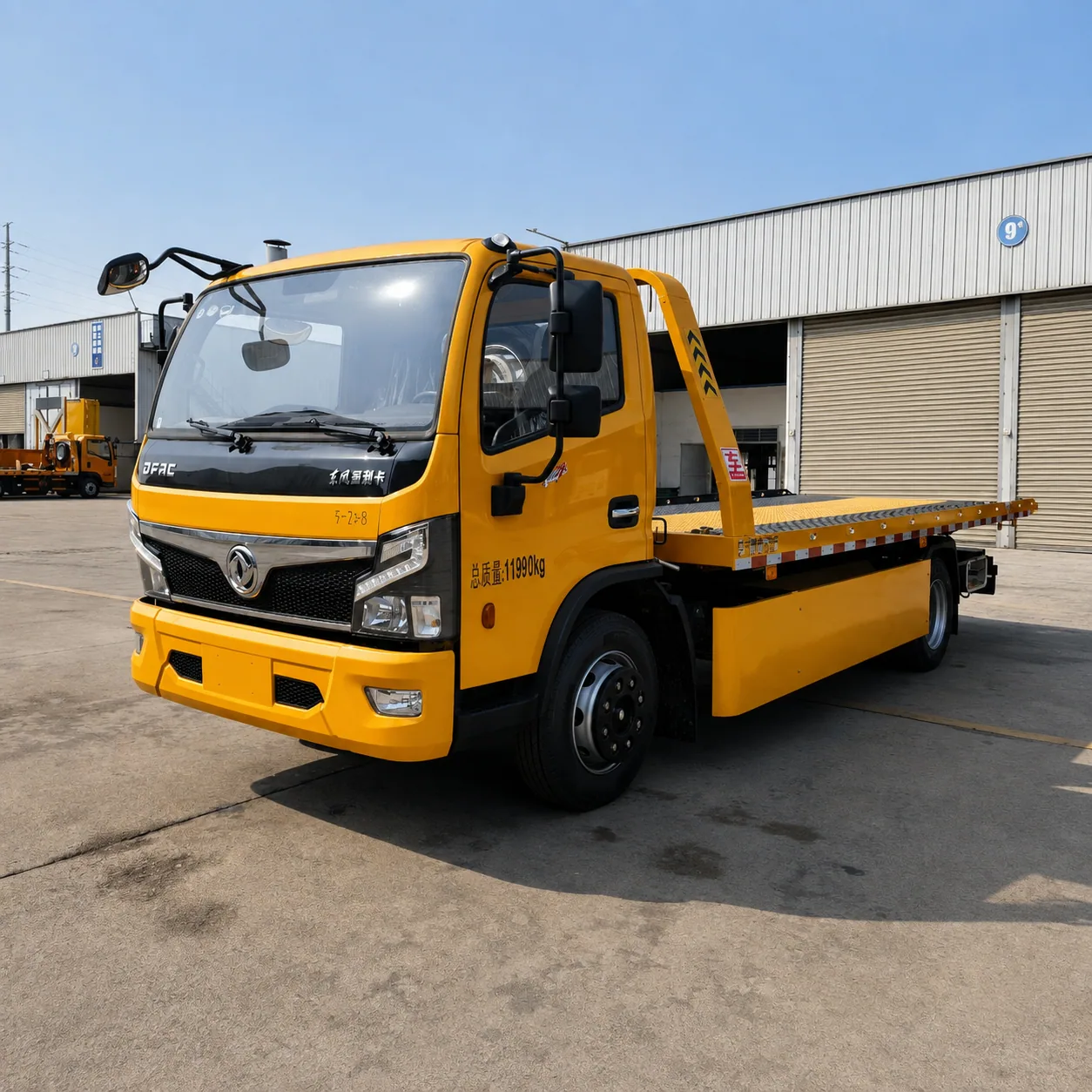

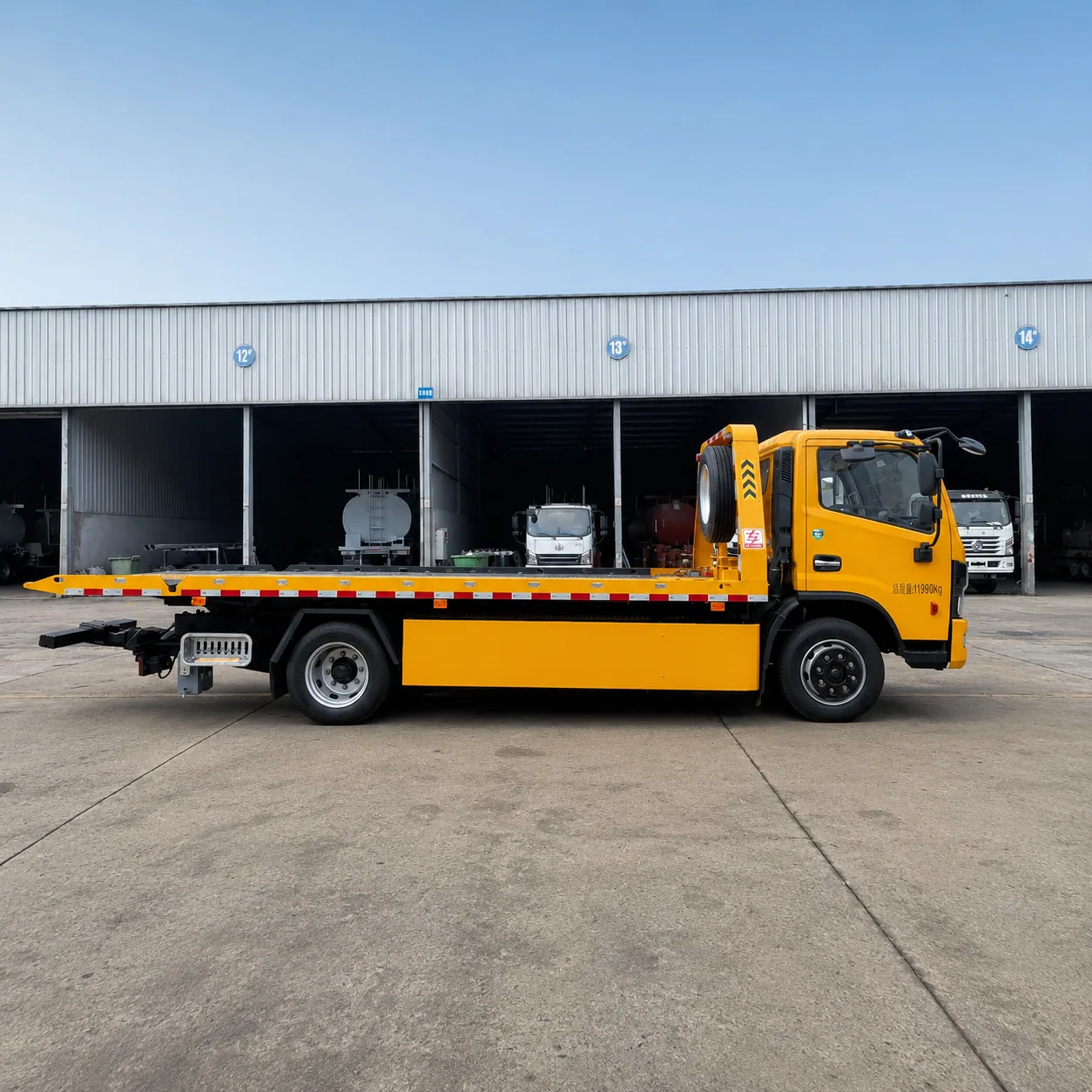

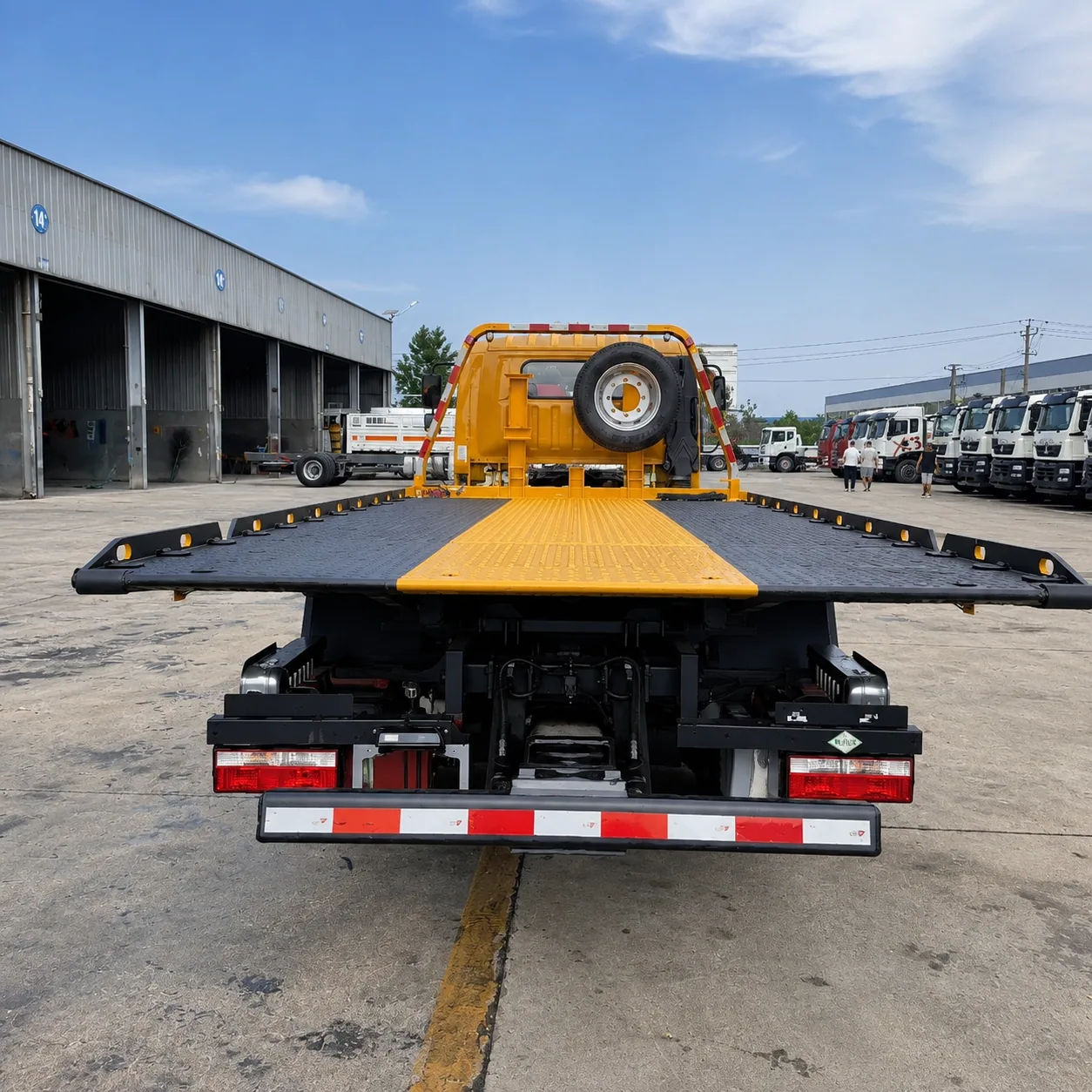

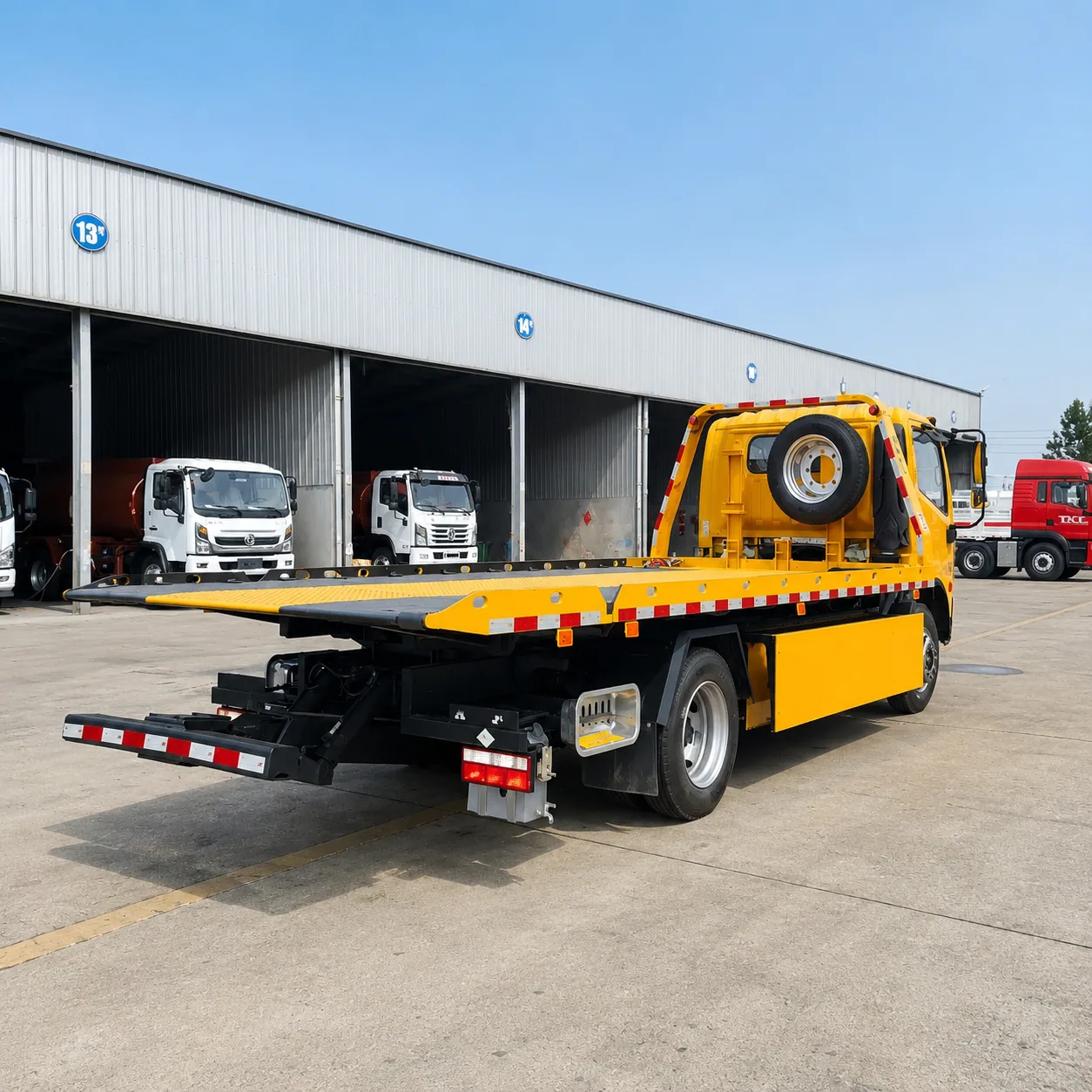

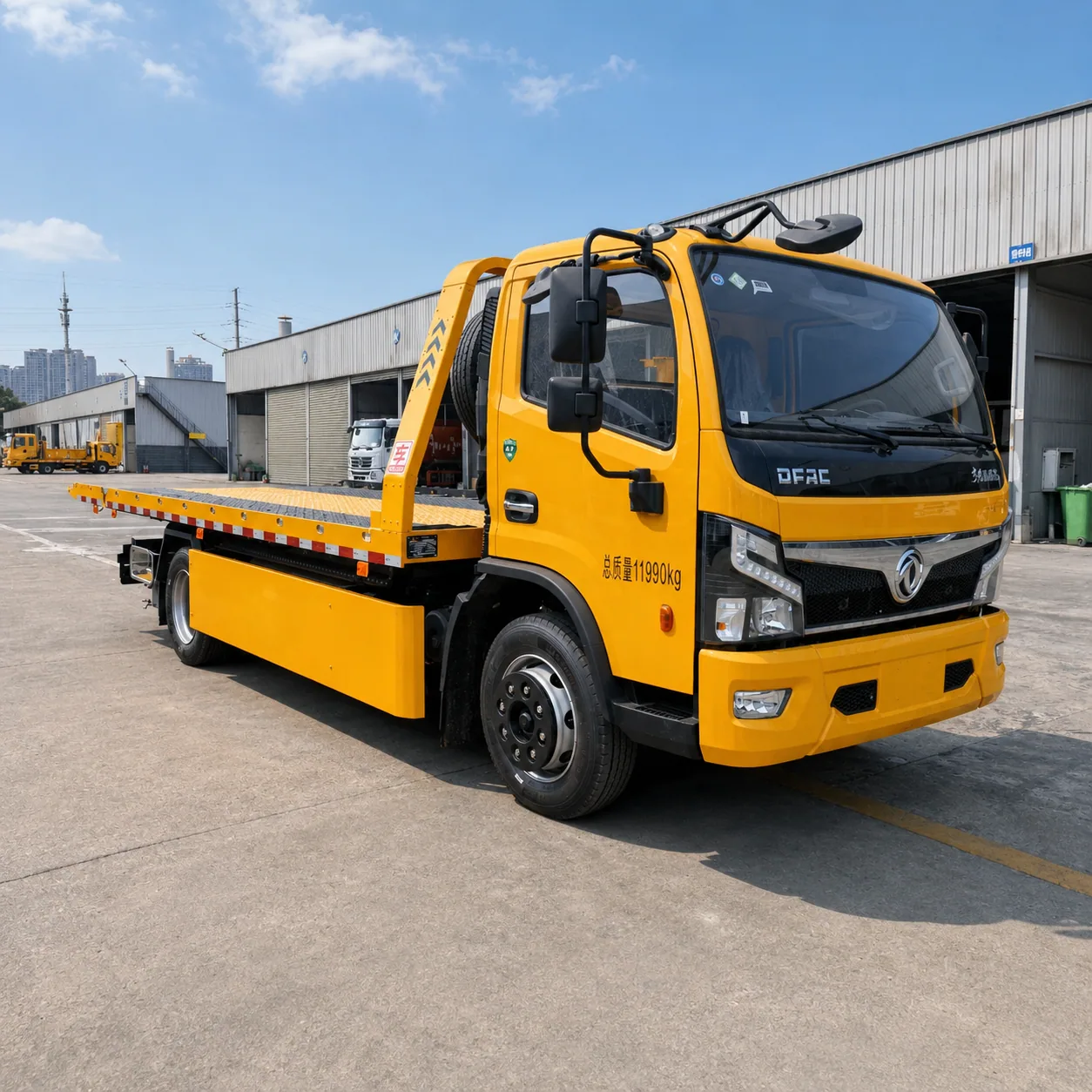

Product Display
