Dongfeng Tianlong Water Tanker Truck 260 / 290 / 340 / 375HP 15 / 20 / 25 / 30CBM Available – Water Sprinkler Optional
Dongfeng Tianlong Water Tanker Truck is a heavy-duty water transportation vehicle designed for mining operations, construction projects, road engineering, industrial sites, municipal services, agriculture and remote-area water supply. The vehicle combines a durable Dongfeng Tianlong heavy-duty chassis with a reinforced large-capacity water tank, PTO-driven water pump, piping system, valves and filling/discharge equipment for reliable bulk-water transportation under demanding operating conditions. The truck can be supplied as a pure water tanker for water loading, transportation and discharge, or equipped with an optional water sprinkler system for mine-road dust suppression, construction-site dust control, road watering, municipal cleaning and landscape irrigation. Customers can select the sprinkler equipment according to their actual project requirements without changing the basic tanker structure. Dongfeng Tianlong water tanker trucks are mainly available with 6×4 and 8×4 heavy-duty chassis configurations. Engine options include approximately 260HP, 290HP, 340HP and 375HP, while water tank capacities of approximately 15CBM, 20CBM, 25CBM and 30CBM can be configured according to chassis payload, operating environment and local regulations. Carbon-steel and stainless-steel tank options are available.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Water Tanker Truck / Water Bowser Truck / Water Transport Truck / Water Sprinkler Truck |
| Brand | Dongfeng |
| Chassis Series | Dongfeng Tianlong |
| Drive Type | 6×4 / 8×4 available |
| Engine Power | 260HP / 290HP / 340HP / 375HP available according to chassis and stock |
| Engine Brand | Dongfeng Cummins / Dongfeng or equivalent |
| Engine Type | Inline six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Type | Manual transmission |
| Transmission Gears | 9-speed / 10-speed / 12-speed manual transmission according to chassis |
| PTO | Available for water-pump operation |
| Cab Series | Dongfeng Tianlong |
| Cab Type | Standard / high-roof heavy-duty cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available |
| Driver Seat | Adjustable / air-suspension driver seat available |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Hydraulic power steering |
| Air Conditioner | Available |
| Overall Length | Approx. 8,500–12,000 mm depending on chassis and tank capacity |
| Overall Width | Approx. 2,500–2,550 mm |
| Overall Height | Approx. 3,200–3,800 mm |
| Wheelbase | Multiple wheelbase combinations available for 6×4 / 8×4 chassis |
| Gross Vehicle Weight | Approx. 25–40 tons depending on chassis |
| Curb Weight | Approx. 11–18 tons depending on tank and equipment |
| Rated Payload | According to chassis, tank volume and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | Dongfeng heavy-duty steering axle |
| Rear Axle | Dongfeng heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available according to chassis |
| Differential Lock | Available |
| Frame | Reinforced high-strength heavy-duty chassis frame |
| Tank Subframe | Reinforced tanker special-purpose subframe |
| Front Suspension | Multi-leaf spring suspension |
| Rear Suspension | Heavy-duty multi-leaf spring / balance suspension |
| Tire Model | 11.00R20 / 12.00R20 / 12R22.5 / 315/80R22.5 or equivalent |
| Tire Quantity | According to 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 300–500 L |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake / engine brake available |
| ABS | Available |
| Electrical System | 24V |
| Tank Capacity | 15CBM / 20CBM / 25CBM / 30CBM available |
| Common 6×4 Tank Capacity | Approx. 15–25 CBM |
| Common 8×4 Tank Capacity | Approx. 20–30 CBM |
| Tank Shape | Elliptical / oval cylindrical tank |
| Tank Material | Q235 carbon steel / high-strength carbon steel / stainless steel optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Tank Body Thickness | Approx. 4–6 mm or customized |
| Tank Head Thickness | Approx. 5–7 mm or customized |
| Tank Compartments | Single compartment standard / multi-compartment optional |
| Internal Anti-Wave Baffles | Multiple baffles installed inside tank |
| Baffle Function | Reduces liquid surge during acceleration, braking and cornering |
| Manhole | Available |
| Manhole Cover | Bolt-type / quick-opening type optional |
| Tank Ladder | Available |
| Top Walkway | Anti-slip walkway optional |
| Tank Guardrail | Optional |
| Water Pump | Available |
| Pump Type | Self-priming centrifugal water pump |
| Pump Drive | PTO-driven |
| Pump Flow Rate | Approx. 40–80 m³/h depending on pump |
| Pump Head | Approx. 45–90 m depending on pump configuration |
| Self-Priming Function | Available |
| Self-Suction Depth | Approx. 5–7 m depending on pump |
| Water Filling Method | Pump self-suction / external pressure filling |
| Water Discharge Method | Pump discharge / gravity discharge |
| Water Inlet | Available |
| Water Outlet | Available |
| Gravity Discharge Valve | Available |
| Suction Hose | Available / optional |
| Suction Hose Length | Approx. 5–8 m or customized |
| Pipeline Material | Carbon steel / galvanized steel / stainless steel optional |
| Valve Material | Carbon steel / aluminum alloy / stainless steel optional |
| Pure Water Tanker Configuration | Available |
| Water Sprinkler Configuration | Optional |
| Front Sprinkler | Optional |
| Rear Sprinkler | Optional |
| Side Sprinkler | Optional |
| Front Duckbill Nozzle | Optional |
| Rear Spray Nozzle | Optional |
| Sprinkling Width | Approx. 14–20 m depending on sprinkler configuration |
| Rear Water Cannon | Optional |
| Water Cannon Range | Approx. 25–35 m depending on pump and nozzle |
| Water Cannon Rotation | Adjustable |
| Water Cannon Spray Pattern | Column / heavy rain / moderate rain / mist adjustable |
| High-Pressure Water Cannon | Optional |
| Front Flushing System | Optional |
| Rear Flushing System | Optional |
| Side Spray System | Optional |
| Road Washing System | Optional |
| Mine-Road Dust Suppression | Optional |
| Construction-Site Dust Control | Optional |
| Municipal Road Sprinkling | Optional |
| Landscape Irrigation System | Optional |
| Green-Belt Watering | Optional |
| High-Pressure Spray Gun | Optional |
| Hand Spray Gun | Optional |
| Hose Reel | Optional |
| Fire Hose Connection | Optional |
| Fire-Fighting Interface | Optional |
| Water Level Gauge | Mechanical / electronic optional |
| Electronic Water Level Indicator | Optional |
| Overflow Pipe | Available |
| Bottom Drain Valve | Available |
| Tank Cleaning Port | Available |
| Internal Anti-Corrosion Coating | Optional |
| External Anti-Corrosion Treatment | Primer + industrial topcoat |
| Stainless-Steel Inner Tank | Optional |
| Rear Working Platform | Optional |
| Pump Compartment | Optional |
| Hose Storage Box | Optional |
| Toolbox | Available / optional |
| Rear Working Lights | Optional |
| LED Warning Lights | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Fire Extinguisher | Available / optional |
| Color | White, blue, green, yellow, red, orange or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, tank volume, tank material, tank thickness, water pump, pipelines, sprinkler equipment, water cannon, filling/discharge system, steering side, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Mining-site water transportation
- mine-road dust suppression
- quarry dust control
- construction-site water supply
- construction-site dust control
- road construction
- highway maintenance
- municipal water transportation
- urban road watering
- industrial water transportation
- factory water supply
- construction-camp water supply
- port and terminal water supply
- agricultural water transportation
- farm irrigation
- landscape irrigation
- green-belt watering
- road washing
- municipal sanitation
- rural water supply
- remote-area water delivery
- emergency water supply.
Available Configurations
- 260HP, 290HP, 340HP or 375HP diesel engine
- Dongfeng Tianlong 6×4 or 8×4 heavy-duty chassis
- Dongfeng Cummins or equivalent diesel engine
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 9-speed, 10-speed or 12-speed manual transmission
- 15CBM, 20CBM, 25CBM or 30CBM water tank
- Q235 carbon-steel, high-strength steel or stainless-steel tank
- customized tank-body and tank-head thickness
- single-compartment or multi-compartment tank
- internal anti-wave baffles
- PTO-driven self-priming centrifugal water pump
- customized pump flow and pump head
- self-suction filling
- external pressure filling
- pump discharge
- gravity discharge
- pure water tanker configuration
- front sprinkler
- rear sprinkler
- side sprinkler
- duckbill nozzles
- rear water cannon
- high-pressure water cannon
- front and rear road-flushing system
- mine-road dust-suppression system
- construction-site sprinkler system
- landscape irrigation system
- hose reel
- hand spray gun
- fire-fighting connection
- mechanical or electronic water-level indicator
- stainless-steel valves and pipelines
- internal anti-corrosion coating
- rear working platform
- pump compartment
- hose storage box
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning lights
- toolbox
- customized tank capacity, water system, paint color, company logo and export markings.
Buyer Support
- Dongfeng Tianlong Water Tanker Truck combines a heavy-duty Dongfeng chassis with a large-capacity water tank for demanding mining, construction, industrial and municipal applications. 260HP, 290HP, 340HP and 375HP engine options provide strong power for loaded transportation on highways, construction roads, mining roads and other challenging operating environments. 6×4 and 8×4 chassis configurations are suitable for medium- and high-volume water transportation. Approximately 15–25CBM tanks can be configured on common 6×4 platforms, while 8×4 chassis can support approximately 20–30CBM configurations for projects requiring greater water capacity. The vehicle can be supplied as a pure water tanker, focusing on efficient water loading, transportation and discharge without unnecessary spraying equipment. This configuration is suitable for mining camps, construction sites, industrial facilities, agricultural projects and remote areas requiring reliable bulk-water delivery. For mining, road construction and municipal customers, a complete water sprinkler system can be added as an option. Front sprinklers, rear sprinklers, side sprays, duckbill nozzles, road-flushing nozzles and rear water cannons can be configured for road watering, mine-road dust suppression and construction-site dust control. The PTO-driven self-priming centrifugal water pump allows the truck to draw water from ponds, reservoirs, water storage tanks and other external sources. Pump discharge and gravity discharge provide flexible water delivery even in areas with limited fixed water-supply infrastructure. Multiple internal anti-wave baffles reduce water surge inside the tank during acceleration, braking and cornering, improving loaded vehicle stability. Reinforced tank supports and a dedicated tanker subframe provide reliable structural support for repeated heavy-duty operation. Carbon-steel tanks provide a cost-effective solution for mining, construction and general industrial water transportation, while stainless-steel tanks can be selected for applications requiring improved corrosion resistance or cleaner water-storage conditions. Left-hand-drive and right-hand-drive versions are available for different export markets. Engine power, chassis configuration, tank capacity, tank material, water pump, piping system, sprinkler equipment, water cannon, filling and discharge system, cameras, warning equipment, paint color and other specifications can be customized according to project requirements.

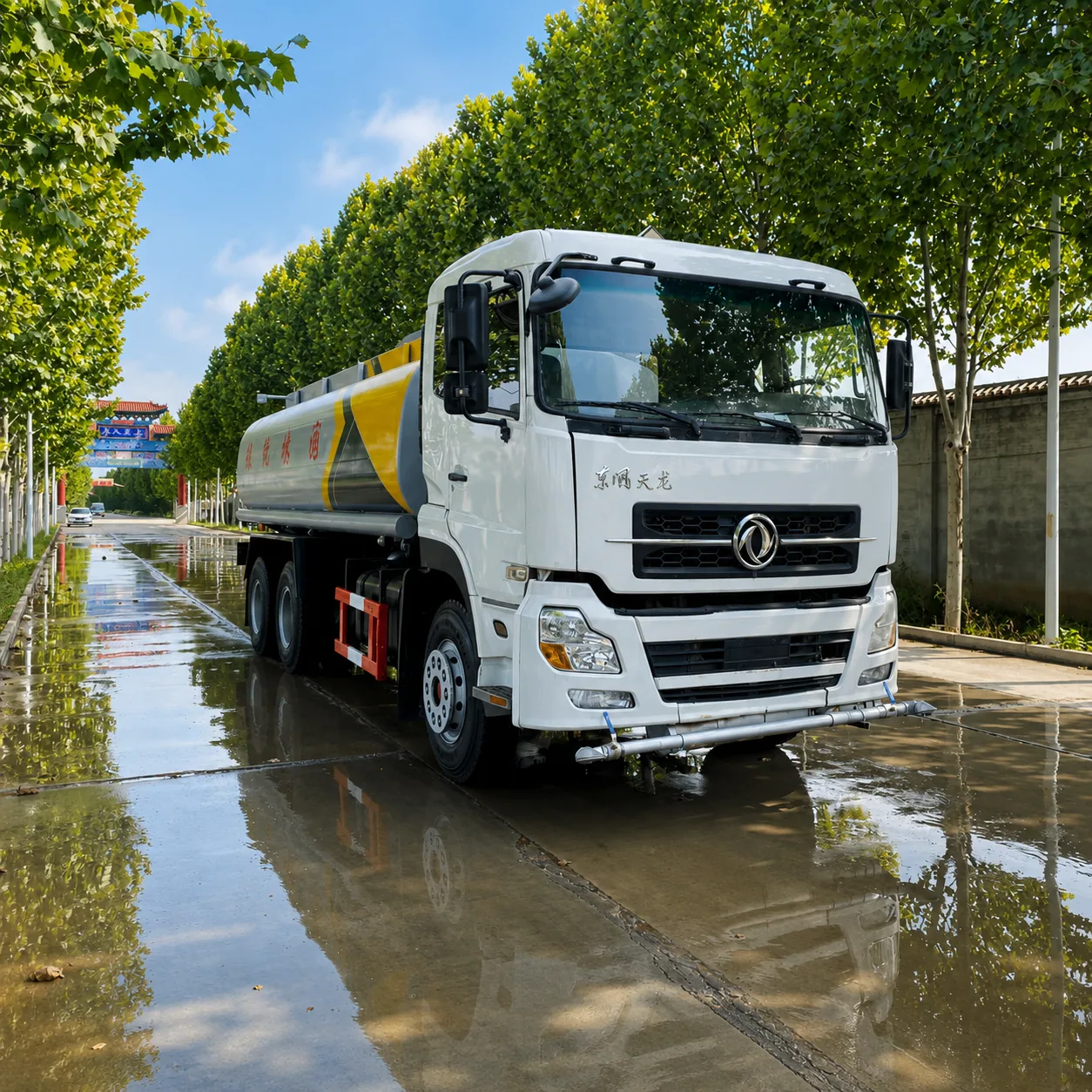

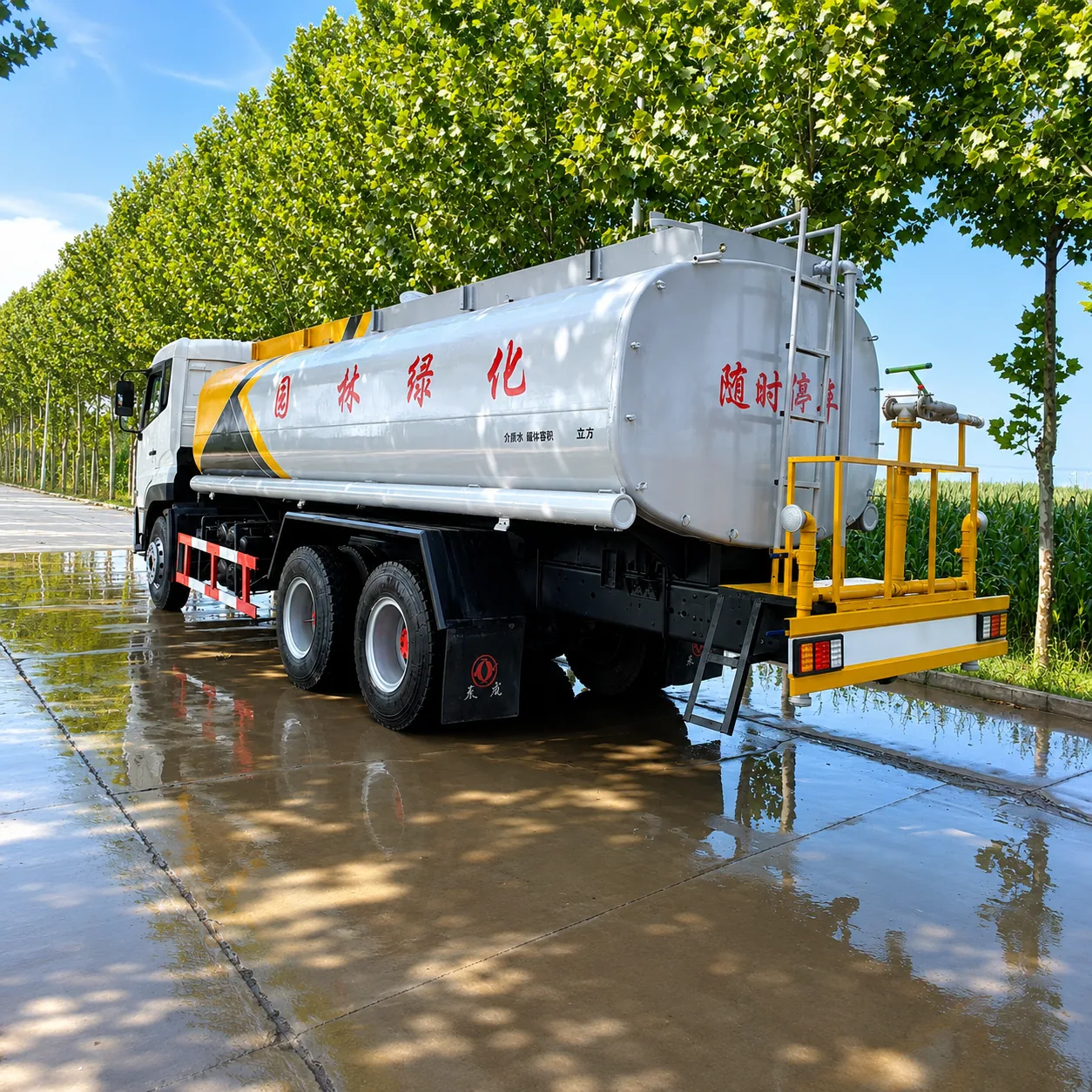

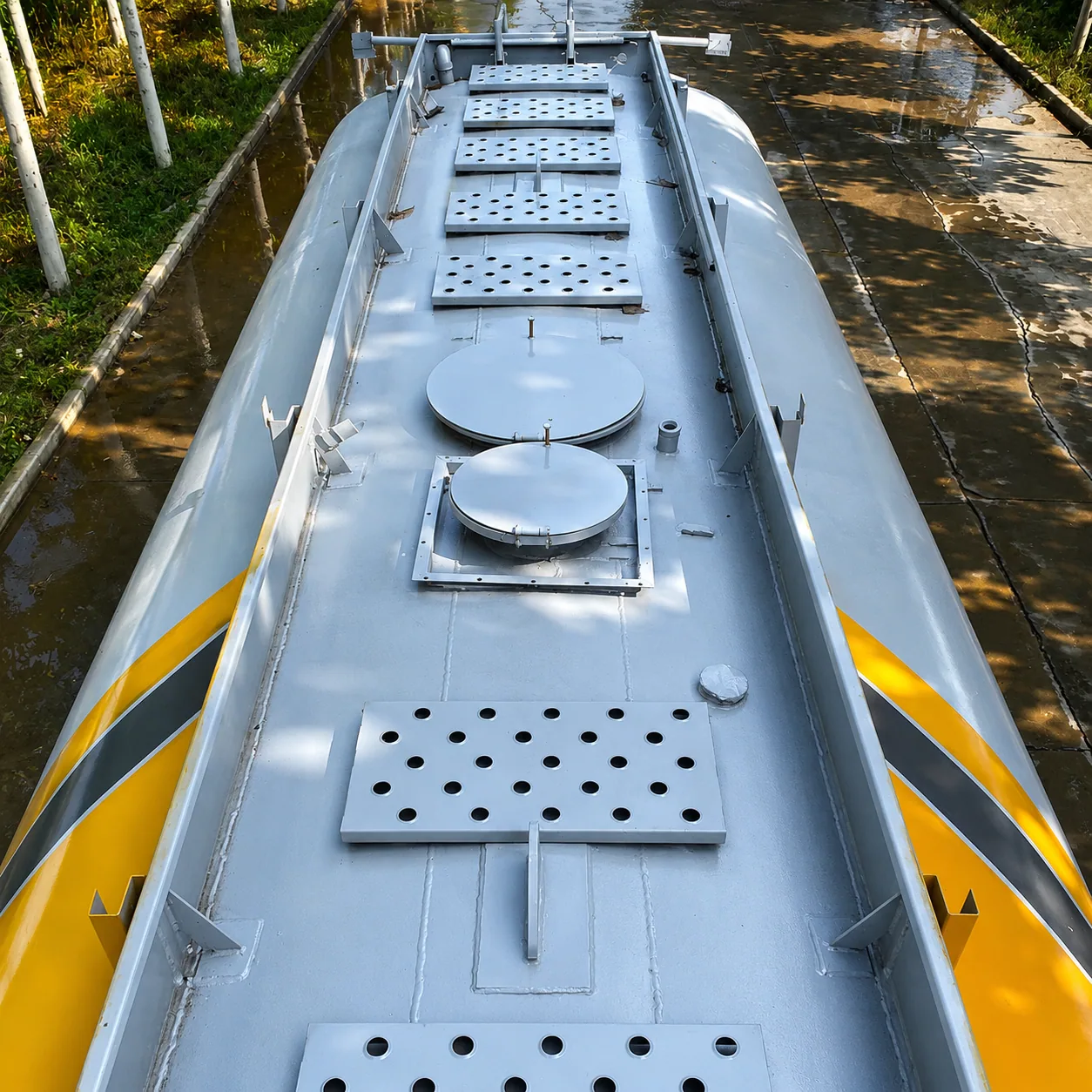

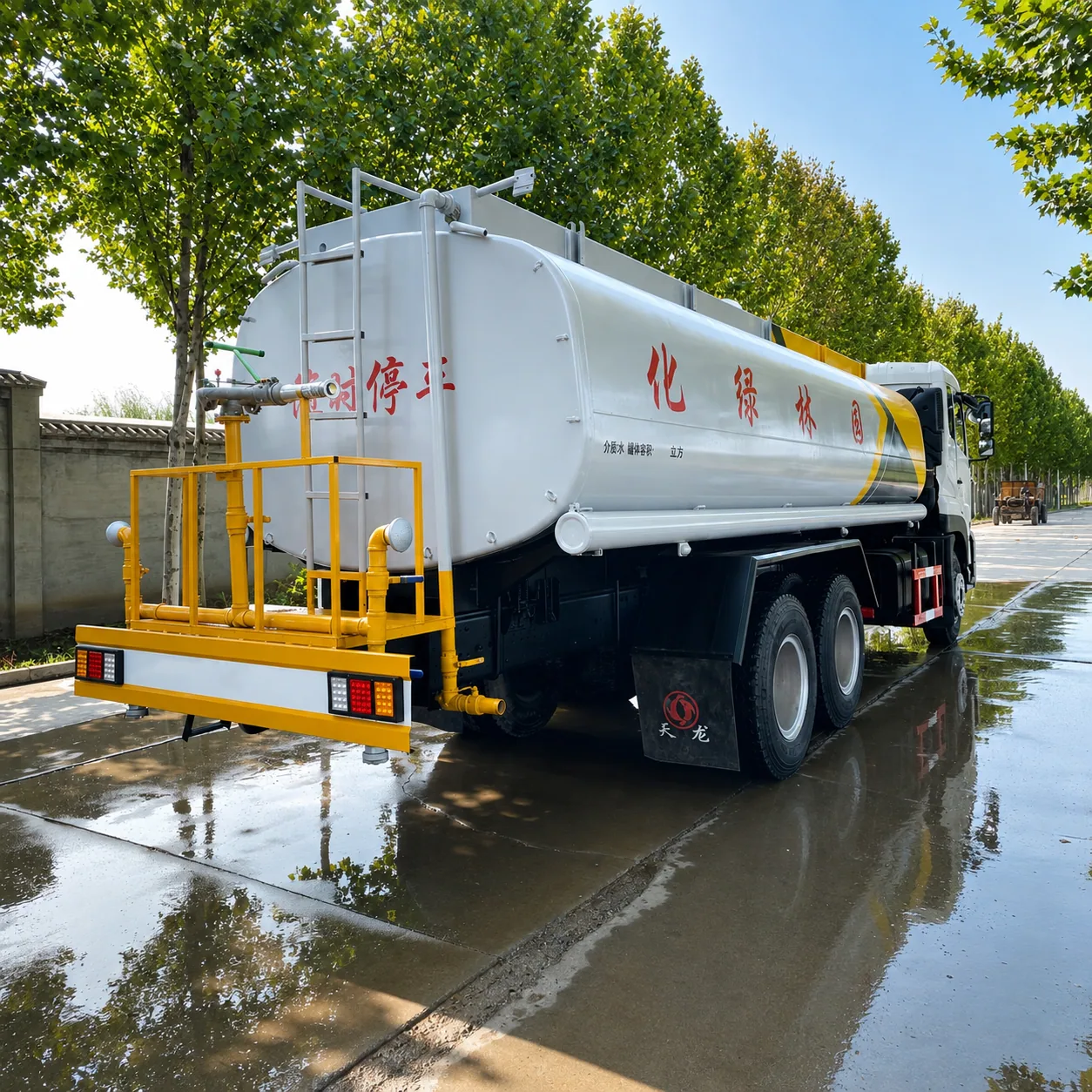

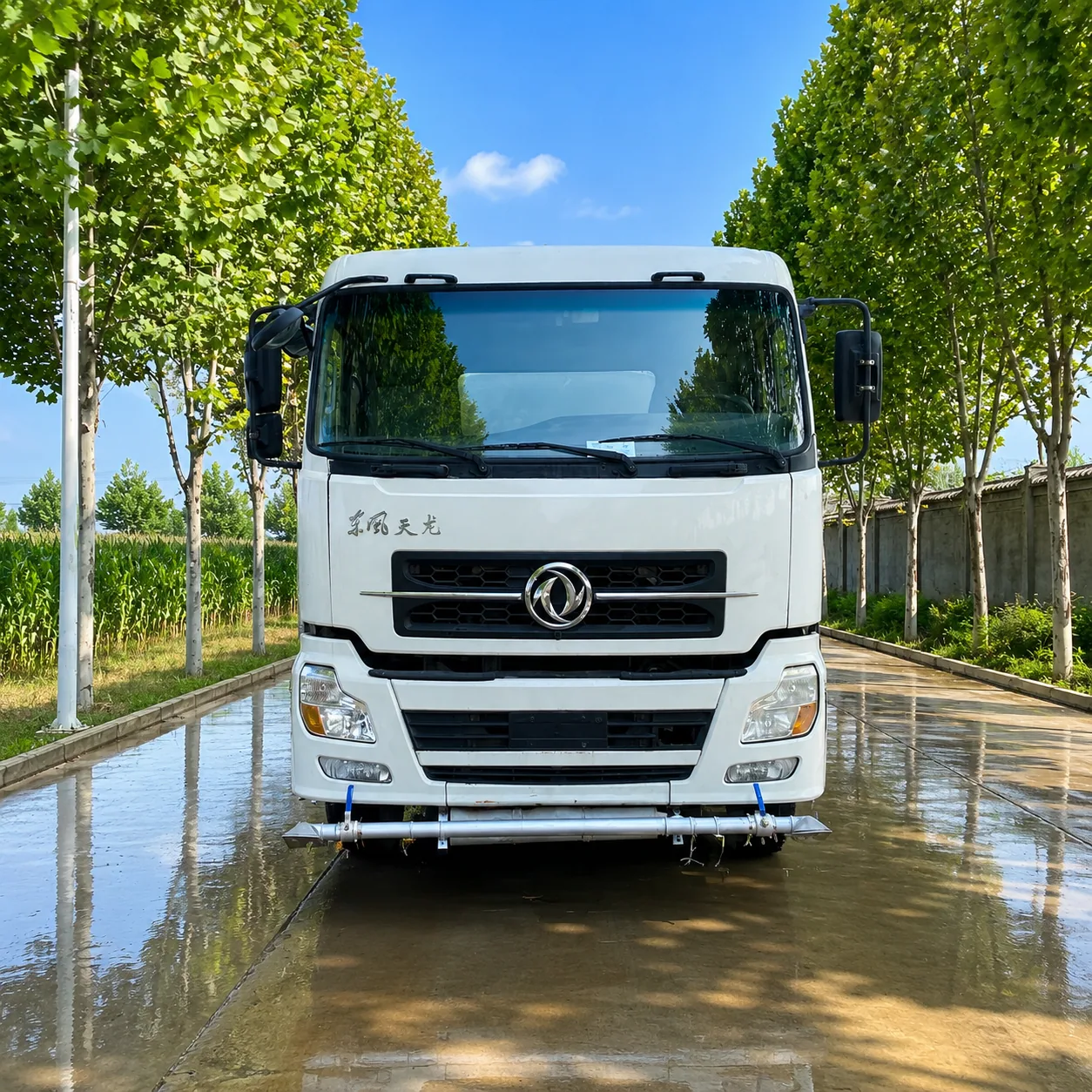

Product Display
