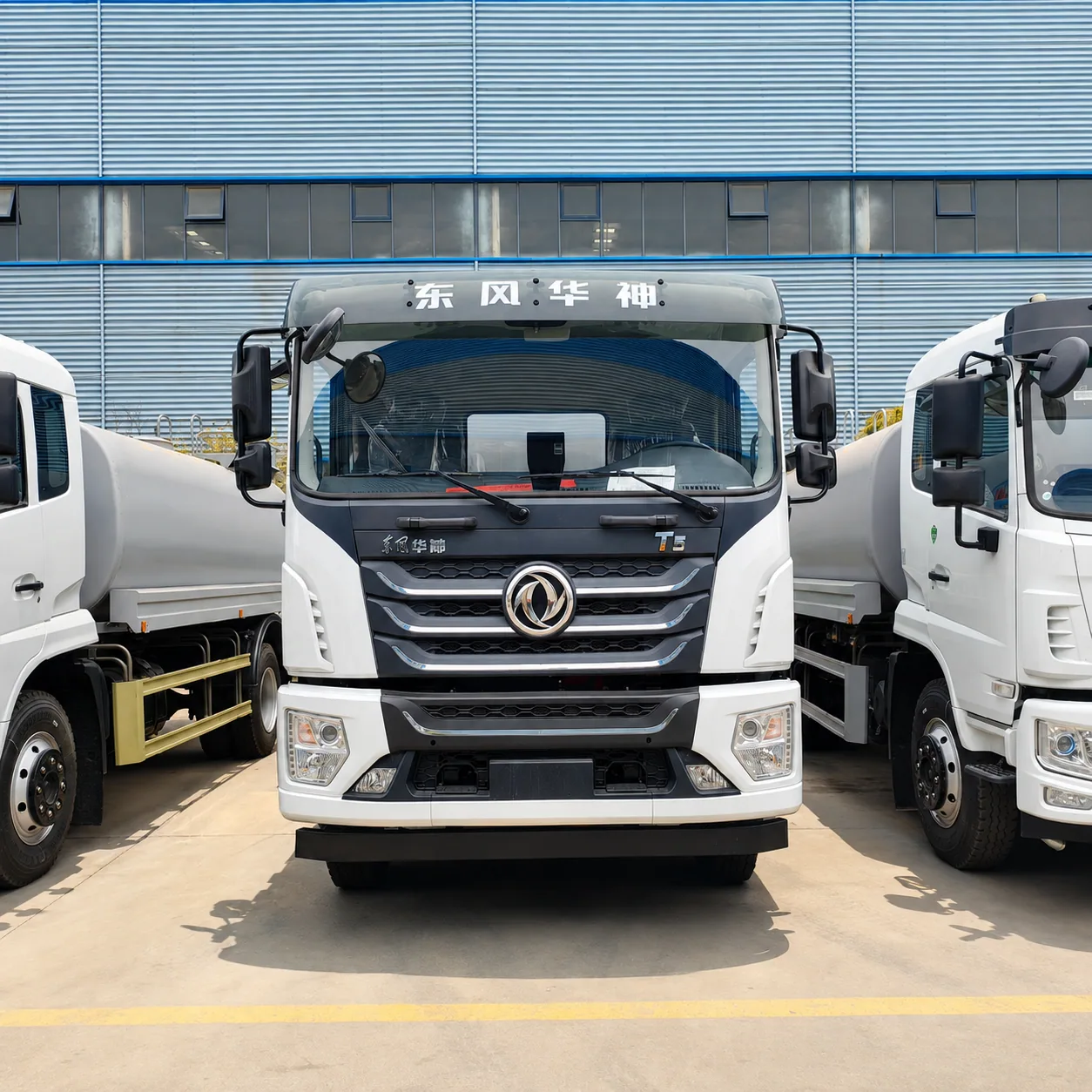

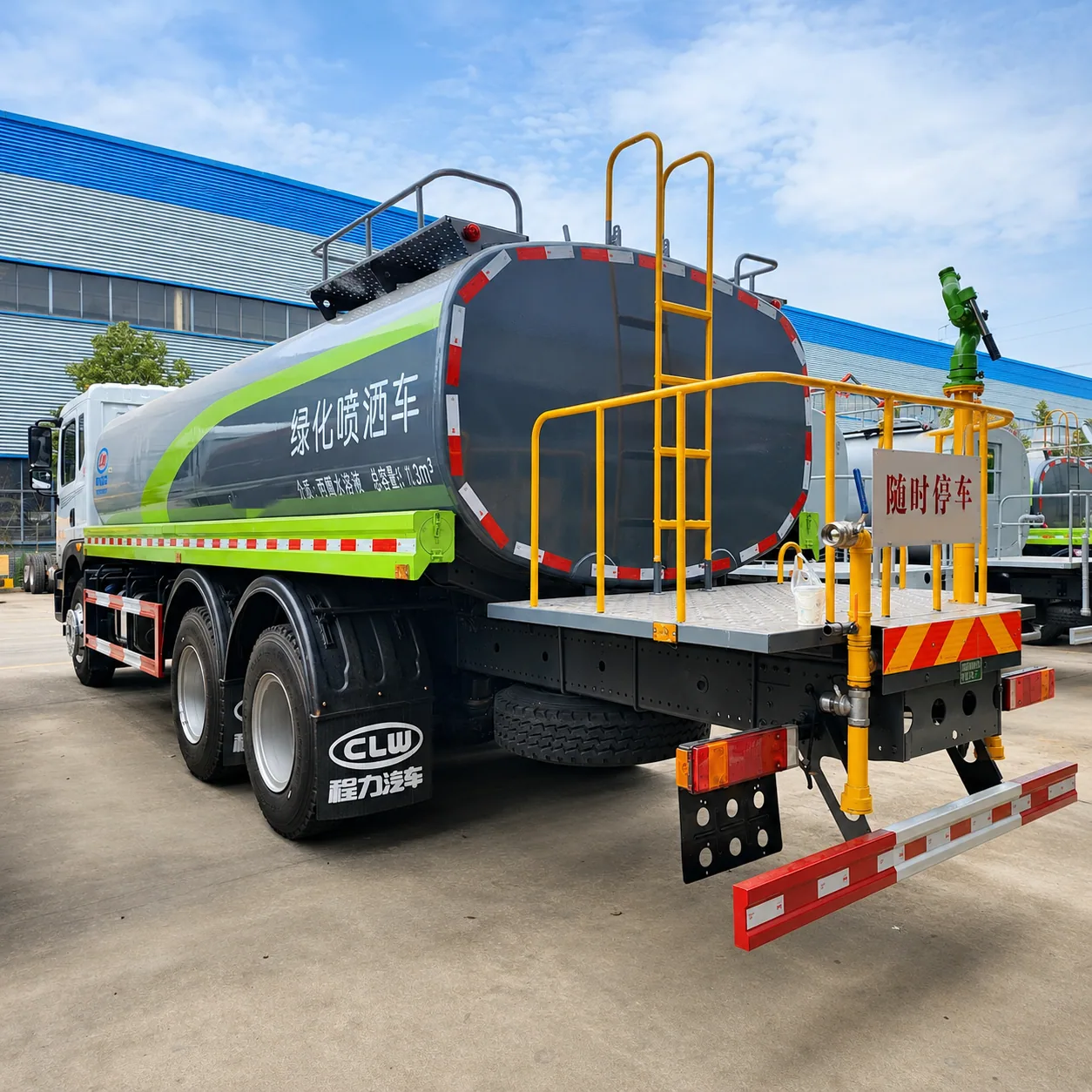

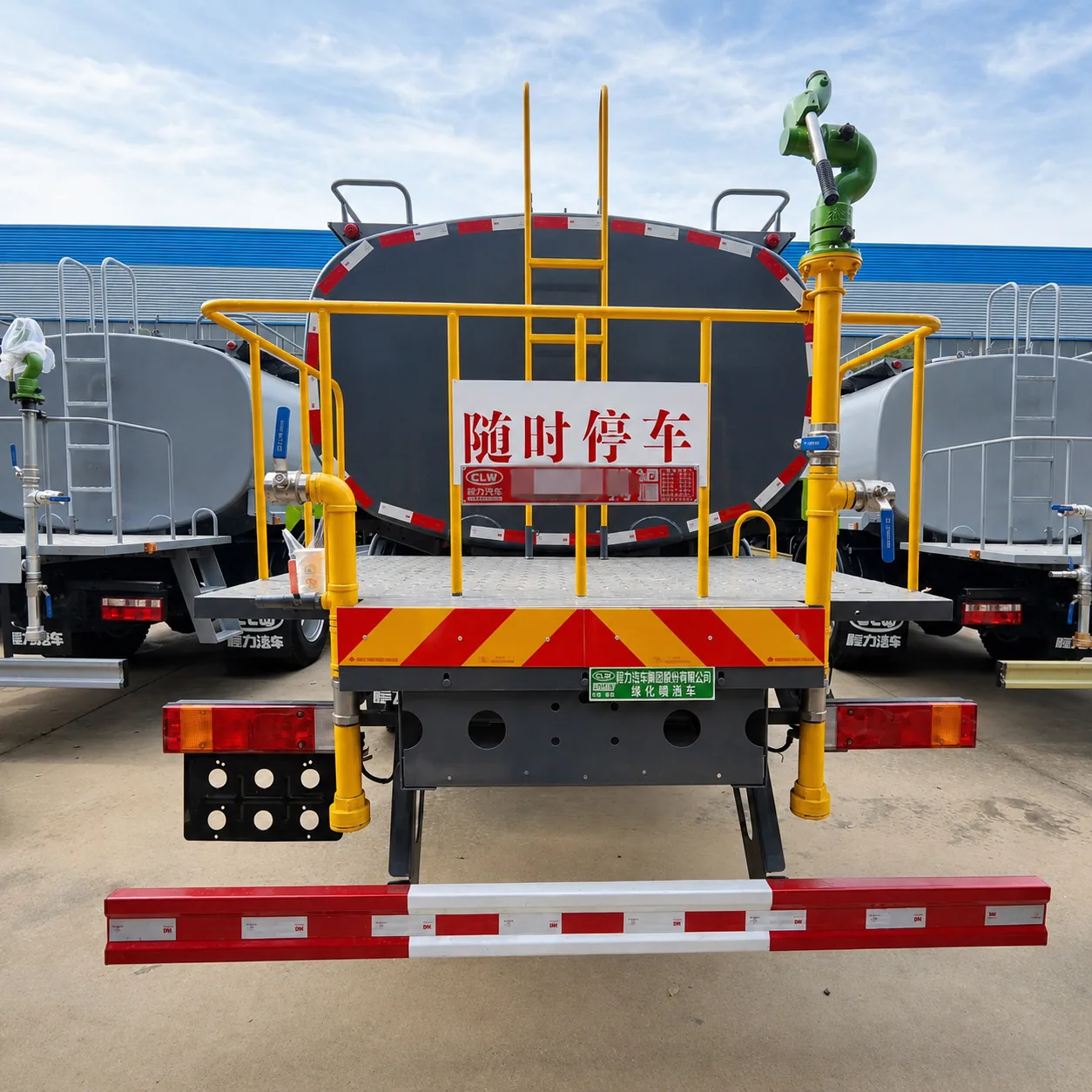

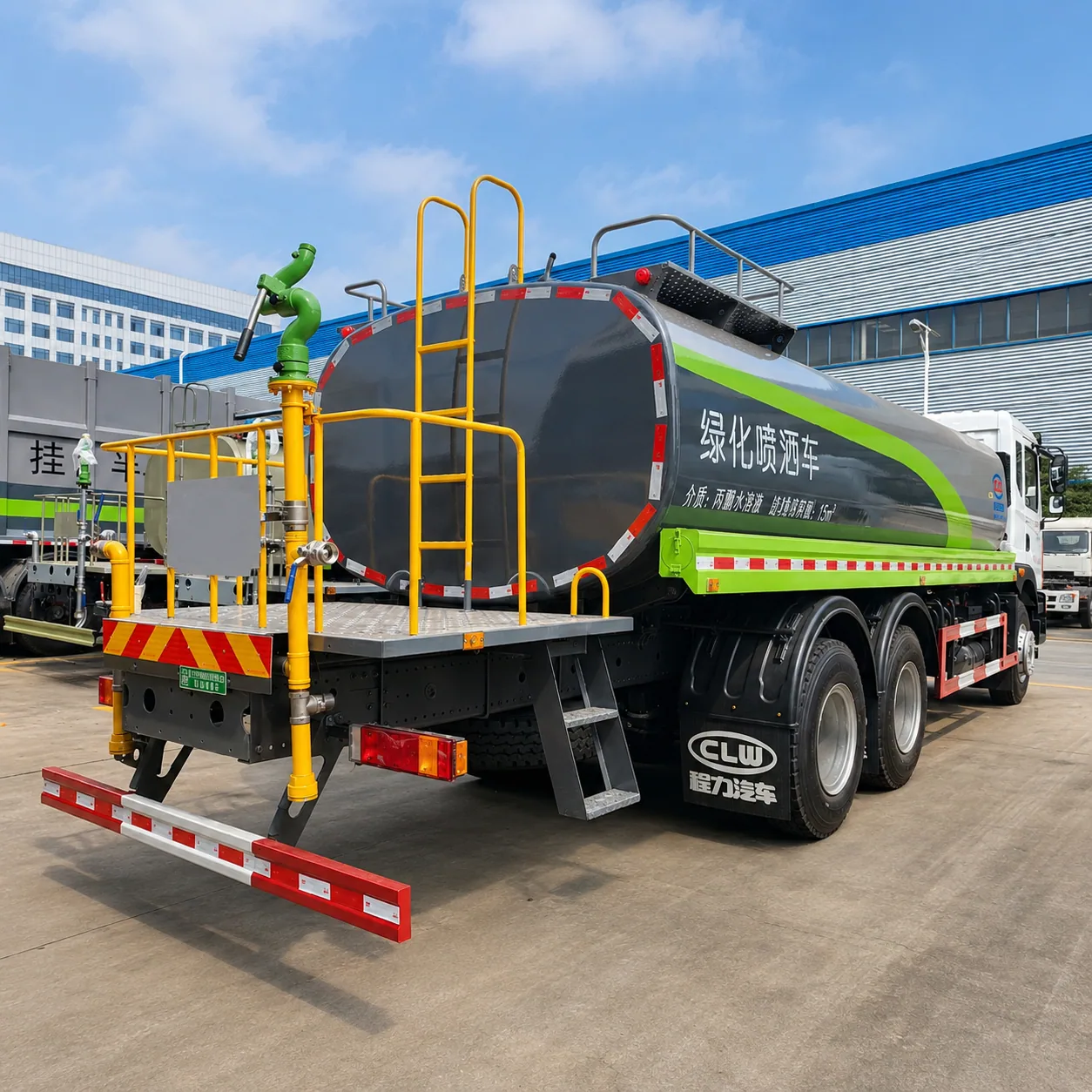

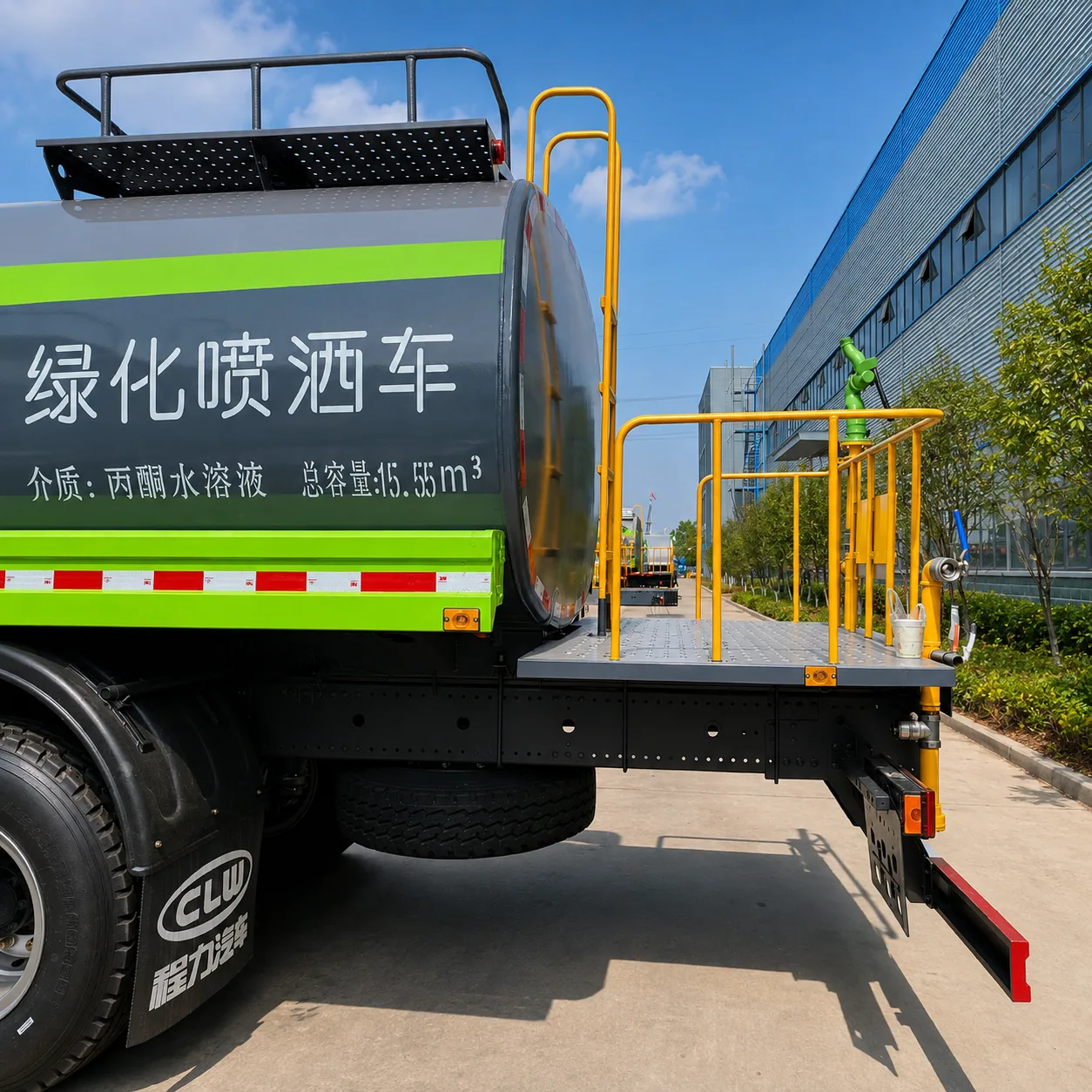

Dongfeng T5 Water Tanker Truck 210 / 240 / 260 / 290HP 12 / 15 / 20 / 25CBM Available – Water Sprinkler Optional
Dongfeng T5 Water Tanker Truck is a medium- and heavy-duty water transportation vehicle designed for construction projects, mining operations, municipal engineering, industrial sites, agriculture and remote-area water supply. The vehicle combines a reliable Dongfeng T5 commercial chassis with a reinforced large-capacity water tank, PTO-driven water pump, pipelines, valves and filling/discharge equipment for efficient bulk-water transportation. The truck can be supplied as a pure water tanker for water loading, transportation and discharge, or equipped with an optional water sprinkler system for road watering, mine-road dust suppression, construction-site dust control, municipal cleaning and landscape irrigation. Customers can select only the required spraying equipment according to actual project conditions. Dongfeng T5 water tanker trucks are available with 4×2 and 6×4 chassis configurations. Common engine options include approximately 210HP, 240HP, 260HP and 290HP, while tank capacities of approximately 12CBM, 15CBM, 20CBM and 25CBM can be configured according to chassis payload, road conditions and local regulations. Carbon-steel and stainless-steel tanks are available.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Water Tanker Truck / Water Bowser Truck / Water Transport Truck / Water Sprinkler Truck |
| Brand | Dongfeng |
| Chassis Series | Dongfeng T5 |
| Drive Type | 4×2 / 6×4 available |
| Engine Power | 210HP / 240HP / 260HP / 290HP available according to chassis and stock |
| Engine Brand | Dongfeng Cummins / Yuchai / Dongfeng or equivalent |
| Engine Type | Inline four-cylinder / six-cylinder turbocharged and intercooled diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Type | Manual transmission |
| Transmission Gears | 8-speed / 9-speed / 10-speed manual transmission according to chassis |
| PTO | Available for water-pump operation |
| Cab Series | Dongfeng T5 |
| Cab Type | Standard / extended cab according to chassis |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected configurations |
| Driver Seat | Adjustable / air-suspension seat optional |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 7,500–10,500 mm depending on chassis and tank capacity |
| Overall Width | Approx. 2,400–2,550 mm |
| Overall Height | Approx. 2,900–3,600 mm |
| Wheelbase | Multiple wheelbase configurations available according to 4×2 / 6×4 chassis |
| Gross Vehicle Weight | Approx. 18–32 tons depending on chassis |
| Curb Weight | Approx. 8–14 tons depending on tank and equipment |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | Dongfeng steering axle |
| Rear Axle | Dongfeng heavy-duty drive axle |
| Rear Axle Type | Single-reduction / heavy-duty drive axle according to chassis |
| Differential Lock | Available on selected 6×4 configurations |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced tanker special-purpose subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / balance suspension |
| Tire Model | 10.00R20 / 11.00R20 / 12.00R20 / 275/80R22.5 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 200–400 L |
| Brake System | Dual-circuit compressed-air brake system |
| Parking Brake | Spring-energy compressed-air brake |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Tank Capacity | 12CBM / 15CBM / 20CBM / 25CBM available |
| Common 4×2 Tank Capacity | Approx. 12–15 CBM |
| Common 6×4 Tank Capacity | Approx. 15–25 CBM |
| Tank Shape | Elliptical / oval cylindrical tank |
| Tank Material | Q235 carbon steel / high-strength steel / stainless steel optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Tank Body Thickness | Approx. 4–6 mm or customized |
| Tank Head Thickness | Approx. 5–7 mm or customized |
| Tank Compartments | Single compartment standard / multi-compartment optional |
| Internal Baffles | Multiple anti-wave baffles |
| Baffle Function | Reduces liquid surge during acceleration, braking and cornering |
| Manhole | Available |
| Manhole Cover | Bolt-type / quick-opening type optional |
| Tank Ladder | Available |
| Top Walkway | Anti-slip walkway optional |
| Top Guardrail | Optional |
| Water Pump | Available |
| Pump Type | Self-priming centrifugal water pump |
| Pump Drive | PTO-driven |
| Pump Flow | Approx. 40–80 m³/h depending on pump |
| Pump Head | Approx. 45–90 m depending on pump |
| Self-Priming Function | Available |
| Self-Suction Depth | Approx. 5–7 m depending on pump |
| Water Filling | Pump self-suction / external pressure filling |
| Water Discharge | Pump discharge / gravity discharge |
| Gravity Discharge Valve | Available |
| Water Inlet | Available |
| Water Outlet | Available |
| Suction Hose | Available / optional |
| Suction Hose Length | Approx. 5–8 m or customized |
| Pipeline Material | Carbon steel / galvanized steel / stainless steel optional |
| Valve Material | Carbon steel / aluminum alloy / stainless steel optional |
| Pure Water Tanker Configuration | Available |
| Water Sprinkler Configuration | Optional |
| Front Sprinkler | Optional |
| Rear Sprinkler | Optional |
| Side Sprinkler | Optional |
| Front Duckbill Nozzles | Optional |
| Rear Spray Nozzles | Optional |
| Sprinkling Width | Approx. 14–20 m depending on sprinkler system |
| Rear Water Cannon | Optional |
| Water Cannon Range | Approx. 25–35 m depending on pump and nozzle |
| Water Cannon Rotation | Adjustable |
| Water Cannon Spray Pattern | Column / heavy rain / moderate rain / mist adjustable |
| High-Pressure Water Cannon | Optional |
| Front Flushing System | Optional |
| Rear Flushing System | Optional |
| Side Spray System | Optional |
| Road Washing System | Optional |
| Mine-Road Dust Suppression | Optional |
| Construction-Site Dust Control | Optional |
| Municipal Road Sprinkling | Optional |
| Landscape Irrigation System | Optional |
| Green-Belt Watering | Optional |
| Hand Spray Gun | Optional |
| High-Pressure Spray Gun | Optional |
| Hose Reel | Optional |
| Fire Hose Connection | Optional |
| Fire-Fighting Interface | Optional |
| Water Level Gauge | Mechanical / electronic optional |
| Electronic Level Indicator | Optional |
| Overflow Pipe | Available |
| Bottom Drain Valve | Available |
| Tank Cleaning Port | Available |
| Internal Anti-Corrosion Coating | Optional |
| External Anti-Corrosion Treatment | Primer + industrial topcoat |
| Stainless-Steel Inner Tank | Optional |
| Rear Working Platform | Optional |
| Pump Compartment | Optional |
| Hose Storage Box | Optional |
| Toolbox | Available / optional |
| Rear Working Lights | Optional |
| LED Warning Lights | Optional |
| Reversing Camera | Optional |
| Rear Working Camera | Optional |
| 360° Monitoring System | Optional |
| Fire Extinguisher | Available / optional |
| Color | White, blue, green, yellow, red, orange or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Engine, drive type, tank volume, tank material, steel thickness, water pump, pipelines, sprinkler equipment, water cannon, filling/discharge system, steering side, cameras, warning equipment, paint color, company logo and export markings |
Product Details
Typical Applications
- Construction-site water supply
- mining-site water transportation
- mine-road dust suppression
- quarry dust control
- road construction
- highway maintenance
- municipal water transportation
- urban road watering
- industrial water transportation
- factory water supply
- construction-camp water supply
- port and terminal water supply
- agricultural water transportation
- farm irrigation
- landscape irrigation
- green-belt watering
- construction-site dust control
- road washing
- municipal sanitation
- rural water supply
- remote-area water delivery
- emergency water supply.
Available Configurations
- 210HP, 240HP, 260HP or 290HP diesel engine
- Dongfeng T5 4×2 or 6×4 chassis
- Dongfeng Cummins, Yuchai or equivalent engine
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 8-speed, 9-speed or 10-speed manual transmission
- 12CBM, 15CBM, 20CBM or 25CBM water tank
- Q235 carbon-steel, high-strength steel or stainless-steel tank
- customized tank-body and tank-head thickness
- single-compartment or multi-compartment tank
- multiple anti-wave baffles
- PTO-driven self-priming centrifugal water pump
- customized pump flow and pump head
- self-suction filling
- external filling
- gravity discharge
- pump discharge
- pure water tanker configuration
- front sprinkler
- rear sprinkler
- side sprinkler
- duckbill nozzles
- rear water cannon
- high-pressure water cannon
- front and rear flushing system
- mine-road dust-suppression system
- construction-site sprinkler system
- landscape irrigation system
- hose reel
- hand spray gun
- fire-fighting interface
- electronic water-level indicator
- stainless-steel valves and pipelines
- internal anti-corrosion coating
- pump compartment
- rear working platform
- hose storage box
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning lights
- toolbox
- customized tank capacity, water system, paint color, company logo and export markings.
Buyer Support
- Dongfeng T5 Water Tanker Truck combines a reliable Dongfeng medium- and heavy-duty chassis with a large-capacity water tank for construction, mining, municipal, industrial and agricultural projects. 210HP, 240HP, 260HP and 290HP engine configurations provide multiple power options for different payloads, road conditions and operating environments. The vehicle can be supplied as a pure water tanker, focusing on bulk-water loading, transportation and discharge. This configuration is suitable for construction camps, mining sites, factories, agricultural projects and remote areas where the main requirement is transporting large volumes of water rather than road sprinkling. For customers requiring dust control or municipal sanitation, a complete sprinkler system can be added as an option. Front sprinklers, rear sprinklers, side sprays, duckbill nozzles, road-flushing nozzles and rear water cannons can be configured according to operating requirements. 4×2 configurations are suitable for approximately 12–15CBM applications requiring better maneuverability, while 6×4 chassis can support approximately 15–25CBM tanks for higher-volume construction, mining and industrial water transportation. The PTO-driven self-priming centrifugal pump allows the truck to draw water directly from ponds, reservoirs, storage tanks or other external water sources. Pump discharge and gravity discharge provide flexible water-delivery options for projects where fixed water-supply infrastructure is limited. Multiple internal anti-wave baffles reduce water surge during acceleration, braking and cornering, helping improve vehicle stability when transporting a full tank. Tank dimensions, steel thickness and internal structures can be customized according to chassis payload and operating requirements. Carbon-steel tanks provide a cost-effective solution for construction, mining and general water transportation, while stainless-steel tanks can be selected where improved corrosion resistance or cleaner water-storage conditions are required. Left-hand-drive and right-hand-drive versions are available for different export markets. Engine power, drive configuration, tank capacity, tank material, pump, piping, sprinkler equipment, water cannon, filling and discharge system, cameras, warning equipment, paint color and other specifications can be customized.
