Special Trucks
Dongfeng Sewage Suction Truck 120 / 140 / 170 / 190 / 210 / 260 / 290HP 5 / 8 / 10 / 12 / 15 / 20 / 25CBM Available
Dongfeng Sewage Suction Truck is a professional vacuum tanker designed for sewage collection, septic tank cleaning, sludge removal, wastewater transportation and municipal sanitation work. The vehicle combines a reliable Dongfeng commercial chassis with a sealed vacuum tank, high-performance vacuum pump, large-diameter suction pipeline, hydraulic lifting system and rear discharge structure for efficient collection and transportation of liquid and semi-liquid waste. Dongfeng sewage suction trucks are available with 4×2, 6×4 and 8×4 chassis configurations. Engine options include approximately 120HP, 140HP, 170HP, 190HP, 210HP, 260HP and 290HP, while sewage tank capacities of approximately 5CBM, 8CBM, 10CBM, 12CBM, 15CBM, 20CBM and 25CBM can be selected according to chassis capacity and operating requirements. The vacuum system generates negative pressure inside the sealed tank, allowing sewage, sludge, septic waste and sediment-containing wastewater to be sucked through a large-diameter hose. Hydraulic tank lifting and a hydraulically operated rear door can be configured for efficient discharge and easier removal of settled sludge. Vacuum pump type, suction depth, tank material, hose diameter, discharge system and cleaning equipment can be customized.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Sewage Suction Truck / Vacuum Sewage Truck / Vacuum Tanker Truck / Septic Tank Truck |
| Brand | Dongfeng |
| Chassis Brand | Dongfeng |
| Common Chassis Series | Duolika / D6 / D7 / D9 / Tianjin / Tianlong or equivalent |
| Drive Type | 4×2 / 6×4 / 8×4 available |
| Engine Power | 120HP / 140HP / 170HP / 190HP / 210HP / 260HP / 290HP available |
| Engine Brand | Dongfeng Cummins / Yuchai / Dongfeng or equivalent |
| Engine Type | Four-cylinder / inline six-cylinder turbocharged diesel engine |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro V / Euro VI available according to chassis and export market |
| Transmission Type | Manual transmission |
| Transmission Gears | 6-speed / 8-speed / 9-speed / 10-speed according to chassis |
| PTO | PTO for vacuum pump and hydraulic system |
| Cab Type | Dongfeng standard / extended cab |
| Seating Capacity | 2–3 persons |
| Sleeper | Available on selected medium- and heavy-duty chassis |
| Steering | Left-hand drive / right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 6,000–12,000 mm depending on chassis and tank capacity |
| Overall Width | Approx. 2,200–2,550 mm |
| Overall Height | Approx. 2,700–3,800 mm |
| Wheelbase | Multiple wheelbase configurations available |
| Gross Vehicle Weight | Approx. 10–41 tons depending on chassis |
| Rated Payload | According to chassis, tank capacity and local certification |
| Maximum Driving Speed | Approx. 80–100 km/h |
| Front Axle | Dongfeng steering axle |
| Rear Axle | Dongfeng heavy-duty drive axle |
| Rear Axle Type | Single-reduction / hub-reduction available |
| Differential Lock | Available on selected heavy-duty chassis |
| Frame | Reinforced high-strength steel chassis frame |
| Tank Subframe | Reinforced special-purpose tanker subframe |
| Front Suspension | Leaf spring suspension |
| Rear Suspension | Reinforced multi-leaf spring / balance suspension |
| Tire Model | 8.25R16 / 9.00R20 / 10.00R20 / 11.00R20 / 12.00R20 or equivalent |
| Tire Quantity | According to 4×2 / 6×4 / 8×4 chassis |
| Spare Tire | Available / optional |
| Fuel Tank | Approx. 150–400 L depending on chassis |
| Brake System | Hydraulic / compressed-air brake system according to chassis |
| Parking Brake | Mechanical / spring-energy brake according to chassis |
| Auxiliary Brake | Engine exhaust brake available |
| ABS | Available |
| Electrical System | 24V |
| Sewage Tank Capacity | 5CBM / 8CBM / 10CBM / 12CBM / 15CBM / 20CBM / 25CBM available |
| Light-Duty Tank Capacity | Approx. 5–8 CBM |
| Medium-Duty Tank Capacity | Approx. 8–15 CBM |
| Heavy-Duty Tank Capacity | Approx. 15–25 CBM |
| Tank Shape | Cylindrical vacuum tank |
| Tank Material | Q235 carbon steel / high-strength steel / stainless steel optional |
| Carbon-Steel Tank | Available |
| Stainless-Steel Tank | Optional |
| Tank Body Thickness | Approx. 5–8 mm or customized |
| Tank Head Thickness | Approx. 6–10 mm or customized |
| Internal Reinforcement | Reinforcing rings / anti-deformation structure |
| Tank Structure | Fully sealed negative-pressure vacuum tank |
| Tank Welding | Continuous sealed welding |
| Tank Top Manhole | Available |
| Manhole Cover | Sealed quick-opening / bolted type |
| Tank Ladder | Available |
| Top Walkway | Optional |
| Vacuum Pump Type | Rotary vane vacuum pump / water-ring vacuum pump optional |
| Vacuum Pump Drive | PTO-driven |
| Vacuum Pump Air Displacement | Approx. 5–15 m³/min depending on pump |
| Maximum Vacuum Degree | Approx. -0.08 to -0.095 MPa depending on pump |
| Maximum Suction Depth | Approx. 6–8 m |
| Typical Suction Time | Approx. 5–10 minutes depending on tank, pump and material |
| Suction Hose Diameter | Approx. 100–150 mm |
| Suction Hose Length | Approx. 5–10 m standard / customized |
| Additional Suction Hose | Optional |
| Hose Material | Reinforced flexible sewage suction hose |
| Rear Suction Port | Available |
| Side Suction Port | Optional |
| Rotary Suction Boom | Optional |
| Suction Boom Control | Manual / hydraulic optional |
| Suction Valve | Heavy-duty sewage valve |
| Vacuum Gauge | Available |
| Pressure Gauge | Available |
| Vacuum Control Valve | Available |
| Four-Way Valve | Available according to pump configuration |
| Oil-Water Separator | Available |
| Gas-Water Separator | Available |
| Secondary Separator | Optional |
| Vacuum Pump Lubrication | According to pump type |
| Anti-Overflow Device | Available |
| Float Anti-Overflow Valve | Available |
| High-Level Alarm | Optional |
| Liquid Level Indicator | Mechanical / electronic optional |
| Sight Glass | Optional |
| Tank Lifting | Hydraulic lifting |
| Tank Tipping Angle | Approx. 40–50° |
| Rear Door Opening | Hydraulic |
| Rear Door Locking | Hydraulic / mechanical locking |
| Rear Door Sealing | Heavy-duty sealing ring |
| Rear Discharge Port | Available |
| Discharge Valve | Heavy-duty sewage discharge valve |
| Discharge Method | Gravity discharge / hydraulic tipping discharge |
| Pressure-Assisted Discharge | Optional according to vacuum system |
| Sediment Discharge | Hydraulic rear opening + tank lifting |
| Self-Unloading Function | Available |
| Hydraulic Pump | PTO-driven hydraulic gear pump |
| Hydraulic Working Pressure | Approx. 16–25 MPa depending on system |
| Hydraulic Oil Tank | Available |
| Hydraulic Cylinders | Heavy-duty hydraulic cylinders |
| Tank Lifting Cylinder | Heavy-duty hydraulic cylinder |
| Rear Door Cylinder | Hydraulic |
| Hydraulic Control Valve | Multi-way hydraulic valve |
| Operation Control | Manual hydraulic / electro-hydraulic optional |
| External Control Panel | Available |
| Cab Control | Optional |
| Wireless Remote Control | Optional |
| Emergency Manual Control | Optional |
| Internal Tank Cleaning | Optional |
| Internal Flushing Nozzle | Optional |
| Auxiliary Clean-Water Tank | Optional |
| High-Pressure Cleaning Pump | Optional |
| Hose Reel | Optional |
| Hand-Wash Tank | Optional |
| Drainage Port | Available |
| Overflow Pipe | Available according to tank structure |
| Internal Anti-Corrosion Coating | Optional |
| External Anti-Corrosion Treatment | Available |
| External Painting | Industrial primer + topcoat |
| Stainless-Steel Pipeline | Optional |
| Stainless-Steel Valves | Optional |
| Rear Working Platform | Optional |
| Rear Working Lights | Optional |
| Warning Beacon | Optional |
| LED Warning Lights | Optional |
| Reversing Camera | Optional |
| Rear Operation Camera | Optional |
| 360° Monitoring System | Optional |
| Toolbox | Available |
| Hose Storage Rack | Available / optional |
| Fire Extinguisher | Available / optional |
| Color | White, blue, green, yellow, orange, red or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis, engine, drive type, tank capacity, tank material, tank thickness, vacuum pump, suction depth, hose diameter, hose length, hydraulic lifting, rear door, cleaning equipment, steering side, cameras, paint color, company logo and export markings |
Product Details
Typical Applications
- Municipal sewage collection
- septic tank cleaning
- sewer sludge collection
- residential-community sewage removal
- rural sanitation
- cesspit emptying
- wastewater transportation
- construction-site wastewater collection
- industrial wastewater collection
- factory sewage removal
- sediment removal
- public toilet waste collection
- hotel sewage collection
- restaurant wastewater collection
- livestock-farm wastewater collection
- industrial-park sanitation
- municipal drainage maintenance
- mining-camp sewage collection
- construction-camp sanitation
- port and terminal sewage handling
- sludge transportation.
Available Configurations
- 120HP, 140HP, 170HP, 190HP, 210HP, 260HP or 290HP diesel engine
- Dongfeng 4×2, 6×4 or 8×4 chassis
- Dongfeng Cummins, Yuchai or equivalent diesel engine
- left-hand drive or right-hand drive
- Euro III / Euro V / Euro VI configuration according to chassis
- 6-speed, 8-speed, 9-speed or 10-speed manual transmission
- 5CBM, 8CBM, 10CBM, 12CBM, 15CBM, 20CBM or 25CBM sewage tank
- Q235 carbon-steel, high-strength steel or stainless-steel tank
- customized tank body and head thickness
- rotary vane vacuum pump
- water-ring vacuum pump
- approximately 5–15m³/min pump air displacement
- approximately 6–8m suction depth
- 100–150mm suction hose
- 5–10m suction hose or customized length
- rear suction port
- side suction port
- hydraulic rotary suction boom
- hydraulic tank lifting
- hydraulic rear-door opening
- gravity discharge
- hydraulic tipping discharge
- pressure-assisted discharge
- anti-overflow protection
- oil-water separator
- gas-water separator
- high-level alarm
- electronic liquid-level indicator
- internal tank-cleaning system
- auxiliary clean-water tank
- high-pressure flushing system
- hose reel
- stainless-steel valves and pipeline
- wireless remote control
- reversing camera
- rear working camera
- 360° monitoring system
- LED warning lights
- toolbox
- customized tank volume, vacuum system, hydraulic equipment, paint color, company logo and export markings.
Buyer Support
- Dongfeng Sewage Suction Truck combines a reliable Dongfeng commercial chassis with a professional vacuum sewage collection system, providing an efficient solution for municipal sanitation, septic tank cleaning, industrial wastewater handling and sludge transportation. A wide range of light-, medium- and heavy-duty chassis configurations allows the vehicle to match different road conditions and sewage collection volumes. Tank capacities from approximately 5CBM to 25CBM provide flexible choices for different operating environments. Compact 5–8CBM trucks are suitable for urban streets, residential communities and narrow working areas, while 10–15CBM models provide a practical balance between maneuverability and capacity. Larger 15–25CBM configurations are suitable for high-volume municipal, industrial and project applications. The PTO-driven vacuum pump generates strong negative pressure inside the sealed tank, allowing sewage, septic waste, sludge and sediment-containing wastewater to be collected through a large-diameter suction hose. Different pump capacities can be selected according to tank size, required suction speed and material characteristics. A suction depth of approximately 6–8 meters allows the vehicle to work with underground septic tanks, sewage pits, drainage systems and other below-ground structures. Large 100–150mm suction hoses improve the ability to handle sludge and semi-liquid waste. Hydraulic tank lifting and a hydraulically operated rear door provide efficient discharge, particularly when transporting sediment or high-viscosity sludge. The tank can be tilted after the rear door is opened, allowing accumulated material to be discharged more completely and simplifying internal cleaning. Anti-overflow protection, vacuum gauges, oil-water separators and gas-water separators help protect the vacuum pump and maintain stable operation. High-level alarms, electronic liquid-level indicators and additional monitoring equipment can also be configured. Carbon-steel tanks provide an economical and durable solution for general sewage applications, while high-strength steel, stainless steel and internal anti-corrosion coatings can be selected for customers requiring increased durability or corrosion resistance. Left-hand-drive and right-hand-drive configurations are available for different export markets. Chassis type, engine power, tank capacity, tank material, vacuum pump, suction depth, hose size, hydraulic lifting system, rear-door structure, cleaning equipment, cameras, warning devices, paint color and other specifications can be customized according to project requirements.

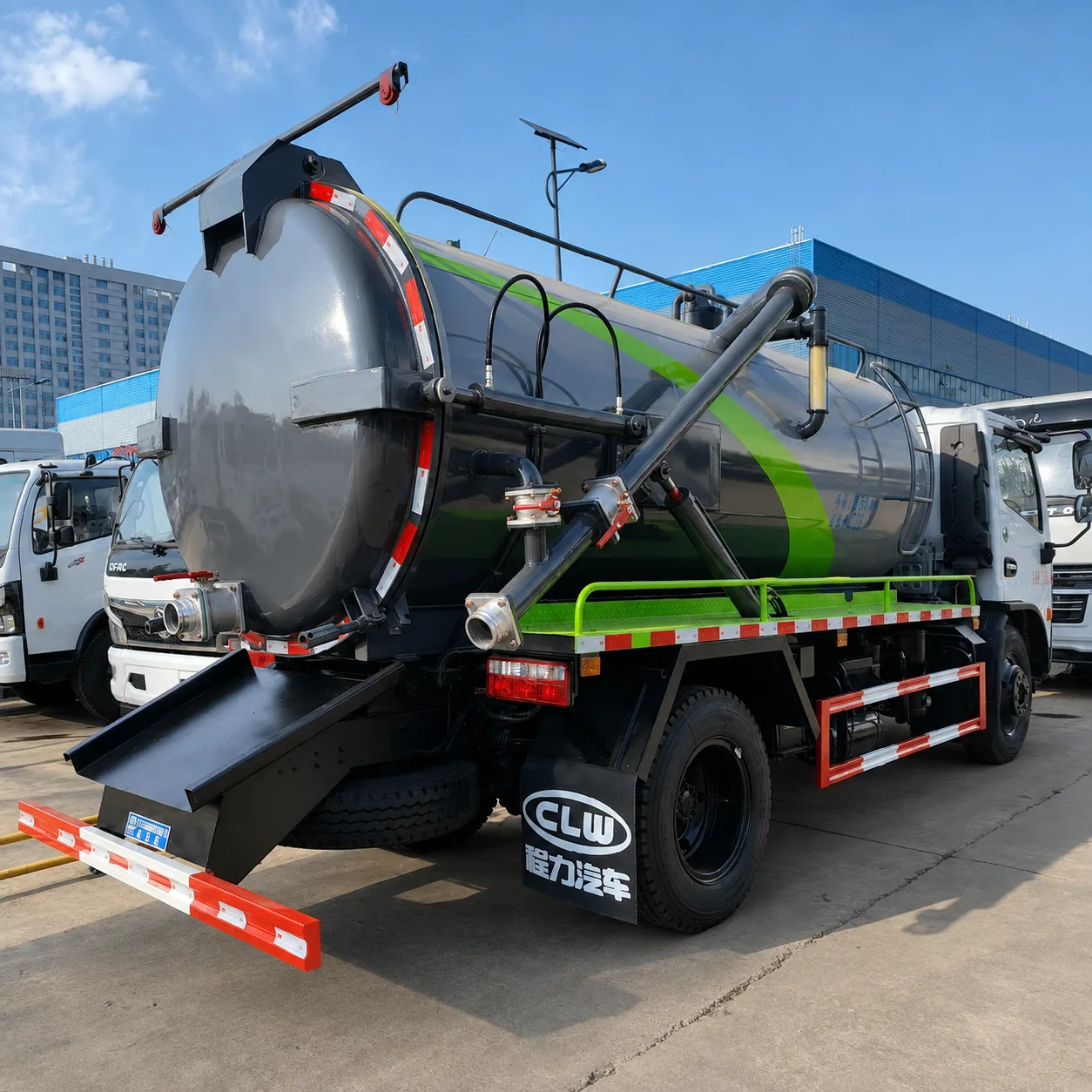

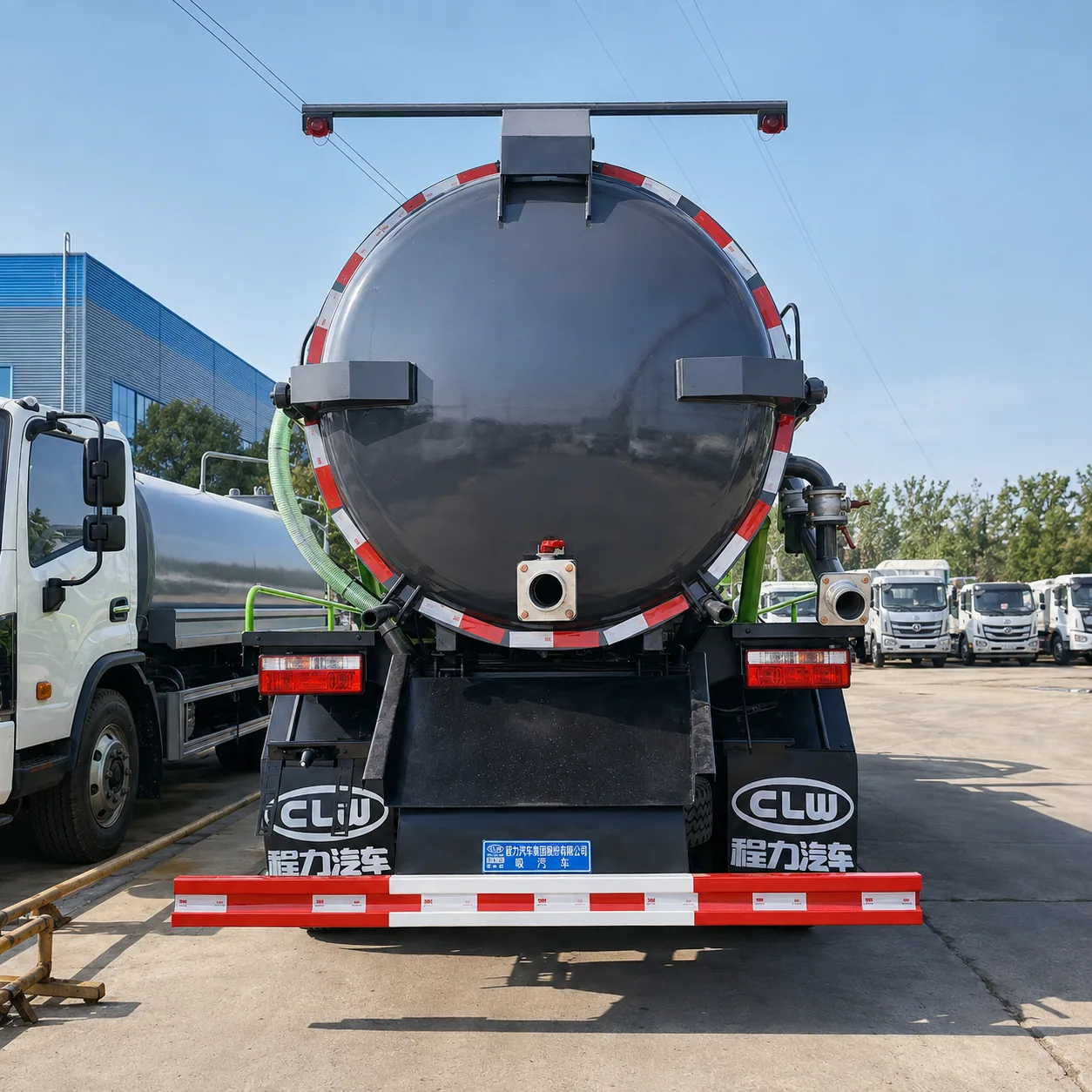

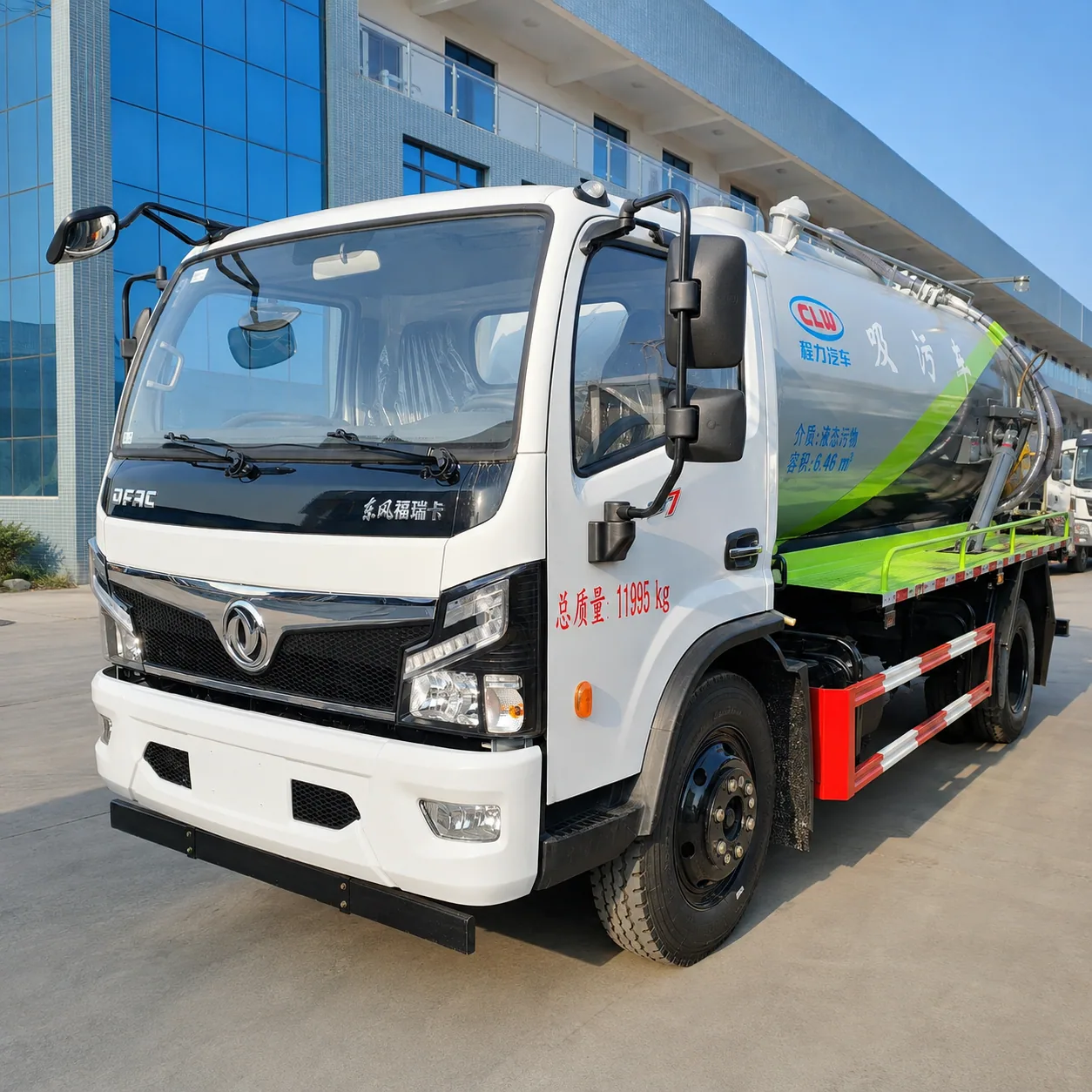

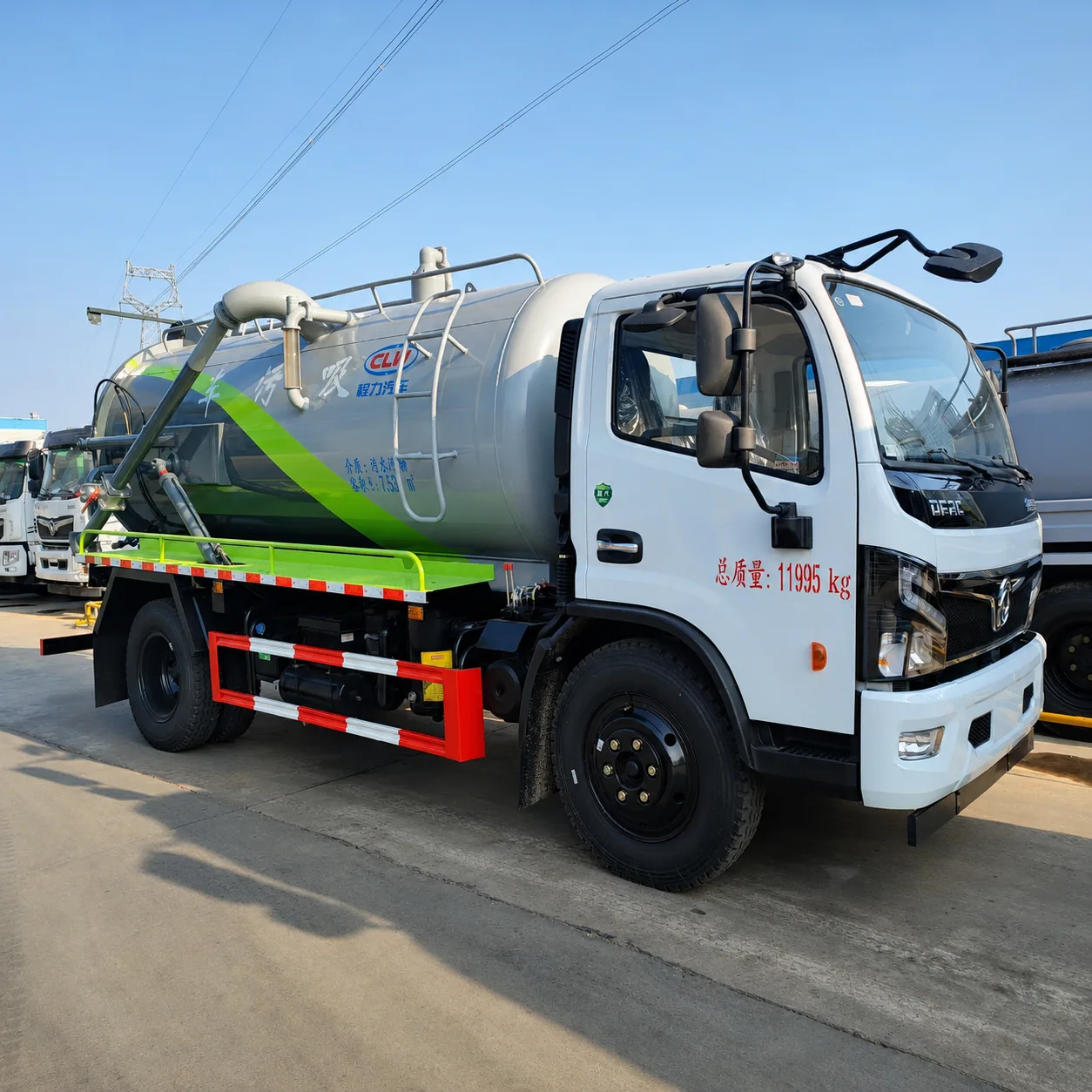

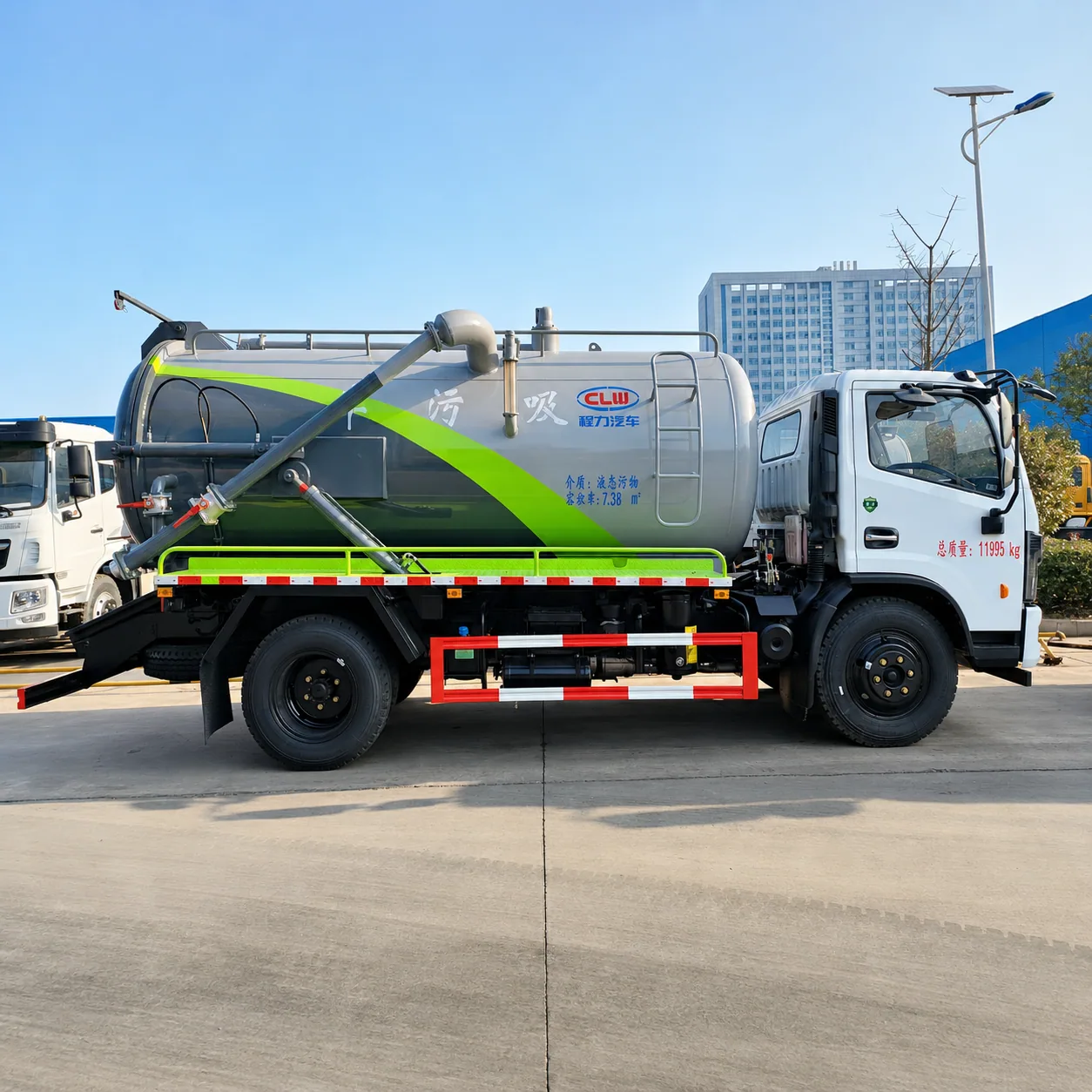

Product Display
