Special Trucks
Dongfeng Road Sweeper Truck 95 / 120 / 140 / 170 / 190HP Available
Dongfeng Road Sweeper Truck is a specialized municipal sanitation vehicle designed for urban street cleaning, highway maintenance, industrial-area cleaning, dust collection, sand removal, leaf collection and general road-surface sanitation. The vehicle combines a reliable Dongfeng commercial chassis with hydraulic sweeping brushes, a vacuum suction system, water-spray dust suppression, debris tank, clean-water tank, hydraulic system and auxiliary power system to complete sweeping, suction and dust-control operations in a single working process. The Dongfeng road sweeper platform is available in light-duty and medium-duty configurations for different road widths, cleaning workloads and operating environments. Common chassis power options range from approximately 95HP to 190HP, with larger configurations also available. Different wheelbases, tank capacities and upper-body systems can be selected according to project requirements. Representative Dongfeng sweepers use 4×2 chassis and offer both left-hand-drive and right-hand-drive configurations. The sweeping system normally uses hydraulically driven side brushes to move dust, sand, leaves, stones and small road debris toward the suction nozzle. A centrifugal vacuum fan collects the material into the debris tank, while water-spray nozzles around the brushes reduce airborne dust. Depending on the configuration, the vehicle can also be equipped with an independent auxiliary diesel engine, high-pressure road washing system, rear spray system and hydraulically tipping debris tank for more efficient municipal cleaning operations.
- Tel+86 139 6411 3362
- WhatsApp+86 139 6411 3362
- Emailluisa@sdlvnengintel.com
Product Description
Product Specifications
| Item | Specification Range |
|---|---|
| Product Type | Road Sweeper Truck / Street Sweeper Truck / Municipal Sweeper Truck / Road Cleaning Truck |
| Brand | Dongfeng |
| Chassis Brand | Dongfeng |
| Common Chassis Series | Dongfeng Captain / Duolika / other Dongfeng commercial chassis available |
| Drive Type | 4×2 commonly available |
| Engine Power | Approx. 95HP / 120HP / 140HP / 170HP / 190HP available according to chassis and stock |
| Engine Brand | Dongfeng Cummins / Dongfeng Chaoyang / Yuchai or equivalent according to chassis |
| Engine Type | Four-cylinder / six-cylinder turbocharged and intercooled diesel engine according to configuration |
| Fuel Type | Diesel |
| Emission Standard | Euro II / Euro III / Euro IV / Euro V / Euro VI available according to model year and export market |
| Transmission Type | Manual transmission |
| Transmission Gears | 5-speed / 6-speed / 8-speed manual transmission according to chassis |
| Cab Type | Single-row cab |
| Seating Capacity | 2–3 persons |
| Steering | Left-hand drive or right-hand drive optional |
| Power Steering | Available |
| Air Conditioner | Available / optional |
| Overall Length | Approx. 5,000–8,500 mm |
| Overall Width | Approx. 1,650–2,500 mm |
| Overall Height | Approx. 2,200–3,200 mm |
| Wheelbase | Approx. 2,600–4,500 mm |
| Gross Vehicle Weight | Approx. 7–16 tons depending on chassis and superstructure |
| Curb Weight | Approx. 4,500–10,000 kg depending on configuration |
| Maximum Driving Speed | Approx. 90–110 km/h |
| Front Axle | Dongfeng steering axle according to chassis |
| Rear Axle | Dongfeng single drive axle according to chassis |
| Suspension | Front and rear leaf-spring suspension |
| Tire Model | 7.00R16 / 8.25R16 / 9.00R20 or equivalent according to chassis |
| Tire Quantity | 6 tires + spare tire |
| Brake System | Hydraulic / air brake system according to chassis |
| ABS | Available according to chassis |
| Electrical System | 24V |
| Sweeping System | Hydraulic sweeping brushes + vacuum suction system |
| Sweeping Brush Quantity | Commonly 4 brushes; other sweeping layouts available |
| Sweeping Brush Diameter | Approx. 700–900 mm depending on configuration |
| Brush Drive | Hydraulic motor drive |
| Brush Control | Hydraulic lifting, lowering and extension |
| Maximum Sweeping Width | Approx. 2.8–3.6 m |
| Sweeping Speed | Approx. 3–20 km/h |
| Maximum Cleaning Capacity | Approx. 50,000–72,000 m²/h depending on configuration |
| Sweeping Efficiency | Approx. ≥95% on representative configurations |
| Suction System | Vacuum suction nozzle |
| Suction Nozzle Layout | Central / rear-mounted suction nozzle according to design |
| Suction Nozzle Type | Floating suction nozzle / wide suction nozzle optional |
| Maximum Suction Debris Size | Up to approx. 100–120 mm on representative systems |
| Vacuum Fan | High-performance centrifugal fan |
| Fan Drive | Auxiliary diesel engine / hydraulic drive according to configuration |
| Auxiliary Engine | Independent diesel auxiliary engine available |
| Auxiliary Engine Power | Approx. 77–140HP depending on upper-body configuration |
| Debris Tank Capacity | Approx. 4–9 CBM |
| Water Tank Capacity | Approx. 1–7 CBM depending on road sweeper or washing-sweeper configuration |
| Combined Upper-Body Capacity | Approx. 5–16 CBM depending on specification |
| Debris Tank Material | Stainless steel / corrosion-resistant steel optional |
| Water Tank Material | Stainless steel / carbon steel / 304 stainless steel optional |
| Water Spray System | Spray nozzles installed around sweeping brushes and suction area |
| Dust Suppression | Water-spray dust suppression system |
| Water Pump | Low-pressure / high-pressure water pump according to configuration |
| High-Pressure Water Pump | Optional |
| High-Pressure Water Pressure | Up to approx. 12 MPa on washing-sweeper configurations |
| Front Water Spray | Optional |
| Front High-Pressure Cleaning | Optional |
| Rear Sprinkler | Optional |
| Side Spray | Optional |
| High-Pressure Spray Bar | Optional |
| Handheld Water Gun | Optional |
| Hose Reel | Optional |
| Debris Tank Discharge | Hydraulic tipping |
| Debris Tank Tipping Angle | Approx. 40–45° according to configuration |
| Rear Door | Hydraulic opening and locking |
| Hydraulic System | Hydraulic pump, motors, cylinders, valves and hydraulic oil tank |
| Sweeper Control | Cab-mounted electric / electro-hydraulic control |
| Working Mode | Sweeping + suction + water-spray dust suppression |
| Extended Working Mode | Sweeping + suction + high-pressure washing + rear spraying optional |
| Reversing Camera | Optional |
| Sweeping Monitoring Camera | Optional |
| Rear Warning Light | Optional |
| LED Arrow Warning Board | Optional |
| Working Lights | Available / optional |
| Air Conditioner | Available / optional |
| Toolbox | Available |
| Spare Tire | Available |
| Color | White, blue, green, yellow, orange or customized |
| Condition | Used / Refurbished / Customized according to stock |
| Customization | Chassis, engine, steering side, wheelbase, debris tank, water tank, tank material, sweeping brushes, suction system, auxiliary engine, washing system, water pump, cameras, warning lights, paint color, company logo and export markings |
Product Details
Typical Applications
- Urban street cleaning
- municipal sanitation
- city road sweeping
- highway cleaning
- industrial park cleaning
- factory road cleaning
- construction-site road cleaning
- mining-area paved-road cleaning
- coal plant cleaning
- power plant cleaning
- cement plant cleaning
- steel plant cleaning
- residential-community cleaning
- airport service-road cleaning
- port and terminal cleaning
- logistics park cleaning
- warehouse-area cleaning
- public square cleaning
- parking-area cleaning
- campus road cleaning
- dust and sand removal
- fallen-leaf collection
- gravel and small-debris collection
- roadside dust control
- daily municipal sanitation operations.
Available Configurations
- 95HP, 120HP, 140HP, 170HP or 190HP diesel chassis
- Dongfeng Captain, Dongfeng Duolika or other Dongfeng chassis
- Dongfeng Cummins, Dongfeng Chaoyang, Yuchai or equivalent diesel engine
- left-hand drive or right-hand drive
- Euro II / Euro III / Euro IV / Euro V / Euro VI emission configuration according to chassis
- different wheelbase options
- approximately 4–9CBM debris tank
- approximately 1–7CBM water tank
- stainless-steel debris tank
- carbon-steel or 304 stainless-steel water tank
- four-brush sweeping system
- hydraulic brush lifting and extension
- approximately 2.8–3.6m sweeping width
- independent auxiliary diesel engine
- high-performance centrifugal fan
- floating suction nozzle
- wide suction nozzle
- water-spray dust suppression system
- high-pressure water pump
- front high-pressure washing system
- rear sprinkler
- side spray
- high-pressure spray bar
- handheld water gun
- hose reel
- hydraulic debris-tank lifting
- hydraulic rear door
- debris-tank self-cleaning system
- reversing camera
- sweeping-operation monitoring camera
- LED warning light
- rear arrow warning board
- working lights
- air conditioner
- toolbox
- spare tire
- customized upper-body capacity, sweeping system, washing system, paint color, company logo and export markings.
Buyer Support
- Dongfeng Road Sweeper Truck combines a widely used Dongfeng commercial chassis with a professional sweeping, vacuum suction and water-spray dust-suppression system for municipal and industrial cleaning applications
- multiple light- and medium-duty chassis configurations provide flexibility for narrow urban streets, municipal roads, highways, industrial areas and large paved facilities
- approximately 95–190HP engine options meet different vehicle sizes, upper-body capacities and operating workloads
- approximately 2.8–3.6m sweeping width provides efficient cleaning coverage for different road conditions
- hydraulically driven sweeping brushes collect dust, sand, leaves, stones and small debris toward the suction area
- high-performance centrifugal fan systems provide strong vacuum suction for efficient road-debris collection
- independent auxiliary-engine configurations provide stable power to the sweeping and suction systems during continuous operation
- different debris-tank and water-tank capacities are available for light-duty city cleaning and larger municipal sanitation projects
- water-spray dust suppression helps control secondary airborne dust during sweeping
- high-pressure washing configurations can combine sweeping, suction and road-surface washing in a single vehicle
- hydraulic debris-tank tipping and rear-door systems simplify unloading and maintenance
- stainless-steel tank options provide improved corrosion resistance
- left-hand-drive and right-hand-drive configurations are available for different export markets
- chassis, engine, tank volume, sweeping system, suction system, high-pressure washing system, auxiliary engine, cameras, warning equipment, paint color and other configurations can be customized according to project requirements.

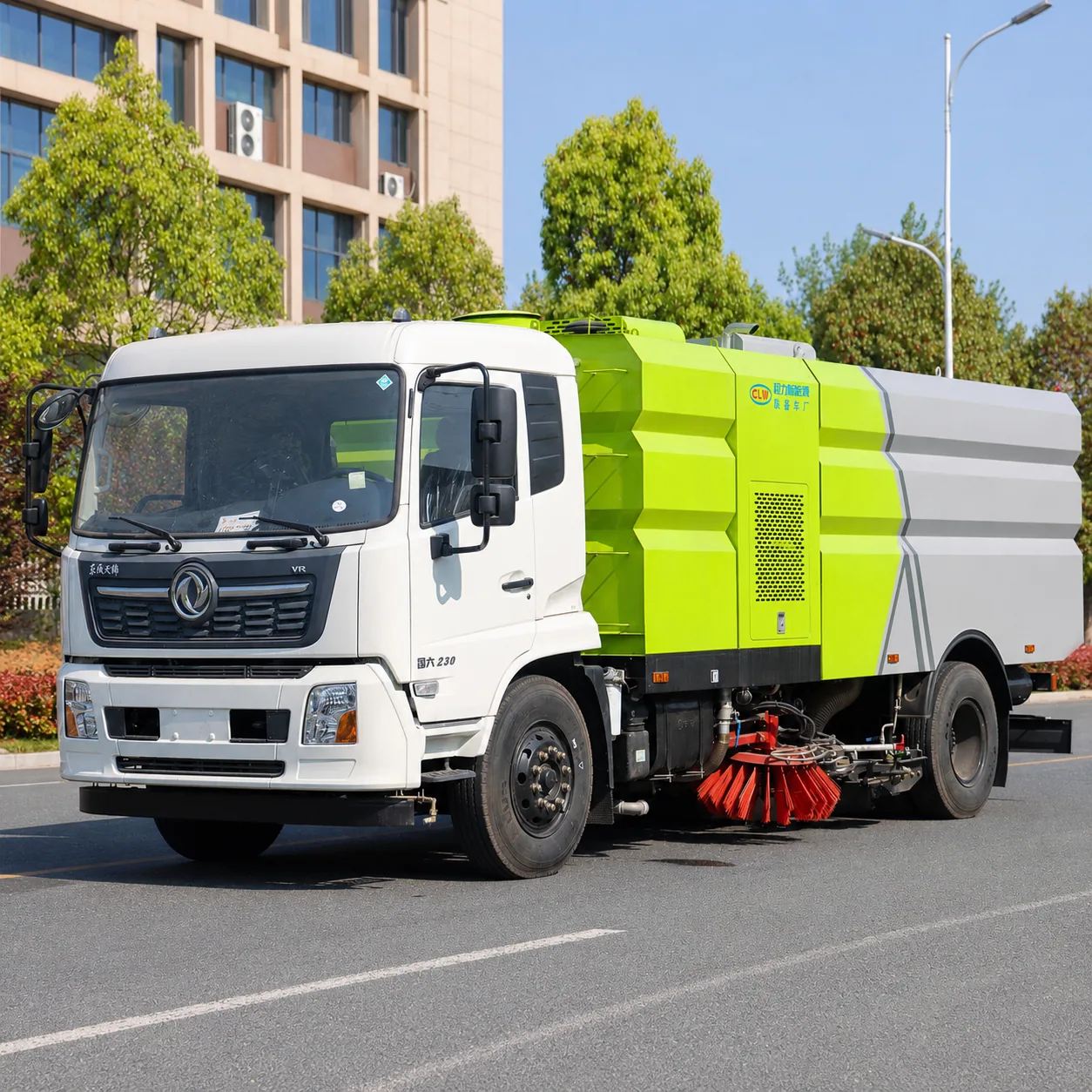

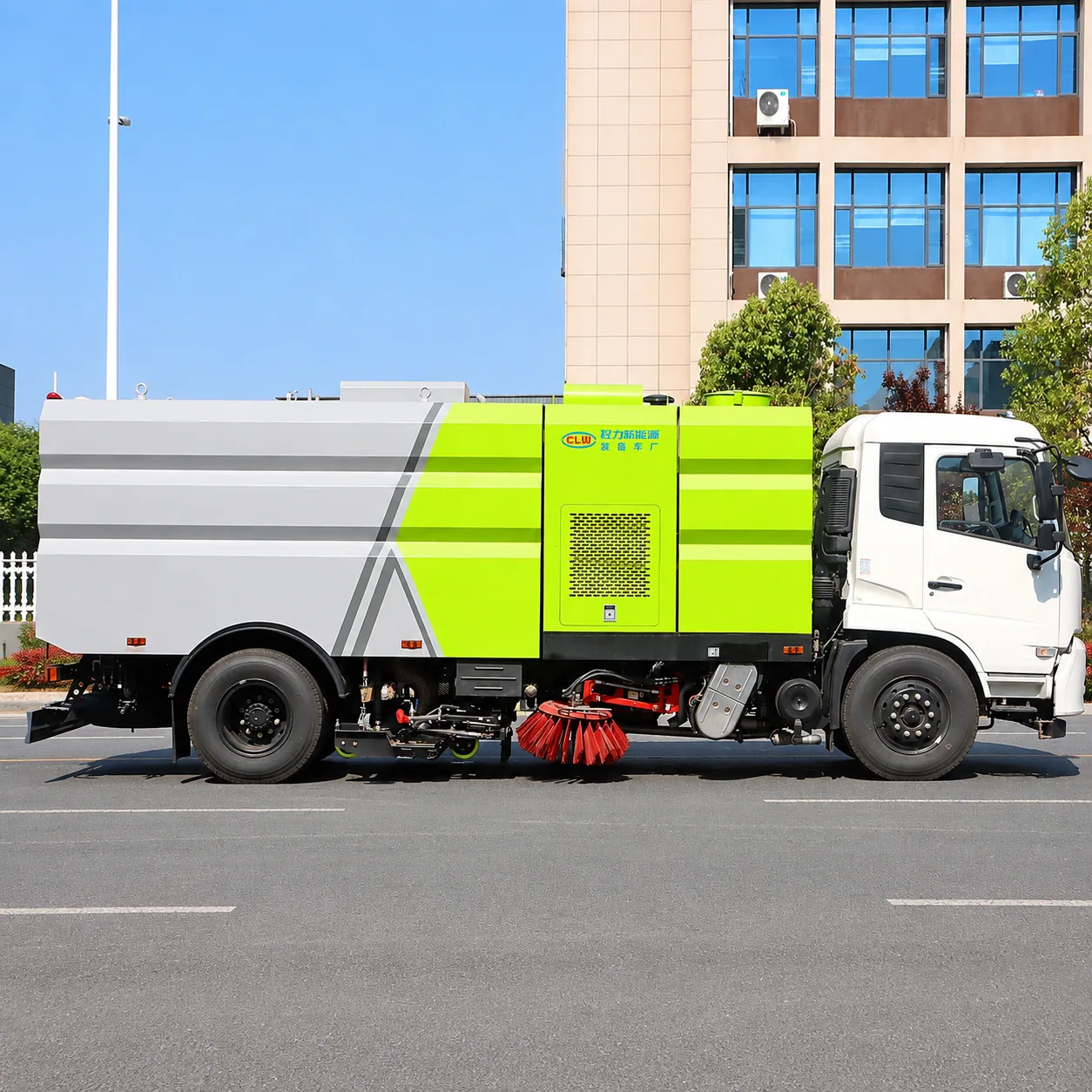

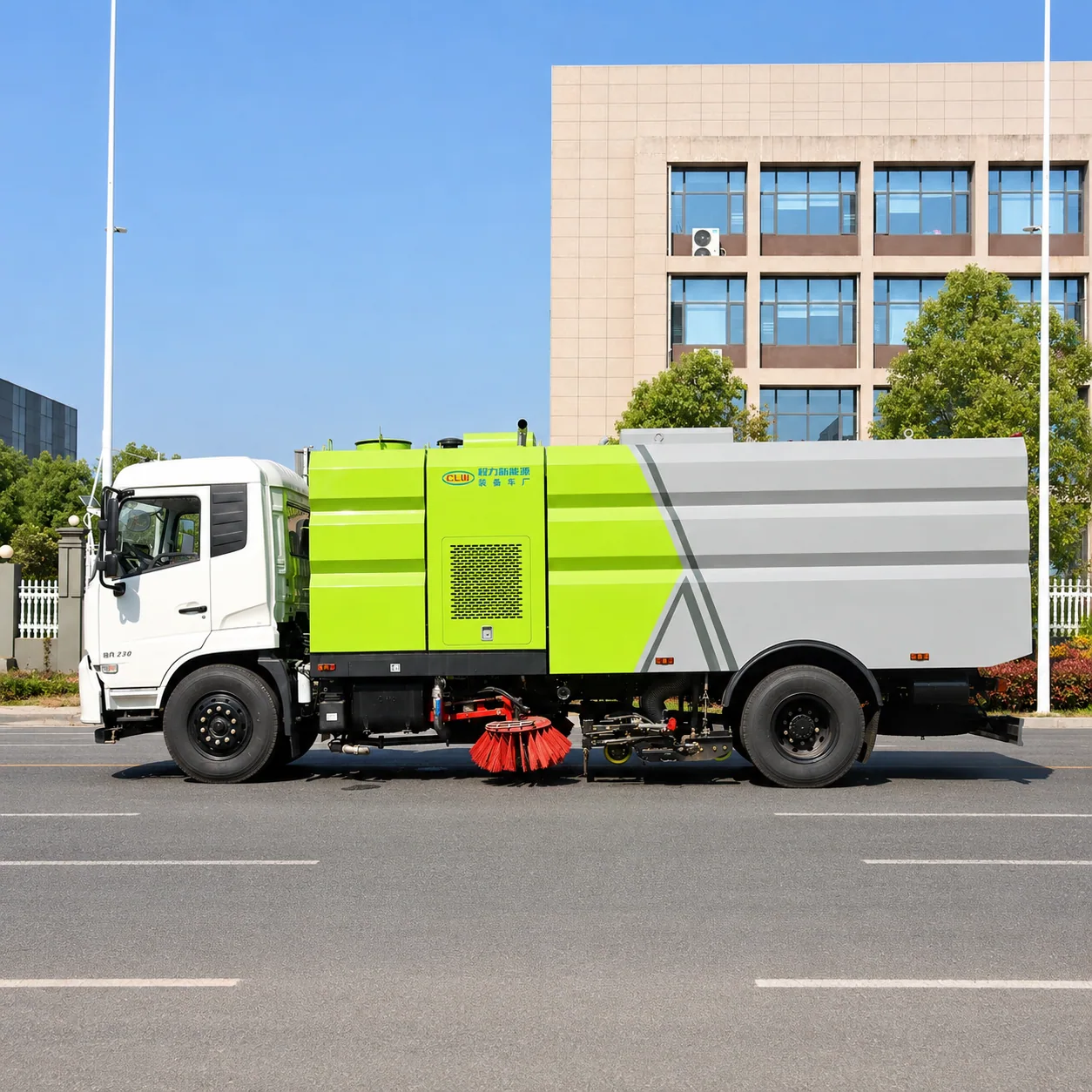

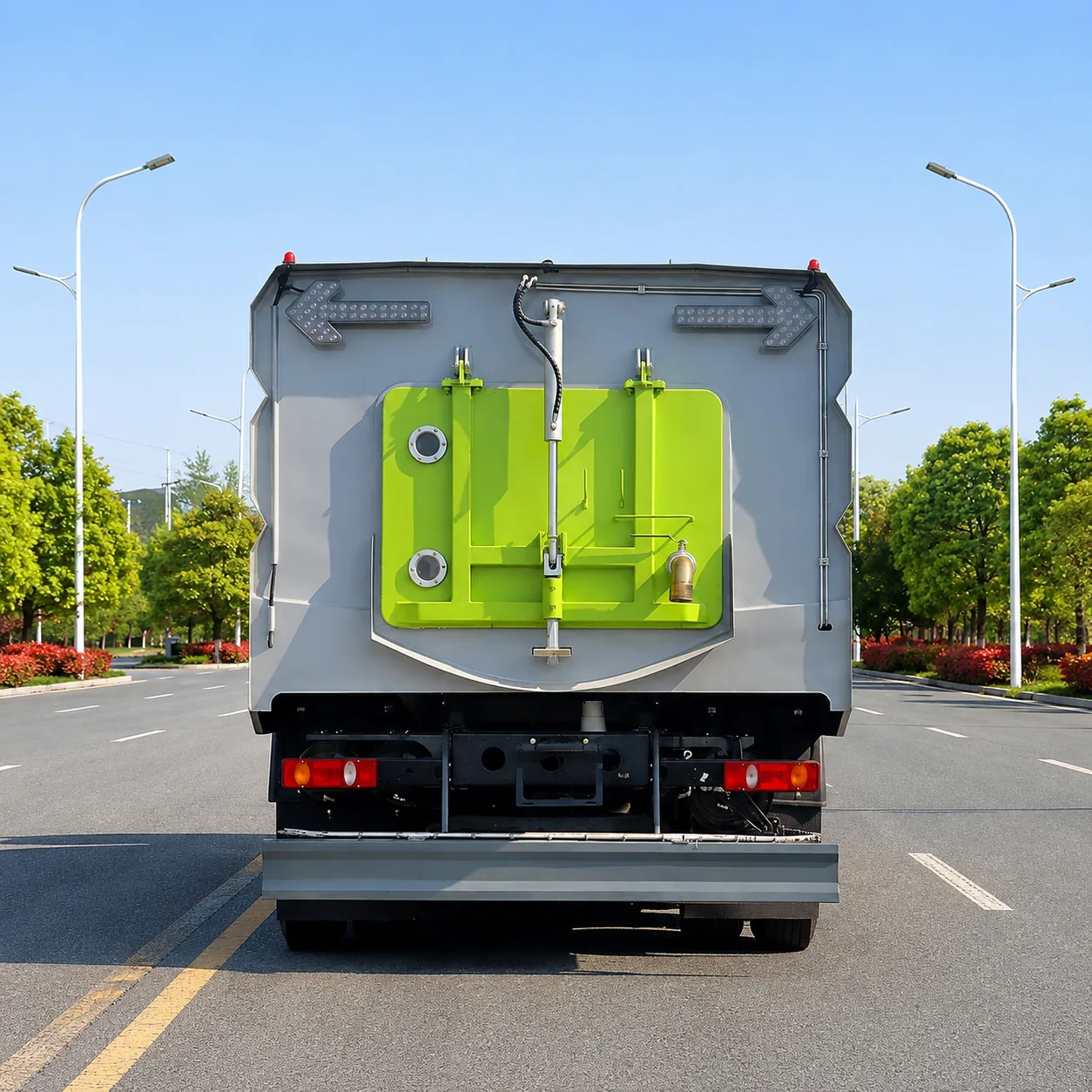

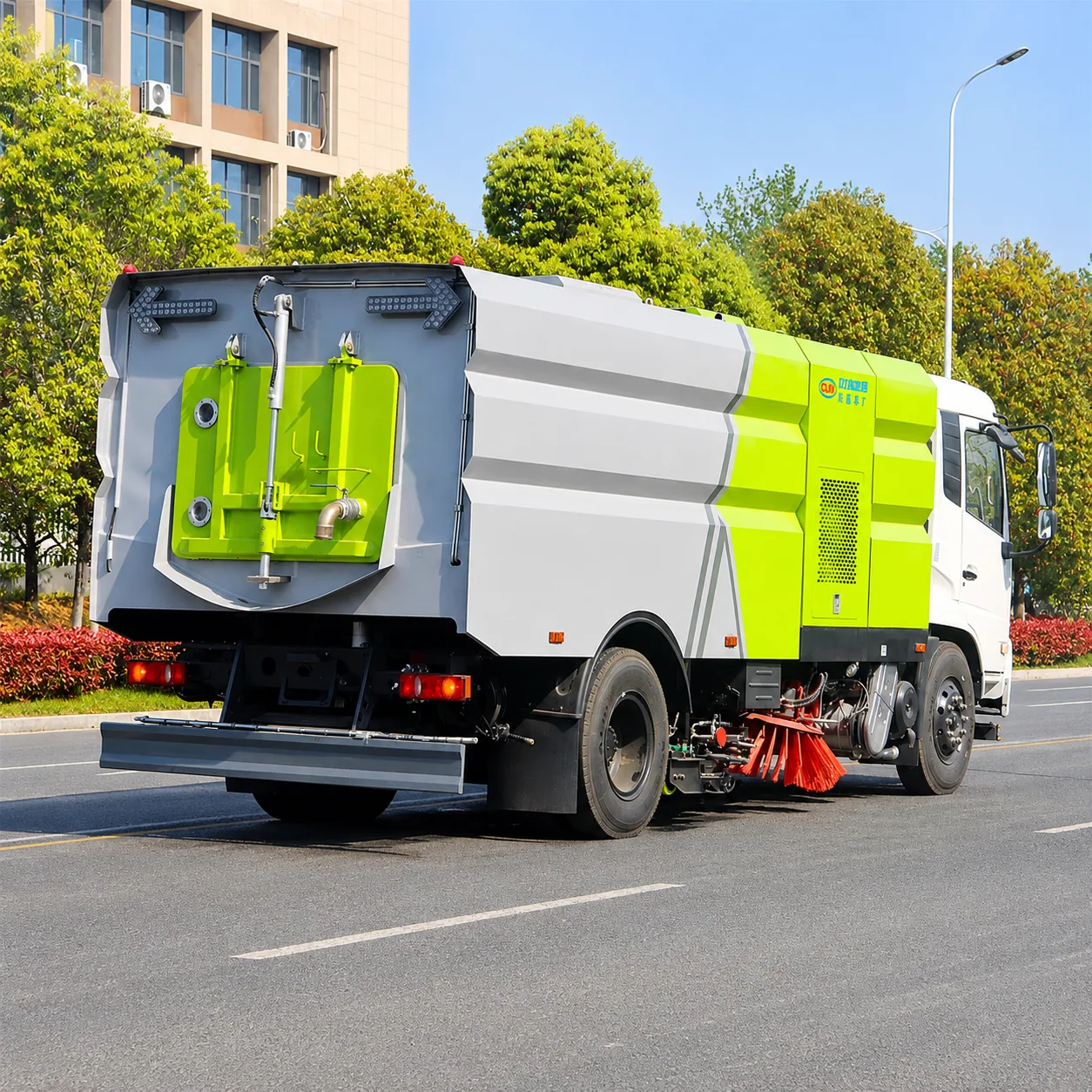

Product Display
